jbc Precision B-iRON Station User manual

Precision B·iRON Station
B·iRON 210
INSTRUCTION MANUAL

Packing List
The following items are included:
Power Cord ........................................................................................................................................................ 1 unit*
Ref. 0027380 120V - N. America, Taiwan 0027378 230V - United Kingdom
0027381 230V - India 0027379 230V - China
0027382 230V - Europe 0028103 100V - Japan
* according to purchased station reference.
Manual .............................. 1 unit
Ref. 0027779
Stand for
B 210 Precision Tool ... 1 unit
Ref. B210-SA
Brass Wool ..................... 1 unit
Ref. CL0300
already assembled in the stand
B 210 Precision Tool...1 unit
Ref. B210-A
This manual corresponds to the following references:
Console included*:
BI210UA 120 V - N. America, Taiwan
BI210IA 230 V - India
BI210A 230 V - Europe
BI210KA 230 V - United Kingdom
BI210HA 230 V - China
BI210JA 100 V - Japan
Cable USB ....................... 1 unit
Ref. 0028092
B·iRON Console ........ 1 unit*
*included according purchased
reference
Console not included*:
BI210UQA 120 V - N. America, Taiwan
BI210IQA 230 V - India
BI210QA 230 V - Europe
BI210KQA 230 V - United Kingdom
BI210HQA 230 V - China
BI210JQA 100 V - Japan
2

Wiper

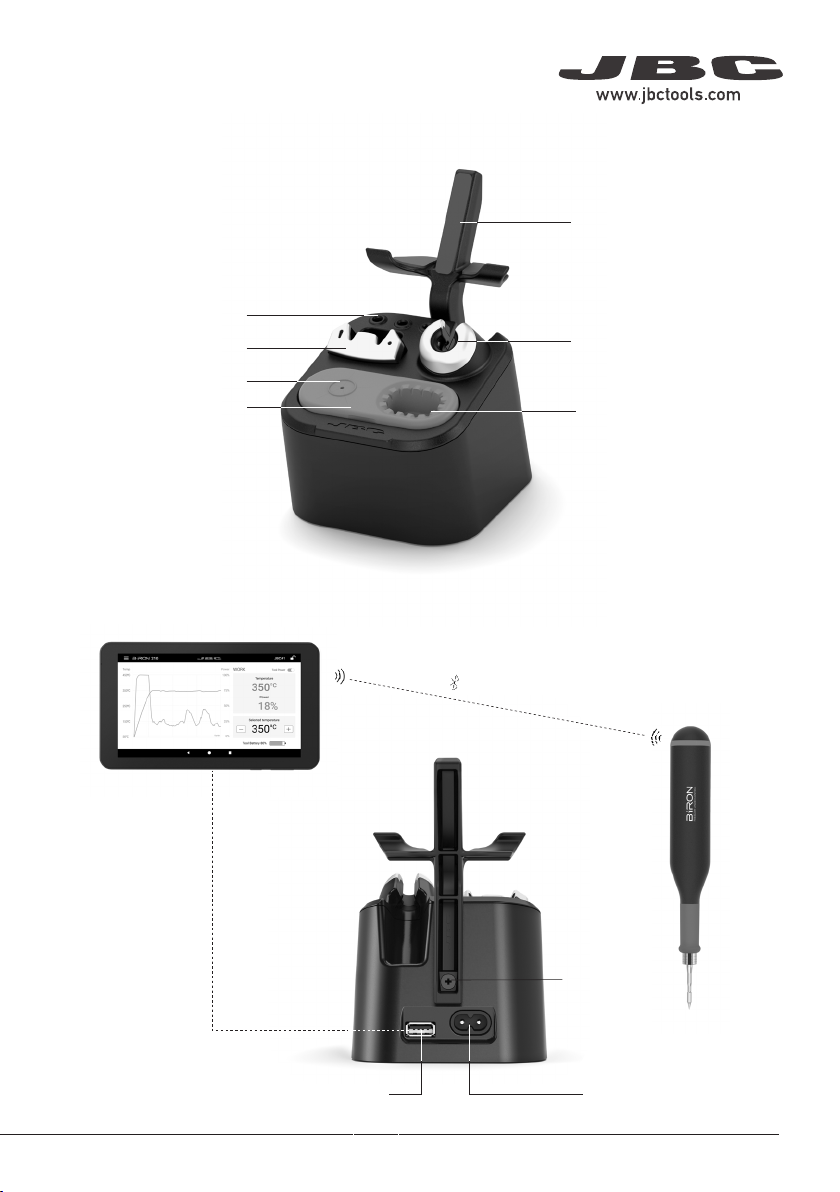

Features and Connections
B 210
Precision Tool
Console Support
Quick Tip Changer
Brass Wool (inside)
Tool Stand and Charger
Cartridge Storage
B·iRON Console
Note: for references without console blue tooth
device like PC or mobile can be connected.
Power Socket
USB Connector
USB Cable
(only for charging)
Bluetooth
Connection
Stand for
B 210 Precision Tool
Antisplash Membrane
Screw to
detach the
Support
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Quick Start
Connect the stand to the mains (100 - 240 V).
Insert a cartridge into the tool (1) and place it into
the charger on the stand (2).
Note: Charge the tool completely (30 min)
before using for the first time.
The status indicator light idicates as follows the
tool status:
- Green: Working / Soldering
- Green blinking: Charging
- Red: Low Battery
- Red blinking: No Cartridge
- No color: Power OFF
21
Status Indicator Light
1. Connection
2. Cartridge Insertion and Charging
4

JBC#1
Tool ID
JBC#1
Update File
Hardware
Serial Num.
Hardware
Software
Version
Software
Version
0026933
E10B0FCE4E7F
0026933
0000001
21.0.1
0000002
21.0.2
Update
JBC
9:41
210
JBC#1
JBC#1
****
Tool ID
PIN
Low
Medium
High
Sensibility / Handle feel
2 colors
Multicolor
Status light
Settings
Hibernation delay
00:30
Shutdown delay
01:00
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
JBC
9:41
210
JBC#1
Tool Status
Tool light Intensity
WORK
JBC
9:41
55%
Power
Temperature
320
ºC
210
JBC#1
Tool Battery 80%
350
ºC
Selected temperature
100%
100%
75%
100%
50%
100%
25%
100%
0%
100%
450ºC
350ºC
250ºC
150ºC
50ºC
10s/div
Temp
Power
Bluetooth
JBC_1001
E10B0FCE4E7F
Scanning...
JBC
9:41
210
JBC#1
Tool ID
E10B0FCE4E7F
Connecting Devices
Bluetooth
9:41
210
Work
Settings
Counters
Update
Change theme
Disconnect
JBC#1
Tool ID
JBC#1
Update File
Hardware
Serial Num.
Hardware
Software
Version
Software
Version
0026933
E10B0FCE4E7F
0026933
0000001
21.0.1
0000002
21.0.2
Update
JBC
9:41
210
JBC#1
JBC#1
****
Tool ID
PIN
Low
Medium
High
Sensibility / Handle feel
2 colors
Multicolor
Status light
Settings
Hibernation delay
00:30
Shutdown delay
01:00
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
JBC
9:41
210
JBC#1
Tool Status
Tool light Intensity
WORK
JBC
9:41
55%
Power
Temperature
320
ºC
210
JBC#1
Tool Battery 80%
350
ºC
Selected temperature
100%
100%
75%
100%
50%
100%
25%
100%
0%
100%
450ºC
350ºC
250ºC
150ºC
50ºC
10s/div
Temp
Power
Bluetooth
JBC_1001
E10B0FCE4E7F
Scanning...
JBC
9:41
210
JBC#1
Tool ID
E10B0FCE4E7F
Connecting Devices
Bluetooth
9:41
210
Work
Settings
Counters
Update
Change theme
Disconnect
3. Switching on Console / Device
Select the tool from the detection list.
Turn on the console/device and open the B·iRON
Application:
4. Selecting Tool
Console Work Screen
Temperature
and
Power Grafics
Application Menu Connected Tool
Lock Default
PIN 0105
Temperature
Selection
Detection List
Tool Status
Battery
Level
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Operation
The JBC Most Efficient Soldering System
This revolutionary technology is able to recover tip temperature extremely quickly. This allows the
user to work at a lower temperature. As a result, tip life increases by 5.
Work Charging and Hibernation
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
When the tool is in the stand
enters into Hibernation Mode
and cools down to room
temperature.
While the tool remains in the
stand, it charges.
Hibernation
When the tool is outside of the
stand and remains inactive (no
movement), the tool enters into
Hibernation mode and cools
down to room temperature.
To turn the tool on, put it back
into the stand.
Note: When the tool is lifted from stand the Soldering System acts as follows:
If the tool has been inactive
for a longer period of time, it is
turned off.
long time
inactive
Turned Off Turned On
6

Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Antisplash Membrane with Wiper
Ref. CL0301
The antisplash membrane prevents splashing and keeps
the work area clean.
Includes a temperature resistant wiper for removing
excess solder by gently tapping or wiping the cartridge
tip.
If the tip is very dirty, JBC recommends first cleaning it
with the wiper to remove excess solder and than with
the brass wool.
Brass Wool
Ref. CL0300
Very effective
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewetting.
Tap gently to remove excess solder. Use the slots to remove remaining particles.
Wiper
Tapping Wiping
7
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

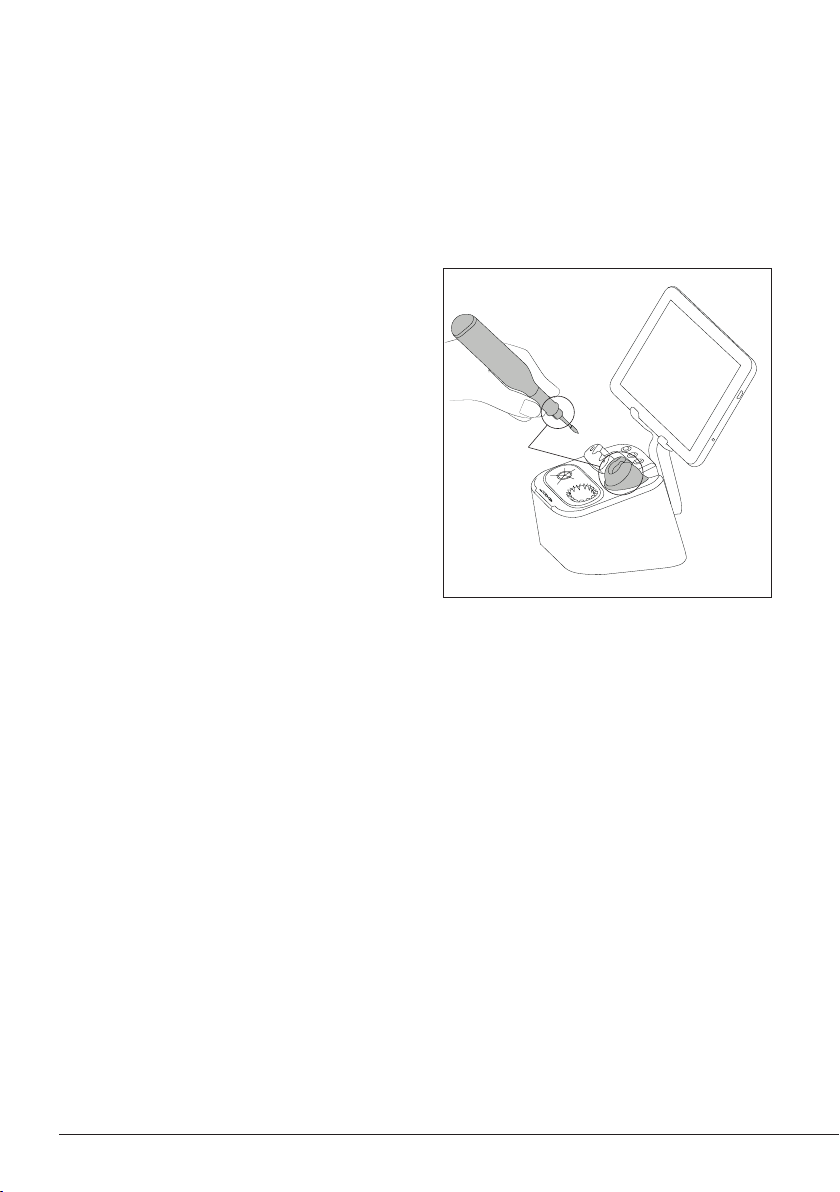

Replacing Brass Wool
1. Lifting 2. Replacing
Space
3. Assembling 4. Pressing on
Lift and remove the antisplash membrane. Replace the brass wool with a new one. Make
sure that the brass wool is on the far left and that
there is space for the wiper on the right.
Assemble the antisplash membrane in vertical
direction onto the stand.
Press the antisplash membrane down. Make sure
that the membrane is correctly inserted all around.
Note: The brass wool and the wiper position can be reversed by rotating the antisplash
membrane 180 degrees
8

ø 1
ø 1,5
ø 3,5
Quick Tip Changer
Save time and change cartridges safely without switching the station off.
1. Removing 2. Inserting 3. Fixing
Place the handpiece in the
extractor and pull to remove
the cartridge.
Place the handpiece on top of
the new cartridge and press
down slightly.
Use the holes for fixing the
cartridge.
*Important: Insert the cartridge up to the stop. The charging indicator light changes from red
to green when the cartridge is proprely inserted.
Conical Chisel Conical
Bent
Bevel
Compatible Cartridges
B 210 Pecision Tool works with C210 Cartridges.
Find the model that best suits your soldering needs in www.jbctools.com
until “stop”
9
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

JBC#1
Tool ID
JBC#1
Update File
Hardware
Serial Num.
Hardware
Software
Version
Software
Version
0026933
E10B0FCE4E7F
0026933
0000001
21.0.1
0000002
21.0.2
Update
JBC
9:41
210
JBC#1
JBC#1
****
Tool ID
PIN
Low
Medium
High
Sensibility / Handle feel
2 colors
Multicolor
Status light
Settings
Hibernation delay
00:30
Shutdown delay
01:00
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
JBC
9:41
210
JBC#1
Tool Status
Tool light Intensity
WORK
JBC
9:41
55%
Power
Temperature
320
ºC
210
JBC#1
Tool Battery 80%
350
ºC
Selected temperature
100%
100%
75%
100%
50%
100%
25%
100%
0%
100%
450ºC
350ºC
250ºC
150ºC
50ºC
10s/div
Temp
Power
Bluetooth
JBC_1001
E10B0FCE4E7F
Scanning...
JBC
9:41
210
JBC#1
Tool ID
E10B0FCE4E7F
Connecting Devices
Bluetooth
9:41
210
Work
Settings
Counters
Update
Change theme
Disconnect
Menu Settings
The B·iRON Console offers an intuitive user interface which provides quick access to station
parameters.
Original PIN: 0105
Parameteter
Tool ID
PIN
Sensibility / Handle feel
Hibernation Delay
Shutdown Delay
Sleep Mode /
Sleep Temperature
Status Light
Tool Status
Tool Light Intensity
Description
Allows to change the tool identifier.
Enable/disable PIN request when modifying parameters. The PIN must be
entered every time a parameter is changed.
Allows to change the tool sensibility to detect the movement.
Set hibernation delay from 5 to 60 sec. Countdown starts when no
movement ist detected.
Set shutdown delay from 1 to 10 min. Countdown starts when no
movement ist detected.
Set sleep mode ON/OFF. The tip temperature will drop to the selected
sleep temperature.
Choose between 2 different modes to show tool status.
The tool status light indicates as follows the tool status:
- Green: working / soldering - Green blinking: charging
- Red: low battery - Red blinking: no cartridge
- No color: power OFF
Allows to change the tool light brightness.
10

JBC#1
Tool ID
JBC#1
Update File
Hardware
Serial Num.
Hardware
Software
Version
Software
Version
0026933
E10B0FCE4E7F
0026933
0000001
21.0.1
0000002
21.0.2
Update
JBC
9:41
210
JBC#1
JBC#1
****
Tool ID
PIN
Low
Medium
High
Sensibility / Handle feel
2 colors
Multicolor
Status light
Settings
Hibernation delay
00:30
Shutdown delay
01:00
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
JBC
9:41
210
JBC#1
Tool Status
Tool light Intensity
WORK
JBC
9:41
55%
Power
Temperature
320
ºC
210
JBC#1
Tool Battery 80%
350
ºC
Selected temperature
100%
100%
75%
100%
50%
100%
25%
100%
0%
100%
450ºC
350ºC
250ºC
150ºC
50ºC
10s/div
Temp
Power
Bluetooth
JBC_1001
E10B0FCE4E7F
Scanning...
JBC
9:41
210
JBC#1
Tool ID
E10B0FCE4E7F
Connecting Devices
Bluetooth
9:41
210
Work
Settings
Counters
Update
Change theme
Disconnect
JBC#1
Tool ID
JBC#1
Update File
Hardware
Serial Num.
Hardware
Software
Version
Software
Version
0026933
E10B0FCE4E7F
0026933
0000001
21.0.1
0000002
21.0.2
Update
JBC
9:41
210
JBC#1
JBC#1
****
Tool ID
PIN
Low
Medium
High
Sensibility / Handle feel
2 colors
Multicolor
Status light
Settings
Hibernation delay
00:30
Shutdown delay
01:00
Sleep mode
Sleep temperature
150ºC
Working
Low battery
Power OFF
Charging
No cartridge
JBC
9:41
210
JBC#1
Tool Status
Tool light Intensity
WORK
JBC
9:41
55%
Power
Temperature
320
ºC
210
JBC#1
Tool Battery 80%
350
ºC
Selected temperature
100%
100%
75%
100%
50%
100%
25%
100%
0%
100%
450ºC
350ºC
250ºC
150ºC
50ºC
10s/div
Temp
Power
Bluetooth
JBC_1001
E10B0FCE4E7F
Scanning...
JBC
9:41
210
JBC#1
Tool ID
E10B0FCE4E7F
Connecting Devices
Bluetooth
9:41
210
Work
Settings
Counters
Update
Change theme
Disconnect
- Download the JBC update file from: https://www.jbctools.com/jbcsoftware.html
- Connect the console/device via USB connection to the PC.
- On the console/device notification bar at the top, open “USB Connection Settings” and select “MTP”.
- On the PC copy the downloaded file to “IT706/internal share storage/JBC”.
- Once copying is finished, disconnect the console/device from the PC.
- On the console/device open the Application (1) and then select “update” (2) on the Application Menu.
- Use the download button of the version to be downloaded.
B·iRON Update
21
Download
Button
Application
Menu
11
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Before carrying out maintenance, always extract the cartridge and disconnect it from the mains.
Allow the equipment to cool down.
- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the charging
works properly.
- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer
to the solder joint.
- Do not use liquid such as alcohol, thinner or
benzene to clean the console.
- Repairs should only be performed by a JBC
authorized technical service.
Maintenance
Clean
periodically
12

Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to charge the batteries.
- The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the
station is turned off.
- Do not leave the appliance unattended when it is on.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensory or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
- Do not expose the console to high temperatures, humidity or dust. Avoid direct sunlight.
- Do not drop the console as it may cause damage or malfunction.
- Do not disconnect your device when it is in file transfer mode.
- Do not use the console in places were electronic devices are resticted.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
13
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Notes
14

Specifications
B·iRON 210
Precision B·iRON Station
Ref.: BI210UA 120 V - N. America Ref.: BI210KA 230 V - United Kingdom
Ref.: BI210IA 230 V - India Ref.: BI210HA 230 V - China
Ref.: BI210A 230 V - Europe Ref.: BI210JA 100 V - Japan
Stand:
- Input: 100 V - 240 V 50/60 Hz
- Power: 15 W
- Tool output: 12 V / 350 mA
- USB output: 5 V / 1000 mA
Tool:
- Output Peak Power: 24 W
- Battery: Li-Ion 7.4 V / 3 A
- Charge Time: 40 minutes
- Temperature Range: 200 - 450 °C / 390 - 840 °F
- Idle Temp. Stability (still air): ±1.5 °C / ±3 °F
- Temp. Accuracy: ±3% (Using reference cartridge)
- Connections: Bluetooth Low Energy (BLE)
- Ambient Operating Temp: 10 - 50 °C / 50 - 122 °F
- Total Net Weight: 1.34 kg / 2.95 lb
- Total Package Dimensions / Weight: 265 x 223 x 160 mm / 1.90 kg
- (L x W x H) 10.43 x 8.78 x 6.30 in / 4.18 lb
Complies with CE standards
Not grounded device. No ESD discharge feature.
15
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 30 days of purchase.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
0027779-1121
