Jensen VM9224BT User manual

1
VM9224BT
VM9224BT Head Unit
Left and Right Double DIN
Mounting Brackets
Double DIN Half Sleeve Install Bracket
External Microphone
Two Custom Cosmetic Trim Rings
Parking Brake Wire
Hardware Bag
Speaker Output Harness
Power Input Harness
2 x Accessory Harness
Installation Guide
What’s in the Box
You will need these tools and supplies to
install your VM9224BT:
• Torx type, flat-head and Philips
screwdrivers
• Wire cutters and strippers
• Tools to remove existing radio (screw
driver, socket wrench set or other tools)
• Electrical tape
• Crimping tool
• Volt meter/test light
• Crimp connections
• 18 gauge wire for power connections
• 16 – 18 gauge speaker wire
Tools and Supplies
Installation Guide
WARNING! Never install this unit where operation and viewing could interfere with
safe driving conditions.
EJECT
MUTE
VM9224BT
A/V INPUT

2
Optional Equipment
• NAV102: Allows you to access navigation features. All installation and operating instructions are included
with the navigation module.
• Rear Camera
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to in-
stallation.
NOTE: If the VM9224BT is to be installed in a car equipped with an on-board drive or navigation computer, do
not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these
conditions, use extra caution during installation to avoid causing a short circuit.
Replacing the Fuse
When replacing the fuse, use a new 20A replacement fuse. Using a fuse with an improper rating could damage
the unit and cause a fire.
ISO-DIN Installation
This unit is designed to fit into a 2.0 DIN dashboard opening, found in many imported cars. The unit has
threaded holes in the chassis side panels which may be used with the original factory mounting brackets of
some Toyota, Nissan, Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the radio to the dashboard.
Please consult with your local car stereo specialty shop for assistance on this type of installation.
Remove the existing factory radio from the dashboard or
center console mounting. Save all hardware and brackets
as they will be used to mount the new radio.
Remove the factory mounting brackets and hardware from
the existing radio and attach them to the new radio.
CAUTION: Do not exceed M5 X 6MM screw size. Longer
screws may damage components inside the chassis.
Place the radio in front of the dashboard opening so the
wiring can be brought through the mounting sleeve. Fol-
low the wiring diagram carefully and make certain all con-
nections are secure and insulated with wire nuts or electri-
cal tape. After completing the wiring connections, plug the
ISO connectors into the mating sockets on the rear of the
chassis. Turn the unit on to confirm operation (vehicle ignition switch must be “on”). If the unit does not
operate, re-check all wiring until the problem is corrected.
Mount the new radio assembly to the dashboard or center console using the reverse procedure in step 1.
CAUTION! Be careful not to damage the car wiring.
NOTE: It is the end-users responsibility to install and operate this unit in a manner in accordance with local,
state and federal laws. The PARKING BRAKE wire MUST BE CONNECTED as directed in the manual.
CAUTION: Do not block the cooling fan exit. If blocked, the unit may overheat and become damaged.
1
2
3
4
EJECT
MUTE

3

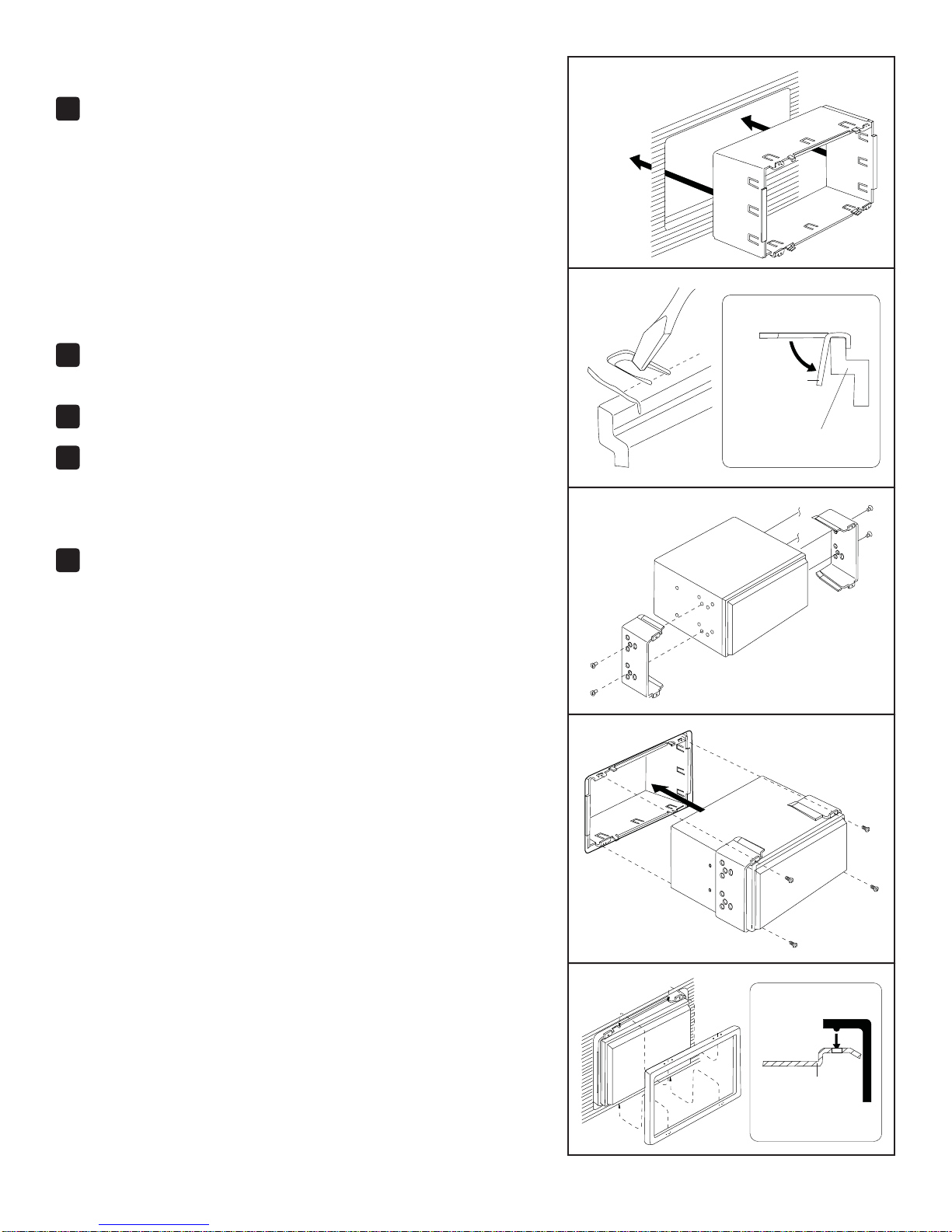

Installation Using Half-Sleeve
Install half-sleeve in the dashboard.
a. Install adapter if necessary (optional).
b. Install half-sleeve into adapter or dashboard (use only
the supplied screws). Do not force the sleeve into the
opening or cause it to bend or bow.
WARNING! Only connect the unit to a 12-volt power
supply with proper grounding.
c. Locate the series of bend-tabs along the top, bottom
and sides of the mounting sleeve. With the sleeve fully
inserted into the dashboard opening, bend as many of
the tabs outward as necessary so that the sleeve is
firmly secured to the dashboard.
Use the M5 x 6 screws (provided) to install the mounting
brackets to each side of the radio using the holes indicated
in the diagram. DO NOT USE OTHER SCREWS.
Place the radio in front of the dashboard opening so the
wiring can be brought through the mounting sleeve.
Complete wiring as illustrated in the wiring diagram. Once
the wiring is complete, reconnect the battery negative
terminal. If there is no ACC available, connect the ACC lead
to the power supply with a switch.
CAUTION! Be careful not to damage the car wiring.
After completing the wiring connections, turn the unit on
to confirm operation (ignition switch must be on). If unit does
not operate, recheck all wiring until problem is corrected.
Once proper operation is achieved, turn off the ignition
switch and proceed with final mounting of the chassis.
a. Connect wiring adapter to existing wiring harness.
b. Connect antenna lead.
c. Carefully slide the radio into the half-sleeve, making
sure it is right-side-up. Use the supplied screws to at-
tach the radio to the half sleeve.
Using the Cosmetic Trim Ring
Two cosmetic trim rings are packaged with the head unit for
installation flexibility. This unit will fit into most import dashes
with little or no modification to the dash board/cavity. Some US
domestic vehicle dashes will accept a Double-DIN chassis, but
there is usually a small gap between the radio and dash piece af-
ter installation is complete. In this case, use the appropriate trim
ring to conceal any gaps that may be present.
NOTE: For proper operation of the CD/DVD player, the chassis
must be mounted within 30° of horizontal. Make sure the unit
is mounted within this limitation.
1
2
3
4
5
DASHBOARD
TAB
Step 1-b
Step 1-c
Step 2
Step 5-c
MOUNTING
SLEEVE
TRIM RING

4
Wiring Diagram
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or
have the installation handled by an experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
GPS
DVB-T
GREEN(+) GREEN/BLACK(-)
WHITE(+)
WHITE/BLACK(-)
GREY(+)
GREY/BLACK(-)
PURPLE(+)
PURPLE/BLACK(-)
BATTERY
+
-
IGNITION SWITCH
RED
YELLOW
BLACK
BROWN
(-)
BROWN
(-)
Cell Phone
Cell Phone
GND
MUTE
BATT
ACC
REAR R
FRONT L
REAR L
FRONT R
FRONT R
FILTER/FUSE
(20A)
BLUE
GREEN
YELLOW
PINK (-)
BRAKE
BLUE/WHITE
BLUE
P.CONT
ANT.CONT
ANT.CONT
Steering Wheel Control
(SWC) requires PAC
SWI-PS Interface Adapter,
Sold Separately
Rear View
Video Camera
YELLOW
External Power Amplifier
BLUE
BLUE
RED
WHITE
RED
WHITE
Antenna
YELLOW
Rear Video
FRONT L
FRONT R
REAR L
REAR R
SUBWOOFER
SUBWOOFER
VIDEO OUT
RADIO ANT
iPod
GREEN/WHITE (+)
GREEN/WHITE (+)
REVERSE
Auto antenna
control (connect
to antenna control
lead and power
supply of antenna
amplifier)
CAMERA-VIDEO
SWC
NAV BUS
3.5mm Stereo Socket
External
Microphone
MICROPHONE
Antenna Jack
