Jet HP-5A User manual

Hydraulic Press Parts List
Models HP-5A/15A/35A

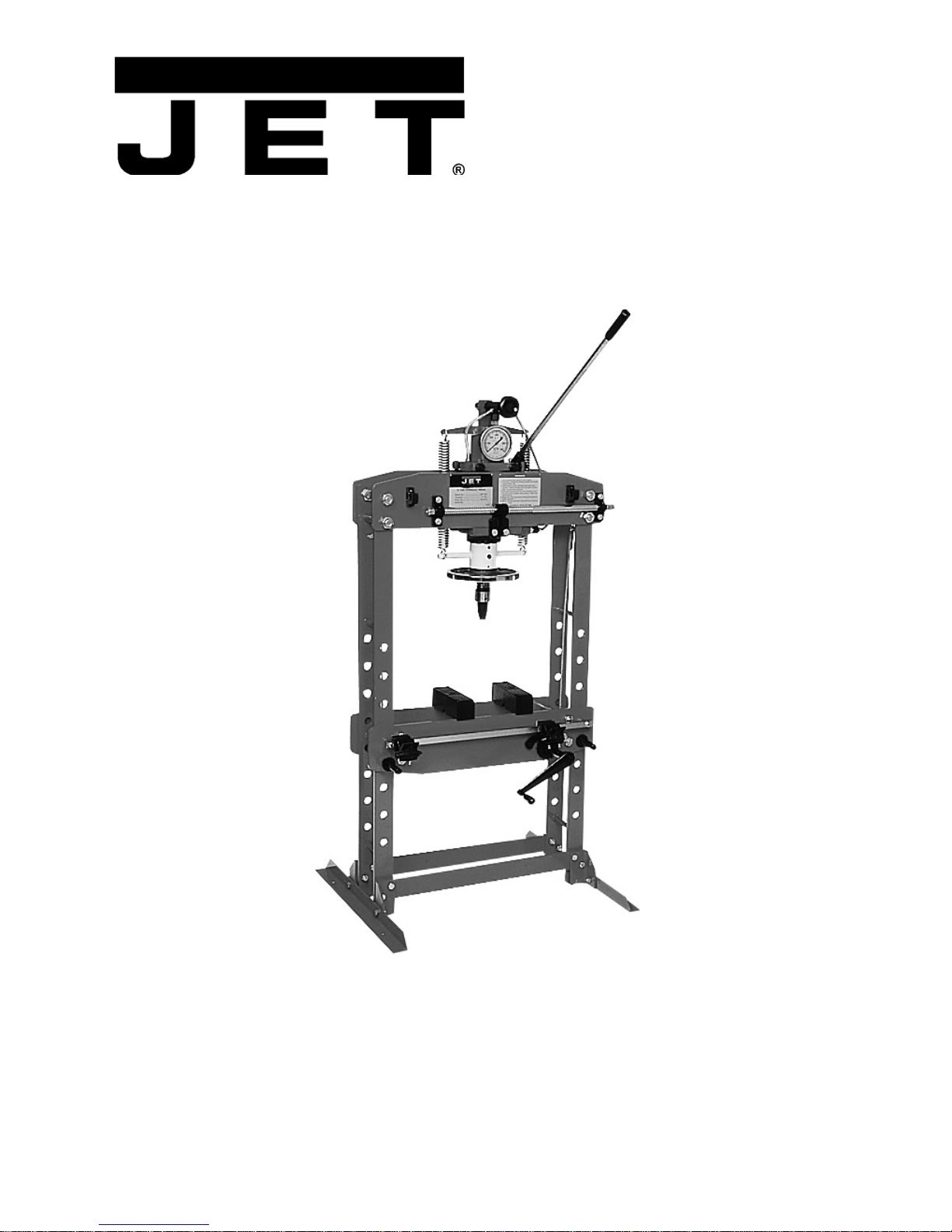

Model HP-15A shown
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-331406
Ph.: 800-274-6848 Revision B 12/09
www.waltermeier.com Copyright © 2009 Walter Meier (Manufacturing) Inc.

2
Warranty and Service
Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of
our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any
of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or
perform routine maintenance and major repair on your JET
® tools. For the name of an Authorized Service Center in
your area call 1-800-274-6848.
MORE INFORMATION
Walter Meier is consistently adding new products to the line. For complete, up-to-date product information, check with
your local Walter Meier distributor, or visit waltermeier.com.
WARRANTY

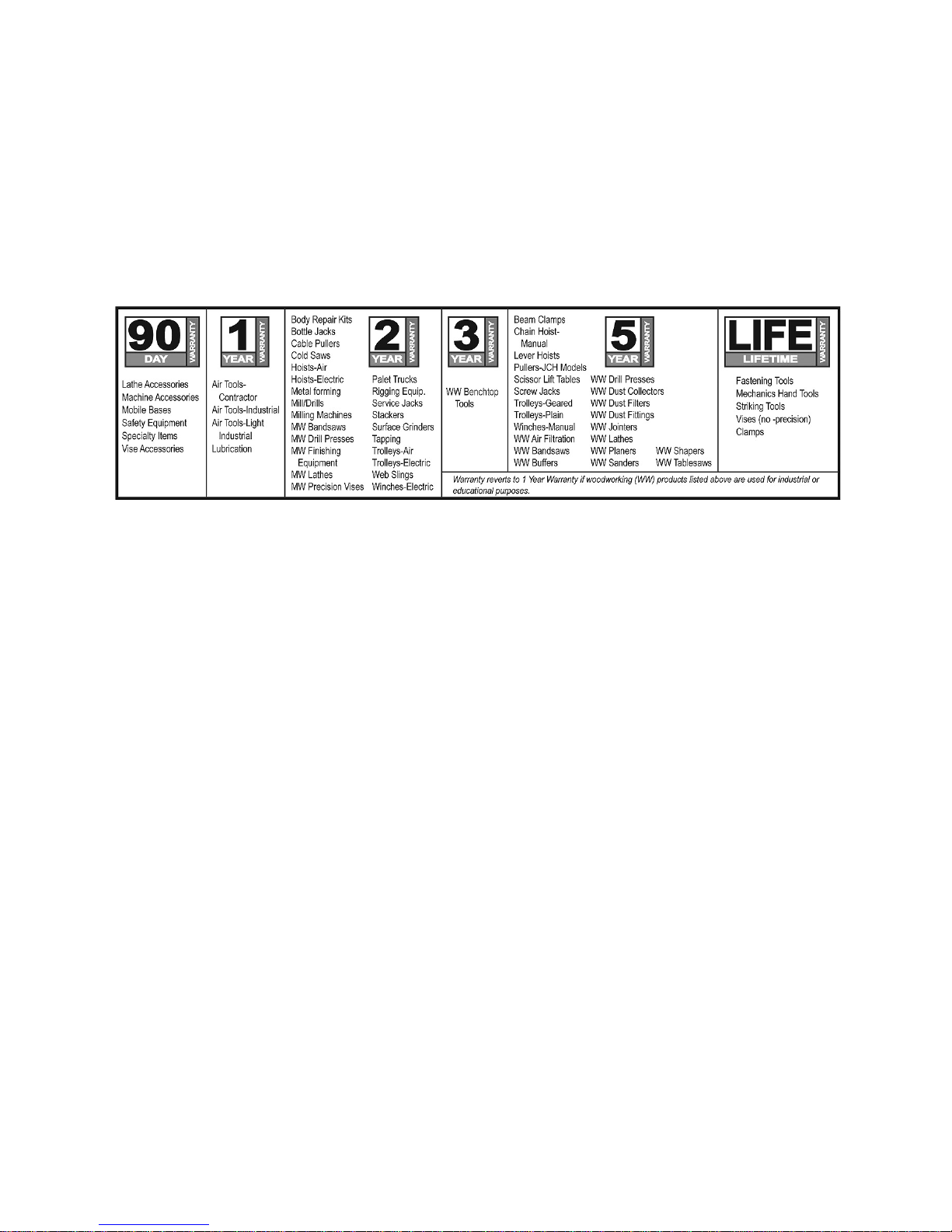

JET products carry a limited warranty which varies in duration based upon the product (MW = Metalworking, WW =
Woodworking).
WHAT IS COVERED?
This warranty covers any defects in workmanship or materials subject to the exceptions stated below. Cutting tools,
abrasives and other consumables are excluded from warranty coverage.
WHO IS COVERED?
This warranty covers only the initial purchaser of the product.
WHAT IS THE PERIOD OF COVERAGE?
The general JET warranty lasts for the time period specified in the product literature of each product.
WHAT IS NOT COVERED?
Five Year Warranties do not cover woodworking (WW) products used for commercial, industrial or educational
purposes. Woodworking products with Five Year Warranties that are used for commercial, industrial or education
purposes revert to a One Year Warranty. This warranty does not cover defects due directly or indirectly to misuse,
abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
HOW TO GET SERVICE
The product or part must be returned for examination, postage prepaid, to a location designated by us. For the name
of the location nearest you, please call 1-800-274-6848.
You must provide proof of initial purchase date and an explanation of the complaint must accompany the
merchandise. If our inspection discloses a defect, we will repair or replace the product, or refund the purchase price,
at our option. We will return the repaired product or replacement at our expense unless it is determined by us that
there is no defect, or that the defect resulted from causes not within the scope of our warranty in which case we will,
at your direction, dispose of or return the product. In the event you choose to have the product returned, you will be
responsible for the shipping and handling costs of the return.
HOW STATE LAW APPLIES
This warranty gives you specific legal rights; you may also have other rights which vary from state to state.
LIMITATIONS ON THIS WARRANTY
WALTER MEIER (MANUFACTURING) INC., LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE
LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OR
MERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
WALTER MEIER SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR
FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF
OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Walter Meier sells through distributors only. The specifications in Walter Meier catalogs are given as general
information and are not binding. Members of Walter Meier reserve the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET
® branded products are not sold in Canada by Walter Meier.

3
Table of Contents
Warranty and Service..........................................................................................................................2
Table of Contents ...............................................................................................................................3
Warning .............................................................................................................................................4
Specifications.....................................................................................................................................5
Assembly...........................................................................................................................................5
Replacement Parts.............................................................................................................................5
HP-5A Head Assembly....................................................................................................................6
HP-5A Head Assembly – Parts List...................................................................................................7
HP-5A Frame Assembly...................................................................................................................8
HP-5A Frame Assembly – Parts List.................................................................................................9
HP-15A Head Assembly ................................................................................................................10
HP-15A Head Assembly – Parts List...............................................................................................11
HP-15A Frame Assembly...............................................................................................................13
HP-15A Frame Assembly – Parts List.............................................................................................14
HP-35A Head Assembly ................................................................................................................15
HP-35A Head Assembly – Parts List...............................................................................................16
HP-35A Frame Assembly...............................................................................................................18
HP-35A Frame Assembly – Parts List.............................................................................................19

4
Warning
1. Read and understand all safety warnings.
2. Replace the warning labels if they become obscured or removed.
3. This press is designed and intended for use by properly trained and experienced personnel only. If
you are not familiar with the proper and safe operation of an hydraulic press, do not use until proper
training and knowledge has been obtained
4. Do not operate this press beyond its rated capacity.
5. This press is designed for pressing, bending, and straightening purposes only.
6. Do not operate this tool while tired or under the influence of drugs, alcohol or any medication.
7. Check the press for loose or damaged parts before each operation. Replace damaged parts and
tighten all loose bolts before operating.
8. Some parts being pressed may have a tendency to pop out of the press or explode under pressure.
Protect yourself accordingly.
9. Always wear approved safety glasses/face shields and personal safety equipment. (Everyday
eyeglasses only have impact resistant lenses; they are not safety glasses.)
10. Failure to comply with these warnings may result in serious injury.

5
Specifications
Model Number.............................HP-5A...................................HP-15A..................................HP-35A
Stock Number ............................331406....................................331416 .................................. 331431
Capacity (ton)......................................5........................................... 15..........................................35
Ram Diameter (in.) ........................ 1-3/4....................................... 2-1/2............................................3
Piston Stroke (in.)................................ 4....................................... 4-1/2......................................4-3/4
Screw Stroke (in.)................................ 3....................................... 3-1/8............................................4
Work Table (in.)...................... 19 x 5-1/2...........................24-3/4 x 7-1/2.............................31 x10-3/8
Lateral Movement (in.)...................... NA....................................10-3/16..........................................15
Vertical Travel (in.)........................18-3/4....................................22-3/16....................................22-1/4
Base Size (in.)...................... 23-1/2 x 26.........................33-7/8 x 29-1/2.......................43-1/2 x 55-1/2
Height (in.) ...................................51-1/2........................................... 65..........................................68
Net Weight (lbs.)...............................154..........................................431........................................704
The above specifications were current at the time this manual was published, but because of our policy of
continuous improvement, Walter Meier (Manufacturing) Inc., reserves the right to change specifications at
any time and without prior notice, without incurring obligations.
Assembly
1. Bolt the stand feet to the stand frame with the enclosed hardware.
2. Replace the hex filler plug (part #17 – HP-5A, part #8A – HP-15A, and part #8D – HP-35A) with the
enclosed vented plug.
Replacement Parts
To order parts or reach our service department, call 1-800-274-6848, Monday through Friday (see our
website for business hours, www.waltermeier.com). Having the Model Number and Serial Number of your
machine available when you call will allow us to serve you quickly and accurately.

6

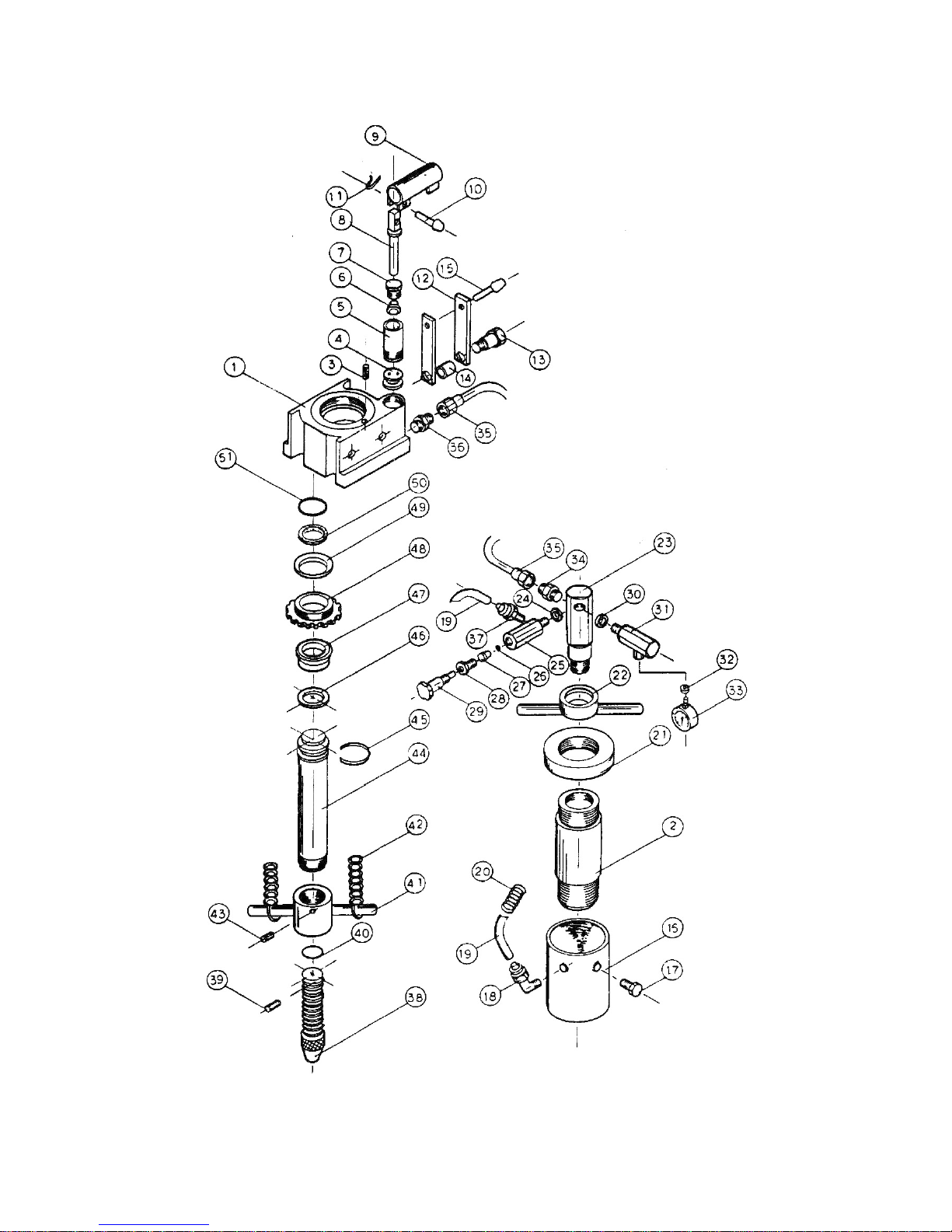

HP-5A Head Assembly

7
HP-5A Head Assembly – Parts List
Index No. Part No. Description Size Qty
1.............. HP5A-1...................Hydraulic Base...................................................................................1
2.............. HP5A-2...................Cylinder .............................................................................................1
3.............. HP5A-3...................Base Filter **......................................................................................1
4.............. HP5A-4...................Single Action Valve.............................................................................1
5.............. HP5A-5...................Pump Cylinder....................................................................................1
6.............. HP5A-6...................Cup Seal ** ........................................................................................1
7.............. HP5A-7...................Release Valve Assembly.....................................................................1
8.............. HP5A-8...................Pin.....................................................................................................1
9.............. HP5A-9...................Handle Socket....................................................................................1
10............ HP5A-10 .................Bolt....................................................................................................1
11............ HP5A-11 .................C-Clip ................................................................................................1
12............ HP5A-12 .................Linking Sleeve....................................................................................1
13............ HP5A-13 .................Fixed Screw .......................................................................................2
14............ HP5A-14 .................Spacer...............................................................................................1
15............ HP5A-15 .................Bolt....................................................................................................1
16............ HP5A-16 .................Reservoir ...........................................................................................1
17............ HP5A-17 .................Hex Filler Plug w/Seal ** .....................................................................2
18............ HP5A-18 .................Brass Tube Connector **.....................................................................1
19............ HP5A-19 .................Plastic Tube **....................................................................................1
20............ HP5A-20 .................Spring ** ............................................................................................1
21............ HP5A-21 .................Top Base ...........................................................................................1
22............ HP5A-22 .................Spring Top Holder...............................................................................1
23............ HP5A-23 .................Oil Pass Connector.............................................................................1
24............ HP5A-24 .................Washer **...........................................................................................1
25............ HP5A-25 .................Release Valve Block...........................................................................1
26............ HP5A-26 .................Steel Ball **........................................................................................1
27............ HP5A-27 .................Rubber Spacer ...................................................................................1
28............ HP5A-28 .................Release Valve Assembly.....................................................................1
29............ HP5A-29 .................Release Valve Spindle........................................................................1
30............ HP5A-30 .................Washer **...........................................................................................1
31............ HP5A-31 .................Release Valve Block...........................................................................1
32............ HP5A-32 .................Washer **...........................................................................................1
33............ HP5A-33 .................Pressure Gauge .................................................................................1
34............ HP5A-34 .................Male Connect Tube ............................................................................1
35............ HP5A-35 .................Bronze Tube ......................................................................................1
36............ HP5A-36 .................Male Connector..................................................................................1
37............ HP5A-37 .................Brass Tube Connector **.....................................................................1
38............ HP5A-38 .................Extension Screw.................................................................................1
39............ HP5A-39 .................Stopper Roll Pin .................................................................................1
40............ HP5A-40 .................Stopper ** ..........................................................................................1
41............ HP5A-41 .................Connector Post...................................................................................1
42............ HP5A-42 .................Return Spring.....................................................................................2
43............ TS-0270031 ............Set Screw..................................................5/16”-18 x 3/8”..................1
44............ HP5A-44 .................Plunger..............................................................................................1
45............ HP5A-45 .................Teflon Support Ring ** ........................................................................1
46............ HP5A-46 .................Support Seal **...................................................................................1
47............ HP5A-47 .................Cup Seal ** ........................................................................................1
48............ HP5A-48 .................Plug Nut.............................................................................................1
49............ HP5A-49 .................Gasket **............................................................................................1
50............ HP5A-50 .................Oil Absorber **....................................................................................1
51............ HP5A-51 .................Seal...................................................................................................1
................ HP5A-RK ................Repair Kit (includes items marked with **) ..............................................

8

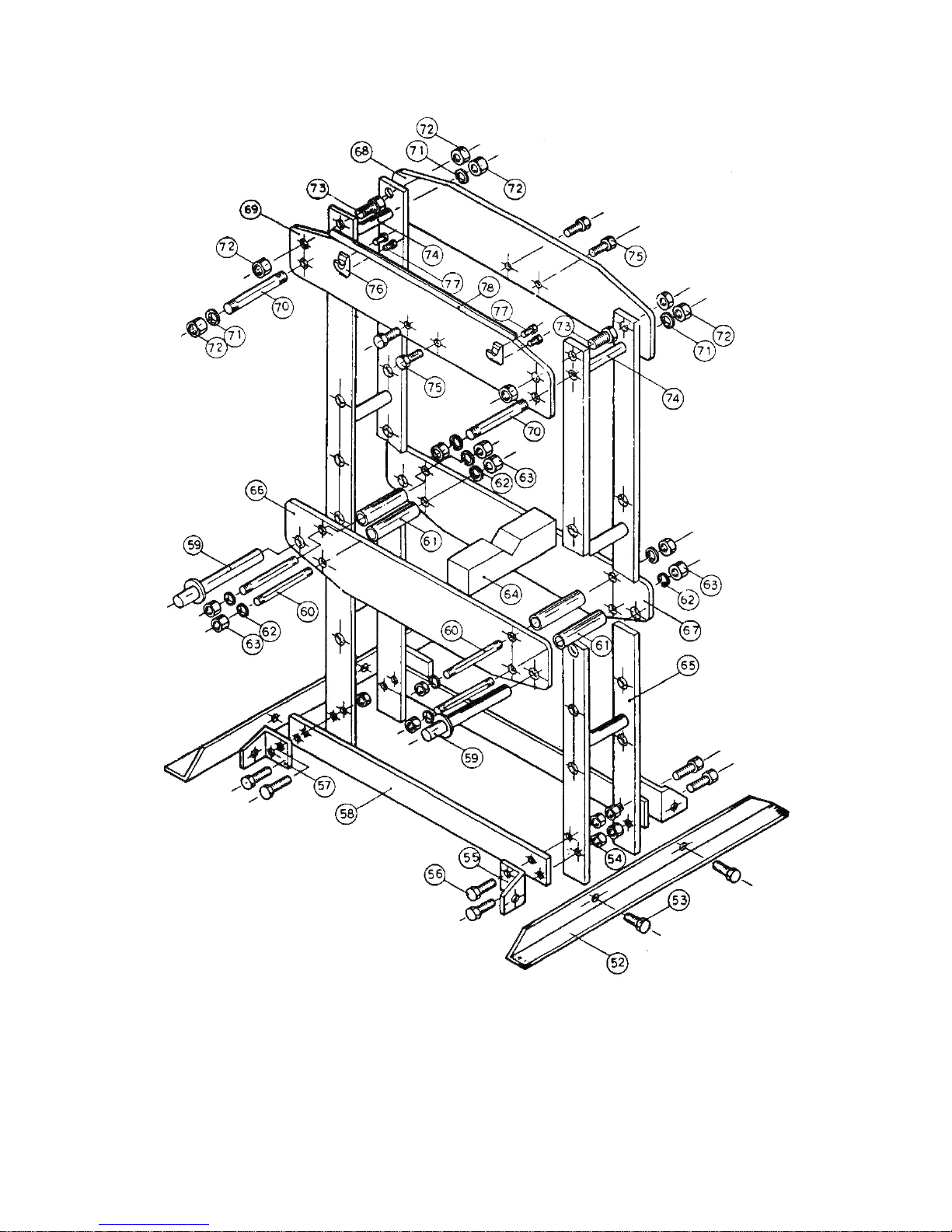

HP-5A Frame Assembly

9
HP-5A Frame Assembly – Parts List
Index No. Part No. Description Size Qty
52............ HP5A-52 .................Frame Bracket....................................................................................2
53............ TS-0060051 ............Hex Cap Screw ..........................................3/8”-16 x 1”.......................4
54............ TS-0561031 ............Hex Nut......................................................3/8”-16...........................12
55............ HP5A-55 .................Frame Base Bracket...........................................................................2
56............ TS-0060071 ............Hex Cap Screw ..........................................3/8”-16 x 1-1/2”.................8
57............ HP5A-57 .................Frame Base Bracket...........................................................................2
58............ HP5A-58 .................Lower Frame Support .........................................................................2
59............ HP5A-59 .................Table Holder ......................................................................................2
60............ HP5A-60 .................Table Spindle .....................................................................................4

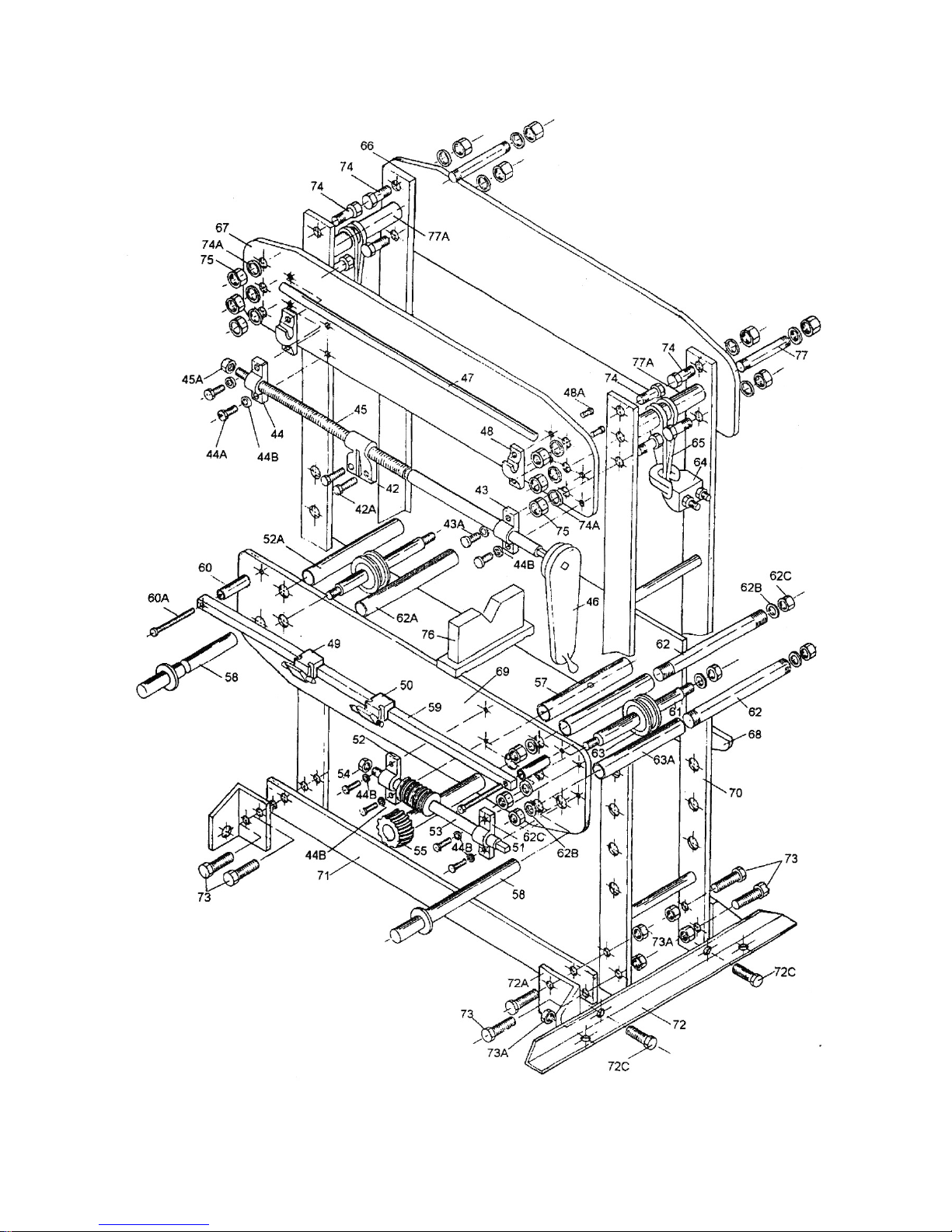

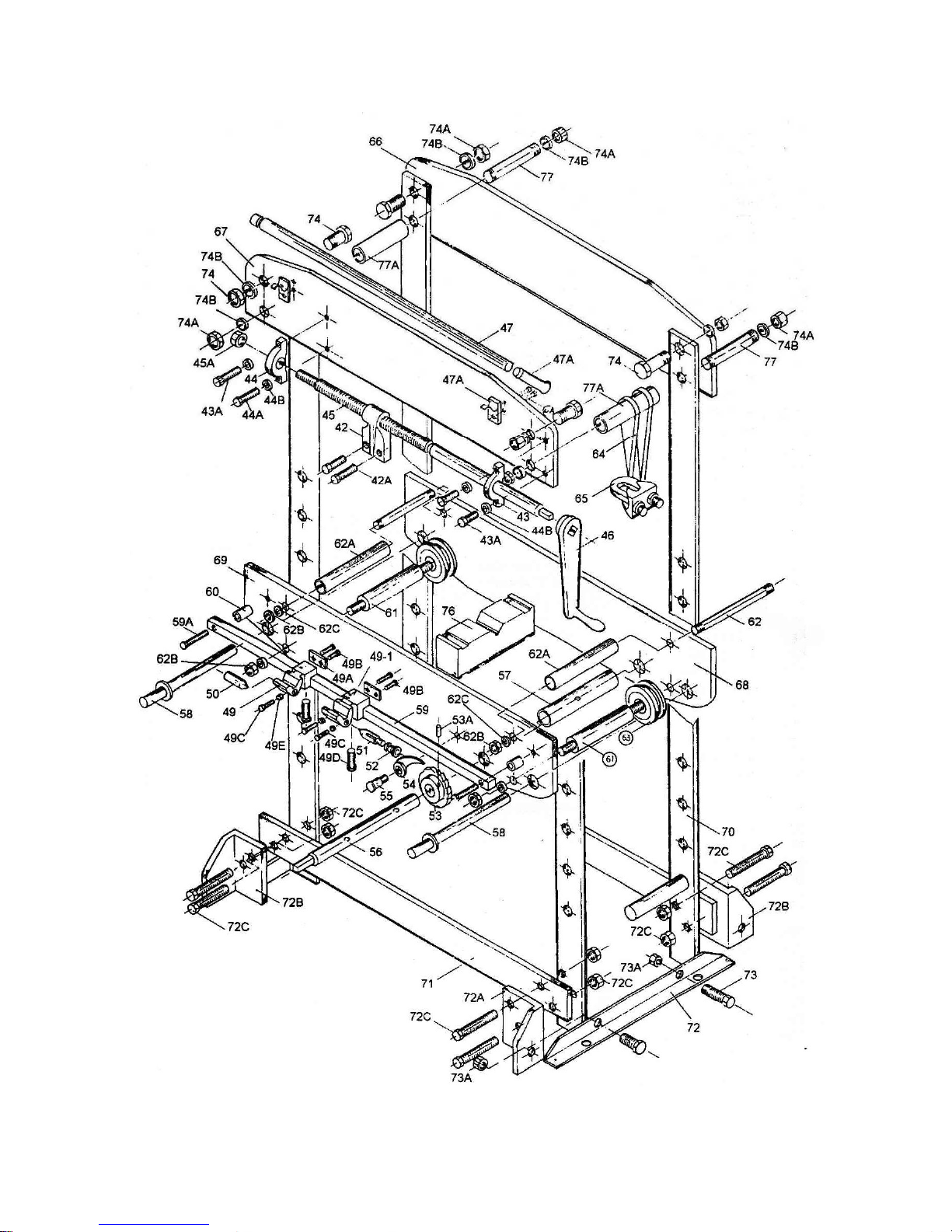

61............ HP5A-61 .................Crank Shaft Sleeve.............................................................................4
62............ TS-0720111 ............Lock Washer..............................................1/2”..................................8
63............ TS-0561051 ............Hex Nut......................................................1/2"-13.............................8
64............ HP5A-64 .................Bed Plate...........................................................................................1
65............ HP5A-65 .................Main Frame (L-R post)........................................................................2
66............ HP5A-66 .................Table Frame (Front)............................................................................1
67............ HP5A-67 .................Table Frame (Rear) ............................................................................1
68............ HP5A-68 .................Top Frame (rear)................................................................................1
69............ HP5A-69 .................Top Frame (front) ...............................................................................1
70............ HP5A-70 .................Frame Spindle....................................................................................1
71............ TS-0720131 ............Lock Washer..............................................5/8”..................................8
72............ TS-0561071 ............Hex Nut......................................................5/8”-11.............................8
73............ TS-0071011 ............Hex Cap Screw ..........................................5/8”-11 x 1-1/2”.................4
74............ HP5A-74 .................Spindle Sleeve ...................................................................................2
75............ TS-0071011 ............Hex Cap Screw ..........................................5/8”-11 x 1-1/2”.................4
76............ HP5A-76 .................Handle Holder ....................................................................................2
77............ TS-0081031 ............Hex Cap Screw ..........................................5/16”-18 x 3/4”..................4
78............ HP5A-78 .................Pump Handle .....................................................................................1
79............ HP5A-ID..................Identification Label (not shown) ...........................................................1

10

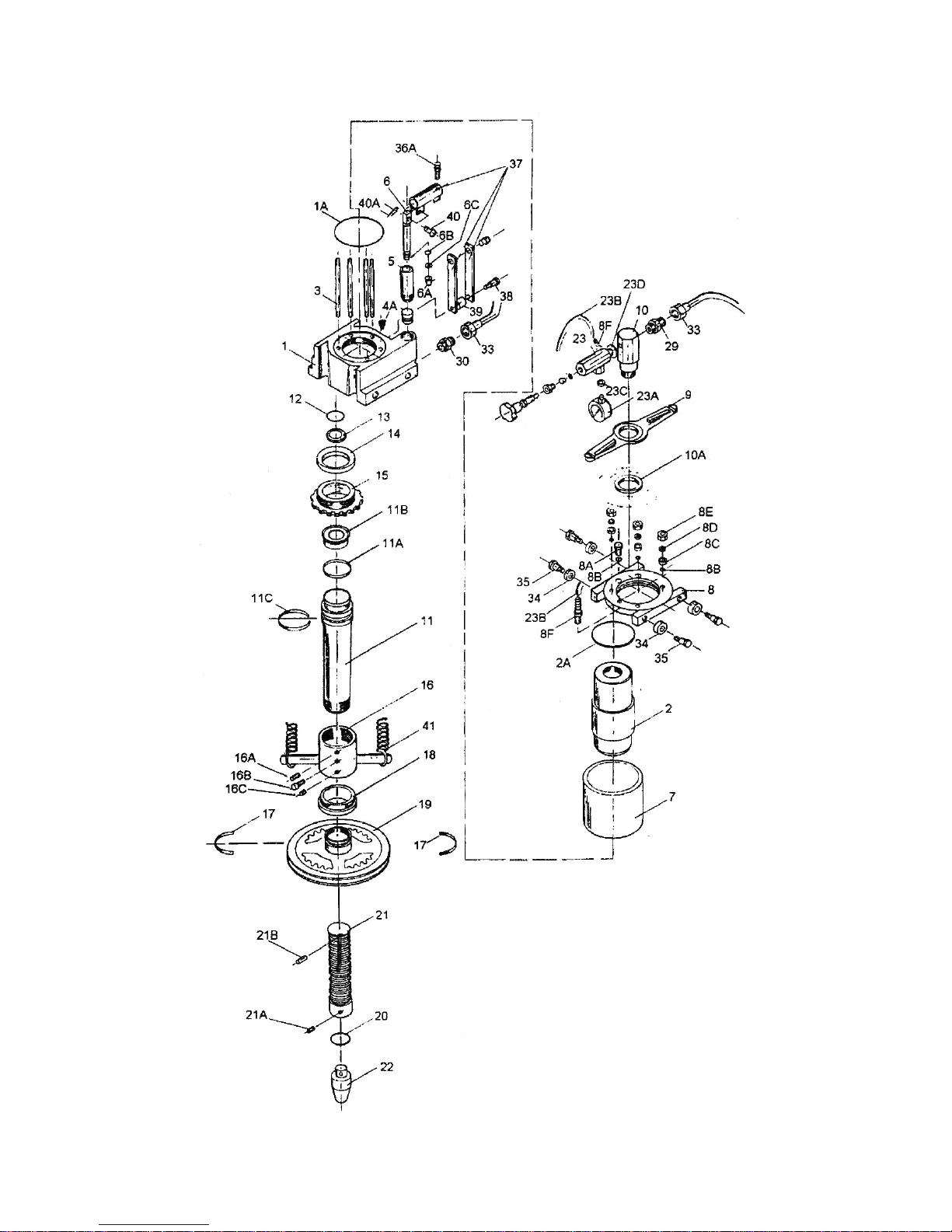

HP-15A Head Assembly
