JOBOBIKE Sam User manual

USER MANUAL
SAM

2
About Us
Dear Sir/Madam:
JOBOBIKE has been present on the bikes market for two decades. We
have been producing bikes for well-known worldwide clients’ brands.
Helping others to succeed has resulted in our own success. Today, we
are one of the leading companies in the electric bikes industry. After
many years of hard work, it’s time to shift our identity: from being
an “E-bike supplier” to become “JOBOBIKE.” The knowledge we have
gathered allows us to create distinctive electric bikes that are built
to suit the modern lifestyle. We offer incredible biking experience,
ensuring competitive prices.
Your faithfully
Muriel.H
Member of the Management Board of JOBO Group

3
Just biking with JOBOBIKE
No matter where you are and where you’re heading to, our bikes
fit your lifestyle. City or countryside, flat or rocky roads, our bikes
will get you there. Moreover, our lifetime customer service is
always with you.
Our Values
J
O
B
O
Joy of life full of new experiences
Opportunity to bike further
Biking without limitations
Options of transport

4
Manual Use Instruction Table Of Content
This manual contains the details of the equipment,
operation, and maintenance of the product along with our
advice to you.
Before you start using your new bike, it is necessary to read
through the instructions. If you are unclear about any steps,
you can always find additional information and instructions
on our website:
www.jobobike.eu
About Us .............................................................2
Our Values...........................................................3
Manual Use Instruction .......................................4
Table Of Content .................................................4
English Installation Guide
General Information............................................6
Assembly Instructions .........................................8
Operation Instruction .........................................11
Cautions.............................................................17
Error Code Definition..........................................19
Warranty Terms ..................................................20
Main parameters of E-bike .................................21

5
Deutsches Handbuch
Allgemeine Informationen .................................22
Montageanleitung .............................................24
Gebrauchsanweisung ........................................27
Vorsicht..............................................................33
Fehlercode-Definition ........................................35
Garantie .............................................................36
Hauptparameter des E-Bikes..............................37
Guide d'Installation en français
Informations Générales......................................38
Instructions d’assemblage .................................40
Instruction d’Opération ......................................43
Précautions ........................................................49
Définition du code d’erreur ................................51
Conditions de Garantie.......................................52
Paramètres principaux du Vélo électrique ..........53
Instrukcja montażu w języku angielskim
Informacje Ogólne .............................................54
Instrukcja montażu.............................................56
Instrukcja użytkowania.......................................59
Środki ostrożności ..............................................65
Error Code Definition..........................................67
Gwarancja..........................................................68
Specyfikacja .......................................................69
Terms and Conditions
General provisions .............................................70
Services..............................................................70
Delivery..............................................................72
Complaints for the goods under warranty..........72
Disclaimer .........................................................73

6
General Info
This manual is a basic instruction for assembling and using your bike. To ensure proper use and trouble-free operation, please
read this manual carefully and follow the instruction. If you still need help, please visit our webiste, contact us by e-mail, or
call us for more information.
Sam is a 250 watt e-bike, please follow all relevant laws and regulations in your country or region when riding this ebike.
NO. Accessory name NO. Accessory name NO. Accessory name
1 Saddle 12 Spoke 23 Front fender
2 Seat post 13 Derailleur 24 Front light
3 Seat post clamp 14 Kickstand 25 Headset bearings
4 Rear rack 15 Chain 26 Stem
5 Rear light 16 Crank set 27 Display
6 Rear fender 17 Pedal 28 Grips
7 Rear Brake 18 Tyre 29 Brake lever
8 Fender support 19 Front brake 30 Shift lever
9 Chain guard 20 Brake disc 31 Battery
10 Hub motor 21 Front wheel axle 32 Frame
11 Rim 22 Suspension fork

7
131
1615
32
17
2
30
3
29
4
28
5
27
6
26
7
25
8
24
9
23
10 22
11 21
12 20
13 19
14 18

8
Assembly Instructions
Step 1 Unpack the bike
Open the package and take out all of the parts.
Be careful of not missing even a little piece of part.
The parts shall include:
2.1 Stand at the left side of the bike.
2.2 Lift the buckle, close the E-Bike frame together, rotate
the buckle to the other side and then lock it.
Step 2 Unfold the E-Bike frame
Step 3 Unfold the kickstand to
make the e-bike stand up
E-bike frame Charger
Toolkit Keys
Saddle Manual

9
Step 4 Unfold the stem
Step 6 Adjust the saddle height
Step 5 Adjust the angle of handlebar
Lift the stem up and lock it with the folding clasp, then fix
the folding clasp with the plastic buckle.
Adjust the handlebar to a proper angle and fix the screws
with a wrench 5# hexagon. Make sure the two screws are
fixed tightly.
Move the saddle up or down to your desired saddle height.
Do not raise the saddle post exceeding the minimum
insertion mark on the saddle post tube. Close the quick
release lever and make sure the lever is tighten enough
when locking the saddle post.

10
Schrader valve
Step 7 Unfold the pedals
Step 8 Inflate the tyres

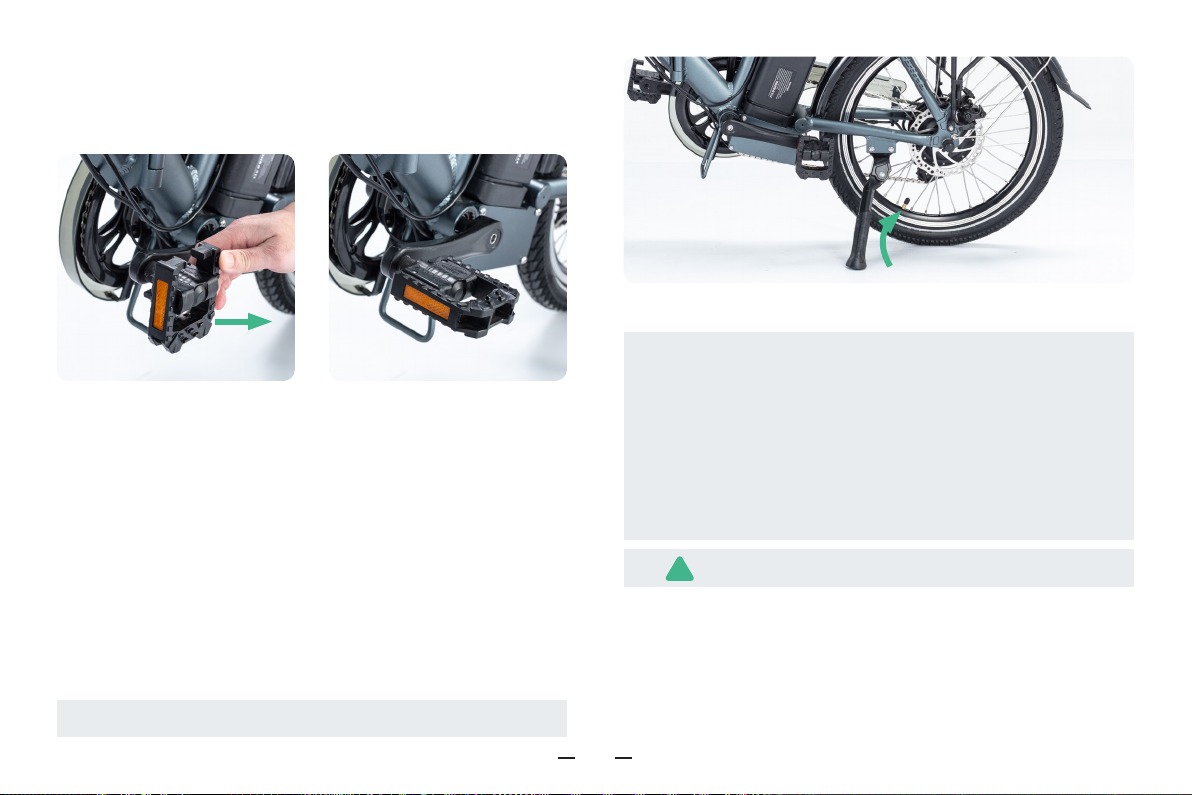

Pull the pedals outside as the figure shows.
Check whether the tyres beads and tyres are evenly seated
on the rims. Use a pump with a Schrader valve and pressure
gauge to the recommended pressure indicated on the tyre
sidewall.
Note: Do not over inflate or under inflate tyres.
Minors are prohibited from riding
NOTICE: Both wheels must be properly settled before
operating your bike. If you are not able to assemble
your bike, please contact us or look for help from a
certified, reputable local bike mechanic. Ensure all
hardware is tightened properly. Also ensure that all
safety checks in the following sections are performed
before the first use of the bike.
!

11

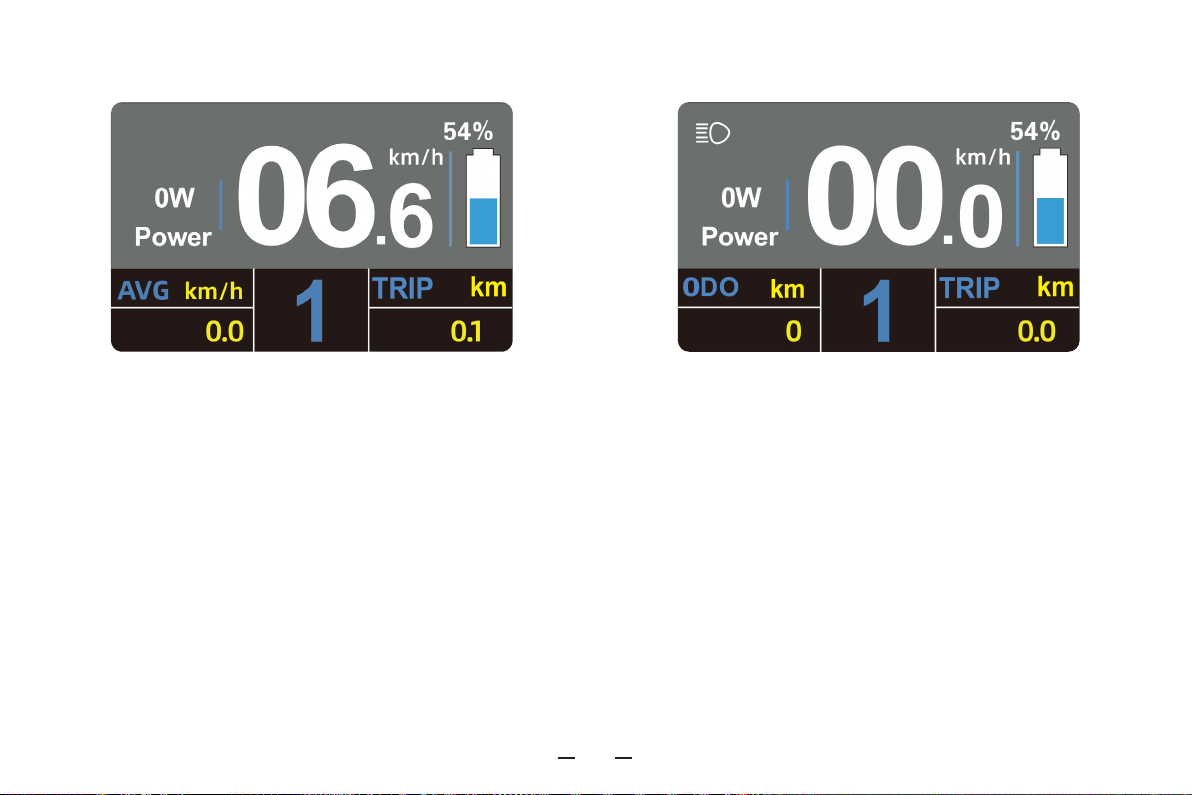

1.Hold the ON/OFF button for about 3s to switch on /o the E-bike.
2. The E-bike will switch o automatically after 10 minutes of inactivity.
3.The display interface shows power, Speed, Battery SOC, ODO, Push-assistance level, Trip Distance.
holding"+"button to turn
on the lighting
ON/OFF button;
function confirmation
holding both"+"and"-"
button to enter setting
interface
holding"-"button to
activate push-assistance
Operation instruction

12
4.Hold the “+” button for about 2s to turn on the front light ( The brightness of display backlight will automatically decrease).
Hold the “+” button for another 2s to turn o the front light (The display backlight will recover its brightness).
The screen shows the indicator when you turn on the front light.
5.Short press the “ON/OFF” button to cycle the functions below:
Max. Speed (Km/h) →Avg. Speed (Km/h) →Trip Time (Min.) →ODO (km) →Max. Speed (Km/h).
lighting indication battery power
motor power speed digital display
mode option
mode reminder trip km
pas level/push-assistance

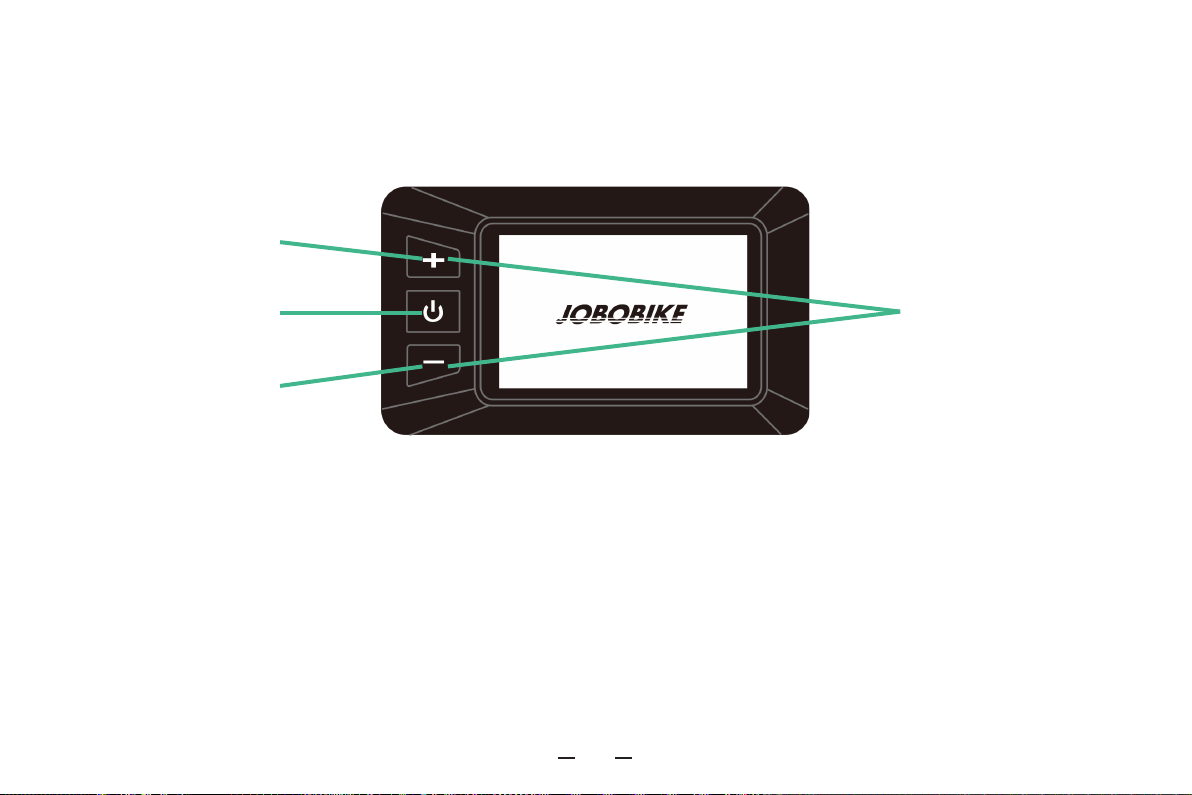

Function Area Distribution

13
6.Hold the “-” button for about 2 seconds to activate the push-assistance function and you will see the function indicator
.The push-assistance function will be switched o as soon as you release the “-”button. The speed is about 6 Km/h when in
the mode of Push-assistance.

14
Push-assistance mode Assistance Level “1”
7.Short press "+" button to add the assistance level.
Short press " - " button to minus the assistance level.
Assist Level “0”: The minimum output power (No output power provided.)
Assist Level “1”: The default output power.
Assist Level “5”: The maximum output power.

15
"-"
brake
"+"
8.Clench the brake lever to slow down or stop the E-bike.
9.Switch the shifter by“+ "and“-”button to adjust the speed
for fitting with dierent road conditions. 10.2 Put the battery into the frame as the figure indicated.
(you can see the lock cylinder through the hole)
10.1 Press the key a little hard and turn it anti-clockwise to
retract the lock cylinder as the figure indicated.
Install the battery:

16
10.3 Turn the key clockwise once to make the lock cylinder
extend through the hole to lock the battery.(The battery is
not activated in this state)
10.4 Turn the key clockwise again to activate the battery(in
this state you can turn on the led light).
11.Hold the key and press it hard, then turn the key anti-
clockwise to make the lock cylinder retract through the hole.
Take the battery out of the frame.
12. Open the cover and plug the charger into the battery
socket.
13.Battery capacity Indicator(press the button and you will
see the light)
0ne red light + two Green lights:
High power
0ne red light + one Green light:
Middle power
Just one red light:
Low power
Note: Please turn the key anti-clockwise once to turn
o the battery when you don't use the bike.
Remove the battery:
Charge the battery:

17
14.1 To soften the ride, turn the preload knob anticlockwise.
14.2 To make the suspension stier, turn the preload knob
clockwise.
1.Make sure the battery and charger are not damaged,
disassembled, cracked or spoiled.
2.Make sure the battery and charger stay far away from fire,
immersion, overheating, high humidity, violent vibration,
collision.
3.Make sure the outer substance especially the metal sta
will not penetrate in to the charger to prevent short circuit .
4.Make sure the battery is not being stored in the state of
low power.(Charge the battery for every 3 months and the
electricity will not less than 75% ).
5.Make sure the battery is not being excessively discharged.
Charge the battery in time when it is running out of power.
6.Make sure the battery is not being excessively charged.
Cut off the power in time when the battery is full of
power(led indicator turns green).
7.Make sure the charger you used is provided by JOBOBIKE
company and it can only be used to charge the matched
E-bike or battery.
8.Make sure the battery and the charger are being repaired
Suspension fork adjusting
Battery and charger operation
Cautions

18
Brakes
1.Make sure the brakes are in good condition.
2.Please replace it with a new one timely if the brake pads
worn on 1/3.
3.To reduce the speed or stop the E-bike we recommend
you to operate the rear brake first, and then operate the
front brake.
4.In rainy or snowy weather, kindly suggest to take the
brake slowly in advance rather than taking a sudden brake.
by the professional.
9.Make sure the charger is being used at rated voltage and
frequency.
10.Make sure the charger is being disconnected
immediately from the power supply when the charger is in
the state of overheating (more than 70°C), sparks, smoke
and other abnormal conditions.

19
Riding Error code definition
1.We do not recommend you to ride the E-bike in rainy or
snowy days because of the Slippery road conditions.
2.We recommend you to follow the trac rule when you are
riding.
3.Do not ride the E-bike when you are not in good health
conditions and do not lend the E-bike to the people who
can not manage it.
4.Check the air pressure in tyres before riding.
Recommended air pressure is 35-45PSI.
5.Operate the E-bike with gentle action. Do not operate it
for speed contest or something we do not recommend.
6.Regularly check all bolts and fasteners in the E-bike and
make sure they are fasten enough before riding.
Error Code Definition
21 Current Abnormal
22 Throttle Abnormal
23 Motor Phase Abnormal
24 Motor Hall Signal Abnormal
25 Brake Abnormal
30 Communication Abnormal

20
Assembly videos
All videos of assembly instructions can be found on
JOBOBIKE ocial YouTube channel.
If you have any questions, please contact the JOBO E-bike
technical support team: [e-mail]. Warranty
cannot be considered if unauthorized changes have been
made to the original structure, or if the e-bike is used
contrary to its intended use.
Non warranty terms
1.Damage caused to the e-bike in competition or other
applications other than the normal intended use.
2.Damage caused by improper tools, improper assembly or
Warranty
If you encounter any problems during usage, please fill
in the contact form on the website and describe your
problems in detail. We will help you by phone or email.
In the countries covered by EU law, JOBOBIKE is liable for
material defects (material defect liability does not include
normal wear and tear) within two years after the sales
date. A prerequisite for this liability is that the use and
maintenance of your electric bicycle meet all the conditions
required by this manual.
Proof of purchase is required for any warranty claim.
improper maintenance.
3.Damage caused by adding non-standard equipment,
parts or modifications.
