JTS TG-10STX User manual

PROFESSIONAL CO., LTD.
No.148,9thIndustryRoad,Ta-LiIndustrialPark,
TaichungCity,Taiwan,R.O.C.
Tel:886-4-24938803Fax:886-4-24914890
E-mail:[email protected]
www.jts.com.tw
59508-064-02

TG-10STX / TG-10SRX

ank you for choosing the JTS wireless system. In order to obtain the best eciency from the system,
you are recommended to take a few minutes to read this instruction manual carefully.

1. Important Cautions
2. Introduction
3. Specication
4. Parts Identication & Accessories
5. Preparing procedures & basic operation
6. Loop Out Application
1. Important Cautions
2. Features
3. Specication
4. Parts Identication & Accessories
5. Preparing procedures & basic operation
6. Recommendation
1
1
2
3
5
8
INDEX
TG-10STX Stationary Transmitter
TG-10SRX Stationary Receiver
9
9
10
11
13
15

1
1. Important Cautions
2. Introduction
• Make all connections before plugging the unit into an AC power outlet.
• Do not leave the devices in a place with high temperature or
high humility.
• Do not handle the power cord with wet hands.
• Keep the devices away from re and heat sources.
e TG-10STX is an UHF PLL stantionary transmier with 16. It works with
all JTS 16 channel indication 0,1,2......9,A,B.......F.
Together with directional antenna UDA-49P, antenna booster UB-900 the
TG-10STX can provide stronger signal for larger coverage.
TG-10STX Stationary Transmitter

2
3. Specication
Carrier Frequency Range......................
RF Output Power.......................................
Nominal Frequency Deviation
(modulation)..................................................
Audio Input Impedance.........................
Nominal Input Level................................
Maximal Input Level.................................
LED Display...................................................
Audio Input Connector...........................
Output Monitor Connector................
Loop Out Connector...............................
Operation Voltage......................................
Dimension(m/m).....................................
Channel...........................................................
470~960MHz
Hi / Low
±40KHz
20KΩ
-20 dBV
0 dBV
AF Level, Channel
2 x Balanced XLR / Ø6.3mm Combo input
1 xØ6.3mm Combo input
1 x Ø3.5mm phone Socket
2 x Ø6.3mm Balanced Loop Out Socket
12-18 VDC, 450 mA
212mm (W)* 44mm (H)* 239mm (D)
16 selectable channels
TG-10STX

3
4. Parts Identication & Accessories
Power On/O switch
LED Display
Channel Selector
Set buon
Volume control
Monitor volume control
1/8” Stereo Phone Jack
Antenna
DC input ( 12~18V 600mA )
Balanced Loop Out Connector CH.1
Balanced Loop Out Connector CH.2
Balanced XLR/Ø6.3mm Combo
Input Le / CH.1
Balanced XLR/Ø6.3mm Combo
Input Right / CH.2
BNC Antenna Output Socket
Monitor input(mono Ø6.3mm phone jack)
Input CH1 48V phantom power switch
TG-10STX
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
1
8
11413121110916
15
3
2 7 6543
TG-10STX

4
RM-901 Rack Mount Kit
RTF-1 Antenna Extension Cable
Optional Accessories
18
17
17 18

5
5. Preparing procedures & basic operation
(1.) Connect the main unit
Connect the DC INPUT in the rear panel of TG-10STX to an AC to DC adaptor.
(2.) Basic operation
1. Connect the mixer output to the XLR / Ø6.3mm combo CH1 input at the rear panel
of TG-10STX with AF input cable.
2. Connect the gooseneck mic and gooseneck mic base at the XLR / Ø6.3mm combo
CH2 input at the rear panel of TG-10STX with AF input cable.
3. Connect the TG-10SRX or CS-1CU at the Ø6.3mm mono CH3 input at the rear
panel of TG-10STX with AF cable as an source for interpretation.
NOTE:
1. Two balanced XLR / Ø6.3mm combo inputs are provided. You may use either one
input or both for a stereo source. Also, two balanced Ø6.3mm loop out connectors
are provided for multiple systems application.
NOTE:
2. CH3 is an input signal only for monitoring through monitor headphone and will not
be transmied.
TG-10STX
ST-5030i
CS-1CU
TG-10SRX
AC to DC adaptor
XLR/Ø6.3mm COMBO INPUT
or

6
(3.) LCD Display
AF Level of CH1
AF Level of CH2
Monitor channel display
Channel display
(4.) Aach the antenna
e user-friendly antenna comes with BNC
connector.
Connect the antenna on the rear of the
transmier and align it upward.
(5.) Power On / O
Turn on or turn o the transmier by pressing
the“POWER” buon.
(6.) Volume
Adjust the volume to a proper level.
(7.) Monitor Volume
Adjust the monitor volume to a proper level.
Note that by pushing Monitor Volume user
can choose CH1 / CH2 or CH3 to listen.
(8.) Select channal
1. Press“set”buon for about 3 second and
then“.”starts ashing on the pannel.
2. Press ”+ ”or ”- ”buon to increase or decrease
the channel number.
3. Press“set”buon again to store the channel.
POWER
CH1/CH2 VOLUME
CHANNEL
MONITOR
ANTENNA OUT
Monitor
CH1/CH2 CH3
CHANNEL
CH1 CH2
1 2 4
3
1
2
3
4
POWER
+
-
SET
UHF PLL Transmitter
TG-10STX
CH1 VOLUME CH2
Monitor
Selector
Monitor
CH1/CH2 CH3
CHANNEL
CH1 CH2
POWER
+
-
SET
UHF PLL Transmitter
TG-10STX
CH1 VOLUME CH2
Monitor
Selector
Monitor
CH1/CH2 CH3
CHANNEL
CH1 CH2
POWER
+
-
SET
UHF PLL Transmitter
TG-10STX
CH1 VOLUME CH2
Monitor
Selector
Monitor
CH1/CH2 CH3
CHANNEL
CH1 CH2
POWER
+
-
SET
UHF PLL Transmitter
TG-10STX
CH1 VOLUME CH2
Monitor
Selector
Monitor
CH1/CH2 CH3
CHANNEL
CH1 CH2
TG-10STX

7
(9.) Set the rubber pad
Four self-adhesive rubber pads are provided to ensure the stability.
ey are to be placed on the boom of the transmier.
(10.) RTF-1 Antenna Extension Cable (Optional)
Antenna extension cable enables front mounting antenna which
benets the RF eeciency.
(11.) RM-901 Rack Mount Kit (Optional)
Rack mount kit is available to install the half rack transmier into a standard EIA rack.
+
-
+
-
+
-

8

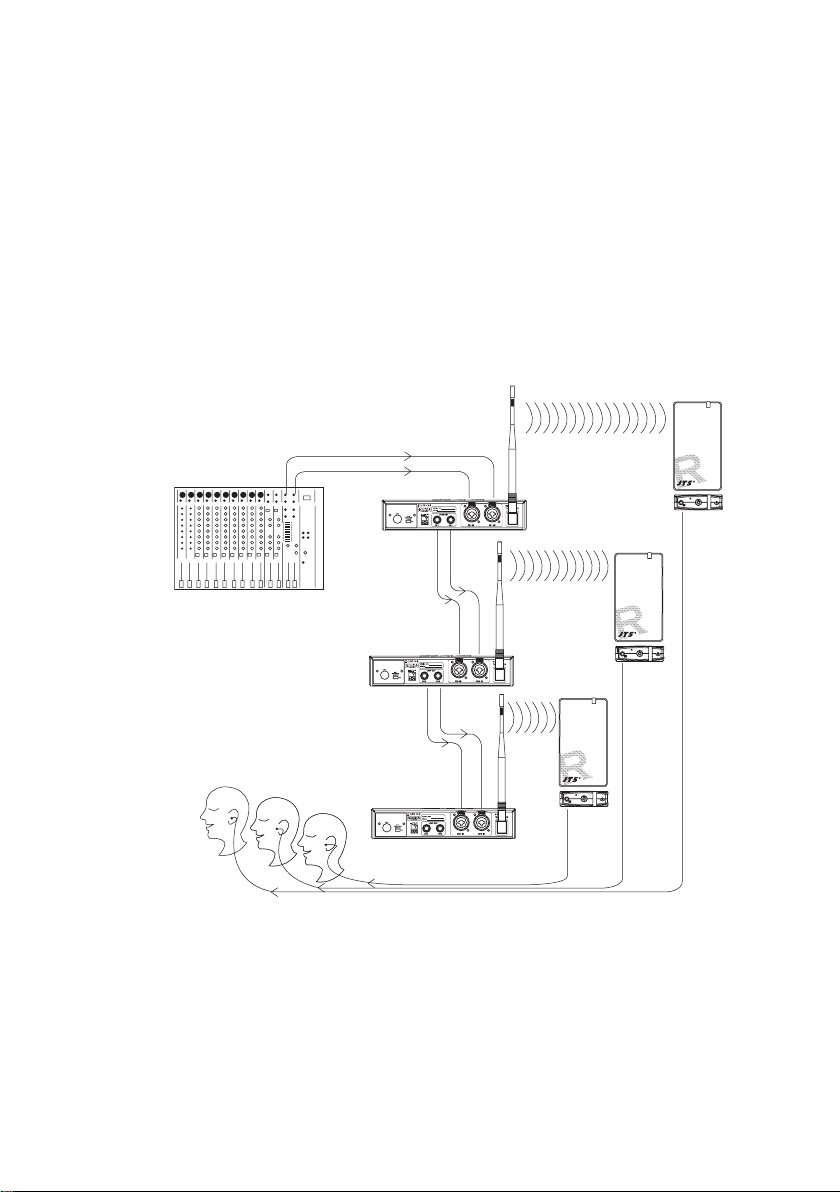

6. Loop Out Application
Make use of the loop out connectors to deliver one signal from the mixer to multiple
TG-10STX or other devices.
1. Connect the mixer outputs to inputs of the rst transmier.
2. Connect loop out connectors of the rst transmier to the second one.
3. Connect subsequent systems in the same way.
Multiple Systems
POWER
RESET
WirelessTour Guide Receiver
TG-10R
POWER
RESET
WirelessTour Guide Receiver
TG-10R
POWER
RESET
WirelessTour Guide Receiver
TG-10R

9
TG-10SRX Stationary Receiver
1. Important Cautions
• Always make all connections before plugging the unit into an AC power outlet.
• Do not leave the devices in a place with high temperature nor high humidity.
• Keep the devices away from re and heat sources.
2. Features
• Operated in UHF band where there is less RF interference than the VHF band.
• Due to the PLL synthesized technology, the system can oer up to 16 selectable
frequencies for choosing simultaneously.
• e true diversity reception with 2 independent RF receivers ensure the stable
transmission and reception.
• Adjustable Pilot tone squelch control can eectively reduce the noise.
• Equipped with S.A.W. lter benets the interference-resistant.
• Tuned antennas can benet the stable RF reception.
• Built-in Noise Squelch circuity & Mute function are available to restrain the
interference for signals.
• Compact half-rack receiver design is considerable for the space saving.
• Rugged metal housing can pass through the dicult environment.
• Equipped with balanced XLR and unbalanced output allow great convenience.
• Anti-interference design is available to work with every computer device.

10
3. Specication
TG-10SRX
Frequency Preparation.............................
Carrier Frequency Range........................
S/N Ratio.........................................................
T.H.D..................................................................
Display...............................................................
Display Contents.........................................
Controls............................................................
Audio Output Level....................................
AF Output Impedance..............................
Squelch..............................................................
Operation Voltage.......................................
Output Connector......................................
Dimension(m/m).......................................
Channel.............................................................
PLL Synthesized Control
470~960MHz
> 105dB
<0.6%@1KHz
LED
AF Level, Channel
Power On/O, Channel, Audio Level
-12dB
600Ω
Pilot Tone & Noise Mute
12-18 VDC, 350 mA
1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
212mm (W)* 40mm (H)* 125mm (D)
16 selectable channels

11
4. Parts Identication & Accessories
Power On/O switch
Channel Selector
Set buon
LED Display
Volume control
DC socket for connection of main unit
AF output, Ø6.3mm phone jack socket (AF UNBAL)
AF output, XLR socket (AF BAL)
Antenna input socket
Antenna
TG-10SRX
3
4
5
6
7
8
9
10
2
1
10
135
4 22
TG-10SRX
ANT.1ANT.2
Serial No.:
Freq. Range:
12-18V/500mA
DCV INPUT
AF OUTPUT
UNBAL.
AF OUTPUT
BALANCED
96 7 8

12
DR-900 Dual Rack Adaptor
RP-900 Panel Cover
GC-80/GC-100 Guitar Cable
GC-80L/GC-100L Guitar Cable
Optional Accessories
12
13
14
11
11
12
13 14

13
(3.)LED panel
AF signal
RF signal
Channel Display
Diversity Display
(A or B antenna)
(4.) Seing the rubber pad
Four self-adhesive rubber pads are provided to ensure the stability.
ey are to be placed on the boom of the receiver.
5. Preparing procedures & basic operation
(1.) Power output connector
Plug in one end of AC/DC adaptor cable to DC input socket in the rear panel of
receiver, and plug another end into an AC outlet.(Step 1)
(2.) Audio output connector
Connect one end of the AF output cable to the AF output socket in the rear panel, then
plug another end to the “MIC IN” input socket of a mixer or amplier.(Step 2)
TG-10SRX equipped with balanced XLR output and unbalanced Ø6.3mm output,
choose the proper way for use.
TG-10SRX
ANT.1ANT.2
Serial No.:
Freq. Range:
12-18V/500mA
DCV INPUT
AF OUTPUT
UNBAL.
AF OUTPUT
BALANCED
1
1
2
3
4
34
2
TG-10SRX

14
(5.) Connecting the antenna
e user-friendly TG-10SRX antenna
comes with easy mount on socket for eortless.
Connect two antennas on the back of the the receiver
and align them upward.
(6.)Turning the receiver on/o
Turn the receiver on by pressing the “POWER”
buon.
(7.) Adjusting the AF output level
Use the AF output level control located on the
front side of the receiver to adjust the AF signel
level that appears at output.
(8.) DR-900 dual pack adaptor
e dual rack adaptor is available to unify the half
rack space into a standard EIA size with single or
dual units.
(9.) Basic operation
1. Turning the receiver on and o by pressing the POWER buon.
2. Press the SET buon for 3 seconds to select channel and group.
3. Press the SET buon again to store once you make any changes.
4. Press the UP or DOWN buon to adjust the seing of a menu.
ANT.1 / ANT.2
POWER
AF output level

15
6. Recommendation
1. In order to achieve the optimum reception condition and also extend the operating
distance, please leave on “open space” between the receiver and transmier.
2. Keep the devices away from the metal objects or any interference sources, at least 50 cm.
3. To avoid the feed-back eect, don’t leave the mic. to aim at the speakers directly.
4. For best pick-up paern, please hold the middle of the mic. body.
