JTS US-1000D User manual

US-1000D/Mh-8990(i)/PT-990B(mi)
59508-005-08
PROFESSIONAL CO., LTD.
No.148,9thIndustryRoad,Ta-LiIndustrialPark,
TaichungCity,Taiwan,R.O.C.
Tel:886-4-24938803Fax:886-4-24914890
E-mail:[email protected]
www.jts.com.tw

Instruction Manual
UHF PLL
WIRELESS SYSTEMS
US-1000D

Thank you for choosing the JTS wireless system. In order to obtain the best eciency from the system,
you are recommended to take a few minutes to read this instruction manual carefully.

1. Important Caution
2. Features
3. Specification
3-1 Receiver// US-1000D
3-2 Handheld Transmitter // Mh-8990(i)
3-3 Body-pack Transmitter // PT-990B(mi)
3-4 Optional Condenser Microphone
4. Part Identification & Accessories
4-1 Receiver// US-1000D
4-2 Handheld Transmitter // Mh-8990(i)
4-3 Body-pack Transmitter // PT-990B(mi)
4-4 Optional Condenser Microphone

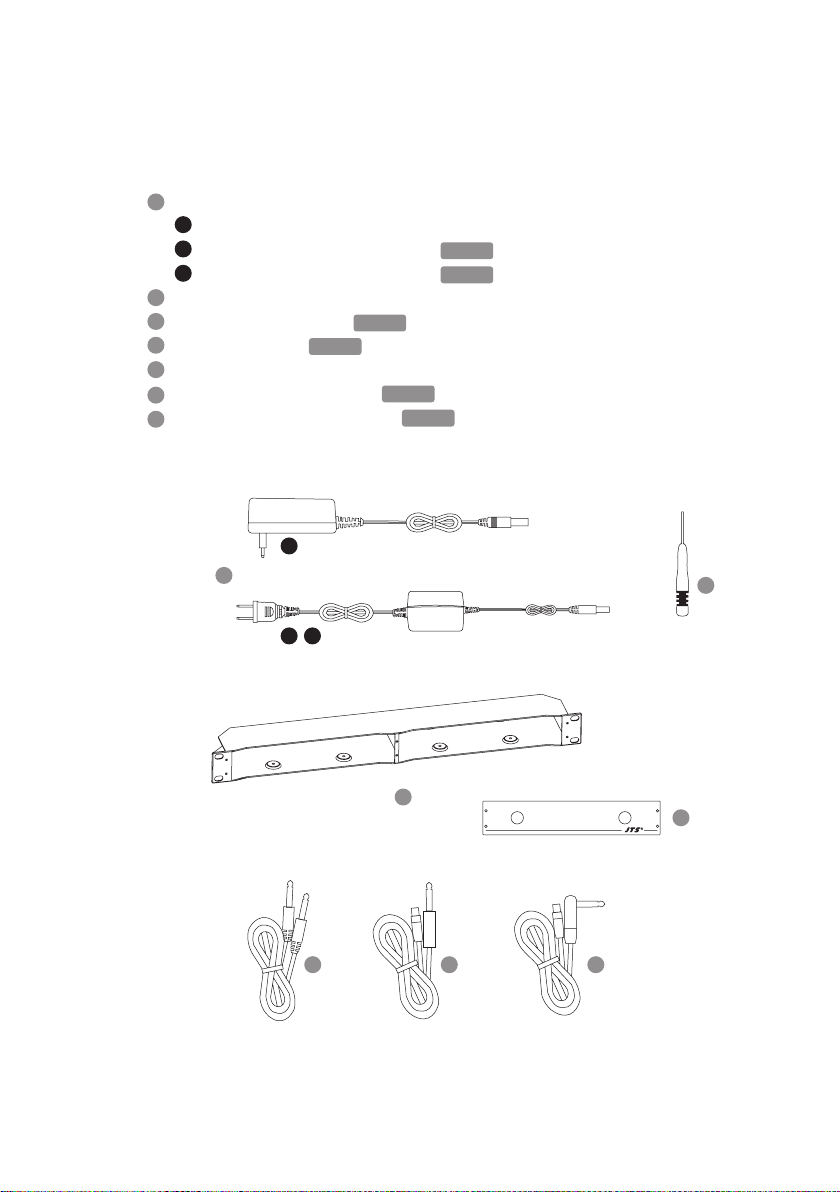

4-5 Accessories
5. Preparing Procedures & Basic Operation
5-1 Receiver// US-1000D
5-2 Handheld Transmitter // Mh-8990(i)
5-3 Body-pack Transmitter // PT-990B(mi)
6. Recommendation
7. Important Notice
1
1
2
2
2
3
3
6
6
6
7
7
11
12
12
15
19
23
24
INDEX

WIRELESS MICROPHONE SYSTEM
1
1. Important Caution
2. Features
• Always make all connections before plugging the unit into an AC power outlet.
• Do not leave the devices in a place either with high temperature or high humidity.
• Always do not handle the power cord with wet hands !
• Keep the devices away from re and heat sources.
• Operated in UHF band where there is less RF interference than the VHF band.
• Due to the PLL synthesized technology, the system can oer up to 961 selectable frequencies
togther with preset 4 groups each of 16 channels.
• The true diversity reception with 2 independent RF receivers ensure the stable reception.
• Adjustable Pilot tone squelch control can eectively reduce the noise.
• Equipped with S.A.W. lter benets the interference-resistant.
• Tuned antennas can benet the stable RF reception.
• Built-in Noise Squelch circuity & Mute function are available to restrain the interference for
signals.
• Compact half-rack receiver design for space saving.
• Rugged metal housing can withstand rough environment.
• Equipped with balanced XLR and unbalanced output allow great convenience.
• Anti-interference design is available to work with every computer device.

2
3. Specification
3-1 Receiver // US-1000D
3-2 Handheld Transmitter // Mh-8990(i)
Frequency Preparation......
Carrier Frequency Range
S/N Ratio...................................
T.H.D..............................................
Display...........................................
Display Contents...................
Controls........................................
Audio Output Level.............
AF Output Impedance......
Squelch..........................................
OperationVoltage.................
Output Connector................
Dimension(m/m)................
PLL Synthesized Control
502~960 MHz
> 105dB
<0.6%@1KHz
LCD
Frequency, Antenna A/B, Mute Display,
RF/AF Level Meter, Battery Fuel Gauge
Power On/O, Frequency Up/Down,
Frequency Scan, Audio Level, Lock-on
-12 dB
600Ω
Pilot Tone ,Noise and Mute
12-18VDC, 250mA
1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
212mm(W) * 40mm(H) * 137mm(D)
Frequency Preparation............
Carrier Frequency Range......
RF Outputs......................................
Stability...............................................
Frequency Deviation................
LCDDisplay...................................
Controls.............................................
Spurious Emissions...................
Audio Frequency Response
Battery..................................................
PLL Synthesized Control
502~960 MHz
10mW
±10KHz
±48KHz
Frequency, Battery Fuel Gauge, Sensitivity
Power On/O, Mode Setting, AF Level,
Frequency Up/Down, Lock-on Mode
<-60 dBC
50~16,000 Hz
UM3, AA 1.5V*2

WIRELESS MICROPHONE SYSTEM
3
3-3 Body-pack Transmitter // PT-990B(mi)
3-4 Optional Condenser Microphone
Frequency Preparation............
Carrier Frequency Range......
RF Outputs......................................
Stability...............................................
Frequency Deviation................
LCD Display..................................
Controls.............................................
Spurious Emissions...................
Audio Frequency Response
Battery.................................................
PLL Synthesized Control
502~960 MHz
10mW
±10KHz
±48KHz
Frequency, Battery Fuel Gauge
Power On/O, AF Level,
Frequency Up/Down, Lock-on Mode.
<-50 dBC
40~18,000 Hz
UM3, AA 1.5V*2
Lavaliere Microphone
Model No...............................
Connector..............................
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
Dimension(mm)..............
Net Weight............................
CM-501
4P Mini XLR
100~15,000 Hz
Cardioid
-60±3 dB
2.2kΩ
130dB
Ø10.1mm(W)
* 26.4mm(H)
21.5g
CM-201i
4P Mini XLR
60~15,000 Hz
Omni-directional
-60±3 dB
2.2kΩ
130dB
Ø5mm(W)
* 9mm(H)
20.7g
CM-125i
4P Mini XLR
50~18,000 Hz
Omni-directional
-53±3 dB
4.4kΩ
130dB
Ø4mm(W)
* 11mm(H)
7g (cable excluded)

4
Headset Microphone
Model No...............................
Connector..............................
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
Dimension(mm)..............
Net Weight............................
CM-235i
801C4 (4P Mini XLR )
50~18,000 Hz
Omni-directional
-53±3 dB
1.8kΩ
130dB
155mm(W)
* 134mm(H)
* 157mm(D)
17g (cable excluded)
CX-504
4P Mini XLR
30~18,000 Hz
Cardioid
-68±3 dB
680Ω
130dB
285mm(W)
* 55mm(H)
* 111.3mm(D)
56.3g
Model No...............................
Connector...............................
Option Connector...........
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
Dimension(mm)..............
Net Weight............................
CM-214i
801C4
(4P Mini XLR)
801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
60~15,000 Hz
Omni-directional
-60±3 dB
1.8kΩ
130dB
125mm(W)
* 134mm(H)
* 157mm(D)
32.9g
CM-214Ui
4P Mini XLR
30~18,000 Hz
Cardioid
-68±3 dB
680Ω
130dB
205mm(W)
* 134mm(H)
* 157mm(D)
38.4g
CM-214ULi
801C3 (3P Mini XLR)
801C4 (4P Mini XLR)
801CS (3.5 stereo plug)
801CR
100 ~ 18,000Hz
Cardioid
-65±3 dB
1.8kΩ
120dB
125mm(W)
* 134mm(H)
* 157mm(D)
18g (cable excluded)

WIRELESS MICROPHONE SYSTEM
5
Ear-hook Microphone
Model No...............................
Connector..............................
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
Good For.................................
Model No...............................
Connector..............................
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
Good For.................................
CX-500
4P Mini XLR
20~20,000 Hz
Omni-directional
-58±3dB
1.5kΩ
130 dB
Violin
CX-508W
4P Mini XLR
50~18,000 Hz
Cardioid
-67±3 dB
220Ω
130 dB
Winds
CX-500F
4P Mini XLR
20~20,000 Hz
Omni-directional
-58±3dB
1.5kΩ
130 dB
Flutes
CX-520
4P Mini XLR
50~16,500 Hz
Supercardioid
-78±3dB
600Ω
148 dB
Harmonica
CX-516W
4P Mini XLR
30~18,000 Hz
Cardioid
-67±3 dB
220Ω
130 dB
Accordion
Compatible Instrument Microphone
Model No...............................
Connector..............................
Option Connector...........
Frequency Response......
PolarPattern..........................
Sensitivity (at 1000Hz)
Impedance.............................
Max. SPL for 1% THD
CM-801/CM-804i
801C4 (4P Mini XLR)
801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
60~15,000 Hz
Omni-directional
-64±3 dB
1.8kΩ
130dB
CM-8015/CM-825i
801C4 (4P Mini XLR)
801C3 (3P Mini XLR)
801CS (3.5 stereo plug)
801CR
50~18,000 Hz
Omni-directional
-53±3 dB
1.8kΩ
130dB

6
Mh-8990i
4. Parts Identification & Accessories

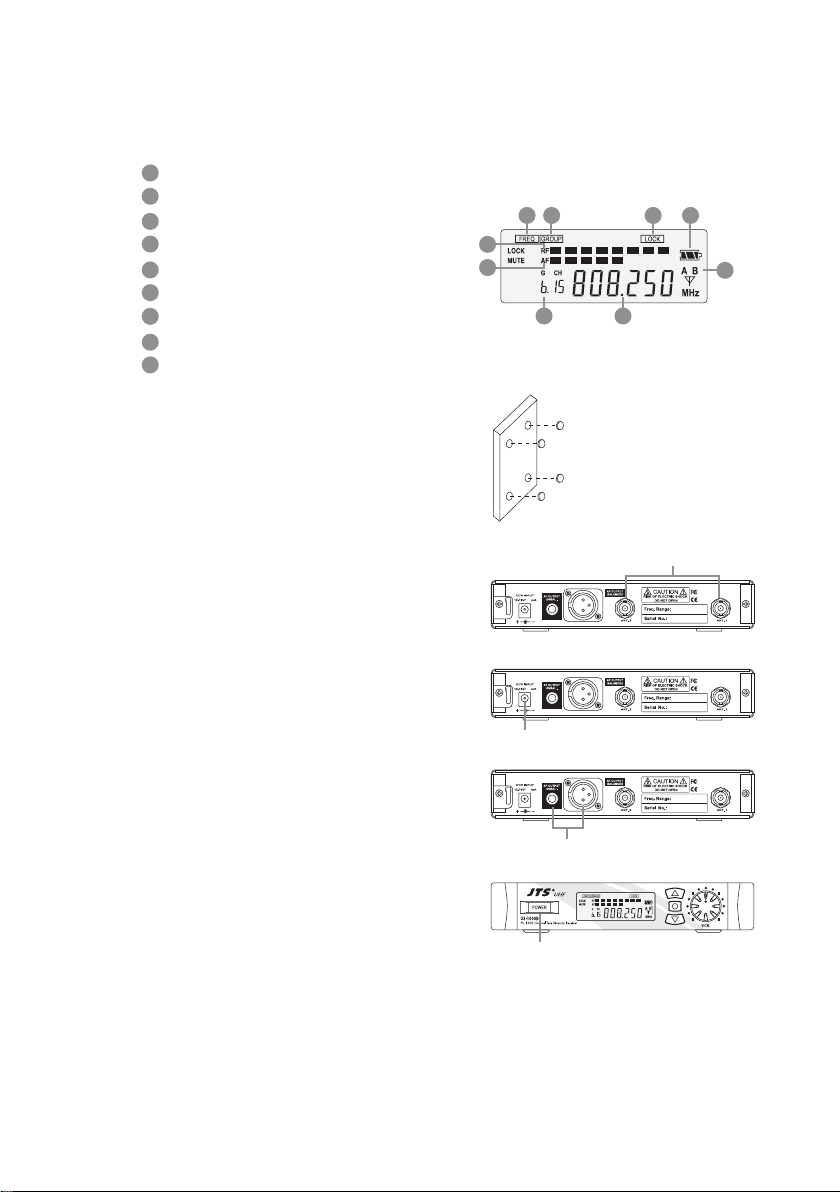

4-1 Receiver // US-1000D
Power On/O switch
Up button (frequency adjustment)
Down button (frequency adjustment)
Set button (frequency adjustment)
LCD Display
Volume control
DC socket for connection of main unit
AF output, jack socket (AF UNBAL)
Balanced XLR socket
Antenna II input socket
Antenna I input socket
Antenna
Interchangeable dynamic capsule
LCD display
Down button
UP button
Set button
Battery tray
Power On/O switch
Mute On/O switch
4-2 Handheld Transmitter // Mh-8990(i)
1
4
7
10
11
12
1
4
2
5
7
3
6
8
2
5
8
3
6
9
1
4
710 11
12
25
8
3
6
9
1 1
Mh-8990i
2
4
7
3
6
8
250
5

WIRELESS MICROPHONE SYSTEM
7
Mic. input
Power On/O switch
Antenna
LCD display
Set button
Up button
Down button
Battery tray button
AF level control
Belt clip
Battery tray
Attenuation pad
(only for PT - 990Bmi)
Clip
4 Pin Mini XLR
Windscreen
4-3 Body-pack Transmitter // PT-990B(mi)
1
1
3
3
5
10
7
12
2
2
4
9
6
11
8
1
3
5
10
7
12
2
4 9
6
11
8
4-4 Optional Condenser Microphone
Lavaliere Microphone // CM-501 CM-201i CM-125i
CM-501 CM-201i CM-125i
333
2
1
1 1

8
Gooseneck
Adjustable headband
Headband
4 Pin Mini XLR
Windscreen
1
3
4
5
2
Headset Microphone // CM-214i CM-214Ui CM-214ULi CM-235i
CX-504
2 2
2
2
3
55
5
5
5
1
1
1
1
4
CM-214i CM-214Ui
CM-235i
CX-504
CM-214ULi
Standard :
4 Pin Mini XLR
3 Pin Mini XLR
3.5 Stereo Plug
1

WIRELESS MICROPHONE SYSTEM
9
1
4
7
3
6
9
10
2
5
8

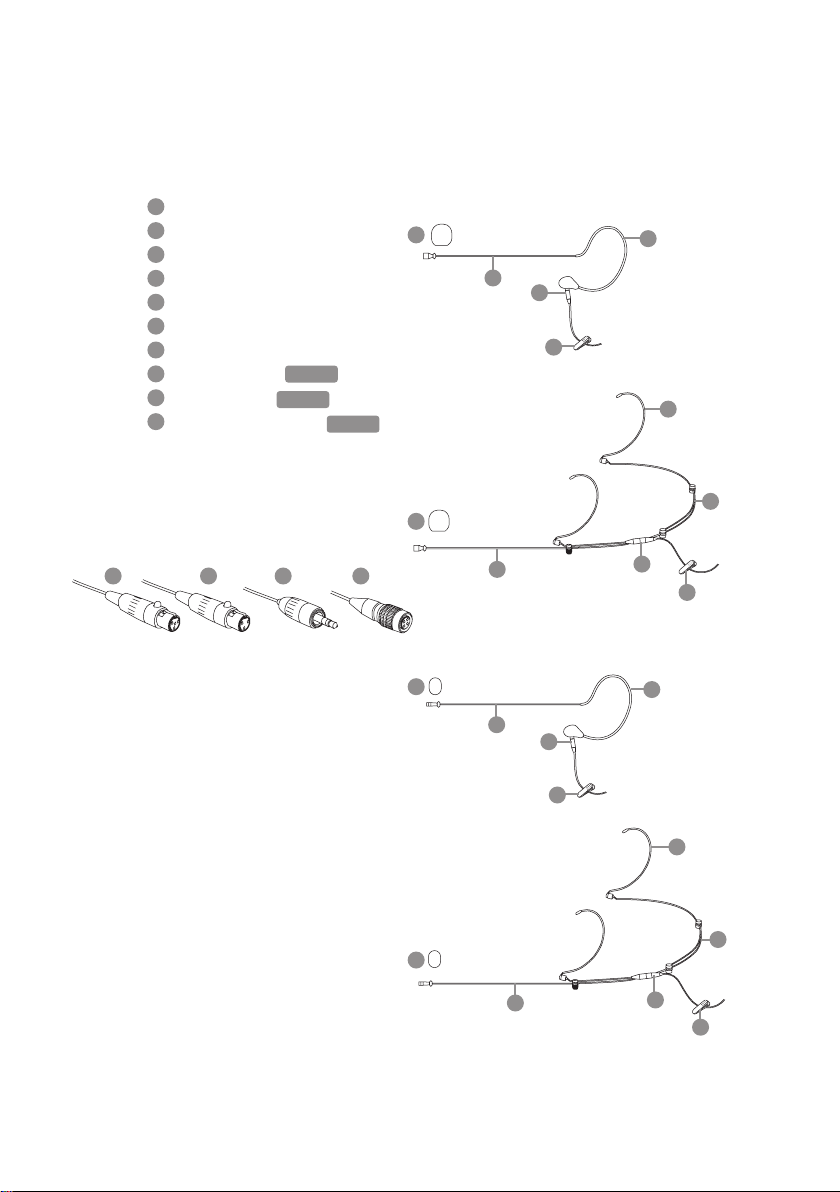

Ear-hook Microphone // CM-801 CM-804i CM-8015 CM-825i
Boom
Adjustable Headband
Adjustable ear hook
Detchable Cable
Cable Clip
Windscreen
4 Pin Mini XLR
3 Pin Mini XLR
3.5 Stereo Plug
4Pin Hirose connecter
Option
Option
Option
CM-825i 5
6
1
3
4
2
CM-801
5
6
1
3
4
CM-804i 5
6
1
3
4
2
CM-8015
5
6
1
3
4
8 97 10

10
6
Gooseneck
Clip
Bracket
Volume Control
Windscreen
4 Pin Mini XLR
4
5
6
3
2
5
5
1
CX-508WCX-520
CX-500F
CX-500
CX-516W
2
1
1
5 5
1
3
Compatible Instrument Microphone // CX-500 / CX-500F / CX-520 /
CX-508W / CX-516W
2
4

WIRELESS MICROPHONE SYSTEM
11
4-5 Accessories
AC/DC adaptor
Switching Power Supply(100V~240V , 50~60Hz)
Linear Power Supply (220V , 50Hz)
Linear Power Supply (220V , 60Hz)
Screwdriver
DR-900 dual rack adaptor
RP-900 panel cover
AF output cable (with Ø6.3 plug at both ends)
GC-80/GC-100 Guitar Cable
GC-80L/GC-100L Guitar Cable
6 7
4
5
6
7
5
Option
Option
Option
Option
Option
Option
A
B
C
2
3
1
1
A
B C
2
3
4

12
5. Preparing Procedures & Basic Operation
5-1 Receiver // US-1000D
(1) Power output connector
Plug in one end of AC/DC adaptor cable to DC input socket in the rear panel of receiver, and
plug another end into an AC outlet.(Step 1)
(2) Audio Output Connector
Connect one end of the AF output cable to the AF output socket in the rear panel, then plug
another end to the “MIC IN” input socket of a mixer or amplier.(Step 2)
Receiver equipped with balanced XLR output and Unbalanced φ6.3mm output, choose the
proper way for use.
MIXER
AC/DC ADAPTOR
AC POWER SOCKET
AUDIO OUTPUT
DC INPUT
2
1
250

WIRELESS MICROPHONE SYSTEM
13
250
250
250
(3) LCD panel
AF signal
RF signal
Display for GROUP mode
Display for LOCK mode
Display for set FREQ. mode
Main display
Diversity display (A or B antenna)
Battery display for the transmitter
Group channel display
(4) Setting the rubber pad
Four self-adhesive rubber pads are provided
to ensure the stability.
They are to be placed on the bottom side of
the receiver.
(5) Connecting the antennas
The user-friendly US-1000D antenna comes
with easy mount on socket for eortless con-
nection. Connect two antennas on the back
of the receiver and align them upward.
(6) Connecting the main unit
Plug in the DC connector on the back of the
receiver (DCV INPUT).
(7) Connecting the amplier/mixer console
Plug in the amplier/mixer console to the
(AF OUT UNBAL / BAL ) sockets.
(8) Turning the receiver on/o
Turn the receiver on by pressing the
(POWER) button.
3
5
8
2
4
7
1
6
9
35
2
4
7
1
69
8
ANT.1 / ANT.2
DCV INPUT
AF OUT UNBAL/BAL
POWER

14
(9) Adjusting the AF output level
Use the AF output level control located on
the front side of the receiver to adjustthe AF
signal level that appears at output.
(10) Dual Rack Adaptor set
The dual rack adaptor is available to unify the
half rack space into a standard EIA size with
single or dual units.
(11) Basic operation
POWER Turning the receiver on and o by pressing the POWER button.
SET
1. Setting group channel:
Press “SET” button three sec. till the “ ” show up and then re-press “SET” button till
the “ ” & “ ” show up you can select group.
After that press “UP” or “DOWN” button one sec. to increase or decrease group number.
Press “SET” button again the“ ” & “ ” starts showing up you can select channel,
press “UP” or “DOWN” button one sec. to increase or decreasechannel digit.
After there steps, press “SET” button again the“ ” will display on the LCD, you can
save the setting now.
2. Setting Frequency :
Press “SET” button three sec. till the “ ” show up and then you can press “UP” or
“DOWN” button one sec. to increase or decrease frequency. In case the frequeney meets
the re-set group channel it willl be displayed. Re-press “SET” button the“ ” will
display on the LCD, you can save the setting now.
AF OUTPUT LEVEL
POWER ON/OFF DOWN
UPSET

WIRELESS MICROPHONE SYSTEM
15
3. Setting Lock-on
Press “SET” button three sec. re-press “SET” button three times, after these procedure Press
“UP” button for lock-on mode and “DOWN” button for lock-o mode. Re-press “SET”
button the“ ” will display on the LCD the lock function could stored.
4. Relieved Lock-on
Press “SET” button three sec. till“ ” show up, to press “UP” button for lock-on mode
and “DOWN” button for lock-o mode. Re-press “SET” button the “Store” will display
on the LCD the lock function could stored.
5. Press any button the display shows“ ” during lock-on mock. And it will not disap-
peared either electric o.
(1) Insert 2 pcs 1.5V batteries into the battery tray.
(2) After putting into the battery, switch on the power on/o.
(3) LCD operation
Down button
Up button
SET button
5-2 Handheld Transmitter // Mh-8990(i)
4
5
3
Mh-8990i
3 4
Mh-8990i
7
6
6
7
5

16
(4) Setting group channel
1. Frequency displayed:
1-1 group set up
Press “SET” button for three sec. till the “MHz” show up and then re-press “SET” but-
ton till the group digit show up. Now you can press “UP” or “DOWN” button one sec.
to increase or decrease group number
1-2 channel set up
After 1-1 press “SET” button again the frequency display starts showing up, press “UP”
or “DOWN” button one sec. to increase or decrease frequency digit.
3. After 1-1 & 1-2 step, press “SET” button again the mic. will store the frequency
automatically.
2. Group displayed:
2-1 Press “SET” button for three sec. till the group digit show up then re-press “UP” or
“DOWN” button one sec. to increase or decrease group digit.
2-2 After 2-1 press “SET” button again the frequency display starts showing up, press “UP”
or “DOWN” button one sec. to increase or decrease frequency digit.
2-3 After 2-2 & 2-3 step, press “SET” button again the mic. will store the frequency auto-
matically.
(5) Setting Frequency
1. Frequency displayed:
Press “SET” button for three sec. till the “MHz” show up and then you can press “UP” or
“DOWN” button one sec. to increase or decrease frequency.
Re-press “SET” button again the mic. will store the frequency automatically.
2. Group displayed:
2-1 Press “SET” button for three sec. till the group digit show up then re-press “SET” but-
ton the frequency starts ashing.
2-2 After 2-1 press “SET” button till the “MHz” show up and then re-press “UP” or
“DOWN” button one sec. to increase or decrease group digit.
2-3 After 2-1 & 2-2 step, press “SET” button again the mic. will store the frequency
automatically.
