JUMO tecLine Series User manual

20263600T90Z001K000
V3.00/EN/00585747
JUMO tecLine H2O2 and PAA
Sensors for hydrogen peroxide (H2O2)
and peracetic acid (PAA)
Type 202636
Operating Manual

Contents
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.1 General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.2 Warning symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1.3 Note symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Areas of application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Design. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Output signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Suitable indicators/transmitters/controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 Sensor details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6 Important information for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6.1 Notes for all types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6.2 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and 202636/
60-60, -70, -80) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Identifying the device version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Nameplate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Order details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Important information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Combination fitting (type 202811/10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.1 Mounting the combination fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.2.2 Installing the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 Flow fitting for membrane-covered sensors (type 202811/30) . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.1 Mounting the fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.3.2 Installing the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4 Flow monitor for disinfection measurands (type 202811/20). . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.4.1 Mounting the flow monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1 Sensors with an output signal of 4 to 20 mA (types 202636/55 and /60) . . . . . . . . . . . . . . . . . 25
5.1.1 General requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1.2 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.1.3 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2 Sensors with a digital interface output signal (types 202636/75 and /80). . . . . . . . . . . . . . . . . 27
5.2.1 General requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.2.2 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.3 Flow monitoring (combination fitting and flow monitor). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Contents
5.3.1 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4 Combination fitting temperature probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4.1 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.5 Example of a measuring section with the sensor type 202636/55 . . . . . . . . . . . . . . . . . . . . . . 28
5.5.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.5.2 Connection example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.1 Important notes for screwing the membrane cap on and off. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2 Initial filling and installation of the membrane cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.2.1 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and 202636/
60-60, -70, -80) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.2.2 Types with an internal pressure compensation system (202636/55-81, /60-81, /60-85, /75
and /80). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.3 Minimum inflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.3.1 Adjusting the minimum inflow (combination fitting and flow monitor) . . . . . . . . . . . . . . . . . . . . 35
6.4 Settling time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
7 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.1 Replacing the electrolyte. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.1.1 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and 202636/
60-60, -70, -80) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
7.1.2 Types with an internal pressure compensation system (202636/55-81, /60-81, /60-85, /75
and /80). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
7.2 Replacing the membrane cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.2.1 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and 202636/
60-60, -70, -80) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.2.2 Types with an internal pressure compensation system (202636/55-81, /60-81, /60-85, /75
and /80). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
7.3 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.3.1 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and 202636/
60-60, -70, -80) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.3.2 Types with an internal pressure compensation system (202636/55-81, /60-81, /60-85, /75
and /80). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
7.4 Consumable material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
8 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
8.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
8.2 Calibrating with an indicator/controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9 Overcoming errors and malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.1 General troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9.2 Specific troubleshooting on the sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Contents
9.2.1 Testing the leak-tightness of the membrane cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.2.2 Electronics test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.2.3 Testing the zero point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
9.2.4 Measurement signal test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
9.2.5 Testing the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.1 Sensors for peracetic acid (PAA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
10.2 Sensors for hydrogen peroxide (H2O2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11 Annex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
11.1 Suitable titration methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
12 China RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

6
1 Introduction
1Introduction
1.1 Safety information
1.1.1 General Information
This manual contains information that must be observed in the interest of your own safety and to avoid
material damage. This information is supported by symbols which are used in this manual as indicated.
Please read this manual before starting up the device. Store this manual in a place that is accessible to
all users at all times.
If difficulties occur during startup, please do not intervene in any way that could jeopardize your warranty
rights!
1.1.2 Warning symbols
WARNING!
This symbol in connection with the signal word indicates that personal injury may occur if the respective
precautionary measures are not carried out.
NOTICE
This note in connection with the signal word indicates that material damage or data loss will occur if
the respective precautionary measures are not taken.
1.1.3 Note symbols
NOTE!
This symbol refers to important information about the product, its handling, or additional benefits.

7
2 Description
2 Desc rip tion
2.1 Areas of application
These membrane-covered amperometric sensors are used to measure the concentration of hydrogen
peroxide or peracetic acid in aqueous solutions.
Typical areas of application are galvanizing plants, the pharmaceutical field, the food and beverage in-
dustry, dairies and the chemical industry.
The sensors are partially insensitive to chemicals and surfactants, and can be used in media with almost
all qualities of water.
NOTE!
Solid materials in the media clog up the membrane and prevent the sensors from working correctly.
NOTE!
Calcium oxide can block the membrane.
NOTE!
The sensors are not suitable for detecting the absence of hydrogen peroxide or peracetic acid.
2.2 Design
The sensors have a membrane-covered, amperometric two-electrode measuring system.
The working electrodes (cathodes) are made of gold (Au). The anodes, which perform the role of a com-
bined reference and counter electrode, are made of silver (Ag) and have a silver halide (AgHal) coating.
For the measuring methods used here, hydrogen peroxide or peracetic acid diffuses through the mem-
brane from the measurement medium and, combined with the electrolytes, triggers an electrical signal
at the working electrode. This signal is proportional to the concentration of chlorine dioxide or ozone and
is amplified by the electronics. The measurement signal is mainly independent of the temperature of the
media thanks to integrated temperature compensation.
2.3 Output signal
As the measurement signal of the amperometric sensors is temperature-dependent, an automatic tem-
perature compensation is carried out by an integrated NTC resistor. The recommended temperature
range is 01 to +45 °C.
In the analog versions, the integrated sensor electronics provide a current signal of 4 to 20 mA, and in
the digital versions, they provide a Modbus RTU interface signal.
Calibration is carried out in a downstream device (indicator, controller, recorder, PLC, etc.).
The sensors can be connected directly to any suitable indicators and controllers. They provide the volt-
age required for supplying the sensors and allow for easy calibration of the measuring systems.
1Prerequisite: no ice crystals in the measuring water.

2 Description
8
2.4 Suitable indicators/transmitters/controllers
Type Features Suitable sensors
JUMO AQUIS 500 AS Single-channel (4 to 20 mA) indicating de-
vice/controller, additional temperature in-
put, binary input, up to two analog and
switching outputs
Types 202636/55 and /60
(output signal 4 to 20 mA)
JUMO AQUIS 500 RS Single-channel (Modbus RTU) indicating
device/controller, additional temperature in-
put, binary input, up to two analog and
switching outputs
Types 202636/75 and /80
(digital interface)
JUMO dTRANS AS 02 Modular multichannel transmitter/controller
for standard signals, PROFIBUS-DP,
RS422/485, data logger using optional
boards
Types 202636/55 and /60
(output signal 4 to 20 mA)
JUMO AQUIS touch S/P Modular multichannel measuring devices
for liquid analysis with integrated controller
and paperless recorder, USB host, USB de-
vice, Modbus, PROFIBUS-DP and Ether-
net using optional boards
All types 202636

9
2 Description

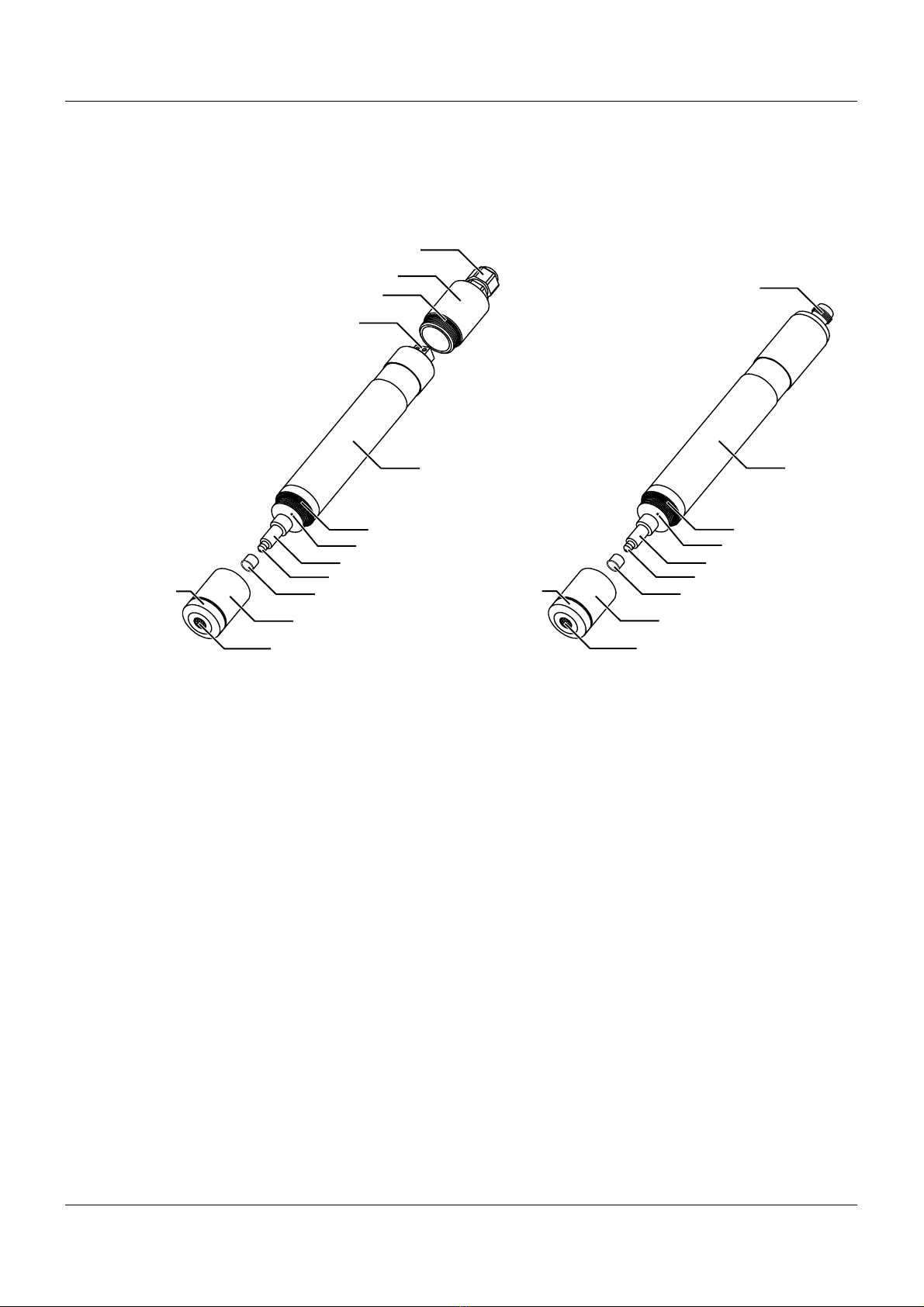

2.5 Sensor details
Types 202636/55-81, /60-81 and /60-85
(4 to 20 mA version)
Types 202636/75 and /80
(Modbus RTU version)
(1) Membrane holder (stainless steel)
(2) Membrane
(3) Membrane cap
(4) G-bracket
(5) Measuring electrode
(6) Electrode finger (reference electrode)
(7) Opening for pressure compensation
(8) O-ring
(9) Electrode shaft with integrated electronics
(10) Two-pin terminal for measuring cable connection
(11) O-ring
(12) Cover
(13) Pg screw connection
(14) M12 flange connector
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(14)

2 Description
10
Types 202636/55-45, -60, -70 and -75
Types 202636/60-60, -70 and -80
(4 to 20 mA)
(1) Valve opening
(2) Membrane holder (stainless steel)
(3) Membrane
(4) Membrane cap
(5) Transparent cover (hose rings)
(6) Measuring electrode
(7) Electrode finger (reference electrode)
(8) O-ring
(9) Counter electrode (stainless steel)
(10) Electrode shaft with integrated electronics
(11) Two-pin terminal for measuring cable connection
(12) O-ring
(13) Cover
(14) Pg screw connection
(3)
(4)
(5)
(6)
(7)
(8)
(10)
(1)
(11)
(12)
(13)
(14)
(2)
(9)

11
2 Description
2.6 Important information for use
2.6.1 Notes for all types
NOTICE
Unsuitable measurement media may produce incorrect measurement results.
Using the sensors to measure contaminated media (dirt particles, foreign objects, fibers, etc.) may lead
to incorrect measurement results.
In order to ensure error-free measurements, the measurement media must be visibly clean. A pre-
filter must also be used, as required.
NOTICE
An unsuitable measuring environment may produce incorrect measurement results.
Using the sensors without the use of suitable flow fittings will lead to incorrect measurement results.
In order to ensure error-free measurements, the sensors must be installed in suitable flow fittings,
see chapter 4.2 "Combination fitting (type 202811/10)", page 19 or chapter 4.3 "Flow fitting for mem-
brane-covered sensors (type 202811/30)", page 22.
NOTICE
Incorrect handling may cause damage to the membrane caps.
Screwing an unfilled membrane cap fully onto the sensor before startup may cause mechanical damage
to the membrane. In addition, screwing on a filled membrane cap without placing the sensor into the
measurement media can cause salt or gel residues to be deposited.
Screwing on the membrane cap without then starting up the sensor should be avoided.
NOTICE
The membranes may be damaged by high pressure.
Operating the sensors with increased pressure may cause the membranes to rip.
The sensors should be operated under as little pressure as possible, with the measurement media
able to flow freely. If this is not possible, the sensors can be operated under a constant pressure of
up to 1 bar (relative pressure) or 2 bar (absolute pressure). Fluctuations in pressure must be avoid-
ed.
2.6.2 Types with valve opening in the membrane cap (202636/55-45, -60, -70, -75 and
202636/60-60, -70, -80)
The measurement water must not contain any surfactants (contained in some cleaning agents and dis-
infectants). Surfactants may infiltrate the valve cover of the membrane cap. It can therefore no longer be
guaranteed that the sensors will work correctly.
The sensors for hydrogen peroxide and peracetic acid with a digital interface and internal pressure com-
pensation system (types 202636/75 and 202636/80) provide an alternative for measurement solutions
containing surfactants.

2 Description
12
NOTICE
Irritating substances may produce incorrect measurement results.
Using the sensors to measure media containing surfactants may lead to incorrect measurement results.
In order to ensure error-free measurements, the measurement media must not contain surfactants
(surface-active substances e.g. from detergents, cleaning agents or disinfectants).
NOTICE
Harmful substances may lead to incorrect measurement results and cause damage to the mem-
brane caps.
Using the sensors to measure media containing hydrophobic substances may lead to incorrect measure-
ment results. Hydrophobic substances can damage the membrane caps.
In order to ensure error-free measurements, the measurement media must not contain hydrophobic
substances (e.g. oil or grease).

13
3 Identifying the device version
3 Identifying the device version
3.1 Nameplate
Position
The nameplate is glued to the top of the sensor.
Contents
The nameplate contains important information. This includes:
Device type (Typ)
Compare the specifications on the nameplate with your order documents. The supplied device version
can be identified using the order code in chapter 3.2 "Order details", page 14.
Fabrication number (F no.)
The fabrication number provides information such as the production date (year/week). The figures in
question are in positions 12, 13, 14, and 15 (from the left).
For example: F-No. = 0000000000018410005. The device was produced in 2018 and in the 41st week.
JUMO tecLine H2O2
Sensor für Wasserstoffperoxid
Typ: 202636/60-81
Messbereich: 0...2% (20000 mg/l)
F-Nr.: 00000000 00 0 1841 0005
Serien Nr.: 01 01 0004
JUMO GmbH & Co. KG
Fulda, Germany
www.jumo.net
Description Designation on the nameplate Example
Device type Type 202636/60-81
Fabrication number F No. 000000000001841000500

3 Identifying the device version
14
3.2 Order details
3.3 Scope of delivery
(1) Basic type
202636 JUMO tecLine H2O2 + PAA
Sensors for hydrogen peroxide and peracetic acid
(2) Basic type extension
55 Sensor for peracetic acid, output signal 4 to 20 mA
60 Sensor for hydrogen peroxide, output signal 4 to 20 mA
75 Sensor for peracetic acid, digital interface output signal
80 Sensor for hydrogen peroxide, digital interface output signal
(3) Measuring rangea
45 0 to 200 mg/l (ppm)
60 0 to 500 mg/l (ppm)
70 0 to 2000 mg/l (ppm)
75 0 to 5000 mg/l (ppm)
80 0 to 10000 mg/l (ppm)
81 0 to 20000 mg/l (ppm)
85 0 to 50000 mg/l (ppm)
95 0 to 200000 mg/l (ppm)
aWhen selecting the measuring range, please refer to the note on the slope of the sensors on page 2.
(1) (2) (3)
Order code /-
Order example 202636 / 60 - 81
Type 202636/55-45, -60, -70, -
75 Two-wire sensor, incl. membrane cap, electrolyte, special abrasive paper for cath-
ode cleaning, and operating manual
Type 202636/60-60, -70, -80
Type 202636/55-81 Two-wire sensor, incl. membrane cap, electrolyte, G-bracket with tweezers, spare
G-bracket with O-ring, special abrasive paper for cathode cleaning, and operating
manual
Type 202636/60-81, -85
Type 202636/75 Modbus RTU sensor, incl. membrane cap, electrolyte, G-bracket with tweezers,
spare G-bracket with O-ring, special abrasive paper for cathode cleaning, and op-
erating manual
Type 202636/80

15
3 Identifying the device version
3.4 Accessories
Fittings
Designation Part no.
Combination fitting for mounting several electrochemical sensorsa00607325
Individual fitting for mounting a membrane-covered sensor 00392611
Mounting bracket for individual fitting 00455706
Flow monitor for monitoring the minimum inflowb00605507
aWith integrated flow monitor, mini ball valve included.
bFor flow monitoring in connection with the individual fitting.
Connecting cables for sensors with a digital interface
Designation Part no.
1.5 m connecting cable, 5-pin M12 connector, A-coded on the ferrules 00638333
5 m connecting cable, 5-pin M12 connector, A-coded on the ferrules 00638337
10 m connecting cable, 5-pin M12 connector, A-coded on the ferrules 00638341
Suitable transmitters/controllers
Designation Part no.
JUMO AQUIS 500 ASa, type 202568/20-888-888-888-310-310-23/000
(for further versions, please refer to data sheet 202568)
00528718
JUMO AQUIS 500 RSb, type 202569/20-654-888-888-310-310-23/000
(for further versions, please refer to data sheet 202569)
00602275
JUMO dTRANS AS 02a, type: 202553/01-8-01-4-0-00-23/000
(fur further versions, please refer to data sheet 202553)
00550842
JUMO AQUIS touch S/PcRefer to data
sheet 202580/
81
aFor types 202636/55 and /60.
bFor types 202636/75 and /80.
cFor all types 202636.

3 Identifying the device version
16
Spare part sets and electrolytes
Sensor Measuring range Part no. Spare parts set
(membrane cap, fine abrasive paper)
Part no. electrolyte
(100 ml)
202636/55-45 0 to 200 mg/l 00409344 00440821
202636/55-60 0 to 500 mg/l 00409344 00440821
202636/55-70 0 to 2000 mg/l 00409344 00440821
202636/55-75 0 to 5000 mg/l 00493433 00684631
202636/55-81 0 to 20000 mg/l 00673072 00673075
202636/60-60 0 to 500 mg/l 00409344 00438126
202636/60-70 0 to 2000 mg/l 00409344 00438126
202636/60-80 0 to 10000 mg/l 00438125 00438126
202636/60-81 0 to 20000 mg/l 00572408 00438126
202636/60-85 0 to 50000 mg/l 00572408 00438126
202636/75-45 0 to 200 mg/l 00682748 00682756
202636/75-70 0 to 2000 mg/l 00682748 00682756
202636/75-81 0 to 20000 mg/l 00682748 00682789
202636/80-81 0 to 20000 mg/l 00682753 00682792
202636/80-95 0 to 200000 mg/l 00682753 00682792
= spare part set, additionally with spare G-bracket

17
4 Mounting
4 Moun ting
4.1 Important information
NOTICE
An unsuitable measuring environment may produce incorrect measurement results.
Using the sensors without the use of suitable flow fittings will lead to incorrect measurement results.
In order to ensure error-free measurements, the sensors must be installed in suitable flow fittings,
see chapter 4.2 "Combination fitting (type 202811/10)", page 19 or chapter 4.3 "Flow fitting for mem-
brane-covered sensors (type 202811/30)", page 22.
NOTICE
The membranes may be damaged by high pressure.
Operating the sensors with increased pressure may cause the membranes to rip.
The sensors should be operated under as little pressure as possible, with the measurement media
able to flow freely. If this is not possible, the sensors can be operated under a constant pressure
according to the specifications in chapter 10 "Technical data", page 55. Fluctuations in pressure
must be avoided.
NOTICE
Air bubbles may lead to incorrect measurement results.
The presence of air bubbles in the measurement medium in front of the membrane may produce incor-
rect measurement results.
In order to ensure error-free measurements, the measurement media must be free of air bubbles.
NOTICE
Interruptions in the voltage supply may produce incorrect measurement results.
An interruption in the voltage supply (e.g. in interval operation) may produce incorrect measurement re-
sults. The sensors require a settling time period to determine the correct measurement.
In order to ensure error-free measurements, the sensors and transmitters must be permanently sup-
plied with voltage, even in interval operation.
NOTICE
Dry electrolytes may produce incorrect measurement results.
If there is no medium to measure when the membrane cap is filled, a build-up of salt on the inside of the
membrane may cause incorrect measurement results.
For sensors with electrolyte-filled membrane caps, the sensor fittings should be prevented from
draining or dry running.
NOTICE
Deposits on the membrane may lead to incorrect measurement results.
If there is no disinfectant (hydrogen peroxide or peracetic acid) in the measurement medium for more
than 24 hours, this will lead to incorrect measurement results due to deposits (biofilm) on the membrane.
Avoid operating the sensors with measurement medium which does not contain a disinfectant. After
operation in a disinfectant-free medium, a settling time period is to be expected. It may be necessary
to delay switching on dosing.

4 Mounting
18
NOTICE
Impurities may produce incorrect measurement results.
Using the sensors to measure media containing oxidants, reducing agents or corrosion protection agents
may lead to incorrect measurement results.
Oxidizing agents, reducing agents, corrosion inhibitors, and substances which result in cross sensi-
tivities with the sensors (see information in chapter 10 "Technical data", page 55) must be avoided
in the measurement medium.
NOTE!
If no disinfectant is dosed over a long period of time, the sensors must be disconnected from the trans-
mitter/controller, removed and stored correctly; please refer to chapter 7.3 "Storage", page 48.

19
4 Mounting
4.2 Combination fitting (type 202811/10)
4.2.1 Mounting the combination fitting
The combination fitting can be mounted on a wall or an installation panel with the mounting holes (1)
using two commercially available M5 cylinder head screws (dia. 5.5 mm, countersink according to DIN
974-1: dia. 11 mm, 5 mm deep, not included in the scope of delivery).
(1) Mounting hole for cylinder head screws M5 (dia. 5.5 mm; countersink: dia. 11 mm, 5 mm deep)
(2) Valve insert for flow control
(3) Inductive proximity sensora(flow monitoring), M12 x 1 thread
(4) Floating body for flow monitoringa
(5) Sealing screw M8
(6) Extension for M8 sealing screw
(7) Sealing screw G 3/8
(8) Mounting closed with dummy plug for pH/Redox sensor with Pg 13.5 thread
(9) Mounting for membrane-covered sensor with dia. 25 mm
(10) Hose connection for measuring water outflow, connection G 1/4, for hose 6 × 8
(inner dia. 6 mm, outer dia. 8 mm)
(11) M8 ground roda
(6)
(7)
(8) (8)
(10)
(13)
(11)(12)(14)(15)
(9)

4 Mounting
20
4.2.2 Installing the sensor
Overview
(12) Sealing screw G 1/4 (opening for optional mini ball valve for sampling)
(13) Indicator for sensor immersion depth
(14) Temperature probea
(15) Hose connection for measuring water inflow, connection to fitting G 1/4,
for hose 6 × 8 (inner dia. 6 mm, outer dia. 8 mm)
aoptionally
(1) Mounting for pH/Redox sensors (7) Pressure ring
(2) Pg 13.5 pressure screw (8) Stepped collar
(3) Mounting for membrane-covered sensor (9) O-Ring
(4) Union nut (10) Mark for sensor immersion depth
(5) Membrane-covered sensor (11) Mark for floating body height
(6) Sensor slot
(8)
(7)
(9)
