Juvo Mobi AJV410 Manual

1
EZ-FOLD
PERSONAL
TRANSPORTER
300
COMPLETE BALANCE
SUPPORT
COMFORTABLE
TEMPORARY SEAT
HEIGHT ADJUSTABLE
300 POUND
WEIGHT CAPACITY
INSTRUCTION GUIDE
ALL INSTRUCTIONS ENCLOSED MUST
BE READ, UNDERSTOOD, BEFORE USE.

32
walk safely.
walk in style.
ergonomic
comfort handles
lightweight
design
storage
bag
soft fabric seat
Deluxe
indoor/outdoor
wheels

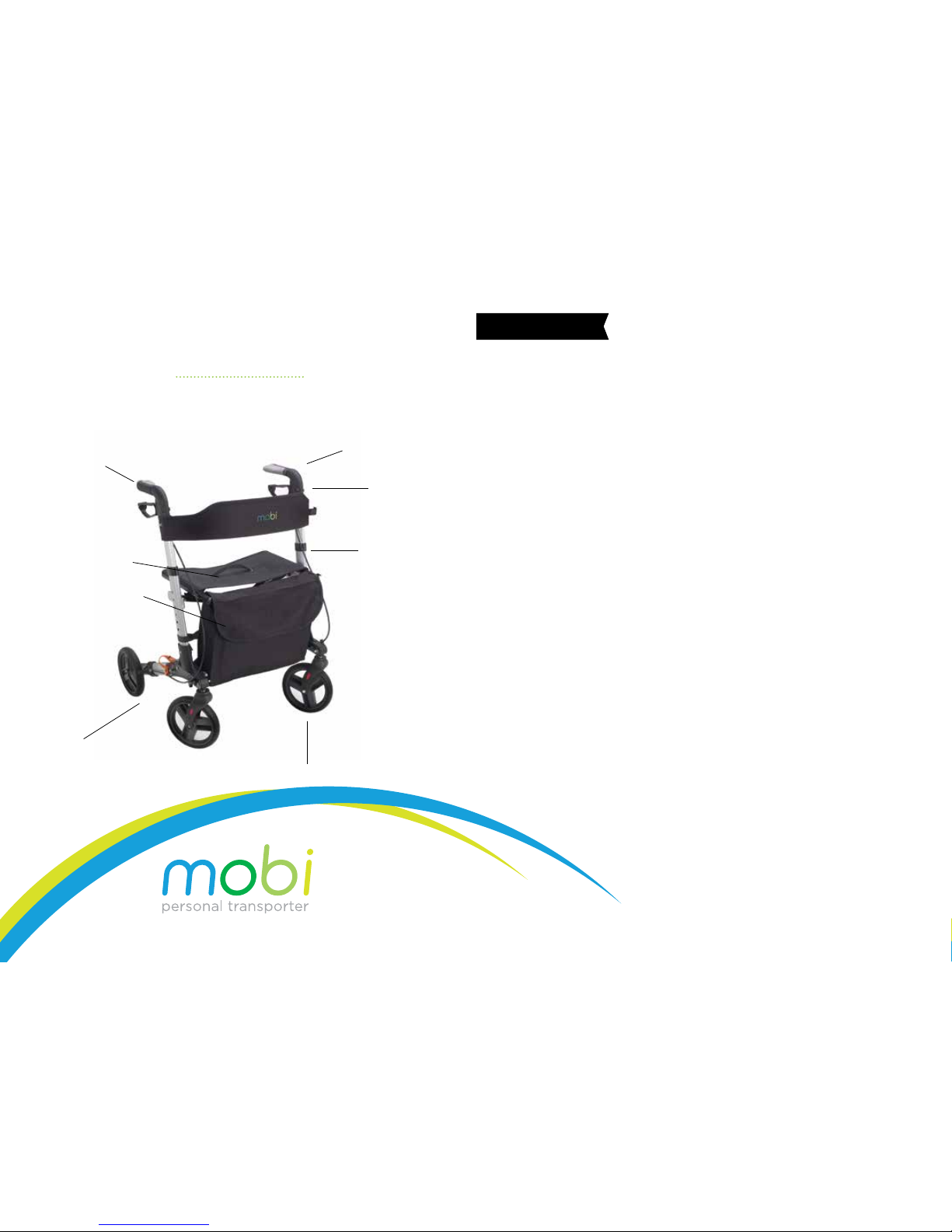

EZ -FOLD PERSONAL TRANSPORTER
easily folded
for storage
or transport
adjustable
handlebars
300 lb.
weight limit
CONTENTS:
Carefully remove the Personal Transporter frame
and parts from the box and inspect them for any
damage or missing parts that may have resulted
from shipping.
Call 1.844.277.6191 TOLL FREE with any questions.
PARTS INSIDE BOX:
(1) Personal Transporter (wheels, legs, already
attached)
(1) Carry bag
(1) Instruction Guide (Must be read completely
before use)

54
6
OPERATING INSTRUCTIONS:
1. TO OPEN PERSONAL TRANSPORTER
(IF FOLDED)
• Place unit upright on floor
• Push down on sides of seat until unit opens
fully and locks in place (see image 4)
2. TO CLOSE, FOLD PERSONAL TRANSPORTER
• Lift seat straight up using nylon strap handle on
center of seat, until unit folds (see image 6)
3. TO CLOSE, FOLD PERSONAL TRANSPORTER
FOR STORAGE, TRANSPORT
• Repeat operating instructions #2 (above).
• Reverse step 2–5, assembly instructions
4. BRAKES
• Squeeze the brakes to stop the Personal
Transporter. (See image 7).
• Push the brakes straight down to the locking
position. (See image 8).
• BRAKES MUST BE IN THE LOCKED POSITION
WHENEVER SITTING ON THE PERSONAL
TRANSPORTER. ALWAYS ENGAGE, DISENGAGE
BRAKES SIMULTANEOUSLY.
5. HANDLE BARS
• To determine handle height—user should stand
behind Personal Transporter with arms hanging
at sides and both feet lined up with the rear
wheels (Image 9). Personal Transporter handles
should be even with the user’s wrist.
• Adjusting handle height—depress push pin on
the outside of each handle tube. Make sure push
pin is fully engaged and that handles are the
same height (image 10).
7
8
3
2
1
5
4
ASSEMBLY INSTRUCTIONS:
1. Lay the unit down on its side (Image 1).
2. Unscrew the star knobs above the front wheels.
Flip the wheels down 90 degrees into position.
Make sure the hole in the wheel aligns with the
hole in the metal frame.
3. Lift up on the hinged metal latch and release the
pin (Image 3) to unfold the rear leg. Drop the leg
into straight, fixed position. Push pin should be
in the hole.
4. Re-insert pin into hole through metal frame and leg,
from inside-out.
Make sure that metal latch on pin crosses over the
top of the leg and covers the pin on other side, to
secure it in place. (image 3)
5. Repeat for other leg.
6. Bring personal transporter to standing position.
7. Open and push down on sides of seat until locked
in place (image 4).
8. Place bag over plastic extensions at the front of
the seat with bag opening facing toward
the front.
9. Finished look (image 5)
9
10

76
SAFETY PRECAUTIONS:
1. READ ALL ASSEMBLY, OPERATING INSTRUCTIONS BEFORE USE
2. Please make sure the Personal Transporter is opened fully and
the seat frame is pushed down until it snaps in place.
3. Make sure all knobs, nuts, bolts, pins are fully tightened. Check
regularly to ensure they are secure at all times.
4. Make sure handle bars are in the same height position and Personal
Transporter is level. Make sure push pins on handle bar arms are fully
engaged in respective holes.
5. Test the Personal Transporter for stability before applying full weight.
6. Test brakes before using
7. ALWAYS LOCK BRAKES BEFORE SITTING, please refer to
Operating Instructions #4 (image 8).
8. Replace tires when significantly worn or damaged
9. Caution: Keep hands clear of frame when folding
10. Maximum weight capacity 300 lbs.
4. CHECK HAND BRAKES
• Hand Brakes should be in working order
after assembly
• Check Hand Brakes periodically for proper
function
• Squeeze the Hand Brakes and check to ensure
that the metal brake shoes engage the wheels
and stop the Personal Transporter. (see image 11)
• Push the Hand Brakes DOWN into their locking
position and check to ensure that the metal
brake shoes engage the wheels and stop the
Personal Transporter. (see image 11)
5. HAND BRAKE ADJUSTMENT
• Hand Brakes should be in working order after
assembly.
• However brakes can loosen during normal use
TIGHTEN BRAKES
• Place Personal Transporter upright
on floor
• Loosen nut at top of brake shoe assembly,
near wheel. Turn counter-clockwise until
desired tension is achieved (see image 12)
• Test by squeezing hand brake — ensure that
metal brake shoe fully engages the wheel.
LOOSEN BRAKES
• Place Personal Transporter upright
on floor
• Loosen nut at top of brake shoe assembly,
near wheel. Turn clockwise until desired
tension is achieved (see image 12)
• Test by squeezing hand brake — ensure that
metal brake shoe fully engages the wheel.
10
11
Call Juvo Products
Customer Service
Toll Free: 1.844.277.6191
with any questions

98
Warranty Claims: The purchaser must notify Juvo directly of any claims under
this Limited Lifetime Warranty within seven (7) days following the discovery
of the problem. To make a claim under this Limited Lifetime Warranty, the Buyer
should contact Juvo Products, LLC at:
111 North Street, Suite 205
Barrington, Illinois 60010
Attention: Customer Service
CUSTOMER SERVICE: 844.277.6191 TOLL FREE
A copy of the original purchase receipt should accompany any claim under this
Limited Lifetime Warranty.
Juvo shall have no obligations under this Limited Lifetime Warranty if the
purchaser fails or refuses to reasonably cooperate in Juvo’s investigation of the
claim (such as failing to provide photographs and or written documentation of
the claim). If Juvo determines there are defects covered by this Limited Lifetime
Warranty, Juvo will have up to thirty (30) days after receipt of notification to
process the purchaser’s claim.
This Warranty gives you specific legal rights. You may have other rights as well
which vary from state to state or province to province. This warranty excludes
all consequential damages, however, some states do not allow the limitation or
exclusion of consequential damages and therefore this limitation may not apply
to you.
TOLL FREE
844.277.6191
JUVO PRODUCTS, LLC PERSONAL TRANSPORTER,
ROLLATOR LIMITED LIFETIME WARRANTY
