JVC KW-V640BT User manual

KW-V640BT (Region 3 – DVD Region Code 3 Area)
KW-V640BTM (Region 2 – DVD Region Code 2 Area)
KW-M540BT (For Australia and New Zealand)
KW-M540BT (For Southeast Asia)
KW-M540BTM
This instruction manual is used to describe the models listed above. Model availability and features (functions)
may differ depending on the country and sales area. B5A-2153-00 (M/M2/X/A9)
ENGLISH
MONITOR WITH DVD RECEIVER MONITOR WITH RECEIVER
INSTRUCTION MANUAL
ENKW-V2018TCM.indb1ENKW-V2018TCM.indb1 2018/01/1615:052018/01/1615:05

Important NoticeImportant Notice
To ensure proper use, please read through this
manual before using this product. It is especially
important that you read and observe WARNINGS
and CAUTIONS in this manual.
Please keep the manual in a safe and accessible
place for future reference.
WARNINGS
To prevent accidents and damages
• DO NOT install any unit or wire any cable in a
location where;
–it may obstruct the steering wheel and gearshift
lever operations.
–it may obstruct the operation of safety devices such
as air bags.
–it may obstruct visibility.
• DO NOT raise the volume level too much, as this will
make driving dangerous by blocking outside sounds,
and may cause hearing loss.
• DO NOT operate the unit while driving. If you need
to operate the unit while driving, be sure to look
around carefully.
• Stop the car before performing any complicated
operations.
• The driver must not watch the monitor while driving.
CAUTIONS
To care for the unit
• If you have parked the car for a long time in hot or
cold weather, wait until the temperature in the car
becomes normal before operating the unit.
To care for the monitor
• The monitor built into this unit has been produced
with high precision, but it may have some ineffective
dots. This is inevitable and is not considered
defective.
• Do not expose the monitor to direct sunlight.
• Do not operate the touch panel using a ball-point
pen or similar tool with a sharp tip.
Touch the keys on the touch panel with your finger
directly (if you are wearing a glove, take it off).
• When the temperature is very cold or very hot...
–Chemical changes occur inside, causing
malfunction.
–Pictures may not appear clearly or may move
slowly. Pictures may not be synchronized with
the sound or picture quality may decline in such
environments.
On the volume setting
• Digital devices produce very little noise compared
with other sources. Lower the volume before playing
these digital sources to avoid damaging the speakers
by sudden increase of the output level.
For KW-V640BT/KW-V640BTM:
The marking of products using lasers
The label is attached to the chassis/case and says
that the component uses laser beams that have been
classified as Class 1. It means that the unit is utilizing
laser beams that are of a weaker class. There is no
danger of hazardous radiation outside the unit.
ENGLISHi
ENKW-V2018TCM.indbiENKW-V2018TCM.indbi 2018/01/1615:052018/01/1615:05

Important NoticeImportant Notice
For KW-V640BTM/KW-M540BTM:
For Turkey
Bu ürün 28300 sayılı Resmi Gazete’de yayımlanan Atik
Elektrikli ve Elektronik Eşyalarin Kontrolü Yönetmeliğe
uygun olarak üretilmiştir.
Eski Elektrik ve Elektronik Ekipmanların İmha
Edilmesi Hakkında Bilgi (ayrı atık toplama
sistemlerini kullanan ülkeleri için uygulanabilir)
Sembollü (üzerinde çarpı işareti olan çöp
kutusu) ürünler ev atıkları olarak atılamaz.
Eski elektrik ve elektronik ekipmanlar,
bu ürünleri ve ürün atıklarını
geri dönüştürebilecek bir tesiste
değerlendirilmelidir. Yaşadığınız bölgeye
en yakın geri dönüşüm tesisinin yerini
öğrenmek için yerel makamlara müracaat
edin. Uygun geri dönüşüm ve atık
imha yöntemi sağlığımız ve çevremiz
üzerindeki zararlı etkileri önlerken
kaynakların korunmasına da yardımcı
olacaktır.
For KW-V640BTM/KW-M540BTM:
Declaration of Conformity with regard to the RE
Directive 2014/53/EU
Declaration of Conformity with regard to the RoHS
Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, Japan
EU Representative:
JVCKENWOOD Deutschland GmbH
Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel,
GERMANY
English
Hereby, JVCKENWOOD declares that the radio
equipment “KW-V640BTM/KW-M540BTM” is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at the following internet address:
http://www.jvc.net/cs/car/eudoc/
RE 2014/53/EU Direktifi uyarınca Uygunluk Beyanı
RoHS Yönergesi 2011/65/EU’ya göre Uygunluk
Bildirimi
Üretici:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi,
Kanagawa, 221-0022, Japan
AB Temsilcisi:
JVCKENWOOD Deutschland GmbH
Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel,
GERMANY
Turkish
Burada, JVCKENWOOD “KW-V640BTM/KW-M540BTM”
radyo ekipmanının 2014/53/AB Direktifine uygun
olduğunu bildirir.
AB uyumluluk deklarasyonunun tam metni aşağıdaki
internet adresinde mevcuttur.
http://www.jvc.net/cs/car/eudoc/
ENGLISH ii
ENKW-V2018TCM.indbiiENKW-V2018TCM.indbii 2018/01/1615:052018/01/1615:05

About this manual
The displays and panels shown in this manual are
examples used to provide clear explanations of the
operations. For this reason, they may be different
from the actual displays or panels.
Illustrations of KW-V640BT Region 3 are mainly
used for explanation.
This manual mainly explains operations using the
buttons on the monitor panel and keys on the
touch panel. For operations using the remote
controller, see page 39.
< > indicates the various screens/menus/
operations/settings that appear on the touch
panel.
[ ] indicates the keys on the touch panel.
Indication language: English indications are used
for the purpose of explanation. You can select the
indication language from the <SETUP> menu.
(Page 36)
ContentsContents
Component Names and Operations...............3
Basic Operations.................................................3
Turning on the power..................................................................3
Turning off the power..................................................................3
Turning off the AV source..........................................................3
Adjusting the volume...................................................................3
Attenuating the sound................................................................3
Turning off the screen..................................................................3
Getting Started ...................................................4
Initial settings.....................................................................................4
Setting the security code ...........................................................4
Calendar/clock settings...............................................................5
Various Screens and Operations .....................5
Touch screen operations............................................................5
Home screen......................................................................................6
Source control screen...................................................................7
List/setting screen...........................................................................9
Disc......................................................................10
Video...................................................................11
USB......................................................................13
iPod/iPhone.......................................................14
Apps—WebLink™/Waze..................................15
Tuner...................................................................16
Spotify ................................................................19
Other External Components ..........................21
Rear view camera.........................................................................21
AV-IN.....................................................................................................21
Watching TV ....................................................................................21
Using the external navigation unit....................................22
Bluetooth® .........................................................23
Information ......................................................................................23
Preparation....................................................................................... 23
Connection.......................................................................................23
Bluetooth mobile phone......................................................... 26
Bluetooth audio player............................................................. 29
Bluetooth mobile phone settings...................................... 29
Settings ..............................................................30
Audio settings ................................................................................ 30
AV settings........................................................................................ 34
Display settings..............................................................................35
User interface settings............................................................... 36
Camera settings ............................................................................37
Special system settings............................................................. 37
Bluetooth settings .......................................................................38
Security settings............................................................................ 38
Navigation settings.....................................................................39
Remote Controller............................................39
Preparation....................................................................................... 39
Basic operations............................................................................ 40
Searching for an item directly .............................................. 40
Installation and Connection...........................41
Before installation ........................................................................41
Installing the unit..........................................................................42
Wiring connection....................................................................... 43
Connecting external components....................................44
References .........................................................44
Maintenance ...................................................................................44
More information......................................................................... 44
Troubleshooting...............................................48
Specifications....................................................50
Trademarks and licenses.......................................................... 53
2ENGLISH
ENKW-V2018TCM.indb2ENKW-V2018TCM.indb2 2018/01/1615:052018/01/1615:05

Component Names andComponent Names and
OperationsOperations
Basic OperationsBasic Operations
1Volume +/–buttons
2Loading slot*1
3FNC button
• (Press) Turns on the power.
• (Press) Pops up the short-cut menu while the
power is on.
• (Hold) Activates the voice dialing.
4Monitor panel
5Screen (touch panel)
6Remote sensor*2
*1 Only for KW-V640BT/KW-V640BTM.
*2 DO NOT expose the remote sensor to bright light (direct sunlight
or artificial lighting).
Turning on the power
Turning off the power
1 Display the source/option selection
screen.
On the Home screen, touch as follows:
2 Turn off the power.
Turning off the AV source
1 Display the source/option selection
screen.
On the Home screen, touch as follows:
2 Turn off the AV source.
Adjusting the volume
You can adjust the volume (00 to 40) by pressing +to
increase and pressing –to decrease.
• Holding +increases the volume continuously to
level 15.
Attenuating the sound
On the source control screen, touch as follows:
The ATT indicator lights up.
To cancel attenuation: Touch [ ] again.
Turning off the screen
1 Display the pop-up short-cut menu.
2 Turn off the screen.
(Hold)
To turn on the screen: Press FNC on the monitor
panel or touch the screen.
3
ENGLISH
ENKW-V2018TCM.indb3ENKW-V2018TCM.indb3 2018/01/1615:052018/01/1615:05

Getting StartedGetting Started
Initial settings
When you power on the unit for the first time, the
<Initial SETUP> screen appears.
Perform the initial settings.
E.g. Initial settings screen for KW-V640BT Region3
Once completed, a warning message appears. Touch
[Agree] to display the Home screen.
[Language]*1
Select the text language used for on-screen
information.
Touch [Language Select], then select the language.
• American English(en)/British English(en)*2/
Nederlands(nl)/Français(fr)/Deutsch(de)/
Italiano(it)/Español(es)/(ar) /Ελληνικά(el)/
Português(pt)/Čeština(cs)/Polski(pl)/
Magyar(hu)/Руccĸий(ru)/ (th)/
Türkçe(tr)/ (zh)/ (zh)/(he)
/(fa) /BahasaMelayu(ms)/Bahasa
Indonesia(id)*3
[Clock] (Page 5)
Set the calendar and clock time.
Make the settings for [Clock], [Time Zone] or [Clock
Adjust].
[Display] (Page 35)
Make the settings to adjust the display.
[Camera] (Page 37)
Make the settings to display the picture from the
connected rear view camera.
[DEMO]
• ON (Initial): Activates the display demonstration.
• OFF: Deactivates the display demonstration.
*1 “Please Power Off” appears when the setting is changed. Turn
off the power, then turn on to enable the change.
*2 Initially selected for KW-V640BT Region 3 except for Indonesian
models/KW-V640BTM Region 2/KW-M540BT/KW-M540BTM.
*3 Initially selected for KW-V640BT Region 3 Indonesian models.
Setting the security code
You can set a security code (four-digit number of
your choice) to protect your receiver system against
theft. Once you set the security code, you are required
to input the security code when the power is on to
reconnect the battery.
1 Display the <Security Code Set> screen.
On the Home screen, touch as follows:
Then, on the <SETUP> screen, touch as follows:
[Security] →[Security Code Set]
2 Enter a four-digit number (1), then
confirm the entry (2).
• To clear the last entry, touch [BS].
• To cancel the setting, touch [ ].
3 Enter the four-digit number entered in
step 2 and touch [Enter] again to confirm
your security code.
4ENGLISH
ENKW-V2018TCM.indb4ENKW-V2018TCM.indb4 2018/01/1615:052018/01/1615:05

To change the security code: Touch [Security Code
Change] on the <Security> screen on step 1, then
repeat steps 2 and 3.
To clear the security code: Touch [Security Code
Cancellation] on the <Security> screen on step 1,
then repeat step 2.
Calendar/clock settings
1 Display the <User Interface> screen.
On the Home screen, touch as follows:
Then, on the <SETUP> screen, touch [User
Interface].
2 Set the date and clock.
[Clock]
Select the method to set the date and clock.
• RDS-SYNC (Initial): Synchronizes the clock with
the FM Radio Data System.
• Manual: Sets the date and clock manually.
[Time Zone]*
Select the time zone for your area.
[Clock Adjust]*
Set the date and clock manually when [Clock] is
set to [Manual].
Touch [J]/[K]to adjust the date (year/month/
date), then clock (hour/minute). To finish setting,
touch [Set].
* Available when [Clock] is set to [Manual].
Getting StartedGetting Started Various Screens andVarious Screens and
OperationsOperations
You can display or change to other screens at any time
to show information, change the AV source, change
the settings, etc.
Touch screen operations
To perform operations on the screen, you need to
touch, touch and hold, flick or swipe to select an item,
display setting menu screen or to change the page,
etc.
Touch
Touch the screen gently to select an
item on the screen.
Touch and hold
Touch the screen and keep your
finger in place until the display
changes or a message is displayed.
Flick
Slide your finger to the left or right on
the screen to change the page.
Swipe
Slide your finger up or down on the
screen to scroll the screen.
5ENGLISH
ENKW-V2018TCM.indb5ENKW-V2018TCM.indb5 2018/01/1615:052018/01/1615:05

6Ejects the disc*
7Displays the phone control screen
* Only for KW-V640BT/KW-V640BTM.
Available playback sources and options
Touch 5to display the source/option selection screen.
iPodWebLink
USBTunerPower Off
Waze
Disc
E.g. Source/option selection screen for KW-V640BT
Region3
Touching the operation keys performs the following
actions:
[WebLink] Switches to the WebLink™
application.
[Waze] Switches to the Waze application.
[iPod] Plays an iPod/iPhone.
[Power Off] Turns off the power.
[Tuner] Switches to the radio broadcast.
[USB] Plays files on a USB device.
[Disc]* Plays a disc.
[AV-IN] Switches to an external component
connected to the AV-IN input
terminal.
[BT Audio] Plays a Bluetooth audio player.
[Spotify] Switches to the Spotify application.
Various Screens and OperationsVarious Screens and Operations
[Audio] Displays the sound adjustment
screen.
[AV Off] Turns off the AV source.
[ ] Displays the <SETUP> screen.
To change the page: Touch [ ]/[ ]. Current page is
shown by the page indication on the bottom of the
screen.
To return to the Home screen: Touch [ ] on the
source/option selection screen.
* Only for KW-V640BT/KW-V640BTM.
Customizing the source/option selection
screen
You can arrange the items to display on the source/
option selection screen.
1 Select an item to move.
Touch and hold the item you want to move until
boxes appear around the icons.
2 Drag the selected item to the position you
want to move it to.
iPodWebLink
USBTuner Power Off
Waze
Disc
E.g. Source/option selection screen for KW-V640BT
Region 3
Home screen
When you turn on the power for the first time, the
Home screen appears.
• You can customize the Home screen.
• To display the Home screen from other screens, press
FNC on the monitor panel, then touch [Home] on
the pop-up short-cut menu.
Phone
AM
Jan.Mon. 1
10:00
USB
Song Title
Waze
iPod
WebLink
E.g. Home screen for KW-V640BT Region 3
Touching the operation keys performs the following
actions:
1Short-cut playback source keys
2Current source information
• Touch to display the current playing source
control screen.
• Touching []scrolls the text if not all of the text
is shown.
3Displays the <SETUP> screen
4Widget
• You can change the widget by touching [ ]/[ ].
• Touch the widget to display the detailed screen.
5Displays all playback sources and options
6ENGLISH
ENKW-V2018TCM.indb6ENKW-V2018TCM.indb6 2018/01/1615:052018/01/1615:05

Various Screens and OperationsVarious Screens and Operations
E.g. Common audio playback source screen for
KW-V640BT Region 3
1Playback source or media type
2Picture data/artwork (shown if the file contains
artwork except for disc playback)
3For video: Hides the operation buttons on the
screen while video is played
• Touch the screen to restore the operation
buttons.
For audio: File format
4Repeat/random playback mode keys*1
5Information about connected device
• For Bluetooth device: Signal strength and battery
level (only when the information is acquired from
the device)
6Track/file/song/video information
• Touching []scrolls the text if not all of the text
is shown.
7Clock display
8Displays the track/file/station/channel list
9Displays/hides other available operation keys*1
pDisplays the source/option selection screen
qOperation keys*1
wSecondary screen
Each time you touch [ ]/[ ] , the items shown on
the secondary screen change as follows:
• Indicators: Displays the current source conditions,
etc.
The followings are the common indicators:
−ATT: The sound is attenuated.
−LOUD: The loudness is active.
−IN: A disc is inserted. *2
−MUSIC/VIDEO: Music/video file is played back.
• Short-cut buttons: Changes the source from
those you have located on the Home screen.
eM (For KW-V640BT/KW-V640BTM): Ejects the disc
(For KW-M540BT/KW-M540BTM): Displays the
phone control screen
*1 See “Common operation keys on source control screen” on
page8.
*2 Only for KW-V640BT/KW-V640BTM.
About short-cut playback source keys on the
Home screen
The three items displayed on the top of the source/
option selection screen with large icons are also
shown on the Home screen as the short-cut playback
source keys. You can set the source keys which you use
frequently and access quickly from the Home screen.
Phone
AM
Jan.Mon. 1
10:00
USB
Song Title
Source control screen
You can perform the playback operation from the
source control screen during playback.
• The operation keys and information displayed vary
depending on the selected source/disc type/file type
being played.
• If the operation keys are not displayed on the screen,
touch the screen to show them.
7
ENGLISH
ENKW-V2018TCM.indb7ENKW-V2018TCM.indb7 2018/01/1615:052018/01/1615:05

Various Screens and OperationsVarious Screens and Operations
9
[ ] Displays other available operation keys
besides those shown on q.
• To hide the window, touch [ ].
[ ] [ ] Reverses/forwards search during
playback.
[ ] [ ] Plays in slow-motion.
[o]Stops playback.
[SETUP] Displays the setting screen of the
current playback source.

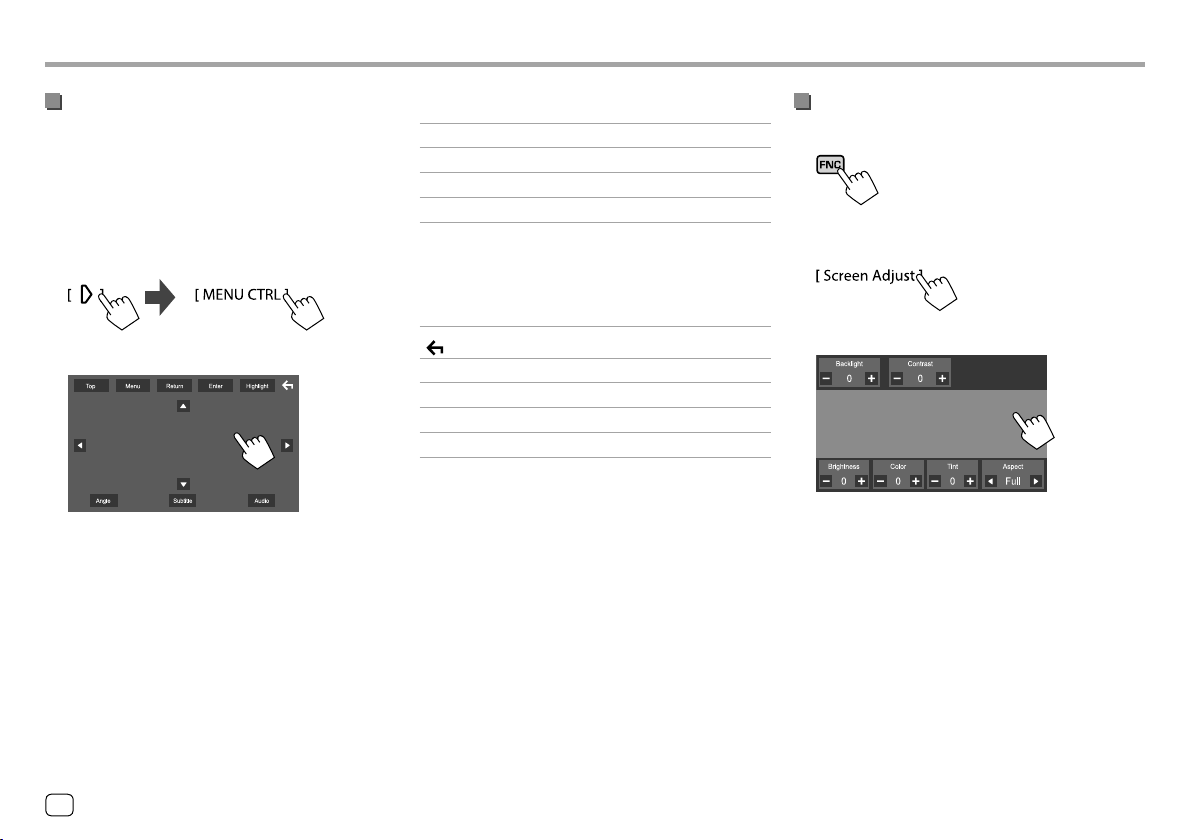

[MENU CTRL] Displays the video menu control
screen. (Page 12)
[ ][ ] Selects a folder.
[Audio] Changes the audio output channel
of VCD.
q
[ ] Attenuates/restores the sound.
[ ] Displays the folder list/track list/audio
menu/video menu.
[S]/[T]• (Touch) Selects an item (chapter/
folder/track/audio file/video file).
• (Hold) Reverses/forwards search.
• (Hold) Plays in slow-motion while
paused for video playback.
[IW]Starts/pauses playback.
* About playback mode:
–Available playback mode differs depending on the source, disc/
file type, connected device, etc.
–You cannot activate repeat playback mode and random
playback mode at the same time.
Playback control by touch operations
You can also control playback by moving your finger
on the touch panel as follows (for some sources, the
gesture control is not available).
• Sliding the finger towards up/down: Functions same
as pressing [ ]/[ ].
• Sliding the finger towards left/right: Functions same
as pressing [S]/[T].
• Moving your finger clockwise or counterclockwise:
Increases/decreases the volume.
Using the pop-up short-cut menu
While displaying the source control screen, you can
jump to another screen by touching the operation
keys on the pop-up short-cut menu.
1 Display the pop-up short-cut menu.
Common operation keys on source control screen
• The appearance of the operation keys may differ,
however the similar operation keys have the same
operations.
• Available operation keys differ depending on the
selected source or connected device.
Touching the operation keys performs the following
actions:
4
[ ]* Selects repeat playback mode.
• : Repeat one
• : Repeat folder
• ALL: Repeat all
• CAP: Repeat chapter
• TIT: Repeat title
• (gray): Off
[ ]* Selects random playback mode.
• : Random folder
• ALL: Random all
• (gray): Off
8ENGLISH
ENKW-V2018TCM.indb8ENKW-V2018TCM.indb8 2018/01/1615:052018/01/1615:05

Various Screens and OperationsVarious Screens and Operations
Using touch screen operation during
playback
Touching the areas performs the following actions:
1Displays the video control menu while playing a
video.
2Displays the source control screen.
3Goes to the previous chapter/track.*
4Goes to the next chapter/track.*
* Not available for video from an external component (AV-IN).
List/setting screen
The followings are the common operation keys which
appear on the list/settings screen.
• The appearance of the operation keys may differ,
however the similar operation keys have the same
operations.
• Available operation keys differ depending on the
setting screens. Not all the following operation keys
are shown on every screen.
Touching the operation keys performs the following
actions:
1Displays list type selection window.
2Selects the file type ([ ]: audio/[ ]: video).
3Exits from the current screen or returns to the
previous screen.
4Scrolls the text if not all of the text is shown.
5Play/search keys
• [IPlay]: Plays all tracks in the folder containing
the current track.
• [ A-Z]: Enters alphabet search to list the items
in alphabetical order. When a keypad appears,
touch the first letter you want to search for.
• [ Top]: Returns to the root folder.
• [ Up]: Returns to the upper layer.
6Changes the page to display more items.
• [J]/[K]: Scrolls the page.
• [ ]/[ ]: Jumps to the top or bottom page.
2 Select an item to jump.
Home PhoneDISP Camera Screen
Adjust Equalizer
E.g. Pop-up short-cut menu screen for KW-V640BT
Region 3
1Displays the Home screen.
2Switches the screen. (Touch)
• The screen switched to depends on the
<DISP Key> setting. (Page 37)
Turns off the display. (Hold)
3Displays the phone control screen. (Page 27)
4Displays the picture from the connected rear
view camera.
5Displays the picture adjustment screen.
(Page 12)
6Displays the <Graphic Equalizer> screen.
(Page 31)
7Closes the pop-up short-cut menu.
8Changes the playback source.
• The three short-cut playback source keys
displayed on the Home screen are displayed
on the short-cut menu.
9M (For KW-V640BT/KW-V640BTM): Ejects the
disc.
(For KW-M540BT/KW-M540BTM): Displays
the phone control screen.
9
ENGLISH
ENKW-V2018TCM.indb9ENKW-V2018TCM.indb9 2018/01/1615:052018/01/1615:05

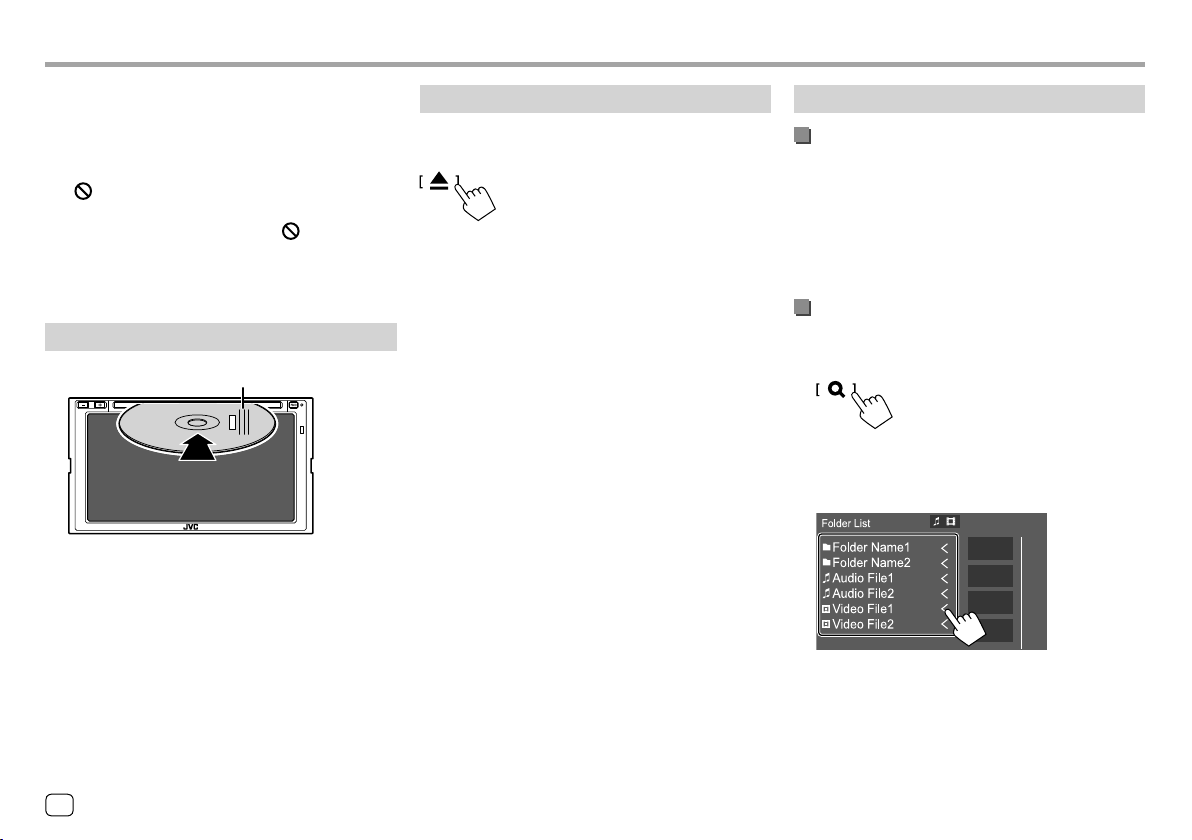

Ejecting a disc
On the Home screen, source control screen, or the
pop-up short-cut menu, touch as follows:
• When removing a disc, pull it out horizontally.
• You can eject a disc while playing another AV source.
• If the ejected disc is not removed within 15 seconds,
the disc is automatically inserted again into the
loading slot to protect it from dust.
Playback operations
Audio playback information and key
operation
• For playback information, see “Source control screen”
on page 7.
• For key operations on the touch panel, see “Common
operation keys on source control screen” on
page 8.
Selecting a folder/track on the list
1 Display the folder/track list.
On the source control screen, touch as follows:
2 Select the item in the selected folder.
• For details about the list operation, see
page 9.
Select an item in each layer until you reach and
select the desired file.
DiscDisc (Only for KW-V640BT/KW-V640BTM)
• If a disc does not have a disc menu, all tracks on it will
be played repeatedly until you change the source or
eject the disc.
• For playable disc types, file types and other
information, see pages 44 and 45.
• If “ ” appears on the screen, the unit cannot accept
the operation you have tried to do.
–In some cases, without showing “ ”, operations
will not be accepted.
• When playing back a multi-channel encoded disc,
the multi-channel signals are downmixed.
Inserting a disc
Label side up
The source changes to “DISC” and playback starts.
• The IN indicator lights up while a disc is inserted.
10 ENGLISH
ENKW-V2018TCM.indb10ENKW-V2018TCM.indb10 2018/01/1615:052018/01/1615:05

DiscDisc
[Menu Language]*
Select the initial disc menu language. (Initial:
English)
[Subtitle Language]*
Select the initial subtitle language or turn subtitles
off (OFF). (Initial: English)
[Audio Language]*
Select the initial audio language. (Initial: English)
<Dynamic Range Control>
You can change the dynamic range while playing
Dolby Audio encoded discs.
• Wide: Reproduces powerful sound at a low
volume level with its full dynamic range.
• Normal: Reduces the dynamic range a little.
• Dialog (Initial): Reproduces movie dialog more
clearly.
<Screen Ratio>
Select the monitor type to watch a wide screen
picture on the external monitor.
16:9 (Initial) 4:3 LB 4:3 PS
* You can change these settings only while DVD is inserted. Select
the language on the window, then touch [Close] to finish.
Settings for disc playback
• Available items shown on the <DVD SETUP> screen
differ depending on the type of disc/file being
played back.
1 Display the <DVD SETUP> screen.
On the source control screen, touch as follows:
2 Make the settings.
Playback operations
Video playback information on the source
control screen
E.g. Video playback source control screen for
KW-V640BT Region 3
1Media type
2Hides the operation buttons on the screen.
• Touch the screen to restore the operation
buttons.
3Repeat/random playback mode keys
4Current playback item information/audio format
5Playback status/playing time
6Indicators
• IN: Lights up when a disc is inserted.
• VIDEO: Lights up when video is played.
VideoVideo
11ENGLISH
ENKW-V2018TCM.indb11ENKW-V2018TCM.indb11 2018/01/1615:052018/01/1615:05

VideoVideo
Touching the operation keys performs the following
actions:
[Top] Displays the top menu (DVD).
[Menu] Displays the disc menu (DVD).
[Return] Returns to the previous screen.
[Enter] Confirms the selection.
[Highlight] Switches to the direct disc menu
selection mode. Touch the target
item to select.
• The menu screen disappears when
no operation is done for 5 seconds.
[ ] Returns to the playback screen.
[Angle] Selects the view angle.
[Subtitle] Selects the subtitle type.
[Audio] Selects the audio type.
[J] [K] [H] [I]Selects an item.
Adjusting the picture
1 Display the pop-up short-cut menu.
2 Display the picture adjustment screen.
On the pop-up short-cut menu, touch as follows:
3 Adjust the picture.
Video menu control operations
(Only for KW-V640BT/KW-V640BTM)
You can display the video menu control during video
playback.
• Available operation keys differ depending on the
selected disc type and file type.
1 Display the video menu control screen.
On the source control screen, touch as follows:
2 Perform the video operations.
E.g. Video menu control screen for KW-V640BT
Region3
12 ENGLISH
ENKW-V2018TCM.indb12ENKW-V2018TCM.indb12 2018/01/1615:052018/01/1615:05

<Backlight> Adjusts the brightness of the
backlight. (−4 to +4)
<Contrast> Adjusts the contrast. (−4 to +4)
<Brightness> Adjusts the brightness. (−4 to +4)
<Color>*1 Adjusts the color. (−4 to +4)
<Tint>*2 Adjusts the tint. (−4 to +4)
<Aspect> Selects the aspect ratio.
• Full: Changes the aspect ratio of
video and displays fully on the
screen.
• Normal: Displays the video in
the aspect ratio of 4:3.
• Auto*3:
–For discs: Video of 16:9 ratio is
displayed in the aspect ratio
of <Full> setting. Video of 4:3
ratio is displayed in the aspect
ratio of <Normal> setting.
–For USB: Displays the video
fully on vertical or horizontal
with no ratio change.
• Adjustable items are different depending on the
current source.
• You can perform this function only when you have
applied the parking brake.
*1 Adjustable only during playback.
*2 Available only when the “AV-IN” or camera screen is displayed.
*3 Selectable only when video from a disc or USB device is played
back.
USBUSB
You can connect a USB mass storage class device such
as a USB memory, digital audio player, etc. to the unit.
• For playable file types and other information, see
pages 44 and 47.
• You cannot connect a PC or portable HDD to the
USB input terminal.
• You cannot connect a USB device via a USB hub.
Connecting a USB device
USB device (commercially available)
Rear panel
• Only for KW-M540BT/KW-M540BTM: The unit is
equipped with two USB input terminals. You can
connect two USB devices.
Playback operations
Playback information and key operation
• For playback information, see “Source control screen”
on page 7.
• For key operations on the touch panel, see “Common
operation keys on source control screen” on
page 8.
• All tracks in the USB device will be played repeatedly
until you change the source or disconnect the USB
device.
Selecting a folder/track on the list
1 Display the folder/track list.
On the source control screen, touch as follows:
2 Select the list type.
3 Select the desired track.
• Repeat the procedure until you select the desired
track.
• For details about the list operation, see
page 9.
VideoVideo
13ENGLISH
ENKW-V2018TCM.indb13ENKW-V2018TCM.indb13 2018/01/1615:052018/01/1615:05

iPod/iPhoneiPod/iPhone
Connecting an iPod/iPhone
• For playable iPod/iPhone types and other
information, see page 47.
• You cannot watch video.
Wired connection
Rear panel
iPod/iPhone (commercially available)
USB Audio cable for iPod/iPhone: KS-U62 (optional
accessory)
• For KW-M540BT/KW-M540BTM: You cannot
connect two iPod/iPhone at the same time.
Bluetooth connection
Pair the iPod/iPhone with this unit via Bluetooth.
(Page 23)
Playback operations
Playback information and key operation
• For playback information, see “Source control screen”
on page 7.
• For key operations on the touch panel, see “Common
operation keys on source control screen” on
page 8.
Selecting an audio file from the menu
1 Display the list.
On the source control screen, touch as follows:
2 Select the list type.
USBUSB
From <Category List>:
1Select the file type ([ ]: audio/[ ]: video).
2Select a category, then the item in the selected
category.
From <Link Search>:
1Select the file type ([ ]: audio/[ ]: video).
2Select the tag type to display a list of contents
that contains the same tag as the track/file
currently being played, then select the item.
From <Folder List>:
Select the folder, then the item in the selected
folder.
14 ENGLISH
ENKW-V2018TCM.indb14ENKW-V2018TCM.indb14 2018/01/1615:052018/01/1615:05

3 Select the desired track.
• Repeat the procedure until you select the desired
track.
• For details about the list operation, see
page 9.
From <Category List>:
Select a category, then the item in the selected
category.
• Available categories differ depending on the type
of iPod/iPhone.
From <Link Search>:
Select the tag type to display a list of contents that
contain the same tag as the track/file currently
being played, then select the item.
Apps—WebLink™/WazeApps—WebLink™/Waze
You can display and control the App on the unit
while your smartphone is connected to the USB input
terminal.
Preparation: Be sure to ground the PRK SW lead.
(Page 43)
Available Apps
You can use the following Apps on this unit. Install the
WebLink™ App and/or Waze App on your smartphone
beforehand.
WebLink™
WebLink™ enables you to use the following Apps with
the unit.
• Media Player
• Yelp
• YouTube
• OpenWeatherMap
Waze
Waze is the world's largest community based traffic
and navigation App. Join other drivers in your area
who share real-time traffic and road info, saving
everyone time and gas money on their daily commute.
• To use Waze on the unit, you need to install Waze
on your smartphone and connect WebLink™ before
starting Waze.
For KW-M540BT/KW-M540BTM
To use WebLink™ App and/or Waze App on iPhone,
connect the iPhone to USB1 input terminal.
• WebLink™ App and/or Waze App does not work on
iPhone connected to USB2 input terminal.
Connecting a smartphone
Android™ device
(commercially available)
iPhone (commercially
available)
USB cable (commercially available)
Rear panel
USB Audio cable for iPod/iPhone:
KS-U62 (optional accessory)
• When the smartphone is connected to the unit and
“WebLink” is selected as the source, a confirmation
message to communicate with each other appears
on the smartphone. Touch [Allow] to establish
connection, or [Ignore] to cancel the connection.
• You can check the connection status on the
WebLink™ screen on your smartphone.
iPod/iPhoneiPod/iPhone
15ENGLISH
ENKW-V2018TCM.indb15ENKW-V2018TCM.indb15 2018/01/1615:052018/01/1615:05

TunerTuner
Switching to the App screen while listening
to the another source
You can display the App screen while listening to the
other source.
• Set <DISP Key> to [App] on the <User Interface>
screen beforehand. (Page 37)
1 Display the pop-up short-cut menu.
2 Switch to the App screen.
On the pop-up short-cut menu, touch as follows:
• Each time you touch the key, the screen switches
between the current source and App screen.
Apps—WebLink™/WazeApps—WebLink™/Waze
Listening to the radio
Playback information on the source control
screen
1
99.1MHz
2
PS Name
3
PS Name
4
80.0MHz
5
90.0MHz
6
99.1MHz
TUNER
E.g. Tuner source control screen for KW-V640BT
Region 3
1Selects the band (AM/FM1/FM2/FM3)
2Current band/preset no.
3Changes the seek mode for [S]/[T]
• AUTO1 (Initial): Auto search
• AUTO2: Tunes in preset stations one after
another
• MANUAL: Manual search
4Frequency/PS name
5Tuner reception operation keys (TI/MONO/PTY)*
6Preset list
7Operation keys*
Start playback
1 Select “WebLink”/“Waze” as the source.
• To use WebLink™: Select “WebLink”.
• To use Waze: Select “Waze”.
2 Operate on the unit to select App.
• On the “WebLink” source screen, you can also
operate on the touch panel as follows:
[ ] • Displays the main menu of the
“WebLink” source screen.
• Exits the current App.
[ ] • Returns to the previous screen.
• Exits the current App.
3 Operate on your smartphone.
• When you are asked to communicate between
your smartphone and the unit, touch [Allow] to
proceed.
• If App does not start while using “WebLink”, start
the App on your smartphone.
16 ENGLISH
ENKW-V2018TCM.indb16ENKW-V2018TCM.indb16 2018/01/1615:052018/01/1615:05

TunerTuner
8Indicators
• NEWS: Lights up when News Standby Reception
is activated.
• AF: Lights up when Network-Tracking Reception
is activated.
• TI: Lights up in white when receiving the traffic
information, and lights in orange when Traffic
Information Reception is on standby.
• LO.S: Lights up when Local Seek is activated.
• ST: Lights up when receiving a stereo broadcast.
• MONO: Lights up when receiving stations in
monaural forcibly.
• RDS: Indicates the status of the Radio Data
System station reception when the Network-
Tracking Reception is activated. (Page 18)
−Lights in white: Radio Data System station is
being received.
−Lights in orange: Radio Data System station is
not being received.
• EON: Lights up when a Radio Data System station
is sending EON signals.
* See the following “Operation keys on source control screen”.
Operation keys on source control screen
• The appearance of the operation keys may differ,
however the similar operation keys have the same
operations.
• See also “Common operation keys on source control
screen” on page 8.
Touching the operation keys performs the following
actions:
5
[TI]* (For FM Radio Data System features)
Activates TI standby reception mode.
• When TI is activated, the unit is ready
to switch to traffic information if
available. The TI indicator lights up in
white.
• If the TI indicator lights up in orange,
tune into a station providing Radio
Data System signals.
• The volume adjustment for traffic
information is automatically
memorized. The next time the unit
switches to traffic information, the
volume is set to the memorized level.
• To deactivate, touch [TI] again.
[MONO]* Activates monaural mode for better FM
reception (stereo effect will be lost).
• The MONO indicator lights up while
monaural mode is activated.
• To deactivate, touch [MONO] again.
[PTY]* (For FM Radio Data System features)
Enters PTY search mode.
1Touch a PTY code.
2Touch [Search] to search for.
If there is a station broadcasting a
program of the same PTY code as you
have selected, that station is tuned in.
• You can set language displayed for the
PTY search on the <TUNER SETUP>
screen. (Page 19)
7
[ ] Attenuates the sound.
• To restore the sound, touch the
button again, or adjust the volume.
[S]/[T]Searches for a station.
• The search method differs according
to the selected seek mode.
[SSM]* Presets stations automatically.
[ ] Displays the <TUNER SETUP> screen.
* Appears only when FM is selected as the source.
Storing preset stations in the memory
You can preset 18 stations for FM and 6 stations for
AM.
Automatic presetting — SSM (Strong-
station Sequential Memory) (for FM only)
On the source control screen, touch as follows:
A confirmation message appears. Touch [Yes].
The local stations with the strongest signals are found
and stored automatically.
17
ENGLISH
ENKW-V2018TCM.indb17ENKW-V2018TCM.indb17 2018/01/1615:052018/01/1615:05

TunerTuner
Settings for tuner reception
1 Display the <TUNER SETUP> screen.
On the source control screen, touch as follows:
2 Make the settings.
[NEWS]*1
• 00min to 90min: Activates New Standby
Reception by selecting the period of time to
disable the interruption. The NEWS indicator
lights up.
• OFF (Initial): Deactivates the function.
[AF]
When driving in an area where FM reception is not
sufficient enough, this unit automatically tunes in
to another FM Radio Data System station of the
same network with stronger signals— Network-
Tracking Reception (AF: Alternative Frequencies).
• ON: Switches to another station. The program
may differ from the one currently received.*2
• OFF (Initial): Deactivates the function.
[Regional]
When driving in an area where FM reception is not
sufficient enough, this unit automatically tunes in
to another FM Radio Data System station of the
same program with stronger signals— Network-
Tracking Reception (Regional).
• ON: Switches to another station broadcasting the
same program.*2
• OFF (Initial): Deactivates the function.
[LO.S]
You can tune in FM stations only with strong
signals—Local Seek.
• ON: Tunes in only to FM stations with sufficient
signal strength. The LO.S indicator lights up.
• OFF (Initial): Deactivates the function.
[Auto TP Seek]
When traffic information station reception is poor,
the unit automatically searches for another station
that can be received better—Auto TP Seek.
• ON (Initial): Automatically searches for a station
with better reception for traffic information if the
current reception of current station is poor.
• OFF: Deactivates the function.
*1 The volume adjustment for Traffic Information is automatically
memorized. The next time the unit switches to Traffic
Information, the volume is set to the previous level.
*2 The RDS indicator lights up when the Network-Tracking
Reception is activated.
–Lights in white: Radio Data System station is being received.
–Lights in orange: Radio Data System station is not being
received.
Manual presetting
1 Select the band, then tune in to a station
you want to store.
• See “Playback information on the source control
screen” on page 16 for details.
2 Select a preset number to store into.
1
99.1MHz
2
PS Name
3
PS Name
4
80.0MHz
5
90.0MHz
6
99.1MHz
TUNER
(Hold)
The station selected in step 1 is stored into the
preset number you have selected.
Selecting a preset station
Select the band (1), then select a preset
station (2).
1
99.1MHz
2
PS Name
3
PS Name
4
80.0MHz
5
90.0MHz
6
99.1MHz
TUNER
18 ENGLISH
ENKW-V2018TCM.indb18ENKW-V2018TCM.indb18 2018/01/1615:052018/01/1615:05
