KAC MCP1 Series User manual

KAC ALARM COMPANY LIMITED, Thornhill Road, Redditch, Worcestershire, England. B98 9ND. T. [phone] F. [phone] E. [email protected] W. www.kac.co.uk
INSTALLATION INSTRUCTIONS FOR THE MANUAL CALL POINT MODELS MCP1....,MCP2....,MCP3....,MCP4....
1
3
2
4
3
12
6
5

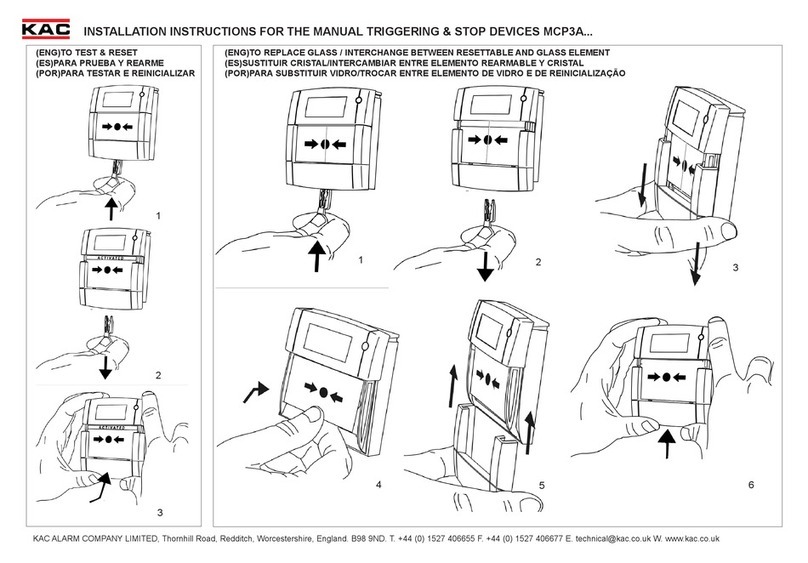

TO TEST & RESET TO REPLACE GLASS / INTERCHANGE BETWEEN RESETTABLE AND GLASS ELEMENT

27.5mm 32mm
30VDC Max
TECHNICAL DATA
PUSH FIT CONNECTOR
93mm
60mm
INSTALLATION INSTRUCTIONS FOR THE MANUAL CALL POINT MODELS MCP1....,MCP2....,MCP3....,MCP4....
After wiring the terminal connector,
plug into the appropriate position,
see connection details (left).
89mm
Xin the MCP code (left)
represents the final digits of
the part number, which indicate
MCP colour, component
values, mounting options and
element type.
eg MCP1A -R470SF =
(MCP1A, Red, 470R, Surface,
Flexible Element).
DIMENSIONS
Red, Ral 3001
Yellow, Ral 1006
Green, Ral 6016
White, Ral 9010
Blue, Ral 5002
Important Notes; -
Please do not over tighten fixing
screws.
The use of lubricants, cleaning
solvents or petroleum based
products should be avoided.
-100C to 550C
D700 issue 10
We reserve the right to amend the content of this document without prior notice.
0832
DOP001
KAC ALARM COMPANY LIMITED,
Thornhill Road, Redditch, Worcestershire, England. B98 9ND.
16
110/160g
IP24D
2A Max
MCP4A-X
CONNECTION DETAILS
MCP3A-X
CONNECTION DETAILS
OR
AND
AND
OR
1
2
5
6
3
47
8
1 2
3 4
56
78
1 2 7 8
3,4,5,6
CONNECTION DETAILS MCP1A-X MCP2B-XMCP1B-X MCP2A-X
OR
++
- -
--
++
EN54-11:2001/A1:2005
Fire detection and re alarm systems - Part 11: Manual
call points
MCP1, MCP2, MCP3, MCP4
Note: This table only applies to red products.
