Kallista P50206 User manual

INSTALLATION INSTRUCTIONS
Freestanding Bath
1271913-2-BQuestions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA(1-888-452-5547) or kallista.com.
1 of 5
P50206
©2016 KALLISTA

INSTALLATION INSTRUCTIONS
Freestanding Bath
1271913-2-BQuestions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA(1-888-452-5547) or kallista.com.
2 of 5
THANK YOU FOR CHOOSING KALLISTA
We appreciate your commitment to KALLISTA quality products. Please take a moment to review this manual
before you install your KALLISTA product. If you encounter any installation or performance problems, please do
not hesitate to contact us at the phone number listed at the bottom of the page.
BEFORE YOU BEGIN
CAUTION: Risk of personal injury. This bath is extremely heavy. Obtain sufficient help and use lifting
straps to carefully lift or move the bath.
IMPORTANT! To ensure a successful installation, it is important that you install the bath on a level finished
floor.
Observe all local plumbing and building codes.
IMPORTANT! The drain cover and gaskets are included in a small box within the carton. Make sure you locate
and retain the small box before discarding the carton and packing material.
Unpack and inspect the bath for damage. Return the bath to the carton until installation.
To simplify future maintenance, make sure all plumbing connections around the bath are easily accessible.
This bath is heavy and will not easily fit through doorways. Carefully plan how to move the bath into the
installation area.
Install the bath to an adequately supported, level finished floor.
This bath is designed for a freestanding installation only.
This bath features a factory-installed drain and an integral, cast overflow.
Install a floor- or ceiling-mount bath filler with this freestanding bath.
This bath conforms to CSAB45.5/IAPMO Z124.
KALLISTA reserves the right to make revisions in the design of products without notice, as specified in the
Price Book.

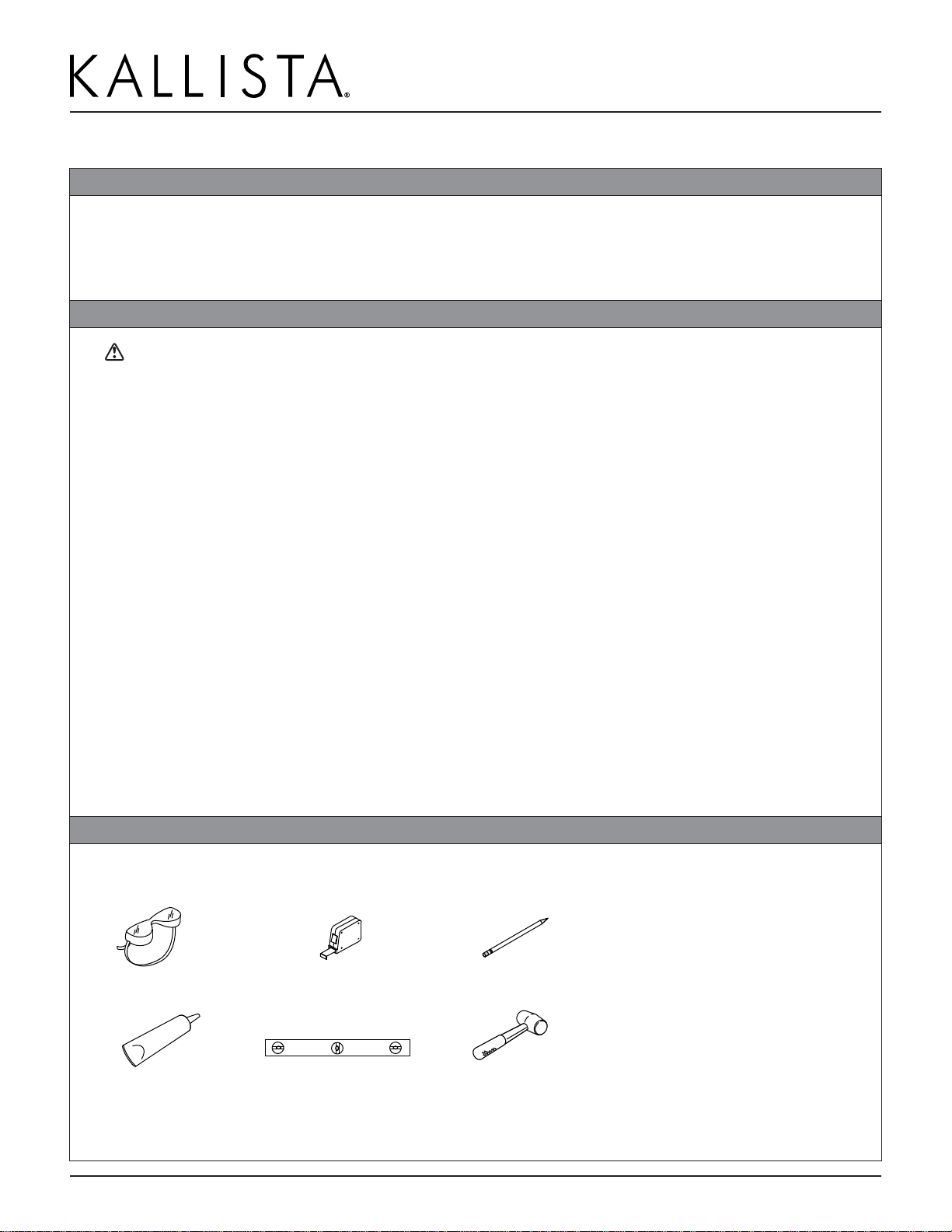

TOOLSAND MATERIALS
Silicone Sealant
Plus:
• Drop Cloth
• Lifting Straps
• Shims
• 2x4's
• Common Woodworking Tools
• Short Ø 1-1/2" PVC Pipe or Coupling
Rubber Mallet

INSTALLATION INSTRUCTIONS
Freestanding Bath
1271913-2-BQuestions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA(1-888-452-5547) or kallista.com.
3 of 5
1. PREPARE THE SITE
1-1/4"
(32 mm)
Drain
Pipe
Finished Floor
NOTICE: Provide adequate floor support.
NOTICE: Measure your product for site preparation. Visit the product page at www.kallista.com for more information.
Determine the location of the bath.
Make sure the subfloor offers adequate support for your bath.
Ensure the subfloor is level.
IMPORTANT! To ensure a successful installation, it is critical that you install the bath on a level finished floor.
Install the finished floor material.
Make sure the finished floor is level before proceeding.
Position and install a standard PVC or brass bath drain pipe. Install the drain pipe so it extends 1-1/4” (32 mm)
above the finished floor.

INSTALLATION INSTRUCTIONS
Freestanding Bath
1271913-2-BQuestions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA(1-888-452-5547) or kallista.com.
4 of 5
2. INSTALL THE BATH
Drain Pipe
Bath Drain
2x4's
Level
Drain
Pipe
Align.
CAUTION: Risk of personal injury. This bath is extremely heavy. Obtain sufficient help and use lifting
straps to carefully lift or move the bath.
CAUTION: Risk of property damage. Make sure the factory-installed drain connections have not become
loose during shipping. Tighten as needed to prevent leakage.
Stack together two 6’(1.8 m) lengths of 2x4 lumber. Secure each set of stacked 2x4’s together with nails or
screws.
Position the stacked 2x4’s on each side of the drain pipe to temporarily support the bath.
With help, use lifting straps to carefully lift the bath into position on the 2x4’s so the bath drain is over the
pipe.
Carefully reposition the bath as needed so the bath drain is directly over the drain pipe.
Use lifting straps and obtain assistance to remove the 2x4 supports and carefully set the bath on the floor.
Adjust the bath position as needed to ensure that the drain pipe is in the center of the bath drain hole.

INSTALLATION INSTRUCTIONS
Freestanding Bath
1271913-2-BQuestions? Problems? For additional assistance, please contact KALLISTA’s Customer
Service Department at 1-888-4KALLISTA(1-888-452-5547) or kallista.com.
5 of 5
3. INSTALL THE PLUMBING
Slot
Tab
Bath
Drain Cover
Assembly
Drain
Body Bath
Drain
Gasket
Drain Pipe
Apply silicone
sealant to
both sides.
Drain
Body
Check for leaks.
Apply sealant.
(optional)
CAUTION: Risk of property damage. Make sure a watertight seal exists on all bath drain connections.
Make the Drain Connections
NOTE: The drain cover and gaskets are included in a small box located within the carton.
Choose the thin drain cover for PVC drain pipes or the thick gasket for brass pipes.
Apply silicone sealant to the inside and outside surfaces of the drain gasket to act as a lubricant.
Use a rubber mallet and short section of 1-1/2” PVC tubing to install the drain gasket onto the drain pipe.
Line up the tabs on the drain cover with the slots in the drain body, and insert the drain cover assembly into
the flange.
Press the drain cover several times to make sure the drain opens and closes properly.
Apply Sealant - Optional
If desired, apply a thin, continuous bead of clear or color-matched silicone sealant to the seam between the
bath and the finished floor.
Install the Bath Filler
Install the bath filler according to the faucet manufacturer’s instructions.
Close the bath drain. Fill the bath to the overflow, and check for leaks.
