KAP TC2018-180413 User manual

www.kaptrade.com
Korea Auto Parts
Instruction Manual
D A T E .
MODEL.
D A T E .
MODEL.
TOYOTA CAMRY 2018 PATD
Video Interface + CarPlay
for PANASONIC + CarPlay
2019.01.14
NV17-AV_MODULE_C_V001
2019.01.18
TC2018-180413

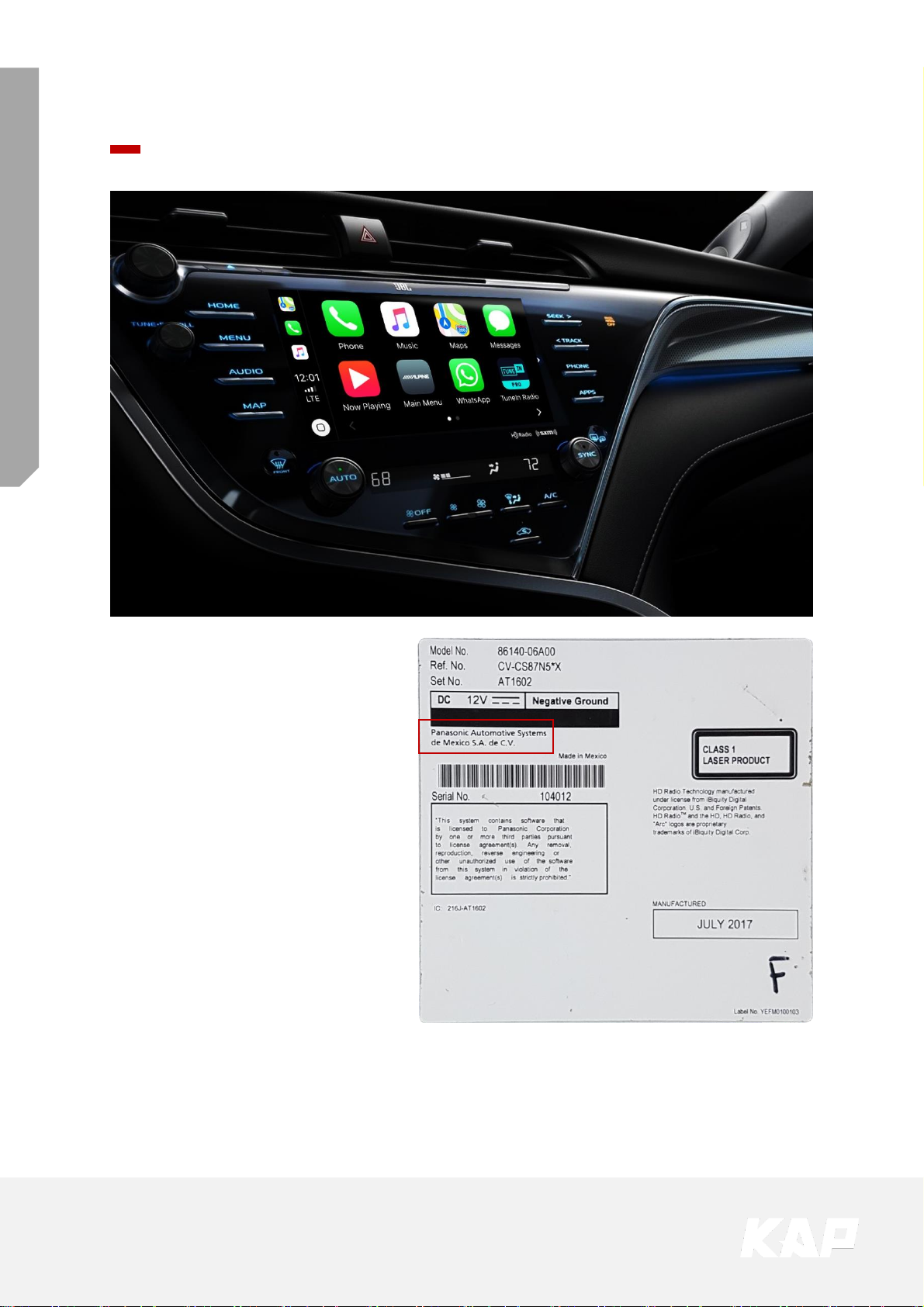

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Serviceable Model
PANASONIC HEADUNIT
TOYOTA Camry
(2018~2019)
Panasonic 8” Model

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Spec
1. Input Spec. (MULTI VIDEO INTERFACE)
Interface
•1 x Digital RGB Input (Navigation System source)
•1 x Analog RGB Input (Navigation System source)
•1 x CVBS(REAR CAMERA) Input. (Rear camera source)
•1 x CVBS(FRONT CAMERA) Input. (Front camera source)
CarPlay
•1 x USB Input
•1 x Microphone Input
•1 x Real Analog Touch Input
2. Output Spec.
Interface
•1 x LCD Output (LCD Operation)
•1 x Virtual Analog Touch (Navigation System source)
•1 x Uart Digital Touch (Navigation System source)
CarPlay
•1 x LVDS(HDMI Connector) Output
•1 x Audio L/R (3.5Ф Stereo Jack) Output
•1 x Mono Speaker
3. Power Spec.
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
4. Switch Input Mode
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN

TOYOTA CAMRY 2018 PANASONIC + CarPlay
External Appearance
Interface + CarPlay
PROGRAMDIP S/WIMAGELED
Power/CAN R-Touch Digital
RGB
Analog
RGB
Video Rear
Camera
LCD-OUT
Smartphone
Connection
Made Switch
To Enter Setting
Microphone In
AUX
Touch
LVDS&UART OUT
POWER/CAN

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Connector Pin Assignment
Interface + CarPlay
Power/CAN R-Touch Analog
RGB
①R DATA (Red)
②G DATA (Green)
③B DATA (Blue)
④SYNC (White)
⑤GND (Black)
⑥DVB-T IR (Green)
⑦DVD IR (Orange)
①②③④⑤⑥⑦
①Y-
②X-
③Y+
④X+
① ② ③ ④
1. ACC (Red)
2. N.C
3. Rear-DET (Brown)
4. Front-DET (Blue)
5. N.C
6. N.C
7. N.C
8. N.C
115
2 16
9. KEY (Pink)
10. N.C
11. ACC (Red)
12. Rear-VCC (Red)
13. Front-VCC (Red)
14. Mode (Green)
15. GND (Black)
16. GND (Black)
Touch Connect
POWER Connect NAVI Connect
①ACC
②GND
① ②
①Y-
②X-
③Y+
④X+
① ② ③ ④
Touch Connect POWER Connect
Power/CANR-Touch

TOYOTA CAMRY 2018 PANASONIC + CarPlay

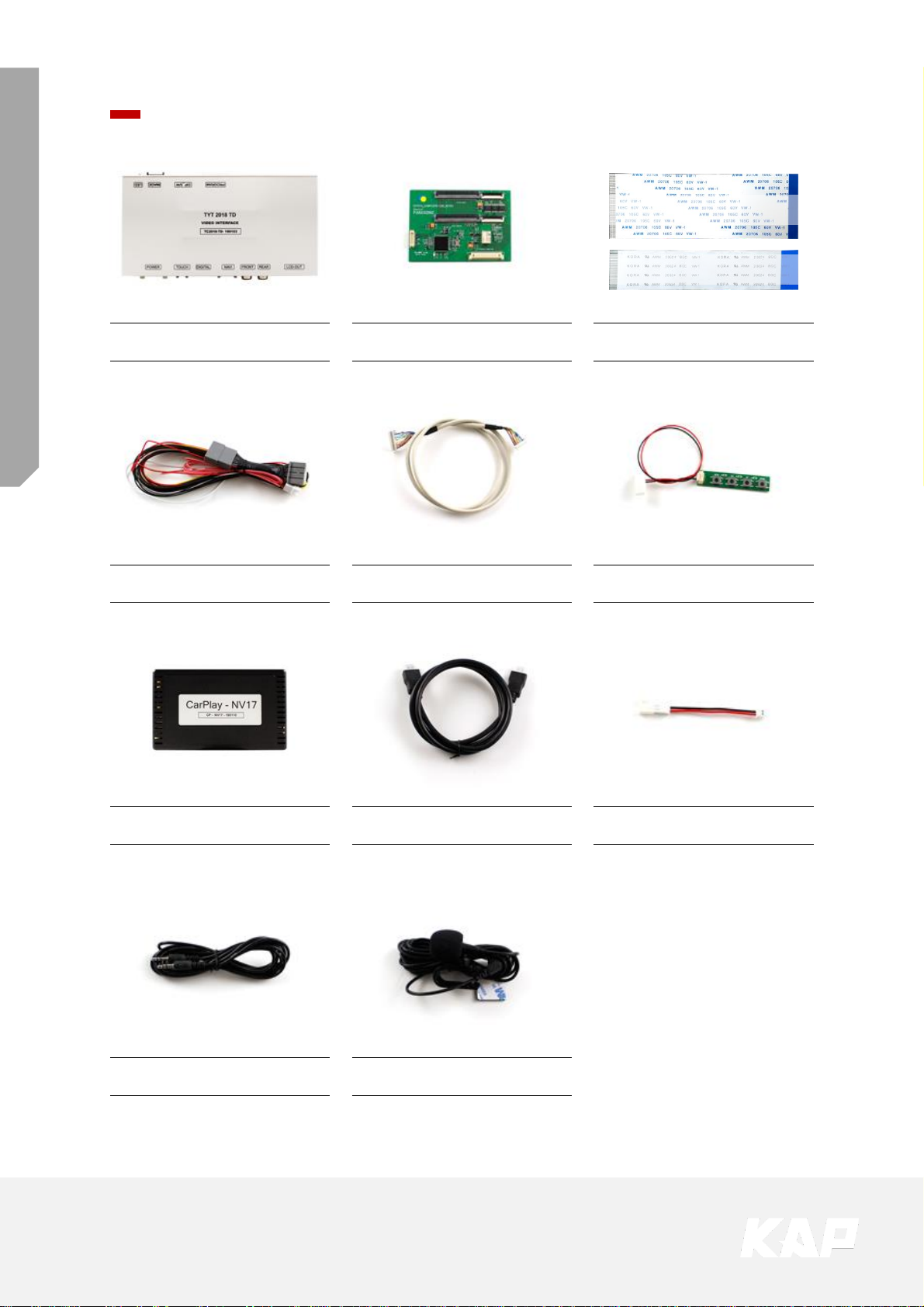

Product Composition
Interface SUB Board (REV00) LVDS FFC Cable
Power Cable LVDS Cable(800mm) OSD Board
CarPlay HDMI Cable CarPlay Power Cable
AUX Cable MIC
68*100*0.5*P6 Reverse
30*100*0.5*P6 Reverse

TOYOTA CAMRY 2018 PANASONIC + CarPlay

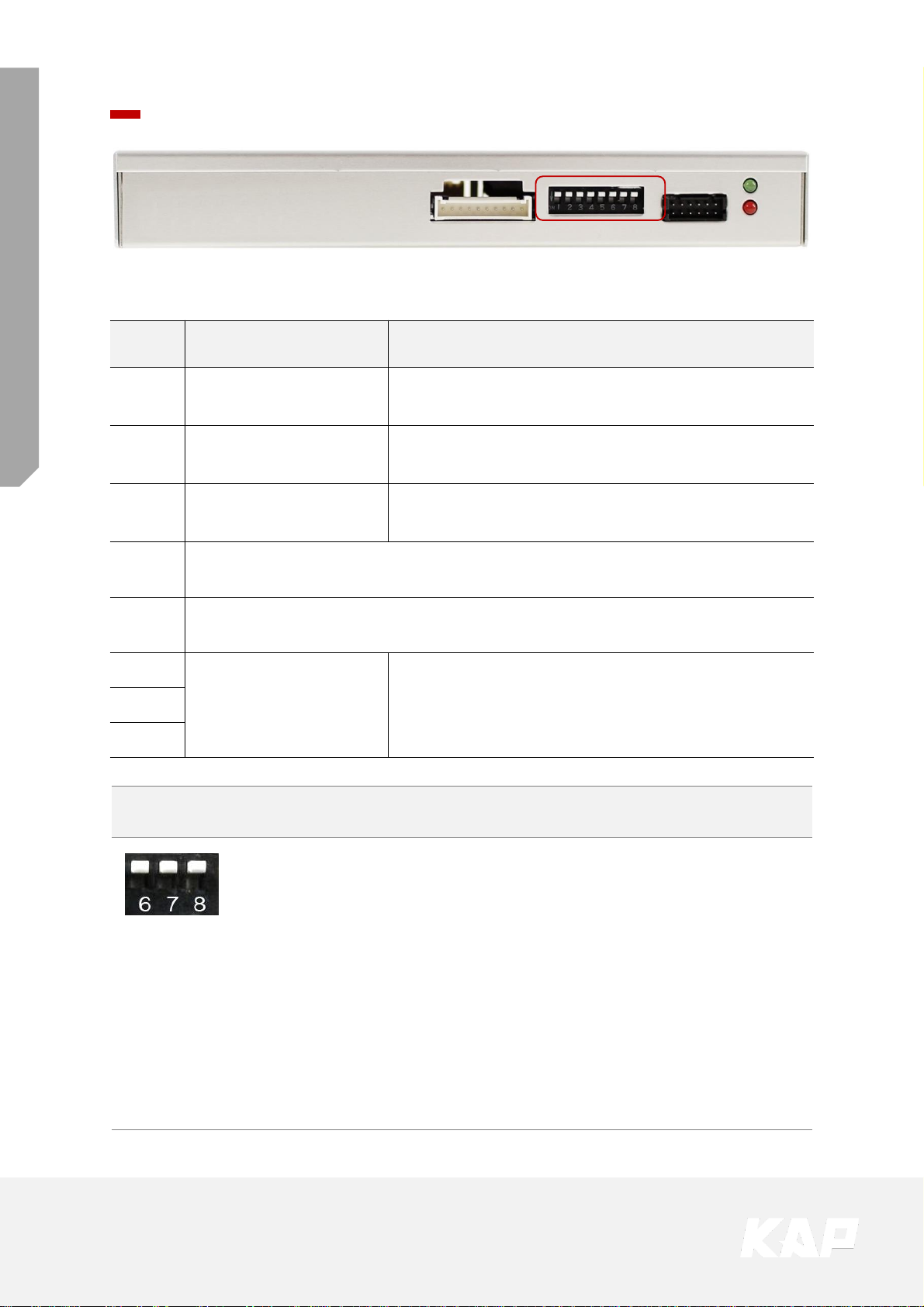

Car Type Select
Dip Switch Setting
PIN FUNCTION DIP S/W Selection
1 NAVI ON : Not Used
OFF : Used
2 DVB-T(AV1) ON : Not Used
OFF : Used
3 DVD(AV2) ON : Not Used
OFF : Used
4 N.C
5 N.C
6
Car Type Select Bottom Picture7
8
OFF : ▲UP
ON : ▼DOWN
CAMRY(2018 - 2019)
Panasonic 8”

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Mode Change (to Interface)
Mode Change Button
HOME / MAP
•Long press to switch to interface screen
•Short press to switch to OEM screen
•If there is no navigation option (No MAP Button), you can change the mode only with the
"HOME" button
•To use the Steering button You must select the “HOME" or “MAP" button in the menu.
•To use both the “HOME” and “MAP” buttons, select all.
•Select "OFF" when not in use.
Mode Change Button
BACK
•Long press to switch to interface screen
•Short press to switch to OEM screen
•To use the Steering Button You should select "ON" in the above menu.
•Select "OFF" when not in use
Mode Change Sequence
OEM NAVI
(CarPlay)
AV1
(DVBT)
AV2
(DVD)
OEM

TOYOTA CAMRY 2018 PANASONIC + CarPlay
23
3
2
1
Mode Change (to OEM)
•To use transient transitions "ON" must be selected in the above menu (SrcChg-Btn).
•Select "OFF" when not in use
PWR·VOL
•Display OEM screen for 4 seconds and return
1
TUNE·SCROLL / SEEK> / <TRACK
•Display OEM screen for 2 seconds and return
2
MENU / AUDIO / PHONE / APPS
•Display OEM screen for 2 seconds and return
3

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Touch Control
Touch Calibration
•Press and hold for more than 11
seconds on NAVI, DVB-T, DVD screen.
•(Note that it only works the first time
after switching screens)
•OSD menu ▶Utility ▶Calibration
Method 1
Method 2
OR
•+ Touch according to the
shape coordinates.
Touch Calibration

TOYOTA CAMRY 2018 PANASONIC + CarPlay

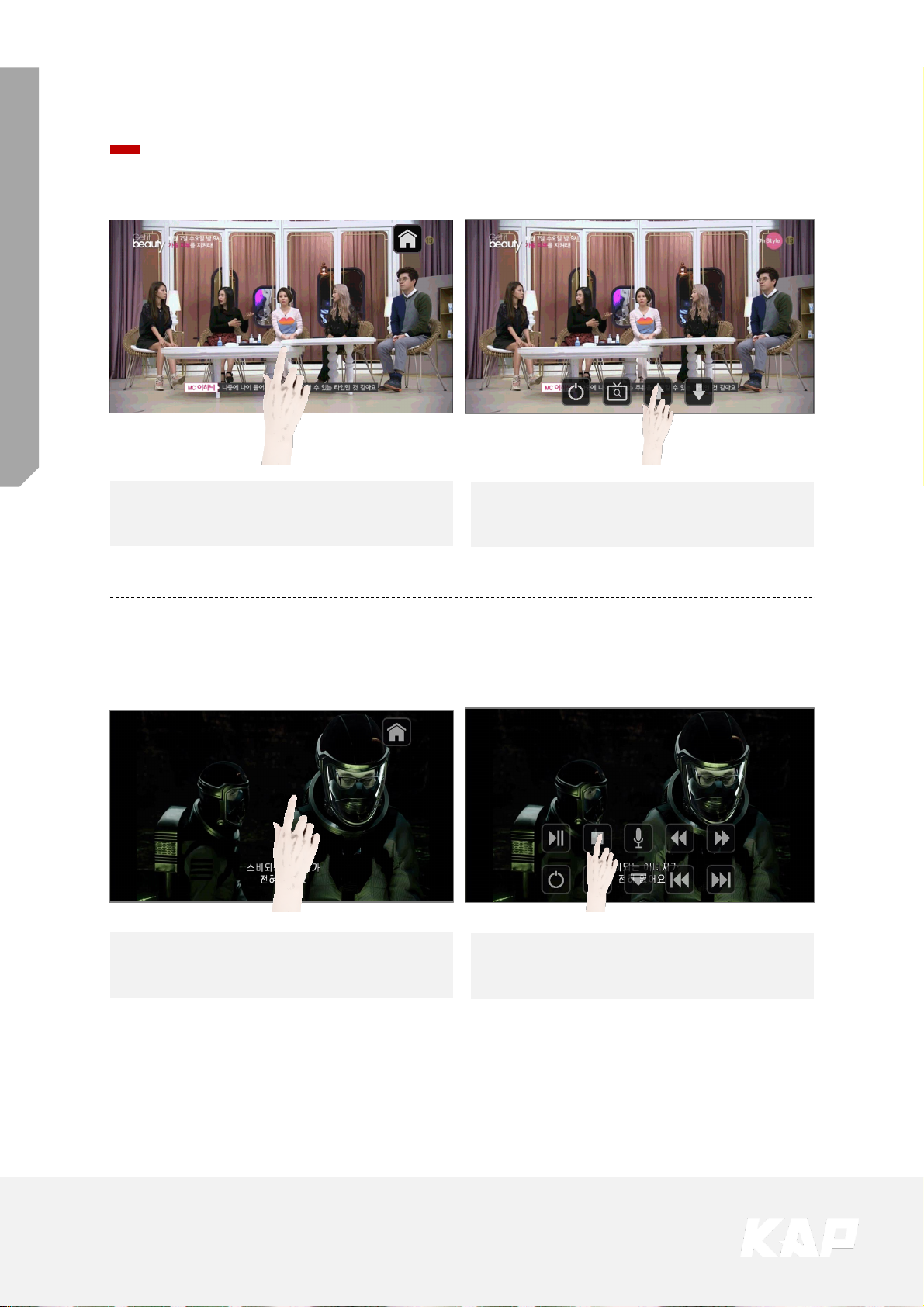

Touch Control
DVBT / DVD Control
Press Touch
(Anywhere)
DVBT
Press Icon
Press Touch
(Anywhere)
DVD
Press Icon

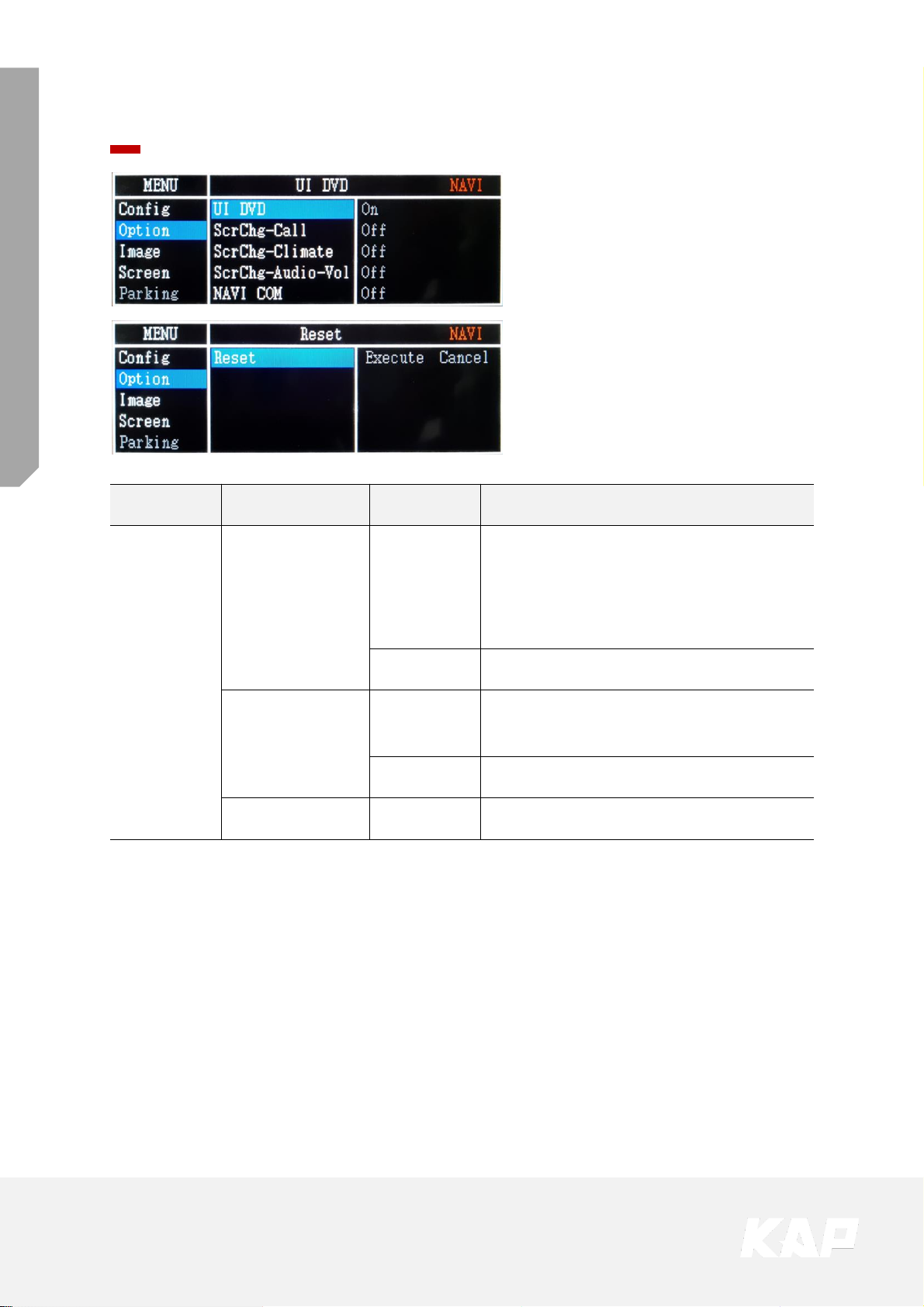

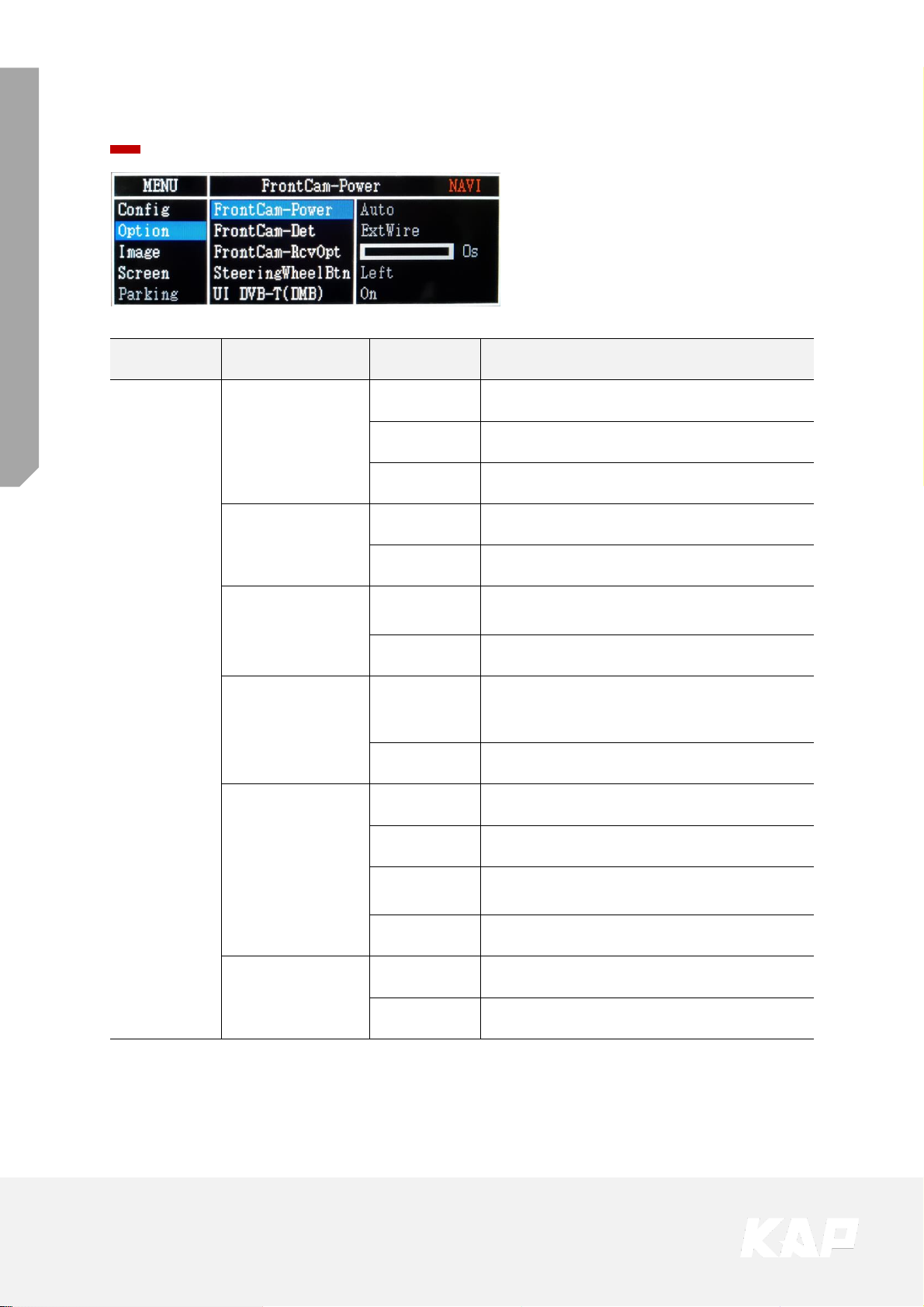

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
OSD(On Screen Display) Control Board
MENU SEL UP DOWN
MENU When there is no OSD screen, pressing OSD ON
When OSD screen is displayed, press OSD EXITT
SEL Item Selection, Value Selection
UP Item up
Increase selected value
DOWN Item down
Decrease selected value
First Menu Second Menu Third Menu
Mode State

TOYOTA CAMRY 2018 PANASONIC + CarPlay

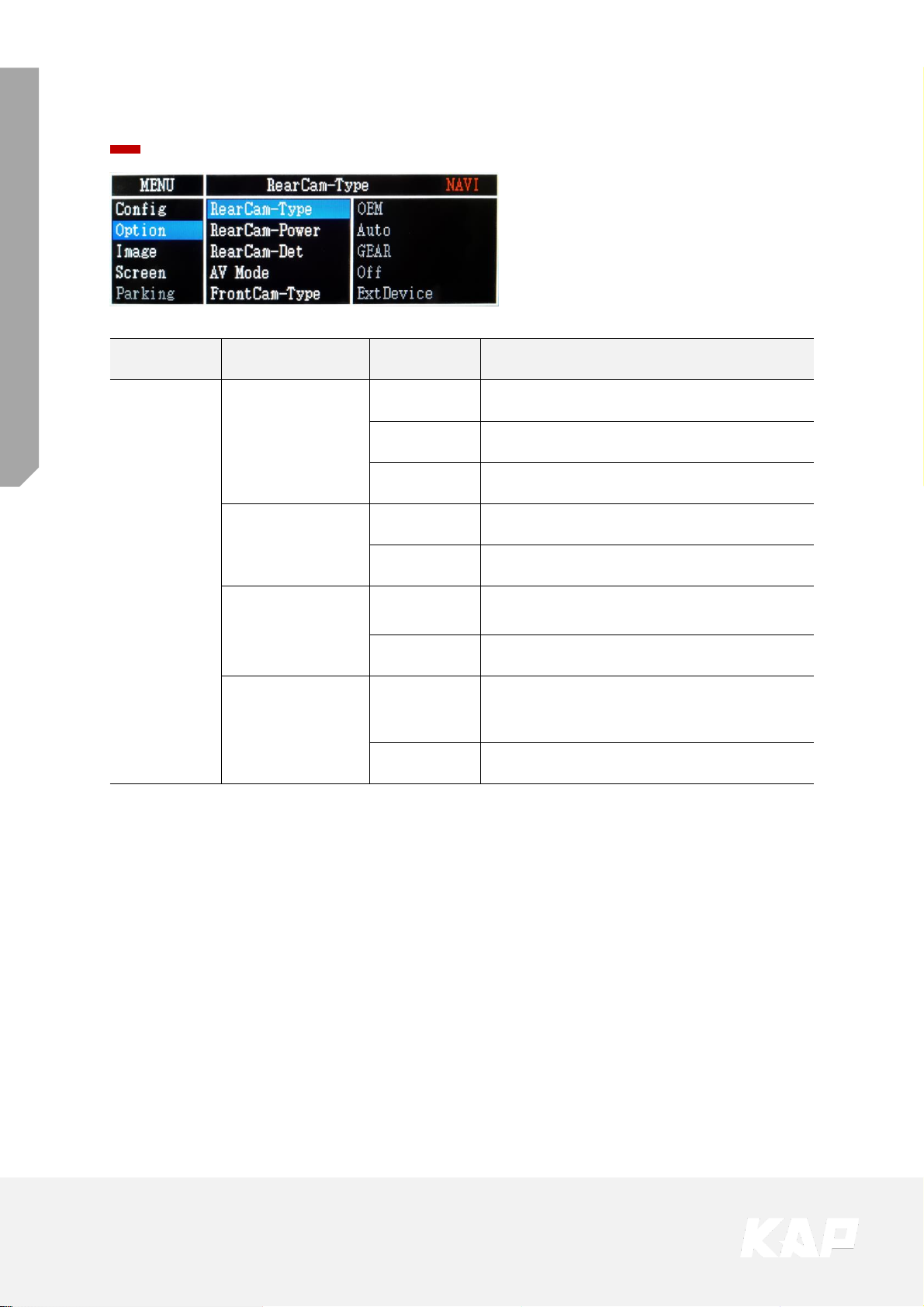

OSD Control
Option
First Menu Second Menu Third Menu Description
Option
RearCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Rear camera mode
OFF + 12V off
RearCam-Det
CAN Detected by CAN
WIRE Detected by Rear-Det Wire
AV Mode
On Video(REAR) Input
(If RearCam-Type is OEM)
Off Disable feature
FrontCam-Type
OEM Original Camera
ExtDevice Equipped with external camera

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
FrontCam-Power
ON + 12V continuous supply
AUTO + 12V supply only in Front camera mode
OFF + 12V off
FrontCam-Det
CAN Detected by CAN
WIRE Detected by Front-Det Wire
FrontCam-
RcvOpt
ON After RearCam shows FrontCam and
returns to previous state
OFF Disable feature
SteeringWheel
Btn
ON Using the SteeringWheel buttons
OFF Disable feature
Button
HOME Using the “Home” button
MAP Using the “MAP” button
ALL Using the “MAP” button and “HOME”
button
OFF Disable feature
UI DVB-T (DMB)
ON DVB-T device control UI output function
OFF Disable feature

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
Option
First Menu Second Menu Third Menu Description
Option
ScrChg-Btn
ON
· When selecting SEEK, TRACK, TUNE-
SCROLL button Switch back to OEM screen
for 2 seconds and return
· When PWR-VOL button is selected Switch
back to OEM screen for 4 seconds and
return
OFF Disable feature
NAVI COM
HMS
FINE
:
Set up manufacturer of woodworking
device for UART Touch use
OFF Disable feature
Reset Execute Option Menu all Reset

TOYOTA CAMRY 2018 PANASONIC + CarPlay

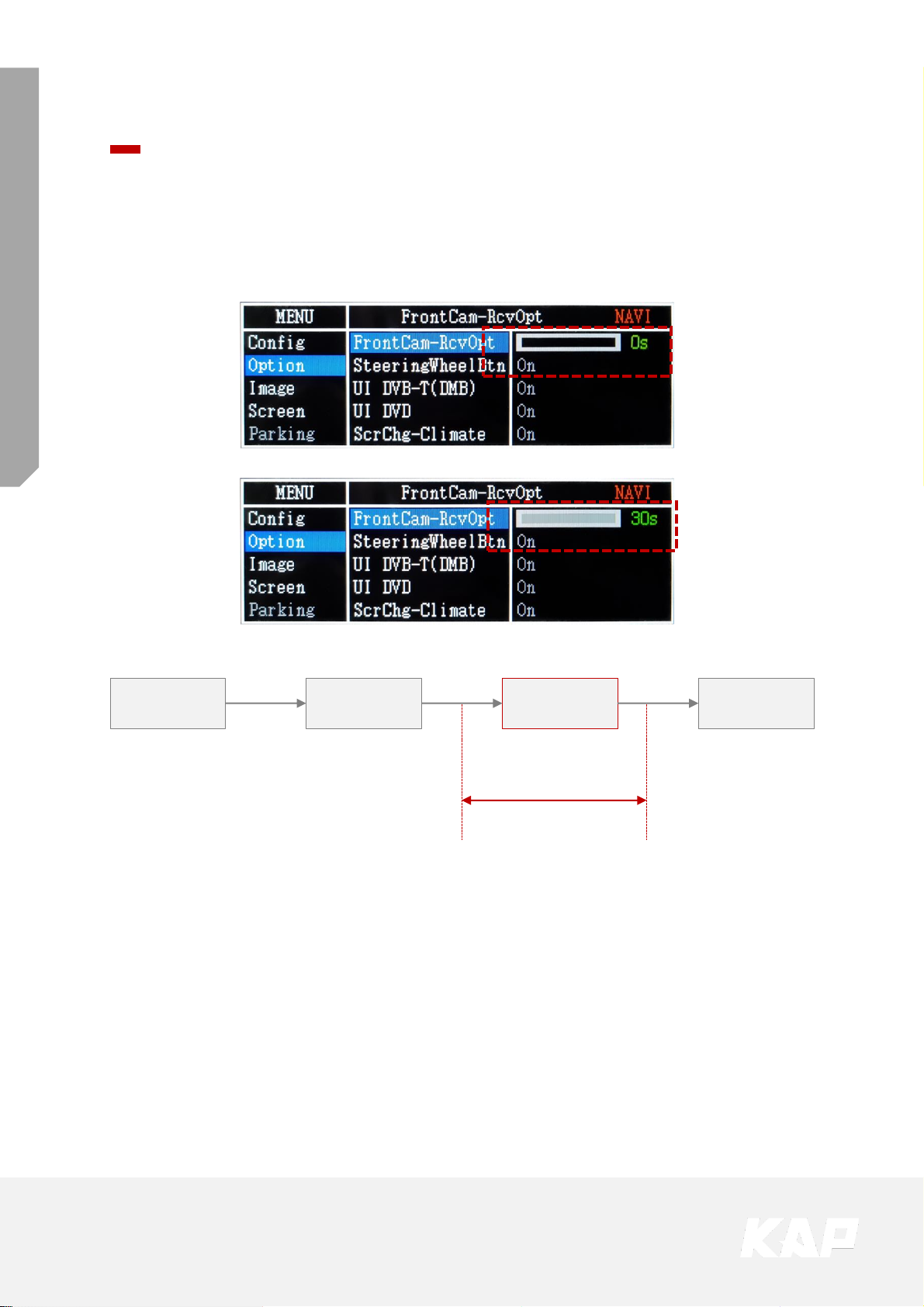

OSD Control
Option ▶FrontCam-RcvOpt
Front Camera Auto Mode
0 second = FrontCam-RcvOpt menu OFF
1~30 second = FrontCam-RcvOpt menu ON & time control
OEM or
INTERFACE
REAR
CAMERA
FRONT
CAMERA
OEM or
INTERFACE
Select time of display
1~30 second

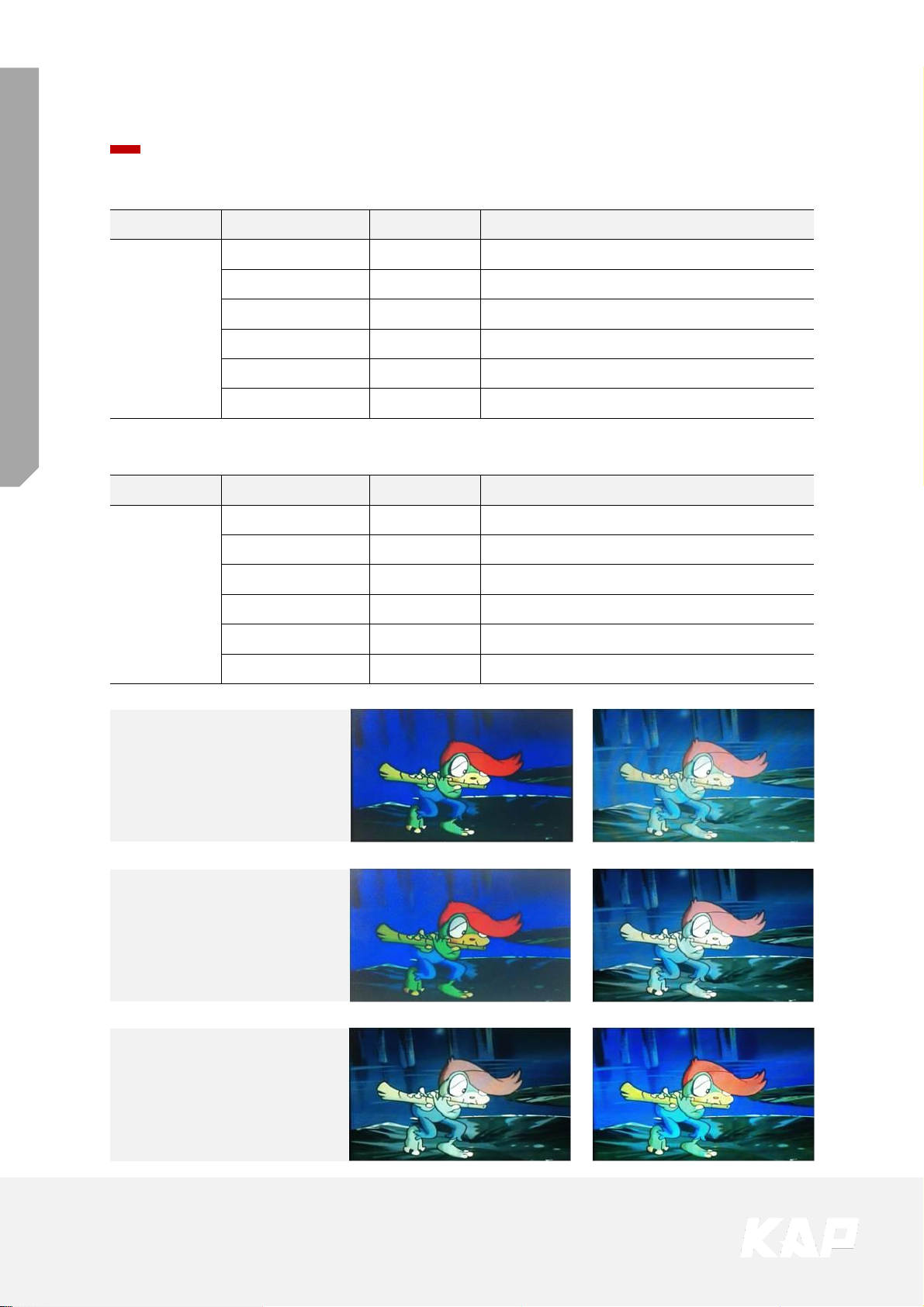

TOYOTA CAMRY 2018 PANASONIC + CarPlay
Contrast
Brightness
Saturation
OSD Control
First Menu Second Menu Third Menu Description
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Color-RED Adjust the value of RED
Color-GREEN Adjust the value of GREEN
Color-BLUE Adjust the value of BLUE
Reset Excute Option Menu all Reset
NAVI –RGB Menu
First Menu Second Menu Third Menu Description
Brightness Adjust the value of brightness
Contrast Adjust the value of contrast
Saturation Adjust the value of Saturation
Hue Adjust the value of Hue
Sharpness Adjust the value of Sharpness
Reset Excute Option Menu all Reset
DVD / DVBT / NAVI-AV,REAR,FRONT Menu

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
Screen
First Menu Second Menu Third Menu Description
Screen
Horizontal Output screen horizontal movement
Vertical Output screen vertical movement
Scale X Up
Reduce / increase output screen width
Scale X Down
Scale Y Up
Reduce / Increase Output Screen Height
Scale Y Down
Reset Screen menu all reset

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
Parking
First Menu Second Menu Third Menu Description
Parking
Line Display
ON Show parking line
OFF Do not show parking lines
Warnings Lang Set warning text language
Horizontal Moving a parking line horizontally
Vertical Moving a parking line vertically
Transparency Parking line transparency
Reset Parking menu all reset
Parking Line ON Screen Parking Line OFF Screen

TOYOTA CAMRY 2018 PANASONIC + CarPlay
OSD Control
Parking –Change warning language
