General Instructions for Mobile Microfiltration System MOT-31/54
Congratulations on your selection of the mobile Microfiltration System MOT-31/54 from Katadyn. This
product is designed to reduce the levels of bacteria and protozoan cysts commonly found in
natural water sources. Thank you!
With the use of this system, you will be able to remove the microbial organisms from natural water.
These instructions will explain what you need to do to assemble and operate the system, as well as
what is needed for regular maintenance and troubleshooting or repairs in conjunction with this
treatmentsystem.
Substances such as minerals and salts in treated water will remain unchanged. Water will also not be
softened. Desalinating seawater is also not possible.
Pathogenic agents that cause the following diseases will be filtered: Typhoid, dysentery, amoebic and
bacterial dysentery, bilharzia, cholera, Colibacillosis and Giardia. If you require information about
bacteria not mentioned above, please contact the experts at Katadyn who will gladly discuss further
details.
1.1 General Safety Guidelines
The mobile Microfiltration System MOT-31/54 from Katadyn has been factory tested. The dangers of
improper use or failing to follow the operating procedures outlined in this manual may include:
•Water of unsafe microbial quality given to people or animals or industrially manufactured
products using unsafe water or other fluids.
•The health and safety of operating personal.
•Burns from touching hot surfaces or components.
•Crushing, pinching or contusions caused by unintended handling of moving parts.
All persons who will be involved with the setup, startup, operations, maintenance and repair of the
mobile Microfiltration System MOT-31/54 must be qualified and trained in its use and have read these
instructions. They must also thoroughly read and understand the accompanying Honda Handbook
from the company Honda Power Equipment. This is vital in maintaining their safety as well as avoiding
the delivery of water that remains contaminated after the microfiltration.
The instructional manual must be read and completely understood before operating the
mobile Microfiltration System MOT-31/54
Before operating the mobile Microfiltration System MOT-31/54 or performing any work
with the Honda Water Pump WH20X, the Honda Handbook must be read and
understood.

4
1.2 Intended Applications
Only use the mobile Microfiltration System MOT-31/54 as well as any accompanying
accessories / components per manufacturer’s instructions. Intended usage is discussed in these
instructions.
In order to ensure the mobile Microfiltration System MOT-31/54 can perform the described
level of treatment, the parameters set out must be followed. In addition, the physical and chemical
parameters for drinking water as required by state-specific requirements for drinking water fit for
human consumption must also be adhered to.
The mobile Microfiltration System MOT-31/54 has been designed and built based on state-of-
the-art technology, in order to provide safe operation when safety regulations and operating
requirements are followed.
Working on the mobile Microfiltration System MOT-31/54 as well as operation and use of
the system is permitted only when the unit is in good condition technically and when
attention is paid to safety standards and to potential hazards as described in these
operation instructions, the handbook, as well as in this supplement.
Only when these are followed without exception can operators and others avoid the loss
of life and serious injuries or avoid interference with the system’s operation or other
materialassets.
Appropriately trained specialist must immediately repair malfunctions, damage, or resolve
abnormal operations that could compromise safety!
Safety gloves with sufficient protection must always be worn when performing any
maintenance on the mobile Microfiltration System MOT-31/54.
Always properly dispose of waste products, in particular fluids in the pump unit, at
designated locations or with specialists.
In order to avoid accidents and possible work disability resulting from accidents due to
improper operation of the Katadyn mobile Microfiltration System MOT-31/54, please
observe and follow pertinent safety procedures. Improper handling of the Katadyn
mobile Microfiltration System MOT-31/54 can put health at risk. Operating/handling
duties
may only be performed by trained personnel.
Only open the filter chamber when it is unpressurized and emptied.
Before cleaning, maintenance, repair or replacement of parts, the hydraulic unit must first
be depressurized, and the pump unit turned off. These duties may only be performed by
trainedpersonnel.

5
Warranty and Product Liability
Manufacturer product liability and warranty is invalid in the case of damage and injuries
stemming from operations, installation or maintenance not in compliance with system operations.
For example:
• Operational errors resulting from not being in compliance with safety,
operations, and maintenance instructions and improper repairs.
• Improper use of the MOT-31/54 (use not in compliance with instructions).
• Use of repair parts not permitted by the MOT-31/54 manufacturer.
• Operators not using protective gear as described.
• Modifications of the MOT-31/54 without written permission from the manufacturer.
• Conducting improper work with tools inappropriate for the MOT-31/54.
• Failure to follow regular service and maintenance schedules.
• Improper Installation or operation of the MOT-31/54.

6
General Description
3.1 The microfiltration process
The Katadyn filter element is based on the functional principle of depth filtration. Filtration is a
process of separation that can be produced by the mechanical and physical force of the
ceramic structure. Thus, sediment and microorganisms are retained in the small pores of the
ceramic material. This filtration effect is dependent on the size of the pores and the thickness of
the ceramic layer. Depth filtration has a particular characteristic: Even particles smaller than the
total pore size are retained on the inside of the ceramic based on the principle of adsorption.
Katadyn ceramic filters are made from various natural raw materials of the highest quality
standard. As such, we can attain a nominal pore size of 0.2 µm with insignificant variations.
3.2 Primary features of mobile microfiltration
• Reliable treatment and filtration
• Robust design
• Lowmaintenance costs
• Simple cleaning by hand with a brush
• Stand-alone operation: no electricity or other infrastructure needed
3.3 Primary uses for microfiltration
Civil protection, military (drinking water, emergency water supplies)
Drinking water (groundwater, spring water, surface water)
Beverage industry (drinking water, processing water, rinsing water)
Food industry (water for manufacturing, rinse water)
Milk processing (water for processing at dairies and cheese-making facilities)
Agriculture (Water for livestock, feed lot operation)
Mountain restaurants, huts (drinking water, washing water)

7
3.4 Assembly of the MOT-31/54
MOT-31/54 consists primarily of two main components: the filter unit and the pump unit.
The pump unit’s task is to supply the untreated water from available water sources, to transport it
to the filter unit, and to produce the needed system pressure for filtration.
Choose the
location for the set up where the filter unit cannot be submersed in untreated water
and the surface is dry and stable.
Maximum static suction lift of 5 meters may not be exceeded.
The water quantity that can be expected is represented on the graph on the
next page. The
quantities noted are based on new, or newly cleaned, filter elements. As the filter elements
become dirtier, the flow rate also decreases accordingly.
Intervals between cleanings can be influenced positively with the appropriate placement of
the suction hose. Placing the hose directly under the surface of the water. Placing the hose on
the bottom of the water source should be avoided.
3.5 Water bacteria concentration
• Nutrients
In muddy ground, bacteria can multiply quickly, thanks to an outstanding supply
of nutrients. Thus, if at all possible, do not place the intake filter in the mud or slime.
• Varying water temperatures
Higher temperatures promote the grown of bacteria. Standing and slowly moving
water is warmer at the surface. Deeper water has lower bacteria concentrations.
• Bacteriaconcentration
More rapidly flowing water has lower levels because the water churns and becomes
diluted. Be aware that churned-up sand can clog the filter.

8
3.6 Installation requirements of components
Filter Unit:
•Stable positioning
•Comfortable operational height for water delivery and filter cleaning
•Intake position / filter: Static suction lift < 5 meters
•Positioned near best water quality if possible
•Placement on a dry surface
Filter Connection:
•Pump inlet 2” (suction hose and intake filter are enclosed)
•Filter fresh water outlet: 1 ¼” MOT-31 / 2 “ MOT-54
•Drain water outlet: 1 ¼” MOT-31 / 2 “ MOT-54
•Cleaning hose connection ½” (hose is enclosed)

9

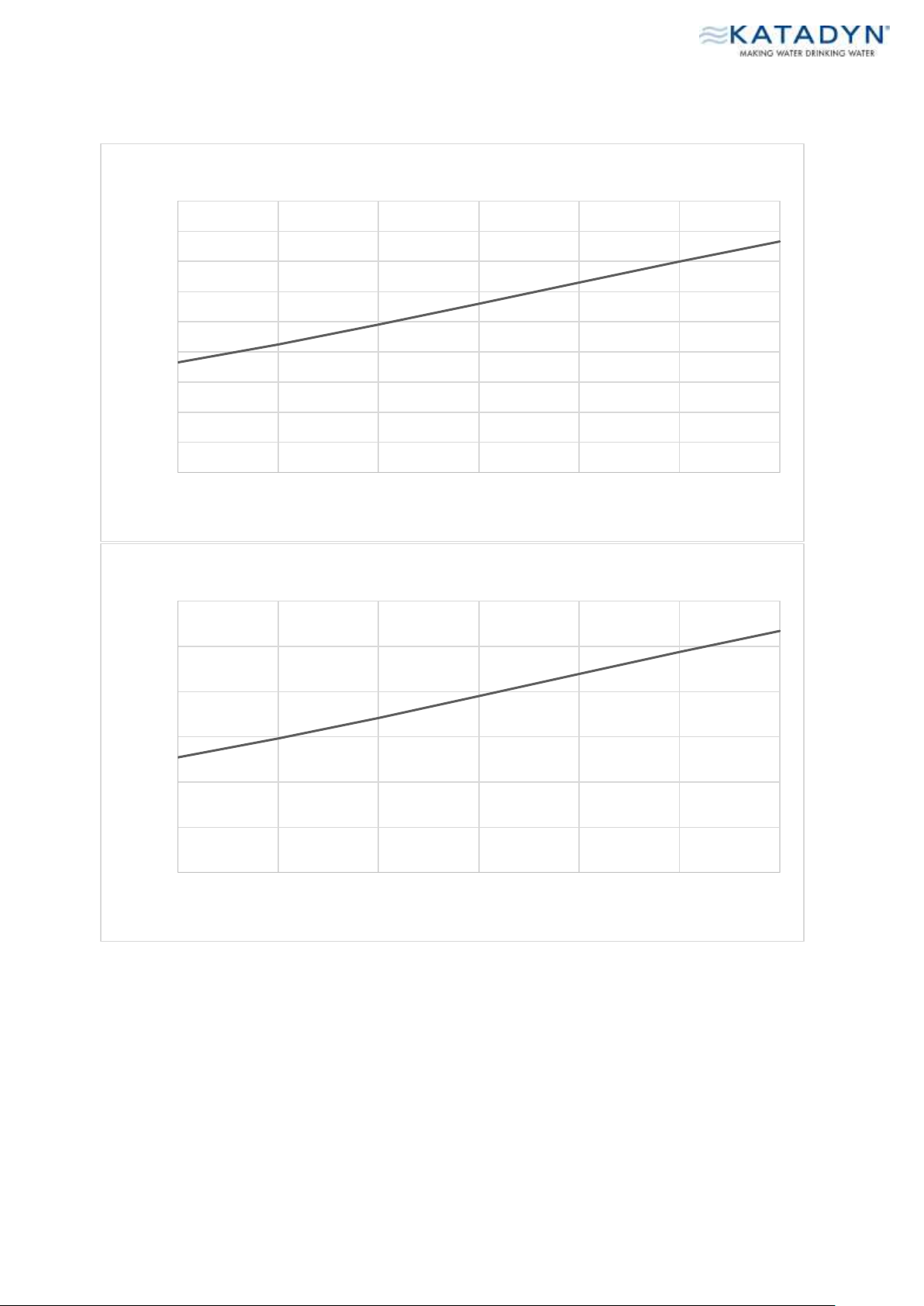

3.7 Flow rates of the MOT-31/54
The above chart shows the typical performance of the unit when operated in the standard operating
conditions described in this manual. Increasing the static resistance of the system will reduce the
volume of treated water. Optimal positioning of the intake hose (reducing dirt intake) increases the
performance of the MOT-31/54.
0
20
40
60
80
100
120
140
160
180
510 15 20 25 30 35
Water Flow l/min
Water Temperature °C
Performance MOT-31 at 4 bar
0
50
100
150
200
250
300
510 15 20 25 30 35
Water Flow l/min
Water Temperature °C
Performance MOT-54 at 4 bar

10

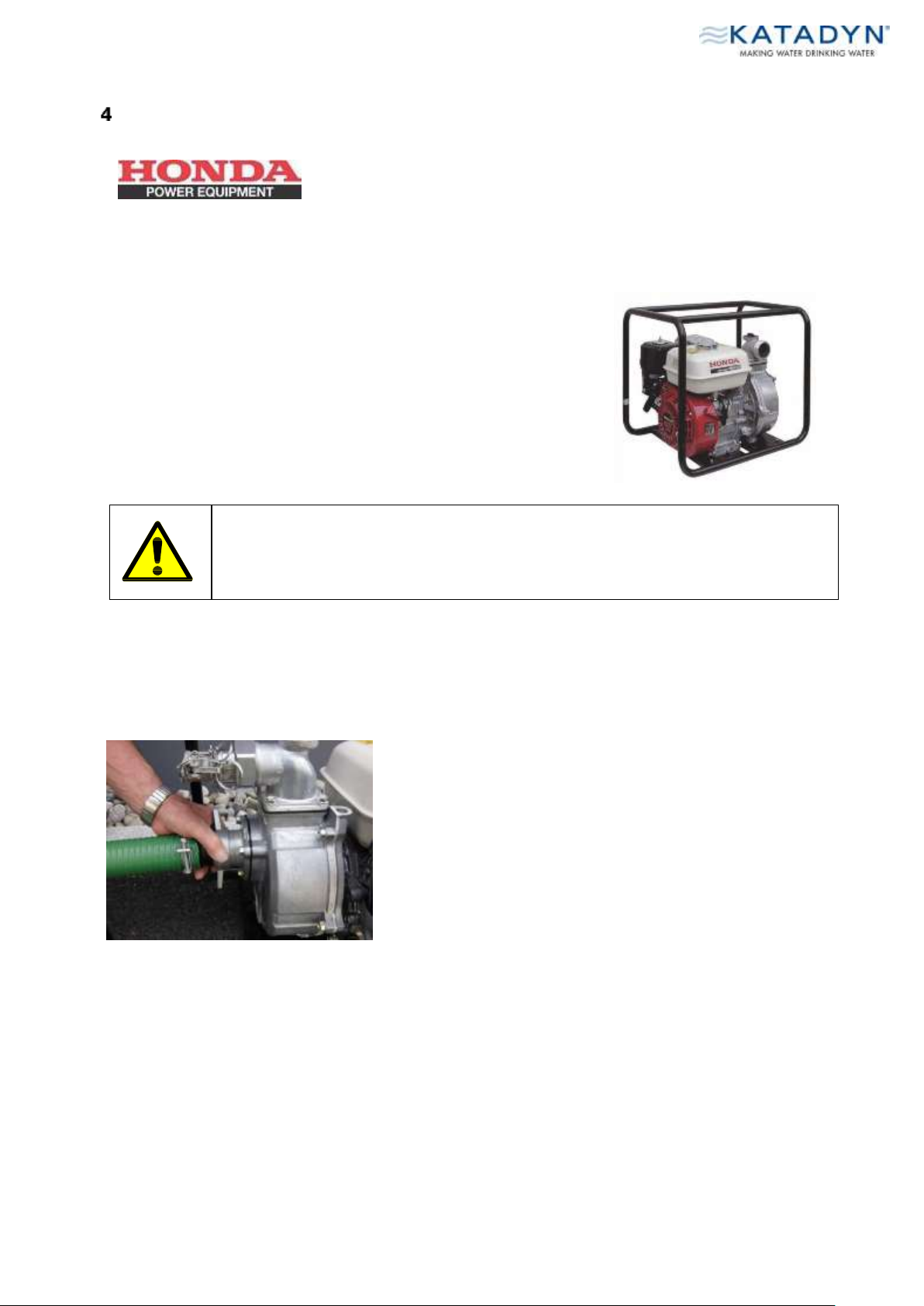

Pump Honda
WH20X
WH20X–extremelysturdy
The high-pressure pumps of the WH series are outfitted with the most durable and long-
lasting Honda G X engines. The powerful engine and especially sturdy housing enable
strong water delivery pressures with a water capacity of up to 500 liters per minute.
Capacity (l/min) 500
Capacity (m³/h) 30
Static suction lift 8 m
Port diameter 2‘
Motor type OHV GX 160
Rated output 3.6 kW
Rated speed 3600 U/min
Tank Capacity 3.1 L
Consumption (l/h) 1.6
Measurements (LxWxH) 435 x 375 x 400 mm
Weight 23.5 kg
Please refer to the accompanying Honda Manual regarding the correct handling of the
high-pressure pump WH 20X. Both this manual and the manual from Honda must be
read and completely understood.
Your safety depends on it!
4.1 Setup Procedure
Check the oil and fuel types and levels according to the Honda Handbook.
•Connect the suction hose for untreated water to the
pump and position the intake filter in the water at
the intended site based on the description in the
operating instructions.

11
Filter Unit
The filter unit consists of a filter housing including fittings and framing, a filter cover
including a
vent valve, a filter housing gasket, 31 or 54 pieces of No. 5 filter elements, a cleaning hose, a
measuring gauge, a handheld cleaning device.
5.1 Setup Procedure
Take care that the filter unit is placed in a stable position and that the location surface is dry.
•Remove the No. 5 filter elements from the package and
screw them hand-tight into the filter housing. Pay
particular attention that you do not tighten them too
much. Over tightening can damage the filters.
•Close the filter housing and tighten the locking bolts
with a maximum of 17 Nm.

12
Hook up the cleaning hose to the corresponding threads.
The MOT-31/54 is now ready for use.

13
Operational Procedures

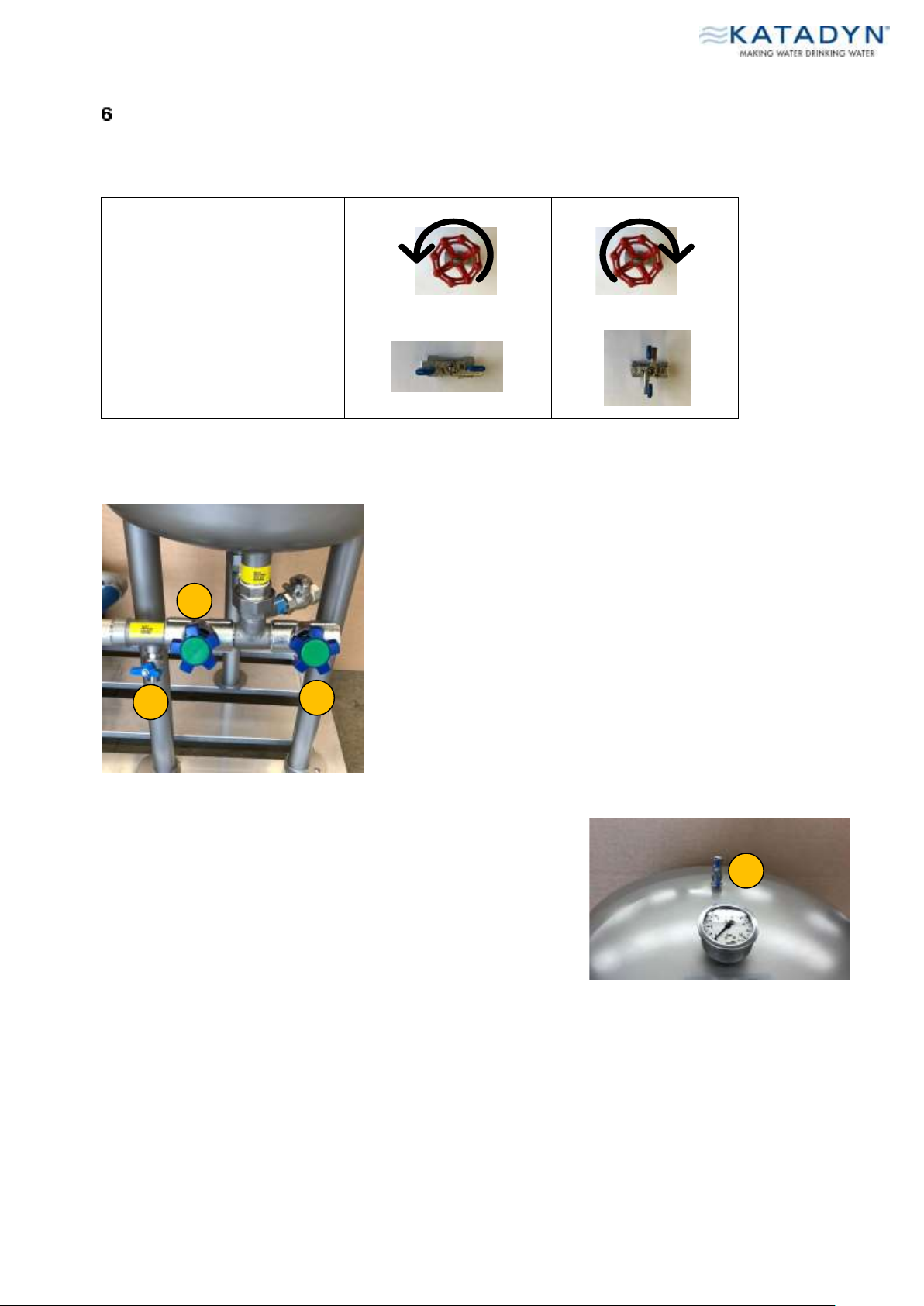

6.1 Brief description of the handle position of operational components
Main Valve A
Drain Valve D
Open
Close
Vent Valve B
Cleaning Valve C
Open
Close
6.2 Filling / Venting
• Check that all valves are closed
• Start the motor and vent the pump
• Turn the main valve A counter clock wise to open
• Open vent valve B just slightly
• When water appears, close vent valve B (Caution: Water may
begin flowing forcefully!)
Now the mobile microfiltration system MOT-31/54 is ready for use
CD
A
B

14

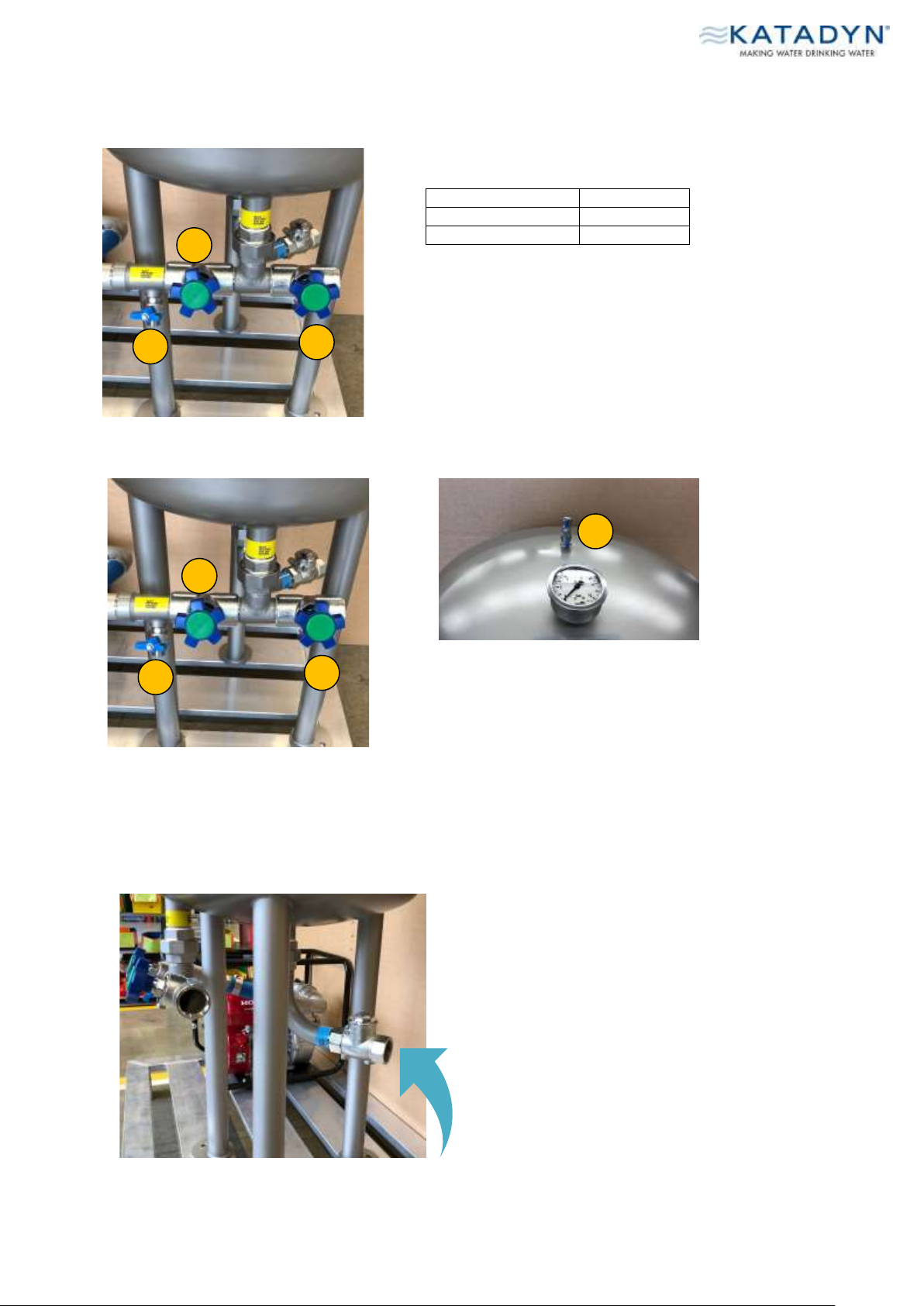

6.3 Operation
When in use, the operational components will be in the positions as
depicted:
6.4 Emptying the filter unit
• Turn off the pump
• Close the main valve A
• Open vent valve B
• Open the drain valve D (emptying)

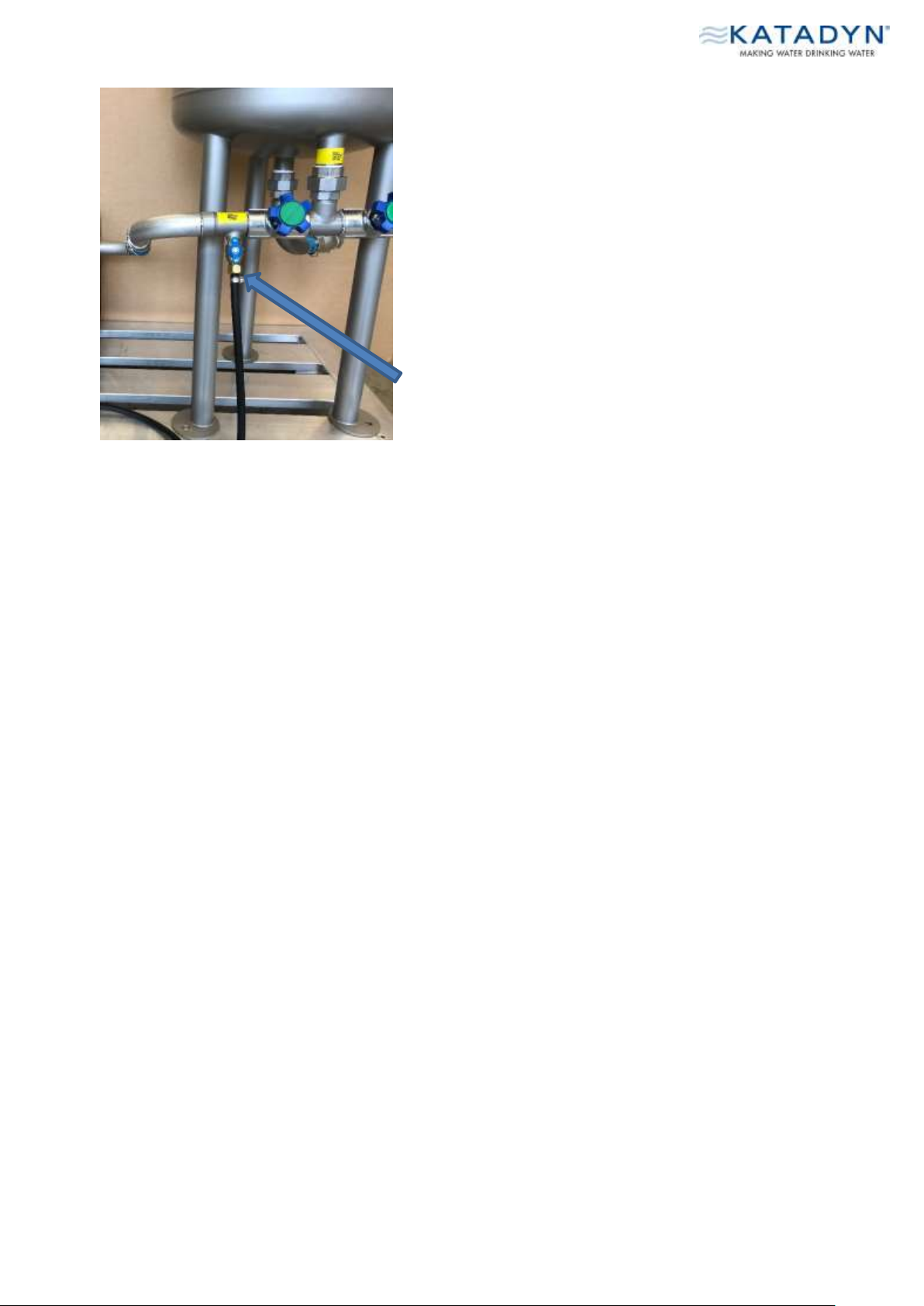

6.5 Water Sampling
Sampling must be performed by an experienced person according to DIN EN 25667-2 procedures.
The
mobile Microfiltration System MOT-31/54 must be set in the operational mode (see chapter 6.3).
• After being prepared based on DIN EN 2557-2, the
water sample must be taken at the outlet of the filter
Main Valve A
Open
Cleaning Valve C
Close
Drain Valve D
Close
CD
A
CD
A
B

15
Maintenance and Service
7.1 Honda Handbook reference
Please refer to the accompanying Honda Manual regarding the correct handling of the high-pressure
pump
WH 20X. Both this manual and the manual from Honda must be read and completely understood. Your
safety depends on it!
7.2 Cleaning the filter elements
• Turn off the pump
• Close the main valve A
• Open vent valve B
• Open the drain valve D (emptying)
• Open the housing the cover
• Close the drain valve D as soon as the filter elements are standing in
water by 1/6 only.
• Put the cleaning brush over the filter element and move it up
and down 6-8 times and, at the same time, flush with water
from the pump (For this process, water must not be filtered).
Repeat the process as needed until the surface of the filter
element is clean. In addition to the dirt particles that will be
removed, some of the ceramic will also be rubbed off in the
process. That is completely normal and desirable. In that way,
you will be assured that the filter element has totally new filter
characteristics when cleaning is completed.
• Repeat the above procedure on all filter elements.
CD
A
B

16
• Check the filter elements using the measuring gauge. To do so, refer to Chapter
7.3 in this manual: “Examining the filter elements.”
• Start the Pump
• Open cleaning valve C
• Clean the filter elements and inside of the housing with the
cleaning hose.
• Close cleaning valve C
• Stop the Pump
• Open the drain valve D and empty the filter housing
•Close the cover and tighten the locking bolts with a
maximum of 17 Nm.
• The MOT-31/54 is ready for refilling or for storage
Before storage, the filter elements must air dry for at least two days.
A
C

17
7.3 Examining the filter elements
Examination of the thickness of the ceramic wall must be done with the measuring gauge provided. As
soon as the gauge can be pushed over the ceramic, it means it has reached its minimum thickness,
and the filter element must be replaced. In addition, elements showing signs of cracks must also be
immediatelyreplaced.
7.4 Troubleshooting Guide
Problem
Possibilities
Solution
Filter delivers low water quantities
Dirty filter element
Clean the filter element
Valve is closed
Open valve
Pump unit delivers too little water
Motor is not running at the max speed
Suction filter not completely covered in
water or dirty
Optimize the suction filter. Clean the
filter.
Suction filter positioned poorly (e.g. in
sediment)
Optimize the suction
filter’s position.
Loss of pressure in the
filter system
Check the entire MOT-31/54 system
for water leakage
Unsatisfactory water quality
Filter element broken
IMMEDIATELY replace the
filter element
Filter element has hairline cracks
IMMEDIATELY replace the
filter element
Filter element has hairline cracks
IMMEDIATELY replace the
filter element

18
Replacement Parts and Filters
Product-Number
Description
20621 (SET)
Cleaning Hose MOT complete
20616
Cleaning Brush for Katadyn Filter
elements
20335
Measurement gauge for Katadyn Filter
elements
7010095
1/4“ butterfly Vent Valve V4A

19
1250
Katadyn Filter element No. 5
120003
120002
Cover Seal 500 x 9mm / MOT-31
Cover Seal 643 x 9mm / MOT-54
7010633
Suction Hose M-MOT incl. coupling to
Pump.
20615
1 Pair of Brush Segments, Nylon
20619
1 Pair of Brush Segments, Bronze
Option for difficult residue
Katadyn Products Inc.
Pfäffikerstrasse 37 | 8310 Kemptthal, Switzerland
Tel: [phone] I Fax: [phone]
[email protected] www.katadyn.com
