1 General description
1.1 Used warnings and symbols
Depending on the hazard level, the warnings and notes used in this manual have the
following meaning:
1.2 Presentation of the whole system
The EV-04 is an advanced personal emergency location device, for the elderly, disabled, or
lone worker, keeping families connected with tracking information and voice functionality.
It supports various 4G bands and falls back to 3G/2G when there is no 4G coverage.
When pressing the SOS button, the EV-04 sends an SMS message to the first recipient
with complete location details. Then, a hands-free call takes place. If the recipient does not
answer the call, the device will proceed with the next recipient set in the call sequence.
Up to 10 recipients can be defined.
A built-in 3D G-sensor can be used to trigger a “no movement alarm” or a “fall alarm”.
NOTICE
Means that damage to the equipment or an undesired condition may occur if the
recommended precautions are not taken.
INFO
General notes and additional information.

4 en | General description EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
1.3 EV-04 Personal Mobile Alarm System – Setup

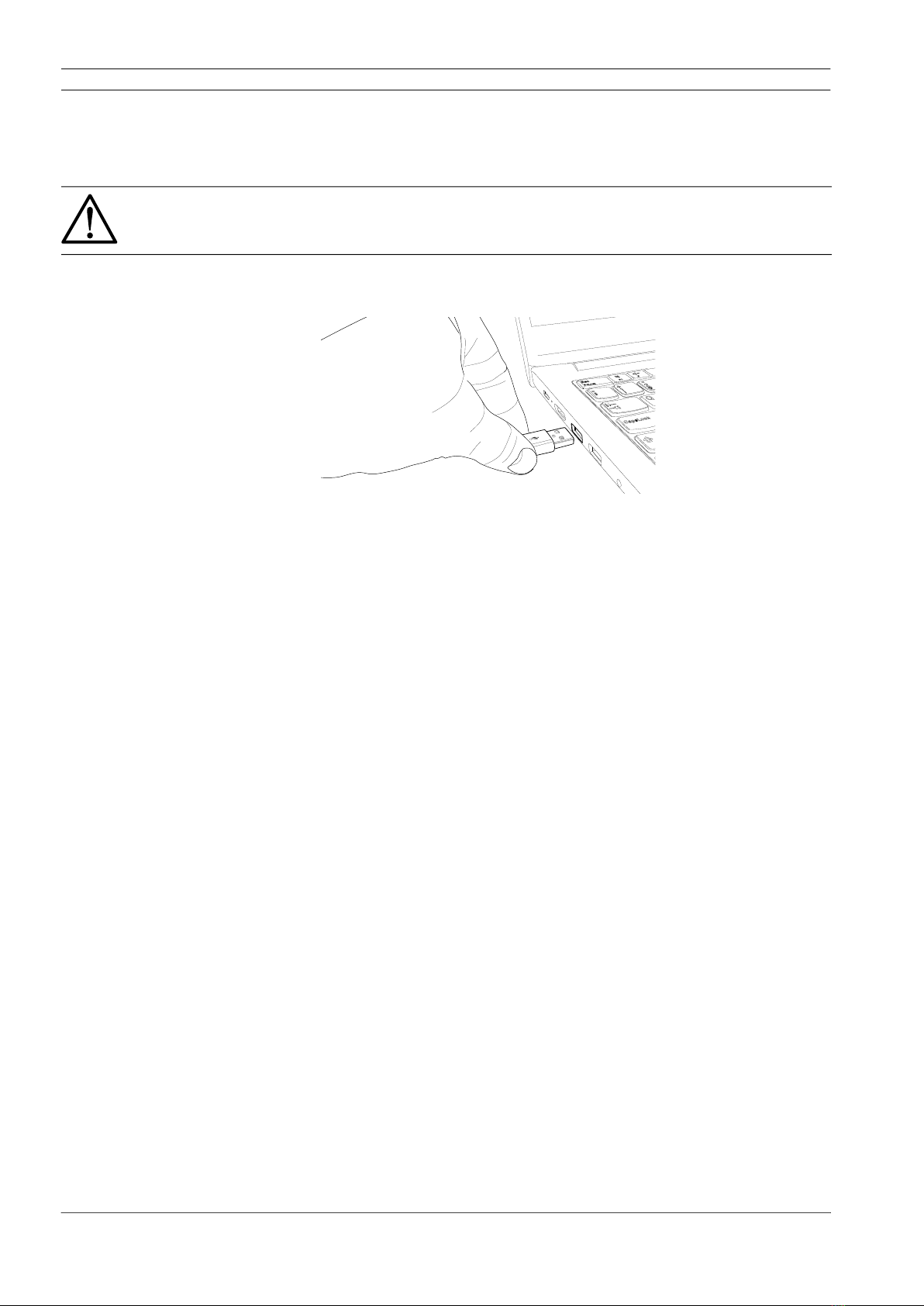

1. Insert the nano SIM card into the EV-04.
2. Connect the charging base DS3 to your computer by USB.
3. Place the EV-04 on the charging base DS3.
4. Open the ParamEdit software.
5. Click ‘Open EVD’.
6. Click ‘Read All’.
7. Set the parameters you want – see below ’ParamEdit software’ information.
8. Click ‘Save All’.
9. Click ‘Close EVD’.
1.4 Charging base DS3 – Setup
(to use it as an indoor beacon for indoor location)
1. Connect the charging base DS3 to its power supply.
2. Place the set-up EV-04 on the charging base DS3.
3. Set geographical coordinates of the charging base DS3.
- Define the exact location using a mobile phone GPS.
- Send the following SMS to the EV-04: BL<Latitude>,<Longitude>
(e.g. BL47.105635,6.834498)
- The EV-04 replies “Set BLE location ok”.
Warning:
Remove the SIM card password beforehand, using a mobile phone.

EV-04 Reference Manual ParamEdit software | en 5
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA
2 ParamEdit software
2.1 “System Info” tab
Password (for SMS Command)
Set this parameter to ON and define a password to protect the unit against unwanted
modification.
Time Zone
Set the current local time. E.g. Central European Time (CET: UTC+01:00), Western
European Time (WET: UTC00:00).
No Disturb Time
This function prevents the unit from making sounds during a specific period.
SMS Prefix
This function provides the option to add further info to the SMS head message.
Locale
Allow the user to select the synthetic voice language.

6 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
2.2 “Contact Number” tab
A1 to A10
Call up to 10 recipients.
Receive SMS
Select to receive SMS messages.
Receive Call
Select to receive phone calls.
Switch
Turn on to activate the recipient.

EV-04 Reference Manual ParamEdit software | en 7
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA
2.3 “Tracking Settings” tab
The information “Unit: S/M/H” must be set in seconds.
Working Mode
To select tracking mode.
►Mode 1 – Energy saving mode: The device only sends data to the server and enables
the GPS/WiFi/BLE when an event occurs (e.g. alarm). No need to set time interval.
►Mode 2 – Standard tracking: The device only sends data to the server according to
the defined time interval and always stays online. The user needs to set the reporting
time to the server for when the device is moving and not moving. GPS/WiFi/BLE are
enabled when the device is moving and disabled when not moving. The GPS is woken
up and the position is updated only when it needs to send data to the server, or when
an alarm needs to be transmitted.
►Mode 3 – Full tracking: The device sends data to the server according to the defined
time interval and always stays online. The user needs to set this interval. GPS is
always enabled.

8 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
►Mode 4 – Data savings: The device connects the server only at a defined time interval.
The user needs to set reporting time to the server. GPS/WiFi/BLE are only enabled
when data are sent.
►Mode 5 – Mobile off: The device connects the server at a defined time interval and
between each interval the mobile phone is offline. The user needs to set this interval.
GPS is only enabled when data are sent. During offline periods, the device is unable to
receive calls and text message. GPS/WiFi/BLE are only enabled when data are sent.
►Mode 6 – Enhanced tracking: Same as mode 2 with improved tracking performance.
As soon as motion is detected, the GPS is woken up and its position is thereafter
continuously updated. Which saves time when the position has to be transmitted.
Heartbeat interval
To check the server connection at regular interval (only applicable for modes 1, 2 and 3).
Value range: 60 to 86,400 seconds. The heartbeat packet function is used to keep the
Transmission Control Protocol (TCP) connection open when the interval of scheduled
GPRS reporting is long.
Continuous locate
Continuous locate is only activated when an alarm is triggered, such as the SOS alarm or
fall alarms. After the defined duration time is finished, the unit goes back to normal working
mode. For example, if the time interval is set to 10 seconds, and the duration time is set to
300 seconds, then the device will keep sending reports every 10 seconds to the “server IP”
defined on the same page, for a period of 300 seconds.
Server
If a specific server is used, it can be set here.
SMS URL
SMS message link format. No changes are necessary.

EV-04 Reference Manual ParamEdit software | en 9
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA

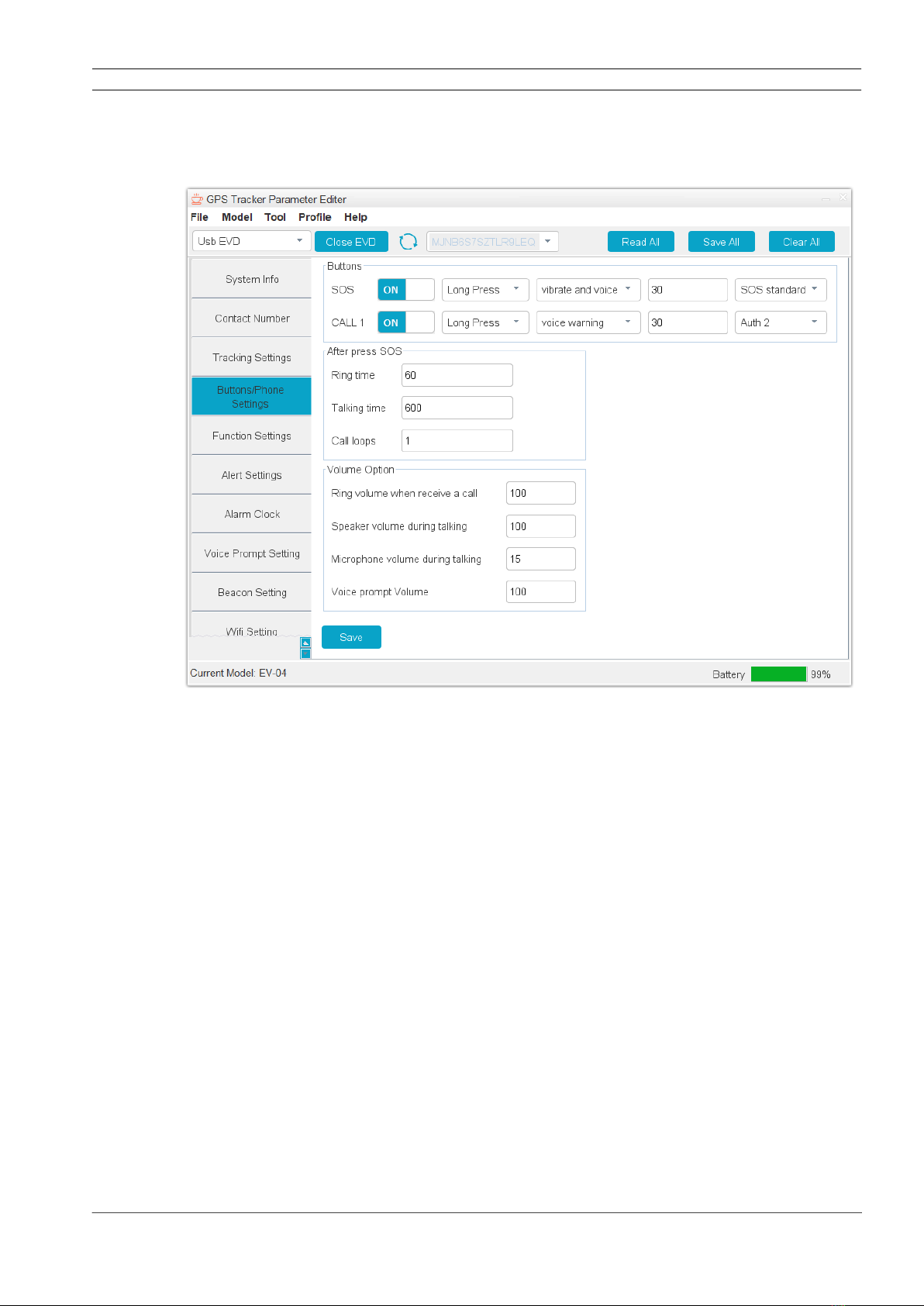

2.4 “Buttons/Phone Settings” tab
The information “Press Unit: 0.1s” must be set in tenths of a second.
The information “Unit: S/M/H” must be set in seconds.
Buttons
Define “SOS” and “CALL 1” buttons behaviour.
1. Enable or disable.
2. Long press or double click.
3. Synthetic voice and/or vibration.
4. Long press time/double click time (e.g. 30 means long press 3 seconds or double click
within a period of 3 seconds to activate).
5. Call sequence (SOS standard)/single recipient (Auth 1 … Auth 10).

10 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
"After press SOS"
Ring time: The time that passes from the time an outgoing call is initiated until the called
party answers the call. After this time, if the recipient did not answer, the device will call the
next recipient.
Talking time: The time that can be spent talking with the recipient. After this time, the
device will call the next recipient.
Call loop: Number of call sequence repetition.
Volume option
Values higher than 150 are not recommended.

EV-04 Reference Manual ParamEdit software | en 11
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA

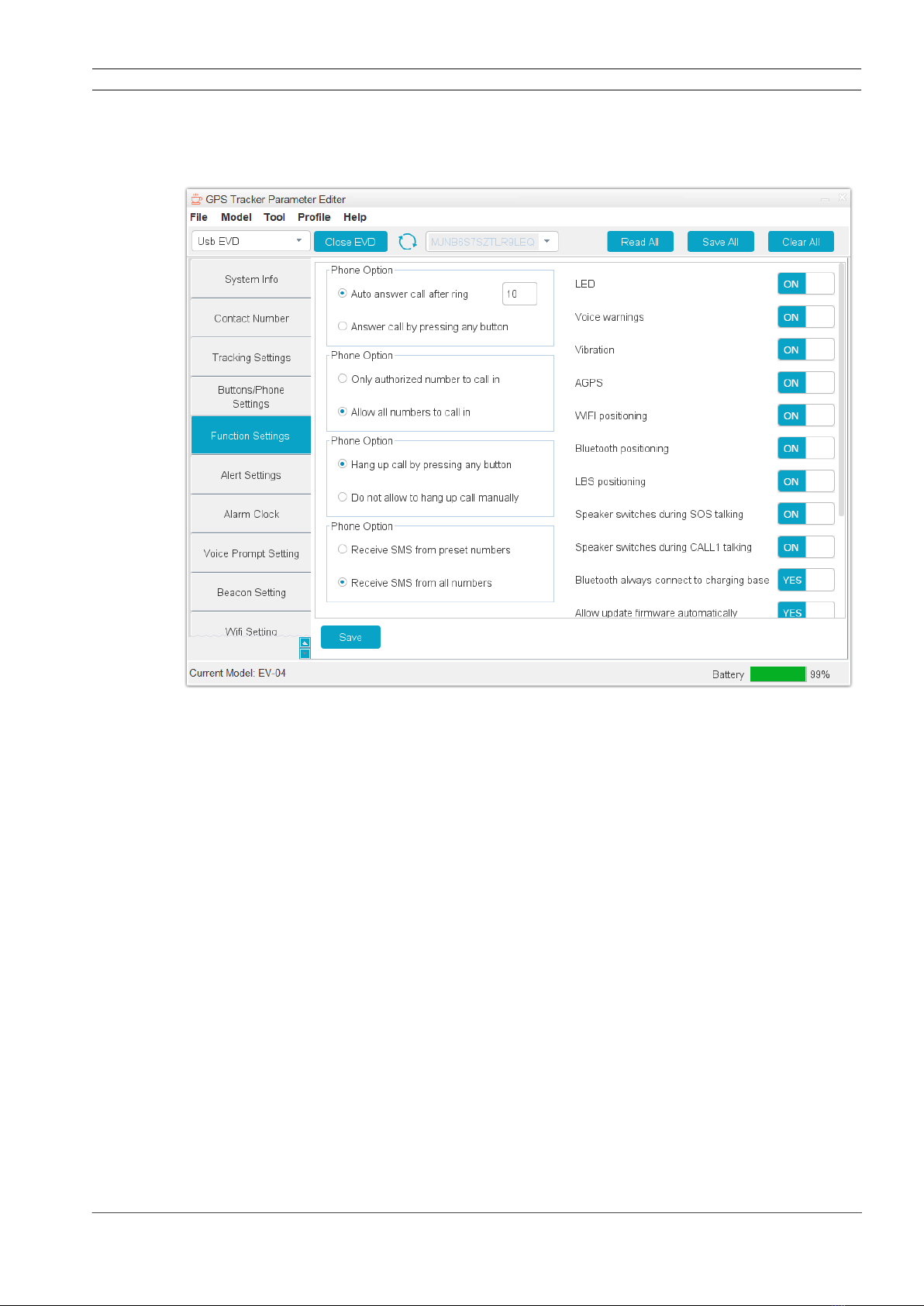

2.5 “Functions Settings” tab
Phone Option
Define the phone behaviour.
1. How to answer incoming calls.
2. Which numbers are allowed to call in (authorized numbers means the numbers defined
in the “Contact Number” tab).
3. How to hang up.
4. SMS from which numbers are allowed to setup the device (preset numbers means the
numbers defined in the “Contact Number” tab).

12 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
General options
1. LED: Switch the LED on/off.
2. Voice warnings: Enable/disable the synthetic voice.
3. Vibration: Enable/disable the vibrations.
4. AGPS: Allow usage of Assisted Global Positioning System, which takes assistance
from mobile towers in order to reduce the time to fix position.
5. WiFi positioning: Allow usage of geolocation system that uses the characteristics of
nearby WiFi hotspots and other wireless access points to discover where the device is
located.
6. Bluetooth positioning: Allow usage of Bluetooth locator beacons, like the charging
base DS3.
7. LBS positioning: Allow usage of Location-Based Service which is a tracking system
that uses mobile phone signal.
8. Speaker switches during SOS talking: Allow the usage of the device speaker during
an SOS alarm (SOS button). ON=two way calling, OFF=Speaker off.
9. Speaker switches during CALL 1 talking: Allow the usage of the device speaker
during a phone call (CALL button). ON=two way calling, OFF=Speaker off.
10. Bluetooth always connect to charging base: When the Bluetooth disconnects for
whatever reason, it automatically reconnects when the connection is available again.
11. Allow update firmware automatically: Self-explanatory.
12. Beacon: For indoor location via BLE connection between the device and the beacon.
The beacon is a tiny wireless device broadcasting BLE signal 24/7. See “Beacon
Setting” tab.
13. Home WiFi positioning: For location via WiFi connection. See “Home WiFi” tab.
14. Long SMS: When an SMS sent to the EV-04 is too long, some SIM cards do not
support it, so the message is split into two SMS. In that case, please turn on "long
SMS" to solve this issue.
15. LT: Deactivated in the TeleAlarm EV-04 to protect yourself from unethical or illegal
spying.

EV-04 Reference Manual ParamEdit software | en 13
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA

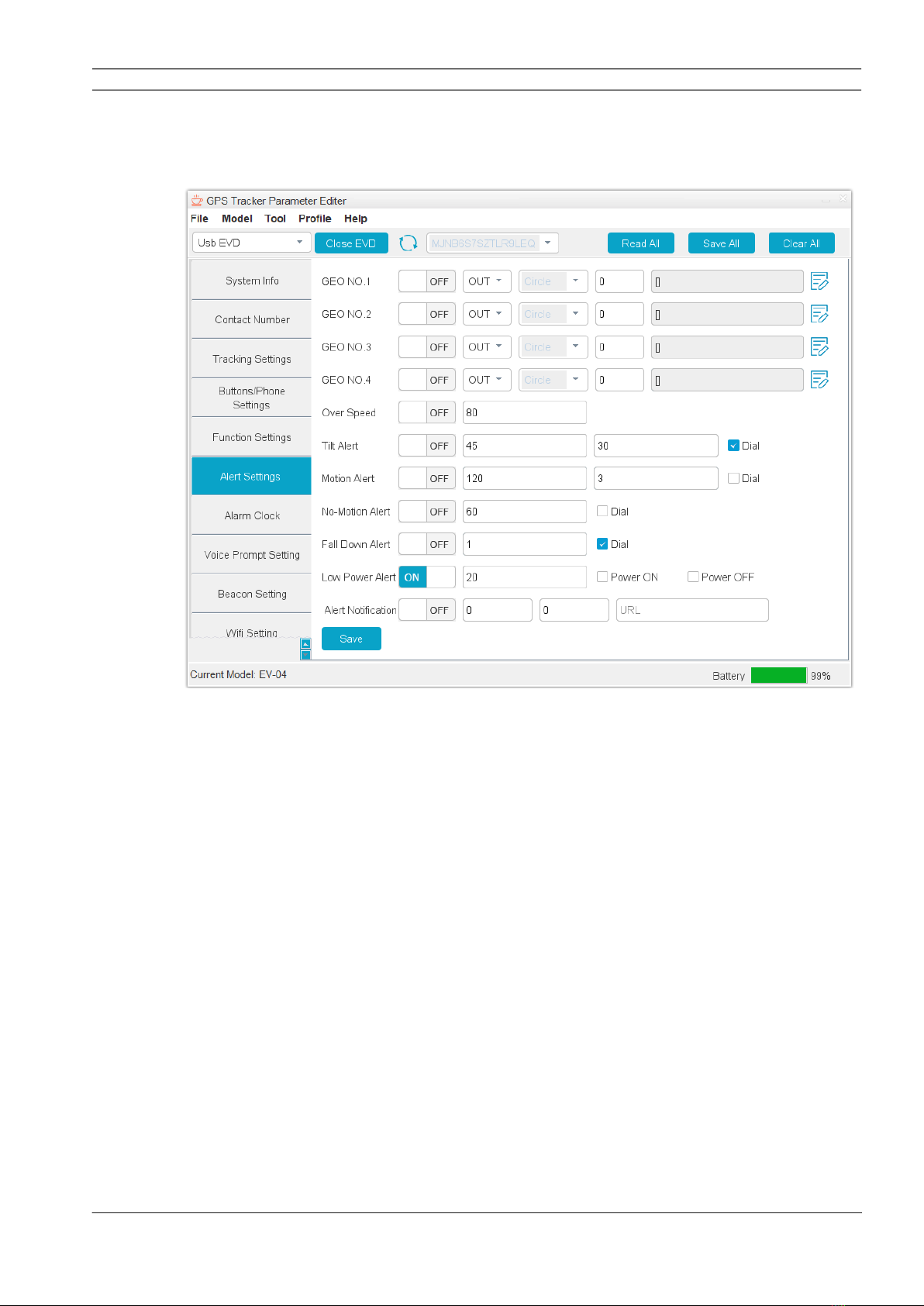

2.6 “Alert Settings” tab
Geo-fence (GEO NO.1 to GEO NO.4)
Define a virtual geographic boundary that enables the device to trigger an alarm when it
enters or leaves a particular area.
Over Speed
Alert when the speed is higher than a certain value.
Tilt Alert
Alert when the device is tilted more than a defined tilt, at least for a defined time.
Motion Alert
Alert if no motion is detected over a defined period and that the device is moving again, at
least for the defined time.
No-Motion Alert
Alert if no motion is detected over a defined period.
Fall Down Alert
Alert if a fall is detected. Sensibility from 1 to 9.

14 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
Low Power Alert
Alert when power is less than a defined percentage.
Power ON
Alert when power on.
Power OFF
Alert when power off.

EV-04 Reference Manual ParamEdit software | en 15
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA
2.7 “Alarm Clock” tab
This function can be used to set reminders (local alarms) at a certain time with a specific
ring tone.

16 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final

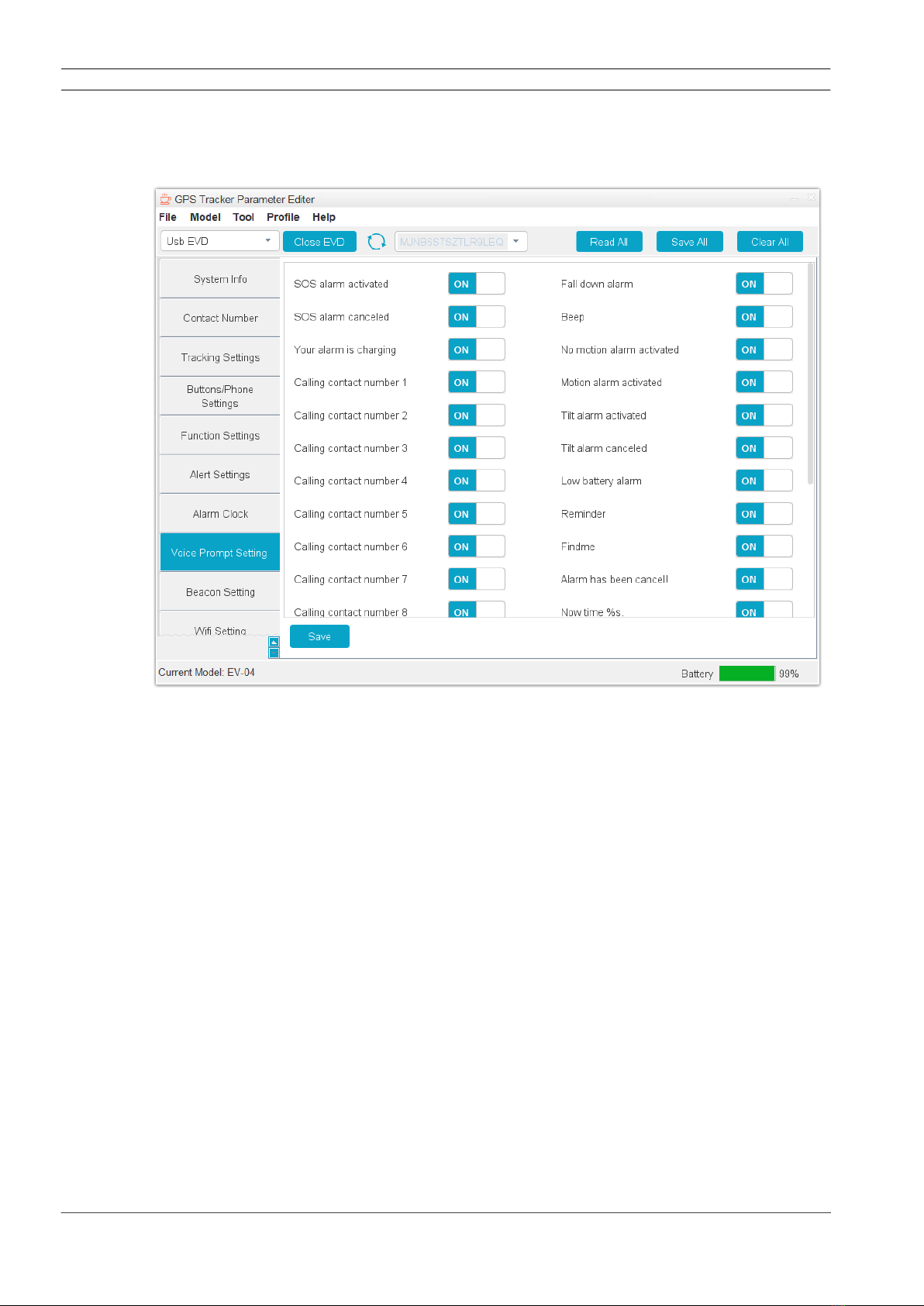

2.8 “Voice Prompt Setting” tab
To enable/disable synthetic voice messages.

EV-04 Reference Manual ParamEdit software | en 17
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA
2.9 “Beacon Setting” tab

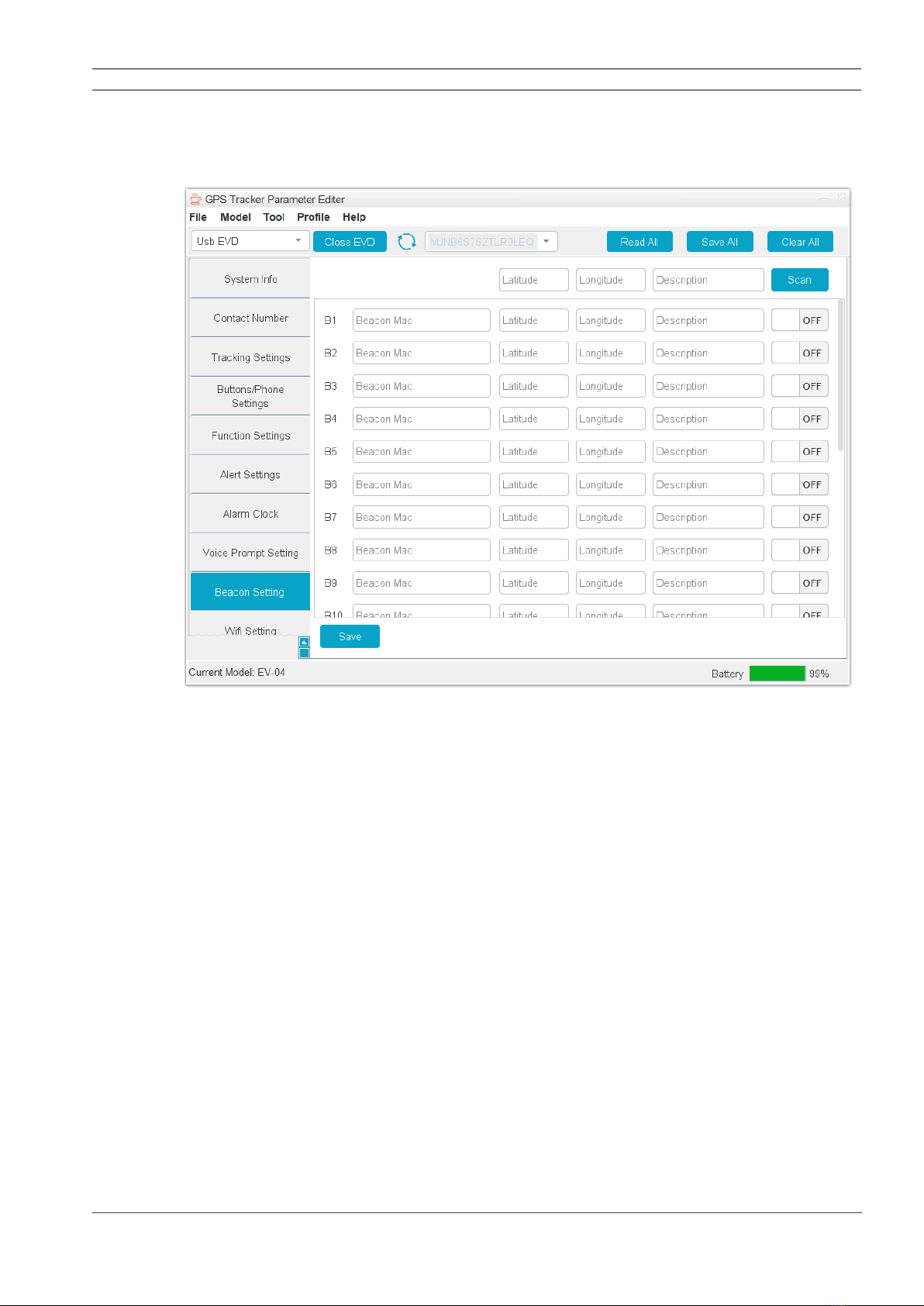

This function can be used to define the location of the beacons. The "Scan" button helps to
search for beacons.

18 en | ParamEdit software EV-04 Reference Manual
© TeleAlarm SA EV-04_RM_EN_V1.1_ 2021.12_Final
2.10 “WiFi Setting” tab
This function can be used to connect the EV-04 to home WiFi. When connected, the device
automatically switches off its GPS, for energy-saving purposes.

EV-04 Reference Manual ParamEdit software | en 19
EV-04_RM_EN_V1.1_ 2021.12_Final © TeleAlarm SA
2.11 “Home WiFi” tab
To use WiFi as a beacon.
► Use the Scan button (not “Scan auto” – if “Scan auto” has been used, clear the data,
and save).
► Scan, select a WiFi and click Add.
► Enter the geographical coordinate definition (latitude and longitude) and save.
