Preface
1. Preface
The described hard- and software are developments of the Karl E. Brinkmann GmbH. The
enclosed documents correspond to conditions valid at printing. Misprint, mistakes and techni-
cal changes reserved.
1.1 Information on special measures
The used pictograms have following signicance:
Danger Is used, when death or serious bodily injury may be the consequence
of non-observance of the measure.
Warning Is used, when bodily injury and/or substantial property damage may
be the consequence of non-observance of the measure.
Caution Is used, when property damage may be the consequence of non-ob-
servance of the measure.
Attention Is used, when noise sensitive or unrequested operation may be the
consequence of non-observance of the measure.
Info Is used, when a better or simpler result can be the consequence of the
measure.
For a special case the instructions can be supplemented by additional pictograms and text.
1.2 Documentation
Before working with the unit the user must become familiar with it. This includes especially
the knowledge and observance of the safety and operating instructions.
Attention Observe safety and operating instructions
Precondition for all further steps is the knowledge and observance of the
safety and operating instructions. This is provided accompanied by the de-
vice or by the download site of www.keb.de.
Non-observance of the safety and operating instructions leads to the loss of any liability
claims. The warnings and safety instructions in this manual work only supplementary. This
list is not exhaustive.
1.3 Validity and liability
The use of our units in the target products is beyond of our control and therefore exclu-
sively the responsibility of the machine manufacturer, system integrator or customer.
The information contained in the technical documentation, as well as any user-specic advice
in spoken and written and through tests, are made to best of our knowledge and information
about the application. However, they are considered for information only without responsibil-
ity. This also applies to any violation of industrial property rights of a third-party.

5
Preface
Selection of our units in view of their suitability for the intended use must be done generally
by the user.
Tests can only be done within the application by the machine manufacturer. They must
be repeated, even if only parts of hardware, software or the unit adjustment are modi-
ed.
Danger by tamper from unauthorized personnel
Unauthorised opening and tampering may lead to death, bodily injury, prop-
erty damage and malfunctions. Modication or repair is permitted only by
authorized personnel by KEB.. Infringement will annul the liability for result-
ing consequences.
The suspension of liability is especially valid also for operation interruption loss, loss of prot,
data loss or other damages. Disclaimer of warranty will cause void the guarantee. This is also
valid, if we referred rst to the possibility of such damages.
If single regulations should be or become void, invalid or impracticable, the effectivity of all
other regulations or agreements is not affected.
Through multitude applications not each possible case of installation, operation or mainte-
nance can be considered. If you require further information or if special problems occur which
are not treated detailed in the documentation, you can request the necessary information via
the local Karl E.Brinkmann GmbH agency.
1.4 Copyright
The customer may use the instruction manual as well as further documents or parts from it for
internal purposes. Copyrights are with KEB and remain valid in its entirety.
KEB®, COMBIVERT®, COMBICONTROL®and COMBIVIS®are registered trademarks of Karl
E. Brinkmann GmbH.
Other wordmarks or/and logos are trademarks (™) or registered trademarks (®) of their re-
spective owners and are listed in the footnote on the rst occurrence.
When creating our documents we pay attention with the utmost care to the rights of third par-
ties. Should we have not marked a trademark or breach a copyright, please inform us in order
to have the possibility of remedy.

6
Preface
1.5 Speciedapplication
The COMBIVERT G6 serves exclusively for the control and regulation of three-phase motors.
The operation of other electric consumers is prohibited and can lead to the destruction of the
unit. Frequency inverters are components which are intended for the installation in electric
systems or machines.
The used semiconductors and components of the Karl E.Brinkmann GmbH are developed
and dimensioned for the use in industrial products. If the KEB COMBIVERT G6 is used in
machines, which work under exceptional conditions or if essential functions, life-supporting
measures or an extraordinary safety step must be fullled, the necessary reliability and secu-
rity must be ensured by the machine builder.
The operation of our products outside the indicated limit values of the technical data leads to
the loss of any liability claims.
1.6 Product description
These manual contains the description of the customers parameter of the COMBIVERT G6.
Attention The described parameter are only valid at V/f operation and factory
settings.
1.6.1 Corresponding documentation
Attention Further documentation via www.keb.de
• EMC and safety instructions
• Installation power unit
• Programming Manual

7
Parameter Description
2. Parameter Description
On delivery the KEB COMBIVERT G6 is assigned with an user menu, the customer parame-
ters (CP-Parameters). These represent a selection of important parameters for the operation.
Up to a maximum of 48 customer parameters can be dened from over 500 parameters.
Only parameter CP00 password input is predened and can not be modied or deleted.
The customer parameter menu described in this manual is valid for open-loop systems. That
can be indentied by parameter CP48 (see below).
2.1 Selection of the customer parameter menu
CP48 Software version
Co-domain Setting Description
0.0.0.0 … F.F.F.F – Display of the software version
The rst two digits display the major and minor version number (e.g.
1.2.x.x => V1.2)
The third digit displays the power unit software
x.x.0.x Power unit open-loop 1st Version (this manual)
x.x.1.x Power unit open-loop 2nd Version (this manual)
x.x.2.x Power unit ASCL →available as Download.
x.x.3.x Power unit SCL →available as Download.
The fourth digit displays a serial number for the date code.

8
Parameter Description
2.2 Password input in CP mode
CP00 Password input
Ex works the frequency inverter is supplied without password protection, this means that all
changeable parameters can be adjusted. After parameterizing the unit can be barred against
unauthorized access. The adjusted mode is stored. Following password levels are possible:
Password level Val-
ue
Password Explanation
CP mode write protection -1 100 Only reading of customer parameters
CP mode read/write -2 200 Read/write of customer parameters
DezHex
CP00 2800h Satz: 0
Passwort
-1
Passwort:
CP-Mode Schreibschutz
Menü Oben Unten
CP00 Passwort
[0] CP-Mode Schreibschutz
CP01 Istwertanzeige
[0] 50,0000 Hz
CP02 Sollwertanzeige
[0] 50,0000 Hz
CP03 Umrichterstatus
[0] Konstantfahrt Linkslauf
CP04 Scheinstrom
[0] 25,5 A
DezHex
CP00 2800h Satz: 0
Passwort
100
Num
DezHex
CP00 2800h Satz: 0
Passwort
-2
CP-Mode Lesen/Schreiben
Num
Menü Oben Unten
CP00 Passwort
[0] CP-Mode Lesen/Schreib
CP01 Istwertanzeige
[0] 50,0000 Hz
CP02 Sollwertanzeige
[0] 50,0000 Hz
CP03 Umrichterstatus
[0] Konstantfahrt Linkslauf
CP04 Scheinstrom
[0] 25,5 A
DezHex
CP00 2800h Satz: 0
Passwort
-2
Passwort:
CP-Mode Lesen/Schreiben
Info A detailed description of the diplay / keyboard can be found in the pro-
gramming manual "Control circuit analog /digital".

9
CP-Parameter for open-loop operation
2.3 CP-Parameter for open-loop operation
Parameter Range Resolu-
tion Default Unit Flag based on
CP00 Password input 0…9999 1 - - - Ud01
CP01 Actual value display -400…400 0,0125 0 Hz R ru07
CP02 Set frequency display -400…400 0,0125 0 Hz R ru01
CP03 Inverter state 0…255 1 0 - R ru00
CP04 Apparent current 0…6553,5 0,1 0 A R ru15
CP05 Apparent current peak value 0…6553,5 0,1 0 A R ru16
CP06 Actual utilization 0…400 1 0 % R ru13
CP07 Actual DC voltage 0…1000 1 0 V R ru18
CP08 DC link voltage peak value 0…1000 1 0 V R ru19
CP09 Output voltage 0…778 1 0 V R ru20
CP10 min. reference forward 0…400 0,0125 0 Hz - oP06
CP11 max. reference 0…400 0,0125 70 Hz - oP10
CP12 acc. time forward 0,00…300,00 0,01 5 s - oP28
CP13 dec. time forward (-1=CP12) -0,01…300,00 0,01 5 s - oP30
CP14 S-curve time acc. 0,00…5,00 0,01 0 s - oP32
CP15 Boost 0,0…25,5 0,1 LTK % - uF01
CP16 Rated frequency 0…400 0,0125 50 Hz - uF00
CP17 Voltage stabilization 0…649 1 off V E uF09
CP18 Switching frequency 0…LTK 1 LTK - E uF11
CP19 step value 1 -400…400 0,0125 5 Hz - oP21
CP20 step value 2 -400…400 0,0125 50 Hz - oP22
CP21 step value 3 -400…400 0,0125 70 Hz - oP23
CP22 DC braking mode 0…506 1 7 - E Pn28
CP23 DC braking time 0,00…100,00 0,01 10 s - Pn30
CP24 LAD load level 0…200 1 140 % - Pn24
CP25 Stall level 0…200 1 200:off % - Pn20
CP26 Speed search condition 0…31 1 8 - E Pn26
CP27 Motor protect. function response 0…6 1 6 – – Pn14
CP28 Motor protection mode 0…1 1 1 – – dr11
CP29 motorprot. rated current 0,0…370,0 0,1 LTK A – dr12
CP30 ANOUT1 function 0…26 1 2 – E An31
CP31 ANOUT1 gain -20,00…20,00 0,01 1 – – An33
CP32 Condition SB0 0…101 1 20 – E do00
CP33 Condition SB2 0…101 1 4 – E do02
CP34 comparison level 2 ±30000,00 0,01 100,00 – – LE02
CP35 AN1 interface selection 0…2 1 0 – E An00
CP36 select 50Hz/60Hz mode 0…1 1 0 – E Ud06
CP37 warning dOH stop. mode 0…8 1 7 – – Pn12
CP38 Inverter address 0…239 1 0 – – Sy06
CP39 last error 0…255 1 0 – E, R In24
CP40 parameter set copy function -4…7 1 0 – – Fr01
CP48 Software version x.x.x.x – LTK – R In06
LTK=depending on power unit; E=ENTER-Parameter; R=read only

10
CP-Parameter for open-loop operation
CP00 Password input
see chapter 2.2
CP01 Actual value display
Co-domain Description
0…±400 Hz Display of the actual output frequency in Hz. The rotation of the inverter
is displayed by the sign.
Examples:
18.3 Output frequency 18,3 Hz, rotation forward
-18.3 Output frequency 18,3 Hz, rotation reverse
CP02 Set frequency display
Co-domain Description
0…±400 Hz Display of actually set value. For control reasons the set speed is dis-
played, even if the control release or direction of rotation is not switched.
If no direction of rotation is set, the set frequency for clockwise rotation
(forward) is displayed.
CP03 Inverter state
The actual operating condition of the inverter (e.g. forward constant run, standstill) is dis-
played in parameter „inverter state“. In the case of an error the current error message is dis-
played, even if the display has already been reset with ENTER (status LED is still blinking).
Display State
no operation modulation switched off; output voltage = 0V; drive is not controlled.
no direction of rota-
tion preset
modulation switched off; output voltage = 0V; drive is not controlled.
Acceleration
Forward
drive accelerates with direction of rotation forward.
Deceleration
Forward
drive decelerates with direction of rotation forward.
Acceleration
Reverse
drive accelerates with direction of rotation reverse.
Deceleration
Reverse
drive decelerates with direction of rotation reverse.
Speed dependent
Forward
Drive runs with constant speed and direction of rotation forward.
Speed dependent
Reverse
Drive runs with constant speed and direction of rotation reverse.
Other status messages are described at the parameters, on which they occur (see chapter
„Error Diagnosis“).

11
CP-Parameter for open-loop operation
CP04 Apparent current
Co-domain Description
0…±6553.5A Display of the actual apparent current in ampere.
CP05 Apparent current peak value
Co-domain Description
0…±6553.5A CP05 makes is possible to recognize the max. apparent current. For that
the highest value of CP04 is stored in CP05. The peak value memory
can be cleared by pressing the UP, DOWN or ENTER key or via bus by
writing any value you like to the address of CP05. The switch off of the
inverter also clears the memory.
CP06 DC link voltage peak value
Co-domain Description
0…400 % Display of the actual inverter rate of utilization in percent. 100% rate of
utilization is equal to the inverter rated current. Only positive values are
displayed, meaning there is no differentiation between motor and gen-
eratoric operation.
CP07 Actual DC voltage
Co-domain Description
0…1000 V Display of actual DC-link voltage in volt. Typical values:
V-class Normal opera-
tion
Error!
Overvoltage
Error!
underpotential
230 V 290…360 V DC approx. 400V DC approx. 216 V DC
400 V 510…620 V DC approx. 840V DC approx. 240 V DC

12
CP-Parameter for open-loop operation
CP08 DC-link voltage/peak value
Co-domain Description
0…1000 V CP08 makes it possible to recognize short-time voltage rises within an
operating cycle. For that the highest value of CP07 is stored in CP08.
The peak value memory can be cleared by pressing the UP, DOWN or
ENTER key or via bus by writing any value you like to the address of
CP08. The switch off of the inverter also clears the memory.
CP09 Output voltage
Co-domain Description
0…778 V Display of the actual output voltage in volt.
CP10 min. reference forward
Co-domain Setting Description
0.0…400.0 Hz 0 Hz With ths frequency the inverter
operates without presetting an
analog set value. Internal limiting
of the xed frequencies CP19...
CP21.
f
UREF
CP11 max. reference forward
Co-domain Setting Description
0.0…400.0 Hz 70 Hz With this frequency the inverter
operates with maximum set val-
ue. Internal limiting of the xed
frequencies CP19...CP21.
→ CP10

13
CP-Parameter for open-loop operation
CP12 acc. time forward
CP13 dec. time forward (-1 = CP12)
Co-domain Setting Description
0.00…300.00 s 5.00 s The parameter determines the time needed to accelerate
from 0 Hz to100Hz or to decelerate from 100 Hz to 0 Hz.
The actual acceleration-/ deceleration time is proportion-
al to the frequency change (∆f).
∆f Frequency change
t [s]
CP12
f [Hz]
100
0
∆ t
∆f
∆t Acceleration-/ deceleration
time for ∆f
Example A drive shall accelerate from 10Hz to 60Hz in 5s.
∆f = 60 Hz - 10 Hz = 50 Hz
∆t = 5 s
∆t 5 s
CP12 = –––– x 100 Hz = ––––– x 100 Hz = 10 s
∆f 50 Hz

14
CP-Parameter for open-loop operation

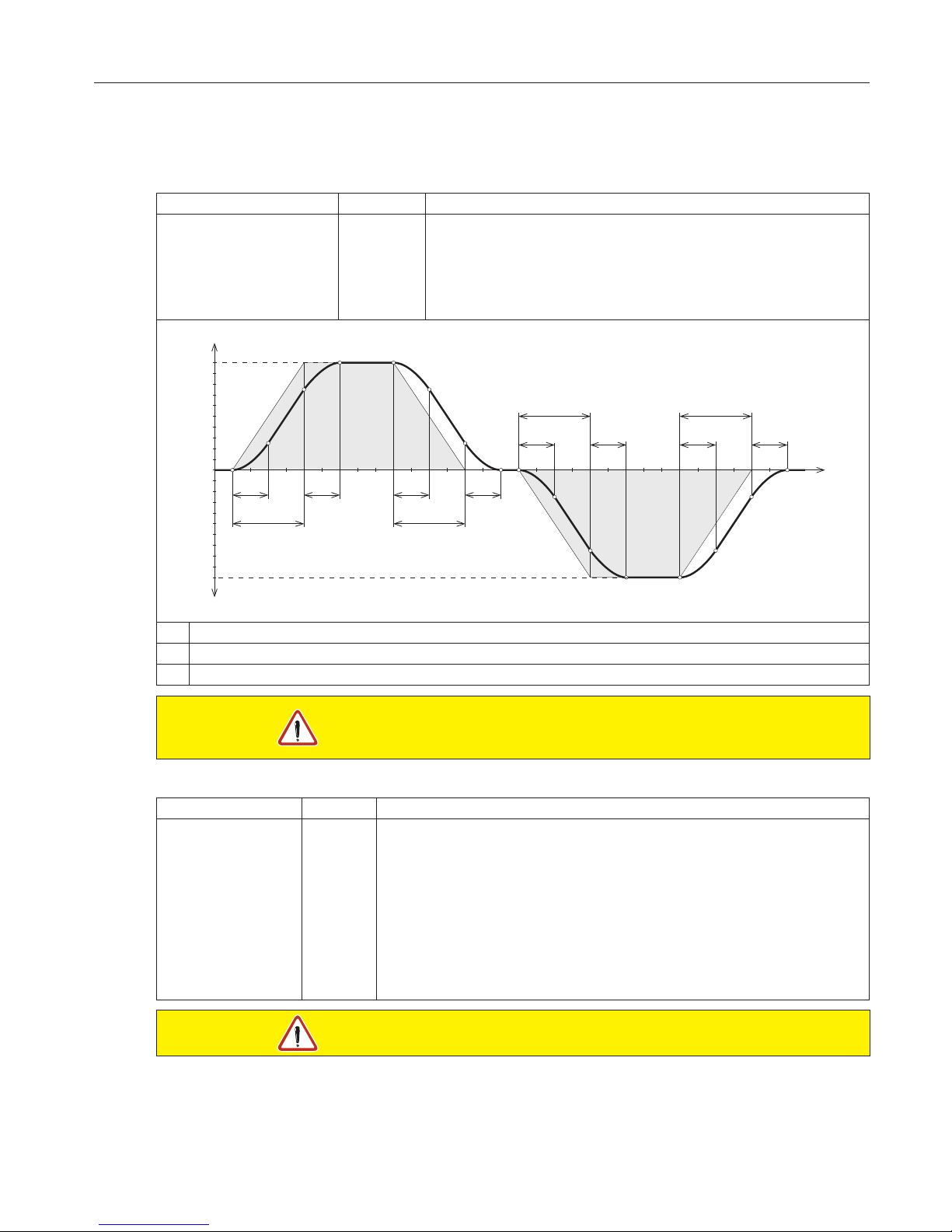

CP14 S-curve time acceleration forward
Co-domain Setting Description
0.00 (off)…5.00 s 0.00 s
(off)
For some applications it is of advantage when the drive
starts and stops jerk-free. This is achieved through a
straightening of the acceleration and deceleration ramps.
The straightening time, also called S-curve time, can be
adjusted with CP14.
t1 t1 t1 t1
t2 t3
+f [Hz]
-f [Hz]
t [s]
t1 t1 t1 t1
t2 t3
t1 S-curve time (CP14)
t2 Acceleration time (CP12)
t3 Deceleration time (CP13)
Attention
In order to drive dened ramps with activated S-curve time, the preset
acceleration and deceleration times (CP12 and CP13) must be ad-
justed higher than the S-curve time (CP14).
CP15 Boost
Co-domain Setting Description
0,0…25,5 % LTK In the lower speed range a large part of the motor voltage
decreases on the stator resistance. To keep the breakdown
torque nearly constant over the entire speed range, the voltage
decrease can be compensated by the Boost.
Adjustment:
• Determine the rate of utilization in no-load operation
• Preset about 10 Hz and adjust the boost, by way that the
same rate of utilization is reached as with rated speed.
Attention When the motor, during continuous operation, drives with low speed
and too high voltage it can lead to an overheating of the motor.
*) dependent on power circuit

15
CP-Parameter for open-loop operation
CP16 Rated frequency
Co-domain Setting Description
0.00…400.00 Hz 50 Hz With the adjusted frequency the inverter reaches in controlled
operation a maximal output voltage. The adjustment of the rat-
ed motor frequency is typical in this case.
Attention
In order to drive dened ramps with ac-
tivated S-curve time, the preset accel-
eration and deceleration times (CP12
and CP13) must be adjusted higher
than the S-curve time (CP14).
U
A
f
CP15
CP16
CP17 Voltage stabilization
Co-domain Setting Description
1…650 V (off) 650 V (off) With this parameter a regulated output voltage in relation
to the rated frequency can be adjusted. For that reason
voltage variations at the input as well as in the intermedi-
ate circuit only have a small inuence to the output volt-
age (U/f-characteristic). The function allows an adaption
of the output voltage to special motors. The values must
be conrmed with „ENTER“.
In the example below the output voltage is stabilized to
230 V (0 % boost).
250 V
190 V
CP17=230 V
CP16=100 Hz
UN/UA
f
A
B
C
D
UN: Mains voltage A: UAat UN= 250V unstabilized
UA: Output voltage B: UAat UN= 250 V stabilized
C: UAat UN= 190 V stabilized
D: UAat UN= 190 V unstabilized

16
CP-Parameter for open-loop operation
CP18 Switching frequency
Co-domain Setting Description
2 / 4 / 8 / 12 /
16 kHz
LTK The switching frequency with which the power modules are
clocked can be changed depending on the application. The
max.possible switching frequency as well as the factory setting
are specied by the power circuit. The values must be con-
rmed with „ENTER“.
Refer to following list to
learn about inuences and
effects of the switching fre-
quency.
low switching frequency high switching frequency
less inverter heating less noise development
less discharge current improved sine-wave simula-
tion
less switching losses less motor losses
less radio interferences improved controller charac-
teristics
improved concentricity with low
speed (only open loop!)
Attention At switching frequencies above 4 kHz pay absolute attention to the
max. motor line length in the technical data of the power circuit manual.
CP19 Step value 1
CP20 Step value 2
CP21 Step value 3
Co-domain Setting Description
CP19
0…±400 Hz
5 Hz Three xed frequencies can be adjusted. The selection
is made by the inputs I1 and I2. If adjustments are made
that are outside the xed limits of CP10 and CP11, then
the frequency is internally limited. The negative values
are released in application mode.
CP20 50 Hz
CP21 70 Hz
Info
Input I1 →step value 1
Input I2 →step value 2
Input I1 and I2 →step value 3
CP22 DC braking mode
With DC-braking the motor is not decelerated by the ramp. Quick braking is caused by D.C.
voltage, which is applied onto the motor winding. This parameter determines how the DC
braking is triggered.
Value Activation
0 DC-braking deactivated
1DC-braking at switch off of the direction of rotation and upon reaching 0Hz. The
braking time corresponds to CP23 or up to the next rotation setting.
2* DC-braking as soon as setting for the direction of rotation is absent.
3* DC-braking as soon as the direction of rotation changes or is absent.
further on next side

17
CP-Parameter for open-loop operation
4* DC-braking at switch off of the direction of rotation and upon reaching 4 Hz.
5* DC-braking when the real frequency falls below 4 Hz and the drives decelerates
6* DC-braking as soon as the set value falls below 4 Hz.
7* DC braking if prog. input I4 is set
8 DC braking as long as prog. input I4 is set
9 DC-braking after switching on the modulation.
10 The input occurs by the sum of the desired conditions + “10”.
Value Condition
0 no condition selected
16 DC braking after the switching the control release
32 DC braking after switching on
64 DC braking after reset
128 DC braking after auto-reset
256 DC braking after ‘LS’
11-15 reserved
* Braking time depends on the actual frequency.
CP23 DC braking time
Co-domain Setting Description
0.00…100.00 s 10 s If the braking time is depending on the actual frequency
(CP22 = 2...7) it is calculated as follows:
tB= CP23 x fB
––––––––
100 Hz
f
t
100 Hz
fB
tBCP23
tB:Real braking time
fB:Actual frequency
CP24 LAD load level
This function protects the frequency inverter against switching off through overcurrent during
the acceleration ramp. When the ramp reaches the adjusted value, it is stopped so long until
the current decreases again. "LA stop" is displayed (CP03) when the function is active.

18
CP-Parameter for open-loop operation
CP25 Stall level
This function protects the frequency inverter against switch off through overcurrent during
constant output frequency. When exceeding the adjusted value, the output frequency is re-
duced until the value drops below the adjusted value. "stall" is displayed (CP03) when the
function is active.
CP26 Speed search condition
An error can be triggered caused by different rotary eld frequencies at starting the inverter
on a free-wheeling motor. With activated speed search the inverter searches for the actual
motor speed, adapts its output frequency and accelerates with the adjusted ramp to the given
set value. "Speed search" is displayed (CP03) during the search phase. The parameter de-
termines, under what conditions the functions operate.
In case of several conditions the sum of the value must be entered. Example: CP26=12
means after reset and after auto-reset UP.
Value Condition
0 Function off
1 at control release
2 at switch on
4 after reset
8after Auto-Reset UP
16 after LS
CP27 Motor protect. function response
The warning function protects the connected motor against thermal destruction caused by
high currents. The function corresponds largely to mechanical motor protective components,
additionally the inuence of the motor speed on the cooling of the motor is taken into consid-
eration. The load of the motor is calculated from the measured apparent current (CP04) and
the adjusted rated motor current (CP29).
For motors with separately driven fan or rated frequency of a self-ventilated motor following
tripping times (VDE 0660, part 104) apply:
1,2 • Rated current ≤2 hours
1,5 • Rated current ≤2 minutes
2 • Rated current ≤1 minute
8 • Rated current ≤5 seconds
In case of failure CP27 activates the motor protection function and adjusts the corre-
sponding response as follows:
CP27 Response Description
0 Error,
restart after reset
Error message „Error! …“
Immediate switch off of modulation. Correct the er-
ror for the restart and activate reset.
The pre-warning changes into an error. The drive
remains in the error state until a reset signal is rec-
ognized.
further on next side

19
CP-Parameter for open-loop operation
CP27 Response Description
1 Quick stopping,
modulation off,
restart after reset
Status message „Warning! …“
Fast stop - switch off of modulation after reaching
0 Hz. Correct the error for the restart and activate
reset. The drive remains in condition fast stop until
a reset signal is recognized.
2 Quick stopping,
holding torque,
restart after reset
Status message „Warning! …“
Fast stop - holding torque on reaching 0 Hz. Correct
the error for the restart and activate reset. The drive
remains in condition fast stop until a reset signal is
recognized.
3 modulation off,
automatic restart
Status message „Warning! …“
Immediate switch off of modulation; the drive re-
turns automatically to normal operation, as soon as
the fault no longer exists.
4 Quick stopping,
modulation off,
automatic restart
Status message „Warning! …“
Fast stop - switch off of modulation after reaching
0 Hz. the drive returns automatically to normal op-
eration, as soon as the fault no longer exists.
5 Quick stopping,
holding torque,
automatic restart
Status message „Warning! …“
Fast stop - holding torque on reaching 0 Hz. the
drive returns automatically to normal operation, as
soon as the fault no longer exists.
6 Warning signal by digital out-
put,
no message
No effect on the drive. Error is being ignored. Switch-
ing condition (CP32 and CP33) value „10“ is set.
CP28 Motor protection mode
The cooling mode of the motor is adjusted with these programmable parameters.
Value Condition
0 Motor with separate cooling
1 Motor with self-cooling
For self-ventilated motors the tripping times decrease with the frequency of the motor. The
motor protective function acts integrating, i.e. times with overload on the motor are added,
times with underload are substracted. After triggering the motor protective function, the new
tripping time is reduced to 1/4 of the specied value, if the motor has not been operated for
an appropriate time with underload.
CP29 motorprot. rated current
This parameter species the rated current (= 100% utilization) for the motor protective func-
tion. The motor protection-load is calculated as follows:
Inverter apparent current (CP04)
Motor protection load = –––––––––––––––––––––––––––––––
motorprot. rated current (CP29)

20
CP-Parameter for open-loop operation
CP30 ANOUT1 function
CP30 denes the function of analog output 1. The output at the analog output is made in a
range of 0…±10 V.
Value Function Scaling factor
0…100 % (0…±100 %)
0 Absolute actual frequency (CP01) 0…100 Hz
1 Absolute set frequency (CP02) 0…100 Hz
2 Actual frequency (CP01) 0…±100 Hz
3 Set frequency (CP02) 0…±100 Hz
4 Output voltage (CP09) 0…500 V
5 DC link voltage (CP07) 0…1000 V
6 Apparent current (CP04) 0…2 • rated current
7 Active current (ru17) 0…2 • ±rated current
8…10 reserved –
11 Absolute active current (ru17) 0…2 • rated current
12 Power module temperature (ru38) 0…100 °C
13…21 reserved –
22 AN1 pre amplier display (ru27) 0…100 %
23 AN1 post amplier display (ru28) 0…400 %
24…25 reserved –
26 Active power (ru81) 0…±2 • rated power
CP32 Condition SB0
The values 0…101 correspond to those of CP33.
The switching level for transistor output 1 is preset to 4.00.
CP33 Condition SB2
The switching level for relay output 1 is adjusted with CP34 (setting: 100.00).
Value Function
0 No function (generally off)
1 Generally on
2 Run signal; also by DC-braking
3 Ready signal (no error)
4 Error
5 Error (without auto-reset)
6 Warning or error message (also at fast stop)
7 Overload pre-warning (OL) up to 80 %
8 Heat sink temperature pre-warning (OH) up to 70 °C
9Motor temperature pre-warning (dOH) → CP37
10 Motor protection relay function pre-warning (OH2) → CP27
11 Internal temperature pre-warning
12 Cable breakage 4...20 mA on analog input 1
13 Cable breakage 4...20 mA on analog input 2
14 max. constant current (I>CP25) exceeded
15 max. ramp current (I>CP24) exceeded
16 DC-braking active
17 Power-off function active
18 Brake control
19 Speed control difference > level
20 Actual value=setpoint (CP03=Fcon; rcon; not at noP, LS, error, SSF)
21 Accelerate (CP03 = FAcc, rAcc, LAS)
22 Decelerate (CP03 = FdEc, rdEc, LdS)
23 Real direction of rotation = set direction of rotation
further on next side
