MODEL #A3000 – 3,000LB (1361KG) WINCH TABLE Of CONTENTS
Table of ConTenTs
Introduction ..................................... 1
Accessories ...............................................1
This Manual ...............................................1
Safety Definitions ............................ 1
Important Safety Instructions ......... 2
Controls and Features ..................... 4
Installation ...................................... 5
Mount the Winch .......................................5
Winch Assembly - Generic Install ...............5
Mount the Contactor ..................................6
Install Handlebar Mounted
Mini Rocker Switch ....................................6
Mount the Hand Remote Socket .................6
Wiring the Winch .......................................7
Winch Wiring Diagram ...............................8
Motor End Terminal Rotation ......................8
Controller Wiring Diagram ..........................9
Cable Hook Stopper Installation and Use ....9
General Tips for Safe Operation ................10
Self Recovery ..........................................10
Winching Techniques ..............................11
Snow Plow Usage ....................................12
Maintenance ................................. 12
Motor ......................................................12
Lubrication ..............................................12
Cable Assembly Replacement ..................12
Specifications ............................... 13
Performance: ...........................................13
Parts Diagram..........................................14
Parts List .................................................15
Troubleshooting ............................ 16
Warranty ....................................... 17
Contact Information .................................18

1
MODEL #A3000 – 3,000LB (1361KG) WINCH INTRODUCTION
InTroduCTIon
Congratulations on your purchase of a KFI winch. KFI
researches and develops winches to strict specifications.
With proper use and maintenance, this winch will bring
years of satisfying service.
Accessories
Kappers Fabricating, Inc. manufactures, purchases, and
sells accessories designed to help you get the most from
your purchase. To find out more about our products, visit
our web site at:
www.kfiproducts.com
This Manual
Every effort has been made to ensure the accuracy and
completeness of information in this manual. We reserve
the right to change, alter, and or improve the product and
this document at any time without prior notice.
KFI TECHNICAL SUPPORT TEAM
1-877-346-2050
MODEL NUMBER
A3000
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
safeTy defInITIons
The purpose of safety symbols is to attract your
attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attentions and
understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they
give are not substitutes for proper accident prevention
measures.
Record the model as well as date and place of purchase
for future reference. Have this information available when
ordering parts and when making technical or warranty
inquiries.
danGer DANGER indicates a hazardous
situation which, if not avoided, will result in death or
serious injury.
WarnInG WARNING indicates a hazardous
situation which, if not avoided, could result in death
or serious injury.
CauTIon CAUTION indicates a hazardous
situation which, if not avoided, could result in minor
or moderate injury.
noTICe NOTICE indicates information
considered important, but not hazard-related (e.g.
messages relating to property damage or physical
injury).

2
MODEL #A3000 – 3,000LB (1361KG) WINCH IMPORTANT SAfETy INSTRUCTIONS
ImporTanT safeTy
InsTruCTIons
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
WarnInG
WarnInG Do not exceed the rated capacity.
WarnInG Read this manual thoroughly before
operating the winch. Failure to follow instructions
could result in serious injury or death.
danGer Do not use this winch for lifting or
moving people or animals.
danGer Keep yourself and others a safe
distance to the side of the cable when under tension.
danGer Never step over a cable or near a
cable under load.
WarnInG The cable may break before the
motor stalls. For heavy loads at or near rated
capacity, use a pulley block/snatch block to reduce
the load on the cable.
WarnInG Do not move the vehicle to pull a
load (towing) on the winch cable. This could result
in cable breakage.
WarnInG Pull only on area of the vehicle as
specified by the vehicle manufacturer.
WarnInG Do not use the winch to secure or
hold a vehicle for a long period of time. Do not use
the winch to secure a vehicle for transport.
WarnInG Disconnect the remote control and
battery leads when not in use for extended periods.
WarnInG Avoid “shock loads” by using the
control switch intermittently to take up slack in
the cable. “Shock loads” can far exceed the rated
capacity for the winch cable and drum.
Do not accelerate your vehicle while winching. Loss
of traction can cause a shock load on the cable. Do
not use cable as a pull strap.
WarnInG Batteries contain acid and produce
explosive gases. Keep sparks, flames and cigarettes
away from batteries at all times. Wear safety
glasses and protect the eyes at all times. Do not
lean over the batteries during operation.
WarnInG Do not use as a hoist. Do not use
for overhead lifting.

3
MODEL #A3000 – 3,000LB (1361KG) WINCH IMPORTANT SAfETy INSTRUCTIONS
WarnInG When re-spooling the cable, ensure
that the cable spools in the under-wind position with
the cable entering the drum from the bottom, not
the top.
To re-spool correctly, and while wearing gloves,
keep a slight load on the cable while pushing the
remote button to draw in the cable. Walk toward
the winch not allowing the cable to slide through
your hands. Do not let your hands get within 12 in.
of the winch while re-spooling. Turn off the winch
and repeat the procedure until a few feet of cable
are left. Disconnect the remote control and finish
spooling by rotating the drum by hand with the
clutch disengaged. Keep hands clear of the fairlead
and drum while the winch is under power.
CauTIon Use gloves to protect hands when
handling the cable. Never let the
cable slide through your hands.
CauTIon Do not wrap the cable around any
object and hook it back onto itself.
CauTIon Apply blocks to the wheels of the
vehicle when on an incline.
CauTIon Duration of winching pulls should
be kept as short as possible.
If the motor becomes uncomfortably hot to the
touch, stop winching immediately and let it cool
down for a few minutes. Do not pull for more than
one minute at or near the rated load.
CauTIon If the motor stalls, do not maintain
power to the winch.
Electric winches are designed and made for
intermittent use and should not be used in constant
duty applications.
CauTIon Never release the free spool clutch
when there is a load on the winch.
CauTIon Use the Hand-Saver strap when
handling the winch hook for
spooling or unspooling the cable.

4
MODEL #A3000 – 3,000LB (1361KG) WINCH CONTROLS AND fEATURES
ConTrols and feaTures
Read this operator’s manual before operating your winch. Familiarize yourself with the location and function of the
control features. Save this manual for future reference.
1. Motor – 1.30 HP 12V DC motor provides power to
the planetary gear mechanism.
2. Winch Drum – The winch drum is the cylinder on
which the cable is stored. It can feed or wind the
cable depending on the switch assembly.
3. Steel Cable – 3/16 in. x 45.9 ft. Galvanized aircraft
cable designed specifically for load capacity of 3,000
lbs. (44 usable feet with five wraps on the drum).
The cable feeds onto the drum in the “under wind”
position through the roller fairlead (4) and is looped
at the end to accept the clevis hook pin (12).
4. Roller Fairlead – When using the winch at an angle
the roller fairlead acts to guide the steel cable onto
the drum and minimize damage to the cable from
abrasion on the winch mount or bumper.
5. Free Spooling Clutch – The clutch allows the
operator to manually disengage (“Release”) the
spooling drum from the gear train. Engaging the
clutch (“Engage”) locks the winch into the gear
system.
6. Braking System – Braking action is automatically
applied to the winch drum when the winch motor is
stopped or there is a load on the cable.
7. Planetary Gear System – The reduction gears
convert the winch motor power into extreme pulling
forces. This system allows high torque while
maintaining compact size and light weight.
8. Mini Rocker Switch – Handle bar mounted switch
for powering cable in/out of the winch drum.
9. Hand Held Remote – Hand held switch with a
remote socket for powering the cable in or out of
your winch drum.
Winch
1
2
12
3
67
6
5
4
11 8
10
13
9

5
MODEL #A3000 – 3,000LB (1361KG) WINCH CONTROLS AND fEATURES
2. Attach the winch using supplied M8 x 25mm or
30mm bolts and washers thru the fairlead bracket
or model specific winch mount and into the winch.
3. Disengage the clutch by rotating the clutch cap to
the RELEASE position. Release the synthetic cable
and pull through the roller fairlead.
4. Attach the clevis hook to the cable and the hand
saver strap to the clevis hook.
10. Fairlead Mount – Adapter to mount the winch and
fairlead for utility applications.
11. Contactor – Power from the vehicle battery flows
through the weather sealed solenoid switch before
being directed to the winch motor.
12. Clevis Hook – Provides a means for connecting the
looped ends of cables to an anchor.
13. Hand Saver Strap – Used to assist cable feed.
InsTallaTIon
This KFI 3,000 lb winch is designed with a bolt pattern
that is standard for this class of winch. Many winch
mounting kits are available that utilize this bolt pattern for
the most popular ATVs and UTVs. You can find most of
the ATV/UTV winch mounts on our website
(www.kfiproducts.com).
Mount the Winch
1. Install the winch and fairlead with the supplied
hardware per the instructions provided with the
model specific winch mounting kit or prepare a flat,
secure mounting location for the winch.
WarnInG Before starting to install this winch,
disconnect the vehicle ground and positive leads
from the battery.
CauTIon If you choose not to use a model
specific mounting kit, you will need to drill holes in
the structural support of the vehicle. Be certain that
your structural support is sufficient for the pulling
forces of this winch.
CauTIon Mounting bolts must be SAE Grade
5 or better and torqued to 17 ft. lbs.
noTICe This kit includes mounting bolts
with different lengths for fastening the winch (M8 x
20, 25, and 30mm long). Use the length that best
fits your mounting application. Refer to vehicle
specific mount instructions for more information.
Winch Assembly - Generic Install
Winch Body
Mount Plate *
(*) Generic plate shown (Fairlead
Mount) . Use vehicle specic
mounting application and assem-
bly instructions for most installs.
Bolts - M10 x 20mm, Fairlead
Winch Bolts -
M8 x 20, 25, or 30mm
See Notice above. Use longer
bolts with multiple plates. Do not
over tighten or strip threads!
Roller Fairlead
Split Cable Hook
Stopper (If included)
Hook
Clevis &
Cotter Pin
Cable
Note: Cable must exit
between spool and
mounting surface!

6
MODEL #A3000 – 3,000LB (1361KG) WINCH ASSEMBLy
Mount the Contactor
5. Find a location for the contactor. If the model
specific mounting kit does not indicate a
recommended contactor location, then it is
recommended that the contactor be mounted close
to the battery in a clean dry location. Be certain the
location you choose allows for sufficient clearance
form all metal components. Drill mounting holes
if required. Once a location is found, do not install
until all wiring is completed.
Install Handlebar Mounted
Mini Rocker Switch
6. The Handlebar Mounted Mini Rocker Switch is
normally installed on the left handlebar.
7. Use electrical tape wrapped around the handlebar
to prevent rotation of the switch mounting brackets.
Do NOT tighten over any hoses or cables.
8. Once your switch is mounted you can route wires
back to the contactor location.
9. Splice the end of the red wire to an ignition
controlled (keyed) power source using the supplied
wire splice. You may need to use a test light or
multimeter to locate a suitable wire. The wire
should only have power when the key is in the ON
position.
Mount the Hand Remote Socket
(optional)
10. Determine a mounting location for the Hand Remote
socket. Be certain the area behind the selection
location is clear.
11. Drill three holes as shown in the following figure
and install using supplied hardware. You can also
use the rubber cap attached to the remote socket
as a template.
12. Once your remote socket is mounted, you may
route wires back to the contactor location.
13. Splice the end of the red wire to an ignition
controlled (keyed) power source using the supplied
wire splice. You may need to use a test light or
multimeter to locate a suitable wire. The wire
should only have power when the key is in the ON
position.
14. Secure the wires with supplied cable ties.
1.0 in.
[25 mm]
3/16 in.
[5 mm]
1.69 in. [42.5mm]
.84 in.
[21.3 mm]
Not to Scale
DO NOT Use
as a template.

7
MODEL #A3000 – 3,000LB (1361KG) WINCH ASSEMBLy
22. Connect the battery leads from the contactor to the
vehicle’s battery (black to black, and red to red, see
diagram on page 8).
23. Check for proper drum rotation. Turn the clutch
cap to the RELEASE position. Pull out some cable
from the drum and then turn the clutch cap to the
ENGAGE position to engage the gears. Make sure
your vehicle is running and press the cable out
button on the switch. If the spool is turning and
releasing more cable, then your connections are
accurate. If the spool is turning and collecting more
cable, then reverse the leads on the motor. Repeat
and check rotation.
Wiring the Winch
15. Connect the yellow and blue wires to the motor
terminals on the winch. Torque the nuts on the
motor to 5.7 N-m (50 in lbs) Route the opposite
ends to the contactor location. (See diagram on
page 8).
16. Connect the yellow and blue wires to the contactor
block (yellow to yellow, blue to blue). DO NOT
tighten nuts. (See diagram page 8).
17. Connect the red and black wires to your contactor
block (red to red, black to black). DO NOT tighten
nuts. Route the opposite ends to the battery
location (See diagram page 8).
18. Connect the mini rocker switch to the contactor
block (black to black, green to green). (See diagram
on page 9).
19. Once all wiring is connected to the contactor, finish
mounting it to the contactor location using supplied
M6 hardware (See diagram page 8).
20. Torque the contactor terminal nuts to 4.5 N-m
(40 in lbs) Do NOT over tighten.
21. Place all terminal boots over terminals and secure
all cables with zip ties or electrical tape. Proper Terminal Tightening
CauTIon Never route electrical wires across
any sharp edges, through or near moving parts, or
near parts that become hot.
WarnInG Failure to follow specific wiring
instructions may result in damage to your wiring
system or equipment.
noTICe Depending on the location of the
contactor, you may need to use an alternate winch
wiring configuration. Please see the “Alternate
Winch Wiring Diagram” available on:
www.kfiproducts.com
noTICe If you are installing the hand
remote along with the mini rocker switch, you will
need to connect the remote socket to the contactor
and then the mini rocker switch to the remote
socket (see diagram on page 9).
CauTIon Battery cables should not be drawn
taut. Leave some slack for cable movement.
noTICe Always hold the bottom nut with
a wrench while tightening motor wire terminals.
Do not allow the bottom nut to spin, else you may
damage the end cap.

8
MODEL #A3000 – 3,000LB (1361KG) WINCH ASSEMBLy
CONTACTOR
POS(+)
NEG(-)
NEG(-)
POS(+)
TO BATTERY (+)
(RED POST)
TO BATTERY (-)
(BLACK POST)
TO WINCH (+)
(YELLOW)
TO WINCH (-)
(BLUE POST)
These two posts must
be wired to the battery!
R
E
D
B
L
U
E
Y
E
L
L
O
W
B
L
A
C
K
Assembly
Note: Some batteries may require the use of
longer bolts to fasten both the winch wire
ends and the stock vehicle wiring. Use two
M6 x 20mm Bolts (included) if required.
Winch Wiring Diagram
With some applications, the motor terminals may need to be rotated to avoid interference with other components. If rota-
tion is required please give us a call at 1-877-346-2050 for instructions or visit our website at www.kproducts.com and
look in the support section.
Motor End Terminal Rotation
41.5
41.3
41.4
41.2
LEADS AT DEFAULT POSITION LEADS ROTATED 90°
Note: Motor casing
rotates with End Cap

9
MODEL #A3000 – 3,000LB (1361KG) WINCH ASSEMBLy
IGNITION FED WIRE -
VOLTAGE MUST ONLY BE
SUPPLIED WHEN THE
KEY IS TURNED ON.
#ATV-MR
Mini Rocker Switch
#ATV-CONT or
#AS-CONT
Contactor Block
#ATV-HR
Handheld Corded Remote
#ATV-HR
Remote Socket
+12VDC
Controller Wiring Diagram
Cable Hook Stopper Installation and Use
1. Release winch and pull out approximately 2 feet of cable.
2. Assemble cable hook stopper as shown in diagram with the flat
portion of the two halves resting against your fairlead. Tighten
fasteners.
3. To stow hook, engage clutch and retract cable onto winch spool
until hook is snug against the hook stopper and fairlead.
4. Position cable hook stopper at approx. 3/4 of the total
line distance towards the hook while using your
winch to help reduce whip back in the event
of cable breakage.
(Optional Accessory, Not Included)

10
MODEL #A3000 – 3,000LB (1361KG) WINCH OPERATION
Self Recovery

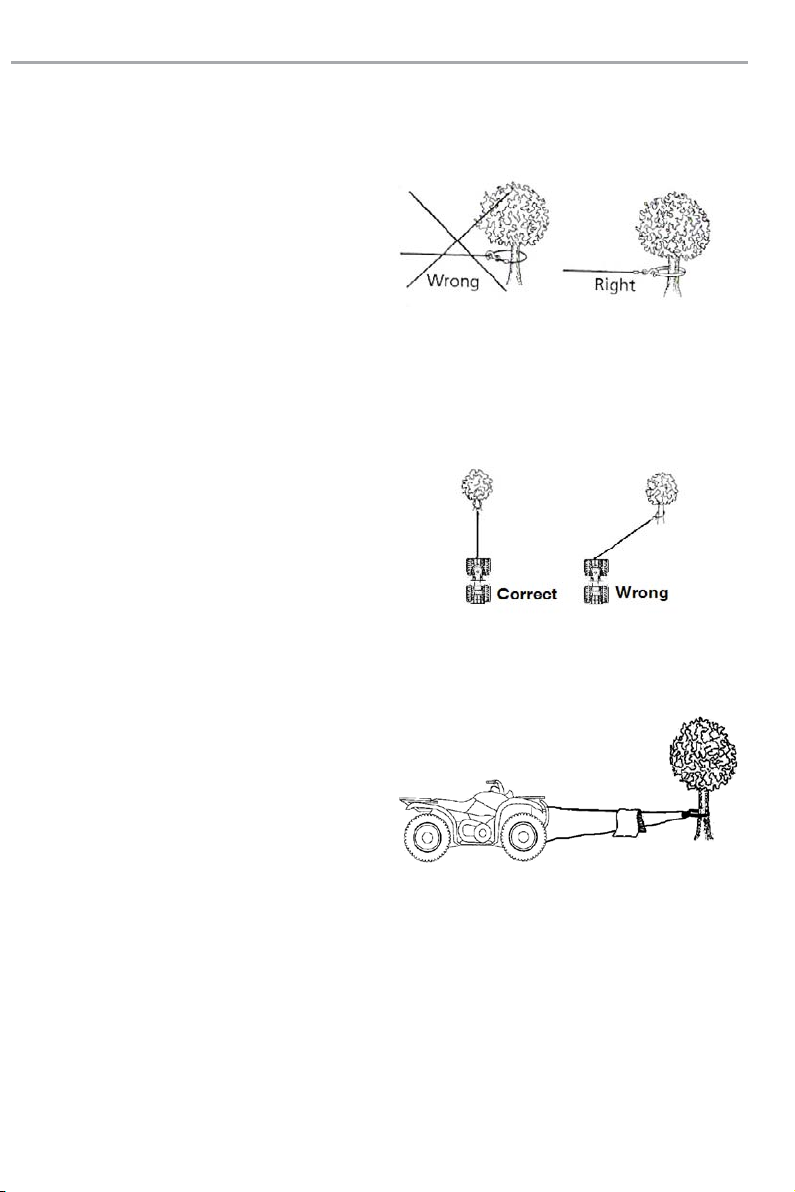

Locate a suitable anchor such as a strong tree trunk or
boulder. Always use a sling as an anchor point.
Your winch is equipped with a roller fairlead to help guide
the cable and to reduce binding on short side pulls.
Do not winch from an acute angle as the cable will pile
up on one side of the drum causing damage to cable and
the winch.
Short pulls from an angle can be used to straighten the
vehicle. Long pulls should be done with the cable straight
out from the winch/vehicle.
When pulling a heavy load, place a cable hook stopper,
blanket or jacket over the cable five or six feet from the
hook.
In the event of a cable snap it will dampen the snap back.
For additional protection open the hood of the vehicle.
General Tips for Safe Operation
Your A3000 winch is rated at 3,000 lbs. capacity in first
layer (max) when spooling the first cable layer on the
drum. Overloads can damage the winch, motor and/or
cable.
The vehicle engine should be kept running during
operation of the winch to minimize battery drain and
maximize power and speed of the winch. If the winch
is used for a considerable time with the engine off the
battery may be drained and too weak to restart the
engine.
Get to know your winch before you actually need to use
it. We recommend that you set up a few test runs to
familiarize yourself with rigging techniques, the sounds
your winch makes under various loads, the way the cable
spools on the drum, etc.
Inspect the cable and equipment before each use. A
frayed or damaged cable should be replaced immediately.
Use only manufacturer’s identical replacement cable with
the exact specifications.
Inspect the winch installation and bolts to ensure that all
bolts are tight before each operation.
Store the remote control inside your vehicle in a place
that it will not be damaged.
Any winch that appears to be damaged in any way,
is found to be worn, or operates abnormally MUST
BE REMOVED FROM SERVICE UNTIL REPAIRED. It is
recommended that the necessary repairs be made by a
manufacturer’s authorized repair facility.
Pull only on areas of the vehicle as specified by the
vehicle manufacturer.
Only attachments and/or adapters supplied by the
manufacturer are to be used.

11
MODEL #A3000 – 3,000LB (1361KG) WINCH OPERATION
Winching Techniques
1. Take time to assess your situation and plan your
pull.
2. Put on gloves to protect your hands.
3. Release the clutch and free-spool the winch; it’s
faster than using the switch and saves battery
power.
4. Attach the hook strap to the clevis hook.
5. Pull out the cable to your desired anchor point
using the hook strap.
6. Secure the clevis hook to the anchor point: Sling,
chain or snatch block. Do not attach the hook back
onto the cable.
7. Engage the clutch.
8. Start your engine to ensure power is being
replenished to the battery.
9. Power in the cable guiding the cable under tension
to draw up the slack in the cable. Once the cable
is under tension, stand clear. Never step over the
cable.
10. Double check your anchors and make sure all
connections are secure.
11. Inspect the cable. Make sure there are at least 5
wraps of cable around the winch drum.
12. Place a Cable Hook Stopper over the cable
approximately 5 to 6 feet from the hook.
13. Clear the area. Make sure all spectators stand clear
and that no one is directly in front or behind the
vehicle or anchor point.
14. Begin winching. Be sure that the cable is winding
evenly and tightly around the drum. The vehicle
that is being winched can be slowly driven to add
assistance to the winching process. Avoid shock
loads; keep the cable under tension.
15. The vehicle to be winched should be placed in
neutral and the parking brake released. Only release
the loads to the winch. This can damage the winch,
cable and vehicle.
16. The winch is meant for intermittent use. Under full
load with a single line rig do not power in for more
than a minute without letting the motor cool down
for a few minutes and then resume the winching
operation.
17. The winching operation is complete once the
vehicle is on stable ground and is able to drive
under its own power.
18. Secure the vehicle. Be sure to set the brakes and
place the vehicle in park.
19. Release the tension on the cable. The winch is not
meant to hold the vehicle for long periods of time.
20. Disconnect the cable from the anchor.
21. Rewind the cable. Make sure that any cable already
on the drum has spooled tightly and neatly. If not,
draw out the cable and re-spool from the point
where the cable is tight.
22. Keep your hands clear of the winch drum and
fairlead as the cable is being drawn in.
23. Secure the hook and hook strap.
24. Disconnect the remote control and store in a clean,
dry place.
25. Clean and inspect connections and mounting
hardware for next winching operation.
26. Never use the winch as a tie down.
27. Use brake pedal when under full tension.

12
MODEL #A3000 – 3,000LB (1361KG) WINCH MAINTENANCE
Snow Plow Usage
Winches are commonly used to lift a Snow Plow System,
but precautions and correct usage are required to prevent
costly damage.
1. Stop the plow before full lift height - failure to do
so will cause the winch to pull against itself (i.e.
“bottom out”) and will cause damage to the winch
components, your plow frame and your vehicle
frame.
2. Do not continue to hold the Spool In button to
power the winch while reversing your vehicle or
other instances where the operator may become
distracted while plowing.
maInTenanCe
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the winch.
Motor
Periodically when not used very often, or after wet / damp
conditions. Be sure to run the motor in free spool until
the motor is warm. This helps dry out any moisture and
condensation trapped inside the housing.
Lubrication
All moving parts within the Electric Winch have been
Lubricated using high temperature lithium grease at the
factory. No internal lubrication is required under normal
conditions.
If the winch is subjected to extreme conditions lubrication
may be required using a high temperature lithium grease.
Retract Cable Assembly onto drum being careful not to
allow kinking or over heating of the winch.
noTICe Follow these precautions before
using your Winch to lift a Plow. Failure to do so may
result in damage to your winch or vehicle frame.
noTICe Winch damage such as stripped
gears, broken housings and bent or damaged parts
caused by exceeding your plow’s lift height are not
covered under warranty.
WarnInG Never operate a damaged or
defective winch.
WarnInG Improper maintenance will void
your warranty.
noTICe For service or parts assistance,
contact our help line at
1-877-346-2050.
Cable Assembly Replacement
It is recommended that any modifications be performed
by a manufacturer’s authorized repair facility, and that
only manufacturer-supplied parts be used
1. Rotate the clutch cap to the “Release” position.
2. Extend Cable Assembly to its full length. Note how
the existing cable is connected to the inside of the
drum.
3. Remove old Cable Assembly and attach new one.
4. Rotate the clutch cap to the “Engage” position.
noTICe Inspect cable before and after each
use. If cable becomes frayed it must be replaced.

13
MODEL #A3000 – 3,000LB (1361KG) WINCH SPECIfICATIONS
speCIfICaTIons
Performance:
Rated Pull ......................................... 3,000 lb (1361 kg)
Gear Reduction Ratio ............................................171:1
Motor ...................Permanent Magnet, 1.30 HP (DC 12V)
Drum Size ........................ 1.50 x 3.15 in. (38 x 80 mm)
Cable Dimensions ...... 3/16 in. x 45.9 ft. (4.8mm x 14m)
Gross Weight .................................... 24.8 lb. (11.25 kg)
Mounting Bolt Pattern ......................................................
4.88 in. x 3.00 in. (12.4 cm x 7.6 cm)
Overall Dimensions .........................................................
12.67 in. (L) x 4.06 in. (W) x 4.20 in. (H)
(32.2 cm x 11.6 cm x 10.7 cm)
Line Speed and Motor Current (First Layer)
Line Pull LB 0 500 1000 1500 2000 2500 3000
KG 0 227 454 680 907 1134 1361
Line Speed
(12 VDC)
FPM 10.2 9.51 8.86 7.87 6.56 5.58 4.27
MPM 3.1 2.9 2.7 2.4 2.0 1.7 1.3
Max Current A 8 30.8 51.3 80.2 103.5 129 160.8
Run Time * Minutes 1 1 1 1 1 1 1
Cooling Time ** Minutes 5 5 5 5 5 5 5
* If the motor becomes uncomfortably hot to the touch, stop winching immediately and let it cool down for 5 minutes. Do not pull for
more than one minute at or near the rated load.
** Electric winches are designed and made for intermittent use and should not be used in constant duty applications.
Line Pull and Cable Capacity Per Layer
Layers of Cable on Drum 1 2 3 4 5
Rated Line Pull LB 3000 2450 2070 1793 1581
KG 1361 1112 940 814 717
Cable Capacity FT 7.15 15.45 24.7 34.5 45.9
M 2.18 4.71 7.52 10.52 14

14
MODEL #A3000 – 3,000LB (1361KG) WINCH SPECIfICATIONS
33
32 41 37
38 40 34 35 41
9
39
36
31
2
3
5
12
28
26
24
23
14
15
16
19
20 21
17
18
29
22
25
27
13
11
10
8
7
6
4
30
1
41
41
Parts Diagram
Note: Beveled edge
oriented towards
clutch end.

15
MODEL #A3000 – 3,000LB (1361KG) WINCH SPECIfICATIONS
Parts List
# Part Number Description Qty
1 MOTOR-30-BL Motor Assembly 1
2 HW-0002 Screw M6 x 20 Socket 4
3 HW-0003 Washer Ø6 6
4 WP-0005 Tie Bar Ø10 x 85 2
5 WP-0006 Bushing, Shaft 1
6 WP-0007 Shaft, Splined 1
7 WP-0008 Set Screw M5 x 8 1
8 WP-0003 Drum, Aluminum, Standard 1
9 ATV-CBL-3K Cable, Steel, 3/16" x 46' 1
10 WP-0009 Bushing, Drum, Rear 1
11 WP-0010 Washer, Thrust, Front 1
12 WP-0093 Gear Ring, Output 1
13 WP-0094 Gear Carrier Asm 1
14 HW-0004 Circlip Ø15 1
15 WP-0013 Spring, Clutch 1
16 WP-0014 Clutch Housing Cover 1
17 HW-0005 Screw M6 x 70 Socket 2
18 WP-0015 Bearing 16002 Sealed 1
19 WP-0001 Clutch Cap 1
20 HW-0006 Washer Ø6 Lock 1
21 HW-0007 Screw M6 x 16 Phillips 1
22 WP-0016 Bushing, Axis Support 1
23 WP-0017 Bearing 6002 Sealed 1
24 WP-0018 Bushing, Clutch 1
25 WP-0019 Washer, Above Clutch 1
26 WP-0020 Cam, Clutch Gear 1
27 WP-0021 Gear Housing 1
28 WP-0095 Gear Ring 1
29 WP-0024 Gasket 1
30 WP-0023 Bushing, Motor 1
31 SE-A-CAPKIT Motor End Cap Assembly 1
32 A-WIRES-WIN Wiring, Winch 1
32.1 WP-0092 Terminal Protector 4
33 A-WIRES-BAT Wiring, Battery 1
33.1 WP-0092 Terminal Protector 4
34 100495 Bracket, Fairlead, Standard 1
35 ATV-RF Roller Fairlead 1
36 WP-0030-BLU Hand Saver Strap, Blue 1
37 ATV-CONT Contactor 1
38 ATV-MR Switch, Mini-Rocker 1
39 SE-HOOK Clevis Hook, 1/4" 1
40 ATV-HR Hand Remote Asm 1
# Part Number Description Qty
41 HK-500 Hardware Kit, Black 1
41.01 HW-0001 Wire Tap 2
41.02 HW-0014-B Nut M6 Nylock 4
41.03 HW-0006-B Washer Ø6 Lock 4
41.04 HW-0003-B Washer Ø6 4
41.05 HW-0013-B Bolt M6 x 25 4
41.06 HW-0015-B Bolt M6 x 20 2
41.07 HW-0010-B Bolt M10 x 20 2
41.08 HW-0011-B Washer Ø10 Lock 2
41.09 HW-0012-B Nut M10 Nylock 2
41.10 HW-0016-B Washer Ø8 8
41.11 HW-0009-B Washer Ø8 Lock 4
41.12 HW-0008-B Bolt M8 x 25 4
41.13 HW-0018-B Bolt M8 x 20 4
41.14 HW-0017-B Bolt M8 x 30 4

16
MODEL #A3000 – 3,000LB (1361KG) WINCH TROUBLESHOOTING
TroubleshooTInG
Problem Cause Solution
Motor does not run,
Contactor makes a click
sound.
Incorrect Wiring Check Winch Wiring Diagram, make sure all wires
are correctly connected.
Incorrect Wiring Hand Remote / Mini Rocker Switch wires must be
connected green to green and black to black.
Loose battery cable connections Hand tighten nuts on all cable connections.
Motor Issue Contact KFI Technical Support
Water has entered motor Allow to drain and dry. Run in short burst with
load until completely dry.
Brake Spring installed backwards Contact KFI Technical Support.
Motor does not run, NO
click sound from Contactor.
Incorrect Wiring Check Winch Wiring Diagram, make sure all wires
are correctly connected.
Switch Ignition Wire Check connection to an ignition fed source. Must
supply 12V with the key on and vehicle running.
Contactor malfunctioning Contact KFI Technical Support.
Switch malfunctioning Contact KFI Technical Support.
Motor runs, Spool turns in
one direction only.
Incorrect Wiring
Check wiring diagram, verify switch wires (black/
green) are properly connected and making good
contact.
Defective or stuck Contactor Tap contactor to loosen plungers.
Defective Switch assembly Replace Switch assembly.
Contactor malfunctioning Contact KFI Technical Support.
Motor runs, Spool does
NOT turn.
Clutch not engaged Rotate Clutch Cap to Engage.
Broken Coupler / stripped Shaft Replace Coupler or Shaft
Spool turns, but no
movement from Cable Cable not attached to Spool Contact KFI Technical Support.
Motor runs slowly or
without normal power.
Insufficient current or voltage.
The battery is weak, recharge. Run winch with
vehicle motor running (battery should have a
strong charge).
Loose or corroded battery cable
connections Clean, tighten, or replace.
Worn Brushes Replace with End-Cap Kit (#SE-A-CAPKIT)
Contact KFI Technical Support.
Motor overheating Winch running time too long Allow winch to cool down periodically.
For further support, contact:
KFI Tech Support
Mon-Thr 8:00 AM - 5:00 PM (CST/CDT)
Fri 7:00 AM - 1:00PM (CST/CDT)
Toll Free: 1-877-346-2050
[email protected]
KFI Products Website Support:
Common installation, maintenance, and troubleshooting
guides are available on our website.
https://www.kfiproducts.com/support.html
