Kichler Lighting Decor InnesII 300130 User manual

Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
InnesＩＩ
TM
A Kichler
®
Decor
™
ceiling fan
Includes our new
CoolTouch Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
300130
3066708
TM

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only ETL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents .
You should have the following items:
a. Top Housing
b. Motor Body
c. Flywheel
d. Blade (3)
e. Switch Housing
f. Light Kit
g. Halogen Bulb
h. Glass Shade
i. Steel Cap
j. Cool Touch Control System
k. Package hardware
1) Mounting hardware:
wood screws (2), flat washers (2),
screws (2) , Spring washers (2),
wire nuts (3)
2) Blade attachment hardware:
screws (11), fiber washers (11)
3) Flywheel hardware:
Screw (2)
4) Safety cable hardware :
Wood screw (1) , spring washer (1),
flat washer (1)
5) Balance kit
Screw (3)
6) Screw hardware:
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
InnesＩＩTM
TM
j
a
b
c
d
e
f
g
h
i
k

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3

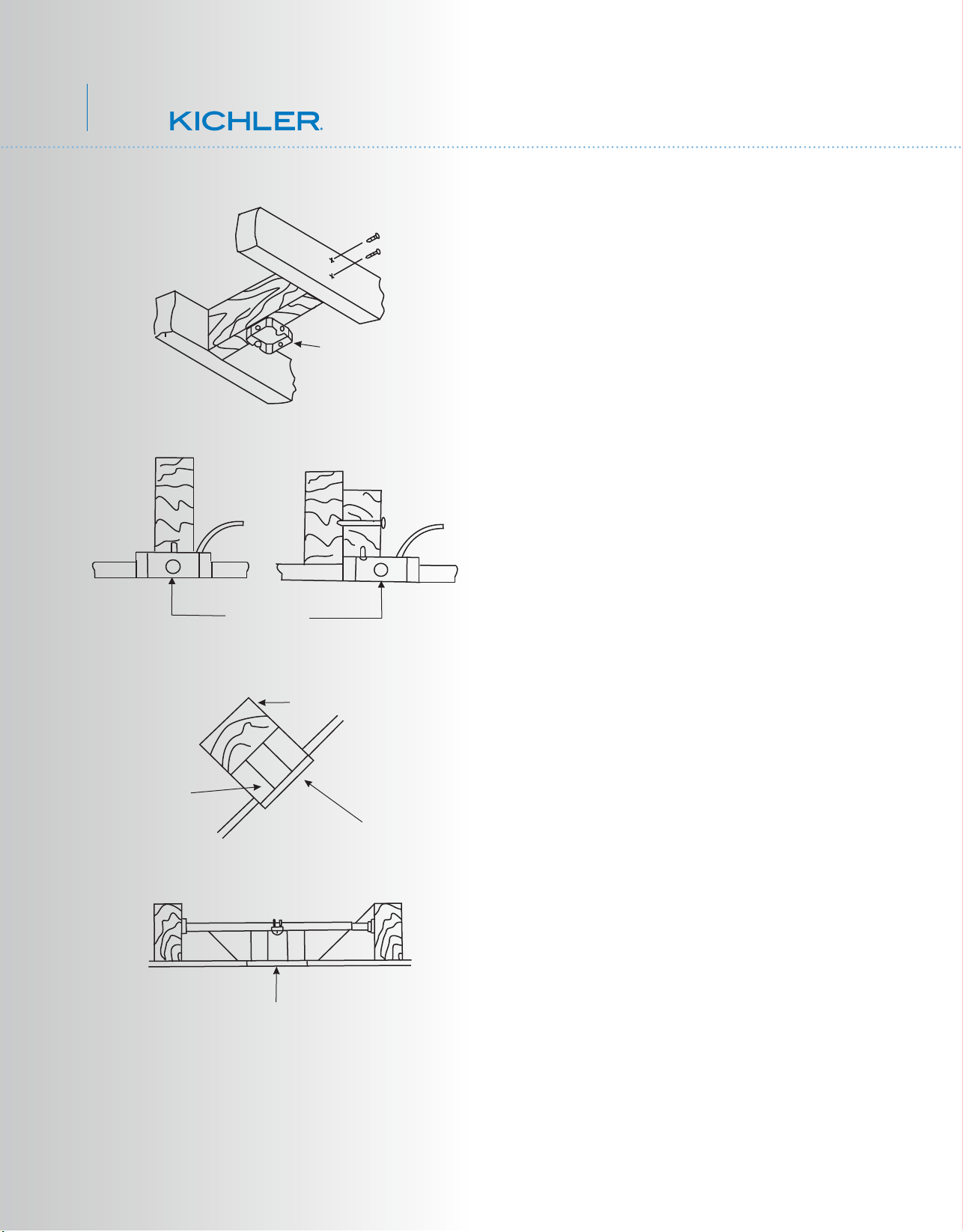

If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4

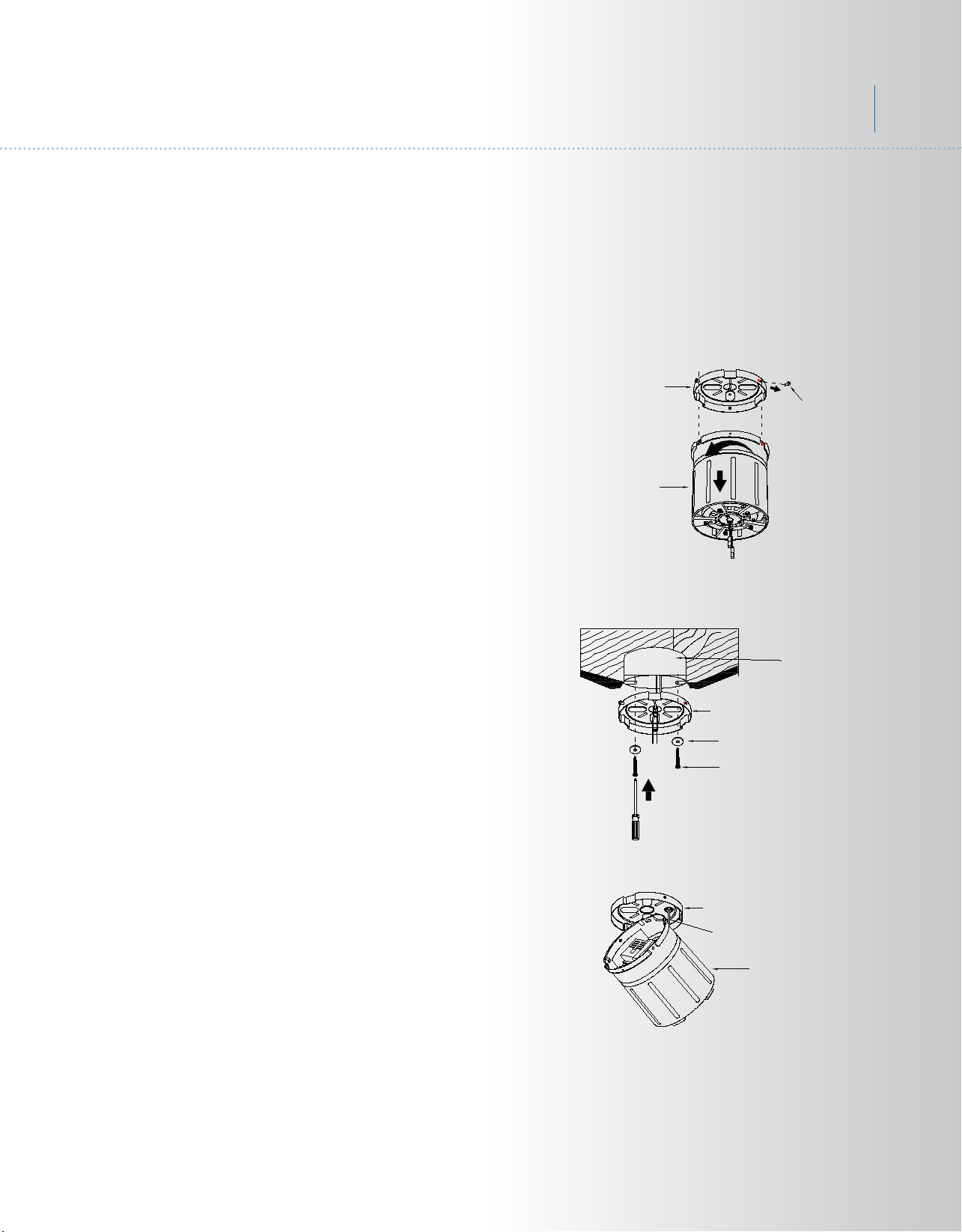

5. HANGING THE FAN
REMEMBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programming of the
control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the screws from the round hole
near the red dot label and Save them for use in
future. Loose (do not remove) the screws in the
mating slots on the motor body. Rotate the
mounting bracket and remove from the canopy.
(Fig. 5)
Step 2. Pass the 120 Volt supply wires from the
ceiling outlet box through the center of the
mounting bracket. Securely attach the ceiling
bracket to the ceiling junction box as shown.
( Fig. 6)
Step 3. Hook the motor body onto the mounting
bracket as shown. You can now proceed with the
electrical wiring of your fan. (Fig. 7)
TM
Fig. 6
Fig. 7
Fig. 5
Flat Washer
Mounting Bracket
ETL Listed
Outlet Box
Screw
Mounting Bracket
Hook
Motor Body
InnesＩＩ
Mounting Bracket
Motor Body
Screw

5

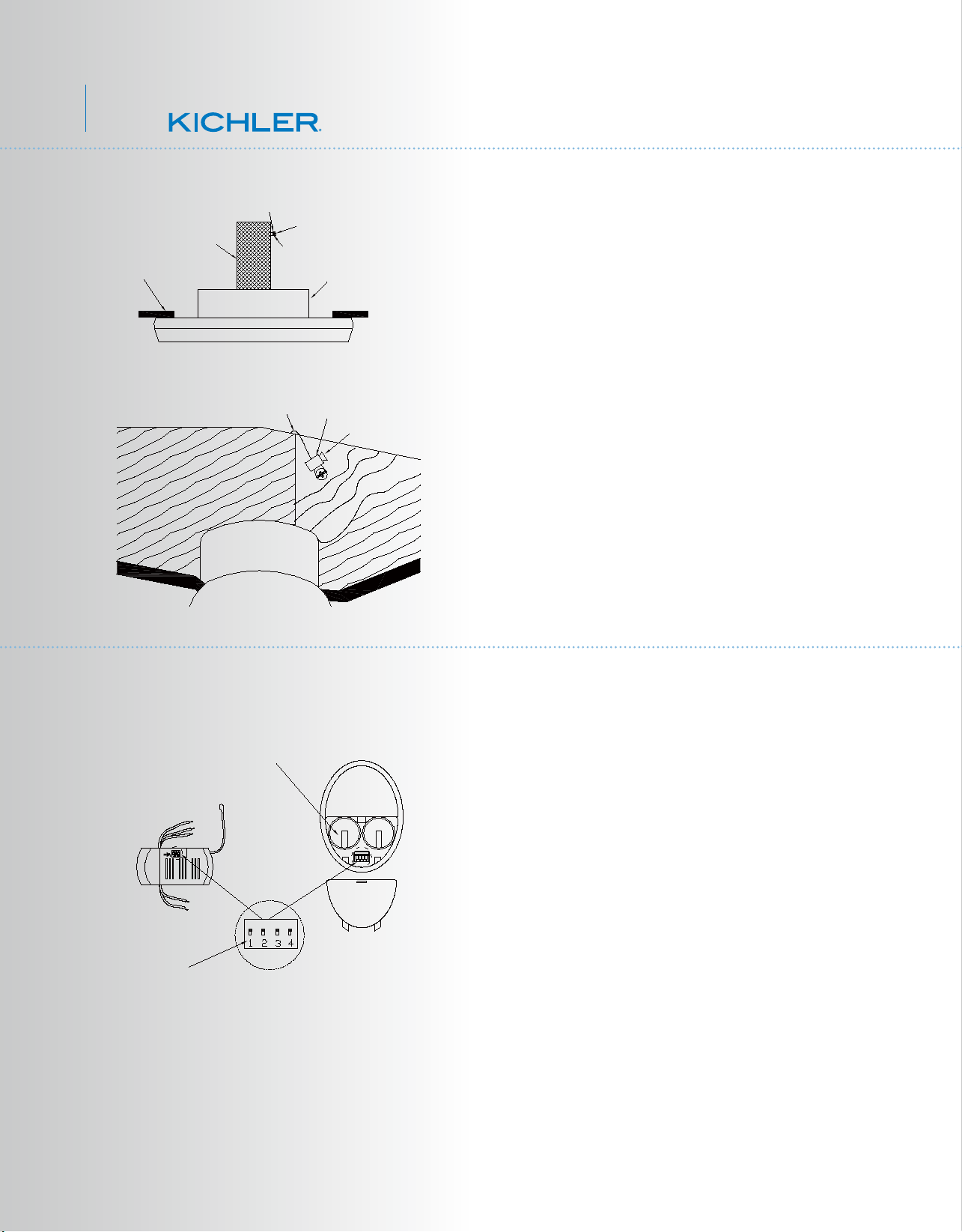

A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.
Step 1. Drive a wood screw and washers into the
side of the brace that holds the outlet box. Leave
3mm (1/8") of space between the support brace
and the washer. (Fig. 8)
Step 2. Insert the safety cable through the
mounting bracket and one of the holes in the outlet
box into the ceiling. Adjust the length of the safety
cable to reach the screw and washers by pulling the
extra cable through the cable clamp until the overall
lenght is correct, put the end of the cable back
through the cabel clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Now,
put the loop in the end of the safety cabel over the
wood screw and under the washer. Tighten the
wood screw securely. (Fig. 9)
NOTE: Although the safety support cable is required
for Canadian installations only. It’s a good idea to
make the attachment with any installation.
WARNING: To avoid possible electrical shock, be
sure you have turned off the power at the main
circuit panel before wiring.
WARNING: If your house wires are different colors
than referenced in this manual, stop immediately.
A professional electrician is recommended to
determine proper wiring.
Follow the steps below to connect the fan to your
household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connector with
electrical tape. Make sure there are no loose wire
stands or connections.
7. MAKE THE ELCTRIC CONNECTIONS
6. INSTALLATION THE SAFETY SUPPORT
NOTE: The CoolTouch Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote units.
The frequency switches on your receiver and
transmitter have been preset at the factory. Please
recheck to make sure the switches on the transmitter
and receiver are set to the same position, any
combination of settings will operate the fan as long
as the transmitter and receiver are set to the same
opposition. ( Fig. 10) Chainging the orfer of switches
on each switch block, changes the operational
frequency.
TM
Fig. 8
Fig. 9
Fig. 10
ON ECE
ON ECE
Battery Compartment
Code Switch
Safety Cable Bolt
Wood Screw
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling

6

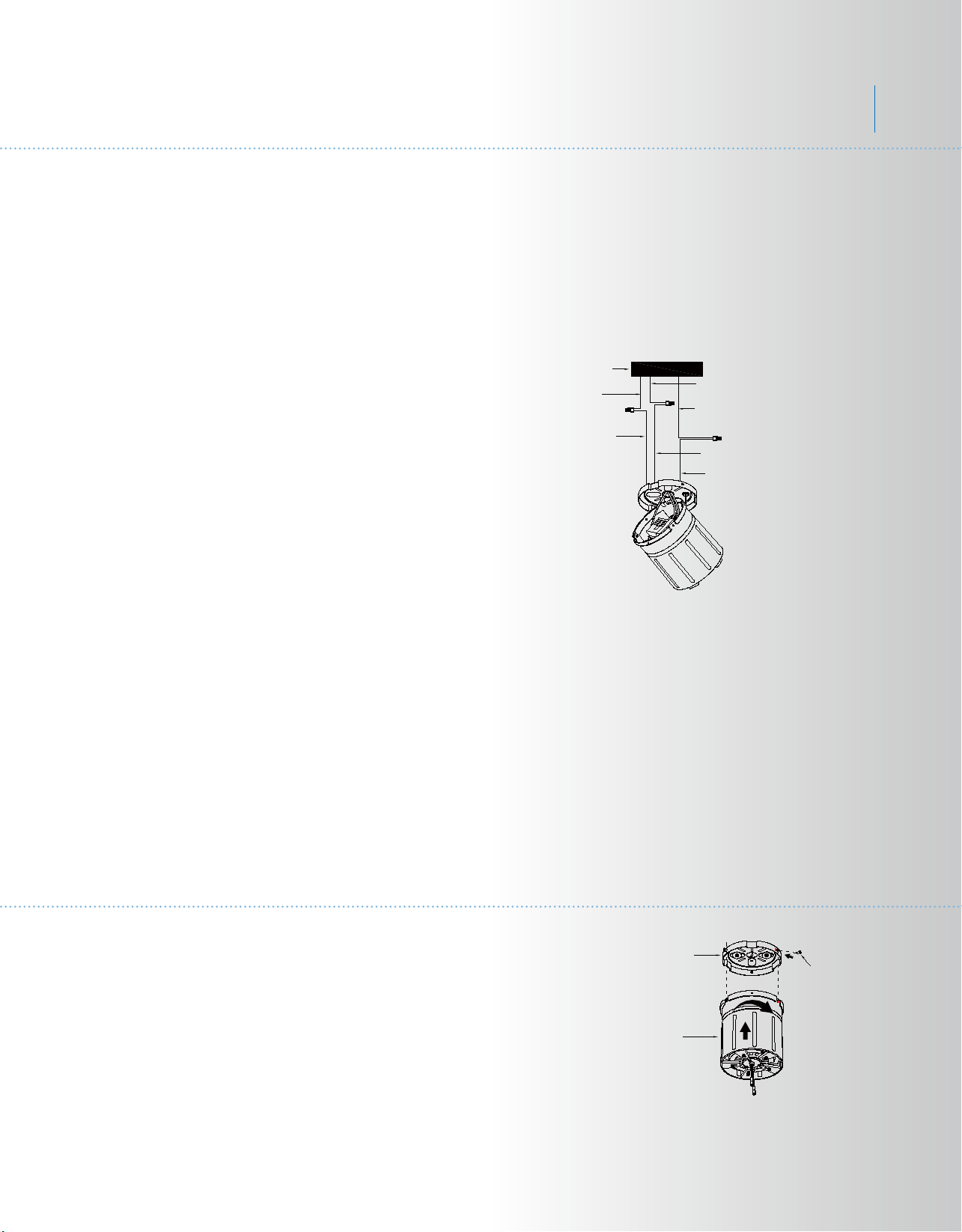

Step 1. Motor to Receiver Electrical Connections:
Connect the BLACK wire from the fan to BLACK
wire marked "TO MOTOT L" from the receiver.
Connect the WHITE wire from the fan to the
WHITE wire marked "TO MOTOR N" from the
receiver. Connect the BLUE wire from the fan to
the BLUE wire marked "FOR LIGHT" from the
receiver. Secure all the wire connections with the
plastic wire nuts provided. ( Fig. 11)
NOTE: Fan must be installed at a maximum distance
of 30 feet from the transmitting unit for proper signal
transmission between the transmitting unit and the
fan’s receiving unit.
NOTE: Carefully tuck the wire connections up into
the outlet box.
8 . FINISHING THE INSTALLATION
Step 1. Lift the motor body, allowing the two screws
on the mounting bracket to slide into the mating slots.
Rotate the motor body until both screws from the
mounting bracket drop into the slot recesses. Replace
the screw removed previously and securely tighten all
three screws. (Figh. 12)
Step 3. If your outlet box has a ground wire ( green
or bare copper ) connect it to the fan ground wires :
otherwise connect the hanging bracket ground wire
to the mounting bracket. Secure the wire connection
with a plastic nut provided. After connecting the
wires, spread them apart so that the green and
white wires are on one side of the outlet box and
black wire is on the other side. ( Fig. 11)
Step 2. Remote Receiver to Outlet Box Electrical
Connections: Connect the BLACK (hot) wire from
the ceiling to the BLACK wire marked “AC in L”
from the receiver . Connect the WHITE ( neutral )
wire from the ceiling to the WHITE wire marked
“ AC in N” from the Receiver . Secure the wire
connections with the plastic wire nuts provided .
( Fig. 11)
TM
Fig. 11
Fig. 12
Mounting Bracket
Motor Body
Screw
Ground wire
White("AC IN N")
Green or bare copper (ground)
Black("AC" IN L")
Black (hot)
Outlex box
White (Neutral)
InnesＩＩ

7

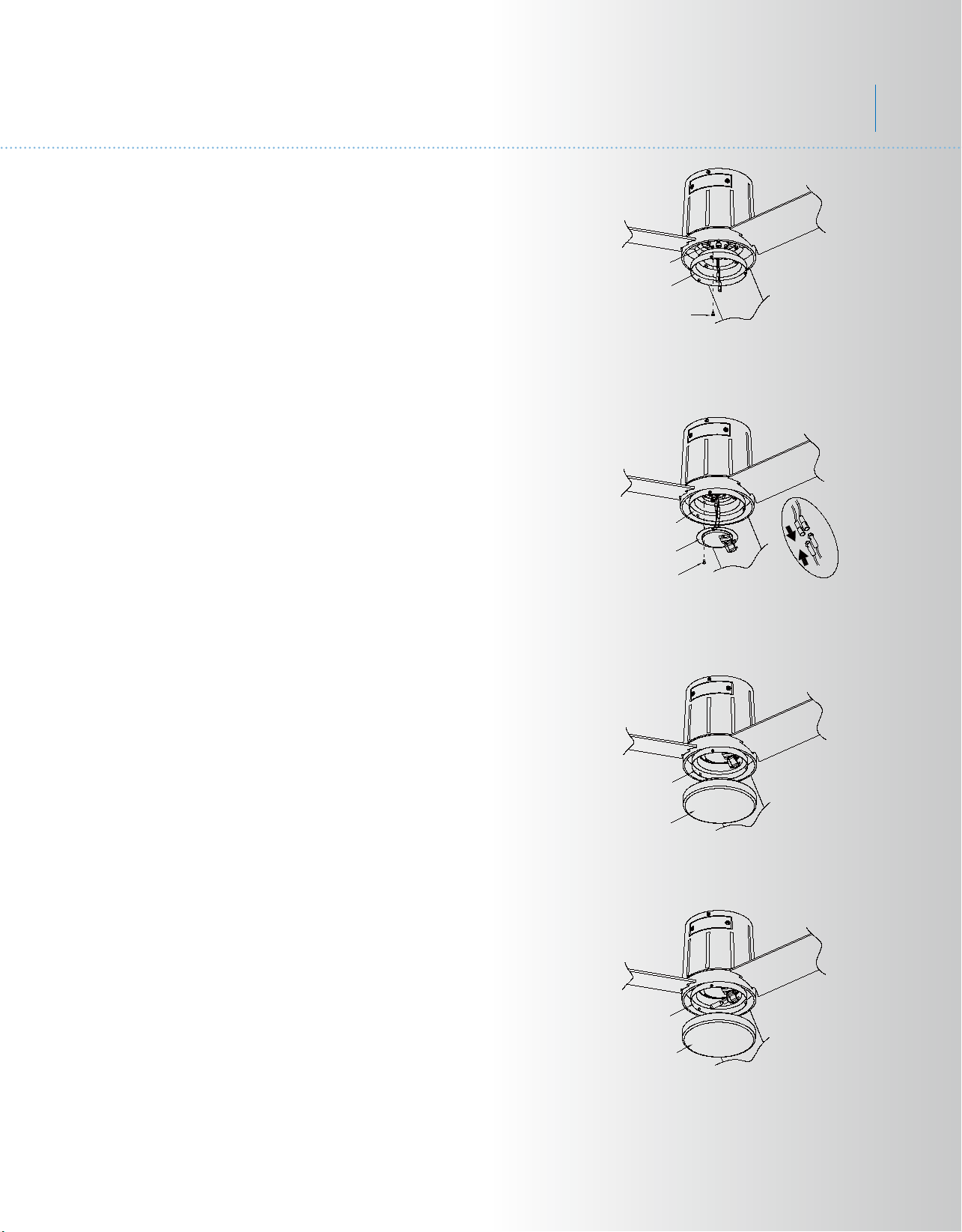

Step 2. Assemble the top housing onto the
motor body using the three screws provided
in the hardware bag and securely tighten.
(Fig. 13)
Step 3. Remove the shipping blocks from the
motor body if they are present and save the
motor screws for future use. Assemble the
flywheel to the motor body using the removed (5)
motor screws. (Fig. 14)
NOTE: Please let the receiver door face up
the notch on the motor body for receiver
replacement.
Step 4. Insert one blade through one of the slots
on the side of flywheel. Align the blade holes with
holes on blade bracket. Tighten the blade using
blade screws and fiber washers supplied. Repeat
the same steps until all blades are installed.
(Fig. 15)
Fig. 15
Fig. 14
Fig. 13
Motor Body
Motor Screw
Shipping Block
Flywheel
Motor Body
Blade
Fiber Washer
Blade Screw
Motor Body
Top Housing
Screw
Receiver Door

8
TM
Step 5. Remove one of the three screws in the
mounting plate. Slightly loosen the remaining
two screws. Assemble the switch housing to
the mounting plate using the two key slots.
Replace the third screw and securely tighten
all three screws. (Fig. 16)
Step 6. Connect the 2 single-pin connectors
from the motor body to the 2 single-pin
connectors from the light kit. Remove one of
the three screws in the switch housing.
Slightly loosen the remaining two screws.
Assemble the light kit to the switch housing
using the two key slots. Replace the third
screw and securely tighten all three screws.
(Fig. 17)
Step 7. Do not install the halogen bulb to the
socket if you want to install the steel cap.
Assemble the steel cap to the light kit by
twisting in a clockwise direction. Do not
overtighten. (Fig. 18)
Step 8. Insert the halogen bulb to the socket.
Assemble the glass shade to the light kit by
twisting in a clockwise direction. Do not
overtighten. (Fig. 19)
Fig. 16
Mounting Plate
Switch Housing
Screw
Fig. 17
Switch Housing
Light Kit
Screw
Fig. 19
Light Kit
Glass Shade
Fig. 18
Light Kit
Steel Cap
InnesＩＩ

9. HOW TO REPLACE THE RECEIVER
9
Step 1. Remove the two screws and receiver
door in the motor body. Retain them for
installatio step 4. (Fig. 20)
Step 2. Pull out the steel plate from the motor
body and loosen the wire connectors of
receiver. (Fig. 21)
Step 3. After replace the new receiver, then
operate the setting process again, see page 5
" MAKE THE ELECTRIC CONNECTION".
(Fig. 22)
Step 4. Re-install the reveiver door onto the
motor body with the two screws removed in
step 1.
Fig. 23
Fig. 22
Fig. 21
Fig. 20
Receiver
Motor Body
Motor Body
Receiver Door
Screw
White (Neutral)
Black (motor) From Motor
AC 120V
Blue (For Light)
White("AC IN N")
Black("AC" IN L")
Receiver Door
Motor Body
Screw

10
Step 1. To place the transmitter in the wall plate ,
put the bottom end in first and then press the top
into the wall plate. The transmitter is now held in
the wall plate and will function from here .
( Fig. 26)
10. INSTALLING THE COOLTOUCH
CONTROL SYSTEM WALL PLATE
TM
11. INSTALLING THE TRANSMITTER
Select a location to install your CoolTouch
Control System Transmitter. You can replace
an existing wall switch, or install the transmitter
on ANY flat surface.
TM
Option 1: Install the control system using an
existing wall switch outlet box. Make sure the
electircal power is TURNED OFF at the main
panel before continuing.
Option 2: Install the control system on ANY
flat surface.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut the
BLACK leads (hot) together and push back
inside the outlet box. (Fig. 24)
Step 2. Install the metal plate and CoolTouch
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 25)
TM
Select the desired location and use the
CoolTouch wall plate to make the location
for the mounting holes. Plastic wall anchors
and screws are provided to this type of
installation. After installing the wall anchors,
attach the CoolTouch wall plate with the
mounting screws and the n insert the plastic
plugs to finish the installation.
TM
TM
Fig. 25
Fig. 24
Fig. 26
TM
CoolTouch Wall Plate
Screw
TM
Plastic Plug
Outlet Box
Metal Plate
Screw
Outlet Box
Switch
Wall Plate
InnesＩＩ

11
12. CONTROL SYSTEM SET-UP
Step 1. Install 2,3 volt # 2032 battery included
with the CoolTouch TM Control system and
make sure they are seated correctly in each
recess with the Positive + Sign facing up.
Replace the battery cover. . (Fig. 27)
Step 2. Test the transmitter by pushing and
releasing ANY button. A Blue Light should
illuminate, if not, check to make sure the
batteries are inserted and seated correctly.
(Fig. 27)
Step 3. You can leave the frequency switches
at the factory setting or move them to any
combination of up or down. Use a small flat
bladed screwdriver to move the switches.
(Fig. 28)
NOTE: Make sure the power is completely
disconnected before you begin this procedure.
NOTE: To prevent damage to transmitter ,
remove the batteries if not used for long
periods of time ( months ).
Read all of these steps before preceeding.
Each step must be followed exactly to properly
program the control system.
Fig. 27
ONECE
2032
+
2032
+
CHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM
Fig. 28
ON ECE
ON
ECE
Dip Switch
KICHLER
CEILING
FANS
THE AIR OF DISTINCTION
R
TM

13. OPERATING INSTRUCTIONS:
12
Restore power to ceiling fan and test for
proper operation.
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the light
ON or OFF.
Figure 29
1. Buttons , , :
These three buttons are used to set the fan
speed as follows:
= Low Speed
= High Speed
= Medium Speed
Figure 30
1. The " " buttons:
This button turns the fan motor off and is also
used in the program procedure.
2. Buttons
The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in motion.
2. The " " and " " button:
The " " button turns the upper light ON or
Off and also controls the brightness setting on
some models. The " " button turns the
bottom light ON or OFF and also controls the
brightness setting.
Fig. 30
Fig. 29
InnesＩＩTM
Motor Off Button
Light Control Buttons
Speed Buttons
Forward/Reverse Button

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
14. TROUBLESHOOTING
15. SPECIFICATIONS
These are approximate measures . They do not include data for any lamps or fixtures
attached to the ceiling fan.
7 kgs
N.W.
8.2 kgs
G.W.
1.5'
C.F.RPM
230
170
49
225
168
48
CFM
3975
2938
847
3898
2911
830
CFM/W
91
124
314
89
123
307
Fan Size
52"
52"
120
120
120
120
120
120
Volts
0.36
0.27
0.09
0.36
0.27
0.09
Amps
43.9
23.7
2.7
43.9
23.7
2.7
WattsSpeed
High
Medium
Low
High
Medium
Low
13
(No strip blade)
(strip blade)
