INSTRUCTION MANUAL
Product images may vary slightly from actual product.
52" Terra Select

KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES .................................................................4
TOOLS AND MATERIALS REQUIRED.......................5
PACKAGE CONTENTS ....................................................5
MOUNTING OPTIONS.....................................................6
HANGING THE FAN......................................................7-9
INSTALLATION OF SAFETY SUPPORT..................10
ELECTRICAL CONNECTIONS ....................................11
FINISHING THE INSTALLATION................................12
ATTACHING THE FAN BLADES................................. 13
INSTALLING THE MOUNTING PLATE.................... 13
INSTALLING THE LIGHT KIT
TO SWITCH HOUSING................................................... 14
INSTALLING THE LIGHT KIT ASSEMBLY................14
INSTALLING THE LIGHT
BULBS & GLASS SHADE..............................................15
FAN WITHOUT LIGHT FIXTURE (OPTIONAL)...... 15
OPERATING INSTRUCTIONS.....................................16
TROUBLESHOOTING..............................................17-18
SPECIFICATIONS.............................................................18
FCC INFORMATION .......................................................19
3
52" Terra Select |

SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, or
personal injury, use mounting screws provided with the
outlet box. Most outlet boxes commonly used for the
support of light fixtures are not acceptable for fan support
and may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is
strongly recommended.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 pounds. Use only CUL Listed outlet boxes marked “FOR
FAN SUPPORT”.
5. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the floor.
6. Do not operate reversing switch while fan blades are in
motion. Fan must be turned o and blades stopped before
reversing blade direction.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX
MARKED “ACCEPTABLE FOR FAN SUPPORT”.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After making the electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
11. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
SPECIAL NOTICE
This appliance is equipped with a “Wattage Limiting Device”
required by the United States Department of Energy. The
device has been installed at the factory and can not be removed.
Installing Lamps in excess of 75 total watts will disable the unit’s
light fixture. If this should happen, you will need to reset the
lighting fixture by turning the power o to the ceiling fan
and/or light fixture, reinstalling lamps totaling less that
75 watts and then turning the power back on.
4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
•Phillips screwdriver
•Blade screwdriver
•11 mm wrench
•Step ladder
•Wire cutters
Unpack your fan and check the contents . You should have the following items:
A. Fan blades (5)
B. Ceiling mounting bracket
C. Canopy
D. Ball/downrod assembly
E. Coupling cover
F. Fan motor assembly
G. Set of 5 blade brackets and Pre-Installed
mounting screws
H. Mounting plate
I. Switch housing
J. Light kit
K. 3, 4 Watt E-12, LED lamps
L. Glass shade
M. Part bag contents
1) Mounting hardware: wood screws (2),
flat washers (2), star washers (2),
wire nuts (3), screws (2)
2) Blade attachment hardware:
screws (17), fiber washers (17)
3) Blade brackets hardware: screws (2)
4) Safety cable hardware: wood screw,
lock washer, flat washer
5) Pull chains and fobs (2)
6) Balance Kit
a
b
c
d
e
f
g
h
i
j
k
l
m
5
52" Terra Select |

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

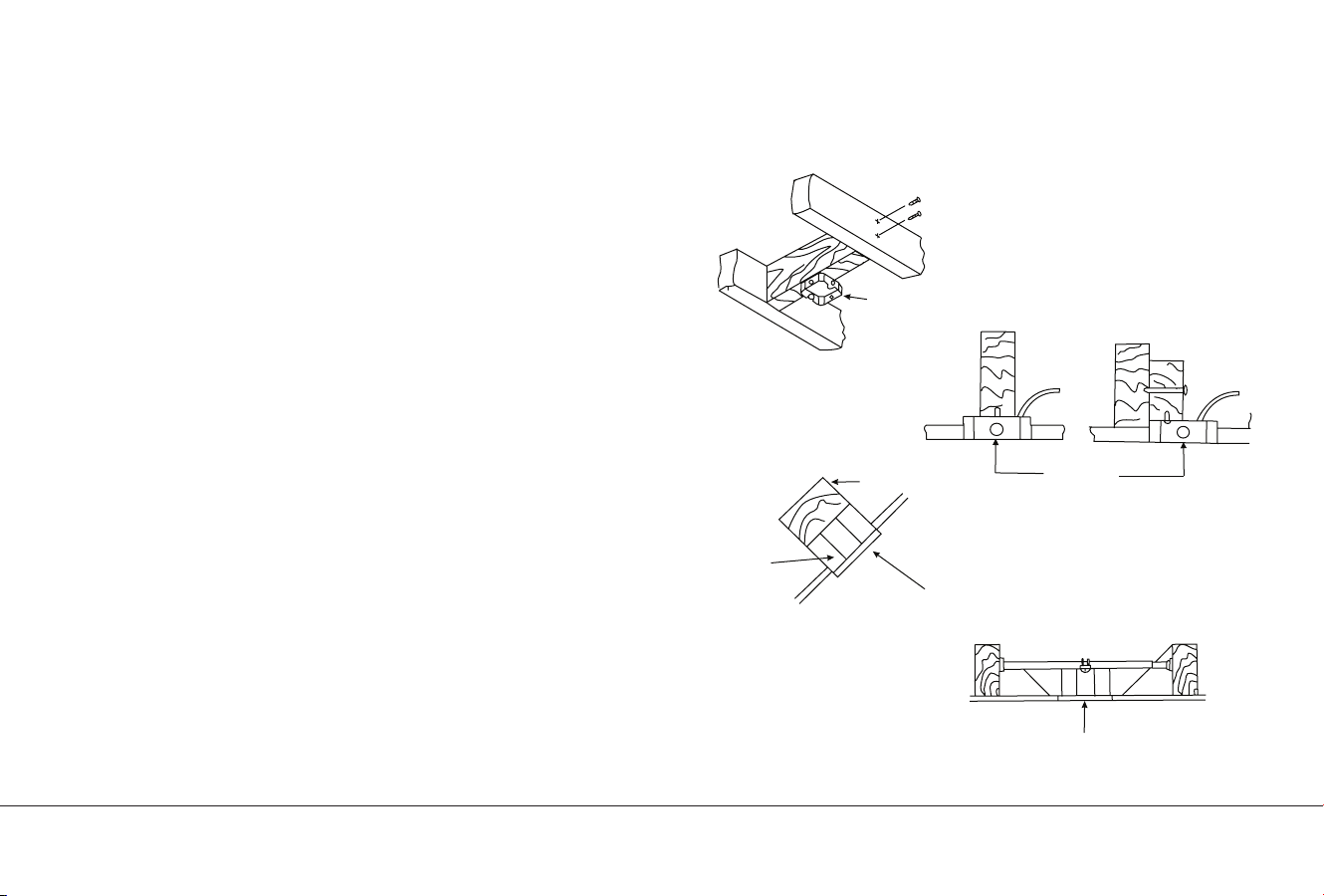

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist Hanger”
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Outlet box
Fig. 1
Outlet box
Fig. 2
Fig. 3
Recessed
outlet box
Provide strong
support
Ceiling
mounting
plane
ANGLED CEILING
MAXIMUM 20° ANGLE
Fig. 4
Outlet box
6 | KICHLER.COM

HANGING THE FAN
REMEMBER to turn o the power before you begin. To properly install your ceiling
fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing (and
save one of the two screws. Loosen the remaining screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the screws and
washers included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the downrod assembly by loosening the set
screw, unscrewing and removing the cross pin and unscrewing the ball o the rod.
(Fig.7)
Fig. 5
Hanger bracket
Ceiling canopy
Canopy cover
Fig. 6
120V Wires
CUL Listed
outlet box
Washers
Hook
Mounting screws
(supplied with electrical box)
Ceiling
mounting
bracket
Fig. 7
Downrod
Set screw
Hanger ball
Cross pin
7
52" Terra Select |

HANGING THE FAN

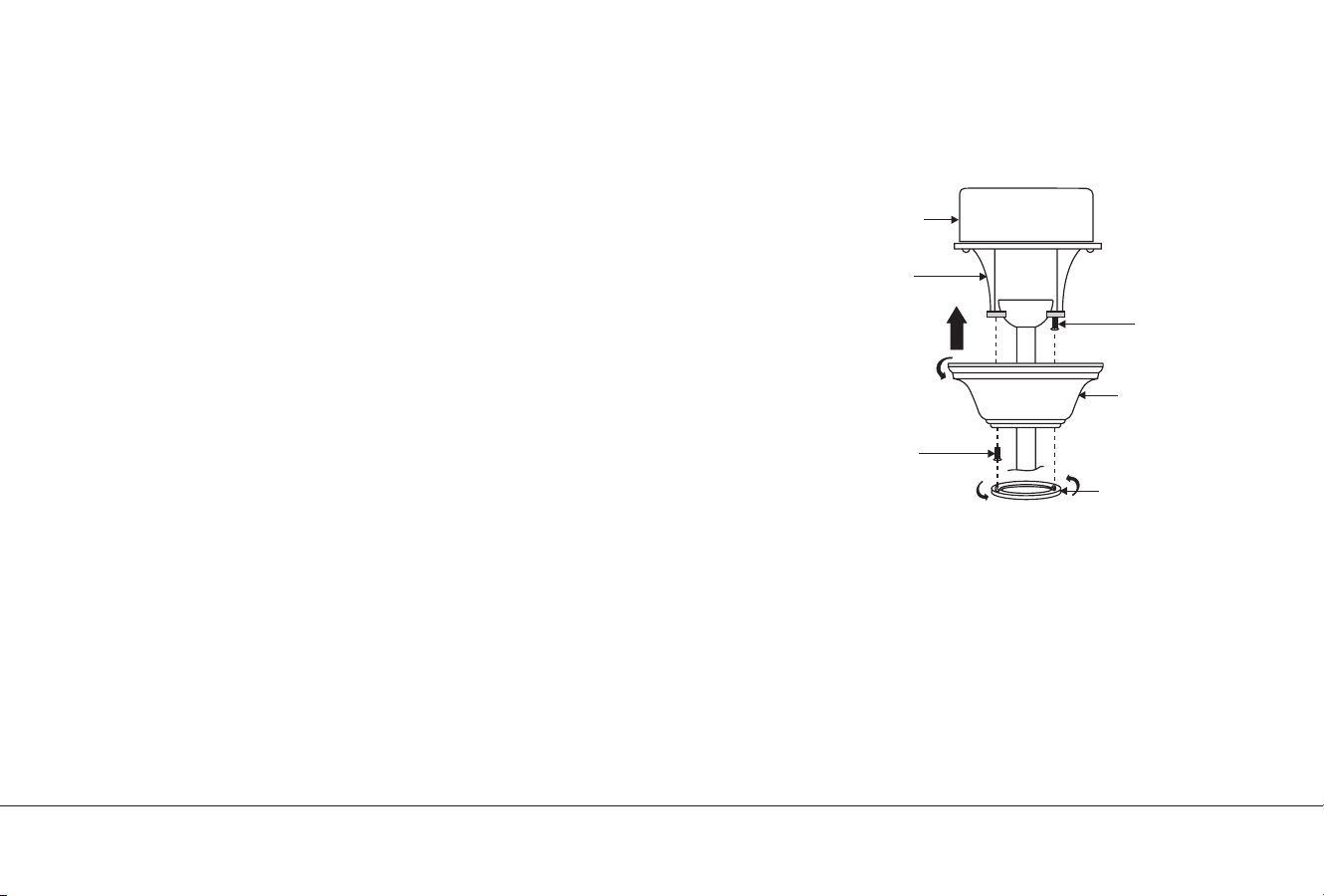

Step 6. Loosen the two set screws and remove the hitch pin and retaining clip from
the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires from the fan up through the
downrod. Thread the downrod into the coupling until the Hitch pin holes are
aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)
Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.
Thread the hanger ball onto the downrod, insert the cross pin through the
downrod and tighten. Now tighten the set screw. (Fig. 9) Downrod
Coupling cover
Canopy cover
Canopy
Fig. 8
Supply wires
Set screw
Set screw
Retaining clip Hitch pin
Downrod
Fig. 9
Retaining clip
Hitch pin
Set screw
8 | KICHLER.COM

HANGING THE FAN
Step 9. Lift the motor assembly into position and place the hanger ball into the
ceiling mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into the
“Registration Slot” and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause
the fan to fall from the ceiling during operation. Take special care to make sure this
pin is reattached. Fig. 10
Check tab
Registration slot
9
52" Terra Select |

INSTALLATION OF SAFETY SUPPORT
(Required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling
the extra cable through the cable clamp until the overall length is correct, put the end of
the cable back through the cable clamp, forming a loop at the end of the cable. Tighten
the cable clamp securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Ceiling
mounting
bracket Attach safety cable
to ceiling joist with
screw and washer
Fig. 11
10 | KICHLER.COM

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the
power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire
connecting nuts suppled with your fan. Secure the connectors with electrical
tape. Make sure there are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the
black household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white
wires are on one side of the outlet box and the black wires is on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box. Fig. 12
BLK
BLUE
BLK WH
GRN
Wiring box
Ground to
mounting bracket
or downrod
Power lines 120v
Green ground
WH
11
52" Terra Select |

FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of the
key hole slots over the mounting screw on the mounting bracket. Rotate the
canopy until the screw head locks in place at the narrow section of the key
hole. See Figure 13.
Step 3. Align the remaining circular hole on the canopy with the remaining
hole on the Ceiling Mounting Bracket. Insert and tighten the mounting screw
you removed earlier and the mounting screw from Step 2 above. Now, attach
the canopy cover to the mounting screw heads by inserting the screw heads
into the bottom side of the canopy cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and canopy
cover are snug. (Fig. 13)
Warning: Make sure the “Check Tab” at the bottom of the hanger bracket is
properly seated in the “Registration Slot” on the side of the hanger ball before
attaching the canopy to the bracket.
Fig. 13
Outlet box
Ceiling
mounting
bracket
Screws
Screws
Canopy
Canopy cover
12 | KICHLER.COM

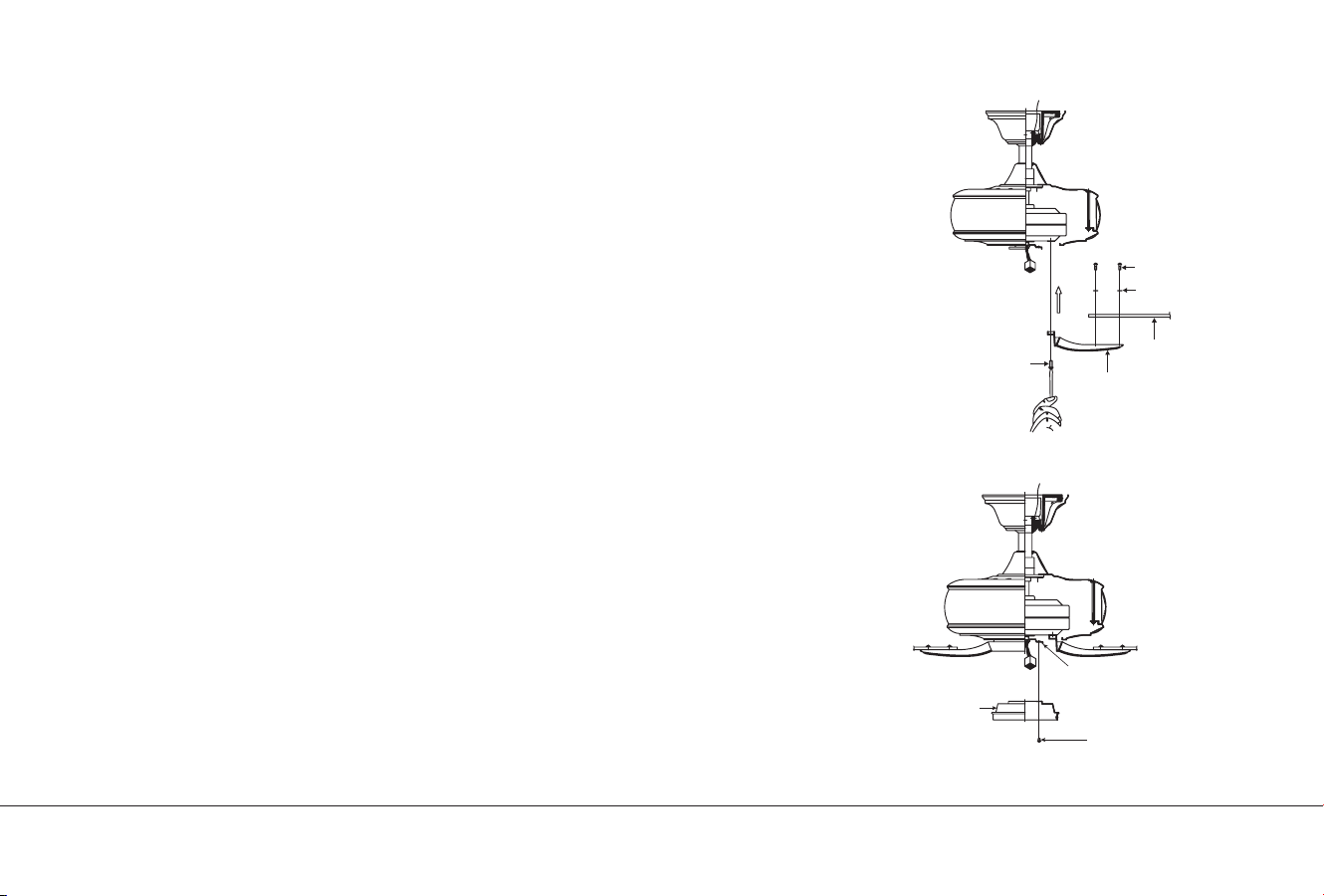

ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping blocks attached to the face of the motor.
These blocks keep the motor from shifting during shipping and MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided.
(Fig. 14)
Make sure the blade is straight when set on the blade bracket. Tighten each mounting
screw until the fiber washer is slightly compressed. Repeat this procedure for each blade.
Step 2. Attach each blade assembly to the motor using the “Pre-Installed” mounting
screws in the blade bracket. (Fig 14)
INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the mounting ring attached to the motor shaft
and “remove” and save the third screw. (Fig. 15)
Step 2. Place the key holes on the mounting plate over the 2 screws previously
loosened from the mounting ring, turn mounting plate until it locks in place at the
narrow section of the key holes. Secure by tightening the 2 screws previously
loosened and the one previously removed. (Fig. 15)
Mounting ring
Screws
Mounting
plate
Screws
Fiber
washers
Blade brackets
Screws Blades
Fig. 14
Fig. 15
13
52" Terra Select |

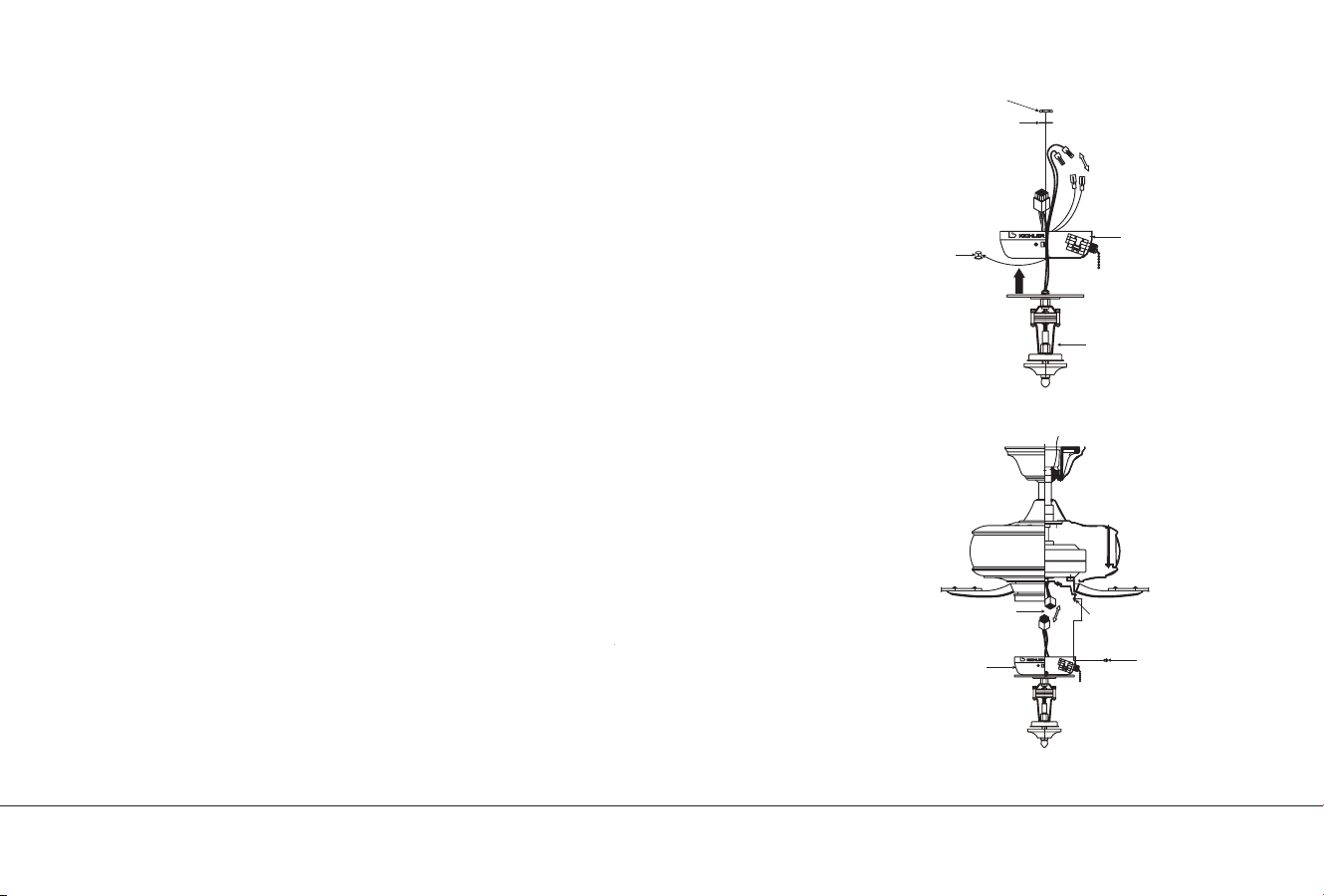

INSTALLING THE LIGHT KIT TO SWITCH HOUSING
INSTALLING THE LIGHT KIT ASSEMBLY
Remove and discard the center plug from the switch housing. Attach the light kit to
the switch housing by feeding the light kit wires (black and white) through the hole
in the center of the switch housing and then screw the threaded pipe on the light kit
into the same hole. Add a nut & lock washer to the threaded pipe on the inside of the
switch housing and tighten.
Attach the wires from the light kit to the wires inside the switch housing by pushing
the polarized connections together. (Fig.16)
- White wire to White wire
- Black wire to Blue wire
NOTE: Before starting installation, disconnect the power by turning o the circuit
breaker or removing the fuse at fuse box.
Step 1. Loosen the 3 screws from the mounting plate.
Step 2. Raise and hold the light kit assembly close to the mounting plate. Push the
nine pin square wire connectors together. One from the fan and one from the light
kit assembly. (Fig. 17)
Step 3. Tuck the connections neatly into the switch housing and attach the light kit
assembly to the ceiling fan. Place the key hole slots on the top edge of the switch
housing over the mounting screw heads on the mounting plate. Turn the switch
housing until the screw heads are at the narrow end of the key hole slots. (Fig.17)
Tighten all of the screws.
Fig. 17
Fig. 16
Connection plug
Light kit
Mounting plate
Screws
Nut
Lock washer
Switch housing
Light kit
Center
plug
14 | KICHLER.COM

INSTALLING THE LIGHT BULBS & GLASS SHADE
Step 1. Install each of the 4 watt LED bulbs (included). One in each socket.
Step 2. Remove the decorative nut, glass cap and metal nut from the light kit. Place
glass shade over the light kit stem, secure with the metal nut (rubber side on the top),
glass cap and decorative nut. Do not overtighten. (Fig. 18)
Step 3. Restore power and your light kit is ready for operation.
FAN WITHOUT LIGHT FIXTURE (OPTIONAL)
NOTE: Before starting installation, disconnect the power by turning o the circuit
breaker or removing the fuse at fuse box
Step 1. Raise the switch housing close to the ceiling fan and connect the square
wire connectors from the switch housing and fan. Install the switch housing to the
mounting plate with screws provided. (Fig. 19)
Step 2. Attach the plastic plug to the switch housing. (Fig. 19)
Fig. 19
Fig. 18
Bulbs
Glass shade
Metal nut
Glass cap
Decorative nut
Switch housing
Plastic plug
Mounting plate
Screws
Connection plug
15
52" Terra Select |

OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan.
The pull chain controls the 3 speeds of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the
motor o.
The Black Slide Switch on the side of the switch housing controls the
direction of the blades “Forward and Reverse”.
Warning: Do not operate reversing switch while fan blades are in
motion. Fan must be turned o and blades stopped before reversing
blade direction.

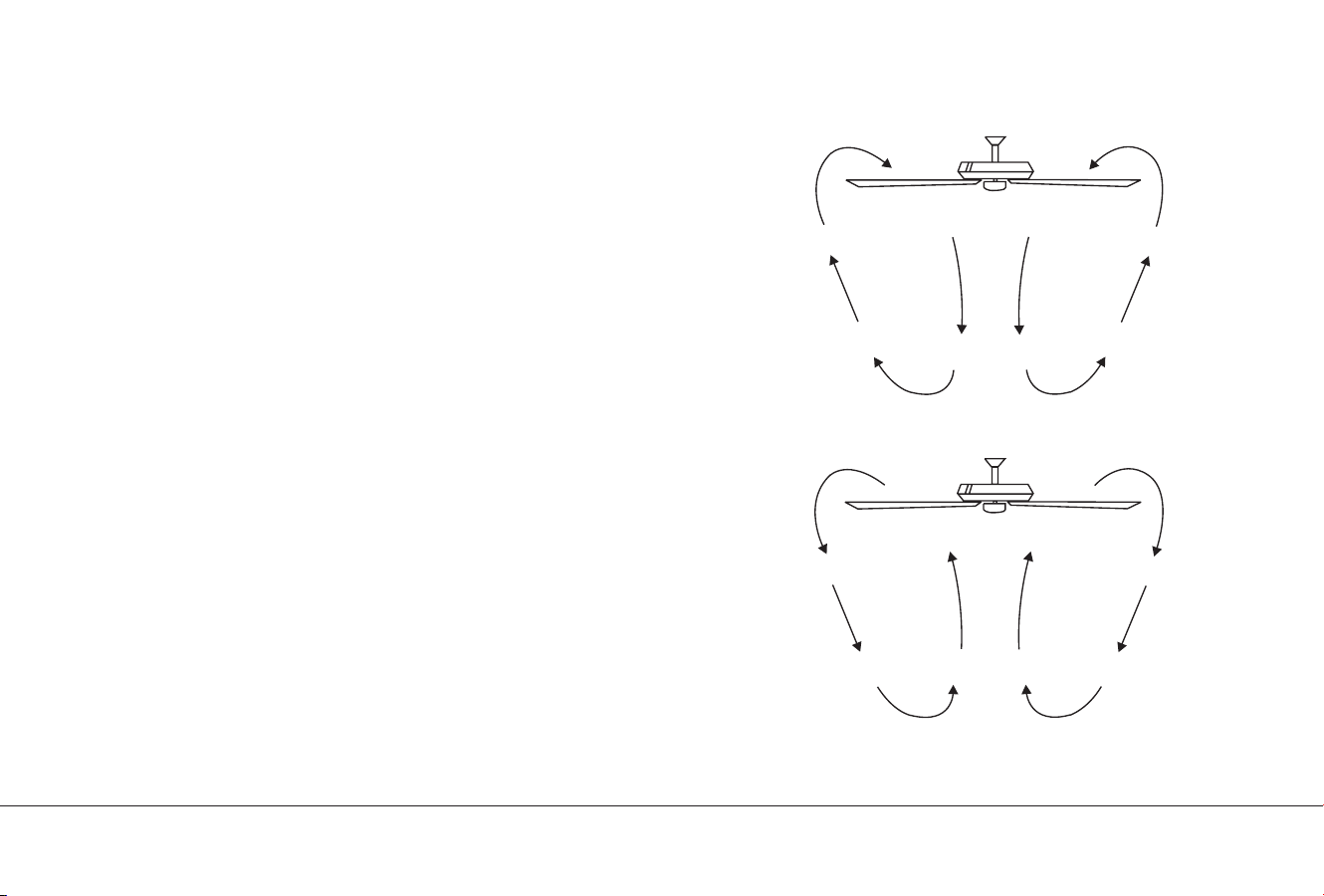

Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 20. This allows you to set your
air conditioner on a warmer setting without aecting your comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 21. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
Fig. 20
Fig. 21
16 | KICHLER.COM

TROUBLESHOOTING
Problem Solution
Fan will not start. 1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main
power is OFF when checking any electrical connection.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the
switch housing. CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during
this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure
the light bulbs are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have
installed this type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the
ceiling.
17
52" Terra Select |

TROUBLESHOOTING
Problem Solution
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance.
Rotate the fan until the next blade is positioned for measurement. Repeat for each blade.
The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENSURE THE PROPER
OPERATION OF YOUR CEILING FAN. NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE
CEILING FAN HAS BEEN MOUNTING ON THE CEILING. DO NOT BEND THE BLADE ARMS
WHILE INSTALLING, BALANCING OR CLEANING THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
SPECIFICATIONS
Fan Size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.
52" High 120 0.56 66.20 156 5129.84 77
12.5
kgs 13.5 kgs 1.97'Medium 120 0.42 33.20 110 3455.86 104
Low 120 0.22 9.30 55 1806.10 194
These are approximate measurements. They do not include data for any lamps or fixtures attached to the ceiling fan.
18 | KICHLER.COM

FCC INFORMATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
19
52" Terra Select |

KICHLER®LIGHTING
7711 EAST PLEASANT VALLEY ROAD
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:00 AM TO 5:00 PM EST, MONDAY - FRIDAY
