INSTRUCTION MANUAL
Model#300375
Product images may vary slightly from actual product.
52" Spyn Lite
READ AND SAVE THESE INSTRUCTIONS

KICHLER.COM2

352" Spyn Lite
TABLE OF CONTENTS
SAFETY RULES..................................................................4
TOOLS REQUIRED............................................................6
PACKAGE CONTENTS ....................................................6
MOUNTING OPTIONS.................................................... 7
HANGING THE FAN..........................................................8
INSTALLATION OF SAFETY SUPPORT................... 10
MAKE THE ELECTRICAL CONNECTIONS .............11
FINISHING THE INSTALLATION ................................12
ATTACHING THE FAN BLADES .................................13
INSTALLING THE SWITCH COVER............................13
INSTALLING THE SWITCH HOUSING .....................14
OPERATING INSTRUCTIONS ......................................16
TROUBLESHOOTING..................................................... 17

KICHLER.COM4
SAFETY RULES
1. CAUTION - RISK OF SHOCK: Disconnect Power at
the main circuit breaker panel or main fusebox before
starting and during the installation.
2. WARNING: All wiring must be in accordance with the
National Electrical Code “ANSI / NFPA70”and local
electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electric shock, this
fan must be installed with a general-use, isolating
wall control / switch.
4. WARNING: Not suitable for use with solid-state speed
controls.
5. WARNING: To reduce the risk of fire, electric shock,
or personal injury, mount to outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs.) or
less” and use mounting screws provided with the
outlet box. Most outlet boxes commonly used for
the support of light fixtures are not acceptable for
fan support and may need to be replaced. Due to the
complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
6. The outlet box and support structure must be
securely mounted and capable of reliably supporting
a minimum of 15.9 kg (35 pounds). Use only cULus
Listed outlet boxes marked “Acceptable for Fan
Support of 15.9 kg (35 lbs) or less”.
7. The fan must be mounted with a minimum of 2.1m (7
feet) clearance from the trailing edge of the blades to
the floor.
8. WARNING: Do not operate reversing switch while
fan blades are in motion. Fan must be turned o and
blades stopped before reversing blade direction.
9. Avoid placing objects in the path of the blades.
10. WARNING: make sure the power is disconnected
before cleaning your fan.
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON'T SECURE THIS FAN TO AN OUTLET BOX.

552" Spyn Lite
SAFETY RULES (CONTINUED)
11. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
12. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
13. After making electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
14. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be cULus Listed
and marked suitable for use with the model fan you
are installing. Switches must be cULus General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
15. All set screws must be checked, and retightened
where necessary, before installation.
16. N.W.6.5 KGS(14.33 LBS) / G.W.7.8 KGS(17.19LBS)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADES DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

KICHLER.COM6

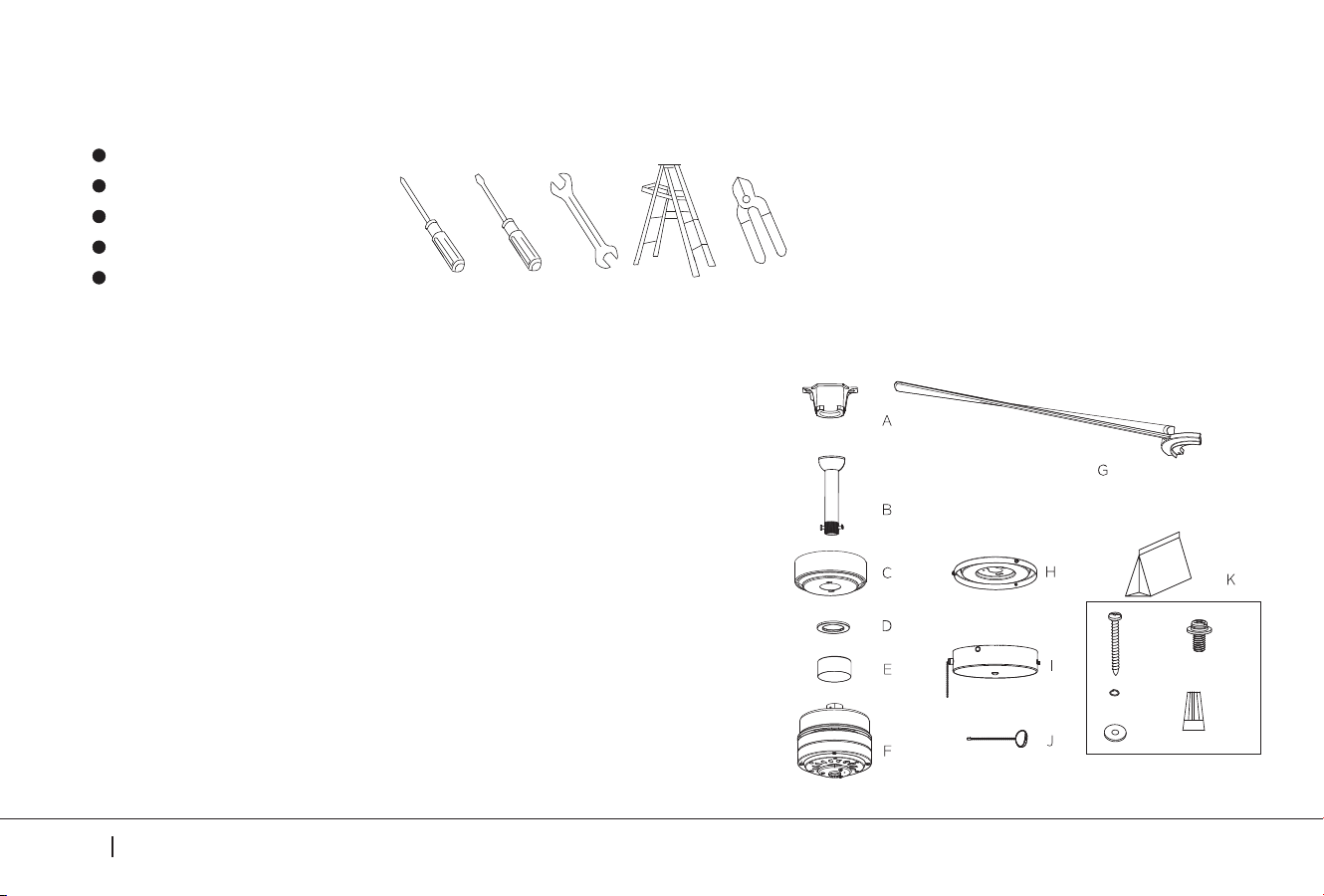

PACKAGE CONTENTS
Unpack your fan and check the contents. You should have the following items:
TOOLS REQUIRED
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
A. Mounting Bracket
B. Ball / Downrod Assembly
C. Canopy
D. Canopy Trim Ring
E. Coupling Cover
F. Motor Body
G. Fan Blades (3)
H. Switch Cover
I . Switch Housing
J . Pull Chain Extension and Fob
K. Package Hardware
1)Mounting Hardware:
Wire Connectors (3)
2)Blade Attachment Hardware:
Fan Blade Mounting Screws
and washers (6)
3)Safety Cable Hardware:
Wood Screw (1),
Spring Washer (1),
Flat Washer (1)
x1
x1
x1
x6
x3

752" Spyn Lite
Outlet Box
Outlet Box
Outlet Box
Ceiling
mounting
plane
Recessed
Outlet box
Provide strong
support
ANGLED CEILING
MAXIMUM 22° ANGLE
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans . (Fig. 4)
MOUNTING OPTIONS
lf there isn't an existing UL(cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the full weight of the fan (up
to 15.9 kg (35 pounds)). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.

KICHLER.COM8
HANGING THE FAN
To properly install your ceiling fan, follow the steps below.

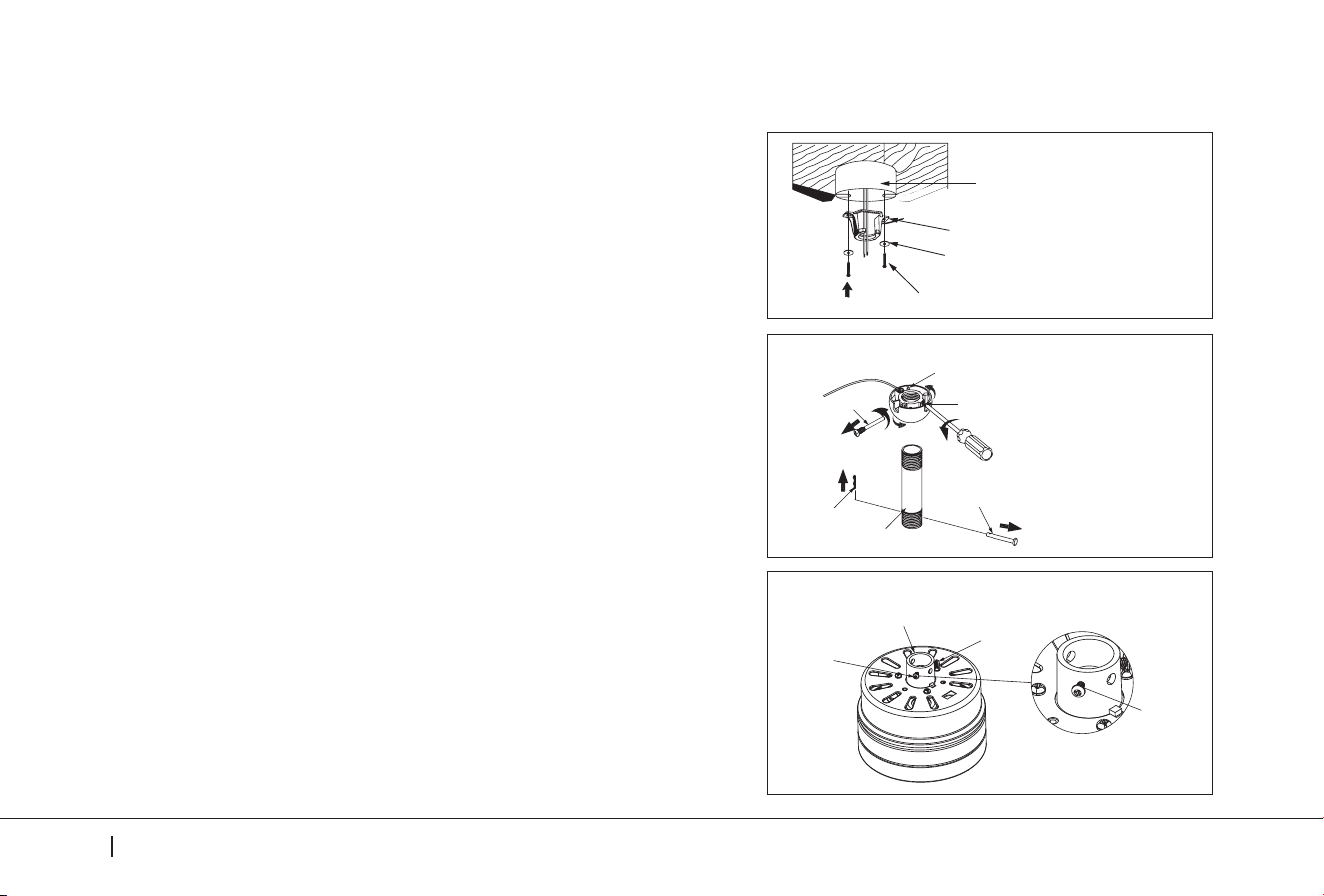

Step 1. Before attaching fan to outlet box (not included), ensure the
outlet box is securely fastened to at least two points to a structural
ceiling member (a loose box will cause the fan to wobble). Pass the
120 volt supply wires from the ceiling outlet box through the center
of the ceiling mounting bracket. Install mounting bracket to outlet
box in ceiling using the screws and washers included with the outlet
box. (Fig. 5)
Step 2. Remove the retaining clip and hitch pin from the downrod
assembly. Remove the hanger ball from the downrod assembly by
loosening the set screw on the hanger ball (do not remove),
unscrewing and removing the cross pin, and unscrewing the hanger
ball (counterclockwise) from the downrod. (Fig. 6)
NOTE: Make sure to keep removed hardware separate to avoid
confusion during installation.
Step 3. Loosen the two set screws (do not remove) on the motor
coupling. (Fig. 7)
Fig. 5
Fig. 6
Fig. 7
Hanger Ball
Set Screw
Cross Pin
Retaining Clip
Downrod
Hitch Pin
REMEMBER to turn o the power before you begin
installation. This is necessary for your safety .
CAUTION: To avoid possible electrical shock, be sure
you have turned o the power at the main circuit panel. Outlet Box
Ceiling Mounting Bracket
Flat Washer (included with outlet box)
Screw (included with outlet box)
Set Screw
Set Screw
Set Screw
Motor Coupling

952" Spyn Lite
HANGING THE FAN (CONTINUED)
Step 4. Carefully feed fan wires and safety cable up through the
downrod. Thread the downrod into the motor coupling until the
hitch pin holes are aligned. Next, replace the hitch pin and
retaining clip.
NOTE: Be careful not to jam the hitch pin against the
wiring inside of the downrod.Tighten both set screws.
(Fig. 8)
Step 5. Slip the coupling cover, canopy trim ring (smooth finished
side facing motor body) and canopy onto the downrod. Carefully
reinstall the hanger ball onto the downrod. Carefully reinstall the
cross pin through the hanger ball and downrod.
NOTE: Be careful not to jam the cross pin against the
wiring inside of the downrod.
Make sure the cross pin is in the correct position. Tighten the cross
pin. Tighten the set screw on the hanger ball. Make sure the wires
are not twisted. (Fig. 9)
Step 6. Lift the motor body into position and place the hanger ball
into the mounting bracket. Rotate the entire assembly until the “
Check Tab” has dropped into the “Registration Slot” and seats
firmly. (Fig. 10)
The entire motor body should not rotate if this is done correctly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can
cause the fan to fall from the ceiling during operation. Take special care to
make sure this pin is reattached.
Fig. 9
Fig. 8
Fig. 10
Hanger Ball
Check Tab
Registration Slot
Mounting Bracket
Set Screw
Set Screw
Hitch Pin
Motor Body
Hitch Pin
Retaining Clip
Retaining Clip
Downrod
Hanger Ball
Canopy
Canopy Trim Ring
Coupling Cover
Hanger Ball
Set Screw
Cross Pin
Motor Coupling

KICHLER.COM10

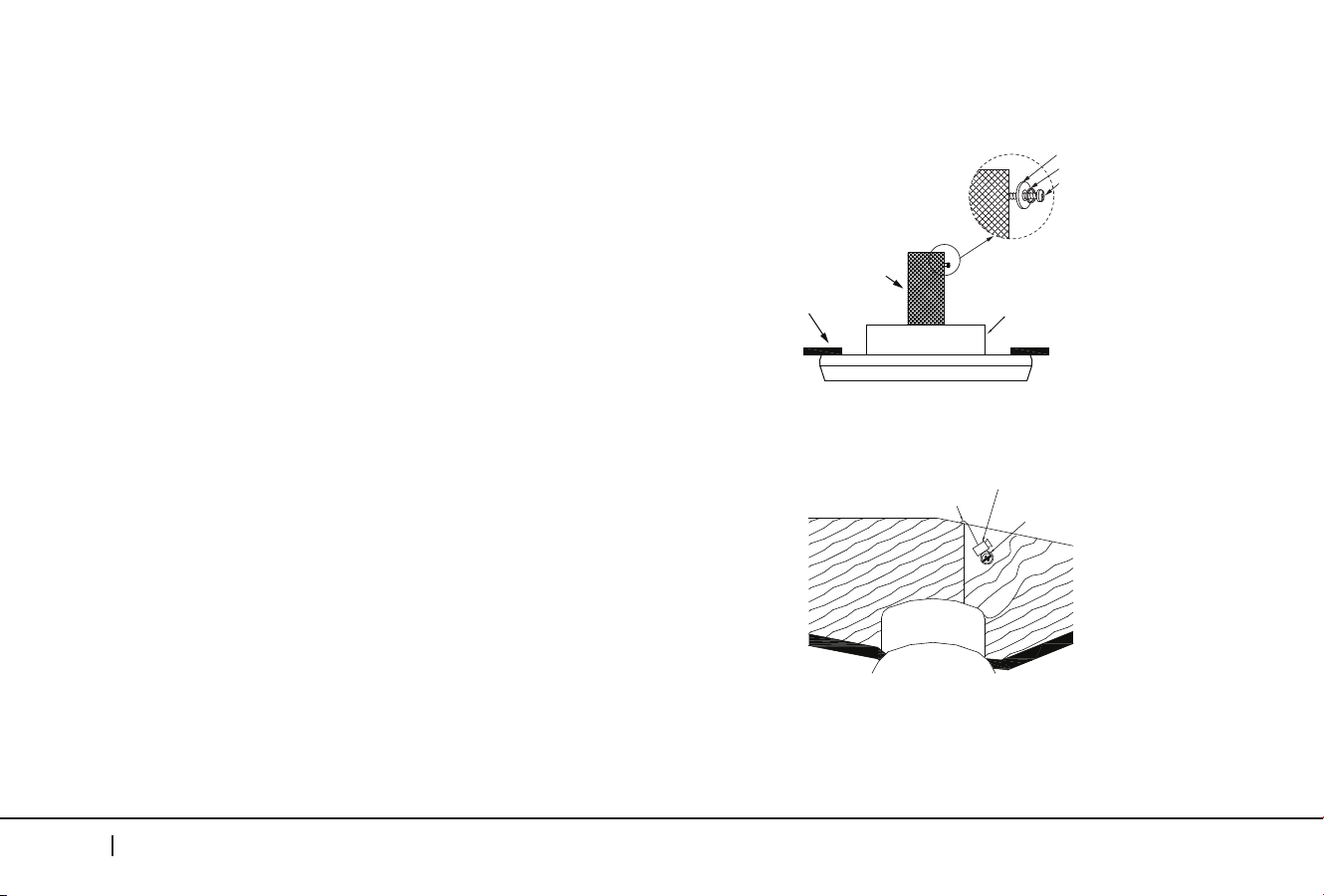

INSTALLATION OF SAFETY SUPPORT
(Required For Canadian Installation Only )
Fig. 11
Fig. 12
A safety support cable is provided to help prevent the ceiling
fan from falling, please install it as steps below.
Step1. Slip the spring washer, then the flat washer onto the wood screw,
then drive the wood screw into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the flat
washer. ( Fig.11 )
Step2. Insert the safety cable through the mounting bracket and one
of the holes in the outlet box into the ceilling. Adjust the length of the
safety cable to reach the screw and flat washer by pulling the extra
cable through the cable clamp until the overall length is correct,
put the end of the cable back through the cable clamp, forming a loop
at the end of the cable. Tighten the cable clamp securely. Now, put
the loop in the end of the safety cable over the wood screw and under
the flat washer. Tighten the wood screw securely. ( Fig.12)
NOTE: Although the safety support cable is required for Canadian
installations only, it is a good idea to make the attachment with any
installation.
Safety Cable Cable Clamp
Wood Screw
Flat Washer
Spring Washer
Wood Screw
Support Brace
Ceiling Outlet Box

1152" Spyn Lite
WARNING: To avoid possible electrical shock, be sure you have
turned o the power at the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring.
Use the wire connectors supplied with your fan. Secure the
connectors with electrical tape. Make sure there are no loose
wire strands or connections.
WARNING: If your house wires are in dierent colors than referenced
in this manual, stop immediately. A professional electrician is
recommended to determine proper wiring.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connections.

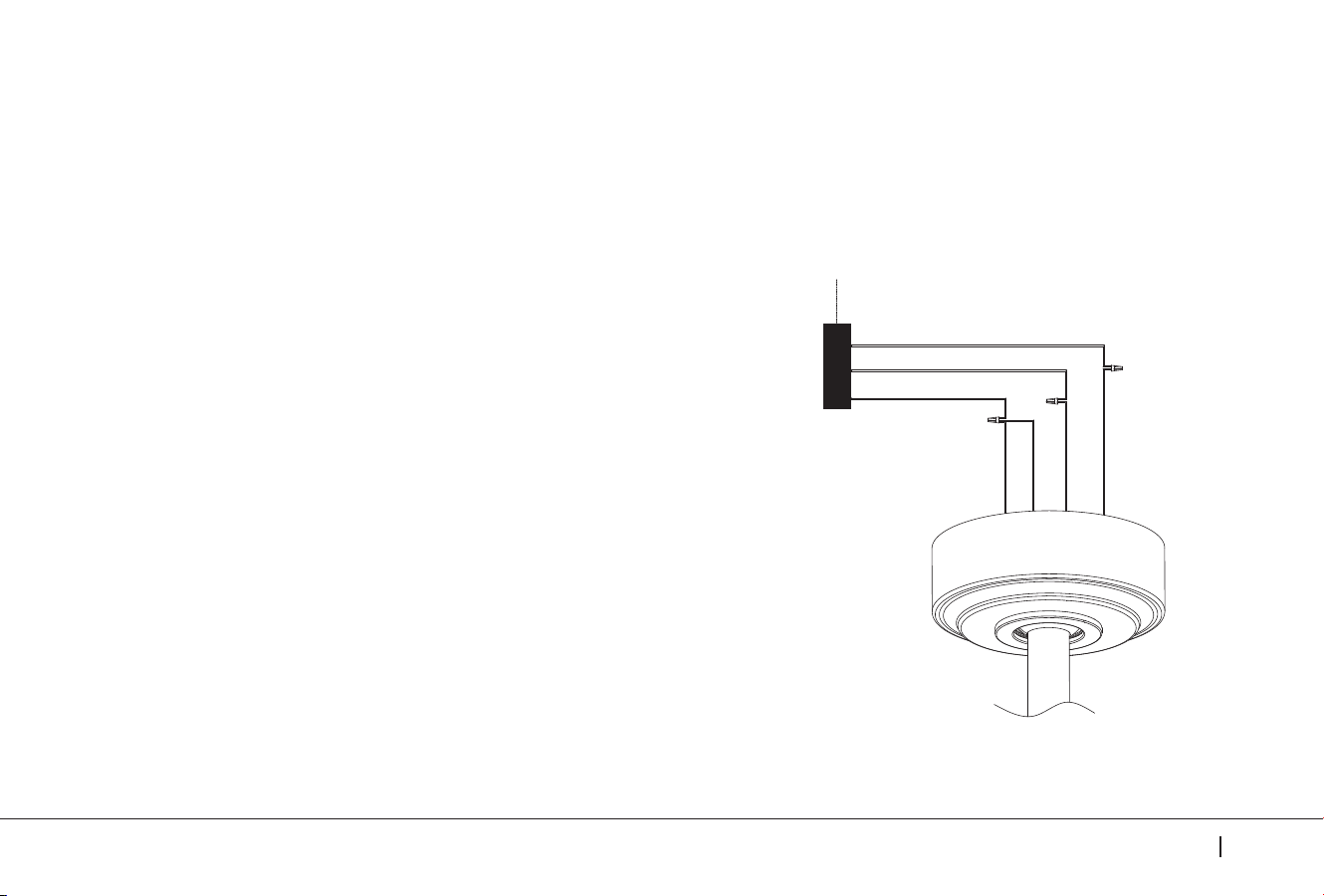

Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the
household supply (black) wire as shown in Figure 13.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (yellow/green) to the household ground
wire.
Step 4. After connecting the wires, turn the wire connecting nuts upward,
and push the wiring into the outlet box. Spread them apart so that the green
(ground) and white (neutral) wires are on one side of the outlet box and the
black (hot) wires are on the other side.
MAKE THE ELECTRICAL CONNECTIONS
Black
Black AC IN L
White AC IN N
Blue
White
Yellow / Green
Green GROUND
OUTLET BOX
CONNECTION
Fig. 13

KICHLER.COM12
FINISHING THE INSTALLATION
Fig. 14
Fig. 15
Fig. 16
Mounting Bracket
Shoulder Screw
Shoulder Screw
CAUTION: Before continuing installation, confirm that the
power is still turned o at the main circuit breaker or by
removing the circuit fuse. Turning the power o using a
wall switch is not sucient to prevent electrical shock.
NOTE: Adjust the shoulder screws as necessary until the canopy and
canopy trim ring are snug. (Fig. 16)
Step 1. Loosen the two shoulder screws at the bottom of the
mounting bracket.(do not remove). (Fig. 14)
Step 3. Raise the canopy trim ring to the canopy. Place the key hole slots
in the canopy trim ring over the heads of the shoulder screws. Rotate the
canopy trim ring (clockwise) until it locks in place against the shoulder
screws (at the narrow ends of the key hole slots). (Fig. 16)
Step 2. Raise the canopy to the mounting bracket. Place the key hole
slots in the canopy over the shoulder screws in the mounting bracket.
Rotate the canopy (clockwise) until the canopy locks in place against
the shoulder screws (at the narrow ends of the key hole slots).
Tighten the two shoulder screws to secure the canopy in place. (Fig. 15)
WARNING: Make sure the "Check Tab" at the bottom of the ceiling mounting
bracket is properly seated in the "Registration Slot" on the side of the hanger ball
before attaching the canopy to the ceiling mounting bracket.
Canopy
Shoulder Screw
Shoulder Screw
Shoulder Screw
Canopy Trim Ring
Shoulder Screw

1352" Spyn Lite

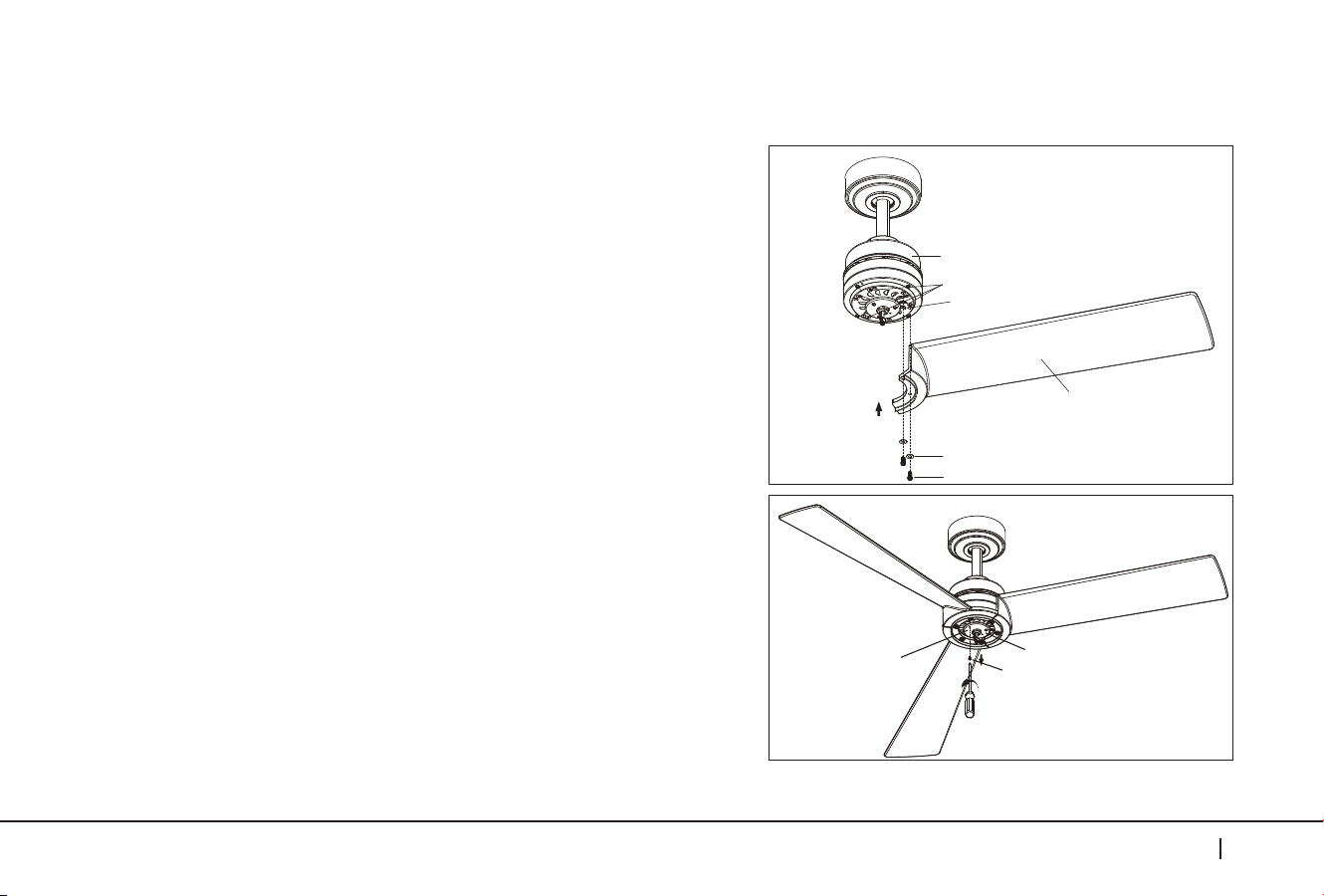

ATTACHING THE FAN BLADES
INSTALLING THE SWITCH COVER
Motor Body
Motor Flywheel
Label (A/B/C)
Fan Blades
Washers
Fan Blade Mounting Screws Fig. 17
Fig. 18
Mounting Plate Screw
Mounting Plate
CAUTION: Before continuing installation, confirm that the power is
still turned o at the main circuit breaker or by removing the circuit
fuse. Turning the power o using a wall switch is not sucient to
prevent electrical shock.
CAUTION: Before continuing installation, confirm that the power is still
turned o at the main circuit breaker or by removing the circuit fuse.
Turning the power o using a wall switch is not sucient to prevent
electrical shock.
Step 1. NOTE: The holes in the fan blades and the holes in the motor
flywheel are marked "A", “B", or "C".
Line up the holes in the fan blades with the holes in the motor flywheel
(Line up A to A, B to B, and C to C). Attach fan blades to the flywheel
with the washers and fan blade mounting screws provided. Tighten
to secure. (Fig. 17)
Step 1. Remove the mounting plate screw that is marked with a brown
dot label from the mounting plate. Retain mounting plate screw.
Loosen the other two mounting plate screws (do not remove). (Fig. 18)
Brown Dot Label

KICHLER.COM14
INSTALLING THE SWITCH COVER (CONTINUED)
INSTALLING THE SWITCH HOUSING Fig. 19
Fig. 20
Mounting Plate Screw
Switch Cover
Mounting Plate
Mounting Screws
Switch Cover
Step 1. Remove the three preinstalled mounting screws from the outside
edge of the switch cover. Retain mounting screws. (Fig. 20)
CAUTION: Before continuing installation, confirm that the power is still
turned o at the main circuit breaker or by removing the circuit fuse.
Turning the power o using a wall switch is not sucient to prevent
electrical shock.
Step 2. Place the key hole slots in the switch cover over the 2 mounting
plate screws that were loosened on the mounting plate. Rotate the switch
cover (clockwise) until it locks in place against the mounting plate screws
at the narrow ends of the key hole slots.
Align the remaining hole in the switch cover with the remaining hole in the
mounting plate. Install the mounting plate screw that was removed from
the mounting plate into the aligned holes. Tighten all 3 mounting plate
screws to secure the switch cover in place. (Fig.19)

1552" Spyn Lite
INSTALLING THE SWITCH HOUSING (CONTINUED)
Step 2. Raise the switch housing close to the fan, and push the square wire
connectors together (one from the fan and one from the switch housing).
(Fig.21)
NOTE:The connectors will ONLY engage when the color coded strips are
matched (aligned).
Step 3. Carefully push all the wires into the switch housing. Attach the
switch housing to the switch cover with the mounting screws that were
removed in Step 1. Make sure each screw is tight. (Fig. 21) Fig. 21
Fig. 22
Pull Chain Extension and Fob
Switch Cover
Switch Housing
Mounting Screws
Wire Connectors
Step4. Install the pull chain extension and fob. (Fig. 22)

KICHLER.COM16
Reverse Switch Pull Chain

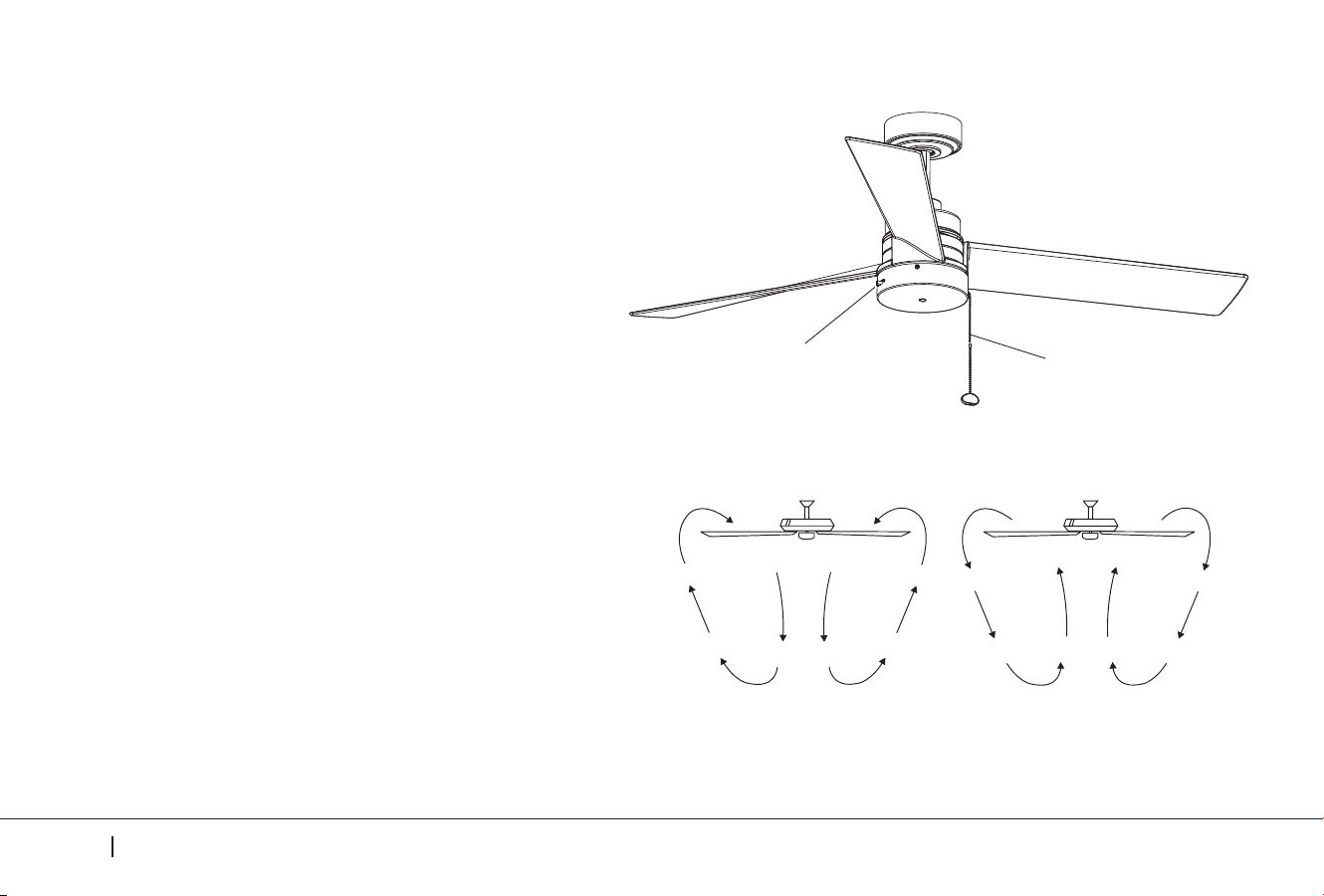

OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan.
The pull chain controls the 3 speeds of your ceiling fan. (Fig. 23)
1st pull = High, 2nd pull = Medium, 3rd pull = Low and the 4th pull
turns the fan motor o.
WARNING: Do not operate reversing switch while fan
blades are in motion. Fan must be turned o and
blades stopped before reversing blade direction.
The switch on the side of the switch housing controls the
direction of the fan blades, "Forward" or "Reverse". (Fig. 23)
Warm Weather Operation: Forward (fan rotates counter
clockwise). A downward airflow creates a cooling eect
(Fig. 24). This allows you to set your air conditioner on a
warmer setting without aecting your general comfort.
Cool Weather Operation: Reverse (fan rotates clockwise).
An upward airflow moves warm air o the ceiling areas
(Fig. 25). This allows you to set your heating unit on a cooler
setting without aecting your general comfort.
Fig. 23
Fig. 24 Fig. 25

1752" Spyn Lite
TROUBLESHOOTING
WARNING: To reduce the risk of personal injury and to ensure the proper operation of your ceiling fan,
never attach the blade assemblies until the ceiling fan has been mounted on the ceiling.
Do not bend the blade while installing, Balancing or cleaning the fan. Do not Insert foreign objects
between rotating fan blades.
1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappears during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling fan motors
or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling probems are caused when blade levers are unequal. Check this level by selecting a point on the
ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within 1/8”.
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
Problem Solution
Fan will not start.
Fan sounds noisy.
Fan wobble.

REV. 14-NOV-2023
© Kichler Lighting LLC. All RIghts Reserved.
KICHLER LIGHTING LLC
30455 Solon Rd.
Solon, OH 44139 USA.
CUSTOMER SERVICE 866.558.5706
8:00 AM TO 5:00 PM EST, MONDAY - FRIDAY

MANUEL D’INSTRUCTIONS
Modèle n° 300375
Les images du produit peuvent varier légèrement du produit réel.
Spyn Lite de 52 po
LISEZ ET CONSERVEZ CES INSTRUCTIONS
