60" HATTERAS BAYTM PATIO LED
INSTRUCTION MANUAL
Product images may vary slightly from actual product.

TABLE OF CONTENTS
SAFETY RULES......................................................... 4
5
5
6
7
11
12
14
15
15
TOOLS REQUIRED....................................................
PACKAGE CONTENTS ..............................................
MOUNTING OPTIONS ................................................
INSTALLATION OF S AFETY SUPPORT...................
ELECTRICAL CONNECTIONS ..................................
FINISHING THE INSTALLATION................................
ATTACHING THE FAN BLADES ................................
HANGING THE FAN ...................................................
INSTALLING THE LIGHT FIXTURE...........................
INSTALLING THE LIGHT PLATE AND GLASS LENS...16
17
19
20
OPERATING INSTRUCTIONS .........................................
INSTALLING THE TRANSMITTER.................................. 18
OPERATING INSTRUCTIONS ........................................
TROUBLESHOOTING.....................................................
60" HATTERAS BAYTM PATIO LED | 3
21
21
SPECIFICATIONS ...........................................................
FCC INFORMATION.......................................................
INSTALLING THE BATTERIES........................................17

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been turned off at
the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code (NEC)
and local electrical codes. Electrical installation should be performed by
a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, or personal injury,
use mounting screws provided with the outlet box for mounting to the
outlet box. Most outlet boxes commonly used for the support of lighting
fixtures are not acceptable for fan support and may need to be
replaced. Due to the complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
The outlet box and support structure must be securely mounted and capable
of reliably supporting a minimum of 50 pounds. Use only CUL Listed outlet
boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.

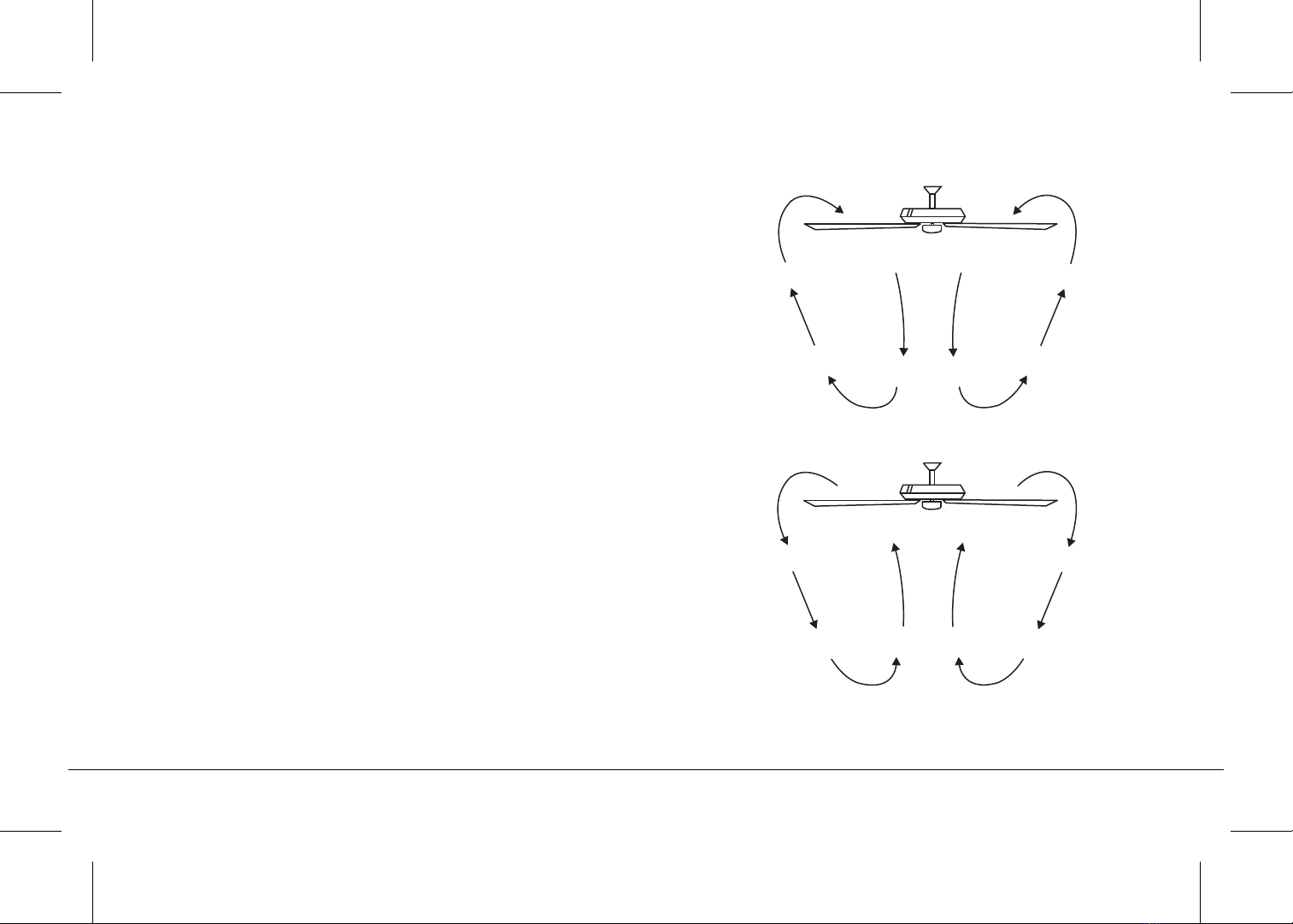

To operate the reverse function on this fan, press the reverse button while
the fan is running.
Avoid placing objects in the path of the blades.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT”.
To avoid personal injury or damage to the fan and other items, be cautious when
working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth
or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned upward and
pushed carefully up into outlet box. The wires should be spread apart with the ground
wire and white (common) wire to one side with the black (load) wire to the other side
of the outlet box.
Electrical diagrams are reference only. Light kits that are not packed with the fan
must be CUL Listed and marked suitable for use with the model fan you are installing.
Switches must be CUL General Use Switches. Refer to the Instructions packaged
with the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE
PATH OF THE BLADES.
4.
5.
6.
7.
8.
9.
10.
11.
Special Notice
This appliance is equipped with a "Wattage Limiting Device" required by the
United States Department of Energy. The device has been installed at the
factory and can not be removed.
Installing Lamps in excess of 75 total watts will disable the unit's light fixture. If
this should happen, you will need to reset the lighting fixture by turning the
power off to the ceiling fan and/or light fixture, reinstalling lamps totaling less
that 75 watts and then turning the power back on.

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
Unpack your fan and check the
contents. You should have the
following items:
a.
b.
Fan blades (5)
Ceiling mounting bracket
c. Canopy
d. Decorative mounting screw cover
e. Ball/downrod assembly
f. Coupling cover
g. Fan motor assembly
h. Set of blade brackets (5)
i. Blade bracket medallions (5)
j. 23W LED light kit
k. Light Fixture
l. Receiver
m. Wall Transmitter
n. Part bag contents
1)
2)
Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (12)
Rubber gasket
3) Blade attachment hardware:
screws (17), rubber washers (17),
iron washers (17)
4) Safety cable hardware: wood
screw, lock washer, flat washer
5) Balance Kit
60" HATTERAS BAYTM PATIO LED | 5
a
b
c
d
h
i
j
k
l
m
n
e
f
g

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and
its support must be able to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic outlet boxes.

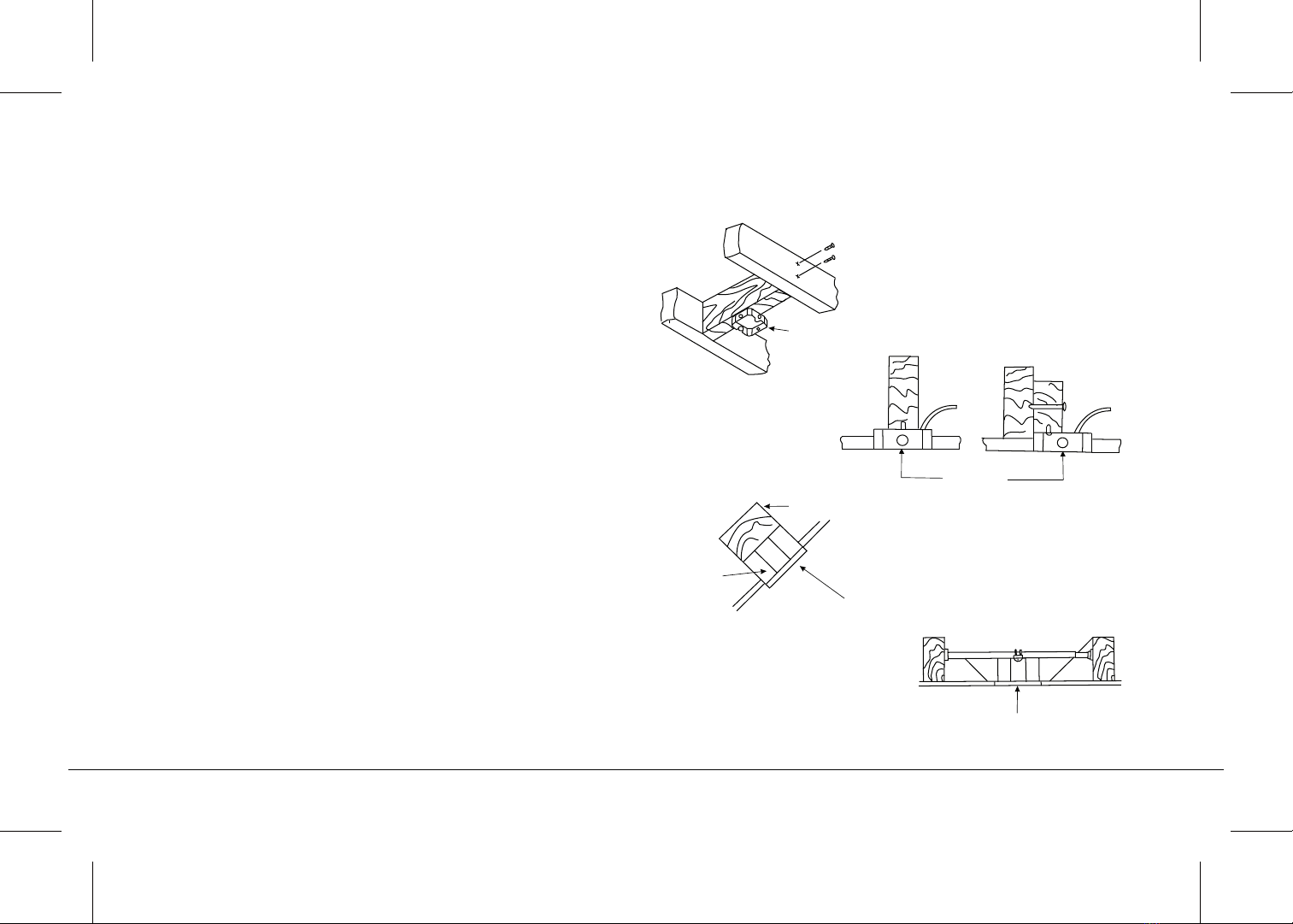

Figures 1, 2 and 3 are examples of different ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a "Joist Hanger"
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4
MOUNTING OPTIONS

HANGING THE FAN
NOTE: This ceiling fan is supplied with two types of hanging
assemblies; a downrod and canopy mounting system and a "close to
ceiling" Canopy ONLY system. The "close-to- ceiling" installation is
recommended in rooms with less than 8-foot ceilings or in areas
where additional space is desired from the floor to the fan blades.
Once you have selected which mounting system you will use,
proceed with the following instructions. Where necessary, each
section of the instructions will note the different procedures to follow
for the two types of mounting.
REMEMBER to turn off the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 5)
Step 2. Attach the ceiling mounting bracket to the outlet box using
the screws and washers included with the outlet box. (Fig. 5)
Fig. 5
60" HATTERAS BAYTM PATIO LED | 7
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
outlet box
120V Wires
Washers

8 | KICHLER.COM

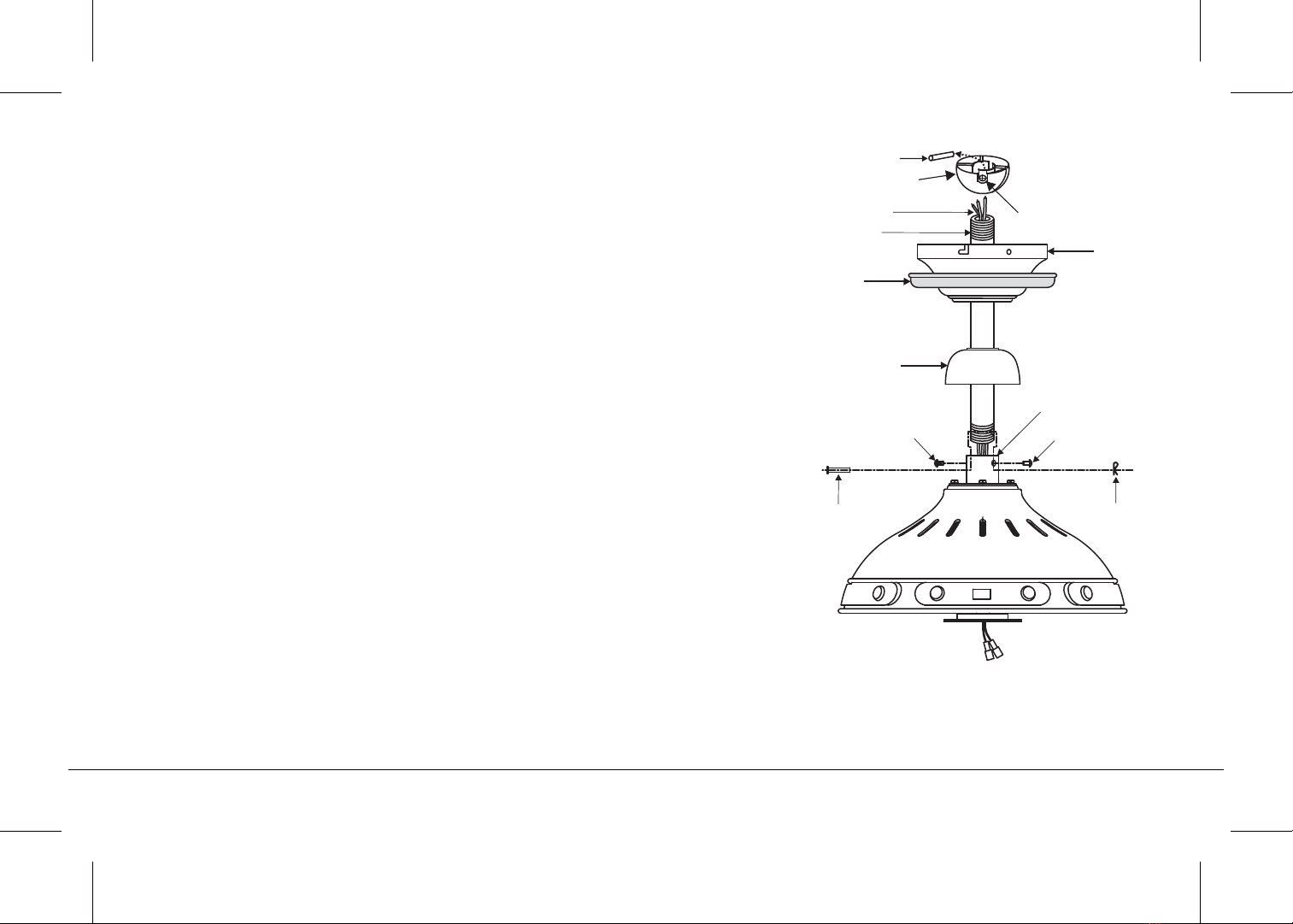

STANDARD CEILING INSTALLATION
Step 1. Remove the hanger ball from the downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off the rod. (Fig. 6)
Step 2. Loosen the two set screws and remove the hitch pin and retaining clip from the
coupling on top of the motor assembly. (Fig. 6)
Step 3. Carefully feed the electrical lead wires from the fan up through the downrod.
Thread the downrod into the coupling until the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 6)
Step 4. Slip the coupling cover, decorative mounting screw cover and canopy onto the
downrod.
Thread the hanger ball onto the downrod, insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 6)
Fig. 6
Cross pin
Hanger
ball
Set screw
Supply wires
Downrod
Retaining pin
Hitch pin
Set screws
Coupling
Set screws
Canopy
Decorative
mounting
screw cover
Coupling cover

Fig. 7
STANDARD CEILING
INSTALLATION (continued)
Step 5. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 7)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to properly seat the "Check Tab" can damage the
ceiling fan during operation.
60" HATTERAS BAYTM PATIO LED | 9
Registration slot
Check tab

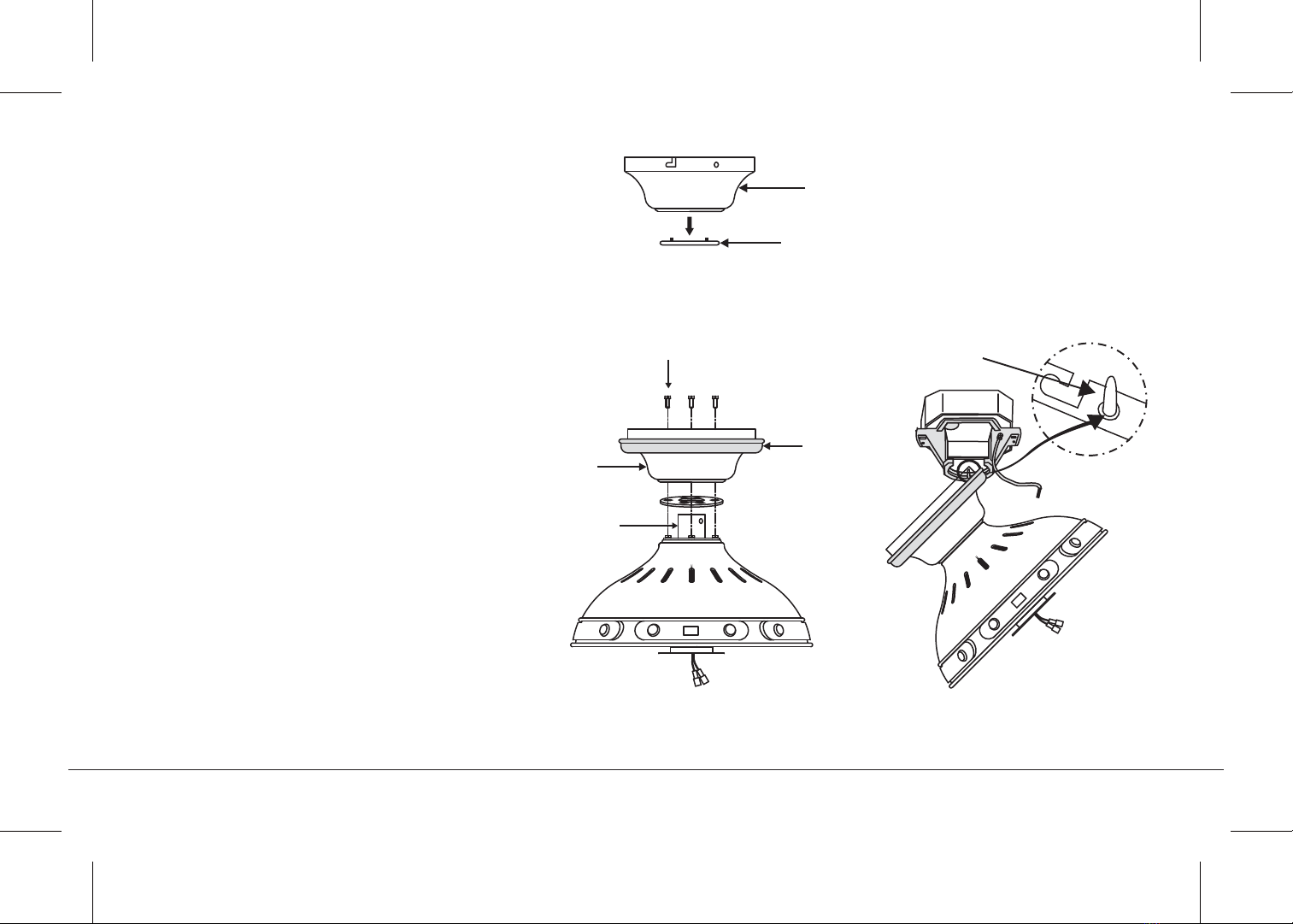

CLOSE-TO-CEILING
INSTALLATION
Step 1. Remove the decorative canopy bottom
cover from the canopy. (Fig. 8)
Step 2. Remove three of the six screws and
lock washers (every other one) from the coupler on
top of the motor assembly. Place the ceiling fan
canopy and the rubber gasket over the coupler
and align the mounting holes with the holes in the
coupler. Attach the canopy with the rubber
gasket and the three screws and lock washers
previously removed, and then push the
decorative mounting screw cover "down" and let it
rest on top of the motor housing. (Fig. 9)
WARNING: Failure to completely tighten the three
mounting screws in step 10 could result in the fan
possibly falling from the ceiling.
Step 3. Hang the fan on the ceiling mounting
bracket by inserting the hook on the inside edge of
the ceiling mounting bracket through one of the
screw holes in the ceiling canopy. (Fig. 10) This will
allow you to have both hands free to make the
wiring connections.
Canopy
Decorative
mounting
screw
cover
Screws and Lock washers
(3 of 6 places)
Coupling
Canopy
Decorative canopy
bottom cover
Hook
Fig. 8
Fig. 9Fig. 10
10 | KICHLER.COM

NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with
any installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from
falling, please install it as follows.
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
Fig. 11
Hanger bracket
Safety cable Attach safety cable to
ceiling joist with screw
and washer
60" HATTERAS BAYTM PATIO LED | 11

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have
turned off the power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring.
Use the wire connecting nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there are no loose wire
strands or connections.
NOTE: The CoolTouch™ Control System is equipped with 16
possible frequency combinations to prevent interference from or with
other remote control units. The frequency switches on your receiver
and transmitter have been preset at the factory. Please recheck to
make sure the switches on transmitter and receiver are set to the
same position, any combination of settings will operate the fan as long
as the transmitter and receiver are set to the same position. (Fig. 12)
Step 1. Insert the receiver into the ceiling mounting bracket with the
flat side of the receiver facing the ceiling. (Fig. 13) For best
performance, make sure the Black Antenna, on the end of the
receiver, remains extended and not tangled with any of the electrical
wires.
Fig. 12
Fig. 13
Code switch
HI
MED
LOW
FAN OFF
ON ECE
2111
ON ECE
1121
ON
Receiver
Hanger
bracket
12 | KICHLER.COM

ELECTRICAL CONNECTIONS
(continued)
Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Connect
the black wire from the fan to the black wire marked "TO MOTOR L"
on the receiver. Connect the white wire from the fan to the white wire
marked "TO MOTOR N" on the receiver. Connect the blue wire from
the fan to the blue wire marked "FOR LIGHT" on the receiver. Secure
all the wire connections with the plastic wire nuts provided.
Step 3. (Fig. 14) Receiver to House Supply Wires Electrical
Connections: Connect the black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver. Connect the white (neutral)
wire from the ceiling to the white wire marked "AC in N" from the
Receiver. Secure the wire connections with the plastic wire nuts
provided.
Step 4. (Fig. 14) Connect the ground wire (green or bare copper)
from the outlet box to the ground wire on the ceiling mounting bracket
and the ground wire from the ceiling fan. After making all connections,
separate the white and green wire connections to one side and the
black wire connections to the other side of the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from
the CoolTouch™Remote Transmitter for optimal signal transmission
between the transmitter and the fan's receiving unit.
Fig. 14
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for light)
Blue (for light)
Black (motor)
60" HATTERAS BAYTM PATIO LED | 13

Fig. 15
FINISHING THE INSTALLATION
STANDARD CEILING INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the ceiling and attach the canopy to the ceiling
mounting bracket using 4 screws at the top edge of the mounting bracket. Insert each
screw through the canopy mounting hole and into the mounting bracket. Slide the
canopy cover up to the canopy and rotate clockwise until tight. Tighten all screws
securely. (Fig. 15)
Step 3. Slide the decorative mounting screw cover up to cover the mount screw
heads.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the ceiling mounting bracket. Attach the fan
assembly to the ceiling mounting bracket using 4 screws at the top edge of the
canopy. Insert each screw through the canopy mounting hole and into the mounting
bracket. Tighten all screws securely.
Slide the decorative mounting screw cover up to cover the mount screw heads.
(Fig. 16).
Outlet box
Ceiling mounting
bracket
Canopy
Canopy cover
Screws
Outlet box
Ceiling mounting
bracket
Canopy Screws
Decorative
mounting
screw cover
Decorative
mounting
screw cover
Fig. 16
14 | KICHLER.COM

Fig. 17
ATTACHING THE FAN BLADES
Step 1. Place a blade between a blade bracket and a blade bracket
medallion. Attach all three pieces using the screws , fiber washers and
iron washers provided. (Fig. 17)
Make sure the blade is straight when set on the blade bracket and the
medallion. Tighten each mounting screw and then repeat this procedure
for each blade.
Step 2. Attach each blade assembly to the motor using two mounting
screws for each blade assembly. (Fig 17)
NOTE: Make sure these mounting screws are securely tightened.
INSTALLING THE LIGHT FIXTURE
Step 1. Loosen the two screws on the mounting ring attached to the
motor shaft and "remove" and save the third screw. (Fig. 18)
Step 2. Loosen the padlocks on one side of the light fixture allowing the
lens holder to open.
Step 3. Place the key hole slots on the light plate over the two screws
previously loosened on the mounting ring.
Turn the light plate until it locks in place at the narrow section of the key
hole slots.
Tighten both key hole screws and replace the third screw previously
removed and tighten securely. Fig. 18
Blades
Screws
Blade
bracket
medallions
Blade brackets
Fiber washers
Iron washers
Screws
Screws
Mounting ring
Light fixture
Padlocks
60" HATTERAS BAYTM PATIO LED | 15

Fig. 19
Fig. 20
INSTALLING THE LED LIGHT
PLATE AND GLASS LENS
Step 1. Loosen the three mounting screws on the inside of the light
fixture and "remove" and save the fourth screw. (Fig.19)
Step 2. Hold the light plate close to the light fixture and connect the white
wires from the light plate and the fan. Follow the same procedure with the
black wire connectors: (Fig. 19)
Step 3. Tuck the connections neatly into the light fixture.
NOTE: Be careful not to pinch the light plate wires between the light plate
and the light fixture.
Step 4. Place the light plate key hole slots over the three screws
previously loosened on the light fixture and turn the light plate until it
locks in place at the narrow section of the key hole slots. Tighten the
three key hole screws and replace the fourth screw previously removed
and tighten securely. (Fig. 19)
Carefully lift the light fixture lens onto the lens holder align the edge and
close the light fixture.
NOTE: Make sure to the padlocks and tighten to prevent the lens holder
from coming tumble.(Fig. 20)
Light fixture
Padlocks
Glass lens
LED Light
kit Wire connector
Mounting screws
Light fixture
16 | KICHLER.COM

Fig. 21
Fig. 22
HI Button
MED Button
LOW Button
= High Speed
= Medium
= Low Speed
FAN OFF Button = Motor Off
LIGHT Button = Light ON or OFF
used to set the fan forward or reverse, press the button forward (for warm
weather) or reverse (for cool weather).
Speed settings for warm or cool weather depend on factors such as the
room size. Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on this fan, press the reverse button
while the fan is running.
INSTALLING THE BATTERIES
Remove the face plate of the Wall Switch by lifting at the top
and then insert the supplied 12V battery. Duracell MN21/
Eveready A23/GP 23A all 12V.
Replace the switch face plate.
To prevent possible damage to the transmitter, remove these
batteries if not used for long periods of time (months).
OPERATING INSTRUCTIONS
H
I
ME
D
LO
W
FAN OFF
ON
ECE
1234
23AE 12V
REV Button = The “REV” button is
60" HATTERAS BAYTM PATIO LED | 17

Fig. 23
Fig. 24
INSTALLING THE TRANSMITTER
NOTE: All wiring and transmitter installation must be in accordance
with the National Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed electrician.
WARNING: Shut off main power at the circuit breaker or fuse panel
before continuing.
Select a location to install the transmitter and transmitter wall plate.
You can replace a pre-existing wall switch with the transmitter, or
install the transmitter to a new wall outlet box.
REMEMEBER you can safely use the transmitter outdoors but it
should be mounted indoors away from excess heat and away from
contact with water or humidity.

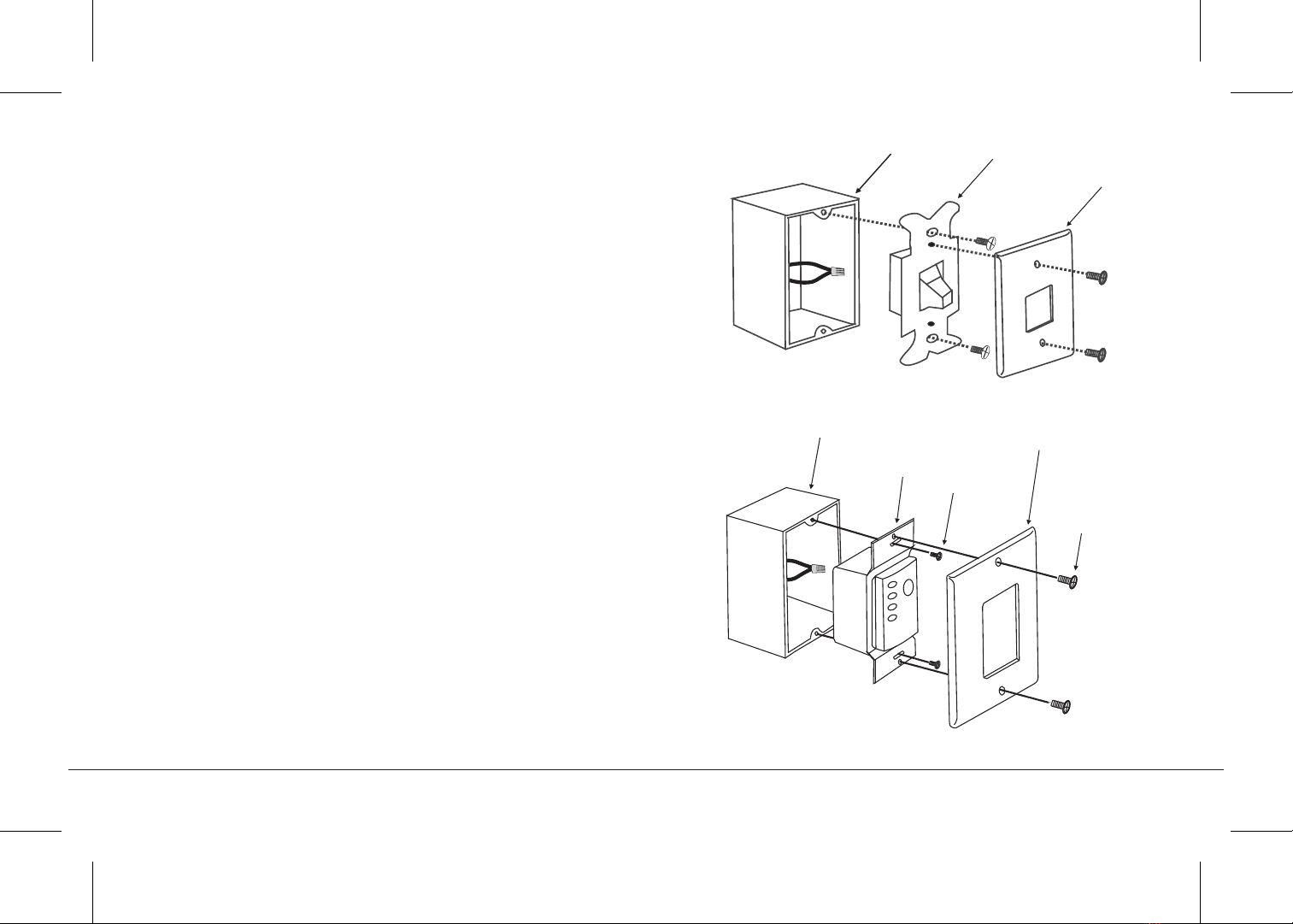

Step 1. Remove the pre-existing wall plate and wall switch from pre-
existing wall outlet box. Disconnect wires from switch. Wire nut the
BLACK leads (hot) together, and push wires back inside the wall
outlet box (Fig. 23). Or select a desired location with a new outlet box.
Step 2. Use the screws provided to install the transmitter to the wall
outlet box (Fig. 24).
Step 3. Use the screws provided to install the transmitter wall plate
(Fig. 24).
Wall plate
Wall switch
Wall outlet box
Screws
Wall outlet box
Screws
Transmitter wall plate
Transmitter
18 | KICHLER.COM

Fig. 25
Fig. 26
OPERATING INSTRUCTIONS
NOTE: To operate the reverse function on this fan, press the
reverse button while the fan is running.
Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling effect as shown in Fig. 25. This allows you to
set your air conditioner on a warmer setting without affecting your
comfort.
Cool weather - Reverse (clockwise) An upward airflow
moves warm air off the ceiling area as shown in Fig. 26. This
allows you to set your heating unit on a cooler setting without
affecting your comfort.
60" HATTERAS BAYTM PATIO LED | 19

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
3. Make sure transmitter batteries are installed properly, and ensure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
TROUBLESHOOTING
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other
control system EXCEPT a basic On/Off wall switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other electrical wires and is
extended around the inside of the ceiling canopy.
20 | KICHLER.COM
