Kichler Lighting 52" Basics Pro User manual

INSTRUCTION MANUAL
Product images may vary slightly from actual product.
52" BASICS PRO

KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES .........................................................4
TOOLS AND MATERIALS REQUIRED .......................5
PACKAGE CONTENTS ...............................................5
MOUNTING OPTIONS ................................................6
HANGING THE FAN .....................................................7
INSTALLATION OF SAFETY SUPPORT ....................10
ELECTRICAL CONNECTIONS ..................................11
FINISHING THE INSTALLATION.............................12
ATTACHING THE FAN BLADES ..............................13
INSTALLING THE SWITCH HOUSING ....................13
OPERATING INSTRUCTIONS ................................14
TROUBLESHOOTING .............................................15
SPECIFICATIONS.....................................................16
52" BASICS PRO | 3

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been turned off at
the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code (NEC)
and local electrical codes. Electrical installation should be performed by
a qualified licensed electrician.
3. WARNING: To reduce the risk of personal injury, use only the two steel
screws (and lock washers) provided with the outlet box for mounting to
the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be
replaced, consult a qualified electrician if in doubt.
The outlet box and support structure must be securely mounted and capable
of reliably supporting a minimum of 50 pounds. Use only CUL Listed outlet
boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 7 feet clearance from the
trailing edge of the blades to the floor.
Do not operate reversing switch while fan blades are in motion. Fan must be
turned off and blades stopped before reversing blade direction.
Avoid placing objects in the path of the blades.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
“ACCEPTABLE FOR FAN SUPPORT”.
To avoid personal injury or damage to the fan and other items, be cautious when
working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth
or lightly dampened cloth will be suitable for most cleaning.
After making electrical connections, spliced conductors should be turned upward and
pushed carefully up into outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor on one side of the outlet
box.
Electrical diagrams are reference only. Light kits that are not packed with the fan must
be Listed and marked suitable for use with the model fan you are installing. Switches
must be General Use Switches. Refer to the Instructions packaged with the light kits
and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE
BLADE BRACKETS (ALSO REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE
PATH OF THE BLADES.
4.
5.
6.
7.
8.
9.
10.
11.

B. Ceiling mounting bracket
C. Canopy
D. Ball/downrod assembly
E. Switch housing
F. Fan motor assembly
G. Set of 5 blade brackets and
Pre-installed mounting screws
52" BASICS PRO | 5

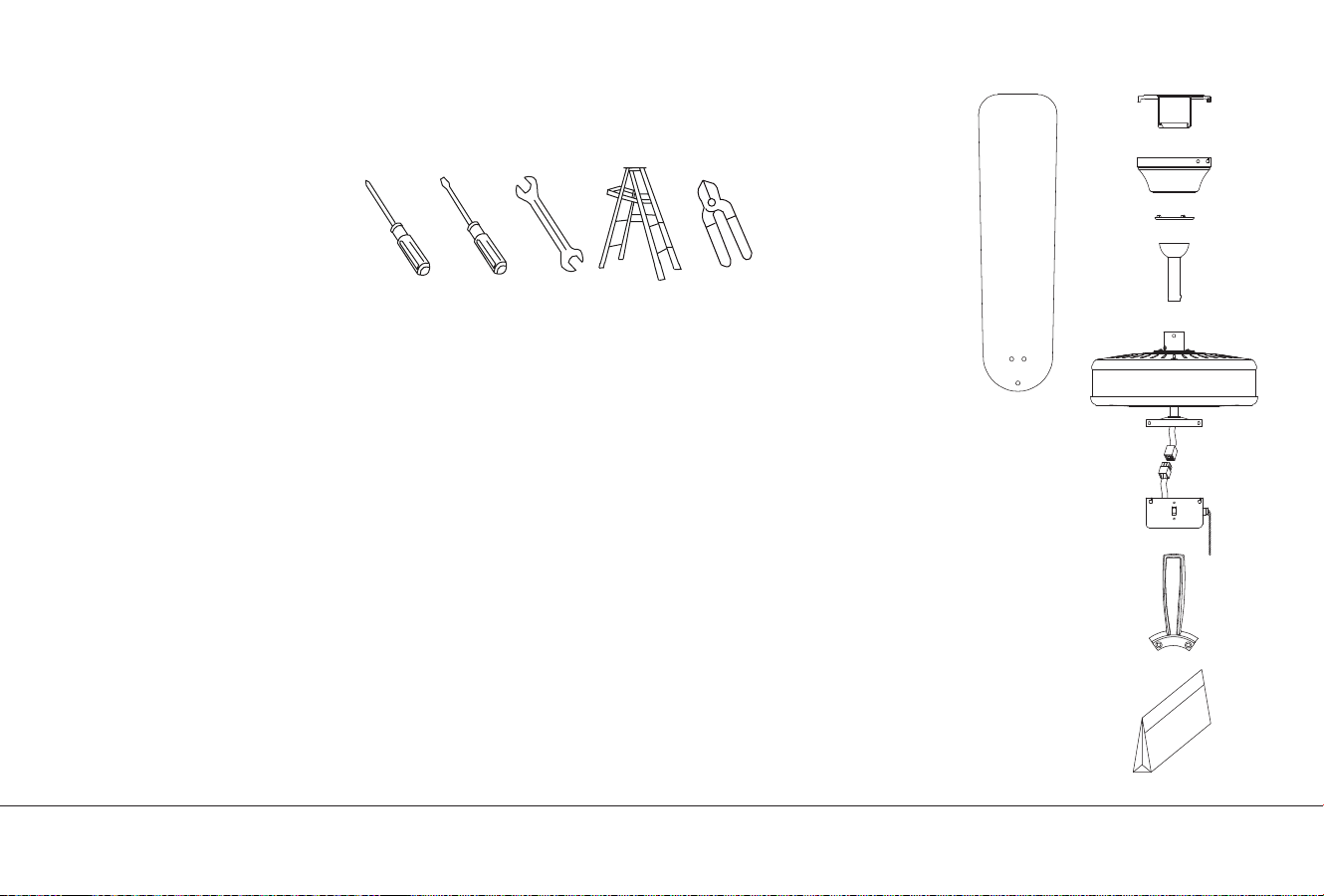

TOOLS AND MATERIALS REQUIRED
Phillips screwdriver
Blade screwdriver
11mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Fan blades (5)
a b
c
d
f
e
g
h
i
1)
2)
3)
Safety cable hardware:
wood screw (1), flat washer (1)
Blade attachment hardware: screws (17),
washers (17)
Blade bracket attachment hardware: screws (2)
4) Gasket
5) Pull chains and fobs (1)
6) Balance kit
7) Mounting hardware: wood screws(2), flat washers(2),
star washers(2), wire nuts(3) screws(2)
Canopy cover
H. Package hardware
I.

6 | KICHLER.COM
MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and
its support must be able to fully support the moving weight of the
fan (at least 50 lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a "Joist Hanger"
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 22° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn off the power. Follow the steps below to hang your fan
properly.
NOTE: This ceiling fan is supplied with two types of hanging assemblies; the
standard ceiling installation using the downrod with ball and socket mounting and
the “close-to-ceiling” installation. The “close-to-ceiling” installation is recommended
in rooms with less than 8-feet ceilings or in areas where additional space is
desired from the floor to the fan blades.
Fig. 5
CUL Listed
electrical
box
Ceiling
mounting
bracket
Hook
120V Wires
Washers
52" BASICS PRO | 7
Mounting screws
(supplied with
electrical box)

HANGING THE FAN
Standard Ceiling Installation

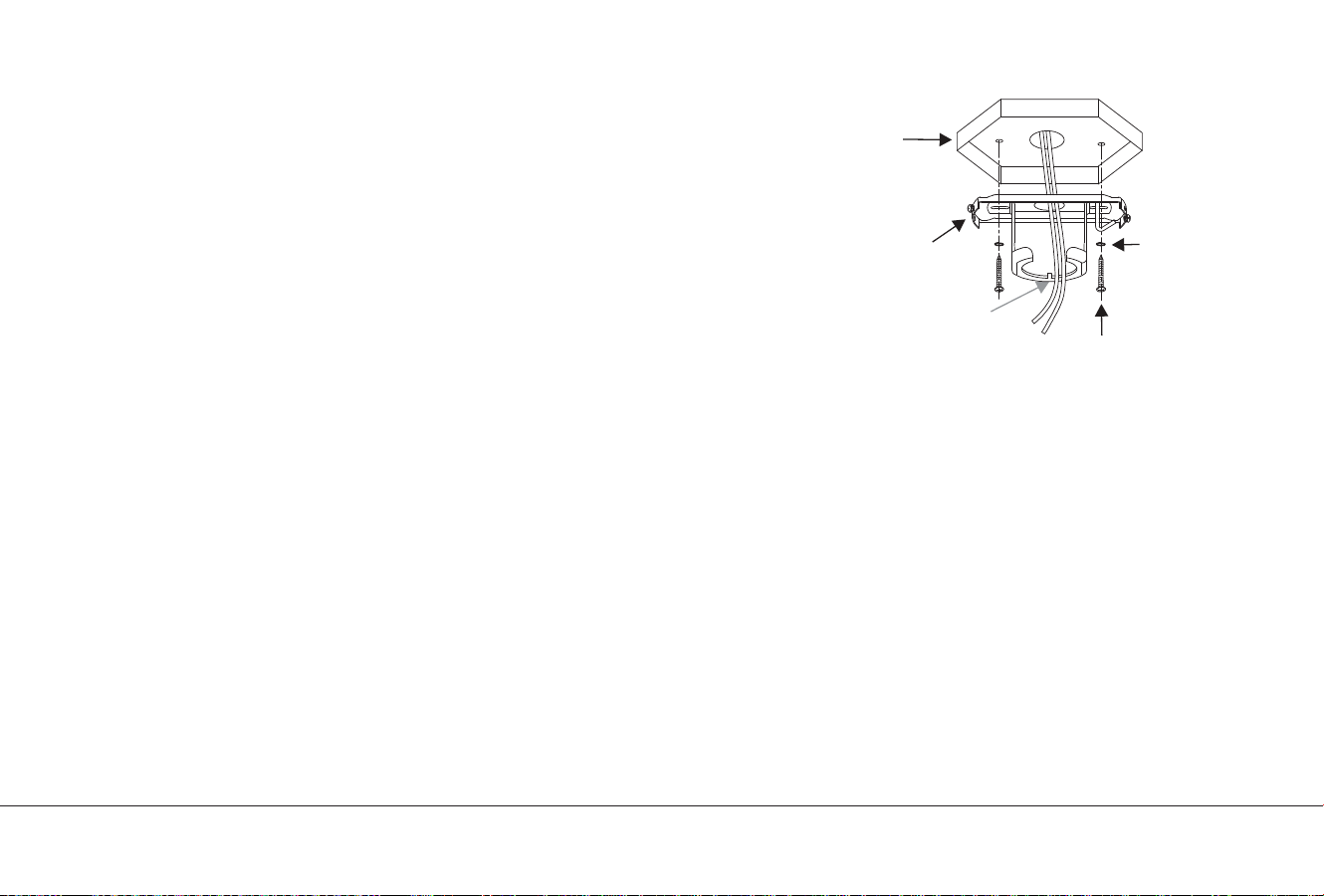

Step 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger
bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the ceiling outlet box with the screws and
washers provided with your outlet box.

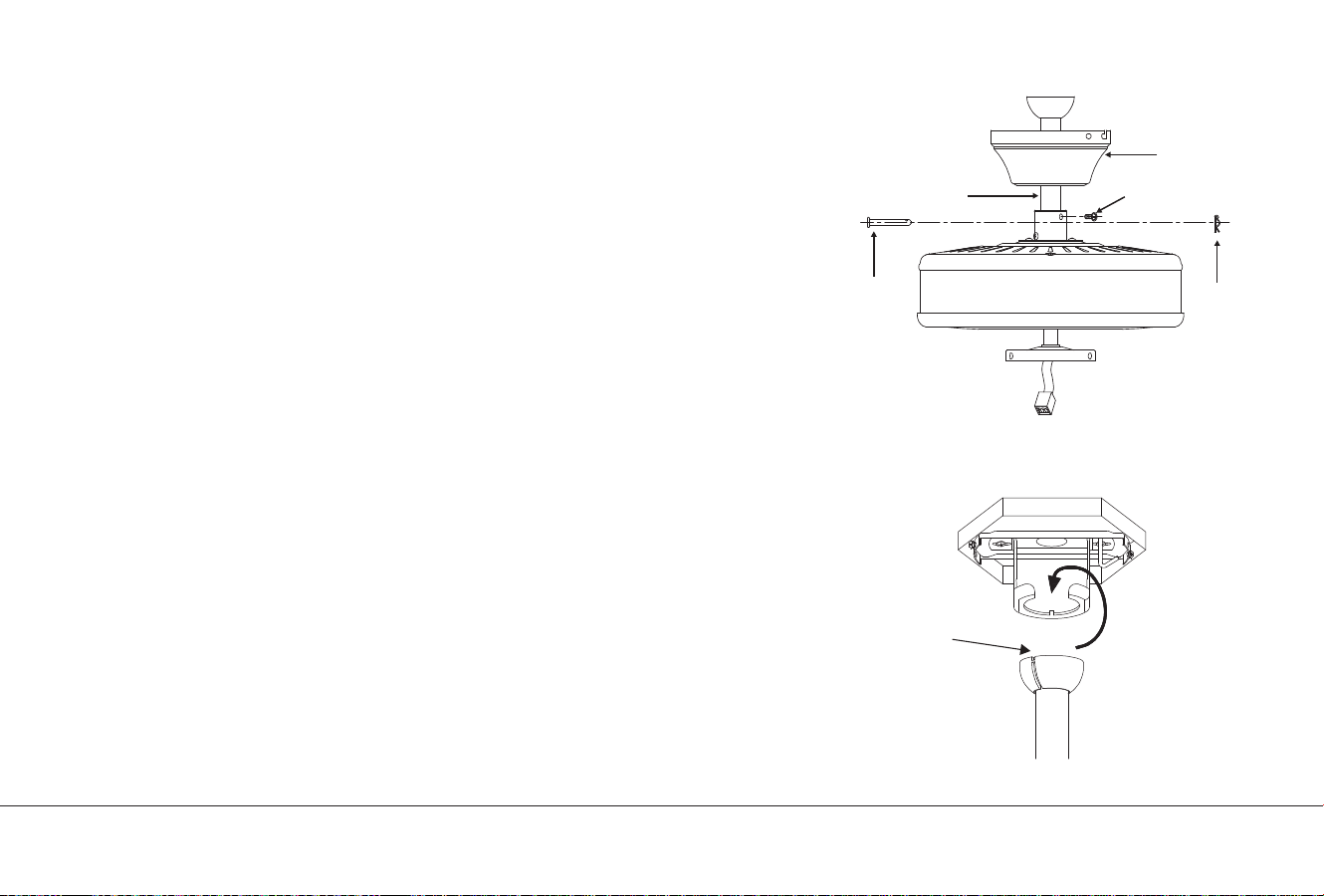

Step 3. Remove the hitch pin, lock pin and set screws from the top of the motor assembly.
Step 4. Route wires exiting from the top of the fan motor through the coupling
cover, canopy and then through the ball/downrod (Fig. 6)
Step 5. Align the holes at the bottom of the downrod with the holes in the collar on top
of the motor housing (Fig. 6). Carefully insert the hitch pin through the holes in the collar
and downrod. Be careful not to jam the pin against the wiring inside the downrod.
Insert the locking pin through the hole near the end of the hitch pin until it snaps into
its locked position, as noted in the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of the fan motor firmly (Fig. 6).
Step 7. Place downrod ball into the hanger bracket socket (Fig 7).
Rotate the entire assembly until the "Check Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 7)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab" can cause the fan to
fall from the ceiling during operation. Take special care to make sure this pin is reattached.
Fig. 7
Fig. 6
Downrod
Retaining clip
Set screws
Ceiling canopy
Hitch pin
Registration slot
8 | KICHLER.COM

Fig. 8
Hook
Fig. 9
52" BASICS PRO | 9
Screws and Lock
washers (3 of 6
places)
Canopy
Collar
Gasket
Canopy
Canopy cover
Fig. 8A
HANGING THE FAN
Close-To-Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole
in the ceiling hanger bracket as shown in Fig. 5.
Step 2. Remove the decorative canopy cover from the canopy
by turning canopy cover counterclockwise (Fig. 8A).
Step 3. Secure the hanger bracket to the ceiling outlet box
with the screws and washers provided with your outlet box.
Step 4. Remove three of the six screws and lock washers
(every other one) from the collar of top motor (Fig. 8B)
Step 5. Place the ceiling canopy and the gasket over the collar
at the top of the motor. Align the mounting holes with the holes
in the motor and fasten using the screws and lock washers
provided (Fig. 8B).
Step 6. Tighten the mounting screws securely (Fig. 8B).
WARNING: Failure to completely tighten the three screws in
step 4 could result in fan loosening and possibly falling.
Step 7. Hang the fan on the hook of the hanger bracket.
Be certain that the canopy is fully locked into hook as
shown in Fig. 9. This will allow you to make the electrical
connections.

INSTALLATION OF SAFETY SUPPORT
(Required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling.
Please install it as follows:

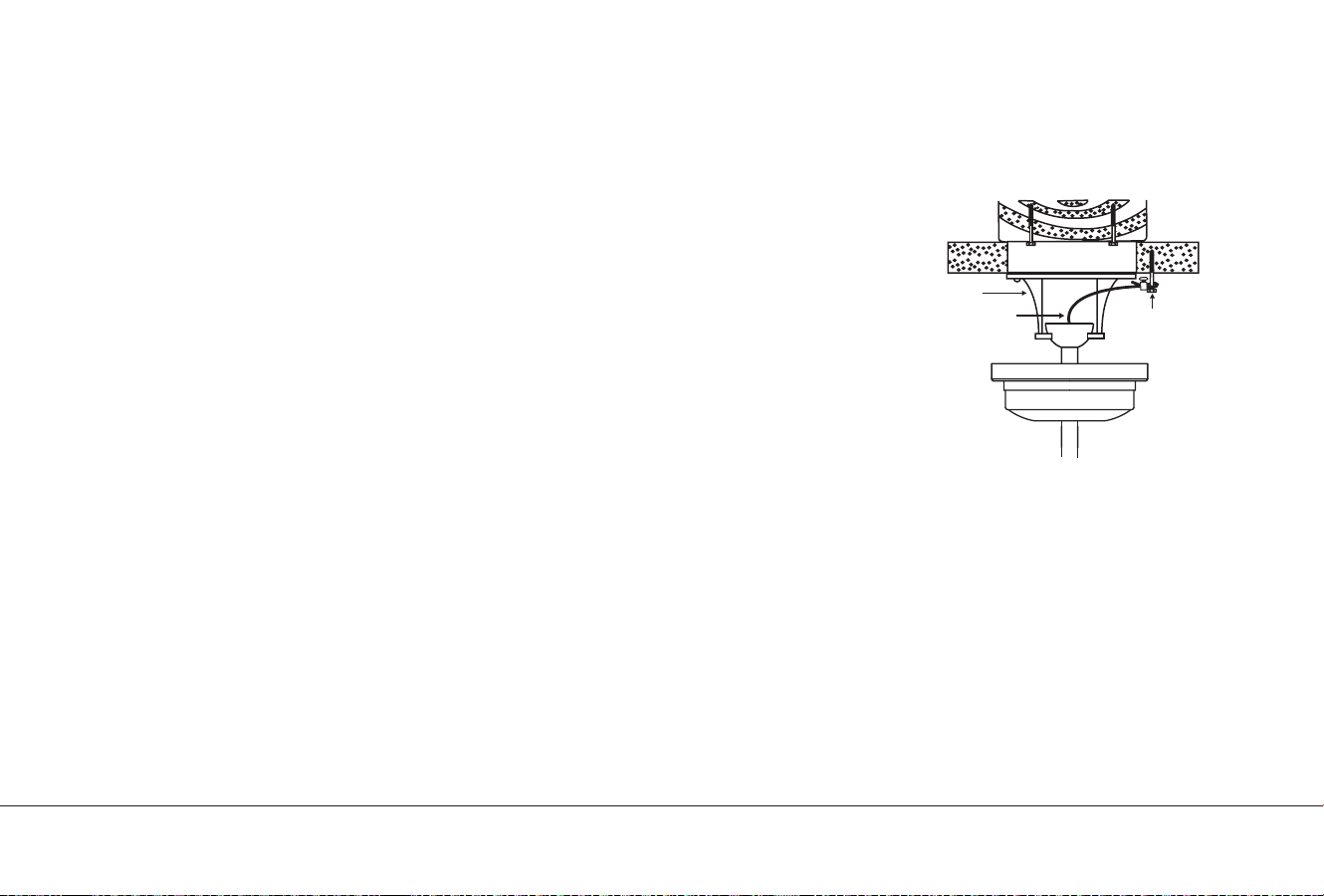

Step 1. Attach the provided wood screw and washers to the ceiling joist next to
the mounting bracket but do not tighten. (Fig. 10)
Step 2. Adjust the length of the safety cable to reach the screw and washers by
pulling the extra cable through the cable clamp until the overall length is correct.
Put the end of the cable back through the cable clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is required for Canadian installations
only, it’s a good idea to make the attachment with any installation.
Ceiling mounting bracket
Attach safety cable
to ceiling joist with
screw and washer
Fig. 10
10 | KICHLER.COM
Safety support cable

ELECTRIC CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned off the power
at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire
connecting nuts supplied with your fan. Secure the connector with electrical tape. Make
sure there are no loose wire stands or connections.
Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the black
household supply wire as shown in Figure 11.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white wires
are on one side of the outlet box and black wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box.
Wiring box
Green ground
Ground to
mounting
bracket or
downrod
Power lines 120v
Fig. 11
52" BASICS PRO | 11
BLK
WH
BLK
BLUE
WH
GRN

FINISHING THE INSTALLATION
Standard Ceiling Installation
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting
bracket using 4 screws at the top edge of the mounting bracket. Insert each screw
through the canopy mounting hole and into the mounting bracket. Tighten all screws
securely. (Fig. 12)
Close-To-Ceiling Installation
Step 1. Tuck all the wire connections neatly above the receiver and into the ceiling
outlet box.
Step 2. Remove the fan from the hook on the ceiling mounting bracket. Attach the
fan assembly to the ceiling mounting bracket using 4 screws at the top edge of the
mounting bracket.
Align the keyhole slots on the canopy with the mounting screw heads on the sides of
the mounting bracket. Lift up and turn the fan assembly until the heads of the
mounting screws are in the narrow end of the keyhole slots.
Step 3. Make sure all four mounting screws are tight. (Fig. 13)
Outlet box
Ceiling
mounting
bracket
Screws
Canopy
Screws
Fig. 12
Outlet box
Ceiling
mounting
bracket
Screws
Canopy
Screws
Hook
Fig. 13
12 | KICHLER.COM

ATTACHING THE FAN BLADES
CAUTION: Remove the rubber shipping blocks attached to the face of the motor. These
blocks keep the motor from shifting during shipping and MUST be removed during
installation.
Step 1. Attach the blade to the blade bracket using the screws and washers as shown in
Figure 14. Start screw into bracket. Repeat for the two remaining screws.
Step 2. Make sure the blade is straight and tighten each screw.
Step 3. Fasten blade assembly to motor using “Pre-Installed” mounting screws in the
blade bracket.
INSTALLING THE SWITCH HOUSING
NOTE: Before continuing installation, confirm that the power is still turned off at the main
circuit breaker or by removing the correct fuse. Turning the power off using a wall switch is
not sufficient to prevent electrical shock.
Step 1. While holding the switch housing under your ceiling fan, push the square wire
connectors together. One from the fan and one from the switch housing (Fig. 15).
NOTE: These connectors are color coded and will ONLY engage when the colored strips
are matched (aligned).
Step 2. Carefully push all the wires into the switch housing. Attach the switch housing to
the mounting ring with the screws provided. Make sure each screw is tight (Fig. 15).
Fig. 14
Screws
Washers
Screws
Blade brackets
Fig. 15
Mounting ring
Wire connector
Screws
52" BASICS PRO | 13
Switch housing
Blades

OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan. The pull
chain controls the fan speed as follows:
Step 1. 3-speed pull chain controls the fan speed as follows: 1 pull = High,
2 pulls = Medium, 3 pulls = Low, and 4 pulls = off.
NOTE: To set the fan blades in reverse, the reverse slide switch is located
on the side of the switch housing.
Do not operate reversing switch while fan blades are in motion. Fan must be
turned off and blades stopped before reversing blade direction.
Warm weather - Forward (counter clockwise) A downward airflow creates a
cooling effect as shown in Fig. 16. This allows you to set your air
conditioner on a warmer setting without affecting your comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm air off
the ceiling area as shown in Fig. 17. This allows you to set your heating unit
on a cooler setting without affecting your comfort.
Fig. 16
Fig. 17
14 | KICHLER.COM

TROUBLESHOOTING
Solution
Fan will not
start. 1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF
when checking any electrical connection.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of theswitch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light bulbs
are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this
type of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8”.
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENUSRE THE PROPER
OPERATION OF YOUR CEILING FAN, NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE
CEILING FAN HAS BEEN MOUNTED ON THE CEILING. DO NOT BEND THE BLADE ARMS WHILE
INSTALLING, BALANCING OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
52" BASICS PRO | 15
Problem

SPECIFICATIONS
Fan Size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.
52"
High 120 0.4352.10 167.00 4367.0083.82
5.8
kgs
6.2
kgs 1.49'Medium 120 0.3023.8 104.97 2744.97 115.33
Low 120 0.18 8.85 57.00 1522.00 171.98
These are approximate measurements. They do not include data for any lamps or fixtures attached to the ceiling fan.
16 | KICHLER.COM
With downrod
Fan Size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.
52"
High 120 0.4452.30 158.00 3852.70 73.90
5.6
kgs
6.0
kgs 1.49'Medium 120 0.3023.8 99.31 2421.70 101.75
Low 120 0.18 8.86 57.00 1276.00 144.02
Without downrod

KICHLER® LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY
www.kichler.com

MANUAL DE INSTRUCCIONES
Las imágenes del producto pueden variar levemente respecto del producto real.
VENTILADOR DE 52" BASICS PRO

KICHLER.COM

ÍNDICE
NORMAS DE SEGURIDAD..........................................4
HERRAMIENTAS Y MATERIALES NECESARIOS .....5
CONTENIDO DE LA CAJA ..........................................5
OPCIONES DE MONTAJE ..........................................6
INSTALACIÓN DEL VENTILADOR ...............................7
INSTALACIÓN DEL SOPORTE DE SEGURIDAD .....10
CONEXIONES ELÉCTRICAS ....................................11
FINALIZACIÓN DE LA INSTALACIÓN..........................12
COLOCACIÓN DE LAS ASPAS DEL VENTILADOR.....13
INSTALACIÓN DE LA CAJA DE INTERRUPTORES ....13
INSTRUCCIONES DE USO ...........................................14
RESOLUCIÓN DE PROBLEMAS ...................................15
ESPECIFICACIONES.....................................................16
VENTILADOR DE 52" BASICS PRO | 3
