Instruction Manual
60” Kevlar™
cUL Certified
for Wet Location

8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualied
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of fire,
electric shock, or personal injury, mount to
outlet box marked "acceptable for fan
support of 15.8 kg (35 lbs.) or less" and
use mounting screws provided with the
outlet box. Most outlet boxes commonly
used for the support of light fixtures are
not acceptable for fan support and may
need to be replaced. Due to the
complexity of the installation of this fan, a
qualified licensed electrician is strongly
recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the oor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT
FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".

Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Set of 5 blade brackets and Pre-Installed
mounting screws
g. Mounting plate
h. Switch housing
i. Part bag contents
1) Mounting hardware :
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Blade attachment hardware:
screws (17), rubber washers (17)
3) Blade brackets hardware:
screws with lock washers (12)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Pull chain and fob
6) Balance Kit
a
b
c
d
e
h
i
f
g
2
3. PACKAGE CONTENTS
2. TOOLS AND MATERIALS REQUIRED
60" KevlarTM

4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Outlet box
ANGLED CEILING
MAXIMUM 20°ANGLE
3
4. MOUNTING OPTIONS
Fig. 1
Fig. 3
Fig. 4
Fig. 2

4
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set
screw, unscrewing and removing removing
the cross pin and unscrewing the ball off the
rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
5. HANGING THE FAN
Fig. 6
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
electrial
box
120V Wires
Washers
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws
Fig. 5
Hanger bracket
Ceiling
canopy
Canopy
cover
60" KevlarTM

5

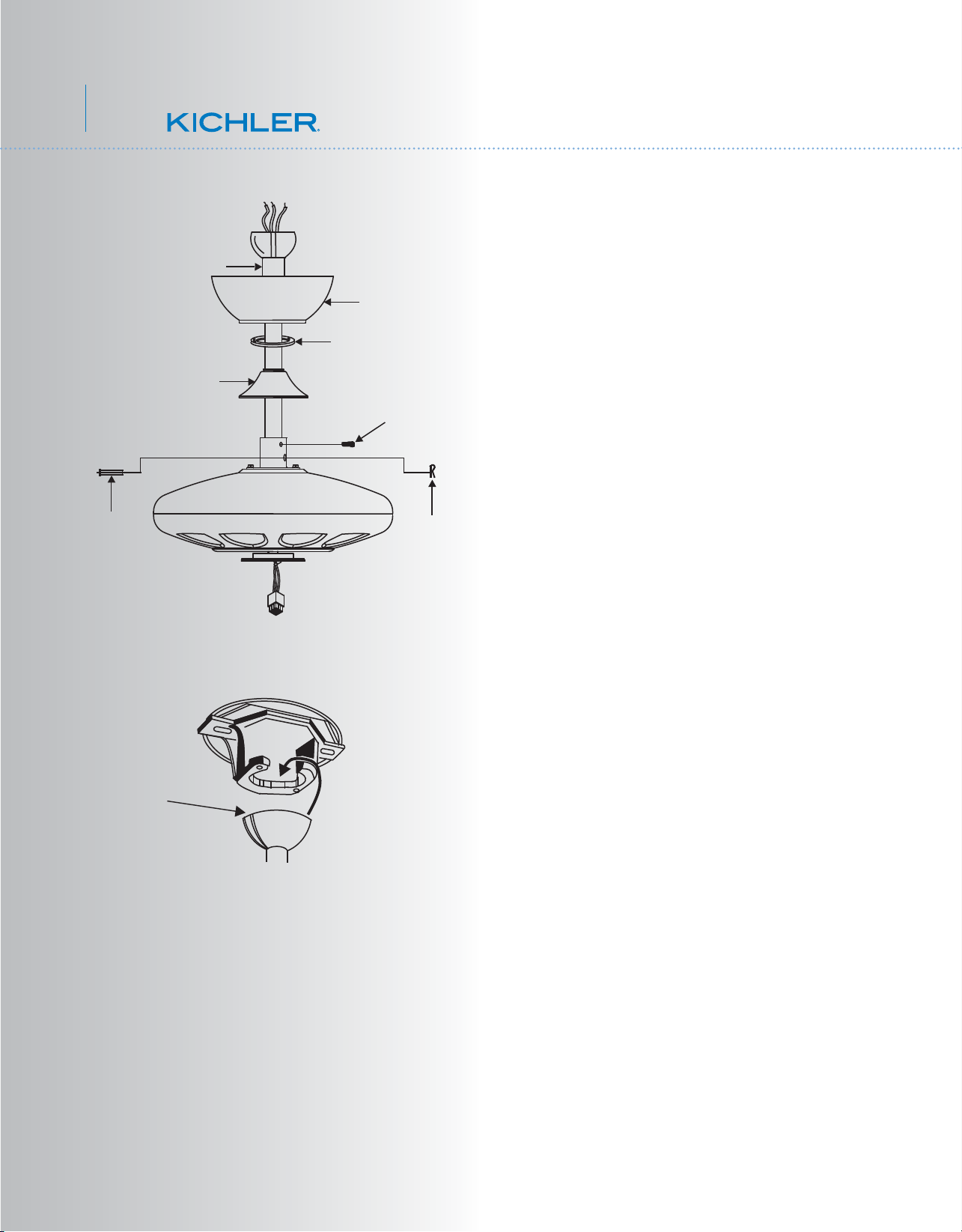

Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats rmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Fig. 9
Fig. 10
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining
clip
Coupling cover

Fig. 11
7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of
the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
Fig. 12
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts suppled with your fan. Secure the
connectors with electrical tape. Make sure there
are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to
the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to
the household ground wire.
Step 4. After connecting the wires, spread them
apart so that the green and white wires are on
one side of the outlet box and the black wires is
on the other side.
Step 5. Turn the connecting nuts upward and
push the wiring into the outlet box.
BLK
BLUE
BLK
WH
WH
GRN
Wiring
box
Ground to
mounting
bracket
or downrod
Power lines 120v
Green ground
6
60" KevlarTM

7
8. FINISHING THE INSTALLATION
Fig. 13
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
Step 1. Tuck all the connections neatly into the
ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots over
the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in
place at the narrow section of the key hole.
See figure 13.
Step 3. Align the remaining circular hole on the
canopy with the remaining hole on the Ceiling
Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the
mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting screw
heads by inserting the screw heads into the
bottom side of the canopy cover and rotating
the cover clockwise.
NOTE: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 13)
Warning: Make sure the "Check Tab" at the
bottom of the hanger bracket is properly seated
in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the
bracket. Failure to properly seat the "Check
Tab" could damage the electrical wires when to
ceiling fan blade direction is changed while the
fan is running.

9. ATTACHING THE FAN BLADES
Fig. 14
Fig. 15
Step 1. Attach a blade to a blade bracket
using the screws and fiber washers provided.
(Fig. 14)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw until the fiber washer is slightly
compressed. Repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the "Pre-Installed" mounting
screws in the blade bracket. (Fig 14)
Screws Blades
Blade brackets
Screws
Fiber
washers
10. INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 15)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 15)
Mounting
plate
Mounting ring
Screws
8
60" KevlarTM

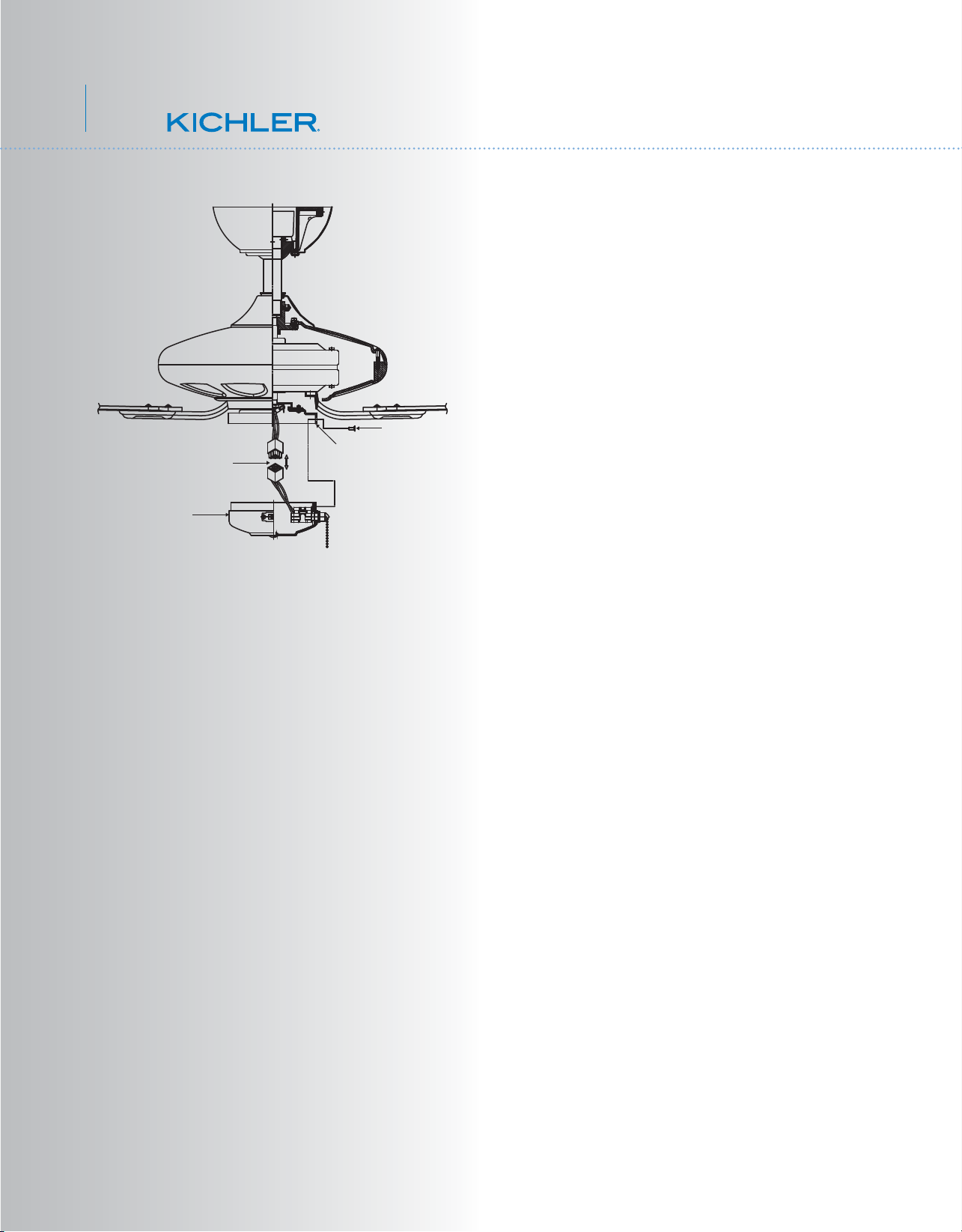

Fig. 16
Switch housing
Mounting plate
Square wire connectors
Screws
11. INSTALLING THE SWITCH HOUSING
Step 1. While holding the switch housing
under your ceiling fan, push the square wire
connectors together. One from the fan and
one from the switch housing. (Fig.16)
NOTE: These connectors are color coded and
will ONLY engage when the colored strips are
matched (aligned).
Step 2. Carefully push all the wires into the
switch housing.
Attach the switch housing to the mounting
plate with the screws provided. Make sure
each screw is tight. (Fig. 16)
9

Fig. 17
Fig. 18
12. OPERATING INSTRUCTIONS
Turn the power on and check the operation of
your ceiling fan.
The pull chain controls the 3 speeds of your
ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low
and the 4th pull turns the motor off.
The Black Slide Switch on the side of the
switch housing controls the direction of the
blades "Forward and Reverse"
Warm weather - Forward (counter clockwise)
A downward airow creates a cooling effect
as shown in Fig. 17. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - Reverse (clockwise) An
upward airow moves warm air off the ceiling
area as shown in Fig. 18. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
10
60" KevlarTM

14. SPECIFICATIONS
2.00'
13
kgs
14
kgs
0.63
0.44
0.26
75.10
36.90
13.10
146
98
54
6209.57
4237.81
2244.04
RPM CFM
83
115
171
CFM/W N.W. G.W. C.F.Fan Size
60"
Speed Volts Amps Watts
High
Medium
Low
120
120
120
These are approximate measurements. They do not include data for any lamps or xtures
attached to the ceiling fan.
13. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed
controls. If you have installed this type of control, choose and install another
type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO INUSRE
THE PROPER OPERATION OF YOUR CEILING FAN. NEVER ATTACH THE
BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN MOUNTING ON
THE CEILING. DO NOT BEND THE BLADE ARMS WHILE INSTALLING,
BALANCING OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS
BETWEEN ROTATING FAN BLADES.
11
