Instruction Manual
Pacific EdgeTM
A Kichler
®
Decor
™
ceiling fan
Includes our new
CoolTouch
TM
6 Speed DC Control System
Looks permanent, but goes wherever you go!
U.S. Patent Pending
HIGH
EFFICIENCY
DC
MOTOR
300157
3129198

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Not suitable for use with
solid-state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into the
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX
MARKED "ACCEPTABLE FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO
NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY OR
AFTER INSTALLATION. DO NOT INSERT OBJECTS IN
THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (3)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Coupling cover
e. Fan motor assembly
f. Mounting plate
g. Light kit assembly
h. Set of blade brackets (3)
i. Glass shade
j. 100W Halogen bulb
k. CoolTouch™ Control System
l. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (11),
fiber washers (11)
3) Blade brackets hardware:
screws (2)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
a
b
c
d
e
f
g
h
k
l
i
j
Pacific EdgeTM

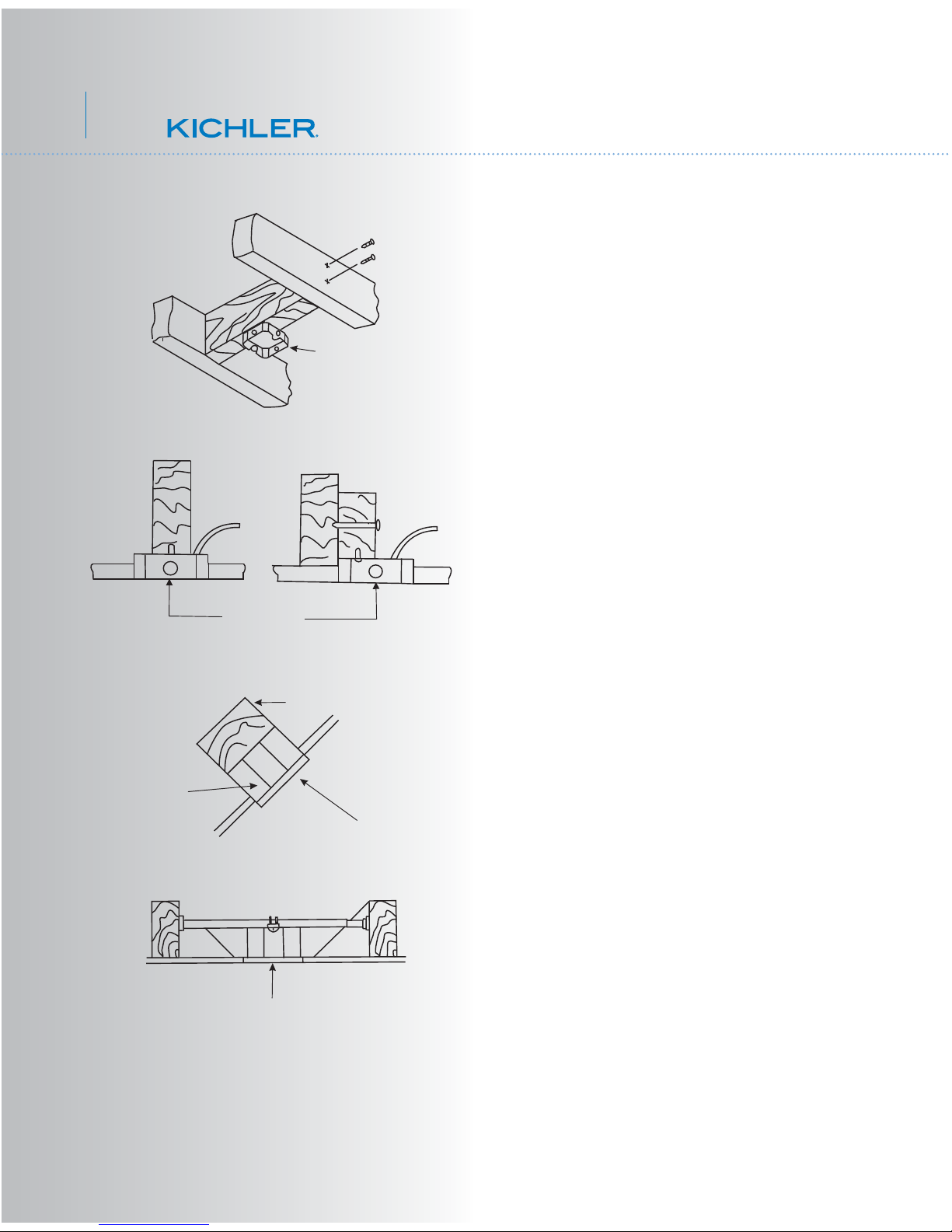

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power
by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
Fig. 7
Fig. 8
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
UL Listed
outlet box
120V Wires
Washers
Downrod
Cross pin
Hanger
ball Set screw
Fig. 6
5. HANGING THE FAN
Supply wires
Downrod
Hitch pin Retaining clip
Coupling
Set screws
Set screws
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save) one
of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the
downrod assembly by loosening the set
screw, removing the cross pin and sliding the
ball off the rod. (Fig.7)
Step 6. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 8)
Step 7. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 8)
Fig. 5
Ceiling mounting
bracket
Canopy
Canopy
cover
Pacific EdgeTM

5
Fig. 9
Fig. 10
Registration slot Check tab
Hanger ball
Canopy
Downrod
Canopy cover
Set screws
Coupling cover
Step 8. Slip the coupling cover, canopy cover
and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 10)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan
to fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Hitch pin Retaining clip

6
Fig. 12

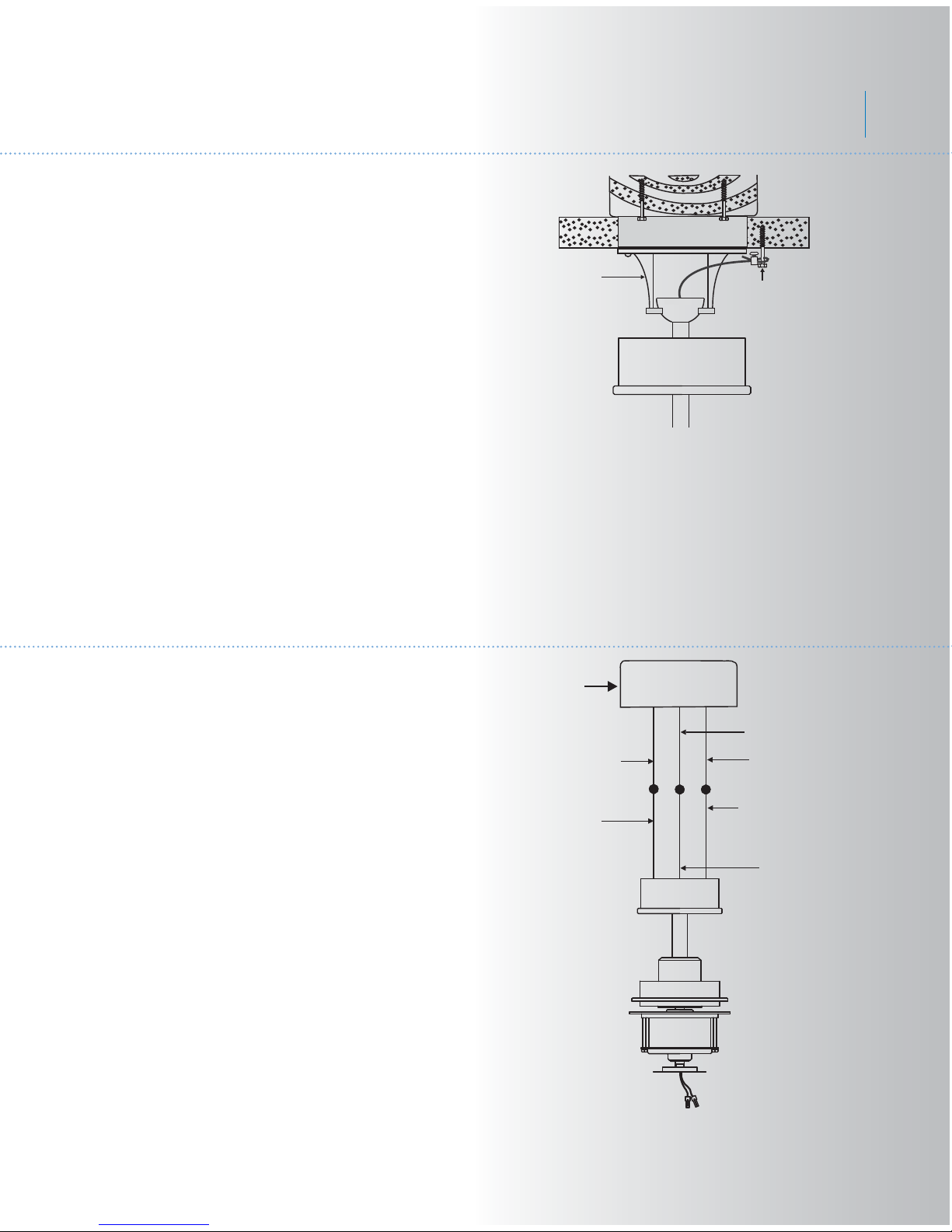

7. ELECTRICAL CONNECTIONS
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling, please
install it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct. Put the end of the
cable back through the cable clamp forming a
loop at the end of the cable. Tighten the cable
clamp securely. Put the loop the loop in the
end of the safety cable over the wood screw
and under the washer. Tighten the wood
screw securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts suppled with your fan. Secure
the connectors with electrical tape. Make sure
there are no loose wire strands or connections.
Step 1. Connect the fan supply (black) wire to
the black household supply wire as shown in
Figure 12.
Step 2. Connect the neutral fan (white) wire to
the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to
the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the black
and blue wires are on the other side.
Step 5. Turn the connecting nuts upward and
push the wiring into the outlet box.
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Ground (green)
(Connect to ground wire
on hanger bracket if no
house ground wire exists.)
Outlet box
Black ("AC IN L")
Black (motor)
Fig. 11
Ceiling
mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer
Pacific EdgeTM

7
Fig. 13
Step 1. Tuck all the connections neatly into
the ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots
over the mounting screw on the mounting
bracket. Rotate the canopy until the screw
head locks in place at the narrow section of
the key hole. See figure 13.
Step 3. Align the remaining circular hole on
the canopy with the remaining hole on the
Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and
the mounting screw from Step 2 above. Now,
attach the canopy cover to the mounting
screw heads by inserting the screw heads into
the bottom side of the canopy cover and
rotating the cover clockwise.
NOTE: Adjust the canopy screws as
necessary until the canopy and canopy cover
are snug. (Fig. 13)
8. FINISHING THE INSTALLATION
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws

8
Fig. 14
Step 1. Loosen the two screws on the
mounting ring attached to the motor shaft and
"remove" and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light
plate over the two screws previously loosened
on the mounting ring.
Turn the light plate until it locks in place at the
narrow section of the key hole slots.
Tighten both key hole screws and replace the
third screw previously removed and tighten
securely.
10. INSTALLING THE LIGHT PLATE
Fig. 15
Light plate
Screws
Mounting ring
Screws
Blades
Blade brackets
Screws
Fiber
washers
9. ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor.
These blocks keep the motor from shifting
during shipping and MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket
using the screws and rubber washers
provided. (Fig. 14)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw until the rubber washer is slightly
compressed. Repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the "Pre-Installed" mounting
screws in the blade bracket. (Fig 14)
Pacific EdgeTM

9
Fig. 17

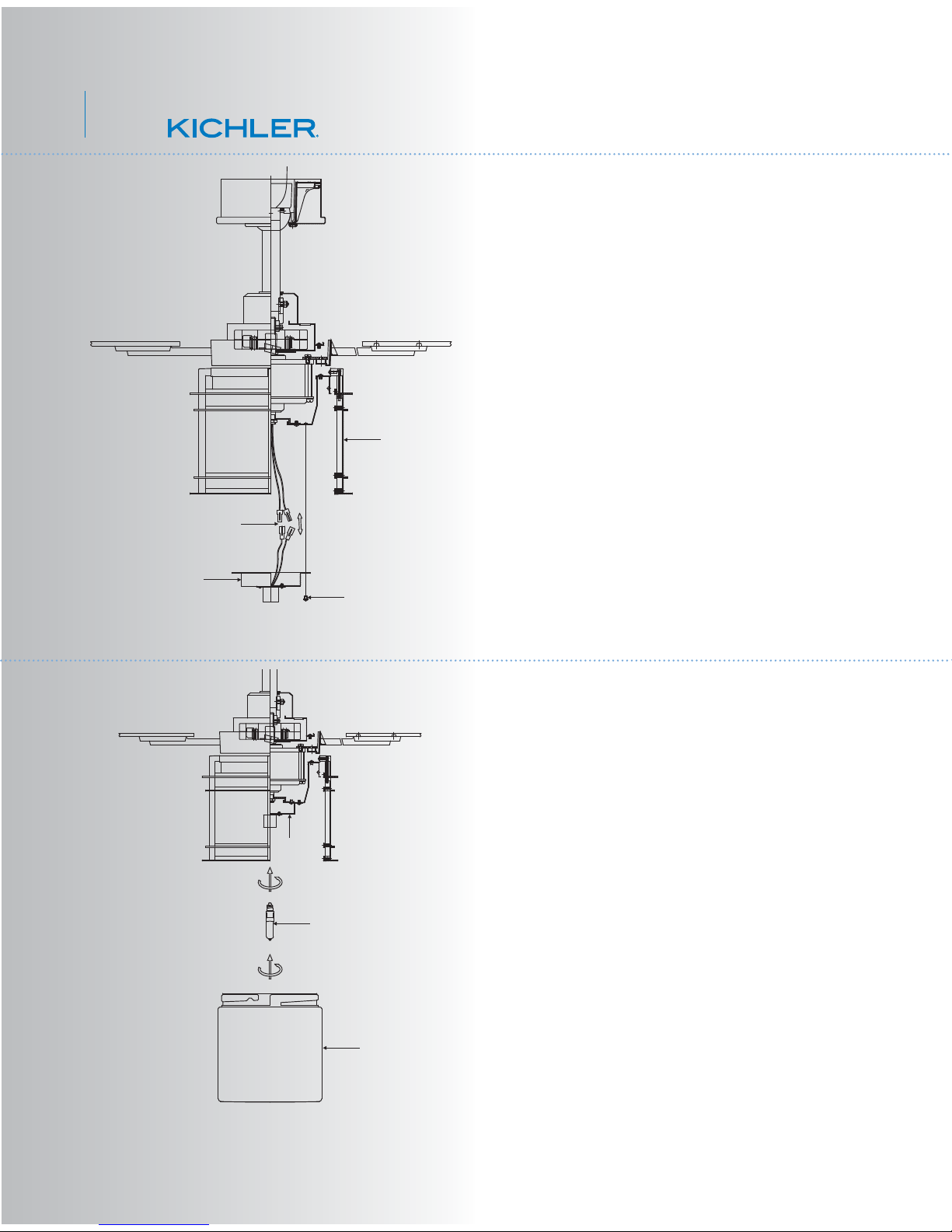

Step 1. Install the 1x100W halogen bulb
(included). (Fig. 17)
Step 2. Raise the glass shade against the light
plate and turn clockwise until snug, DO NOT
OVERTIGHTEN. (Fig. 17)
12. INSTALLING THE LAMPS AND
GLASS SHADE
NOTE: Before continuing installation, conrm
that the power is still turned off at the main
circuit breaker or by removing the correct fuse.
Turning the power off using a wall switch is not
sufcient to prevent electrical shock.
Step 1. Loosen the two mounting screws on
the inside of the light plate then remove and
save the third screw.
Hold the socket plate close to the light plate
and connect the white wires from the socket
plate and blue wire from the fan by pushing the
connectors together. Follow the same
procedure with the black wire connectors.
(Fig. 16)
Step 2. Tuck the connections neatly into the
light plate. Place the key holes on the socket
plate over the 2 screws previously loosened
from the light plate, turn the socket plate until
it locks in place at the narrow section of the
key holes. Secure by tightening all three
screws. (Fig. 16)
11. INSTALLING THE SOCKET PLATE
Lamp
Socket
plate
Glass
shade
Fig. 16
Screws
Light plate
Socket plate
Wire connectors

10
Fig. 18
Fig. 19
TM
Make sure the power is completely
disconnected before you begin this
procedure.
SPECIAL NOTE:
Your new Kichler®Ceiling Fan is State of the
Art and employs a High Efciency DC (direct
current) Motor with an advanced CoolTouch™
Remote Control System. The DC Motor uses
70% less energy than a conventional ceiling
fan AC Induction Motor. The DC motor is
“Digitally” controlled and operates differently
than conventional ceiling fans motors. Please
read this portion of the manual completely
before proceeding.
Our CoolTouch™ Control system includes an
“Automatic Frequency Selection” feature. To
set the control frequency and program the
control system, follow these steps.
Open the back of the Transmitter (gure 18)
The Frequency Selector is a "Dip Switch
Block" inside the Battery compartment of the
Transmitter. (See gure 19) You change
frequencies by arranging the small switches
numbered 1 through 4 in an up or down
position. 16 possible frequencies or
combinations are possible.
The fth switch, marked D and X sets the
system for operation with Incandescent or
Fluorescent Lamps. It is essential to set this
switch correctly. If your ceiling fan is
equipped with Incandescent Lamps, set this
switch to the D Position, for Fluorescent
Lamps, set the switch to the X Position. If
these settings are reversed, the lighting
control system will operate erratically and
could damage your ceiling fan.
System Programing: Read all of these steps
BEFORE proceeding. Each step must be
followed exactly to properly program the
control system.
1. You can leave the frequency switches at
the factory setting or move them to any
combination of up or down. Use a small at
bladed screwdriver to move the switches.
13. CONTROL SYSTEM SET-UP
TM
ON
1 2 3 4
D
X
ON
Dip switch
Pacific EdgeTM

11
Fig. 20
Fig. 21
2. Insert both batteries and make sure they
are seated correctly in each recess with the
Positive + sign facing up. Replace the battery
cover. (Figure 18)
3. Test the transmitter by pushing and
releasing ANY button briey. A Blue Light
should illuminate under the 3-4 buttons. (Fig.
20) If not, check to make sure the batteries
are inserted and seated correctly.
Power Up and Programming:
4. Turn the power on, press and hold the
button until the ceiling fan light blinks twice
(Figure 21)
NOTE: Do not press any other button during
this procedure.
5. The transmitter just communicated with
the ceiling fan, selected the appropriate
frequency, did a self check and signaled
“complete”.
NOTE: This operation must be started
WITHIN the first 120 seconds (2 minutes) of
turning the power on. No other buttons
can be pushed during this time.
6. After the ceiling fan light blinks twice, press
and release the High Speed (6) Button. Let
the ceiling fan run for a minimum of 90
seconds ( 1 ½ minutes). The control system
will do another self check, initialize all
operational functions and complete the
programming process (Figure 21).
7. Your CoolTouch™ Control System is now
programmed and ready for use. Please see
the following Operational Instructions.
Blue Light
#1 Press/hold Button
#2 Press 6 Button

12
Fig. 22
Figure 22

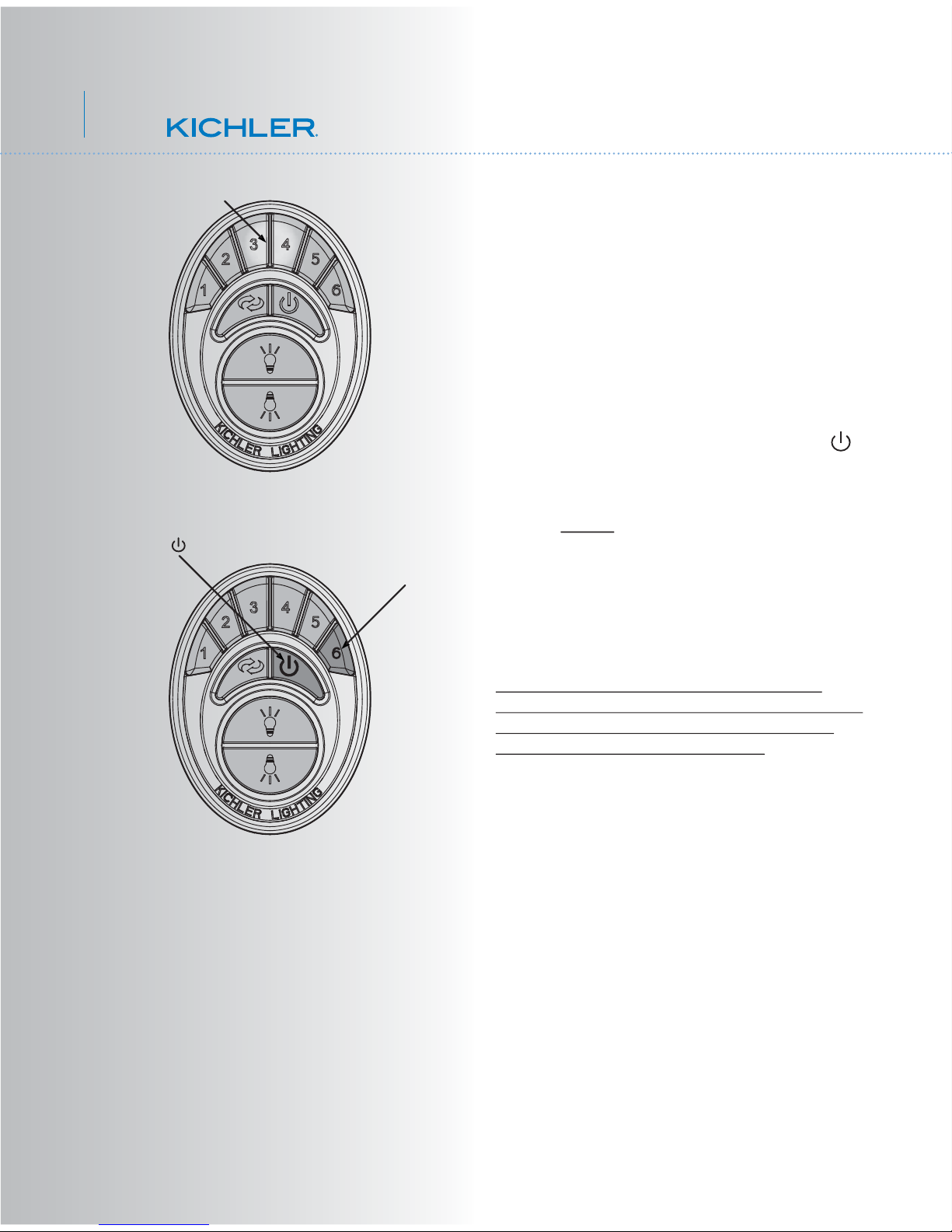

1. Buttons 1, 2, 3, 4, 5 and 6 are used to set
the blade speed as follows:
1 = Low Speed
2 = Medium Low Speed
3 = Medium Speed
4 = Medium High Speed
5 = High Speed
6 = Extra High Speed
Figure 23
2. The " " button:
This button turns the fan motor off and is also
used in the program procedure.
3. The " " and " " button:
The " " button turns the upper light ON or
OFF on some models. The " " button turns
the bottom light ON or OFF. Press and release
either button to turn the light ON or OFF.
NOTE: This Ceiling Fan and Control System
is designed for use with Fluorescent Lamps.
It is NOT designed to control any Dimming of
the light xture.
DO NOT substitute incandescent Lamps for
Fluorescent Lamps. You may damage your
ceiling fan.
Figure 24
4. The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in motion.
OPERATIONAL NOTE: Each time you start
the blades rotating, at any speed or reverse
the direction of the blades the Control System
will do a “Self Check” to insure operational
integrity. The blades will rotate slowly a short
distance (¼ turn), pause, change directions,
rotate ¼ turn, then build up RPM'S to the
selected speed. This is a perfectly normal
procedure and insures normal operating
performance.

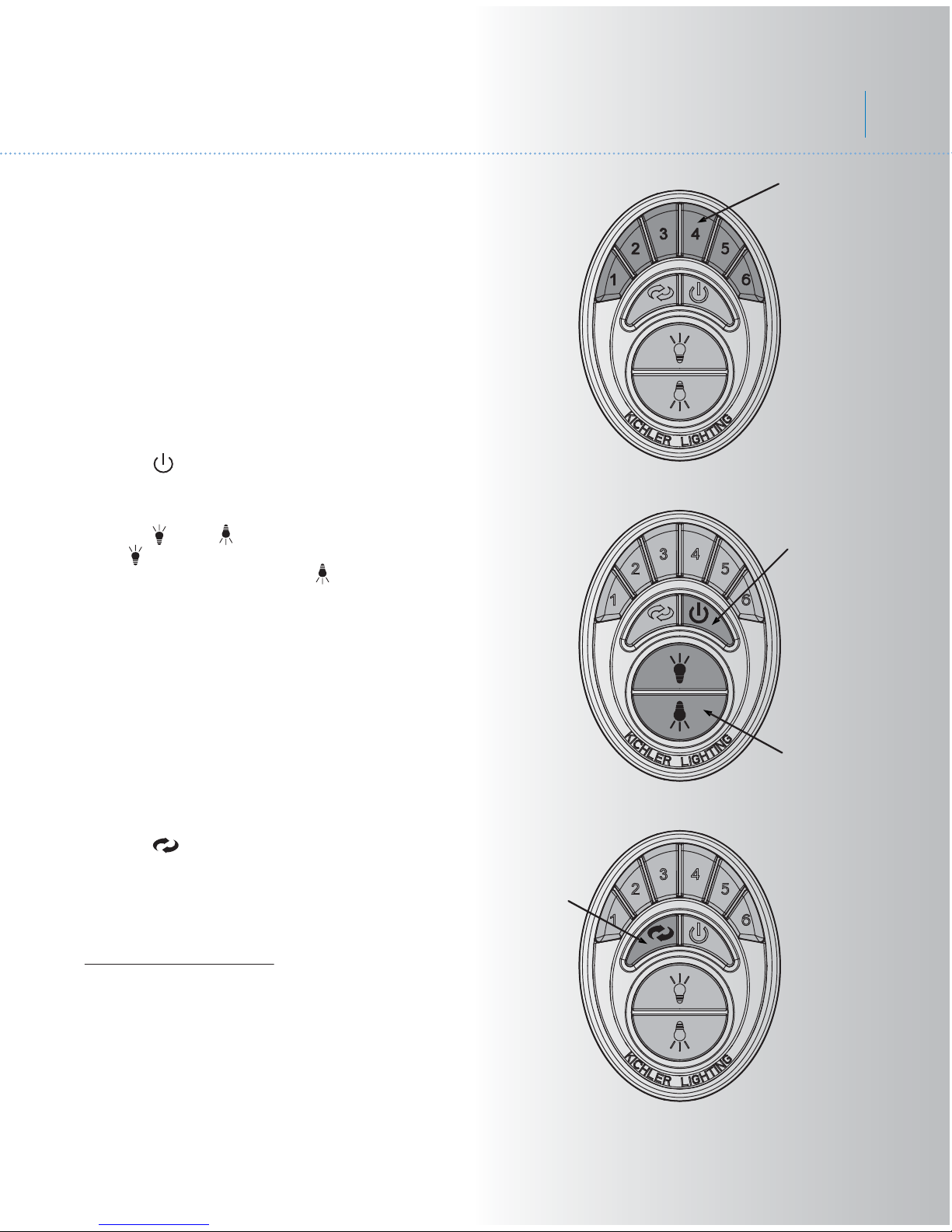

14. OPERATING INSTRUCTIONS:
Fig. 23
Fig. 24
Motor Off Button
Light Control Buttons
Forward/Reverse
Button
Speed Buttons
Pacific EdgeTM

13
Fig. 25
Fig. 26
NOTE: Please remember your control system
is an RF (Radio Frequency) control system.
You may occasionally experience control
problems because of other radio frequency
interference, i.e. fan turns off, light turns off or
won't turn on, speed changes, etc. If this
should happen, just change the “Control
Frequency” by turning the power off and
repeating steps 1 through 6 under System
Programming.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter
clockwise) A downward airow creates a
cooling effect as shown in Fig. 25. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse (clockwise).
An upward airow moves warm air off the
ceiling areas as shown in Fig. 26. This allows
you to set your heating unit on a cooler setting
without affecting your general comfort.

14
Fig. 27
Fig. 28
15. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
16. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter rst
and then press the top of the transmitter into
the pocket. The transmitter will fully function
from this location or you can remove the
transmitter and use as a "Hand Held" device.
(Fig. 29)
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Wall plate
Switch
Outlet box
Release
button
Fig. 29
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch or, install the
transmitter on ANY at surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and
the old switch from the wall outlet box. Wire
nut the BLACK leads (hot) together and push
back inside the outlet box. (Fig. 27)
Step 2. Install the metal plate and CoolTouch
™ wall plate to the existing wall outlet box
with 4 screws provided. Then place the two
plastic
plugs into the wall plate. (Fig. 28)
Option 2: Install the control system on ANY
at surface.
Select the desired location and use the
CoolTouch™ wall plate to mark the location
for the mounting holes. Plastic wall anchors
and screws are provided for this type of
installation. After installing the wall anchors,
attach the CoolTouch™ wall plate with the
mounting screws and then insert the plastic
plugs to nish the installation.
Pacific EdgeTM

15
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check
this level by selecting a point on the ceiling above the tip of one of the blades.
Measure this distance. Rotate the fan until the next blade is positioned for
measurement. Repeat for each blade. The distance deviation should be equal
within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side)
blades can redistribute the weight and possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch, if
desired.
17. TROUBLESHOOTING
18. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or xtures
attached to the ceiling fan.
11.98
kgs
N.W.
12.98
kgs
G.W.
2.18'
C.F.RPM
173
145
119
93
69
46
CFM
3688.07
4425.13
5261.72
2974.47
2244.93
1094.64
CFM/W
122.94
226.93
404.75
330.50
393.85
304.07
Fan Size
52"
120
120
120
120
120
120
Volts
0.43
0.28
0.20
0.14
0.10
0.06
Amps
30.00
19.50
13.00
9.00
5.70
3.60
WattsSpeed
Extra-High
High
Medium High
Medium
Medium Low
Low
