56" Verdi LED

2 | KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES..................................................................4
TOOLS REQUIRED............................................................5
PACKAGE CONTENTS ....................................................5
MOUNTING OPTIONS.................................................... 6
HANGING THE FAN..........................................................7
INSTALLATION OF SAFETY SUPPORT................... 9
ELECTRICAL CONNECTIONS .................................. 10
FINISHING THE MOTOR INSTALLATION.............. 11
ATTACHING THE FAN BLADES.................................12
INSTALLING THE SWITCH HOUSING.....................13
INSTALLING THE LIGHT KIT AND GLASS ............14
OPERATING INSTRUCTIONS.....................................17
TROUBLESHOOTING… ............................................... 18
FCC INFORMATION… ....................................................19
56" Verdi LED | 3

4 | KICHLER.COM
1. CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel or
main fusebox before starting and during the installation.
2. WARNING: This fixture is intended for installation in
accordance with the National Electrical Code (NEC) and
all local code specifications. If you are not familiar with
code requirements, installation by a certified electrician
is recommended.
3. WARNING: To reduce the risk of fire or electric shock,
use only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural framing
member or to an outlet box marked “Acceptable for
Fan Support of 15.9kg (35 lbs) or less”. For outlet box
mounting, use mounting screws provided with the outlet
box.
5. WARNING: Chemical Burn Hazard. Keep batteries
away from children. This remote contains a lithium
button cell battery. If a new or used lithium button/
coin cell battery is swallowed or enters the body, it can
cause severe internal burns and can lead to death in as
little as 2 hours. Always completely secure the battery
compartment. If the battery compartment does not
close securely, stop using the product, remove the
batteries, and keep it away from children. If you think
batteries might have been swallowed or placed inside
any part of the body, seek immediate medical attention.
Dispose of cells properly and keep away from children.
Even used cells may cause injury.
6. To operate the reverse function on this fan, press the
“Reverse” button while fan is running.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
9. Make sure the installation site you choose allows a minimum
clearance of 7 feet from the blades to the floor and at least 30
inches from the ends of the blades to any obstruction.
10. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections, spliced conductors
should be turned upward and pushed carefully up into outlet
box. The wires should be spread apart with the ground wire
and white (common) wire to one side with the black (load) wire
to the other side of the outlet box.
12. Electrical diagrams are for reference only. Light kits that
are not packed with the fan must be ETL Listed and marked
suitable for use with the model fan you are installing. Switches
must be ETL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
SAFETY RULES

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents. You should have the following items:
A. Mounting Bracket
B. Ball / Downrod Assembly
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Body
G. Fan Blade (5)
H. Switch Housing
I. Light Kit
J. Glass
K. Remote Control Kit:
Remote Control (1)
Receiver (1)
Batteries (2)
Wire Connectors (6)
L. Package Hardware
1) Mounting Hardware:
Wire Connector (3)
2) Blade Attachment Hardware:
Screws (15) , Washers (15)
3) Safety Cable Hardware:
Wood Screw (1), Spring Washer (1),
Flat Washer (1)
4) Light Kit Hardware:
Screw (3)
A
B
C
D
E
F
G
I
J
K
H
L
CR2032 3V
X6
X2
56" Verdi LED | 5

6 | KICHLER.COM
MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the moving
weight of the fan (at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist
Hanger” for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Fig. 4
Outlet box
Recessed
outlet box ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 30° ANGLE

HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is
necessary for your safety and also the proper programming of the control
system.
To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching the fan to outlet box (not included), ensure the outlet
box is securely fastened to at least two points to a structural ceiling member
(a loose box will cause the fan to wobble). Pass the 120 volt supply wires from
the ceiling outlet box through the center of the ceiling mounting bracket. Install
mounting bracket to outlet box in ceiling using the screws and washers included
with the outlet box. (Fig. 5)
Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain
for later use. Remove the hanger ball from the downrod assembly by loosening
set screws, removing the cross pin, and twisting ball o the rod.( Fig. 6)
NOTE: Make sure to keep loosened hardware separate to avoid confusion
during installation.
Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)
Fig. 5
Fig. 6
Fig. 7
Hairpin
Outlet Box
Ceiling Mounting Bracket
Flat Washer
Screw
Hanger Ball
Set Screw
Cross Pin
Clevis Pin
Motor Body
Set Screw
56" Verdi LED | 7

8 | KICHLER.COM
HANGING THE FAN (continued)
Step 3. Carefully feed fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the clevis pin holes are
aligned. Next, replace the clevis pin and hairpin, then tighten both set screws.
(Fig. 8)

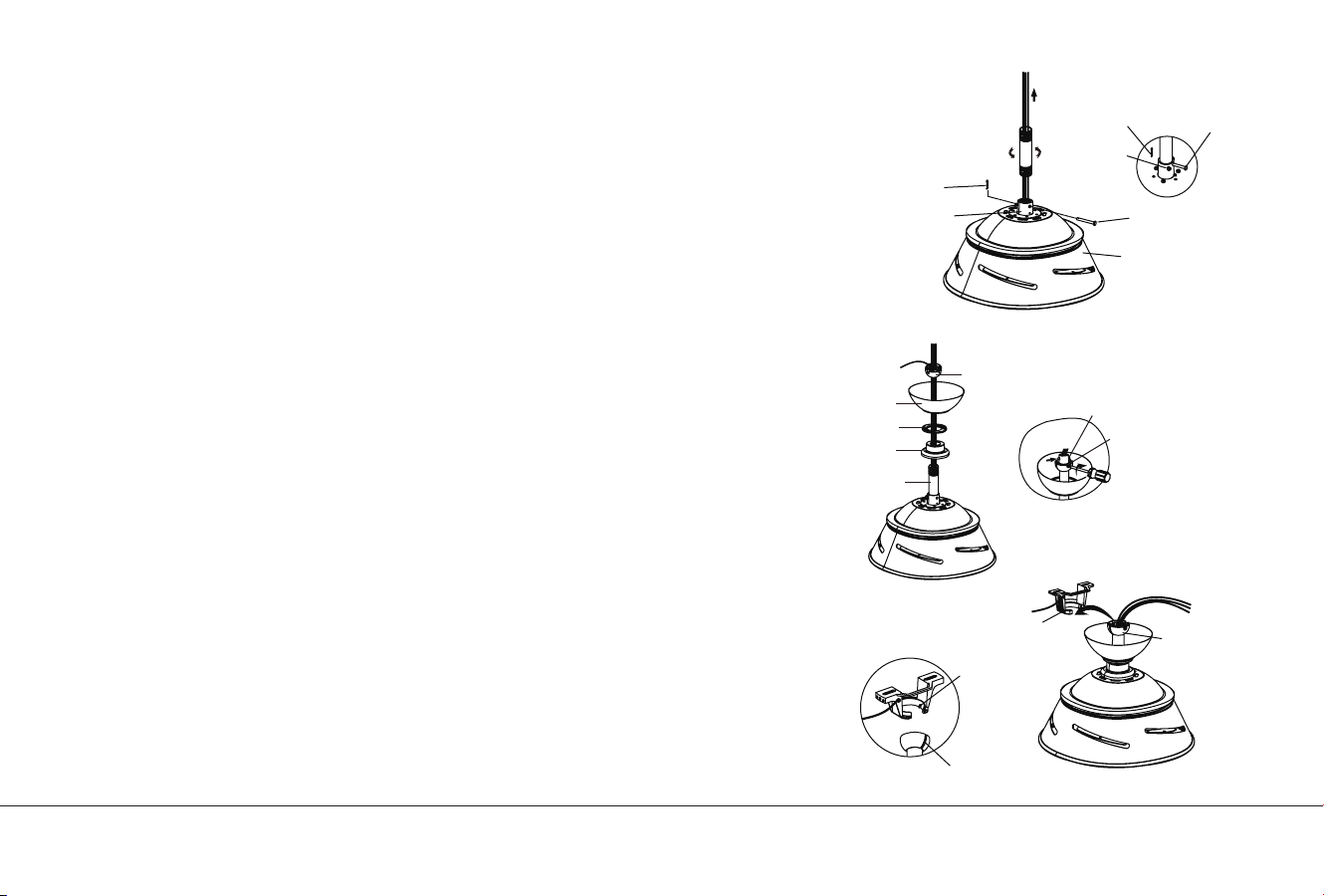

Step 4. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod . Make sure
the cross pin is in the correct position and the set screw is tight and the wires
are not twisted. (Fig. 9)
Step 5. Now lift the motor body into position and place the hanger ball into
the mounting bracket. Rotate until the "Check Tab" has dropped into the
"Registration Slot " and seats firmly. (Fig. 10) The entire motor body should
not rotate if this is done correctly.
WARNING: Failure to properly seat the "Check Tab" can damage the ceiling
fan during operation.
Fig. 8
Fig. 9
Fig. 10
Hairpin
Set Screw
Canopy
Canopy Hole Cover
Coupling Cover
Downrod
Mounting Bracket
Registration Slot
Check Tab
Hanger Ball
Set Screw
Cross Pin
Clevis Pin
Motor Body
Clevis Pin
Hairpin
Set Screw

INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling,
please install it as follows.
Step 1. Drive a wood screw and washers into the side of the brace that holds the
outlet box. Leave 3mm (1/8") of space between the support brace and the washer.
(Fig. 11)
Step 2.Insert the safety cable through the mounting bracket and one of the holes
in the outlet box into the ceiling. Adjust the length of the safety cable to reach the
screw and washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable clamp,
forming a loop at the end of the cable. Tighten the cable clamp securely. Now, put
the loop in the end of the safety cable over the wood screw and under the washer.
Tighten the wood screw securely. (Fig. 12)
NOTE: Although the safety support cable is required for Canadian installations
only. It’s a good idea to make the attachment with any installation.
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Ceiling
Support Brace
Safety Cable Bolt
Wood Screw
Fig. 12
Fig. 11
56" Verdi LED | 9

10 | KICHLER.COM
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire
connectors supplied with your fan. Secure the connector with electrical tape. Make
sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper
wiring.
Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of
ceiling. (Fig. 13)
Step 2. Motor to Receiver Electrical Connections:
Connect the BLACK wire from the fan to BLACK wire marked "TO MOTOR L" from
the receiver. Connect the WHITE wire from the fan to the WHITE wire marked "TO
MOTOR N" from the receiver. Connect the BLUE wire from the fan to the BLUE wire
marked "FOR LIGHT " from the receiver. Secure all the wire connections with the
plastic wire connectors provided. (Fig. 14)
Step 3. Remote Receiver to Outlet Box Electrical Connections:
Connect the BLACK (hot) wire from the ceiling to the BLACK wire marked “AC IN L”
from the receiver. Connect the WHITE (Neutral) wire from the ceiling to the WHITE
wire marked “ AC IN N” from the receiver. Secure all the wire connections with the
plastic wire connectors provided. (Fig. 14)
Mounting Bracket
Receiver
Outlet Box
Black
Black ("AC IN L")
Receiver
Black ("TO MOTOR L")
Black (motor)
Blue (FOR LIGHT)
Blue (for light)
White
Green or bare copper
(ground)
White ("AC IN N")
White ("TO MOTOR N")
Ground wire
White (Neutral)
Fig. 13
Fig. 14

ELECTRICAL CONNECTIONS
Step 4. If your outlet box has a ground wire (green or bare copper ) connect it to
the fan ground wires : otherwise connect the fan ground wire to the mounting
bracket. Secure the wire connection with a plastic nut provided. After connecting
the wires, spread them apart so that the green and white wires are on one side of
the outlet box and black and blue wires are on the other side. (Fig. 14)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
transmitting unit for proper signal transmission between the transmitting unit
and the fan’s receiving unit.
FINISHING THE MOTOR INSTALLATION

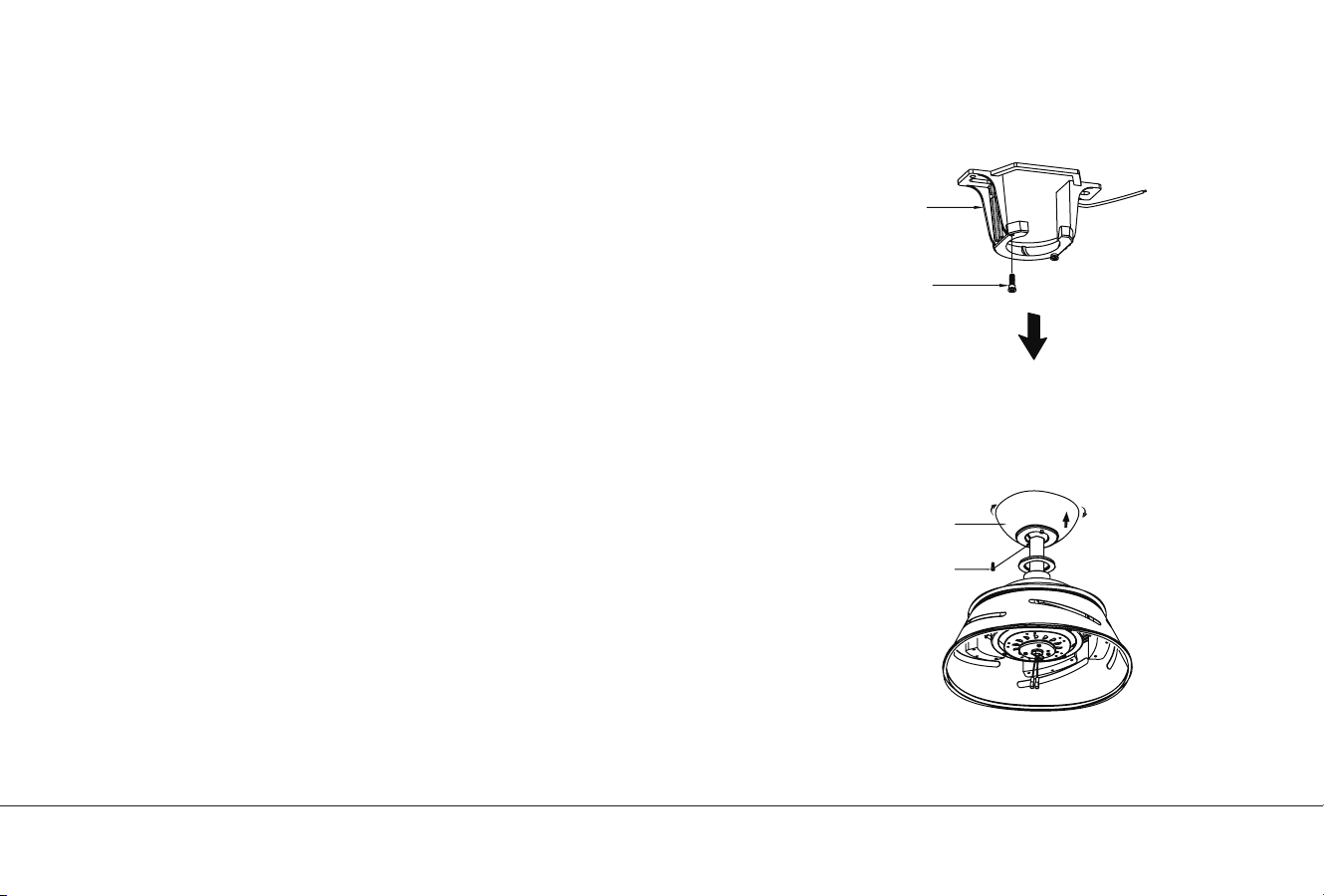

Step 1. Remove one of the two shoulder screws in the mounting bracket. Loosen
the second shoulder screw without fully removing it. (Fig. 15)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder screw in
mounting bracket. Reinstall the shoulder screw that was previously removed,
then retighten two shoulder screws securely.(Fig.16)
Mounting Bracket
Shoulder Screw
Canopy
Shoulder Screw
Fig. 15
Fig. 16
56" Verdi LED | 11

12 | KICHLER.COM
FINISHING THE MOTOR INSTALLATION

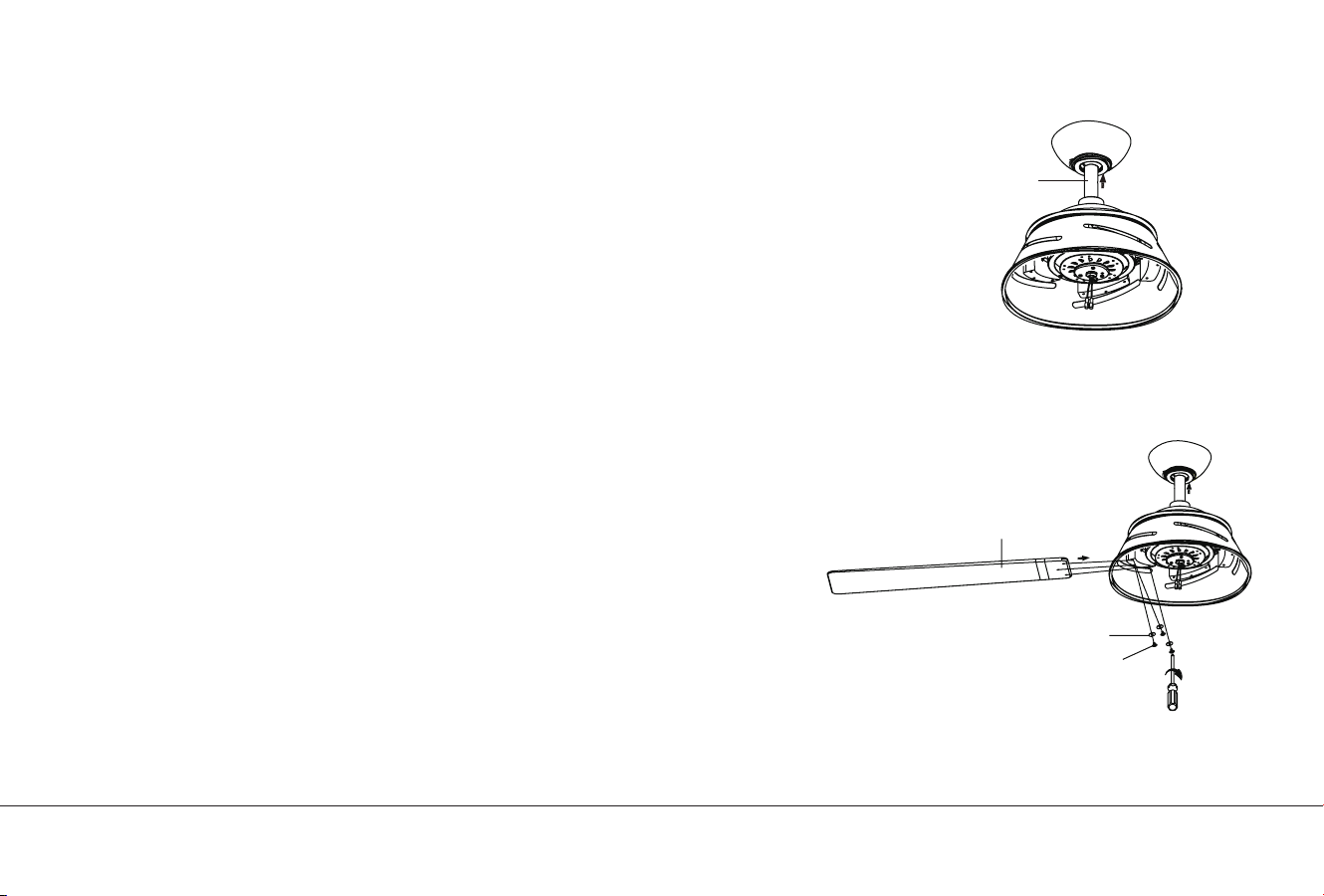

Step 3. Securely attach and tighten the canopy hole cover over the shoulder
screws in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 17)
ATTACHING THE FAN BLADES
NOTE: Before continuing, make sure the power is disconnected by turning o
the circuit breaker or removing the fuse at the circuit box.
Step 1. Carefully slide the blade through the slot as shown. Securely fasten the
five blades with blade screws and flat washers. (Fig. 18)
Blade
Canopy Hole Cover
Flat Washer
Blade Screw
Fig. 17
Fig. 18

INSTALLING THE SWITCH HOUSING
Step 1. Remove the screw marked with a dot label which is preinstalled on
mounting plate and keep for later use. Loosen the other two (do not remove).
Place the two slot holes on the switch housing over the 2 screws previously
loosened from the mounting plate. Rotate the switch housing until it locks in
place at the narrow end of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed. (Fig. 19)
Screw
Screw
Fig. 19a
Fig. 19b
56" Verdi LED | 13

14 | KICHLER.COM
INSTALLING THE LIGHT KIT AND GLASS
NOTE: Before continuing installation, confirm that the power is still turned o
at the main circuit breaker or by removing the correct fuse. Turning the power
o using a wall switch is not sucient to prevent electrical shock.
Step 1. Hold the light kit close to the switch housing and connect the WHITE
wires from the light kit and fan by pushing the connectors together. Follow the
same procedure with the BLACK wires. (Fig. 20)
Step 2. Tuck the connections neatly into the light kit. Attach the light kit
to switch housing and securely tighten with three (3) screws found in the
hardware pack.
Step 3. Secure the glass to switch housing by twisting in a clockwise direction,
twist the glass gradually until it snaps on to the switch housing. Do not over-
tighten. (Fig. 21)
Glass
Light Kit
Screw
Fig. 20
Fig. 21

OPERATING INSTRUCTIONS
Step 1. Select a location to install your handset control holder, install
the holder as shown. (Fig. 22)
Step 2. Using a screwdriver, remove the battery cover from the
handset and save the screw for later use. (Fig. 23)
Step 3. To make fan operational, install two 3V CR2032 batteries
(included). (Fig. 24)
WARNING: Chemical Burn Hazard. Keep batteries away from
children.
NOTE: If not used for long periods of time, remove batteries to
prevent damage to the handset control. Store the control away from
excessive heat or humidity.
To operate the reverse function on this fan, press the “Reverse”
button while fan is running.
Speed setting for warm or cool weather depends on factors such as
the room size, ceiling height, number of fans and so on.
Warm Weather Operation: Forward (counter clockwise). A down-
ward airflow creates a cooling eect (Fig. 25). This allows you to
set your air conditioner on a warmer setting without aecting your
general comfort.
Cool Weather Operation: Reverse (clockwise). An upward airflow
moves warm air o the ceiling areas (Fig. 26). This allows you to set
your heating unit on a cooler setting without aecting your general
comfort.
Fig. 22
Fig. 25 Fig. 26
Fig. 24
Fig. 23
Batteries
Battery Cover
56" Verdi LED | 15

16 | KICHLER.COM
OPERATING INSTRUCTIONS

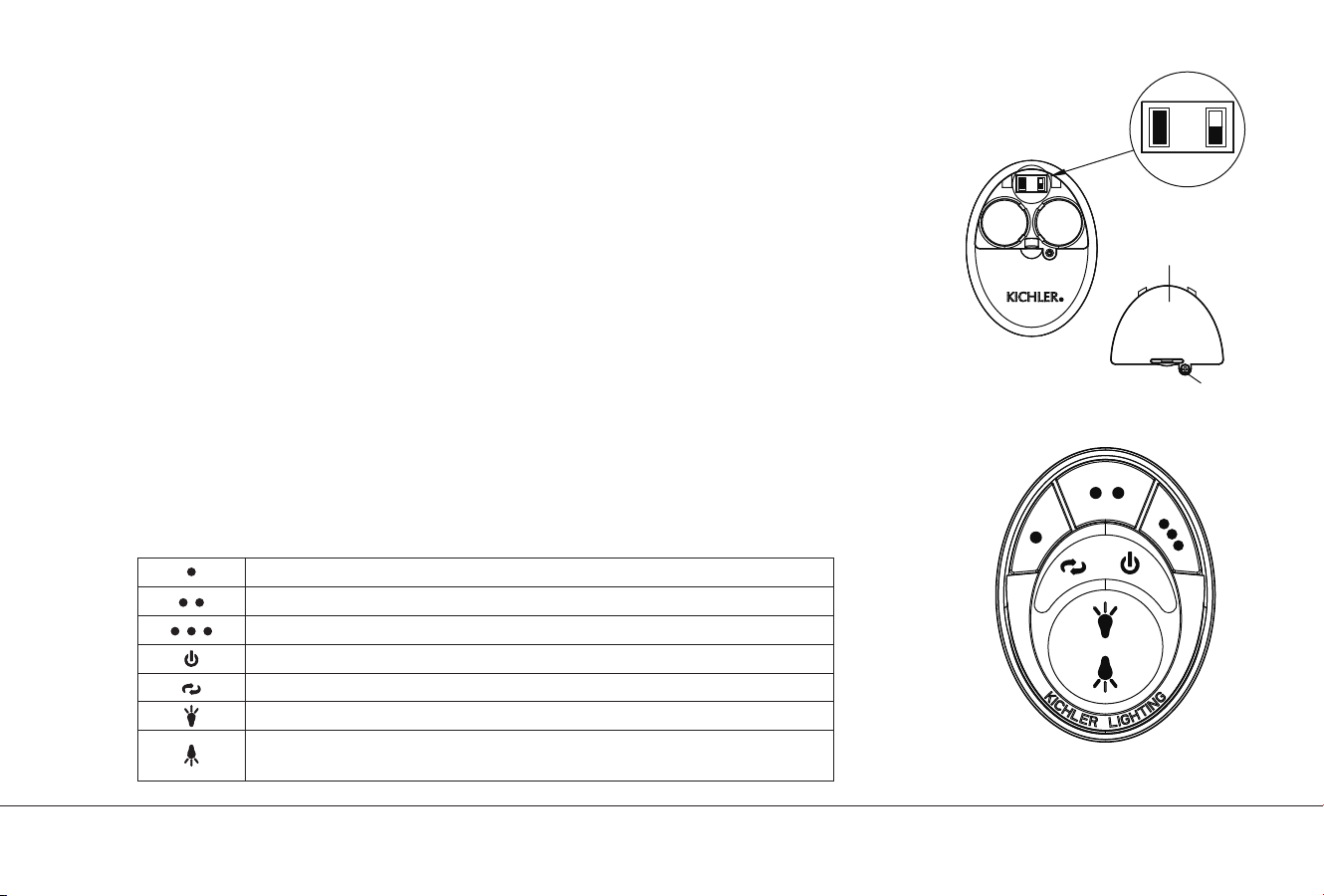

NOTE: Each handset control carries a unique ID code to facilitate communication between paired
devices. The ID code is set by factory and is not user changeable. However, you will be required to
perform an “ID code learning” process manually under these circumstances:
• If you have multiple fans installed within a close proximity and want to control all fans using a same
handset control.
NOTE: Each fan requires its own receiver.
• When your remote control is not responding (make sure battery is not flat).
• After you have replaced a faulty transmitter or receiver with a new one.
Otherwise the remote control will not work. To perform this process manually, follow steps below:
After installing and wiring the unit, restore power to your fan, press and hold the LEARN key for 1-3
seconds, the fan will turn on at medium speed and light (if installed) will turn on. This confirms that
the learning process have been completed. This operation must be completed within 30 seconds
after restoring power to the fan. (Fig. 27)
NOTE: Ensure slide switch in battery compartment marked “D O” is set to “D” position. (Fig. 27)
Step 4. Replace the battery cover and tighten with screwdriver. (Fig. 27)
Step 5. The buttons control the fan speed and light as follows: (Fig. 28)
Low speed
Medium speed
High speed
Fan OFF
Airflow (Forward or Reverse)
No function (Do not use this button)
a.) Light ON/ OFF.
b.) Press and hold to dim or brighten light to desired level.
D
O
D
O
L
E
A
R
N
CR2032 3V CR2032 3V
L
E
A
R
N
Fig. 27
Fig. 28
Battery Cover
Screw

TROUBLESHOOTING
Problem Solution
Fan will not start. 1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main
power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4. Ensure the batteries have a good charge.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the
switch housing. CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during
this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure
the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). They are not compatible
with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
56" Verdi LED | 17

18 | KICHLER.COM
TROUBLESHOOTING
Problem Solution
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance. Rotate
the fan until the next blade is positioned for measurement. Repeat for each blade. The distance
deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
Remote control
malfunction.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other
control system EXCEPT a basic On/O wall switch, if desired.

FCC INFORMATION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
56" Verdi LED | 19

KICHLER LIGHTING
7711 EAST PLEASANT VALLEY ROAD
CLEVELAND, OHIO 44131
CUSTOMER SERVICE 866.558.5706
8:00 AM TO 5:00 PM EST, MONDAY - FRIDAY
© Kichler Lighting LLC. All Rights Reserved.
