Kichler Lighting Select Sutter Place User manual

INSTRUCTION MANUAL
Product images may vary slightly from actual product.
Sutter Place™ Select

KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES .................................................................4
TOOLS AND MATERIALS REQUIRED.......................5
PACKAGE CONTENTS ....................................................5
MOUNTING OPTIONS.....................................................6
HANGING THE FAN.......................................................... 7
INSTALLATION OF SAFETY SUPPORT....................9
ELECTRICAL CONNECTIONS ...................................10
FINISHING THE INSTALLATION.................................11
ATTACHING THE FAN BLADES.................................12
INSTALLING THE MOUNTING PLATE....................12
INSTALLING THE LIGHT FIXTURE........................... 13
INSTALLING THE LAMPS & GLASS SHADE .......14
OPERATING INSTRUCTIONS..................................... 15
TROUBLESHOOTING....................................................16
SPECIFICATIONS............................................................. 17
FCC WARNING.................................................................. 17
3
Sutter Place™Select |

SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, or
personal injury, use mounting screws provided with the
outlet box. Most outlet boxes commonly used for the
support of light fixtures are not acceptable for fan support
and may need to be replaced. Due to the complexity of
the installation of this fan, a qualified licensed electrician is
strongly recommended.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 pounds. Use only CUL Listed outlet boxes marked “FOR
FAN SUPPORT”.
5. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the floor.
6. Do ot operate reversing switch while fan blades are in
motion. Fan must be turned o and blades stopped before
reversing blade direction.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After making the electrical connections, spliced conductors
should be turned upward and pushed carefully up into outlet box.
The wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
11. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX
MARKED “ACCEPTABLE FOR FAN SUPPORT”. WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
SPECIAL NOTICE
This appliance is equipped with a “Wattage Limiting Device”
required by the United States Department of Energy. The device
has been installed at the factory and can not be removed.
Installing Lamps in excess of 75 total watts will disable the unit’s
light fixture. If this should happen, you will need to reset the
lighting fixture by turning the power o to the ceiling fan and/
or light fixture, reinstalling lamps totaling less that 75 watts
and then turning the power back on.
4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
•
Phillips screwdriver
•
Blade screwdriver
•
11 mm wrench
•
Step ladder
•
Wire cutters
Unpack your fan and check the contents . You should have the following items:
A. Fan blades (5)
B. Ceiling mounting bracket
C. Canopy
D. Ball/downrod assembly
E. Coupling cover
F. Fan motor assembly
G. Set of 5 blade brackets and Pre-Installed
mounting screws
H. Mounting plate
I. Switch housing
J. Light kit
K. Glass shade
L. 3, 4 Watt E-12, LED lamps
M. Part bag contents
1) Mounting hardware :
wood screws (2), flat washers (2),
star washers (2), wire nuts (3),
screws (2)
2) Rubber gasket
3) Blade attachment hardware:
screws (17), fiber washers (17)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Pull chains and fobs (2)
6) Balance kit
a
b
c
d
e
f
g
h
i
j
l
m
k
5
Sutter Place™Select |

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.

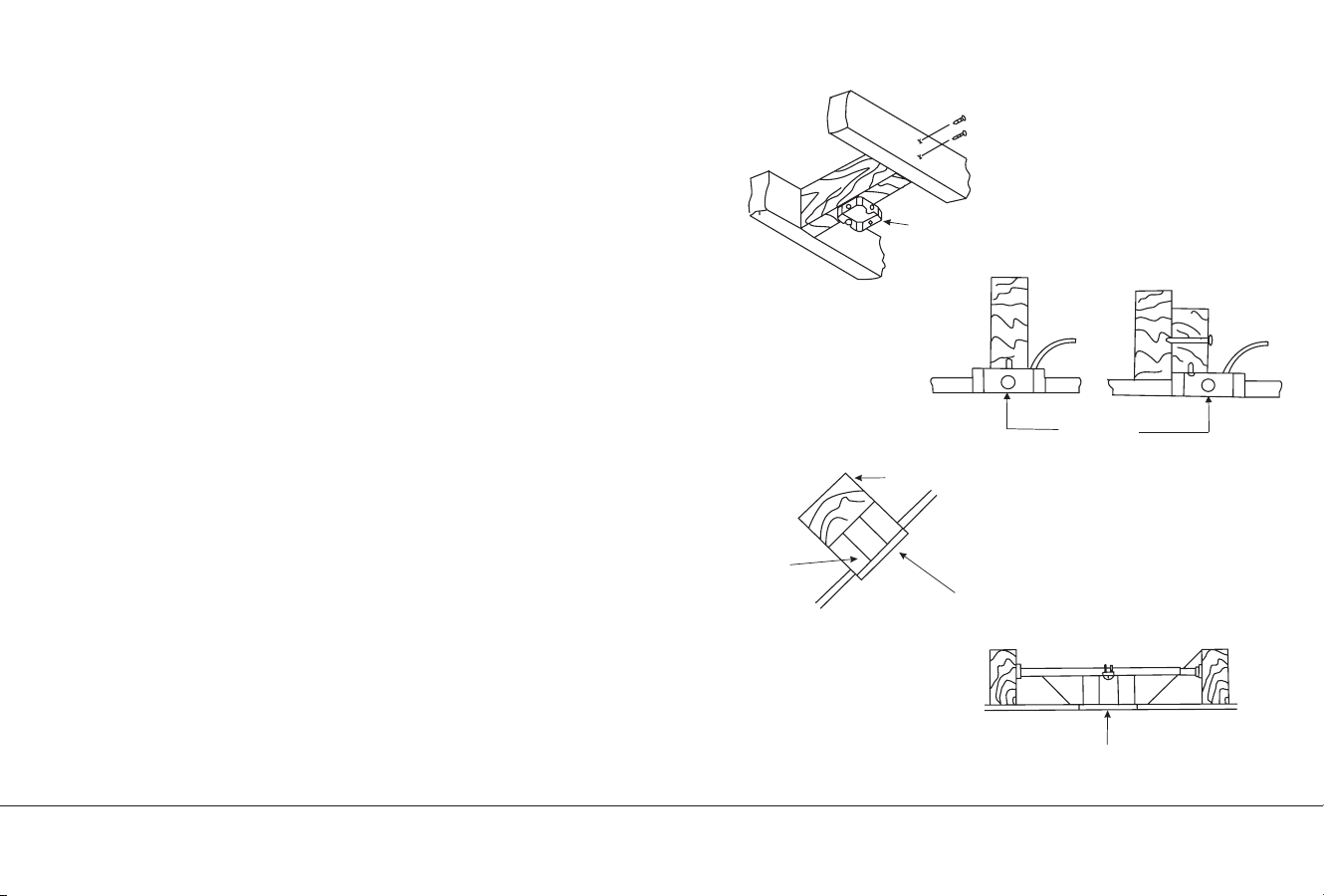

Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist Hanger”
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Outlet Box
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Outlet Box
Angled Ceiling
Maximum 20° Angle
Recessed
Outlet Box
Ceiling
Mounting
Plate
Outlet Box
Provide Strong
Support
6 | KICHLER.COM

HANGING THE FAN
NOTE: This ceiling fan is supplied with two types of hanging assemblies; a downrod
and canopy mounting system and a “close to ceiling” Canopy ONLY system. The
“close-to- ceiling” installation is recommended in rooms with less than 8-foot
ceilings or in areas where additional space is desired from the floor to the fan
blades. Once you have selected which mounting system you will use, proceed with
the following instructions. Where necessary, each section of the instructions will
note the dierent procedures to follow for the two types of mounting.
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy. (Fig. 5)
Step 2. Loosen the four screws on the top of the canopy. Remove the two non-
slotted screws and loosen the slotted screws. This will enable you to remove the
ceiling mounting bracket. (Fig. 5)
Step 3. Remove the ceiling mounting bracket from the canopy by loosening the
two screws on the bottom of the ceiling mounting bracket. Turn the canopy
counterclockwise and remove. (Fig. 5)
Step 4. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig. 6)
Step 5. Attach the ceiling mounting bracket to the outlet box using the screws and
washers included with the outlet box. (Fig. 6)
STANDARD CEILING INSTALLATION
Step 1. Remove the hanger ball from the downrod assembly by loosening the set
screw, removing the cross pin and sliding the ball o the rod. (Fig.7)
Step 2. Loosen the two set screws and remove the hitch pin and retaining clip from
the coupling on top of the motor assembly. (Fig. 7)
Screws
Canopy
Canopy Cover
CUL Listed
Outlet Box
Ceiling Mounting Bracket
Ceiling
Mounting
Bracket Hook
120V Wires
Set Screw
Set Screws
Retaining Pin
Hitch Pin
Set Screws
Canopy
Screws
Washers
Cross Pin
Hanger Ball
Downrod
Coupling Cover
Coupling
Supply Wires
Mounting Screws
(supplied with electrical box)
Fig. 5
Fig. 6
Fig. 7
7
Sutter Place™Select |

STANDARD CEILING INSTALLATION
Step 3. Carefully feed the electrical lead wires from the fan up through the downrod.
Thread the downrod into the coupling until the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 7)
Step 4. Slip the coupling cover, canopy cover, decorative mounting screw cover and canopy
onto the downrod.
Thread the hanger ball onto the downrod, insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 7)
Step 5. Lift the motor assembly into position and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into the “Registration Slot”
and seats firmly. (Fig. 8)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause the fan to
fall from the ceiling during operation. Take special care to make sure this pin is reattached.
CLOSE-TO-CEILING INSTALLATION
Step 1. Remove three of the six screws and lock washers (every other one) from the collar
on top of the motor assembly. Place the ceiling fan canopy and the rubber gasket over the
collar and align the mounting holes with the holes in the collar. Attach the canopy with the
rubber gasket and the three screws and lock washers previously removed. (Fig. 9)
WARNING: Failure to completely tighten the three mounting screws in step 9 could result
in the fan possibly falling from the ceiling.
Step 2. Hang the fan on the ceiling mounting bracket by inserting the hook on the inside
edge of the ceiling mounting bracket through one of the screw holes in the ceiling canopy
(Fig. 10). This will allow you to have both hands free to make the wiring connections.
Registration Slot
Check Tab
Rubber Gasket
Rubber Gasket
Coupling
Hook
Canopy
Screws and Lock Washers
(3 of 6 places)
Fig. 10
Fig. 9
Fig. 8
8 | KICHLER.COM

INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling, please
install it as follows.
Step 1. Attach the provided wood screw and washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling
the extra cable through the cable clamp until the overall length is correct, put the end of
the cable back through the cable clamp, forming a loop at the end of the cable. Tighten
the cable clamp securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian installations only. It’s
a good idea to make the attachment with any installation.
Ceiling Mounting
Bracket Attach safety
cable to ceiling
joist with screw
ad washer
Fig. 11
9
Sutter Place™Select |

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power at
the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire
connecting nuts suppled with your fan. Secure the connectors with electrical tape. Make
sure there are no loose wire strands or connections.

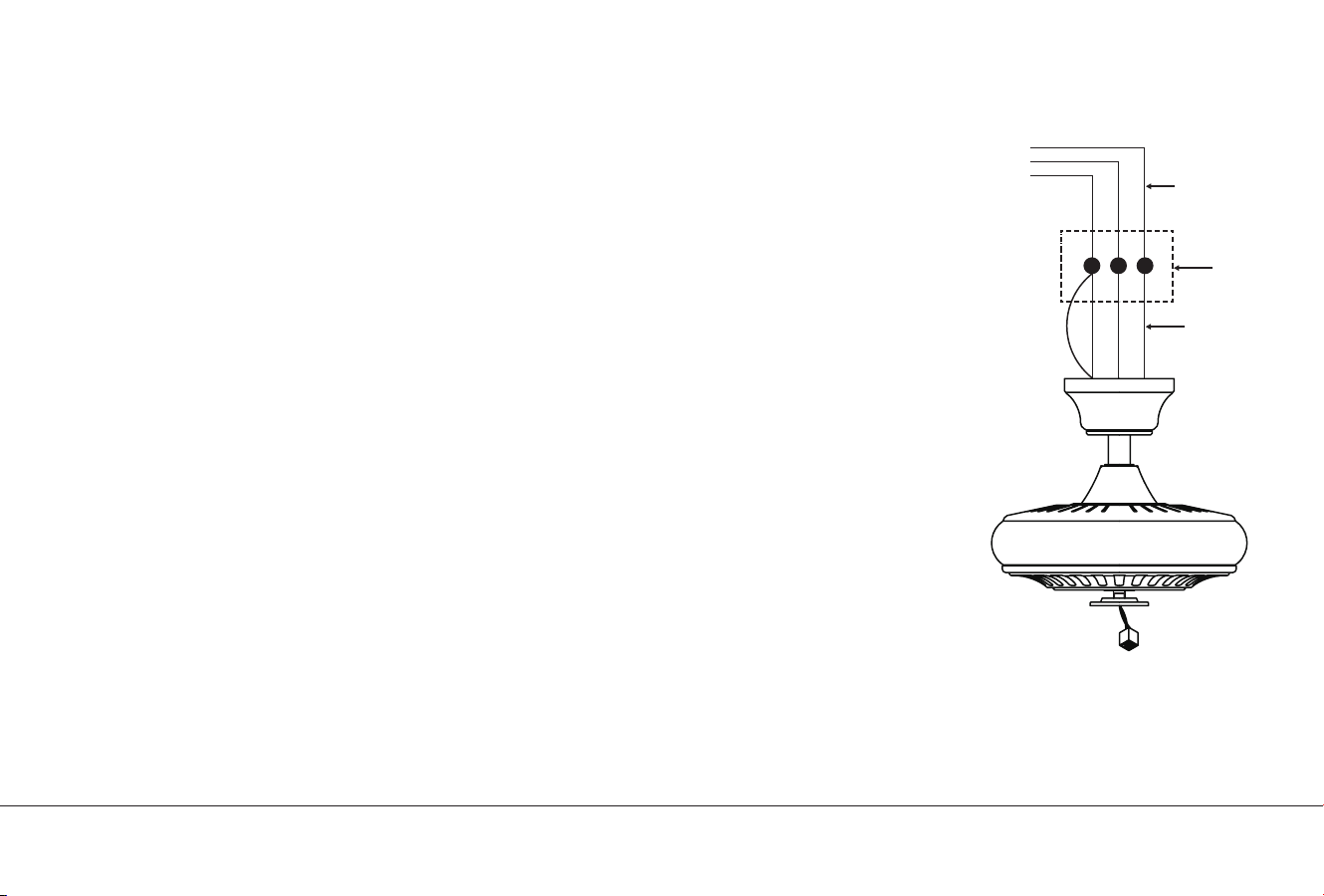

Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the black
household supply wire as shown in Figure 12.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white wires
are on one side of the outlet box and the black and blue wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box.
BLK
BLUE
BLK
WH
WH
GRN
Power Lines 120v
Green Ground
Wiring Box
Ground to
Mounting
Bracket or
Downrod
Fig. 12
10 | KICHLER.COM

STANDARD CEILING INSTALLATION
CLOSE-TO-CEILING INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting
bracket using 4 screws at the top edge of the mounting bracket. Insert each screw
through the canopy mounting hole and into the mounting bracket. Tighten all screws
securely. (Fig. 13)
Step 1. Tuck all the wire connections neatly above the receiver and into the ceiling
outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of the key hole
slots over the mounting screw on the mounting bracket. Rotate the canopy until the
screw head locks in place at the narrow section of the key hole. See figure 15.
Step 3. Remove the fan from the hook on the ceiling mounting bracket. Attach the
fan assembly to the ceiling mounting bracket using 4 screws at the top edge of the
mounting bracket.
Align the keyhole slots on the canopy with the mounting screw heads on the sides
of the mounting bracket. Lift up and turn the fan assembly until the heads of the
mounting screws are in the narrow end of the keyhole slots.
Step 3. Make sure all four mounting screws are tight. (Fig. 14)
Outlet Box
Screws
Ceiling Mounting
Bracket Screws
Canopy
Screws
Outlet Box
Screws
Hook
Ceiling Mounting
Bracket
Canopy
Fig. 13
Fig. 14
FINISHING THE INSTALLATION
11
Sutter Place™Select |

ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping blocks attached to the face of the motor.
These blocks keep the motor from shifting during shipping and MUST be removed
during installation.
Step 1. Attach a blade to a blade bracket using the screws and fiber washers provided.
(Fig. 15)
Make sure the blade is straight when set on the blade bracket. Tighten each mounting
screw until the fiber washer is slightly compressed. Repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the motor using the “Pre-Installed” mounting
screws in the blade bracket. (Fig 15)
INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the mounting ring attached to the motor shaft and
“remove” and save the third screw. (Fig. 16)
Step 2. Place the key hole slots on the mounting plate over the two screws previously
loosened on the mounting ring.
Turn the mounting plate until is locks in place at the narrow section of the key hole slots.
Tighten both key hole screws and replace the third screw previously removed and
tighten securely.
Screws
Blades
Blade Brackets
Fiber
Washers
Screws
Screws
Mounting Ring
Mounting Plate
Fig. 15
Fig. 16
12 | KICHLER.COM

INSTALLING THE LIGHT FIXTURE
1. Remove the plastic plug from the center of the switch housing. Attach the light
fixture to the switch housing by feeding the light fixture wires (black & white)
through the hole in the center of the switch housing, then screw the light fixture
stem into the center hole. On the inside of the switch housing, place a lock washer
and a nut on the light fixture stem and tighten. (Fig.17)
2. Locate the white and blue wires inside the switch housing labeled FOR LIGHT.
Attach the wires from the light fixture to the wires inside the switch housing by
pushing the polarized connections together. (Fig.17)
- White wire to White wire
- Black wire to Blue wire
3. While holding the light fixture/switch housing assembly under your ceiling fan,
push the square wire connectors together. One from the fan and one from the
switch housing. (Fig.18)
NOTE: These connectors are color coded and will ONLY engage when the colored
strips are matched (aligned).
4. Carefully push all the wires into the switch housing on the light fixture/switch
housing assembly.
Attach the light fixture/switch housing assembly to the mounting plate with the
screws provided. Make sure each screw is tight. (Fig. 18)
Fig. 17
Fig. 18
Wire Connectors
Plug
Nut
Lock Washer
Switch Housing
Light Fixture
Wire Connector
Mounting Plate
Screws
Light Fixture/
Switch Housing
Assembly
13
Sutter Place™Select |

INSTALLING THE LAMPS AND GLASS SHADE
1. Install 3, 4 Watt, E-12 LED lamps (included).
2. Remove the decorative nut, glass cap and metal nut from the light fixture stem.
Slip the beaded pull chain into the outside hole in the glass shade then feed the
beaded pull chain from the light fixture stem through the eyelet in the shade. Now
place the glass shade over the light fixture stem. Secure the shade with a metal nut
(rubber side touching the shade). (Fig. 19)
3. Fit the decorative cap onto the light fixture stem and then slip the beaded pull
chain from switch housing through the hole on the side of the decorative glass
cap. Feed the beaded pull chain from the light fixture stem through the hold in the
decorative nut and thread the decorative nut on securely. DO NOT OVER TIGHTEN.
4. Attach two pull chain fobs to each of the beaded pull chains. (Fig. 19)
Note: Make sure to leave enough space between the fan pull chain and the lamps so
the chain doesn’t rub against any of the lamps. Lamps
Glass Shade
Beaded Pull Chain
Decorative Nut
Decorative Glass Cap
Metal Nut
Light Fixture
Fig. 19
14 | KICHLER.COM

OPERATING INSTRUCTIONS
Turn the power on and check the operation of your ceiling fan.
The “center” pull chain turns the light fixture On and O.
The “outside” pull chain controls the 3 speeds of your ceiling fan.
1 pull = High, 2 pulls = Medium, 3 pulls = Low and the 4th pull turns the
motor o.
The Black Slide Switch on the side of the switch housing controls the
direction of the blades “Forward and Reverse”.
Do not operate reversing switch while fan blades are in motion. Fan must
be turned o and blades stopped before reversing blade direction.
Warm weather - For ward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 20. This allows you to set your
air conditioner on a warmer setting without aecting your comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 21. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
Fig. 20
Fig. 21
15
Sutter Place™Select |

TROUBLESHOOING
Problem Solution
Fan will not start. 1. Check that all fuses or circuit breakers are installed or in the ON position.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when
checking any electrical connection.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs
are not touching any other component.
6. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type
of control, choose and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is posi-
tioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8”.
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO INSURE THE PROPER OPERATION
OF YOUR CEILING FAN. NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE CEILING FAN HAS BEEN
MOUNTING ON THE CEILING. DO NOT BEND THE BLADE ARMS WHILE INSTALLING, BALANCING OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN ROTATING FAN BLADES.
16 | KICHLER.COM

SPECIFICATIONS
FCC INFORMATION:
Fan Size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.
52" High 120 0.42 51.0 158 4199.05 82.33
8.45
kgs 9.45 kgs 2.33'Medium 120 0.33 27.8 119 3252.72 117.00
Low 120 0.19 9.0 69 1792.55 199.17
These are approximate measurements. They do not include data for any lamps or fixtures attached to the ceiling fan.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
17 | KICHLER.COM

KICHLER® LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY

MANUAL DE INSTRUCCIONES
Las imágenes son de carácter ilustrativo y pueden diferir del producto real.
Sutter Place™ Select

KICHLER.COM
