Kichler®Lighting
7711 East Pleasant Valley Road
P.O. Box 318010
Cleveland, Ohio 44131-8010
Customer Service
866.558.5706
8:30 AM to 5:00 PM EST,
Monday - Friday
Instruction Manual
KimberleyTM
A Kichler®Décor™ ceiling fan

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED "ACCEPTABLE FOR FAN
SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING ASSEMBLY
OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2

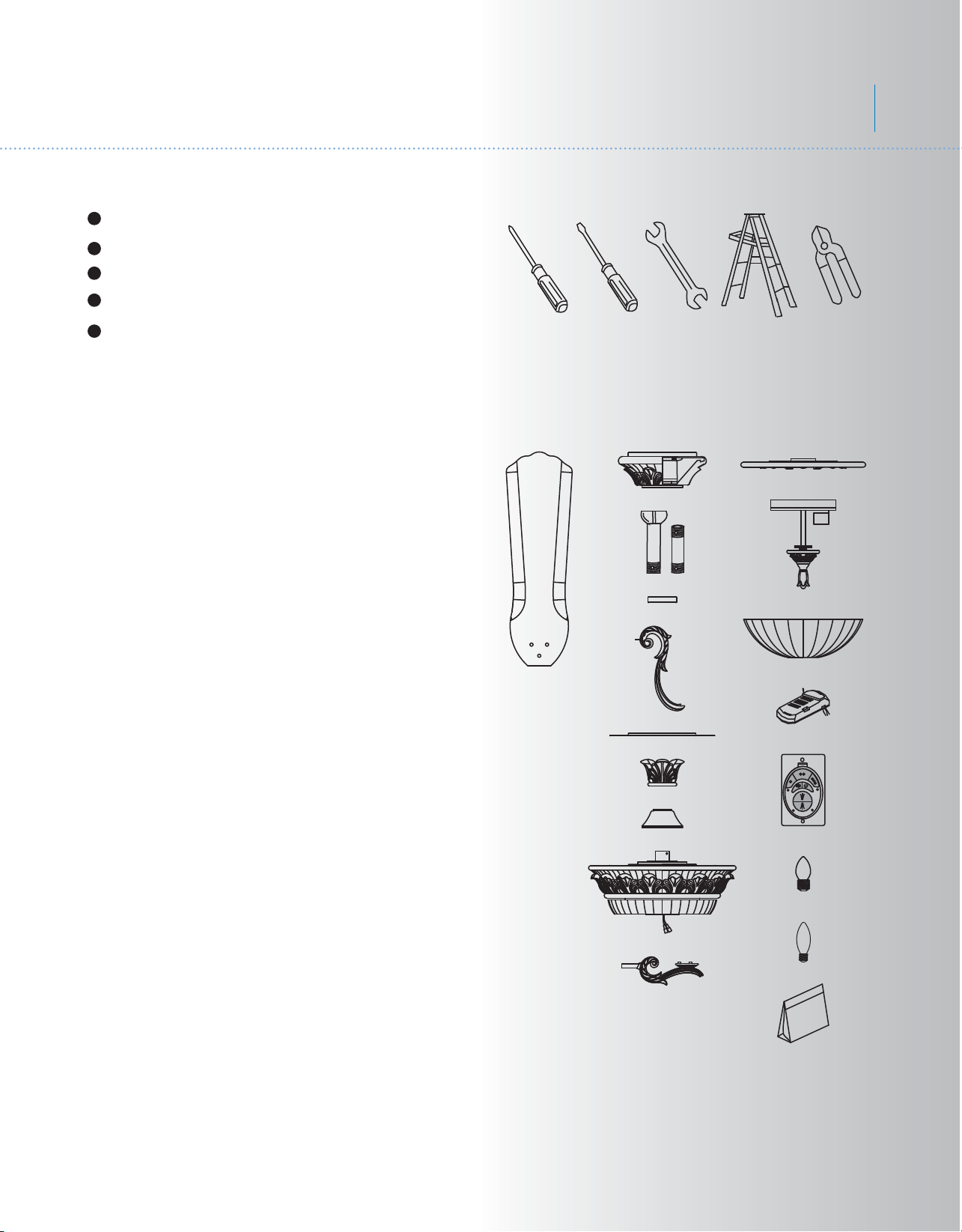

3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
a. Fan blades (5)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly (1)
& extra downrod (1)
d. Decorative scroll holder
e. Decorative scroll arms (3)
f. Motor top plate
g. Decorative scroll ring
h. Coupling cover
i. Fan motor assembly
j. Set of blade brackets (5)
k. Mounting plate
l. Light kit
m. Glass shade
n. Receiver+7 wire nuts
o. CoolTouchTM Control System
p. 15 Watt candelabra bulbs (6)
q. 40 Watt candelabra bulbs (3)
r. Part bag contents
1) Mounting hardware :
wood screws (2), flat washers (2),
star washers (2), wire nuts (3)
2) Blade attachment hardware:
screws (17),
fiber washers (17)
3) Blade brackets hardware:
screws (12)
4) Safety cable hardware:
wood screw, lock washer, flat washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
KimberleyTM
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
r
q

3
4. MOUNTING OPTIONS
If there isn't an existing UL (cUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 20°ANGLE

4
KimberleyTM
Fig. 6
Fig. 8
Fig. 7
Fig. 9
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
bracket
CUL Listed
electrial
box
120V Wires
Washers
REMEMBER to turn off the power before you
begin.
To properly install your ceiling fan, follow the
steps below.

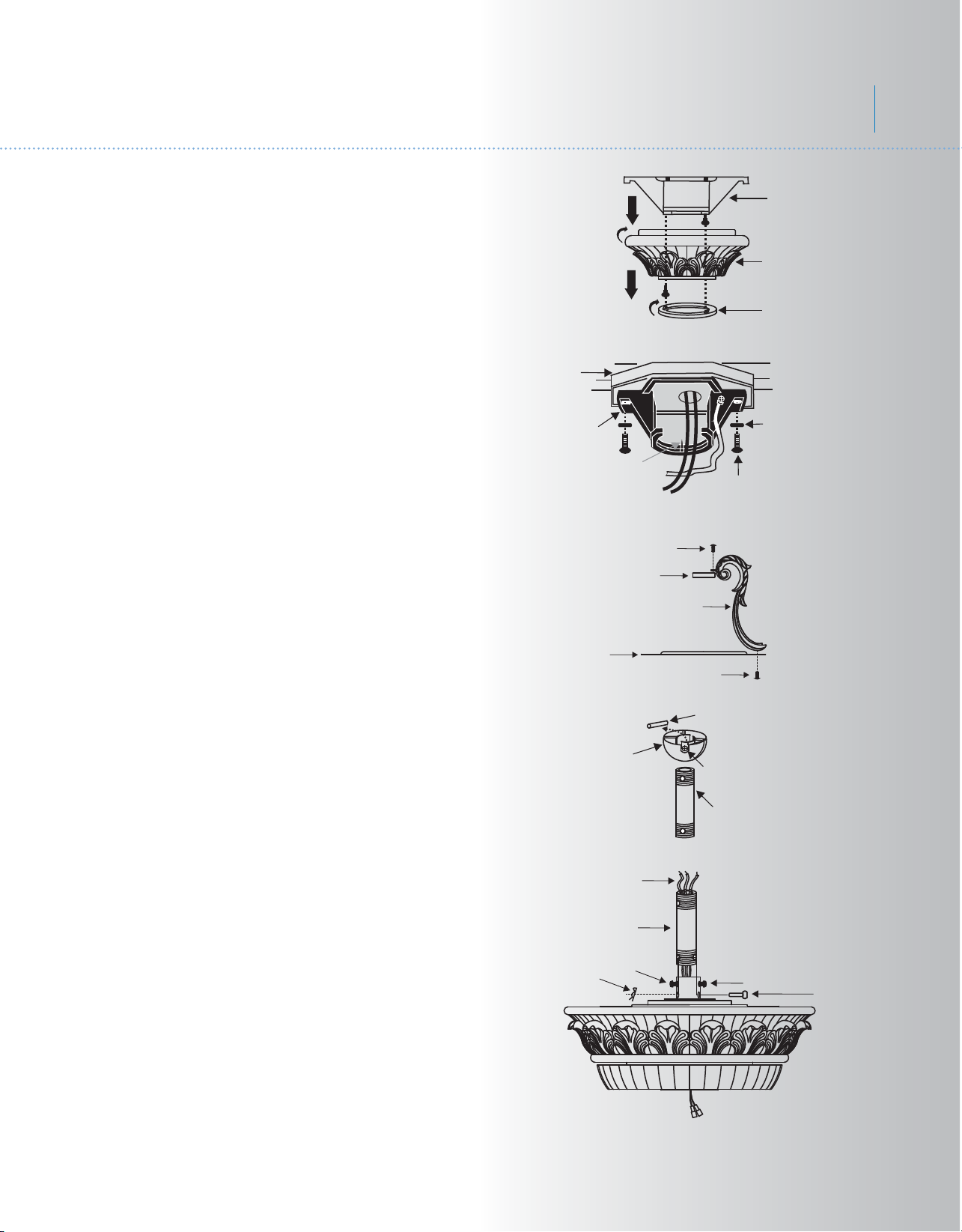

Step 1. Remove the decorative canopy bottom
cover from the canopy by turning the cover
counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket
from the canopy by removing (and save one of
the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to
the outlet box using the screws and washers
included with the outlet box. (Fig. 6)
Step 5. Attach the decorative scroll arms to
the decorative scroll holder and the motor to
plate with the screws provided. (Fig 7)
Step 6. Remove the hanger ball from the
downrod assembly by loosening the set screw,
removing the cross pin and sliding the ball off
the rod. (Fig.8)
Step 7. Loosen the two set screws and
remove the hitch pin and retaining clip from
the coupling on top of the motor assembly.
(Fig. 9)
Step 8. Carefully feed the electrical lead wires
from the fan up through the downrod. Thread
the downrod into the coupling until the Hitch
pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 9)
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining Clip Set screws
Set screws
Fig. 5
Ceiling
mounting
bracket
Ceiling
canopy
Canopy
cover
5. HANGING THE FAN
Decorative scroll arms
Decorative scroll holder
Screws
Motor top plate
Screws

5
Fig. 12
Fig. 11
Fig. 10
Registration slot
Step 9. Slip the coupling cover, decorative
scroll ring, decorative scroll assembly, canopy
cover and canopy onto the downrod.
Thread the hanger ball onto the downrod,
insert the cross pin through the downrod and
tighten. Now tighten the set screw. (Fig. 10)
Step 10. Install the 6, 15 watt candelabra
lamps (included). Attach the decorative scroll
assembly onto the top of the motor housing
with the three screws provided. Then tighten
the set screws on the decorative scroll holder.
(Fig. 11)
Step 11. Lift the motor assembly into position
and place the hanger ball into the ceiling
mounting bracket.
Rotate the entire assembly until the "Check
Tab" has dropped into the "Registration Slot"
and seats firmly. (Fig. 12)
The entire motor assembly should not rotate
(left or right) when seated properly.
WARNING: Failure to reattach the cross pin
and seat the "Check Tab" can cause the fan to
fall from the ceiling during operation. Take
special care to make sure this pin is
reattached.
Decorative scroll
assembly Screws
Set screws
Bulbs
Downrod
Canopy
Decorative scroll
assembly
*Omit decorative
scroll when using the
minimum-length
downrod
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
Decorative scroll ring

6
KimberleyTM
Fig. 13
Fig. 14
Fig. 15
Hanger bracket Safety cable
Code switch
Receiver
Hanger
bracket
7. ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts suppled with your fan. Secure
the connectors with electrical tape. Make sure
there are no loose wire strands or
connections.
NOTE: The CoolTouch™ Control System is
equipped with 16 possible frequency
combinations to prevent interference from or
with other remote control units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to
the same position. (Fig. 14)
Step 1. Insert the receiver in the ceiling
mounting bracket with the flat side of the
receiver facing the ceiling. (Fig. 15) For best
performance, make sure the Black Antenna,
on the end of the receiver, remains extended
and not tangled with any of the electrical wires.
6. INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help
prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 13)
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the
cable back through the cable clamp, forming a
loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end
of the safety cable over the wood screw and
under the washer. Tighten the wood screw
securely.
NOTE: Although the safety support cable is
required for Canadian installations only. It's a
good idea to make the attachment with any
installation.

7

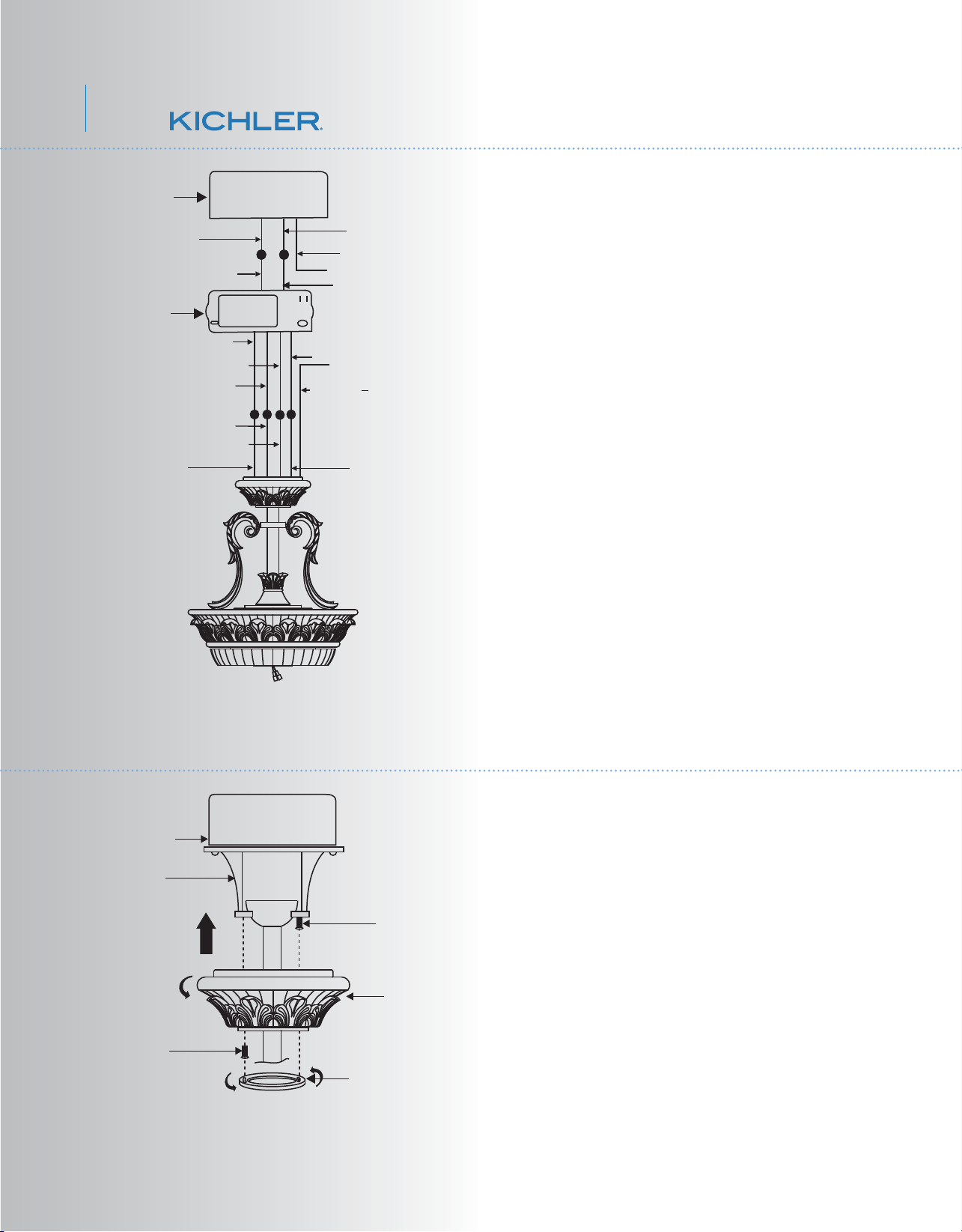

Fig. 16
Fig. 17
Step 1. Tuck all the connections neatly into the
ceiling outlet box.
Step 2. Slide the canopy up to the mounting
bracket and place one of the key hole slots over
the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in
place at the narrow section of the key hole. See
figure 17.
Step 3. Align the remaining circular hole on the
canopy with the remaining hole on the Ceiling
Mounting Bracket. Insert and tighten the mounting
screw you removed earlier and the mounting screw
from Step 2 above. Now, attach the canopy cover
to the mounting screw heads by inserting the
screw heads into the bottom side of the canopy
cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug. (Fig.
17)
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
8. FINISHING THE INSTALLATION
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
Outlet box
Black (hot)
Black ("AC IN L")
Receiver
White (neutral)
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Black ("to motor L")
Blue (for bottom light)
Orange (for upper light)
Blue (for bottom light)
Black (motor)
Orange (for upper light)
Step 2. Motor to Receiver Electrical Connections:
(Fig. 16) Connect the black wire from the fan to the
black wire marked "TO MOTOR L" on the receiver.
Connect the white wire from the fan to the white
wire marked "TO MOTOR N" on the receiver.
Connect the blue wire from the fan to the blue wire
marked "FOR BOTTOM LIGHT" on the receiver.
Connect the orange wire from the fan to the orange
wire marked "FOR UPPER LIGHT" on the receiver.
Secure each set of wire connections with the plastic
wire nuts provided in the parts bag.
Step 3. Receiver to Supply Wires Electrical
Connections: (Fig. 16) Connect the black (load)
wire from the ceiling outlet box to the black wire
marked "AC in L" on the receiver.
Connect the white (neutral) wire from the ceiling
outlet box to the white wire marked "AC in N" on the
receiver.
Secure each set of electrical connections with with
the plastic wire nuts provided in the parts bag.
Step 4. Connect the ground wire (green or bare
copper) from the outlet box to the ground wire on
the ceiling mounting bracket and the ground wire
from the ceiling fan.
After making all connections, separate the white
and green wire connections to one side and the
black wire connections to the other side of the outlet
box.
NOTE: Fan must be installed at a maximum
distance of 30 feet from the CoolTouch™Remote
Transmitter for optimal signal transmission between
the transmitter and the fan's receiving unit.

8
KimberleyTM

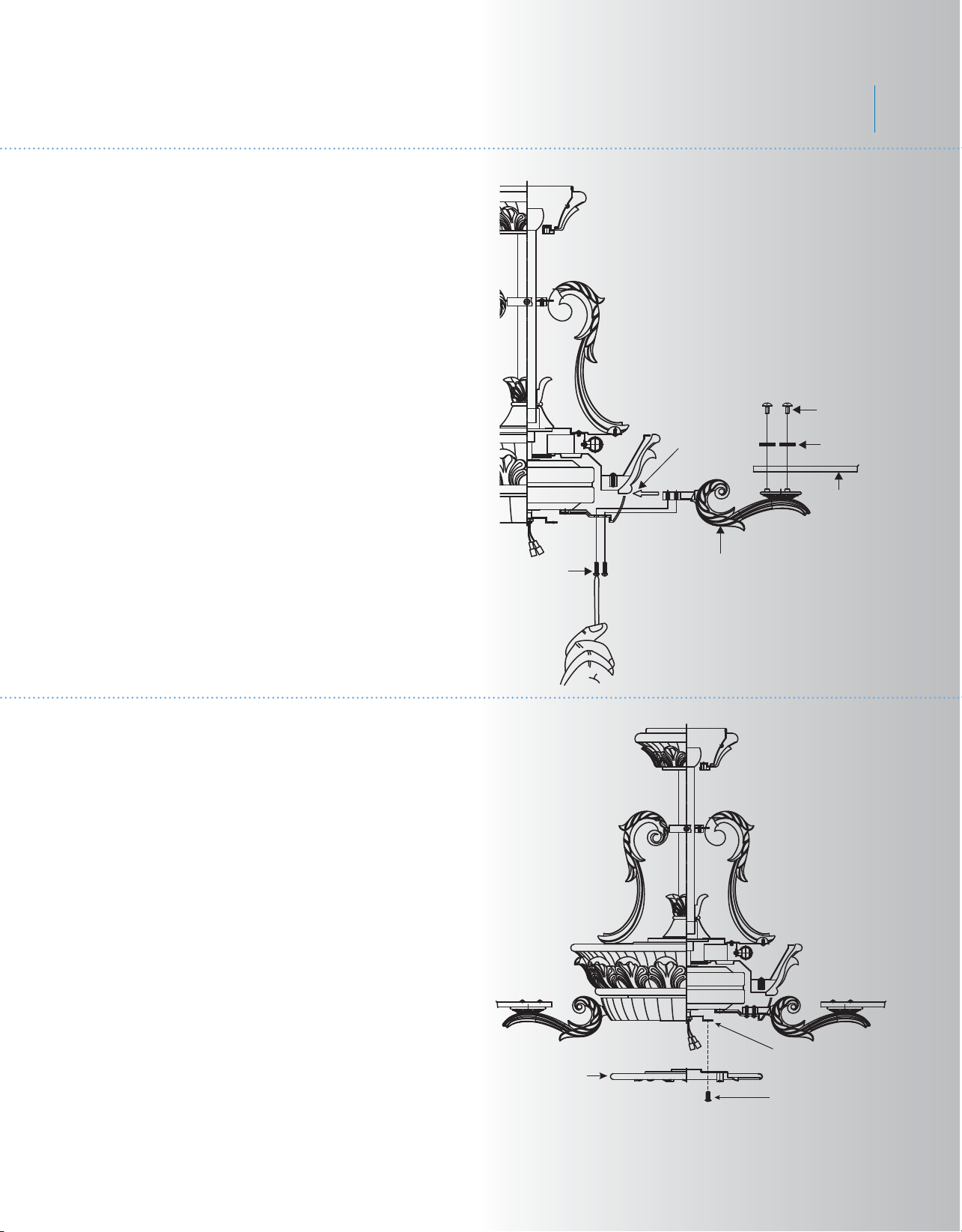

9. ATTACHING THE FAN BLADES
Fig. 18
Fig. 19
10. INSTALLING THE MOUNTING PLATE
CAUTION: Remove the five rubber shipping
blocks attached to the face of the motor.
These blocks keep the motor from shifting
during shipping and MUST be removed during
installation.
Step 1. Attach a blade to a blade bracket using
the screws and fiber washers provided.
(Fig.18)
Make sure the blade is straight when set on
the blade bracket. Tighten each mounting
screw and then repeat this procedure for each
blade.
Step 2. Attach each blade assembly to the
motor using the mounting screws provided
with the blade brackets hardware. (Fig 18)
1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws
(do not remove). (Fig. 19)
2. Place the key holes on the mounting plate
over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 19)
Mounting
plate
Mounting ring
Screws
Screws
Blade
Blades bracket
Screws
Slot Fiber
washers

9
Fig. 20
Fig. 21

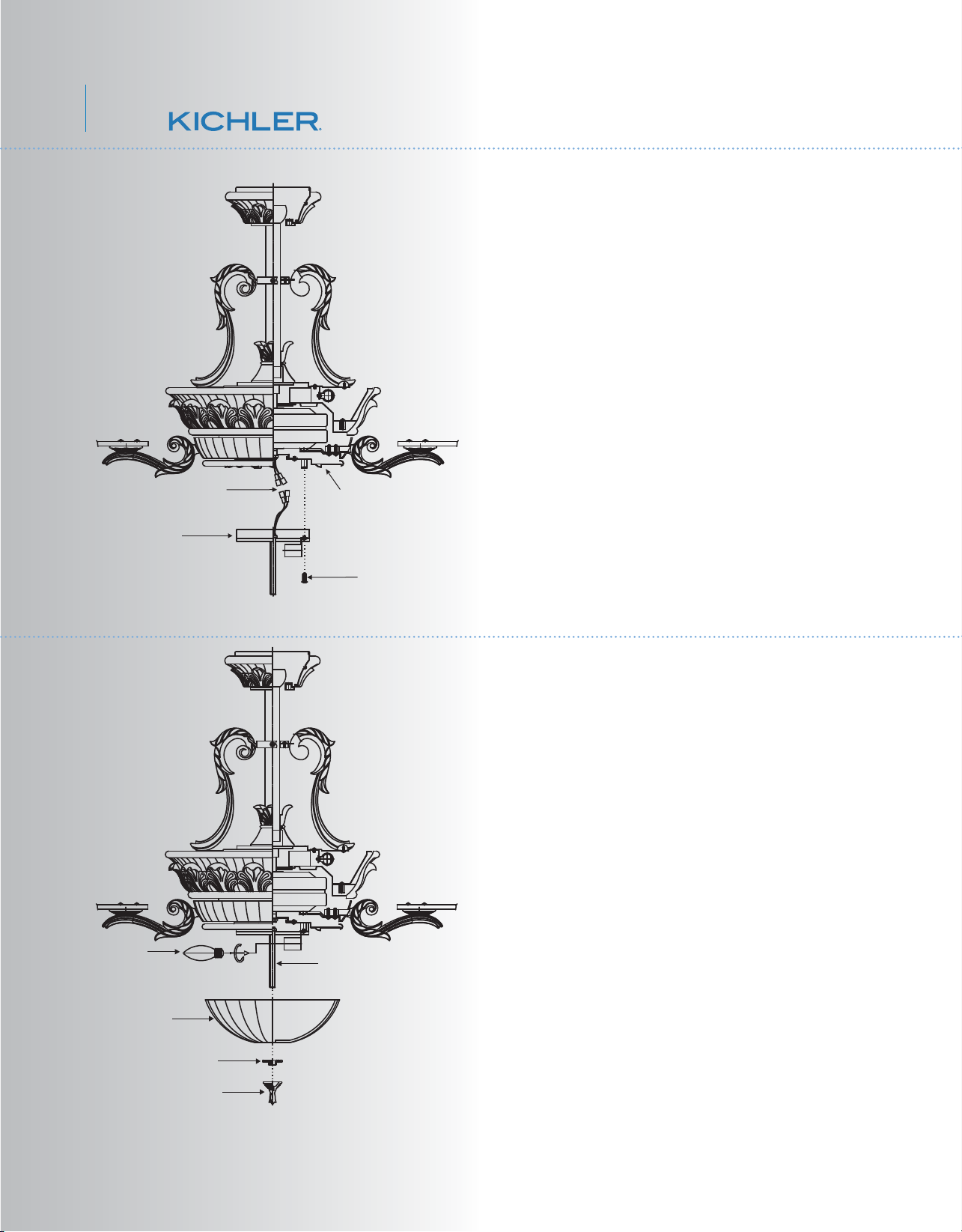

12. INSTALLING THE LIGHT BULBS
& GLASS SHADE
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box.
Step 1. Loosen the 3 screws from the
mounting plate.
Step 2. Raise and hold the light kit close to the
mounting plate. Connect the white wire
connectors from the light kit and fan. Follow
the same procedure with the black wire
connectors. (Fig. 20)
Step 3. Tuck connections neatly into mounting
plate, Place the light kit key holes over the 3
screws previously loosened from the mounting
plate, turn light kit until it locks in place at the
narrow section of the key holes. secure by
tightening the 3 screws previously loosened.
(Fig. 20)
1. Install 3 x 40W candelabra bulbs (included).
2. Remove the decorative nut and metal nut
from the light kit. Place glass shade over the
light kit stem, secure with the metal nut (rubber
side on the top) and decorative nut. Do not
overtighten. (Fig. 21)
3. Restore power and your light kit is ready for
operation.
11. INSTALLING THE LIGHT KIT
Light kit
Bulbs
Glass shade
Decorative nut
Metal nut
Mounting plate
Connection plugs
Light kit
Screws

10
Fig. 22
Fig. 23

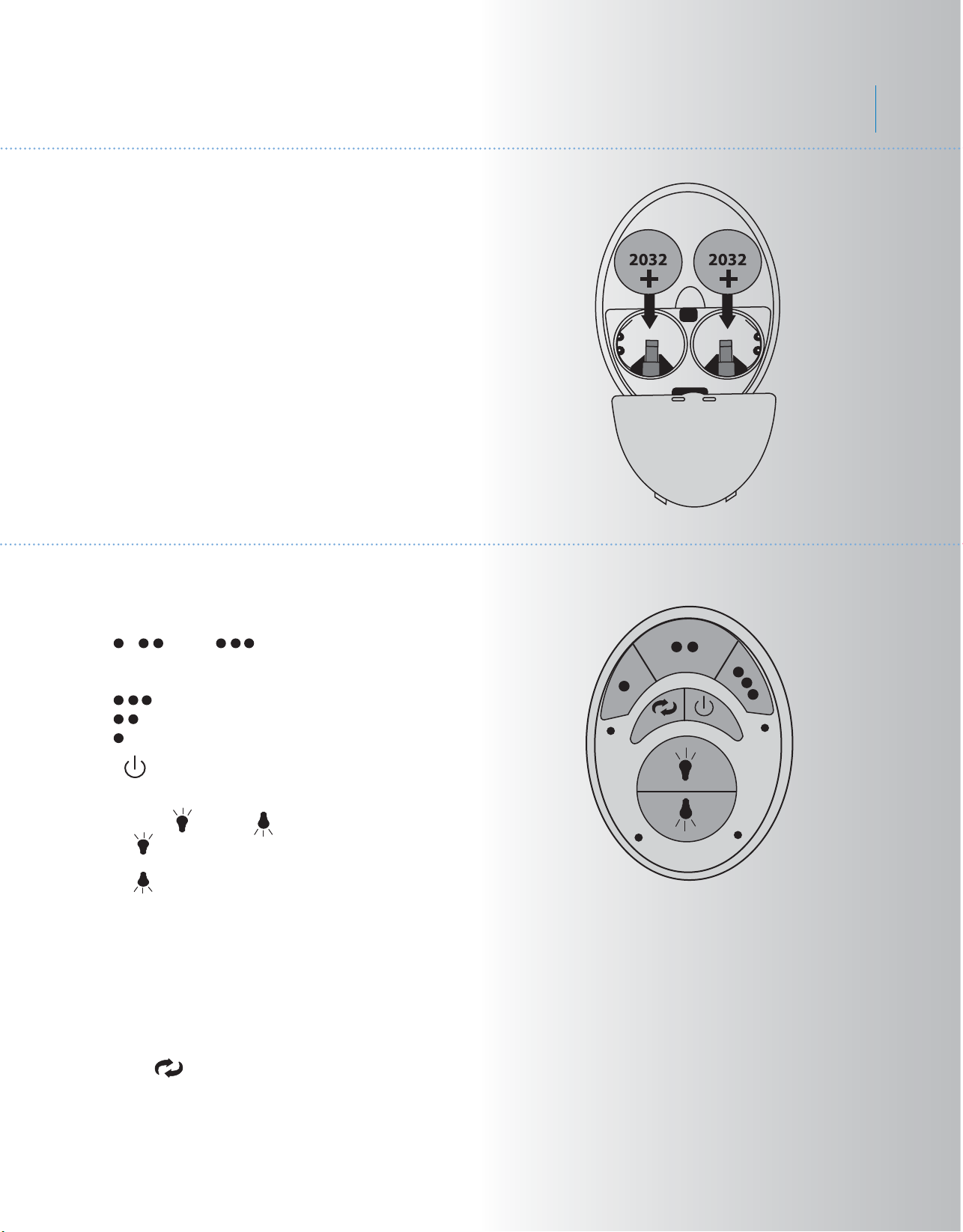

14. OPERATING INSTRUCTIONS
Remove the battery compartment cover on the
back of the CoolTouch™ Transmitter and
insert both batteries provided. Make sure the +
sign is facing up.
Take care during this procedure NOT TO
move the frequency dip switches inside this
compartment. The settings MUST remain the
same as the settings on the receiver for proper
communication with the control system.
It's a good idea to remove these batteries if
your fan is not used for extend periods of time,
(months).
13. INSTALLING THE BATTERIES
KimberleyTM
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= High speed
= Medium speed
= Low speed
B. button:
This button turns the fan off.
C. The " " and " " button:
The " " button turns the upper light ON or
OFF and also controls the brightness setting.
The " " button turns the bottom light ON or
OFF and also controls the brightness setting.
Press and hold either button to set the desired
brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release either button to turn the
light ON or OFF.
D. The " " button is used to set the fan in
forward or reverse operation. Each time you
press this button the fan blades will reverse
direction. This button functions ONLY when
the fan blades are in operation.

11
Fig. 24
Fig. 25
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.

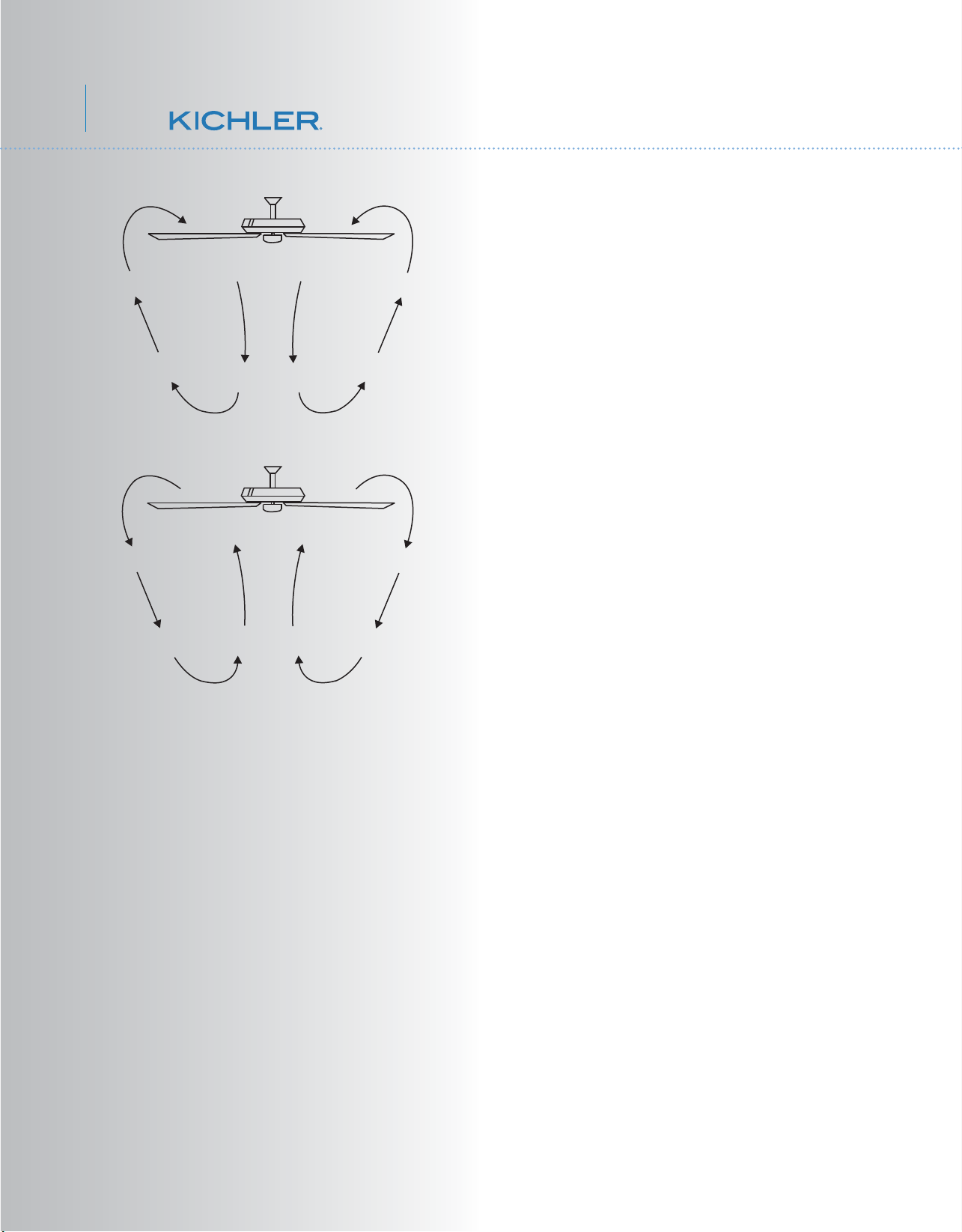

Warm Weather Operation: Forward (counter
clockwise) A downward airflow creates a
cooling effect as shown in Fig. 24. This allows
you to set your air conditioner on a warmer
setting without affecting your general comfort.
Cool Weather Operation: Reverse
(clockwise). An upward airflow moves warm
air off the ceiling areas as shown in Fig. 25.
This allows you to set your heating unit on a
cooler setting without affecting your general
comfort.

12
Fig. 26
Fig. 27

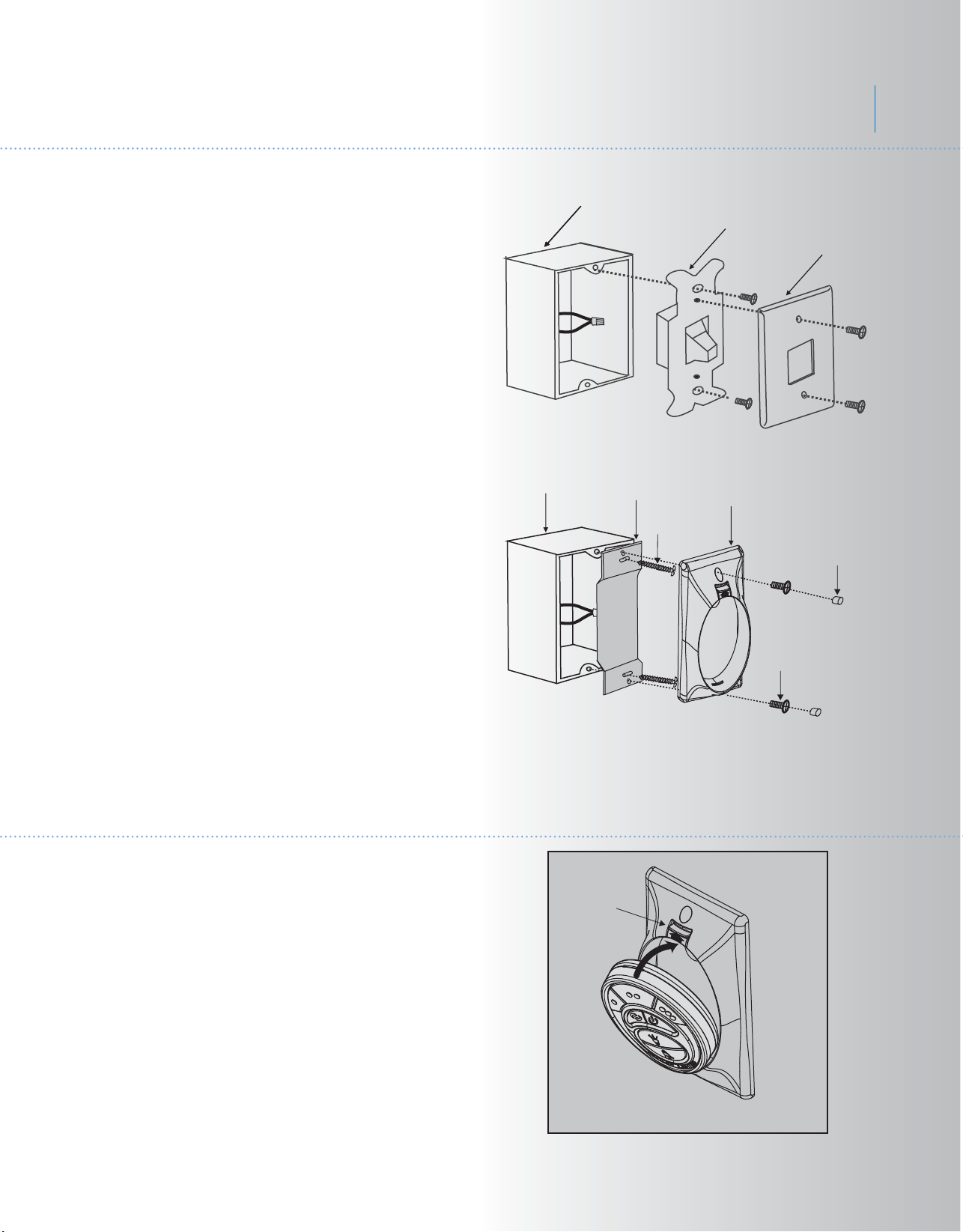

15. INSTALLING THE COOLTOUCH™
CONTROL SYSTEM WALL PLATE
16. INSTALLING THE TRANSMITTER
1. Insert the transmitter into the wall plate by
inserting the bottom of the transmitter first and
then press the top of the transmitter into the
pocket. The transmitter will fully function from
this location or you can remove the transmitter
and use as a "Hand Held" device.
2. To remove the transmitter from the wall
plate, push the release button and the
transmitter will fall into your hand.
Wall plate
Switch
Outlet box
Release
button
Fig. 28
Select a location to install your CoolTouch™
Control System Transmitter. You can replace
an existing wall switch or, install the
transmitter on ANY flat surface.
Option 1: Install the control system using an
existing wall switch outlet box.
Make sure the electrical power is TURNED
OFF at the main panel before continuing.
Step 1. Remove the existing wall plate and the
old switch from the wall outlet box. Wire nut
the BLACK leads (hot) together and push back
inside the outlet box. (Fig. 26)
Step 2. Install the metal plate and CoolTouch™
wall plate to the existing wall outlet box with 4
screws provided. Then place the two plastic
plugs into the wall plate. (Fig. 27)
Option 2: Install the control system on ANY
flat surface.
Select the desired location and use the
CootTouch™ wall plate to mark the location
for the mounting holes.
Plastic wall anchors and screws are provided
for this type of installation.
After installing the wall anchors, attached the
CoolTouch™ wall plate with the mounting
screws and then insert the plastic plugs to
finish the installation.
Screws
Screws
Plastic plugs
CoolTouch™wall plate
Outlet box Metal plate
KimberleyTM

18. SPECIFICATIONS
These are approximate measurements. They do not include data for any lamps or fixtures attached
to the ceiling fan.
17. TROUBLESHOOTING
13
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect this fan to wall mounted variable speed control(s). they are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have
identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other
electrical wires and is extended around the inside of the ceiling canopy.
3.16'
15.25
kgs
17.09
kgs
0.75
0.64
0.43
91.00
55.00
24.00
142
106
65
6178.37
4640.84
2678.40
67.89
84.38
111.60
RPM CFM CFM/W N.W. G.W. C.F.
120
120
120
Fan Size
60"
Speed Volts
Amps Watts
Low
Medium
High
