Instruction Manual
Sola
A Kichler
®
Select ceiling fan
™
330150, 330151, 330152
3066708
Includes wall mount control system

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. WARNING: To reduce the risk of fire, electric
shock, or Personal Injury, mount directly to a
structural framing member or to an outlet box
marked 'Acceptable for Fan Support of
15.9 kg (35 lbs) or less'. For outlet box
mounting, use mounting screws provided with
the outlet box.
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running. A few seconds later the fan will
slow to a stop and then reverse direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
WARNING
To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural
framing member or to an outlet box marked
'Acceptable for Fan Support of 15.9 kg(35 lbs)
or less'. For outlet box mounting, use mounting
screws provided with the outlet box.
3. WARNING: To reduce the risk of fire or
electric shock, do not use this fan with any
solid-state speed control. Use only the
control provided with the fan.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents .
You should have the following items:
A. Ceiling Mounting Plate/Bracket
B. Motor Assembly
C. Blade (3)
D. Blade Trim (3)
E. Switch Housing
F. LED Assembly
G. Glass Shade
H. Light Kit Wire Cover
I. Steel Cap
J. Wall Mount Control System
K. Package hardware
1) Mounting hardware:
wood screws (2), flat washers (2),
screws (2) , lock washers (2),
wire nuts (3)
2) Blade attachment hardware:
Screws (11)
3) Safety cable hardware :
wood screw (1) , spring washer (1),
flat washer (1)
4) Balance kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
12 3 4
DIPON
Sola

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
5. HANGING THE FAN
REMEMBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programming of the
control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Pass the 120 Volt supply wires from the
ceiling outlet box through the center of the
mounting bracket. Securely attach the Ceiling
Mounting Plate/Bracket to the ceiling junction
box as shown. ( Fig. 4)
Step 2. Hook the motor body onto the Ceiling
Mounting Plate/Bracket as shown.
You can now proceed with the electrical
wiring of your fan. (Fig. 5)
Fig. 4
Fig. 5
ETL Listed
Outlet Box
Screw
Flat Washer
Ceiling Mounting Plate/Bracket
Ceiling Mounting Plate/Bracket
Hook
Sola

5
A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.
Step 1. Drive a wood screw and washers into the
side of the brace that holds the outlet box. Leave
3mm (1/8") of space between the support brace
and the washer. (Fig. 6)
Step 2. Insert the safety cable through the
mounting bracket and one of the holes in the outlet
box into the ceiling. Adjust the length of the safety
cable to reach the screw and washers by pulling the
extra cable through the cable clamp until the overall
lenght is correct, put the end of the cable back
through the cabel clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Now,
put the loop in the end of the safety cabel over the
wood screw and under the washer. Tighten the
wood screw securely. (Fig. 7)
NOTE: Although the safety support cable is required
for Canadian installations only. It’s a good idea to
make the attachment with any installation.
WARNING: To avoid possible electrical shock, be
sure you have turned off the power at the main
circuit panel before wiring.
WARNING: If your house wires are different colors
than referenced in this manual, stop immediately.
A professional electrician is recommended to
determine proper wiring.
Follow the steps below to connect the fan to your
household wiring. Use the wire connecting nuts
supplied with your fan. Secure the connector with
electrical tape. Make sure there are no loose wire
stands or connections.
7. MAKE THE ELECTRIC CONNECTIONS
6. INSTALLATION THE SAFETY SUPPORT

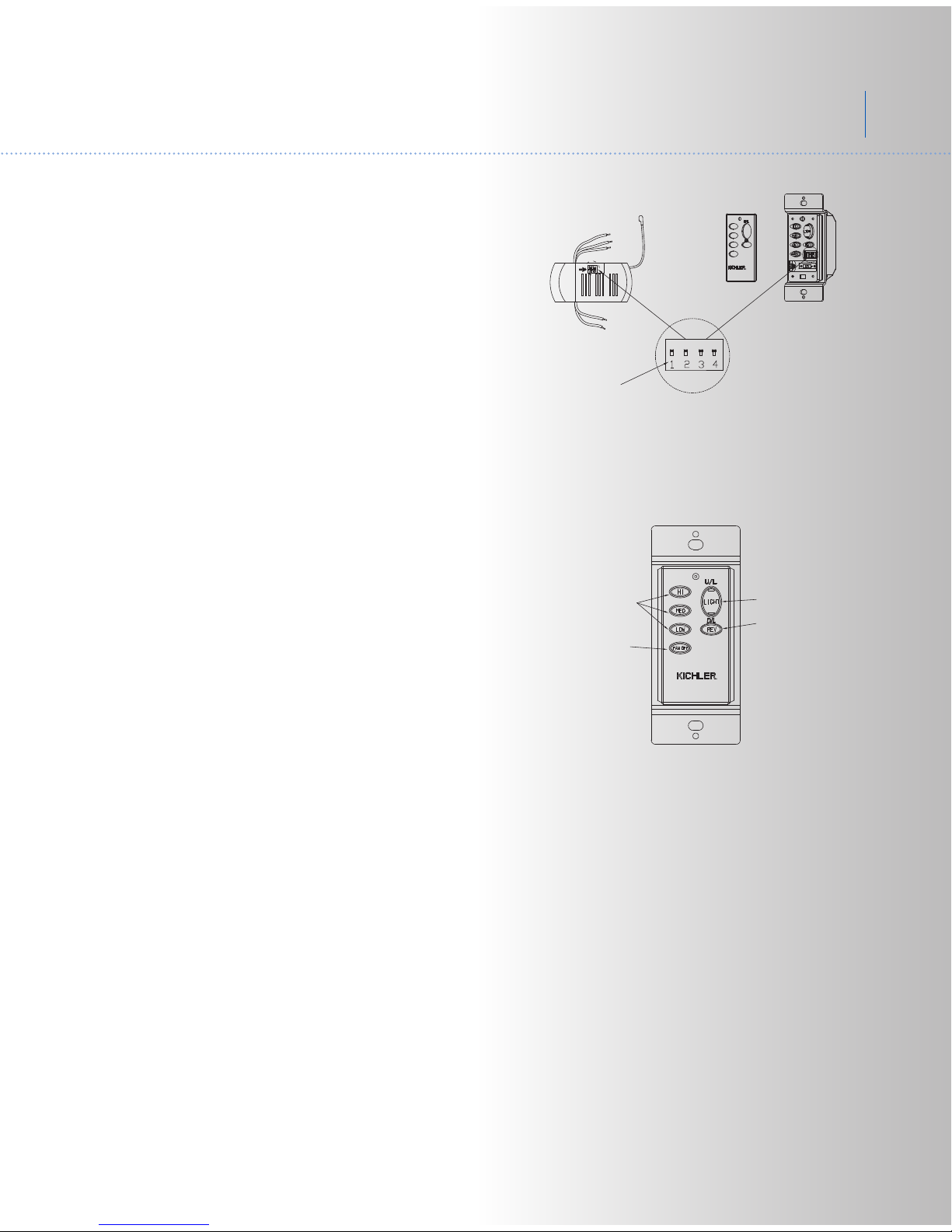

NOTE: The CoolTouch Control System is
equipped with 16 code combinations to prevent
possible interference from or to other remote units.
The frequency switches on your receiver and
transmitter have been preset at the factory. Please
recheck to make sure the switches on the transmitter
and receiver are set to the same position, any
combination of settings will operate the fan as long
as the transmitter and receiver are set to the same
opposition. ( Fig. 8) Chainging the orfer of switches
on each switch block, changes the operational
frequency.
TM
Fig. 6
Fig. 7
Fig. 8
Safety Cable Bolt
Wood Screw
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
1234
DIPON
Code Switch

6
Step 1. Motor to Receiver Electrical Connections:
Connect the BLACK wire from the fan to BLACK
wire marked "TO MOTOT L" from the receiver.
Connect the WHITE wire from the fan to the
WHITE wire marked "TO MOTOR N" from the
receiver. Connect the BLUE wire from the fan to
the BLUE wire marked "FOR LIGHT" from the
receiver. Secure all the wire connections with the
plastic wire nuts provided. ( Fig. 9)
NOTE: Fan must be installed at a maximum distance
of 30 feet from the transmitting unit for proper signal
transmission between the transmitting unit and the
fan’s receiving unit.
NOTE: Carefully tuck the wire connections up into
the outlet box.
8 . FINISHING THE INSTALLATION
Step 1. Remove the 3 small screws from the motor
assembly for later use. Lift up the motor housing on
to the Ceiling Mounting Plate/Bracket, align the 3 holes
from both parts. Secure the motor housing to the motor
bracket by using the 3 small screws removed previously.
(Fig. 10)
Step 3. If your outlet box has a ground wire ( green
or bare copper ) connect it to the fan ground wires :
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread them
apart so that the green and white wires are on one
side of the outlet box and black wire is on the other
side. ( Fig. 9)
Step 2. Remote Receiver to Outlet Box Electrical
Connections: Connect the BLACK (hot) wire from
the ceiling to the BLACK wire marked “AC in L”
from the receiver . Connect the WHITE ( neutral )
wire from the ceiling to the WHITE wire marked
“ AC in N” from the Receiver . Secure the wire
connections with the plastic wire nuts provided .
( Fig. 9)
Fig. 9
Fig. 10
1 2 3 4
DIPON
Outlex box
Ground wire
Green wire
White(Neutral)
White (AC IN N)
Blue(FOR LIGHT)
Black(hot)
Black (AC IN L)
White(“TO MOTOR N”)
Black(“TO MOTOR L”)
Screw
Ceiling Mounting
Plate/Bracket
Motor Assembly
Sola

7

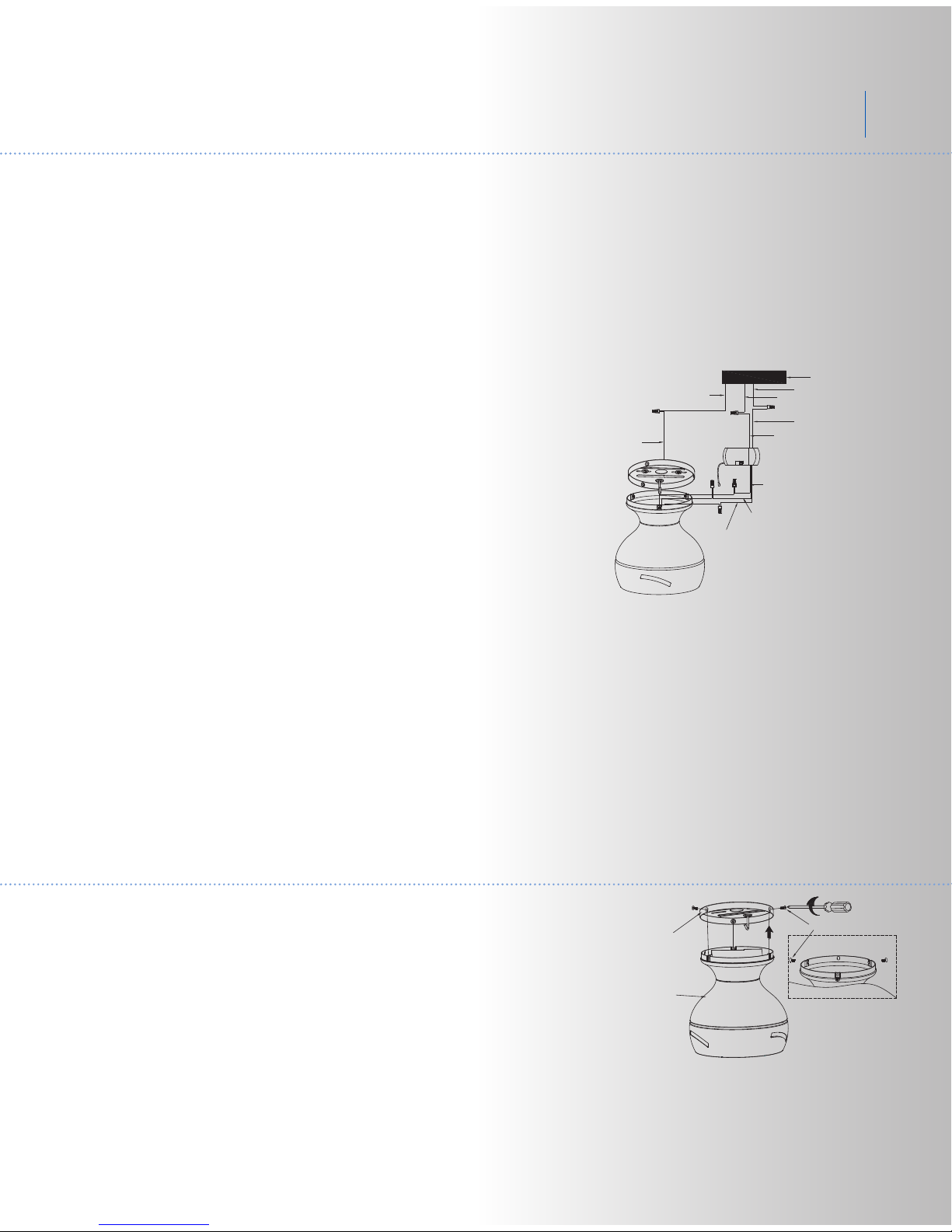

Step 2. Insert the blade through the slots on the
flywheel and attach to the motor hub using the
blade screws and blade tirm. Make sure the screws
securing the blades to the motor hub are tighten
and are properly seated. (Fig. 11)
Step 3. Remove one of the three screws in the
adapter plate at the bottom of the motor assembly
and retain the screw for later use. Slightly loosen the
remaining two screws. Place the motor connector
through the center hole of the switch housing.
Rotate the switch housing key hole slots clockwise
to engage both loosened screws. Reinstall the
previous removed screw. Secure the switch
housing to the adapter plate by tightening the
three screws.(Fig. 12)
Step 4. Remove one of the three screws in the
switch housing. Slightly loosen the remaining
two screws. (Fig. 13)
Fig. 13
Fig. 12
Fig. 11
Adapter Plate
Switch Housing
Switch Housing
Screw
Blade Screw
Blade Trim
Blade Flywheel
Motor Hub

8
Step 5. If installing the light kit, skip to step 7.
Assembly the light kit wire cover to the switch
housing using the two key slots. Replace the
removed screw and secure all three screws.
(Fig. 14a)
Step 6. Assemble the steel cap to the light kit by
twisting in a clockwise direction. (Fig. 14b)
Step 7. for use with light kit Connect the 2
single-pin connectors from the switch housing to the
2 single-pin connectors from LED assembly.
Assemble the LED assembly to the switch housing
using the two key slots. Replace the third screw removed
in step 4 and securely tighten all three screws. (Fig. 15a)
Step 8. Secure the glass shade to switch housing by
twisting in a clockwise direction. Do not over-tighten.
(Fig. 15b)

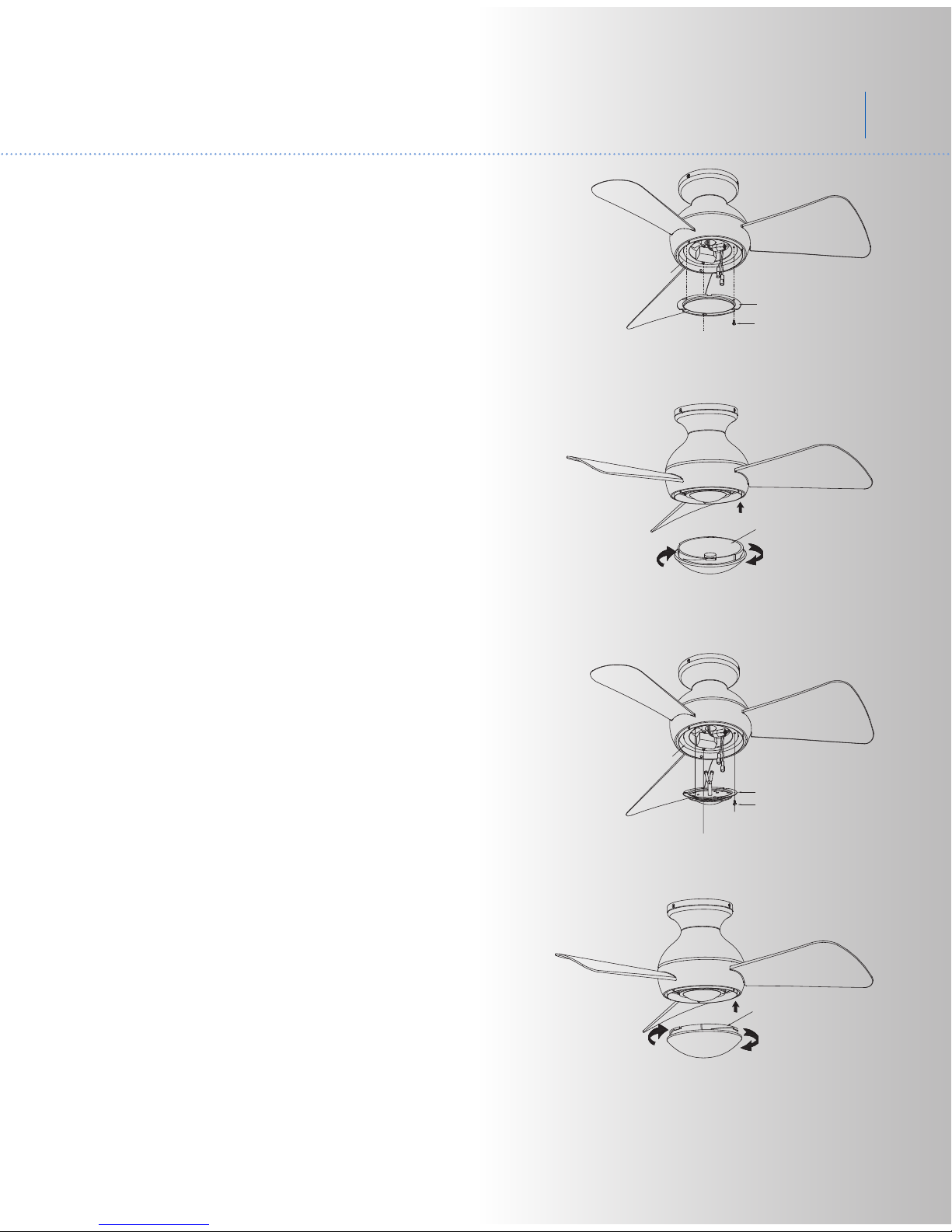

Fig. 14a
Fig. 14b
Fig. 15b
Fig. 15a
Screw
Light Kit Wire Cover
Switch Housing
Steel Cap
Screw
LED Assembly
Switch Housing
Glass Shade
Sola

9
10. CONTROL SYSTEM SET-UP
9. INSTALLING THE TRANSMITTER
Step 2. Use the screws provided to secure
the wall transmitter to the outlet box.
(Fig. 17)
Step 2. Test the transmitter by pressing and
releasing ANY button. A RED Light should
illuminate, if not, check to make sure the battery
is inserted and seated correctly. (Fig. 18)
NOTE: Make sure the power is completely
NOTE: Make sure the electrical power is TURNED
OFF at the main panel before continuing.
NOTE: SWITCH INSTALLATION MUST COMPLY
WITH ALL LOCAL AND NATIONAL ELECTRIC
CODE.
disconnected before you begin this procedure.
NOTE: To prevent damage to transmitter ,
remove the battery if not used for long periods
of time ( months ).
Read all of these steps before preceeding.
All wiring nust be in accordance with the National
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified
licensed electrician.
Select a location to install your wall mount Control
System Transmitter. You can replace an existing wall
seitch, or install the transmitter to a new outlet box.
Each step must be followed exactly to properly
program the control system.
Step 1. Use a small flat screw driver and gently
pry it apart from the top or bottom of the switch
plate. Install 1, 12volt battery included with wall
mount Control system and make sure it is seated
correctly. Replace the switch plate. (Fig. 18)

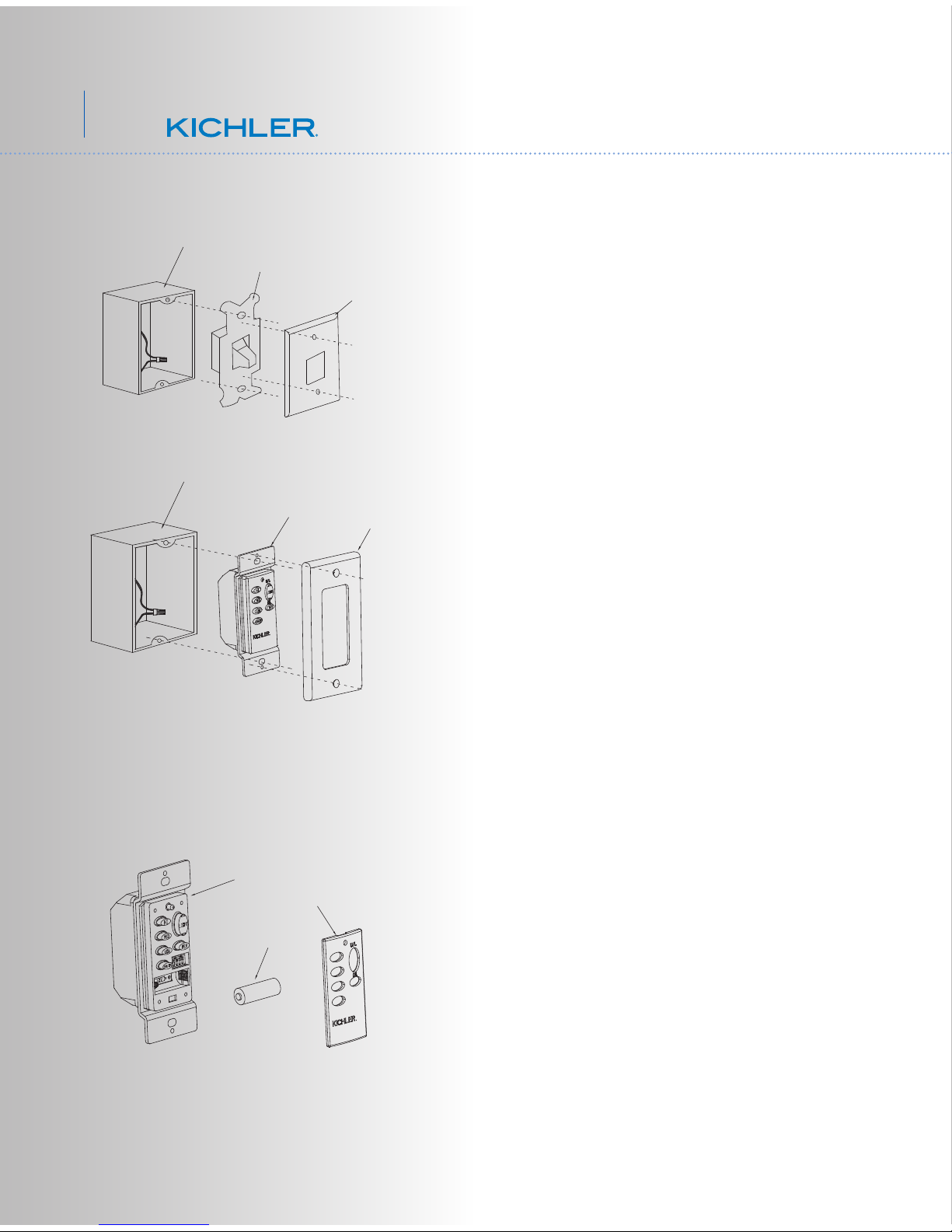

Fig. 17
Fig. 18
Step 1. Remove the existing wall plate and
the old switch from the wall outlet box. Wire
nut the BLACK leads (hot) together and
push back inside the outlet box. (Fig. 16)
Or Select the desired location with a new
wall outlet box.
Outlet Box
Switch
Wall Plate
Fig. 16
Outlet Box
Wall Switch
Wall Plate
R
Wall Switch
Battery
Switch Plate
R

10
Step 3. You can leave the frequency switches
at the factory setting. Or you have to change
the dip switch setting in the remote if you are
using more than one fan in the same area and
want to control them separately. Remove the
battery and change the dip switch setting,
assuring that they are different from the other
fans. Reinstall the battery and switch plate on
the control. (Fig. 19)
Speed setting for warm or cool weather depend
number of fans and so on.
Warm Weather Operation:
Forward (counterclockwise) A downward airflow
creates a cooling effect . This allows you set your
air conditioner on a warmer setting without
affecting your general comfort.
Cool Weather Operation: Reverse (clockwise) An
upward airflow creates a warm air off the ceiling
areas. This allows you set your air conditioner on
a cooler setting without affecting your general
comfort.
Restore power to ceiling fan and test for proper
operation (Fig. 20)
1. Fan Control:
To start the fan. Press the selected speed button
to run the fan at the desired speed: Hi-high;
MED-medium; LOW-low;
To turn off the fan. Press the "OFF" button.
2. Light On/Off-press and release light button.
3. Light Dimmer-continuous pressure on the
light button dims light in a continuous cycle from
light to dark, or dark to light.
4. Fan Reverse - controls direction, forward or
reverse.
11. OPERATING INSTRUCTIONS:
Fig. 20
Fig. 19
Light Control Button
Motor Off Button
Speed Buttons
Reverse Control Button
R
ON ECE
Code Switch
R
on factor such as the room size, ceiling height,
Sola

11
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fanblade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make suremain power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fanto a wall mounted variable speed control(s). They are
not compatible withceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touchthe ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused whenblade levelsare unequal.
Checkthis level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat foreach blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
12. TROUBLESHOOTING

This device complies with part 15 of the FCC Rules. Operation is subject to the folioeing two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifictons not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Reorient or relocate teh receiving antenna, increase the separation between the equipment and receiver,
and connect the equipment into an outlet on a circuit different from that no which the fan is connected.
NOTE: This equipment has been tested and found to comply with the linits for a Class B sidital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installatio. This equipment generates, uses and can rediate tadio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, these is no guarantee that interference will not occur in a
particular installation. If this rquipment dose cause harmful interfence to radio or twlwvision reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
13. FCC WARNNING:
14. SPECIFICATIONS
These are approximate measures . They do not include data for any lamps or fixtures attached
to the ceiling fan.
6.7kgs 8kgs 1.67’
8.5kgs 1.67’
10kgs 2.09’
7.2kgs
8.3kgs
N.W. G.W. C.F.RPM
235~239
143~149
75~80
CFM
4079
2569
910
CFM/W
61
98
136
Fan Size
High
120
Low
Volts
0.560
0.380
0.180
Amps
67
26
7
Power(W)Speed
Medium330150 (34")
180~185
116~121
65~70
5000
3228
1654
76
117
162
High
120
Low
0.550
0.360
0.220
65
28
10
Medium330151 (44")
138~143
89~93
41~45
5921
3788
1603
80
114
156
High
120
Low
0.620
0.420
0.230
74
33
10
Medium330152 (54")
12
Sola
