Instruction Manual
54" SkyeTM
A Kichler
®
Decor
™
ceiling fan
Includes wall mount control system
300167
3066708

1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. WARNING: To reduce the risk of fire,
electric shock, or Personal Injury, mount
directly to a structural framing member or
to an outlet box marked 'Acceptable for
Fan Support of 15.9 kg (35 lbs) or less'. For
outlet box mounting, use mounting screws
provided with the outlet box.
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this
fan, press the reverse button while the fan
is running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the ground wire and white
(common) wire to one side with the black
(load) wire to the other side of the outlet
box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
1
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can
not be removed.
Installing Lamps in excess of 190 total
watts will disable the unit's light fixture. If
this should happen, you will need to reset
the lighting fixture by turning the power off
to the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.
WARNING
To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural
framing member or to an outlet box marked
'Acceptable for Fan Support of 15.9 kg(35 lbs)
or less'. For outlet box mounting, use mounting
screws provided with the outlet box.

2

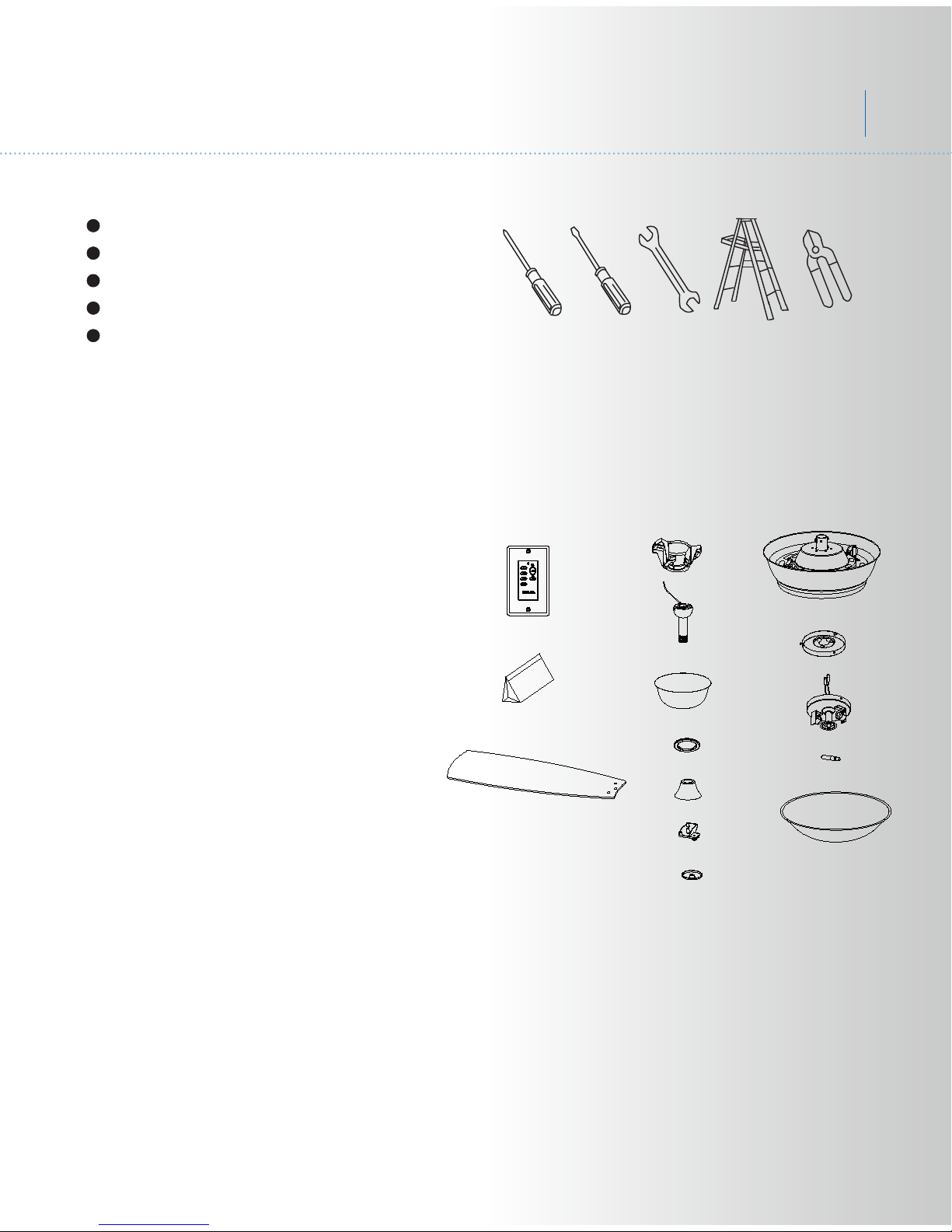

3. PACKAGE CONTENTS
Unpack your fan and check the contents .
You should have the following items:
A. Mounting bracket
B. Ball / downrod assembly (1)
C. Canopy
D. Canopy Hole Cover
E. Coupling cover
F. Motor Body
G. Set of 5 blades arm and pre-installed
mounting screws
H. Fan Blades (5)
I. Switch Housing
J. Light Kit
K. Fan Lamp (Upper light 2*50W
/ Bottom light 2*75W)
L. Glass Shade
N. Wall Mount Control System
O. Package hardware
1)Mounting hardware :
Wood screws(2) , flat washers (2) ,
screws (2) , lock washers (2),
wire nuts (3)
2)Blade attachment hardware :
Screws (17) , fiber washers (17)
3)Blade arm hardware :
screw (2)
4)Safety cable hardware :
Wood screw (1) , spring washer (1),
flat washer (1)
Finial nut (1)
5) Balance kit
6) Finial nut hardware:
screw (3)
7)Screw hardware:
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
54" Skye TM
M. Finial
A
B
C
D
E
K
F
G
H
L
I
J
M
O
N
R

4. MOUNTING OPTIONS
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
ANGLED CEILING
MAXIMUM 30°ANGLE
3
If there isn't an existing ETL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.

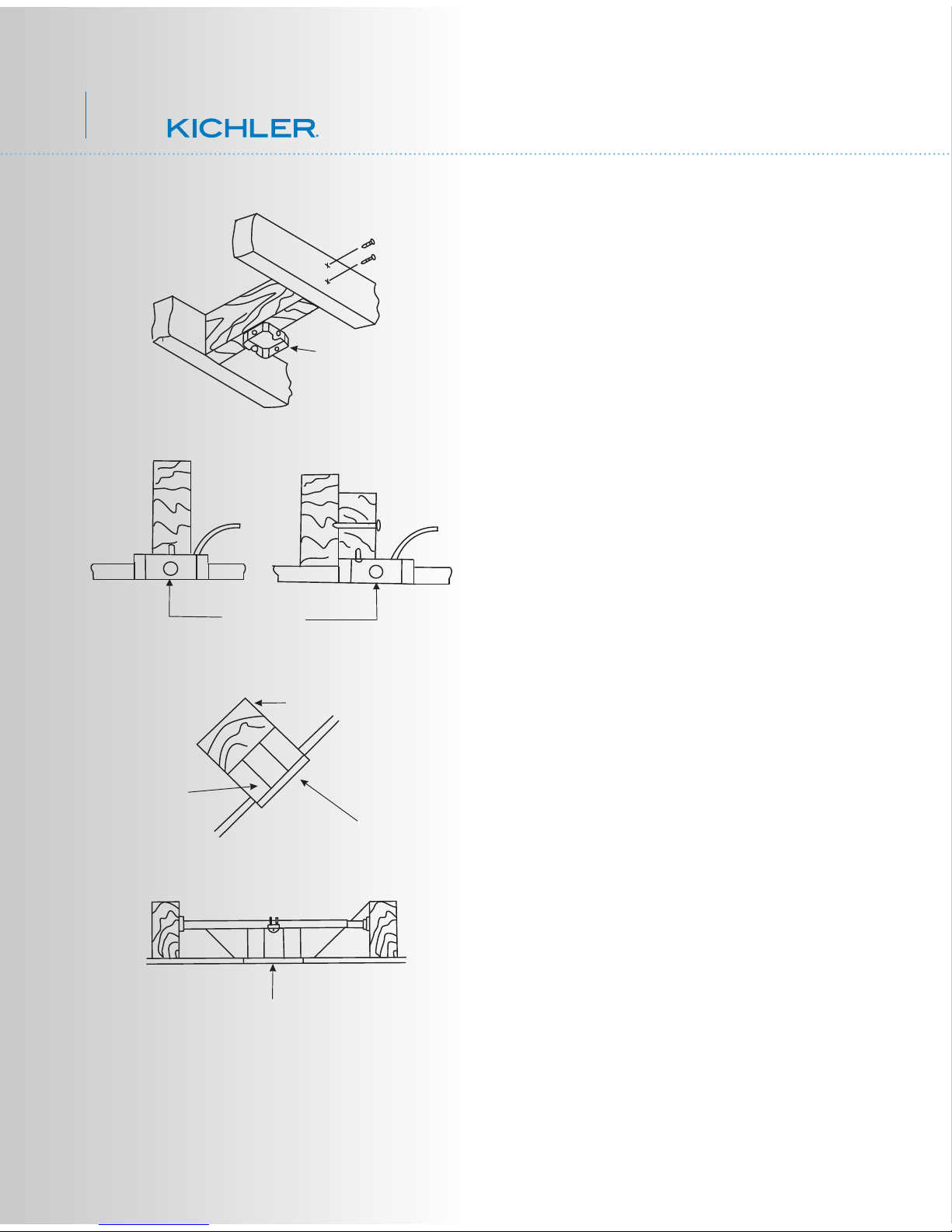

Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
NOTE: If you are installing the ceiling fan on a
sloped (vaulted) ceiling, you may need a
longer downrod to maintain proper clearance
between the tip of the blade and the ceiling.
A minimum clearance of 12" is suggested for
optimal operation.
NOTE: Depending on the location you have
selected for installation, you may need to
purchase and install a "Joist Hanger" for the
support of the outlet box. Make sure the joist
hanger you purchase has been designed for
use with ceiling fans. (Fig. 4)

4
5. HANGING THE FAN
REMEMBER to turn off the power before you
begin installation. This is necessary for your
safety and also the proper programming of
the control system.
To properly install your ceiling fan, follow the
steps below.
Step 1. Before attaching fan to outlet box
(not included), ensure the outlet box is securely
fastened to at least two points to a structural
ceiling member (a loose box will cause the fan
to wobble). Pass the 120 volt supply wires from
the ceiling outlet box through the center of the
ceiling mounting bracket. Install mounting
bracket to outlet box in ceiling using the screws
and washers included with the outlet box or
screws and washers in the hardware bag. (Fig. 5)
Step 4. Slip the coupling cover, canopy hole cover
and canopy onto the downrod. Carefully reinstall
the hanger ball onto the downrod . Make sure the
cross pin is in the correct position and the set
screw is tight and the wires are not twisted . ( Fig. 8)

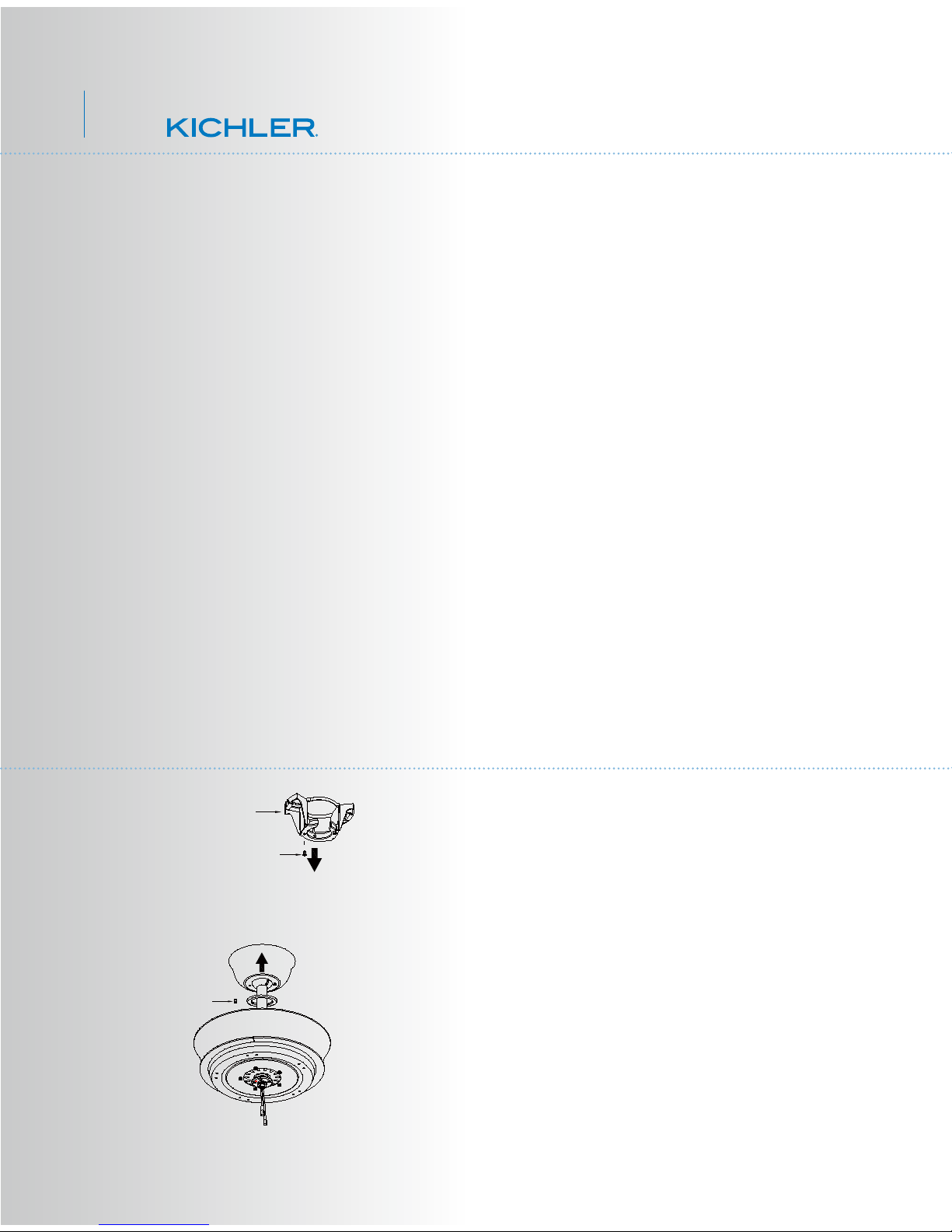

Step 2. Remove the hanger ball from downrod
assembly by loosening set screws , removing
the cross pin, and sliding ball off the rod.
( Fig. 6)
Step 3. Loosen the two set screws and remove
the lock pin and hitch pin from the top coupling of
the motor body.Carefully feed the fan wires up
through the downrod. Thread the downrod onto
the motor coupling until the hitch pin holes are
aligned. Next, replace the lock pin and hitch pin,
and tighten both set screws. (Fig. 7)
TM
Fig. 7
Fig. 5
Flat Washer
Screw
Ceiling Mounting Bracket
ETL Listed Outlet Box
Screw
Fig. 6
Downrod
Cross Pin Set Screw
Hanger Ball
Cross Pin
Clip
Set Screw
Motor Body
Hitch Pin
Lock Pin
Set Screw
Fig. 8
Motor Body
Hanger Ball
Canopy
Canopy Hole
Cover
Coupling Cover
54" Skye

5
Step 5. Now lift the motor body into position
and place the hanger ball into the hanger
bracket. Rotate until the "Check Tab" has
dropped into the "Registration Slot " and
seats firmly. ( Fig. 9) The entire motor body
should not rotate is this is done correctly.
6 . INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
WARNING: Failure to properly seat the "Check
Tab" can damage the ceiling fan during operation.
A safety support cable is provided to help prevent
the ceiling fan from failing, please install it as
follows.

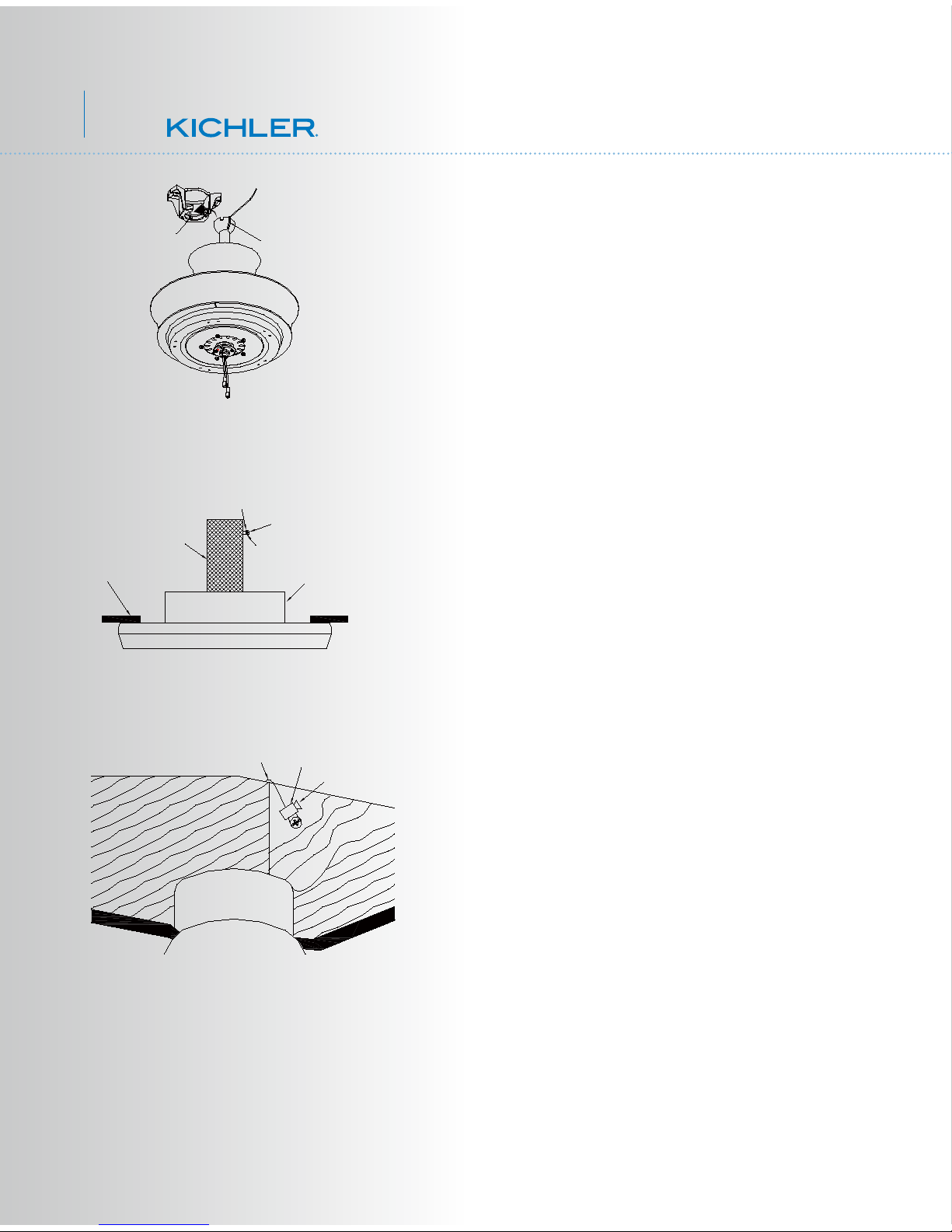

Step 1. Drive a wood screw and washers into
the side of the brace that holds the outlet box.
Leave 3mm (1/8") of space between the
support brace and the washer. (Fig. 10)
NOTE: Although the safety support cable is
required for Canadian installations only. It’s
a good idea to make the attachment with
any installation.
Step 2. Insert the safety cable through the
mounting bracket and one of the holes in
the outlet box into the ceiling. Adjust the
length of the safety cable to reach the screw
and washers by pulling the extra cable
through the cable clamp until the overall
lenght is correct, put the end of the cable
back through the cabel clamp, forming a
loop at the end of the cable. Tighten the
cable clamp securely. Now, put the loop in
the end of the safety cabel over the wood
screw and under the washer. Tighten the
wood screw securely. (Fig. 11)
Fig. 9
Check Tab Registration Slot
Fig. 10
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 11
Safety Cable Bolt
Wood Screw

6
7. MAKE THE ELECTRIC CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure you have turned off the power at the
main circuit panel before wiring.
WARNING: If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is
recommended to determine proper wiring.
Step 1. Insert the receiver into the mounting
bracket, and keep flat in opposition of ceiling.
(Fig. 13)
Step 2. Motor to Receiver Electrical
Connections: Connect the BLACK wire from
the fan to BLACK wire marked "TO MOTOT L"
from the receiver. Connect the WHITE wire
from the fan to the WHITE wire marked "TO
MOTOR N" from the receiver. Connect the
BLUE wire from the fan to the BLUE wire
marked "FOR BOTTOM LIGHT " from the
receiver. Connect the ORANGE wire from
the fan to the ORANGE wire marked "FOR
UPPER LIGHT " from the receiver. Secure all
the wire connections with the plastic wire
nuts provided. ( Fig. 14)
Follow the steps below to connect the fan to
your household wiring. Use the wire connecting
nuts supplied with your fan. Secure the
connector with electrical tape. Make sure there
are no loose wire stands or connections.
TM

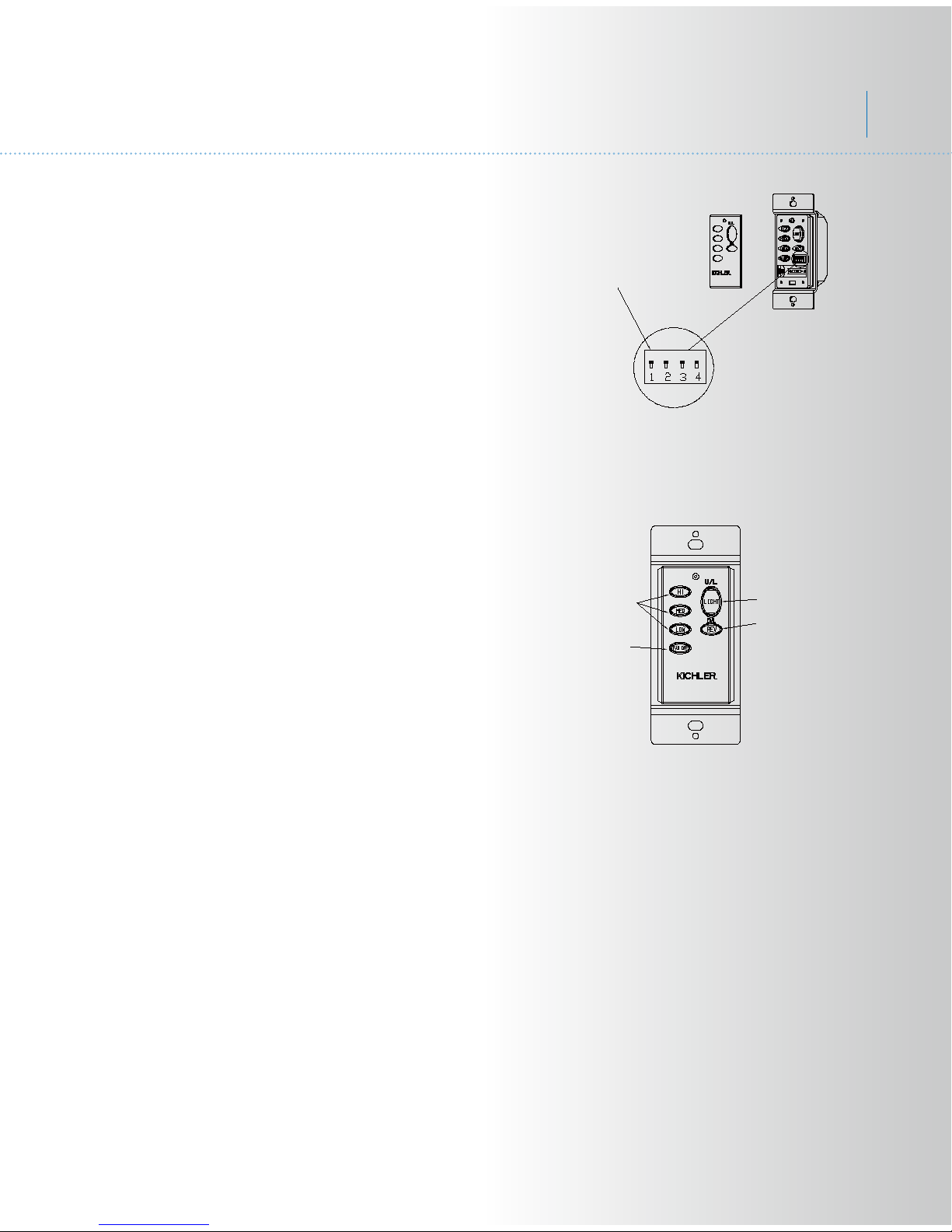

NOTE: The wall mount control system is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency switches
on your receiver and transmitter have been
preset at the factory. Please recheck to make
sure the switches on the transmitter and
receiver are set to the same position, any
combination of settings will operate the fan
as long as the transmitter and receiver are
set to the same opposition. ( Fig. 12)
Changing the order of switches on each
switch block, changes the operational
frequency.
Fig. 12
Fig. 13
Mounting Bracket
Receiver
Fig. 14
54" Skye
White (Neutral)
Blue(FOR BOTTOM LIGHT) Ground wire
White("AC IN N")
White("TO MOTOR N")
Green or bare copper (ground)
Black (motor)
Black ("TO MOTOR L")
Receiver
Black("AC" IN L")
Black (hot)
Outlex box
White (Neutral)
Blue(FOR BOTTOM LIGHT)
Orange (FOR UPPER LIGHT)
Orange (FOR UPPER LIGHT)
ON ECE
Code Switch
R

7
Step 3. Remote Receiver to Outlet Box Electrical
Connections: Connect the BLACK (hot) wire from
the ceiling to the BLACK wire marked “AC in L”
from the receiver . Connect the WHITE ( neutral )
wire from the ceiling to the WHITE wire marked
“ AC in N” from the Receiver . Secure the wire
connections with the plastic wire nuts provided .
( Fig. 14)
Step 4. If your outlet box has a ground wire
( green or bare copper ) connect it to the fan
ground wires : otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and black
and blue wires are on the other side. ( Fig. 14)
NOTE: Carefully tuck the wire connections up
into the outlet box
NOTE: Fan must be installed at a maximum
distance of 30 feet from the transmitting unit
for proper signal transmission between the
transmitting unit and the fan’s receiving unit.
Step 1. Remove one of the two shoulder screws
in the mounting bracket. Loosen the second
shoulder screw without fully removing it.
(Fig. 15)
Step 2. Assemble canopy by rotating key slot in
canopy over shoulder screw in mounting bracket.
Tighten shoulder screw. Fully assemble and
tighten second shoulder screw that was
previously removed. (Fig. 16)
8 . FINISHING THE INSTALLATION
Fig. 15
Fig. 16
Shoulder Screw
Mounting Bracket
Shoulder Screw

8
TM
9. ATTACHING THE FAN BLADES
Step 3. Securely attach and tighten the canopy
hole cover over the shoulder screws in the
mounting bracket utilizing the keyslot twist-lock
feature. (Fig. 17)
Step 4. Install two (2) lamps 50W (included), one
in each socket as shown. (Fig. 18) Remove the
paper card from the motor body.
NOTE: Before continuing , make sure the power
is disconnected by turning off the circuit breaker
of removing the fuse at the circuit box.
Step 1. Position the blade over the blade arm
with threaded posts showing. Make sure the
bottom edge of the blade is fully seated against
the blade arm. With a Philips screwdrivr, start a
blade screw and fiber washer into the blade arm
(do not tighten) and repeat for the 2 remaining
blade screws and fiber washers. Tighten each
screw securely starting with the center screw.
Make sure the blade is straight. Repeat steps for
the remaining blades. (Fig. 19)
Fig. 17
Canopy Hole Cover
Shoulder Screw
Fig. 18
Bulb
Paper Card
Fig. 19
Blade
Blade Screw
Fiber Washer
Blade Arm
54" Skye

10. INSTALLING THE MOUNTING PLATE
9
Step 1. You will find one red label on the mounting
plate. Remove this screw (near the red dot label)
preinstalled on mounting plate and loosen the other
two (do not remove). Place the two slot holes on
the switch housing over the 2 screws previously
loosened from the mounting plate. Rotate the
switch housing until it locks in place at the narrow
end of the key holes. Securely by tightening the 2
screws previously loosened and the one previously
removed. (Fig. 21)
11. INSTALLING THE LIGHT KIT
NOTE: Before continuing installation, confirm that
the power is still turned off at the main circuit
breaker or by removing the correct fuse. Turning
the power off using a wall switch is not sufficient
to prevent electrical stock.
Step 2. Fasten blade assembly to the holes
located on the bottom of the flywheel. Tighten
the two "pre- installed" motor screws in the
blade arm. Repeat steps for the remaining
blades assemblies. (Fig. 20)
Step1. Remove 1 of the 3 screws from the
switch housing and loosen the other 2 screws (do
not remove). (Fig. 22)
Step 2. Hold the light kit close to the switch
housing and connect the WHITE wires from the
light kit and fan by pushing the connectors
together. Follow the same procedure with the
BLACK wires. (Fig. 22)

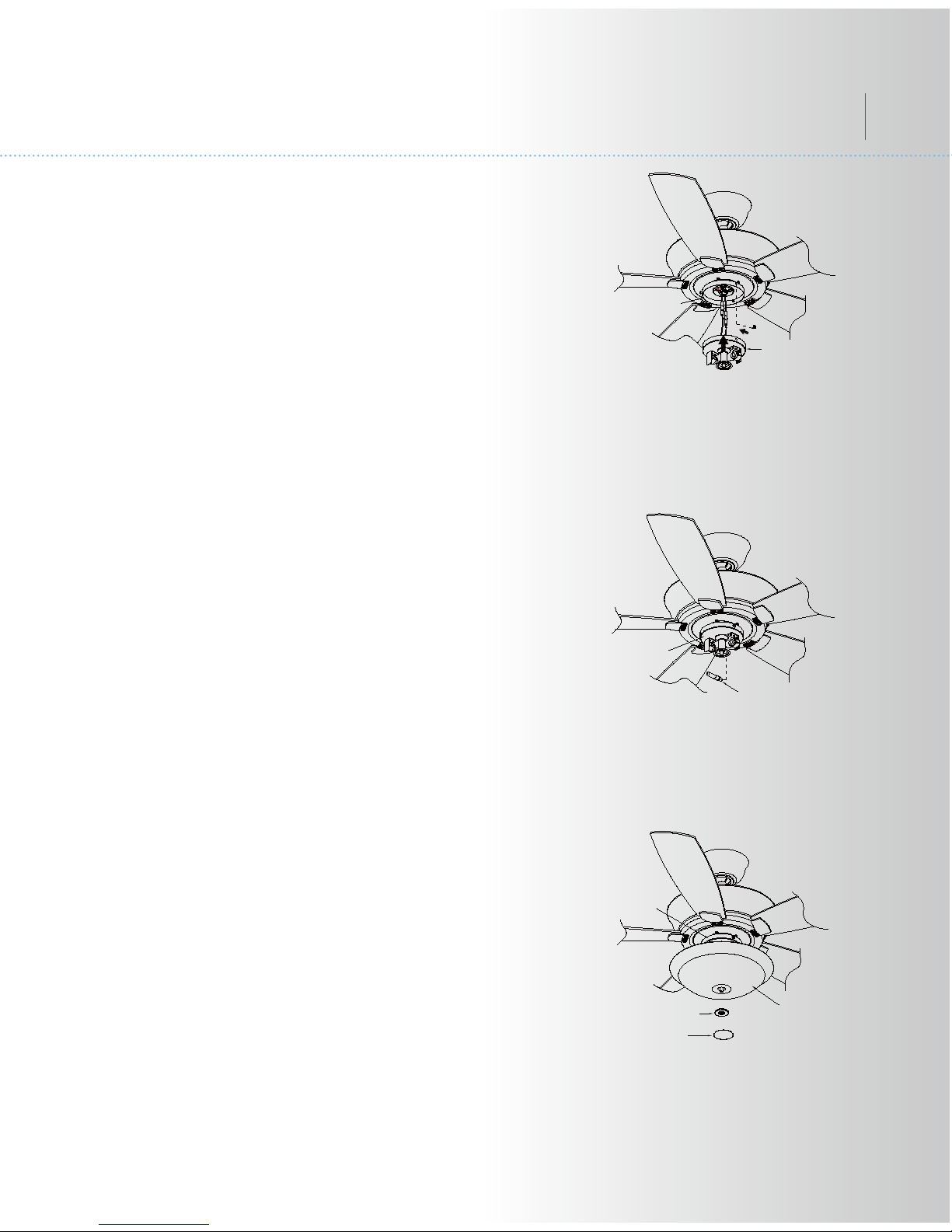

Fig. 20
Fig. 21
Fig. 22
Switch Housing
Light Kit
Motor Body
Flywheel
Blade Assembly
Motor Screw
Mounting Plate
Screw
Switch Housing

10
TM
12. INSTALLING THE LAMP AND GLASS SHADE
13. INSTALLING THE TRANSMITTER
Step 2. Slide the glass bowl over the threaded
pipe on the light kit. Thread the finial nut onto
the pipe. Attach and tighten the decorative
finial. (Fig. 25)
Note: Make sure the electircal power is
TURNED OFF at the main panel before
continuing.
Step 2. Tuck the connections neatly into the
light kit. Align the slot holes on the light kit
and switch housing. Rotate the light kit until it
locks in place at the narrow end of the key
holes. Securely by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 23)
Step 1. Install the 2, 75 Watt/ halogen lamps
(provided) into each socket on the light kit.
(Fig. 24)
Fig. 23
Switch Housing
Light Kit
Fig. 24
Light Kit
Bulb
Fig. 25
Glass Bowl
Light Kit
Finial Nut
Finial
Select a location to install your wall mount
Control System Transmitter. You can replace
an existing wall switch, or install the
transmitter to a new outlet box.
54" Skye

11
14. CONTROL SYSTEM SET-UP
Step 2. Use the screws provided to secure
the wall transmitter to the outlet box.
(Fig. 27)
Step 2. Test the transmitter by pressing and
releasing ANY button. A RED Light should
illuminate, if not, check to make sure the battery
is inserted and seated correctly. (Fig. 28)
NOTE: Make sure the power is completely
disconnected before you begin this procedure.
NOTE: To prevent damage to transmitter ,
remove the battery if not used for long periods
of time ( months ).
Read all of these steps before preceeding.
Each step must be followed exactly to properly
program the control system.
Step 1. Use a small flat screw driver and gently
pry it apart from the top or bottom of the switch
plate. Install 1, 12volt battery included with wall
mount Control system and make sure it is seated
correctly. Replace the switch plate. (Fig. 28)
Fig. 27
Fig. 28
Step 1. Remove the existing wall plate and
the old switch from the wall outlet box. Wire
nut the BLACK leads (hot) together and
push back inside the outlet box. (Fig. 26)
Or Select the desired location with a new
wall outlet box.
Outlet Box
Switch
Wall Plate
Fig. 26
Outlet Box
Wall Switch
Wall Plate
R
Wall Switch
Battery
Switch Plate
R

12
TM
Step 3. You can leave the frequency switches
at the factory setting. Or you have to change
the dip switch setting in the remote if you are
using more than one fan in the same area and
want to control them separately. Remove the
battery and change the dip switch setting,
assuring that they are different from the other
fans. Reinstall the battery and switch plate on
the control. (Fig. 29)
Speed setting for warm or cool weather depend
on factor such as th room size. Ceiling height,
number of fans and so on.
Warm Weather Operation:
Forward (counterclockwise) A downward airflow
creates a cooling effect . This allows you set your
air conditioner on a warmer setting without
affecting your general comfort.
Cool Weather Operation: Reverse (clockwise) An
upward airflow creates a warm air off the ceiling
areas. This allows you set your air conditioner on
a cooler setting without affecting your general
comfort.
Restore power to ceiling fan and test for proper
operation (Fig. 30)
1. Fan Control:
To start the fan. Press the selected speed button
to run the fan at the desired speed: Hi-high;
MED-medium; LOW-low;
To turn off the fan. Press the "OFF" button.
2. Light On/Off-press and release light button.
3. Light Dimmer-continuous pressure on the
light button dims light in a continuous cycle from
light to dark, or dark to light.
4. Fan Reverse - controls direction, forward or
reverse.
15. OPERATING INSTRUCTIONS:
Fig. 30
Fig. 29
54" Skye
ON ECE
Code Switch
R
Light Control Button
Motor Off Button
Speed Buttons
Reverse Control Button
R

Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact. CAUTION: Make
sure the main power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly. Positive (+) side
facing out.
4. Insure the batteries have a good charge.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are
tight. Make sure the light bulbs are not touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are
not compatible with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not
touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is positioned
for measurement. Repeat for each blade. The distance deviation should be
equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in
conjunction with any other control system EXCEPT a basic On/Off wall switch,
if desired.
16. TROUBLESHOOTING
17. SPECIFICATIONS
These are approximate measures . They do not include data for any lamps or fixtures attached
to the ceiling fan.
11.9
kgs
N.W.
13.8
kgs
G.W.
2.67'
C.F.RPM
170
121
58
CFM
6853
4878
2338
CFM/W
79
104
164.65
Fan Size
54"
120High
120
120Low
Volts
0.74
0.55
0.38
Amps
87.2
46.7
14.2
WattsSpeed
Medium
13
