INSTRUCTION MANUAL
Product images may vary slightly from actual product.
60”/65”/85” GENTRY CEILING FAN
cULus Model #300260XXX/60-GENT
READ AND SAVE THESE INSTRUCTIONS
cULus Model #300265XXX/65-GENT
cULus Model #300285XXX/85-GENT
REV 11-August-2022

KICHLER.COM

60”/65”/85” GENTRY 3
SAFETY RULES
TOOLS REQUIRED
PACKAGE CONTENTS
MOUNTING OPTIONS
HANGING THE FAN
INSTALLATION OF SAFETY SUPPORT
(CANADA ONLY)
ELECTRICAL CONNECTIONS
FINISHING THE INSTALLATION
ATTACHING THE FAN BLADES

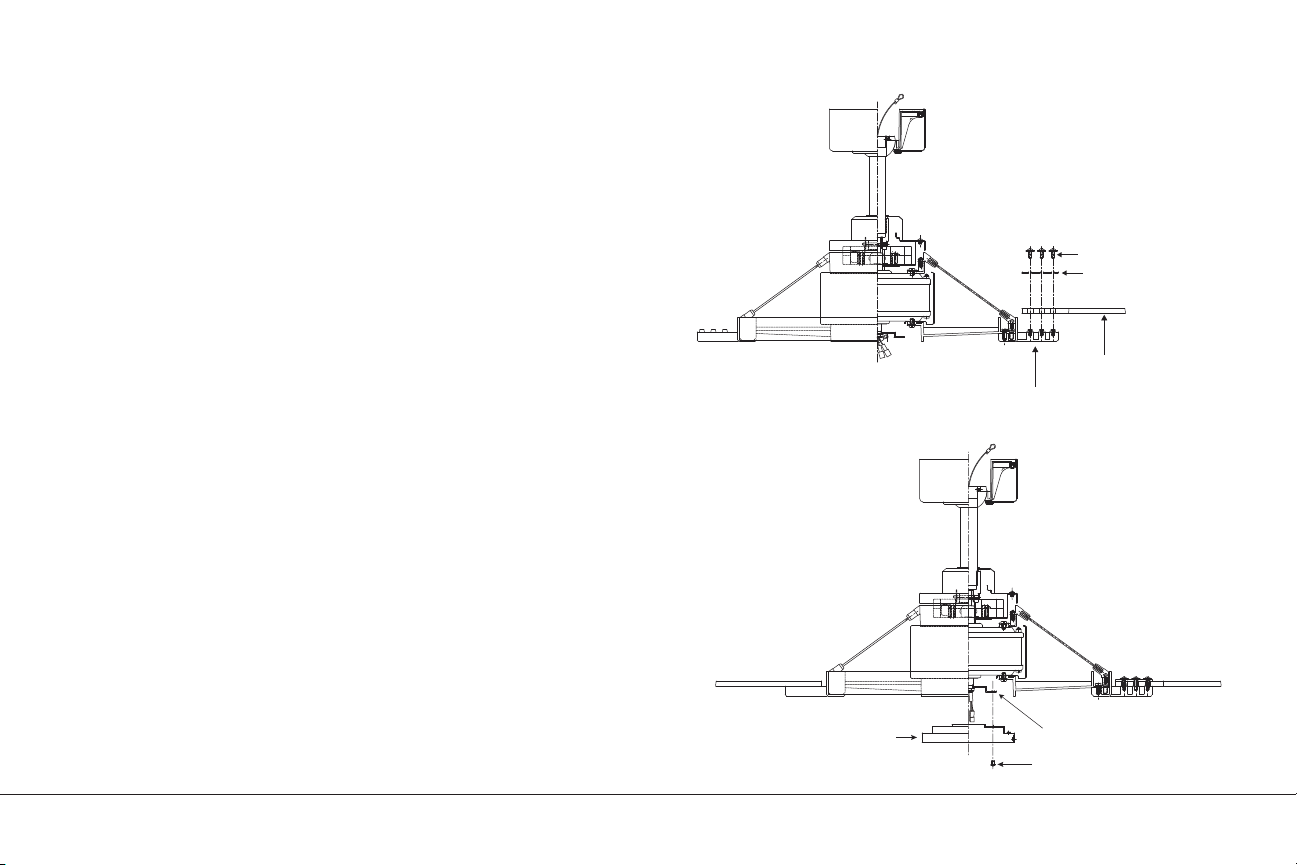

INSTALLING THE LIGHT PLATE
INSTALLING THE LED LIGHT KIT

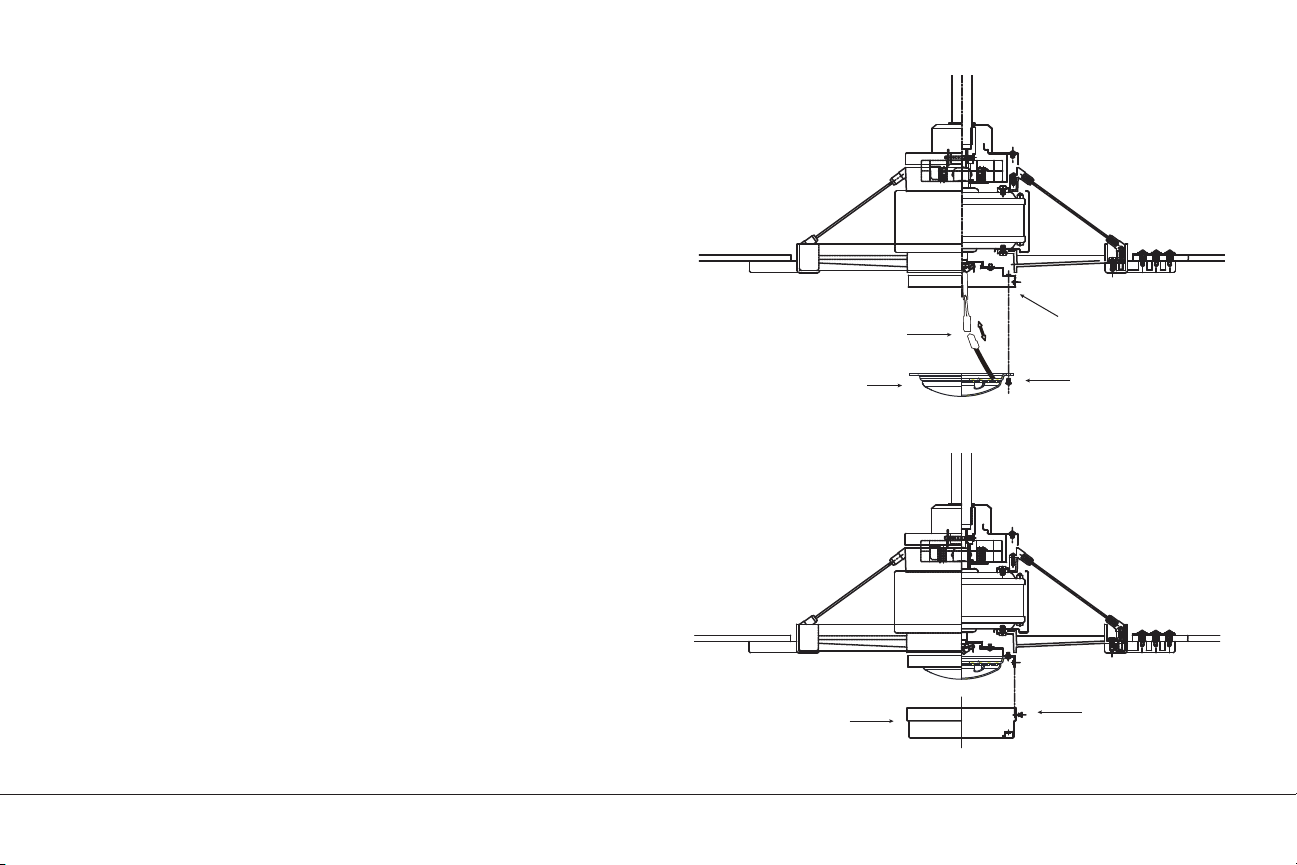

INSTALLING GLASS SHADE
CONTROL SYSTEM SET-UP

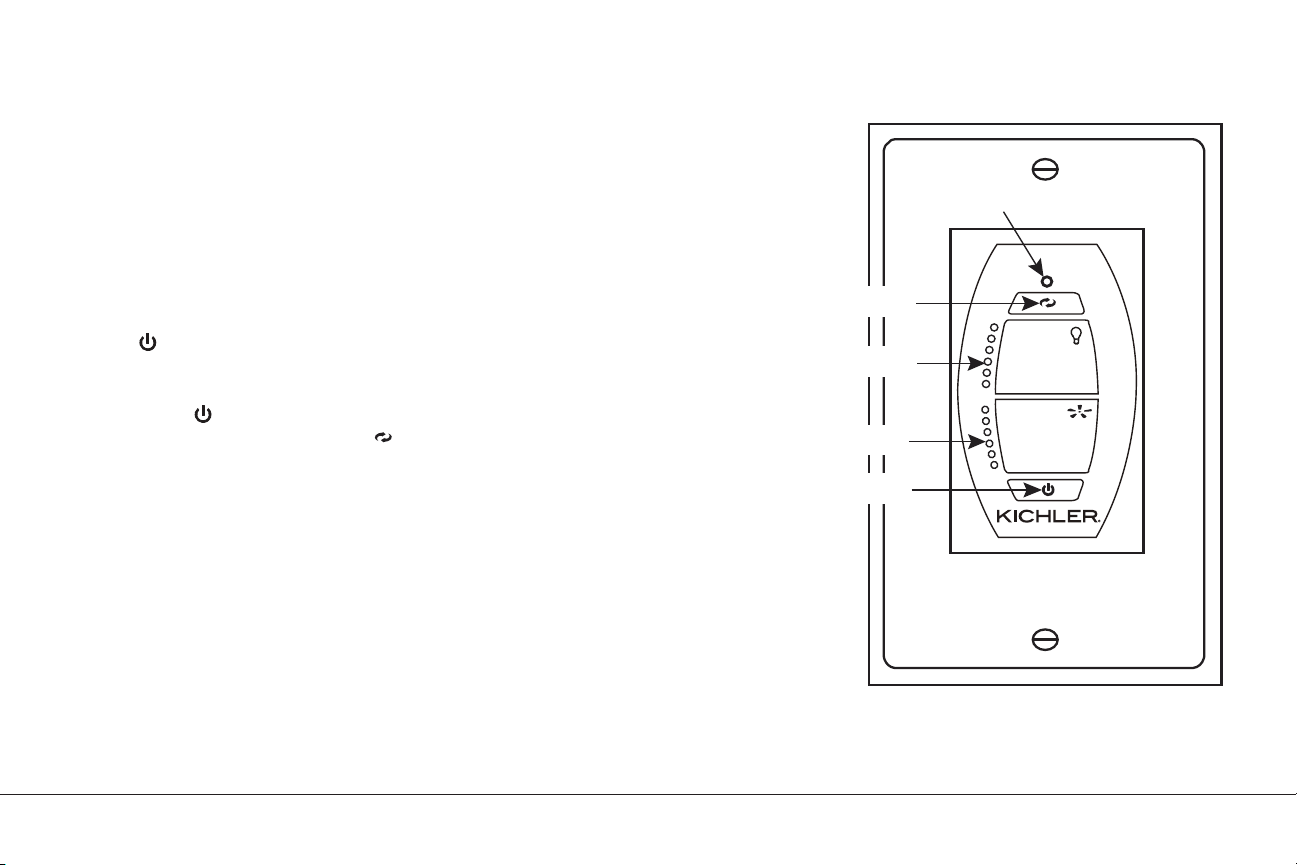

BUTTON INSTRUCTIONS
SENSORLESS DC CONTROL
PAIRING PROCEDURES

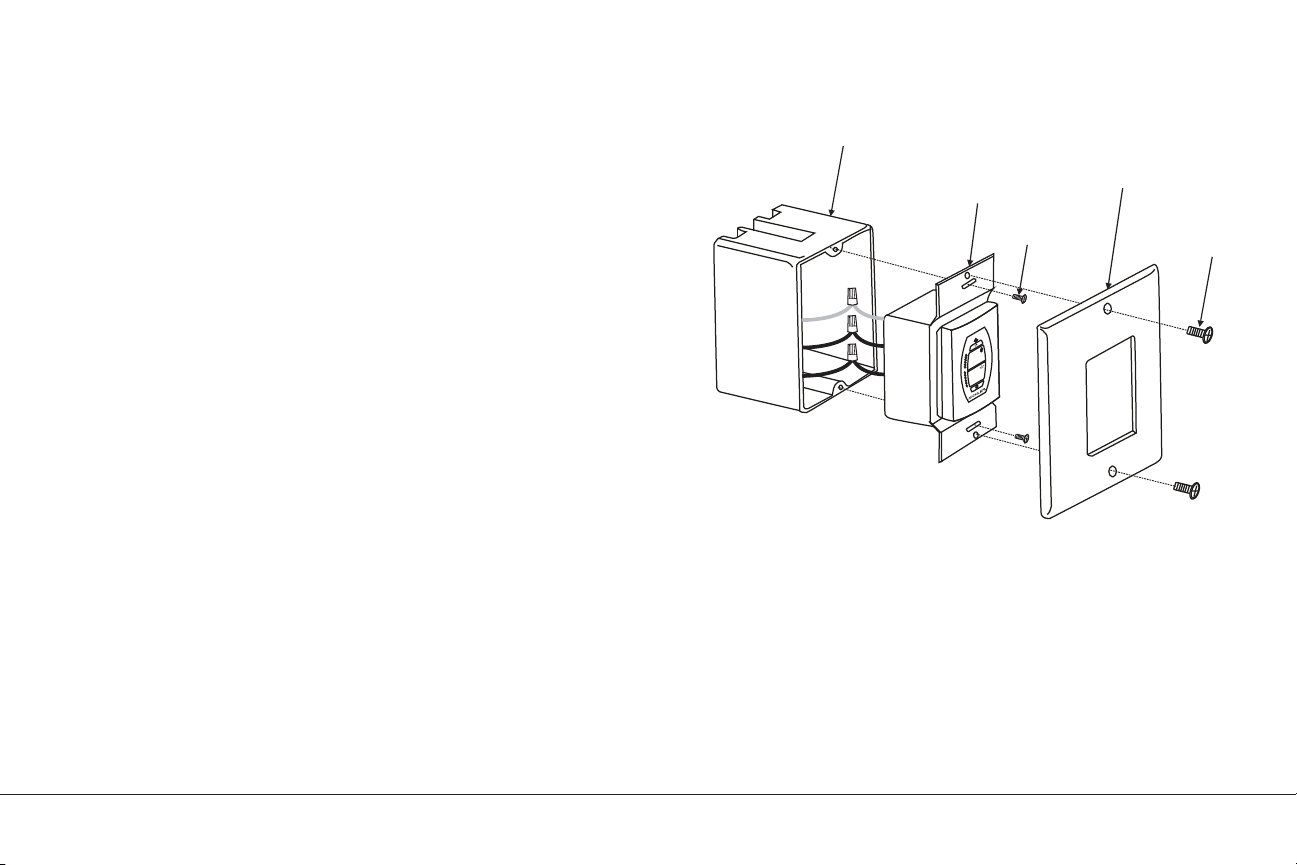

INSTALLING THE TRANSMITTER
OPERATING INSTRUCTIONS
TROUBLESHOOTING
FCC INFORMATION
TABLE OF CONTENTS
Read all instructions BEFORE assembly and USE of product
KEEP INSTRUCTIONS FOR FUTURE USE
4
6
6
7
8
11
12
14
15
15
16
16
17
18
19
20
21
22
23
Model #300260XXX/60-GENT Net Weight: 12.20kg (26.90 lb) Gross Weight: 14.90kg (32.85 lb)
Model #300265XXX/65-GENT Net Weight: 12.65kg (27.89 lb) Gross Weight: 15.40kg (33.95 lb)
Model #300285XXX/85-GENT Net Weight: 15.50kg (34.17 lb) Gross Weight: 18.00kg (39.69 lb)

| KICHLER.COM
4
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED
DIRECTLY TO THE BUILDING STRUCTURE/CEILING
JOIST. DON’T SECURE THIS FAN TO AN OUTLET BOX.
1. CAUTION - RISK OF SHOCK -
Disconnect power at the main circuit breaker panel
or main fusebox before starting and during the
installation.
2. WARNING: All wiring must be in accordance with the
National Electrical Code ANSI/NFPA 70 and local
electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, only
use the control provided with fan.
4. WARNING: To reduce the risk of fire, electric shock,
or Personal Injury mount to an outlet box marked
“Acceptable For Fan Support of up to 22.7 kg (50 lb)”.
For outlet box mounting, use mounting screws (and
lock washers) provided with the outlet box. Most outlet
boxes commonly used for the support of light fixtures
are not acceptable for fan support and may need to
be replaced. Due to the complexity of the installation
of this fan, a qualified licensed electrician is strongly
recommended.”
5. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
22.7 kg (50 lb). Use only CUL Listed outlet boxes marked
“FOR FAN SUPPORT”.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET
BOX MARKED “ACCEPTABLE FOR FAN SUPPORT”.
6. CAUTION: The fan must be mounted with a minimum
of 2.1m (7 feet) clearance from the trailing edge of the
blades to the floor.
7. To operate the reverse function on this fan, press the
reverse button while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the
fan.
10. WARNING: Make sure the power is disconnected before
cleaning the fan.
11. Do not use water or detergents when cleaning the fan or
fan blades. A dry dust cloth or lightly dampened cloth will
be suitable for most cleaning.
READ AND SAVE THESE INSTRUCTIONS

60”/65”/85” GENTRY 5
12. After making the electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
13. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be cULus listed
and marked suitable for use with the model fan you
are installing. Switches must be cULus General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
14. All set screws must be checked, and re-tightened
where necessary, before installation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO REFERRED
TO AS BLADE ARMS) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH
OF BLADES.
15. Suitable for damp locations.
16. Use only with light kits marked suitable for damp
location.
SAFETY RULES (continued)

| KICHLER.COM
6
TOOLS REQUIRED PACKAGE CONTENTS
• Philips screw driver
• Blade screw driver
• 11mm wrench
• Step ladder
• Wire cutters
Unpack your fan and check the contents.
You should have the following items:
a. Fan blades (9)
b. Blade support plates (9)
c. Canopy and ceiling mounting
bracket
d. Ball/downrod assembly
e. Coupling cover
f. Fan motor assembly
g. Light plate
h. 14W LED light kit
i. Glass shade assembly
j. Wall transmitter
k. Parts bag contents:
1) Mounting hardware:
Star washers (2), wire nuts (3),
machine screws (2), washers (2),
wood screws (2)
2) Blade attachment hardware:
screws (29)
3) Safety cable hardware:
wood screw, lock washer, flat
washer
4) Balancing kit
i
j
k
f
g
h
b
c
d
e
a

60”/65”/85” GENTRY 7
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting plate
Outlet box
Outlet box
ANGLED CEILING
MAXIMUM 20°
ANGLE
MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the full weight of the fan (up
to 22.7 kg (50 lb)). Do not use plastic outlet boxes.

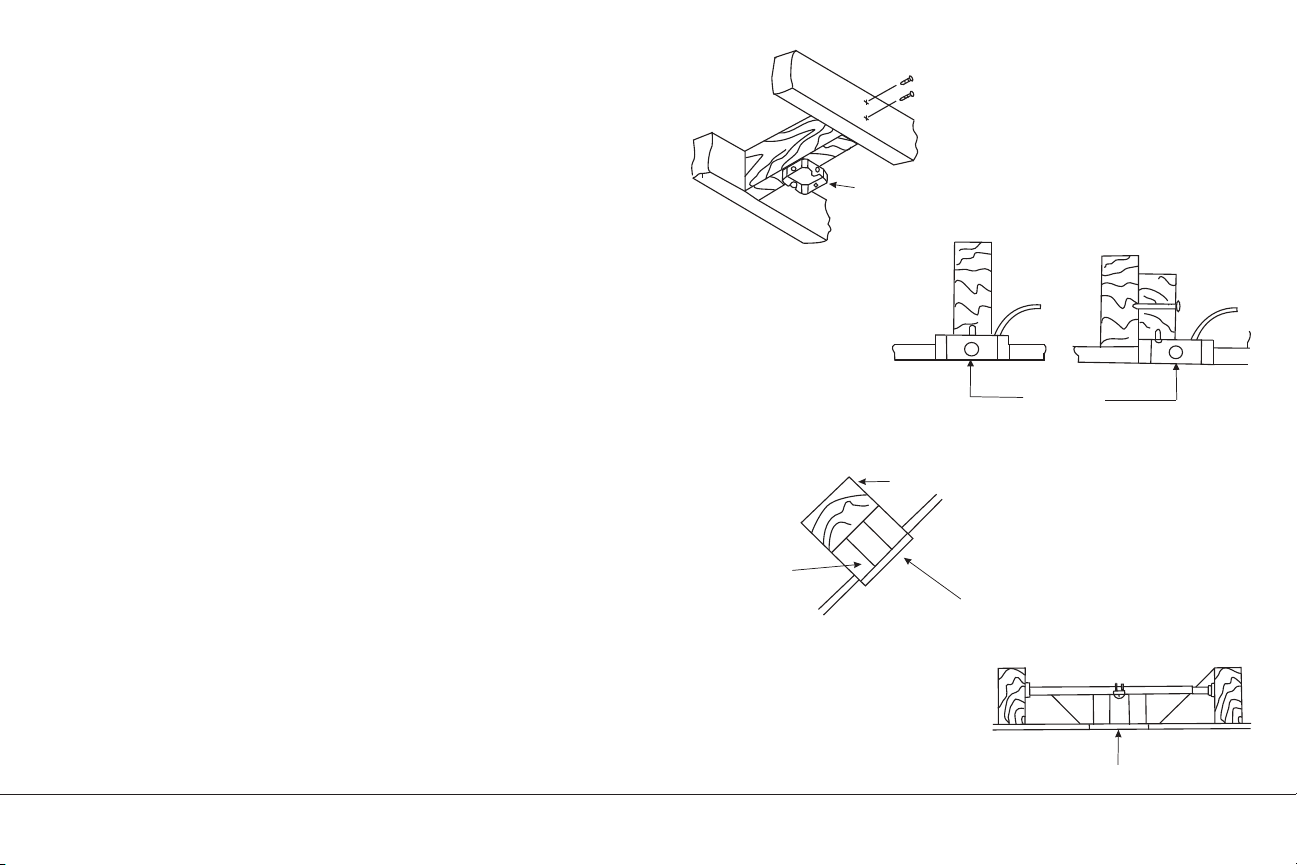

Figures 1, 2, and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist Hanger”
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Fig. 2
Fig. 1
Fig. 3
Fig. 4

| KICHLER.COM
8
HANGING THE FAN
NOTE: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY
TO THE BUILDING STRUCTURE/CEILING JOIST. DON’T SECURE
THIS FAN TO AN OUTLET BOX. (see Fig. 6A)
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the
canopy by turning the cover counterclockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save) one of the two screws. Loosen the remaining
screw by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box
through the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using
the screws and washers included with the outlet box. (Fig. 6)
Step 4A. Secure the mounting bracket directly to a joist from the
building structure. Use only the appropriate wood screws and lock
washers included with your fan. (Fig. 7)
NOTE: THIS STEP IS ONLY FOR CANADA.
CAUTION: The hanger bracket must be installed directly to the
building joist using the two wood screws and lock washers. (Fig. 7)
Fig. 6
Fig. 5
Fig. 7
120V Wires
Ceiling
mounting
bracket
Mounting screws
(supplied with electrical box)
UL Listed
electrical box
Washers
120V Wires
Ceiling
mounting
bracket
Ceiling joist
#10 Wood screws
Lock washers
Ceiling mounting
bracket
Canopy
Canopy
cover

60”/65”/85” GENTRY 9
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing the cross pin and
unscrewing the ball o the rod. (Fig. 8)
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 9)
Step 7. Carefully feed the electrical lead wires from the fan up
through the downrod. Thread the downrod into the coupling until the
hitch pin holes align.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 9)
Fig. 8
Fig. 9
HANGING THE FAN (continued)
Cross pin
Hanger ball
Downrod
Coupling
Set screw
Supply wires
Downrod
Hitch pin
Retaining clip
Set screws
Set screws

| KICHLER.COM
10
Step 8. Slip the coupling cover, canopy cover and canopy onto the
downrod. (Fig. 10)
Thread the hanger ball onto the downrod, insert the cross pin
through the downrod and tighten. Tighten the set screw.
Step 9. Lift the motor assembly into position and place the
hanger ball into the ceiling mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into
the “Registration Slot” and seats firmly. (Fig. 11)
The entire motor assembly should not rotate (left or right) when
seated properly.
WARNING: Failure to reattach the cross pin and seat the
“Check Tab” can cause the fan to fall from the ceiling during
operation. Take special care to make sure this pin is reattached.
HANGING THE FAN (continued)
Fig. 10
Fig. 11
Registration
slot Check
tab
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
Coupling

60”/65”/85” GENTRY 11
INSTALLATION OF SAFETY SUPPORT
(Required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan
from falling, please install it as follows.
Step 1. Attach the provided wood screw and washers to the ceiling
joist next to the mounting bracket but do not tighten. (Fig. 12)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the
cable clamp, forming a loop at the end of the cable. Tighten the cable
clamp securely. Now, put the loop in the end of the safety cable over
the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only, it’s a good idea to make the attachment with
any installation.
Fig. 12
Attach safety cable
to ceiling joist with
screw and washer
Ceiling mounting
bracket

| KICHLER.COM
12
ELECTRICAL CONNECTIONS
WARNING: Carefully read and retain this Instruction Manual for future reference.
WARNING: To avoid possible electrical shock, be sure the electricity is turned o at the main panel by removing the fuse or opening the circuit
breaker.
WARNING: This control is designed for use with “DC Motor Ceiling Fans” ONLY. DO NOT use with any other type of electrical appliance.
WARNING: All wiring must conform to national and local electrical codes. If you feel you do not have enough electrical knowledge, have a
licensed electrician install the control.
Make each of the wire connections illustrated in Figure 13. Secure each with the wire nuts provided. (Fig. 13)
A. Fan wire connection
Step 1. Black wire from the fan (motor) to the Black wire from the Wall Control’s. (Fig. 13)
Step 2. White wire from the fan (motor) to the White (neutral) wire from the Household Supply. (Fig. 13)
Step 3. If your ceiling outlet box has a ground wire (green or bare copper) connect it to the ground wire from the ceiling fan and/or the ceiling mounting
bracket. (Fig. 13)
B. Wall control wire connection
Step 1. Black wire (TO MOTOR L) from the Wall Control to the Black wire from the Wall Outlet Box. (Fig. 13)
Step 2. Black wire (AC IN L) from the Wall Control to the Black wire from the Wall Outlet Box. (Fig. 13)
Step 3. If your wall outlet box has a ground wire (green or bare copper), connect the wall control’s yellow/green ground wire to it; otherwise connect
the wall control’s yellow/green ground wire directly to one of the screws from the wall outlet box. (Fig. 13)

60”/65”/85” GENTRY 13
Fig. 13
Black White
Black
Black
Ground
conductor
Outlet
box
Wall outlet box
Yellow/green ground
Black
Black
Black
Black
Black
White
Green
SUPPLY CIRCUIT

| KICHLER.COM
14

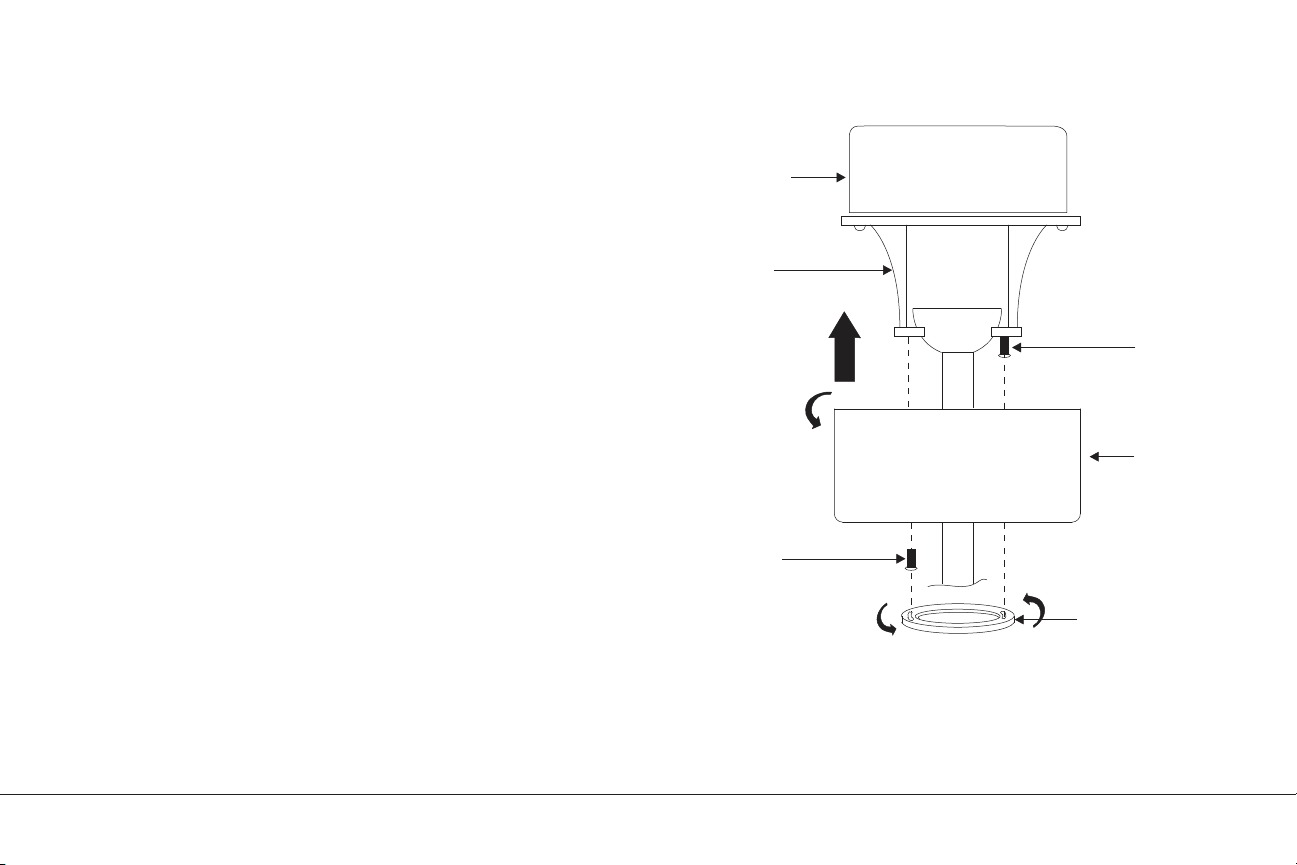

FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of
the key hole slots over the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. (Fig.14)
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten
the mounting screw you removed earlier and the mounting screw
from step 2 above. Now, attach the canopy cover to the mounting
screw heads by inserting the screw heads into the bottom side of the
canopy cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy
and canopy cover are snug.
WARNING: Make sure the “Check Tab” at the bottom of the
hanger bracket is properly seated in the “Registration Slot” on
the side of the hanger ball before attaching the canopy to the
bracket. Failure to properly seat the “Check Tab” could damage
the electrical wires when the ceiling fan blade direction is changed
while the fan is running.
Fig. 14
Canopy
Canopy
cover
Screw
Screw
Outlet box
Ceiling
mounting
bracket

60”/65”/85” GENTRY 15
Fig. 15
Fig. 16
INSTALLING THE LIGHT PLATE
Step 1. Loosen the two screws on the mounting ring attached to the
motor shaft and “remove” and save the third screw. (Fig. 16)
Step 2. Place the key hole slots on the light plate over the two screws
previously loosened on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the key
hole slots.
Tighten both key hole screws and replace the third screw previously
removed and tighten securely.
ATTACHING THE FAN BLADES
CAUTION: “To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing fan blade.”
Step 1. Align the holes from the blade and blade support plate to
the holes from the blade arms, and secure the blade in place with
screws provided. (Fig. 15)
Step 2. Repeat this process to attach the other two blades.
Blades
Blade arms
Screws
Blade support
plates
Light plate Mounting ring
Screws

| KICHLER.COM
16
INSTALLING THE GLASS SHADE
Raise the glass shade against the light plate and secure by tightening
all three screws (Fig. 18)
Fig. 18
Fig. 17
INSTALLING THE LED LIGHT KIT
CAUTION: “To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing light kit.”
Step 1. Loosen the three mounting screws on the inside of the LED
light kit. (Fig. 17)
Step 2. While holding the LED light kit under the fan motor, make the
wire connections: (Fig. 17)
- White to white
- Black to black
Step 3. Tuck the connections neatly into the light plate. Place the
key holes on the LED light kit over the 2 screws previously loosened
from the light plate, turn the LED light kit until it locks in place at
the narrow section of the key holes. Secure by tightening all three
screws. (Fig. 17)
Wire connectors
LED light kit
Light plate
Screws
Glass shade
Screws

60”/65”/85” GENTRY 17
Green Light
For/Rev switch
Light status indicator
Fan speed indicator
Power switch
CONTROL SYSTEM SET-UP
IMPORTANT: Ceiling fan blades MUST be installed before pairing
procedure can begin.
Program the wall control and/or the handset control separately.
Once the following pairing is successfully done, both the wall control
and the handset control can be used for the fan.
Press the power button on the wall control to TURN THE POWER
ON. The LED lights on the wall control will blink thru the power up
process, approximately 3 seconds.
Press the “ “power button to turn o the wall control (the button
will be up). Restore electricity to the ceiling fan branch circuit at
the circuit breaker or fuse box. Within 60 seconds of turning on the
power, press the “ “ power button to turn on the wall control (the
button will be down), and then press the “ “ reverse button for 3 to 5
seconds. Light will blink twice. The remote will now be programmed
to your fan and ready for use.
IMPORTANT: Do not interrupt the conditioning until the fan comes
to a complete stop in approximately 5 minutes. All functions of the
control will be rejected during conditioning.
Try dierent speed setting on both the wall control and the handset
control to ensure the fan is now fully functional. If programming is
unsuccessful, retry the process starting from step 1 again.
Fig. 19

| KICHLER.COM
18
BUTTON INSTRUCTIONS
LED Indicator Red LED: Transmitter signal indicator. When RF signal is
sending, the red light will illuminate.
Green LED: To show the Forward and Reverse indicator.
ON/OFF button “ “
ON: Turn on the power.
OFF: Turn o the power.
Reverse button “ “
When the fan is running, press and release the Reverse button one time,
the fan will change operating direction.
Downflow: Green indicator LED will be o.
Reverse: Green indicator LED will be on.
Light button “ “
Press and release the Light button for light ON/OFF control.
Light indicator LEDs will show current light status. If the light kit is OFF,
the Light indicator LEDs are also all o. Press AND HOLD the light
button for more than 1 second and the light kit will begin dimming. Light
indicator LED will show the change in light level status. The light level
cycles from bright to dim and back to bright when the light button is held.
Fan control “ “
Press and release the Fan speed button for Fan ON/OFF control.
Fan indicator LED will illustrate the current fan speed. If the fan is OFF,
the fan speed indicator LEDs will also be OFF. Press and hold Fans
speed button for more than 1second to begin adjusting the fan speeds.
The indicator LEDs will shows the current speed level. The fan speed
adjustments adjust in a repeat cycle when the speed button is held
down. The speeds adjust from High to Low, then back up to High.
Fig. 20

60”/65”/85” GENTRY 19
SENSORLESS DC CONTROL PAIRING PROCEDURES
IMPORTANT: Ceiling fan blades MUST be installed before pairing procedure can begin.
Program the wall control and/or the handset control separately. Once the following pairing is successfully done, both the wall control and the handset
control can be used for the fan.
For wall control, press the “ “ power button to turn o the wall control (the button will light up). Restore electricity to the ceiling fan branch circuit at
the circuit breaker of fuse box. Within 60 seconds of turning on the power, press the “ “ power button to turn on the wall control (the button will be
down), and then press the “ “ reverse button for 3 to 5 seconds. Light will blink twice. The remote will no be programmed to your fan and ready for
use.
For handset control, restore electricity to the ceiling fan branch circuit at the circuit breaker or fuse box. Within 60 seconds of turning on the power,
press “ ” power button for 3 to 5 seconds. Light will blink twice. The remote will now be programmed to your fan and ready for use.
IMPORTANT: Do not interrupt the conditioning until the fan comes to a complete stop in approximately 5 minutes. All functions of the control will
be rejected during conditioning.
Try dierent speed setting on both the wall control and the handset control to ensure the fan is now fully functional. If programming is unsuccessful,
retry the process starting from step 1 again.

| KICHLER.COM
20
INSTALLING THE TRANSMITTER
Select a location to install the Wall Control System Transmitter and
Wall Plate.
CAUTION: Transmitter should NOT be mounted outdoors.
Transmitter should be mounted indoors away from excessive heat
and away from contact with water or humidity.
Install the wall plate using an existing wall switch outlet box. Make
sure the electrical power is TURNED OFF at the main panel before
continuing.
If your ceiling outlet box has a ground wire (green or bare copper)
connect it to the ground wire from the wall switch and/or the ceiling
mounting bracket and push back inside the outlet box.
Install the wall plate on the existing wall outlet box using the screws
provided. (Fig. 21)
After installing the wall anchors, attach the wall plate with the
mounting screws to finish the installation.
Fig. 21
Screws
Outlet box
Screws
Wall plate
Switch
