60" Rise
INSTRUCTION MANUAL
Model# 300370READ AND SAVE THESE INSTRUCTIONS

2 | KICHLER.COM
TABLE OF CONTENTS
COMPLETING THE MOTOR INSTALLATION ......................14
ATTACHING THE FAN BLADES ..............................................15
INSTALLING THE LIGHT PLATE ........…………….....................16
INSTALLING THE LIGHT KIT AND GLASS SHADE ............17
SENSORLESS DC CONTROL PAIRING PROCEDURES ...18
OPERATING INSTRUCTIONS .................................................18
FCC INFORMATION ..................................................................19
TROUBLESHOOTING ............................................................. 20
SAFETY RULES.....................................................……3
TOOLS REQUIRED …………………………………….......……5
PACKAGECONTENTS…………………………….……………5
MOUNTING OPTIONS ……………..…………….......………6
HANGING THE MOTOR ASSEMBLY ..…………………7
INSTALLATION OF SAFETY SUPPORT................10
ELECTRICAL CONNECTIONS ................................1 1
INSTALLING THE WALL CONTROL .......................13

may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is
strongly recommended.
5. All wiring must be in accordance with the National
Electrical Code ANSI/NFPA 70 and local electrical
codes. Electrical installation should be performed by a
qualified licensed electrician.
6. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum
of 15.9 kg (35 pounds). Use only cULus Listed outlet
boxes marked “FOR FAN SUPPORT”.
7. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN TO
OUTLET BOX MARKED “ACCEPTABLE FOR FAN
SUPPORT”.
8. Avoid placing objects in the path of the blades.
60" Rise | 3
READ AND SAVE THESE INSTRUCTIONS
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON’T SECURE THIS FAN TO AN OUTLET BOX.
1. CAUTION – RISK OF SHOCK –
Disconnect Power at the main circuit breaker panel
or main fusebox before starting and during the
installation.
2. WARNING: This fixture is intended for installation in
accordance with the National Electrical Code (NEC)
and all local code specifications. If you are not familiar
with code requirements, installation by a certified
electrician is recommended.
3. WARNING: To reduce the risk of fire or electric shock,
use only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock,
or Personal Injury mount to an outlet box marked
“Acceptable For Fan Support of up to 15.9 kg (35 lbs)”.
For outlet box mounting, use mounting screws (and
lock washers) provided with the outlet box. Most
outlet boxes commonly used for the support of
light fixtures are not acceptable for fan support and

4 | KICHLER.COM
15. Electrical diagrams are for reference only. Light kits
that are not packed with the fan must be ETL Listed
and marked suitable for use with the model fan you are
installing. Switches must be ETL General Use Switches.
Refer to the Instructions packaged with the light kits
and switches for proper assembly.
16. All set screws must be checked, and retightened where
necessary, before installation.
17. The subject fan 300370 weight information is as below:
Net Weight : 10.7 kgs / 23.54 lbs;
Gross Weight: 12 kgs /26.4 lbs.
9. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
10. Make sure the installation site you choose allows a
minimum clearance of 2.1 m (7 feet) from the blades
to the floor and at least 30 inches from the ends of the
blades to any obstruction.
11. To operate the reverse function on this fan, press the
reverse button while the fan is running.
12. WARNING: make sure the power is disconnected
before cleaning your fan.
13. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
14. After making the electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.
SAFETY RULES

60" Rise | 5
TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents . You should have the following items:
A. Ball/Downrod Assembly
B. Mounting Bracket
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Motor Assembly
G. Blade (5)
H. Bracket Assembly (5)
I. Light Plate
J. Light Kit
K. Glass Shade
L. Finial Cap
M. Finial
A
B
G
H
I
JC
D
E
F
O
K
L
M
N
N. Wall Control Unit
Face plate (1); Wall control (1); Receiver(1);
Wire Connector (4+9);
Short screw (2); Long screw (2);
O. Package hardware
1.) Safety cable hardware: Wood screw (1);
Spring washer (1); Flat washer (1)
2.) Mounting hardware: Wire Connector (3);
3.) Blade attachment hardware: Screw (15);
Washer (15)
4.) Light kit attachment hardware: Screw (3)
5.) Blade bracket attachment hardware:
Screw (10)

6 | KICHLER.COM
MOUNTING OPTIONS
If there is not an existing UL (cUL for Canadian Installation)
listed mounting box, then read the following instructions.
Disconnect the power by removing fuses or turning o circuit
breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the full weight
of the fan (up to 15.9kg (35 pounds)). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: You must use 12" or longer downrod for 22° slope
(max angle 22°). (Fig. 3)
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a joist
hanger for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Fig. 4
Outlet box
Recessed
outlet box ceiling
mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 22° ANGLE

60" Rise | 7

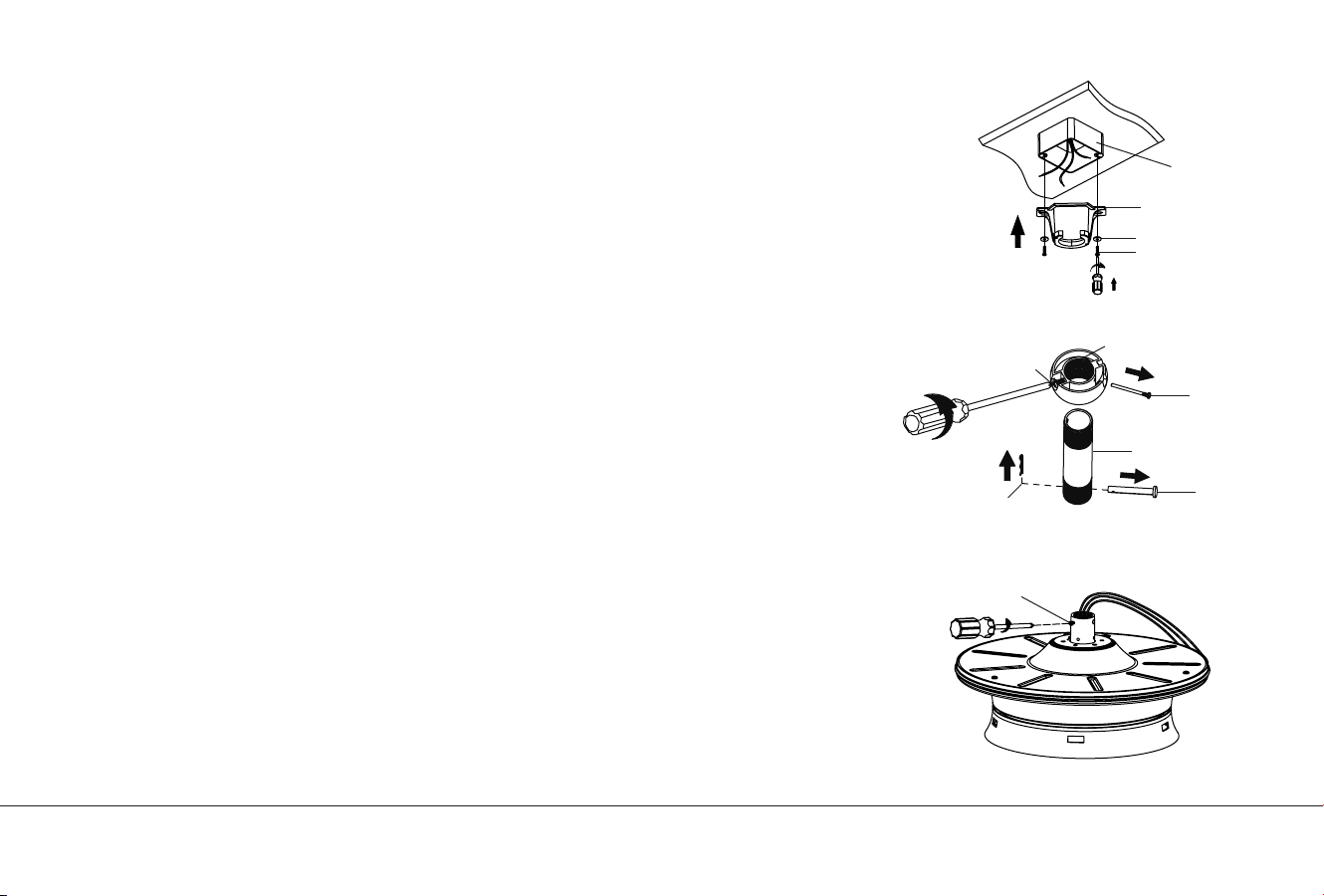

Fig. 5
Fig. 6
Fig. 7
Outlet Box
Ceiling Mounting
Bracket
Flat Washer
Screw
Set Screw
Set Screw
Hanger Ball
Cross Pin
Clevis Pin
Downrod
Hairpin
HANGING THE MOTOR ASSEMBLY
REMEMBER to turn o the power before you begin installation. This is necessary for
your safety and also the proper programming of the control system.
To properly install your ceiling fan, follow the steps below.
Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is securely
fastened to at least two points to a structural ceiling member (a loose box will cause the
fan to wobble). Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. Install mounting bracket to outlet box in ceiling
using the screws and washers included with the outlet box. (Fig. 5)
Step 2. Remove the hairpin and clevis pin from the downrod assembly, retain for later
use. Remove the hanger ball from the downrod assembly by loosening set screw,
removing the cross pin, and sliding ball of the rod. (Fig. 6)
NOTE: Make sure to keep loosened hardware separate to avoid confusion during
installation.
Step 3. Loosen the two set screws on the motor coupling. (Fig. 7)

8 | KICHLER.COM
Step 4. Carefully feed fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the clevis pin holes
are aligned. Next, replace the clevis pin and hairpin, then tighten both set
screws. (Fig. 8)
Step 5. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod. Make sure
the cross pin is in the correct position and the set screw is tight and the
wires are not twisted . ( Fig. 9)
CAUTION: Ensure all screws are tight before moving to the next step.
HANGING THE MOTOR ASSEMBLY (continued)
Motor
Coupling
Canopy
Hanger Ball
Cross Pin Set Screw
Canopy Hole Cover
Coupling Cover
Downrod
Hairpin Clevis Pin
Set Screw
Fig. 8
Fig. 9

60" Rise | 9
Step 6. Now lift the motor assembly into position and place the hanger ball
into the mounting bracket. Rotate until the check tab has dropped into the
registration slot and seats firmly. ( Fig. 10) The entire motor body should
not rotate if this is done correctly.
WARNING: Failure to properly seat the check tab can damage the
ceiling fan during operation.
HANGING THE MOTOR ASSEMBLY (continued)
Fig. 10
Check Tab
Registration Slot
Mounting Bracket
Hanger Ball

10 | KICHLER.COM
Flat Washer
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.
Step 1. Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 11)
Step 2. Insert the safety cable through the mounting bracket and one of the holes in
the outlet box into the ceiling. Adjust the length of the safety cable to reach the screw
and washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the end
of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the safety
cable over the wood screw and under the washer. Tighten the wood screw securely.
(Fig. 12)
NOTE: Although the safety support cable is required for Canadian installations only,
it’s a good idea to make the attachment with any installation.

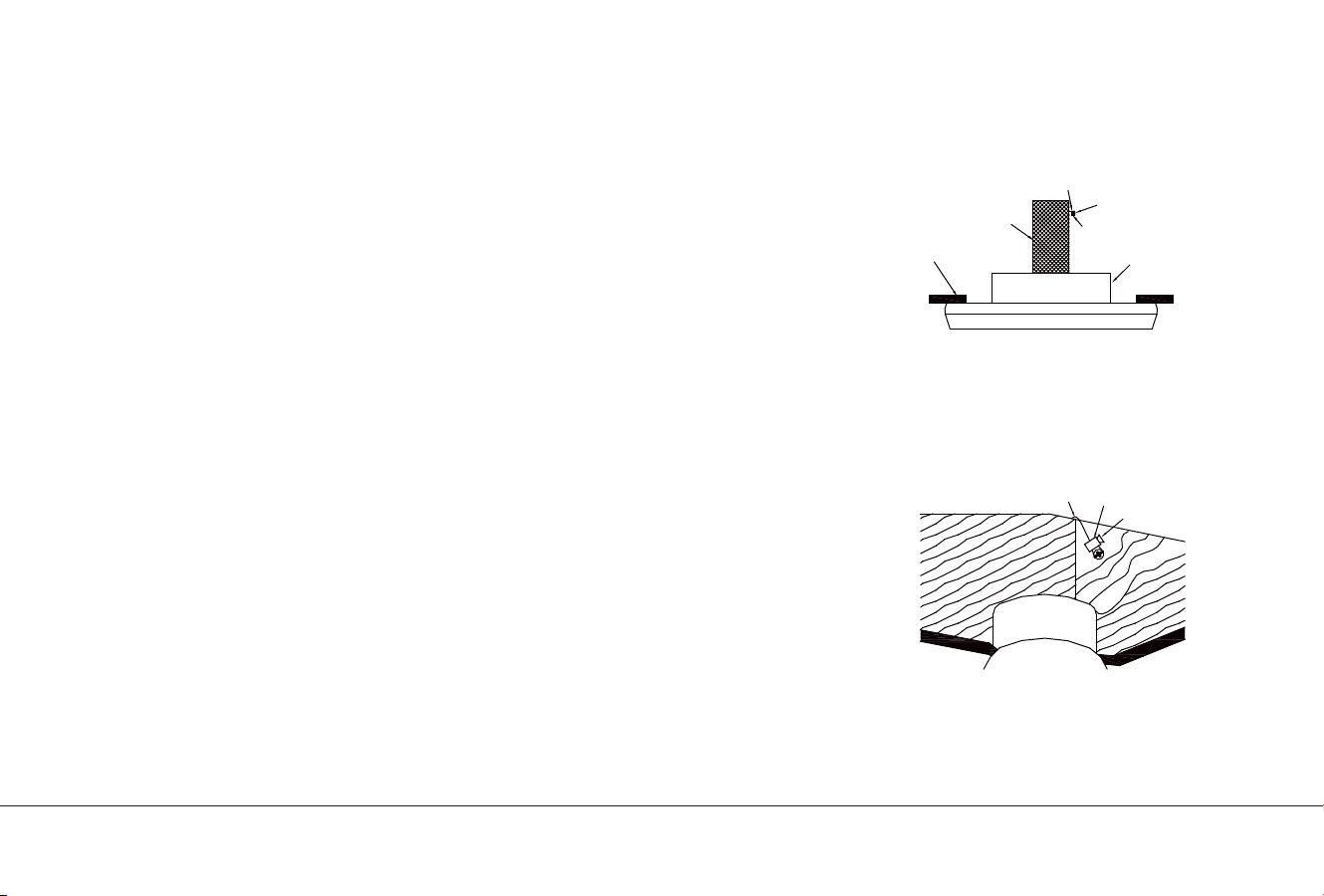

Wood Screw
Spring Washer
Outlet Box
Ceiling
Support Brace
Safety Cable Bolt
Wood Screw
Fig. 12

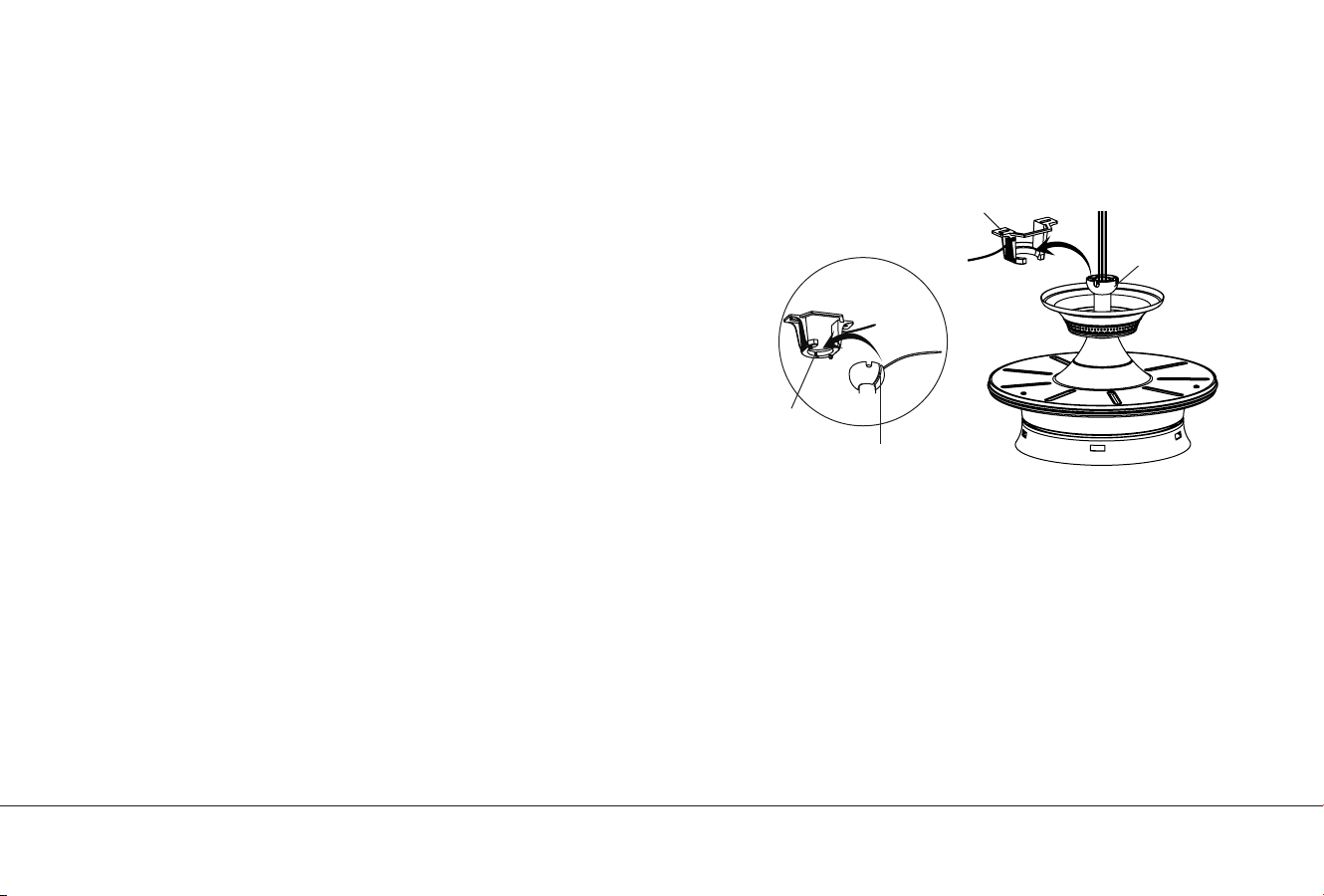

Fig. 11

60" Rise | 11
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring.
Follow the steps below to connect the fan to your household wiring. Use the wire
connectors supplied with your fan. Secure the connector with electrical tape. Make
sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper
wiring.
Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of
ceiling. (Fig.13)
Step 2. Connect wires using the connectors as shown in WIRE DIAGRAM. (Fig.14)
WARNING: Check to see that all connections are tight, including ground, and that no
bare wire is visible at the wire connections.
Step 3. After connections have been made, put the white and green leads (green or bare
copper) to one side and the black leads towards the other side, the connection should
be turned upward and carefully push leads into the outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and the ungrounded conductor on the other side.
Fig. 13
Mounting Bracket
Receiver

12 | KICHLER.COM
BLACK
RECEIVER
WIRE DIAGRAM
Fig. 14
AC 120V INPUT
GROUND WIRE
FROM CEILING
BLACK
WHITE
BLACK
GROUND WIRE
BLACK
(“TO POWER SUPPLY”)
BLACK
(“TO FAN”)
WALL
CONTROL
GROUND WIRE
GRAY
YELLOW
RED
WHITE
BLUE
GRAY
YELLOW
RED
WHITE
BLUE
GROUND WIRE
WHITE (“AC IN N”)
BLACK (“AC IN L”)

60" Rise | 13
Outlet Box
Switch
Wall Plate
Fig. 15
Fig. 16

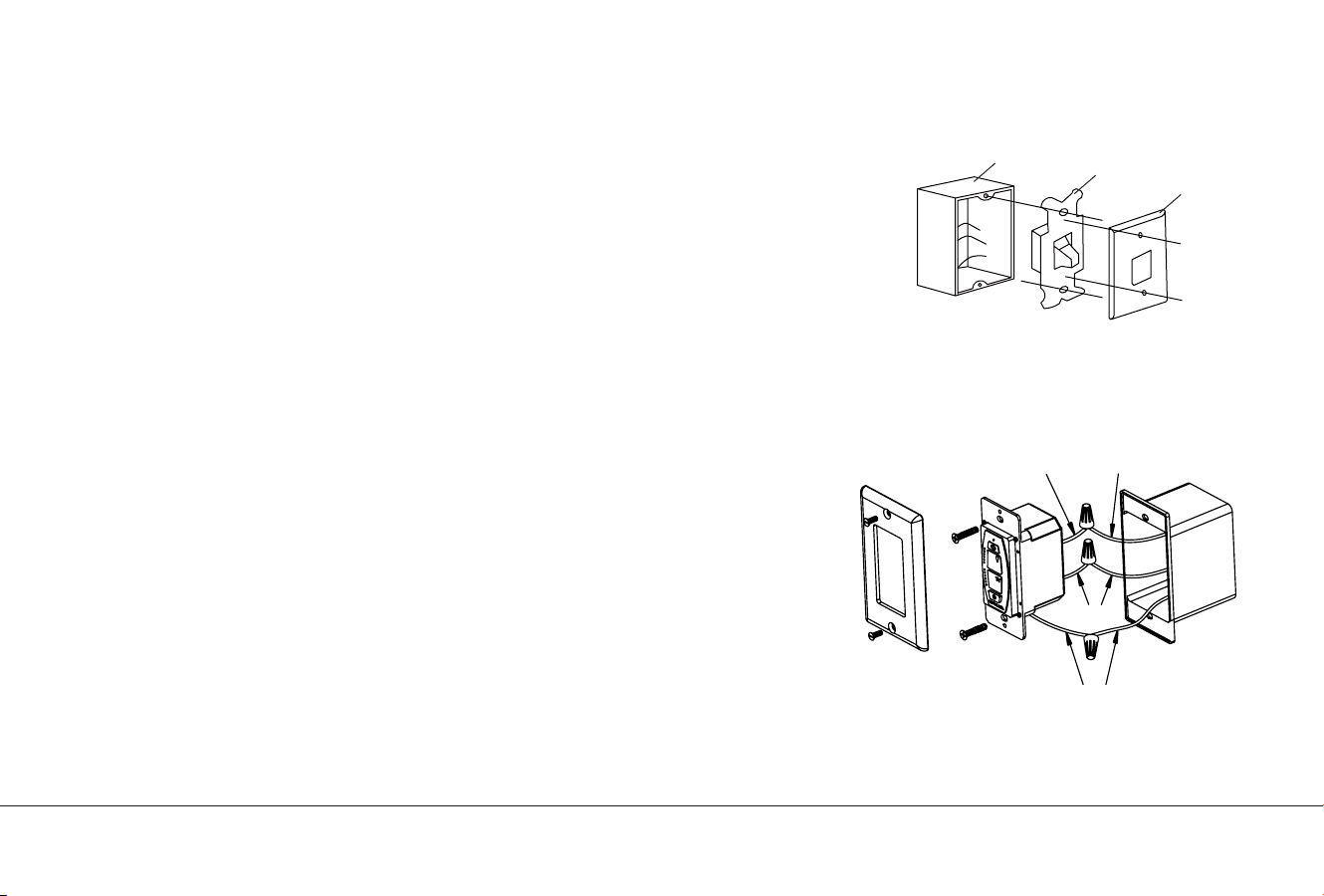

INSTALLING THE WALL CONTROL
WARNING: All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a qualified
licensed electrician.
WARNING: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND
NATIONAL ELECTRIC CODES.
WARNING: Shut o main power at the circuit breaker or fuse panel before continuing.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Disconnect wires from existing switch. (Fig. 15)
Step 2. Install the wall control to the outlet box, connecting the wires with wire
connectors provided. (Fig. 16)
*Connect the black wire from the outlet box that supplies power to the wall control to
black wire marked “TO POWER SUPPLY” from wall control.
*Connect the black wire from the outlet box that goes to the fan to black wire marked “TO
FAN” from wall control.
*Connect the bare copper ground wire from the outlet box to bare copper ground wire
from wall control.
*Connect the two white neutral wires in the outlet box together (if not already connected).
Step 3. Secure the wire connectors and make sure there are no loose strands or connections.
Carefully tuck wire connections back inside outlet box and secure the wall control to outlet box
with screws provided. Secure face plate to wall control using the screws provided.
TO POWER SUPPLY AC IN L (Black)
TO FAN
GROUND

14 | KICHLER.COM
COMPLETING THE MOTOR INSTALLATION
Step 1. Remove one of the two shoulder screws in the mounting bracket.
Loosen the second shoulder screw without fully removing it. (Fig. 17)
Step 2. Assemble canopy by rotating key slot in canopy over shoulder
screw in mounting bracket. Reinstall the shoulder screw that was previously
removed, then retighten two shoulder screws securely. (Fig. 18)
Step 3. Securely attach and tighten the canopy hole cover over the shoulder
screws in the mounting bracket utilizing the keyslot twist-lock feature.(Fig.19)
Mounting
Bracket
Shoulder
Screw
Shoulder
Screw
Canopy
Fig. 18
Fig. 17
Fig. 19

60" Rise | 15
ATTACHING THE FAN BLADES
CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The
Electrical Supply Circuit To The Fan Before Installing Fan Blades.
Step 1. Attach the blades to the bracket assemblies as shown,
securely tighten with screws and washers from the hardware pack.
(Fig. 20)
Step 2. Slide the blade assemblies into the holes on the flywheel
and securely tighten the with the screws from the hardware pack
as shown. (Fig.21) Fig. 20
Fig. 21
Screw
Screw
Washer
Bracket Assembly
Blade Assembly
Blade

16 | KICHLER.COM
INSTALLING THE LIGHT PLATE
Step 1. Remove the screw marked with a brown dot label on the mounting
plate and keep for later use. Loosen the other two (do not remove).(Fig.22)
Step 2. Place the two slot holes on the light plate over the 2 screws previously
loosened from the mounting plate. Rotate the light plate until it locks in
place at the narrow end of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed. (Fig. 23)
Screw
Mounting Plate
Light Plate
Fig. 22
Fig. 23

60" Rise | 17

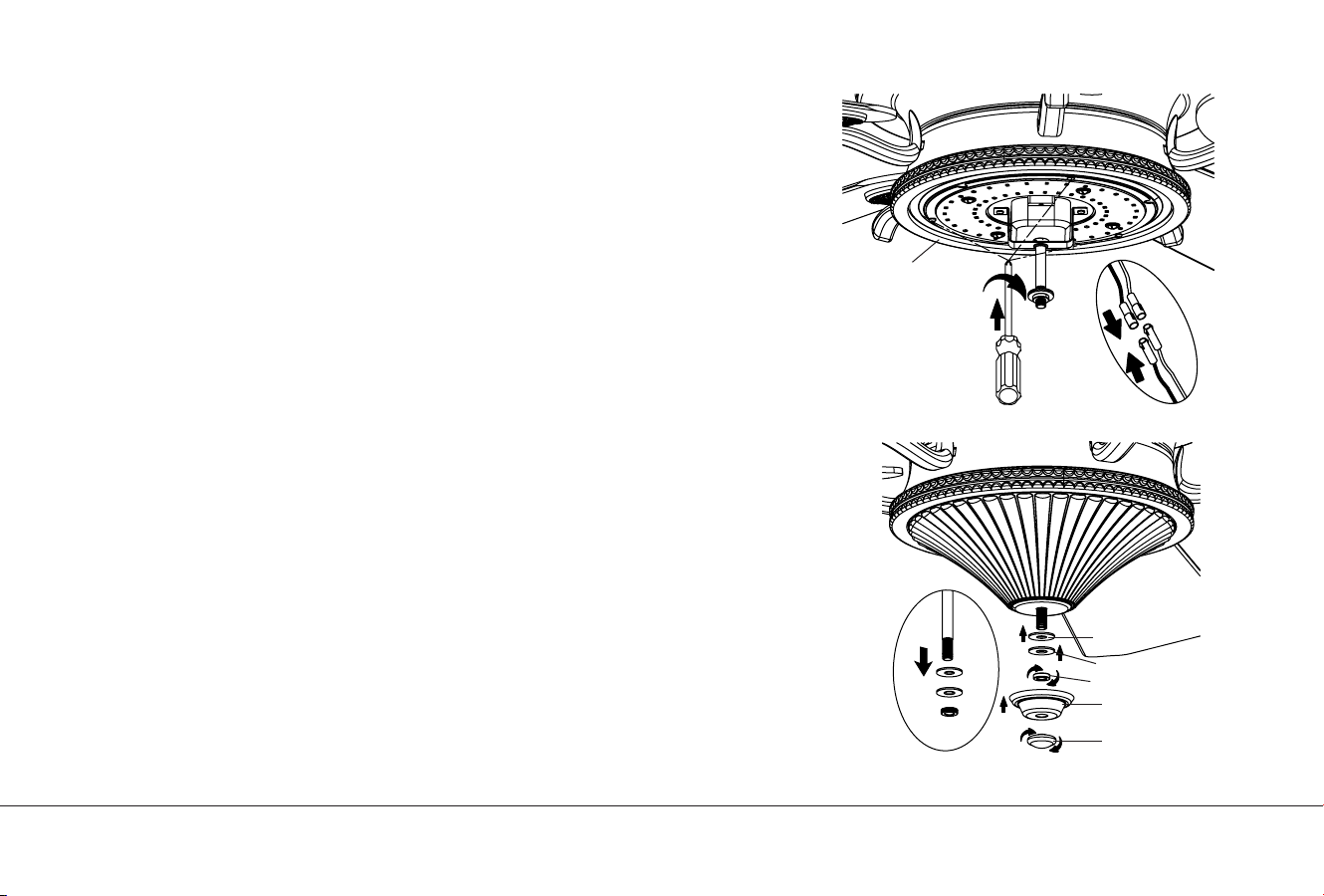

INSTALLING THE LIGHT KIT AND GLASS SHADE
CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical
Supply Circuit To The Fan Before Installing Light Kit.
Step 1. Hold the LED light kit to light plate, then connect the 2 single pin connectors
from the light kit to the 2 single pin connectors from the motor assembly. Connect
the black wire to the black wire, and white wire to the white wire. Attach the light
kit to the light plate and securely tighten with three (3) screws from the screw pack
(Fig. 24)
Step 2. Remove and retain the manual nut, metal washer and silicone washer from
the threaded rod on the light kit. (Fig. 25)
Step 3. Lift the glass shade up to the light kit, allowing the threaded rod to go
through the center hole in the bottom of the glass shade. Place the silicon washer
and metal washer over the threaded rod, then screw the manual nut onto the
threaded rod until tight. DO NOT OVER-TIGHTEN. (Fig. 25)
Step 4. Install the finial cap and finial onto the threaded rod and tighten securely.
(Fig. 25)
Fig. 24
Fig. 25
Light Kit
Silicon Washer
Manual Nut
Metal Washer
Finial
Finial Cap

18 | KICHLER.COM
Fig.26
OPERATING INSTRUCTION
Press the power button “ ”once to turn ON (or OFF) the fan. (Fig. 26)
To set the desired fan speed, press and hold the “ ” button to decrease and
increase the speed. (Fig. 26)
To turn the light on and o, press and release the light “ ” button. To set the light
intensity, press and hold the light button. The light will turn on at the light intensity
previously selected. (Fig. 26)
SENSORLESS DC CONTROL PAIRING PROCEDURES
IMPORTANT: Ceiling fan blades MUST be installed before pairing procedure can begin.
Step 1. Press the power button “ ” to turn o the wall control (the button will be up). Restore electricity to the ceiling fan branch
circuit at the circuit breaker or fuse box. Within 60 seconds of turning on the power, press the “ ” power button to turn on the wall
control (the button will be down) and then press the “ ” reverse button for 3 to 5 seconds. The light will flash twice, and at the same
time, the fan will run for a while and then stop. The remote will now be programmed to your fan and ready for use.
IMPORTANT: Do not press any buttons on the remote until after the pairing process is complete. Wait until after the fan has come to a
complete stop.
Step 2. Try dierent speed settings on the wall control to ensure the fan is now fully functional. If programming is unsuccessful, retry the
process starting from step 1 again.
Indication Light
(Power) Airflow Direction
Light Button
Fan Speed Button
Power Button

60" Rise | 19
Fig. 27 Fig. 28
REVERSE FUNCTION
To operate the reverse function on this fan, press the “ ”
reverse button while fan is running. Speed setting for warm or cool
weather depends on factors such as the room size, ceiling height,
number of fans and so on.
Warm Weather Operation:Warm Weather Operation: Forward (counter clockwise).A downward
airflow creates a cooling effect (Fig.27). This allows you to set your
air conditioner on a warmer setting without affecting your general
comfort.
Cool Weather Operation:Cool Weather Operation: Reverse (clockwise). An upward airflow
moves warm air off of the ceiling (Fig. 28). This allows you to set
your heating unit on a cooler setting without aecting your general
comfort.
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.)This device may not cause harmful interference, and
2.)This device must accept any interference received, including interference that may cause undesired operation.
Note:Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician or help.

20 | KICHLER.COM
TROUBLESHOOTING
ProblemProblem
Fan will not start.Fan will not start.
Fan sounds noisy.Fan sounds noisy.
Fan wobble.Fan wobble.
Remote controlRemote control
malfunction.malfunction.
SolutionSolution
1. Check circuit fuses or breakers.1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact.2. Check all electrical connections to ensure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.CAUTION: Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappears during this time.4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappears during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.touching any other component.
6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling fan motors or6. Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling fan motors or
remote controls.remote controls.
7. Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.7. Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.possibly result in smoother operation.
1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
basic On/o wall switch, if desired.basic On/o wall switch, if desired.
