Kikusui PWR400L User manual

Part No. Z1-003-902, IA004005
May 2010
OPERATION MANUAL
Regulated DC Power Supply
PWR Series
400 W Type
800 W Type
1600 W Type
PWR400L PWR400M PWR400H
PWR800L PWR800M PWR800H
PWR1600L PWR1600M PWR1600H

Use of Operation Manual
Please read through and understand this Operation Manual before operating
the product. After reading, always keep the manual nearby so that you may
refer to it as needed. When moving the product to another location, be sure
to bring the manual as well.
If you find any incorrectly arranged or missing pages in this manual, they
will be replaced. If the manual gets lost or soiled, a new copy can be pro-
vided for a fee. In either case, please contact Kikusui distributor/agent, and
provide the “Kikusui Part No.” given on the cover.
This manual has been prepared with the utmost care; however, if you have
any questions, or note any errors or omissions, please contact Kikusui dis-
tributor/agent.
Microsoft and Windows are registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Other company names and product names used in this manual are
generally trademarks or registered trademarks of the respective com-
panies.
Reproduction and reprinting of this operation manual, whole or partially,
without our permission is prohibited.
Both unit specifications and manual contents are subject to change without
notice.
Copyright© 2007 - 2010 Kikusui Electronics Corporation

PWRi
Safety Symbols
For the safe use and safe maintenance of this product, the following
symbols are used throughout this manual and on the product. Under-
stand the meanings of the symbols and observe the instructions they
indicate (the choice of symbols used depends on the products).
or
Indicates that a high voltage (over 1000 V) is used here.
Touching the part causes a possibly fatal electric shock. If
physical contact is required by your work, start work only
after youmake sure that no voltage is output here.
DANGER Indicates an imminently hazardous situation which, if
ignored, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if
ignored, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if ignored,
may result in damage to the product and other property.
Shows that the act indicated is prohibited.
Is placed before the sign “DANGER,” “WARNING,” or
“CAUTION” to emphasize these.
When this symbol is marked on the product, see the rele-
vant sections in this manual.
Indicates a protective conductor terminal.
Indicates a chassis (frame) terminal.
On (supply).
Off (supply).
In position of a bi-stable push control.
Out position of a bi-stable push control.
!

ii PWR
Safety Precautions
The following safety precautions must be observed to avoid fire
hazard, electric shock, accidents, and other failures. Keep them in
mind and make sure that all of them are observed properly.
Using the product in a manner that is not specified in this manual
may impair the protection functions provided by the product.
Users
• This product must be used only by qualified personnel
who understand the contents of this operation manual.
• If it is handled by disqualified personnel, personal
injury may result. Be sure to handle it under the
supervision of qualified personnel (those who have
electrical knowledge).
Purpose of use • Do not use the product for purposes other than
those described in the operation manual.
• This product is not designed or produced for home-
use or use by general consumers.
Input power
• Use the product within the rated input power voltage
range.
• For applying power, use the power cable provided. For
details, see the respective page in the operation manual.
• This product is designed as an equipment of IEC
Overvoltage Category II (energy-consuming equip-
ment supplied from the fixed installation).
Cover • Some parts inside the product may cause physical
hazards. Do not remove the external cover.
Grounding
• This product is an IEC Safety Class I equipment (equip-
ment with a protective conductor terminal). To prevent
electric shock, be sure to connect the protective conduc-
tor terminal of the product to electrical ground (safety
ground).
!
Operation
Manual
Line
Voltage
GNL

PWRiii
Installation • This product is designed for safe indoor use. Be
sure to use it indoors.
•When installing this product, be sure to observe the
description in section 2.2.1, “Precautions Concern-
ing Installation Location” in this manual.
•When connecting the power cord to a switchboard,
be sure the work is performed by a qualified and
licensed electrician or under the direction of such
person.
Relocation •Turn off the POWER switch, and disconnect all
cables before relocating the product.
•When relocating the product, be sure to include the
manual.
Operation • Before using the product, be sure to check the input
power voltage and that there is no abnormality in
the appearance of the AC power cord. Be sure to
unplug the power cord or turn off the switchboard
breaker before checking it.
• If a malfunction or abnormality is detected on the
product, stop using it immediately, and remove the
power cord plug from the outlet or turn the switch-
board breaker off. Make sure the product is not
used until it is completely repaired.
• Use cables or wires with sufficiently large current
capacity for output wires and load cables.
•Do not disassemble or modify the product. If you
need to modify the product, contact your Kikusui
distributor/agent.
Maintenance
and checking
• To prevent electric shock, make sure to unplug the
power plug or turn off the switchboard breaker
before performing maintenance or checking.
• Do not remove the cover when performing mainte-
nance or checking.
• To maintain the performance and safe operation of
the product, it is recommended that periodic main-
tenance, checking, cleaning, and calibration be per-
formed.
Check?

iv PWR
Service • Internal service is to be done by Kikusui service
engineers. If the product must be adjusted or
repaired, contact Kikusui distributor/agent.

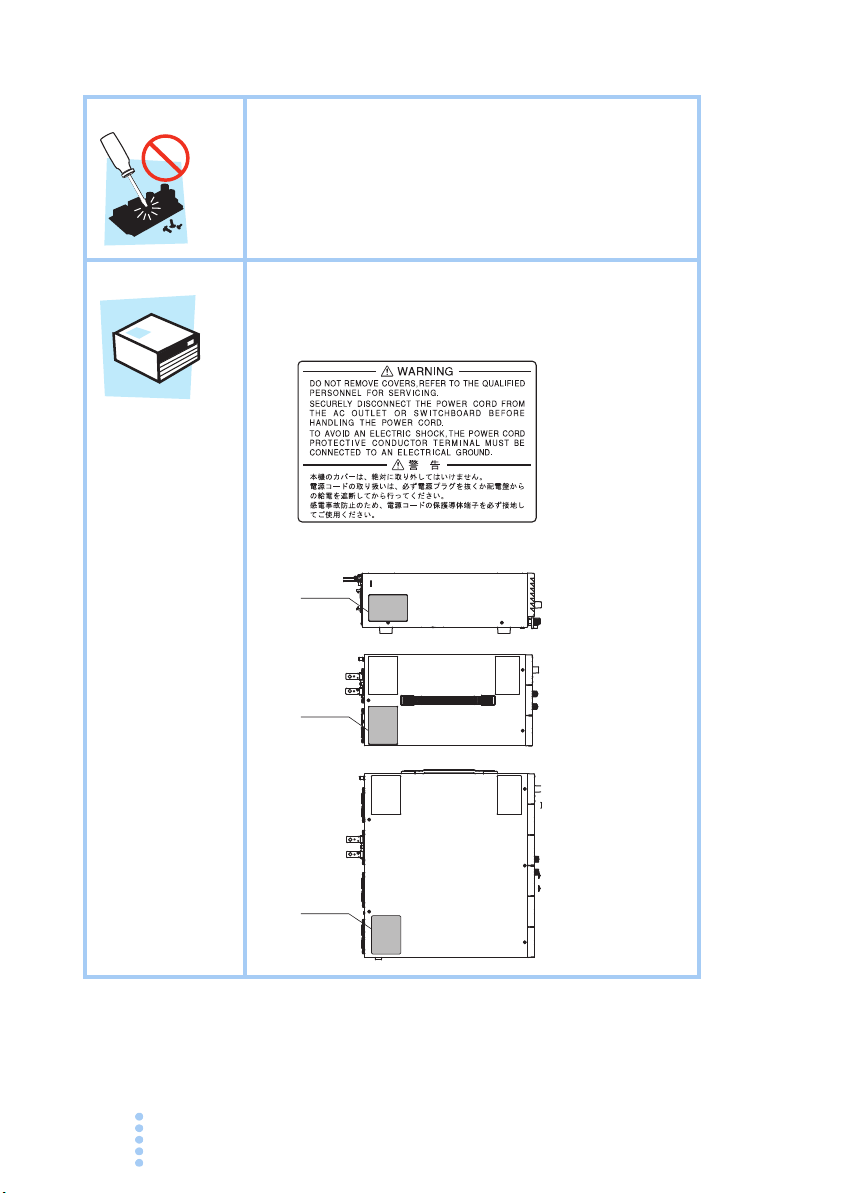

Warning label • There is a warning label affixed to the product. If
this label tears or falls off, replace with a newlabel.
If youneed a newlabel, contact your Kikusui agent
or distributor.
Label
Label
Label
1600 W type
Top panel
800 W type
Top panel
400 W type
Left side panel

PWRv
How to read this manual
Introduction
Thank you for purchasing the PWR regulated DC power supply
series.
This manual is intended for first-time users of the PWR. It gives an
overview of the regulated DC power supply and describes various
settings, operation, maintenance, safety precautions, etc.
Read this manual thoroughly to use the functions of the PWR
effectively. You can also review this manual when you are confused
about an operation or when a problem occurs.
How to read this manual
This manual is designed to be read from beginning to end. We
recommend that you read the manual thoroughly from the beginning
before using the PWR for the first time.
Related manuals(Remote Control)
For details on the Power Supply Controller, see the operation manual
of the respective product. For connection to a Power Supply Control-
ler and device messaages, refer to the “Connecting & Programming
Guide” [index.html] in the CD-ROM that came with the PIA4800
series.
Intended readers of this manual
This manual is intended for users of the PWR regulated DC power
supply series or persons teaching other users on how to operate them.
The manual assumes that the reader has knowledge about electrical
aspects of regulated DC power supplies.
Information on device messages is provided with the premise that the
reader has sufficient knowledge about controlling power supplies
using a personal computer.

vi PWR
Notations used in the manual
The PWR regulated DC power supply series is also simply referred to as
the PWR series in this manual.
The following markings are used in the explanations in the text.
Indicates a potentially hazardous situation which, if ignored, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if ignored, may
result in damage to the product and other property.
Indicates information that you should know.
Explanation of terminology or operation principle.
Indicates reference to detailed information.
C-x:x
The first two characters “C-” indicate a configuration setting, and the
next one-digit number indicates the CONFIG parameter number. The
character after the colon indicates the selected setting.
SHIFT+switch name (marked in blue)
Indicates an operation in which a switch marked in blue is pressed
while holding down the SHIFT switch.
WARNING
CAUTION
DESCRIPTION
See

PWRvii
1
2
3
4
5
6
7
8
9
Safety Symbols - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - i
Safety Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ii
Howto read this manual - - - - - - - - - - - - - - - - - - - - - - - - - - - - - v
Contents by Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - xi
Front panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - xii
Rear panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -xiv
Chapter 1 General Description
1.1 About This Manual - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2
1.2 Product Overview- - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3
Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3
Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4
Chapter 2 Installation and Preparation
2.1 Checking the Package Contents - - - - - - - - - - - - - - - - - 2-2
2.2 Precautions Concerning Installation - - - - - - - - - - - - - - - 2-3
2.2.1 Precautions Concerning Installation Location - - - - 2-4
2.2.2 Precautions to Be Taken When Moving the Product 2-5
2.3 Rack Mounting the Product - - - - - - - - - - - - - - - - - - - - - 2-6
2.4 Connecting the Power Cord - - - - - - - - - - - - - - - - - - - - 2-8
400 Wand 800 Wtypes - - - - - - - - - - - - - - - - - - - - - - 2-9
1600 Wtype - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10
2.5 Turning the Power On - - - - - - - - - - - - - - - - - - - - - - - 2-13
Chapter 3 Connecting the Load
3.1 Load Considerations - - - - - - - - - - - - - - - - - - - - - - - - - 3-2
3.2 Load Wire - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-5
3.3 Connecting to the Output Terminal - - - - - - - - - - - - - - - 3-7
3.3.1 Connecting to the Output Terminal on the Rear Panel -
3-7
Attaching the OUTPUT terminal cover - - - - - - - - - - - - 3-9
3.3.2 Connection to the Output Terminal on the Front Panel -
3-10
Chapter 4 Basic Operation
4.1 Measured Value Display and Setting Display - - - - - - - - 4-2
4.2 Panel control - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4
4.3 Output Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-6
Contents

viii PWR
4.4 Description of Operation - - - - - - - - - - - - - - - - - - - - - - - 4-7
4.4.1 Constant Voltage (CV) and Constant Current (CC) Pow-
er Supplies 4-8
4.4.2 Extended operating area (L type only) - - - - - - - - 4-11
4.5 Using the PWR as a CV or CC Power Supply (Setting the Out-
put Voltage and Current) 4-13
4.6 Protection Function and Alarm - - - - - - - - - - - - - - - - - 4-15
4.6.1 Alarm occurrence and release - - - - - - - - - - - - - - 4-15
4.6.2 Overvoltage protection (OVP) and overcurrent protec-
tion (OCP) 4-17
4.6.3 Other Protection Functions - - - - - - - - - - - - - - - - 4-21
4.7 CONFIG Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-23
CONFIG parameter details - - - - - - - - - - - - - - - - - - - 4-25
4.8Lock Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-28
4.9 Remote Sensing Function - - - - - - - - - - - - - - - - - - - - - 4-29
Connecting the sensing cable - - - - - - - - - - - - - - - - - 4-29
4.10 Factory Default Settings - - - - - - - - - - - - - - - - - - - - - - 4-32
Chapter 5 External Control
5.1 Overviewof External Control - - - - - - - - - - - - - - - - - - - - 5-2
5.2 J1 connector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-2
J1 connector arrangement - - - - - - - - - - - - - - - - - - - - 5-3
5.3 Output Terminal Insulation - - - - - - - - - - - - - - - - - - - - - 5-6
5.3.1 When the Output Terminal Is Not Grounded (Floating)
5-7
5.3.2 When the Output Terminal Is Grounded - - - - - - - - 5-8
5.4 Output Voltage Control - - - - - - - - - - - - - - - - - - - - - - - 5-10
5.4.1 External Voltage (Vext) Control - - - - - - - - - - - - - 5-10
5.4.2 External Resistance (Rext) Control - - - - - - - - - - - 5-12
5.5 Output Current Control - - - - - - - - - - - - - - - - - - - - - - - 5-14
5.5.1 External Voltage (Vext) Control - - - - - - - - - - - - - 5-14
5.5.2 External Resistance (Rext) Control - - - - - - - - - - - 5-16
5.6 Controlling the Output On/Off - - - - - - - - - - - - - - - - - - 5-18
5.7 Shutdown Control - - - - - - - - - - - - - - - - - - - - - - - - - - 5-21
5.8External Monitoring - - - - - - - - - - - - - - - - - - - - - - - - - 5-23
External monitoring of the output voltage and output current
5-23
External monitoring of the operating status - - - - - - - - 5-24
Chapter 6 Parallel/Series Operation

PWRix
1
2
3
4
5
6
7
8
9
6.1 Master-Slave Series Operation (L Type Only) - - - - - - - - 6-2
6.1.1 Functions (Series Operation) - - - - - - - - - - - - - - - - 6-2
6.1.2 Connection (Series Operation) - - - - - - - - - - - - - - - 6-4
Connecting the signal wires (series operation) - - - - - - 6-4
Load connection (series operation) - - - - - - - - - - - - - - 6-5
6.1.3 Setup (Series Operation) - - - - - - - - - - - - - - - - - - - 6-6
6.1.4 Procedure (Series Operation) - - - - - - - - - - - - - - - 6-7
6.2 Master-Slave Parallel Operation - - - - - - - - - - - - - - - - - 6-8
6.2.1 Functions (Parallel Operation) - - - - - - - - - - - - - - - 6-8
6.2.2 Connection (Parallel Operation) - - - - - - - - - - - - - 6-11
Connecting the signal wires (parallel operation) - - - - 6-11
Connecting the load (parallel operation) - - - - - - - - - - 6-12
6.2.3 Setup (Parallel Operation) - - - - - - - - - - - - - - - - - 6-14
6.2.4 Procedure (Parallel Operation) - - - - - - - - - - - - - 6-15
Chapter 7 Remote Control
7.1 Remote Control Overview- - - - - - - - - - - - - - - - - - - - - - 7-2
7.2 Connection of Power Supply Controller and Device messag-
es 7-2
Chapter 8Maintenance
8.1 Inspection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8-2
8.1.1 Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8-2
Cleaning the Panels - - - - - - - - - - - - - - - - - - - - - - - - - 8-2
Cleaning the dust filter - - - - - - - - - - - - - - - - - - - - - - - 8-3
8.2 Calibration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8-5
8.2.1 Calibration Overview- - - - - - - - - - - - - - - - - - - - - - 8-5
8.2.2 Voltage Calibration - - - - - - - - - - - - - - - - - - - - - - - 8-6
8.2.3 Current Calibration - - - - - - - - - - - - - - - - - - - - - - - 8-9
8.3 Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8-12
Chapter 9 Specifications
Common specifications - - - - - - - - - - - - - - - - - - - - - 9-3
Model-specific specifications (L type) - - - - - - - - - - - - 9-8
Model-specific Specifications (M type) - - - - - - - - - - - 9-12
Model-specific specifications (H type) - - - - - - - - - - - 9-14
Outline Drawing - - - - - - - - - - - - - - - - - - - - - - - - - - - 9-16
Index

xPWR

PWRxi
1
2
3
4
5
6
7
8
9
Contents by Function
Preparation
Operation
Situation Heading
I want to check the accessories. 2.1 “Checking the Package Con-
tents”p.2-2
The installation space is limited. How
much space is needed around the air
inlet and outlet?
2.2 “Precautions Concerning
Installation”p.2-3
Howdo I connect the AC power sup-
ply?
2.4 “Connecting the Power
Cord”p.2-8
What kind of wires should be used to
connect the load?
3.2 “Load Wire” p.3-5
The wire connecting the load is long
(distance to the load is long), but sta-
ble voltage is required.
4.8“Lock Function”
p.4-28
Howdo I set the communication con-
ditions for remote control?
See the “Connecting & Program-
ming Guide” in the CD-ROM that
came with the PIA4800 series.
–
Howdo I control the output voltage
using an external DC voltage?
5.4.1 “External Voltage (Vext)
Control”p.5-10
Howdo I increase the current capac-
ity in parallel operation?
6.2 “Master-Slave Parallel Oper-
ation”p.6-8
Howdo I rack mount the PWR? What
kind of parts is needed?
Rack p.1-4
See
Situation Heading
Howcan I use the PWR as a constant
voltage power supply (CV)?
4.5 “Using the PWR as a CV or
CC Power Supply (Setting the
Output Voltage and Current)”
p.4-13
Howdo I set the protection function to
prevent damage to the load?
4.6 “Protection Function and
Alarm”p.4-15
Howcan I monitor the output voltage
and output current?
5.8“External Monitoring” p.5-23
Howdo I temporarily lock the keys? 4.8“Lock Function” p.4-28
Howdo I reset the PWR to factory
default settings?
4.10 “Factory Default Settings” p.4-32
See

xii PWR
Front panel
PWR400L example
CVCV
OFFOFF ALMALM
V/V/ W
A/A/ W
CCCC
ONON
OUTPUTOUTPUT
Display
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PWRxiii
1
2
3
4
5
6
7
8
9
No. Name Description
+SHIFT
1OUTPUT Output on/off switch. p.4-6
2Air inlet (louver) Air inlet for internal cooling. A dust filter is built in. p.8-3
3SHIFT Switch for calling up the functions marked in blue
characters. p.vi
4CONFIG Switch for setting various conditions concerning
the operation. p.4-23
5LOCK Switch with an LED for locking the operations
other than turning the output on/off. p.4-28
6ADDRESS
Switch for setting the node address for remote control.
–
7POWER POWER switch. Press the (I) side to turn the
power on and the (O) to turn the power off. p.2-13
8VOLTAGE Switch for selecting coarse or fine (the digit)
when setting the voltage. p.4-4
PWR DSPL Displays the output power on the voltmeter. p.4-2
9CURRENT Switch for selecting coarse or fine (the digit)
when setting the current. p.4-4
PWR DSPL Displays the output power on the ammeter. p.4-2
10 SET Switch with an LED for setting and checking the
output voltage or output current p.4-2
11 OVP OVP (overvoltage protection) trip voltage display. p.4-17
OCP OCP (overcurrent protection) trip current display.
12 Setting knob Knob for changing the setting. Press the knob to
switch between coarse and fine. p.4-4
13 DC OUTPUT Output terminal with a cover on the front panel. p.3-10
14
OUTPUT ON/OFF Indicates the output status. p.4-6
15 CV Illuminates during constant voltage operation. p.4-13
16 CC Illuminates during constant current operation.
17 Voltmeter Displays the preset output voltage, the output
voltage, and the output power. p.4-2
18V/WVoltmeter unit. The LED on the right illuminates
when displaying the power. p.4-2
19 ALM
Illuminates when a protection function is activated.
p.4-15
20 Ammeter Displays the preset output current, the output cur-
rent, and the output power. p.4-2
21 A/WAmmeter unit. The LED on the right illuminates
when displaying the power. p.4-2
See

xiv PWR
Rear panel
1
2
38
7
6
5
4
8
400 W type example 1600 W type
No. Name Description
1J1 Connector for external control, series oper-
ation, and parallel operation. p.5-2
2TP-BUS Remote control connector –
3Serial number The serial number of the PWR. –
4Chassis terminal A terminal used to ground the output. p.3-7
5Sensing terminal A terminal used to connect the sensing
wires. p.4-29
6DC OUTPUT Output terminal on the rear panel. p.3-7
7Exhaust port Exhaust port for cooling. –
8AC INPUT 400 Wand 800 W: AC inlet.
1600 W: AC INPUT terminal block. p.2-8
See

General Description
This chapter gives an overviewand describes the fea-
tures.
1

1-2 PWR
1.1 About This Manual
The PWR series is classified into three types depending on the
output capacity. It is also classified into three types depending
on the output voltage. This operation manual describes the fol-
lowing models.
Table 1-1 PWR series types
Applicable firmware version of the PWR
This manual applies to PWRs with firmware version 1.2x.
Page 2-13
When contacting us about the product, please provide us the
version number and the manufacturing number that is affixed to
the rear panel.
L Type
(80 V)
M Type
(320 V)
H Type
(650 V)
400 Wtype
PWR400L PWR400M PWR400H
800 Wtype
PWR800L PWR800M PWR800H
1600 Wtype
PWR1600L PWR1600M PWR1600H
See

PWR1-3
1
General Description
1.2 Product Overview
The PWR Series are constant voltage/currentautomatic cross-
over power supplies that are capable of delivering voltages and
currents in a wide operating range within the rated output
power.
Communication functions come standard with the PWR which
enable remote control.
Features
●Power-factor improvement circuit
The power-factor improvement circuit reduces the effects of
harmonic currents on the power line.
●High efficiency
The high power conversion efficiency reduces the cost of
power and the cost of heat radiation design during system
configuration.
Communication functions
Equipped with a digital remote control function through TP-
BUS (Twist Pair-BUS) communication. (The total length of
TP-BUS is 200 m.)
By combining with Kikusui’s PIA4800 Series Power Supply
Controller, systemization for applications such as an auto-
matic tester is possible.
Master-slave operation
Output voltage or output current can be expanded by con-
necting multiple power supplies of the same model in series
(only on the L type) or in parallel. This feature allows slave
units to be controlled from a single master unit.

1-4 PWR
Options
Below are options available for the PWR series.
For details on the options, contact your Kikusui agent or distributor.
Rack
Table 1-2 Rack mounting options
Fig. 1-1 Rack mount frame
Product Model Applicable
Model Notes
Rack mount
frame
KRA3 400 Wtype
800 Wtype
Inch rack
EIA standard
KRA150 Milli rack
JIS standard
Rack mount
bracket
KRB3-TOS
1600 Wtype
Inch rack
EIA standard
KRB150-TOS Milli rack
JIS standard
KRA150
(460)
480
(18.11)
18.98
149
24.5 100
5.22
2.24
10.24
260
1.49
KRA3
Unit: inch
Unit: mm
