Kilews SKC-P120W User manual

OPERATION MANUAL FOR CHARGE STATION
SKC-P120W
(In: AC 100~240V Out: 21V)
KILEWS INDUSTRIAL CO., LTD.
http://www.kilews.com
Y2F109-E-005


1
Symbols
Read manual Caution Indoor use only No humidity
No fire No disassemble No disposal CE certification CETLUS
Certification
Caution
Please read all instructions carefully before operate the rechargeable battery and charger. Also
please follow all the instructions and pay attention to all the warring.
Important Notification
1. Please operate under the correct voltage to the charger in according with the operation manual.
2. When charging the battery, please make sure the grounding and safety components are properly
attached before operate.
3. The charger should store in clean and dry area. Do not place heave stuff on the charger. Please do
not charge the battery when the temperature is above 33℃.
4. Please do not place the charger in the poorly ventilated place, nor expose the charger in the dust or
metal crumb.
5. Do not expose the charger directly under sun, high temperature, high humidity , and highly
explosive gas
6. Do not place charger on high shelf. The charger should be placed on the leveled, firmed spot that
prevent children from reaching.
7. Do not abuse the cord. Never use the cord to carrying, pulling or unplugging the charger. Keep cord
away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
8. Please read all instructions carefully before operate the charger. Failure to follow all instructions
listed below may result in electric shock fire and/or serious injure.
9. It is forbidden to use different brand of battery other then Kilews’on the charger. To disassemble
and modify the charge are also not allowed.
Grounding Instruction
The charger needs to be grounded all the time in case of electrical shock. The grounding wire must be
connected firmly with power supply equipment for effective grounding result. The leading wire with
yellow-green color is a grounding wire. Never attempt to connect this yellow-green color wire on
electrified connector


2
Caution
1. Please match the correct Lithium-ion rechargeable battery for this charger, which is only
manufacture by Kilews. Do not apply different type or brand of battery on this charger, otherwise
may cause error or danger
2. Please match the charger with the battery models
SKC-LB1815/SKC-LB1820/SKC-LB1830/SKC-LB1840.The use of other than genuine KILEWS
replacement parts or battery may result in decreased tool performance and increased maintenance,
and may invalidate all warranties.
3. Keep children, and bystanders away while charging the battery, in case of danger.
4. Please do not plug in the charger when the plug or users’ hand is wet.
5. To disassemble or modify the charger’s plug may cause danger or dysfunction.
6. This charger only applies to the rechargeable battery of Kilews. Please do not apply the charger to
other different brand of battery or for other propose.
7. Please do not attempt to disassemble or modify the charger and the rechargeable battery.
Operation Instruction
1. Please check the cord to see if there any damage before plug in the charger. Hold the plug of power
cord while plugging in or unplug the charger.
2. Do not place chargers near oil, chemical materials or heated objects, also please be alert not to
scratch the power cord by sharp object.
3. When the charger is not in use, please unplug the power and store in dry safe place where it is not
reachable by children.

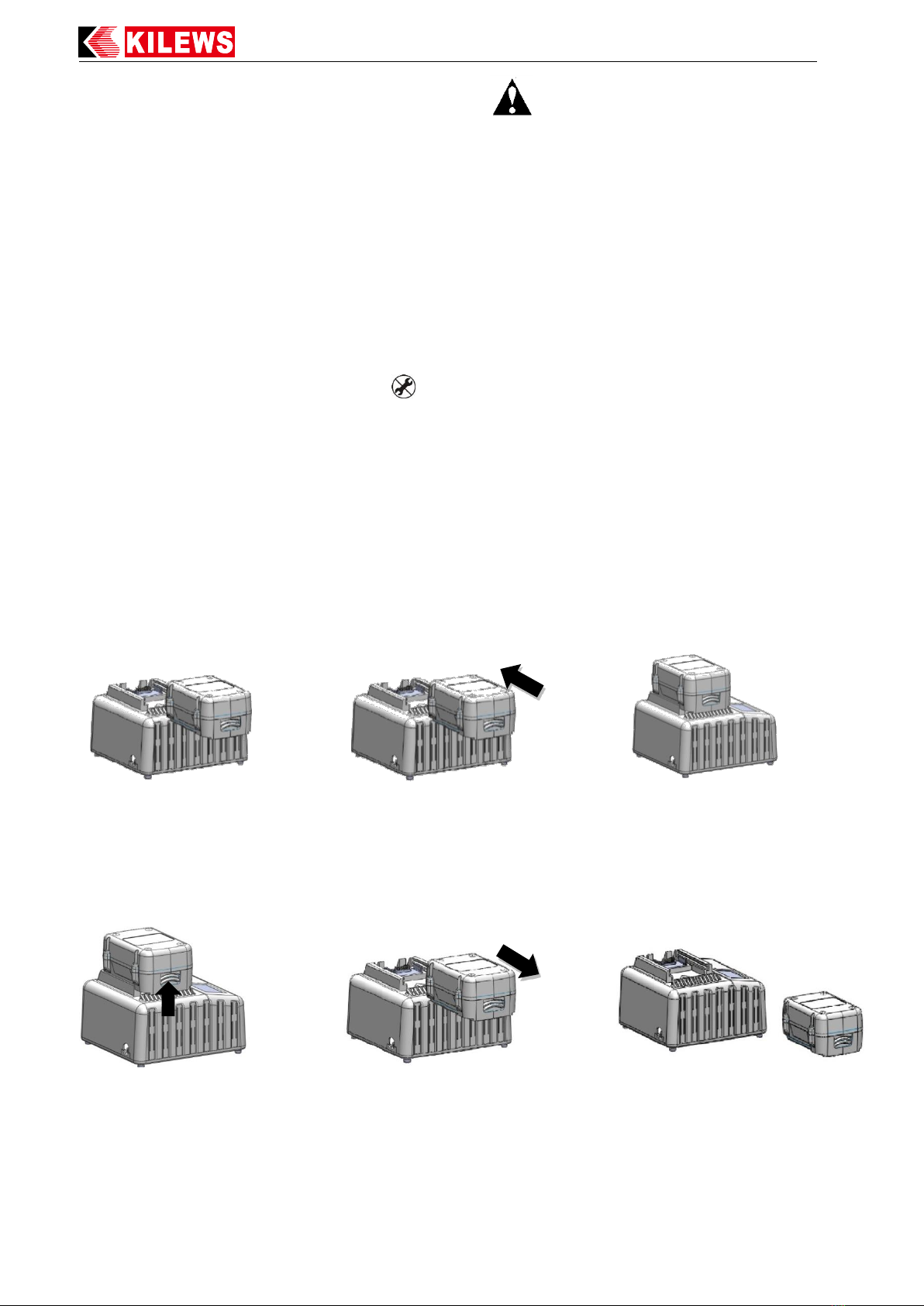

4. Charger and battery assemble.
Assemble
(1) Match the battery to the (2)The direction of the battery (3)Inserting steps finished, the
charger’s slide track when insert, push all the way charger will identify the battery
slide in straightly. down until click sound ID, when ID are matched, there
will be a short beep sound
Decomposition
(1)Push up and hold the (2)The direction of battery (3)Removing steps finished
latch switch when removing
5. Please locate the charger close socket.


3

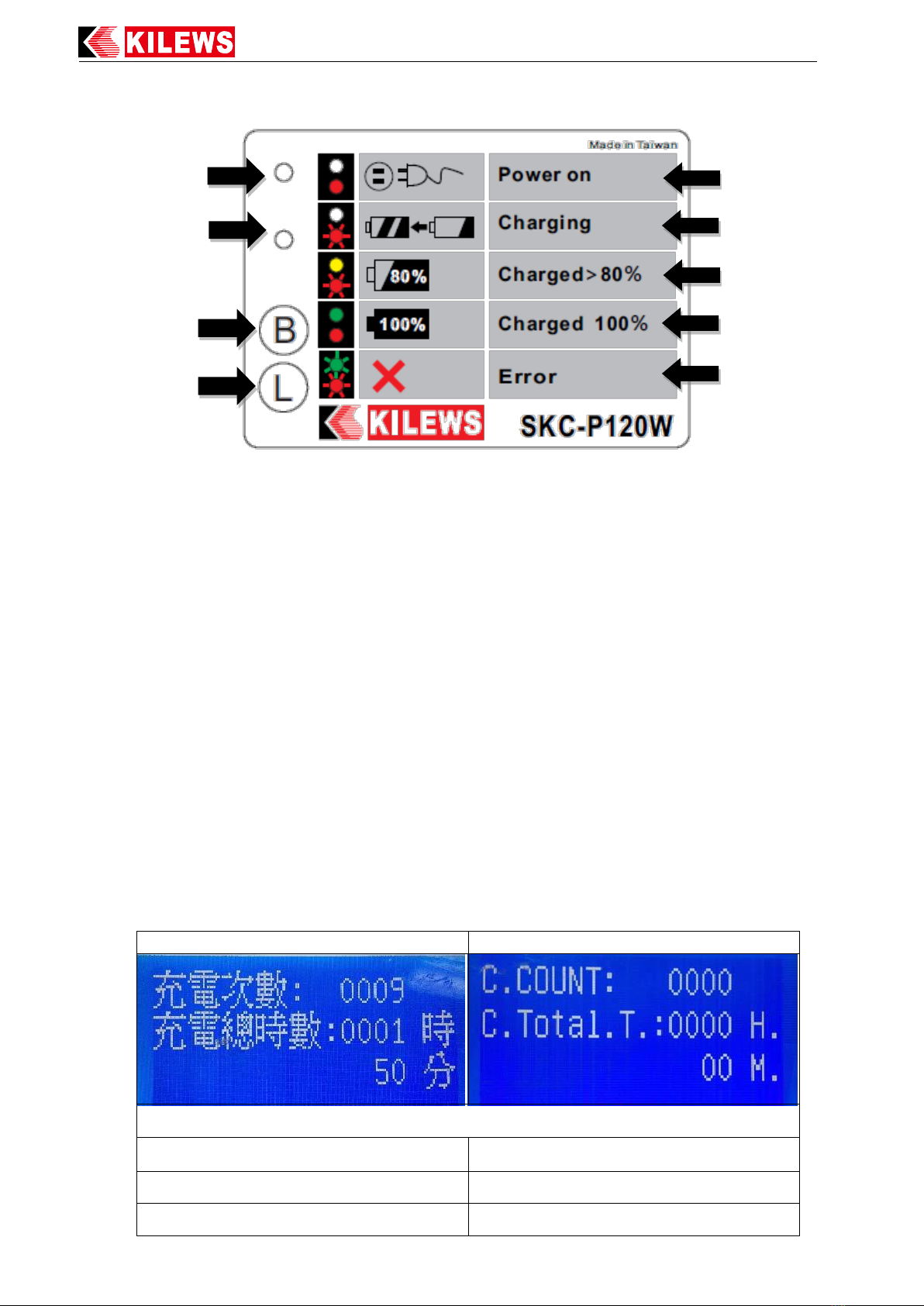

6. LCD Screen and LED Light Display Description
(1) When the charger plug in the power, it starts automatically. (The following lists are
charger start sequence.)
1. Light Display shows continuous green light
2. One long beep sounds
3. Fan start and then stop
(2) Red light flash => means the battery is charging.
(3) Long yellow light and flash red light=>means the battery is charged 80% and continuous
charging.
(4) Red and green lights both light up at the same time=>means the battery is fully charged 100% and
one long beep sound for 3s.
(5) Red and green lights both are blinking=>with continuous short beep sounds means there are errors
when charging the battery. Check for the battery if the battery insert correctly. If the charger
continues shows error, please change another batter to see if the error was caused by battery or
the charger. This charger only applies to the rechargeable battery of Kilews. Please do not apply
the charger to other different brand of battery.
(6) Battery status: Press (B) button for 5 seconds to switch the screen to “Battery Charge Status
Display”
Counter status
Chinese Mode Display
English Mode Display
Screen Display Description
LINE 1
Total charaged times
LINE 2
Total charaged hours
LINE 3
Total charaged minutes
Light Display
（1）
（2）
（3）
（4）
（5）
（6）
（7）
Light Display


4

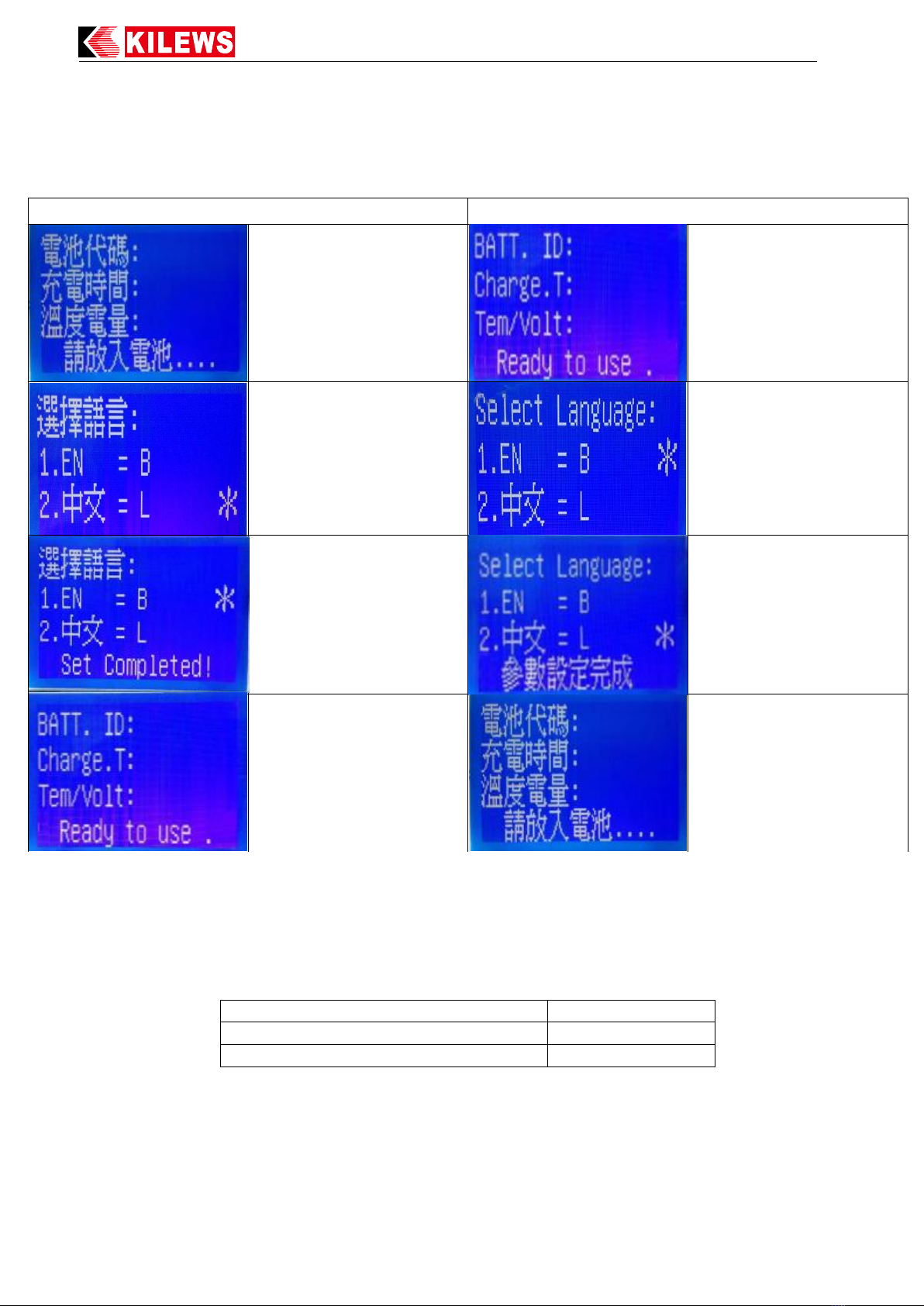

(7) Language Select Button : Press (L) for 5 seconds to switch the screen to
“Language Select Menu Display”
Language Select Description
Contents
Chinese Mode Display
English Mode Display
Press (L) button for 5 seconds to
switch display from main screen
to “Language Select Menu
Display”
Press (L) button for 5 seconds to
switch display from main screen
to “Language Select Menu
Display”
There have two language for
selection:
1. EN = B Press button (B) to
select English
2.中文= L Press button (L) to
select Chinese
(*) is the current selected
language
There have two language for
selection:
1. EN = B Press button (B) to
select English
2.中文= L Press button (L) to
select Chinese
(*) is the current selected
language
Press button (B) for 5 seconds to
select English language, when
setting is completed the status
line will display :
“Set Completed!”
Press button (L) for 5 seconds to
select Chinese language, when
setting is completed the status
line will display :
“參數設定完成”
Release button (B) for 5 seconds,
System will return to main screen
and switch to English mode
display.
Release button (L) for 5 seconds,
System will return to main screen
and switch to Chinese mode
display.
SKC-P120W charger stand
1PCS
operation manual
1PCS
certification
1PCS


5
Other status
Chinese Mode Display
English Mode Display
LCD Display Description
LINE 1
Battery Type and ID Check status
LINE 2
Current Charging Time
LINE 3
Battery Temperature and Level
LINE 4
Charging status
Charger Information
and Buzzer Status
Description
Charger Status
Buzzer Status
BATT. ID Correct
Beep(1 sec)
Normal
"B.VOLT.FULL"
Beep(3 sec)
Normal
"BATT. FAIL "
Beep(1 sec)Continue
Abnormal
"Battery temperature is too low
"
Beep(1 sec)Continue
Abnormal
"B.TEMP. HIGH "
Beep(1 sec)Continue
Abnormal
"B.TEMP. OVER "
Beep(1 sec)Continue
Abnormal
"Battery voltage is too low "
Beep(1 sec)Continue
Abnormal
"C.TEMP. LOW "
Beep(1 sec)Continue
Abnormal
"C.TEMP. HIGH "
Beep(1 sec)Continue
Abnormal
"BATT.ID ERROR"
Beep(1 sec)Continue
Abnormal
"BATT. OK"
-
"Ready to use ."
-
"Pre-Charge...."
-


6
Aution: Protection Functions
1. Over charged protection 2. Current protection
3. Shortage protection( fuse installation) 4. Battery reverse current protection
5. Built-in ID recognition feature protection 6. Temperature protection
(1) When the battery temperature is between 0-10℃, the charger will use low current to pre-charge the
battery until the battery temperature higher then 10℃, then the charger switch back to normal charging
mode. When the battery temperature is below 0℃, the charger will stop charging the battery until the
battery temperature is higher then 0℃.
(2)When the battery temperature is above 45℃, the charger will automatically change to low current to
charge the battery. When the battery temperature is exceed 50℃, the charger will stop charging the
battery and make warring beep sound until the battery temperature drop down back to 40℃, then the
charger switches back to normal charging mode.
(3)When the charger temperature rises to 75℃, the charger will trigger protection mechanism to stop
charging the battery and until the charger temperature drop down back to 65℃, then the charger
switches back to normal charging mode.
7.When the charger detects the battery temperature is lower 0℃or about 50℃, then the charging process
will be stopped. Automatically rechargeable
8.Low power protection: when the battery voltage is lower than 15V, the charger will automatically
change to low current to pre-charge the battery and until the battery voltage is reach to 15V, then the
charger switches back to fast charging mode.
Specifications
Model type
Automatic Cordless Screwdriver Battery Charge Station
SKC-P120W
Charge Station
Input voltage (AC)
100V – 240V/0.5A~1.2A
Output
voltage(DC)
21VDC
Output current
4.5A
3.0A
Charge time
(SKC-LB1830/SKC-LB1840)
About 35 min charge to 80% and 45
min to fully charged
(SKC-LB1815/SKC-LB1820)
About 25 min charge to 80% and 30 min
to fully charged
Battery capacity
(3000 mA/hr 3900 mA/hr)
(1500 mA/hr 1950mA/hr)
Battery type
Lithium-ion rechargeable battery
Battery ID
configuration
Battery capacity indicator to show the battery current capacity
Battery ID identifier to match the Kilews’ battery before charging.
size
W × L × H 160mm×170mm×80mm
Weight
1.1Kg
Caution
SAVE THESE INSTRUCTIONS
DO NOT DESTROY

KILEWSINDUSTRIALCO..LTD.
CUSTOMER
ITEM NO:
TITLE:
DWG NAME
DWG NO:
MATERIAL
DES. BY
CHKD.BY
APPD.BY
SHRINK
DATE
DATE
DATE
PRODUCTION NO.
THIRD ANGLE PROJECTION.
UNITSCALESHT NO.
OF SHTS.
零件
編號排插圖示排插
位置
3-2
9-1
13-1
3-1
14-1
3-2
13-1
14-1
9
17
11
1-1
7
8
4
3
2
3-1
9-1
1-116
1313-1
1414-1
18
12
15
15
55
10
6
1-2
MODELNO:
SKP-P120

NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty
1 AA50004 Flat plug 電源線 平插 1 8 CH30200 Screw 2*6 螺絲 2*6 4
AA50004-1 America Plug 電源線 美插 1 9 M11209 Fan 風扇 1 AA50004-2 Europe Plug 電源線 歐插 110 CBA10001 Housing-Underside 下蓋 1 AA50004-3 British Plug 電源線 英插 111 EG31515-4 P.C.B-Have LOGO 控制機板-有LOGO 1 AA50004-4 India Plug 電源線 印度插 1 EG31515-5 P.C.B-no LOGO 控制機板-沒有LOGO 1 AA50004-5 China plug 電源線 中插 112 EG31507-2 P.C.B "POWER SUPPLY" POWER SUPPLY 機板 1
2 C40763 Housing-Upside 上蓋 113 P12102-19-1 2Pin Plug 2PIN2孔插頭含線 1 3 EG31504-4 Power Module 電源聯結模組 114 P11019-4 Cable 排線 1 4 C14999 Power Module holder 電源模組固定架 115 CH20102-5 Screw 3*6 螺絲 3*6 8 5 CH20102-5 Screw 3*6 螺絲 3*6 216 W50101-1 Line deduction 線扣 1 6 N15018 LED lights light pipe LED燈 導光柱 217 CH20103 Rubber Shim 腳墊 4 7 EG31514 P.C.B "BLDC_LCD" BLDC_LCD控制機板 118 CH30003F Screw 3*16 螺絲 3*16 4
19 SKC-LB00001 Charger Adaptor 電池轉接座 1
SKC-P120W(CE)




