Kilews SKC-P80WN User manual

OPERATION MANUAL FOR CHARGE STATION
SKC-P80WN-D
KILEWS INDUSTRIAL CO., LTD.
http://www.kilews.com
Y2F110-3E-003
SKC-P80WN

SKC-80WN

1

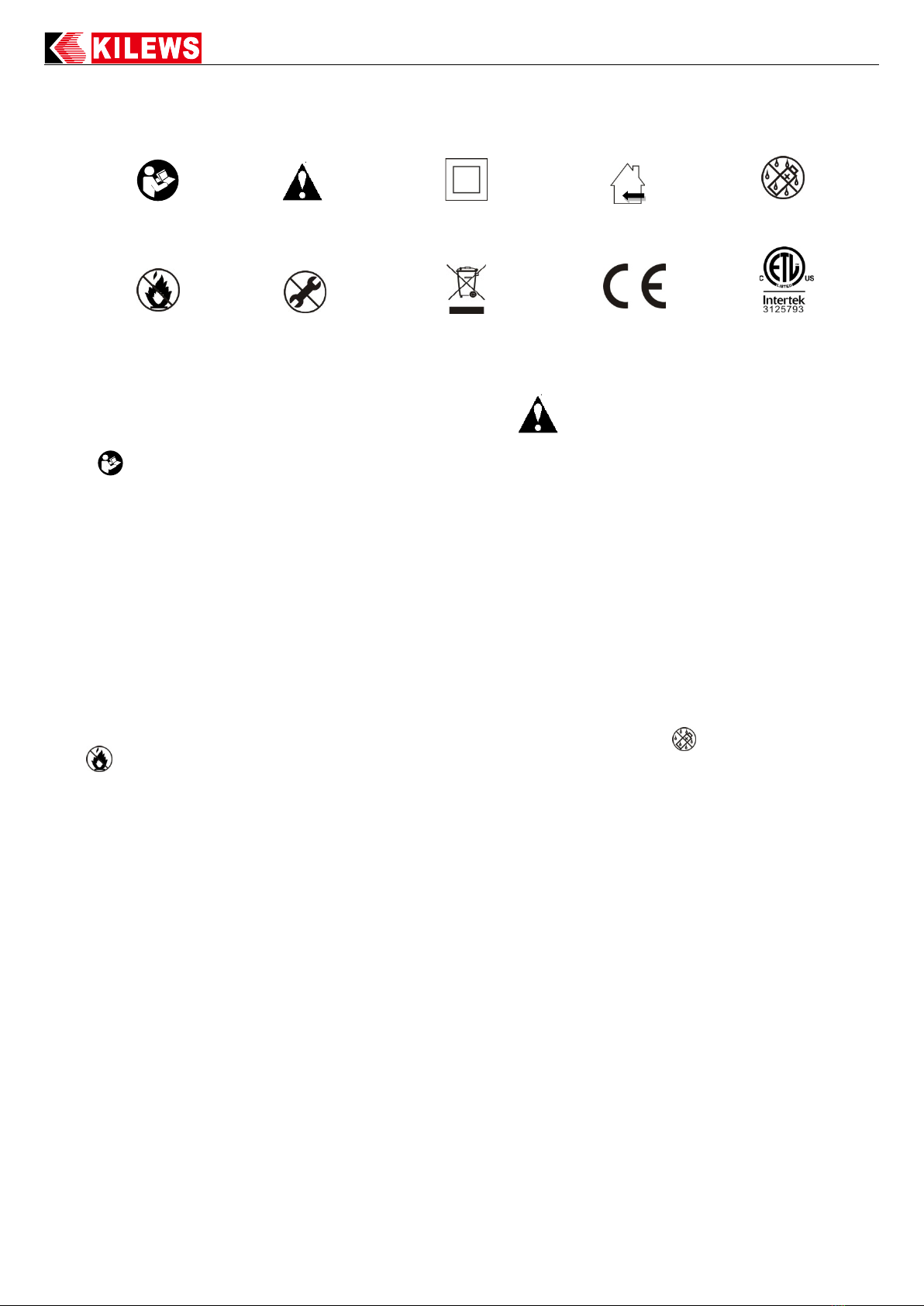

Icon Explanation
Read manual Caution Double insulation Indoor use only No humidity
No fire No disassemble No disposal CE Certification ETL Certification
Caution
Please read all instructions carefully before operate the rechargeable battery and charger. Also please
follow all the instructions and pay attention to all the warring.
Important Notification
1. Please operate under the correct voltage to the charger in according with the operation manual.
2. When charging the battery, please make sure the grounding and safety components are properly attached
before operate.
3. The charger should store in clean and dry area. Do not place heave stuff on the charger. Please do not
charge the battery when the temperature is above 33℃.
4. Please do not place the charger in the poorly ventilated place, nor expose the charger in the dust or metal
crumb.
5. Do not expose the charger directly under sun, high temperature, high humidity , and highly explosive
gas.
6. Do not place charger on high shelf. The charger should be placed on the leveled, firmed spot that prevent
children from reaching.
7. Do not abuse the cord. Never use the cord to carry, pull or unplug the charger. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
8. Please read all instructions carefully before operate the charger. Failure to follow all instructions listed
below may result in electric shock fire and/or serious injure.
9. It is forbidden to use different brand of battery other then Kilews’on the charger. To disassemble and
modify the charge are also not allowed.
Grounding Instruction
The charger needs to be grounded all the time in case of electrical shock. The grounding wire must be
connected firmly with power supply equipment for effective grounding result. The leading wire with
yellow-green color is a grounding wire. Never attempt to connect this yellow-green color wire on electrified
connector.

2
Caution
1. Please match the correct Lithium-ion rechargeable battery for this charger, which is only manufacture by
Kilews. Do not apply different type or brand of battery on this charger, otherwise may cause error or danger
2. Please match the charger with the battery models The use of other than genuine KILEWS
replacement parts or battery may result in decreased tool performance and increased maintenance, and may
invalidate all warranties.
3. Keep children, and bystanders away while charging the battery, in case of danger.
4. Please do not plug in the charger when the plug or users’ hand is wet.
5. To disassemble or modify the charger’s plug may cause danger or malfunction.
6. This charger only applies to the rechargeable battery of Kilews. Please do not apply the charger to other
different brand of battery or for other propose.
7. Please do not attempt to disassemble or modify the charger and the rechargeable battery.
Operation Instruction
1. Please check the cord to see if there any damage before plug in the charger. Hold the plug of power cord
while plugging in or unplugging the charger.
2. Do not place chargers near oil, chemical materials or heated objects, also please be alert not to scratch the
power cord by sharp object.
3. When the charger is not in use, please unplug the power and store in dry safe place where it is not reachable
by children.

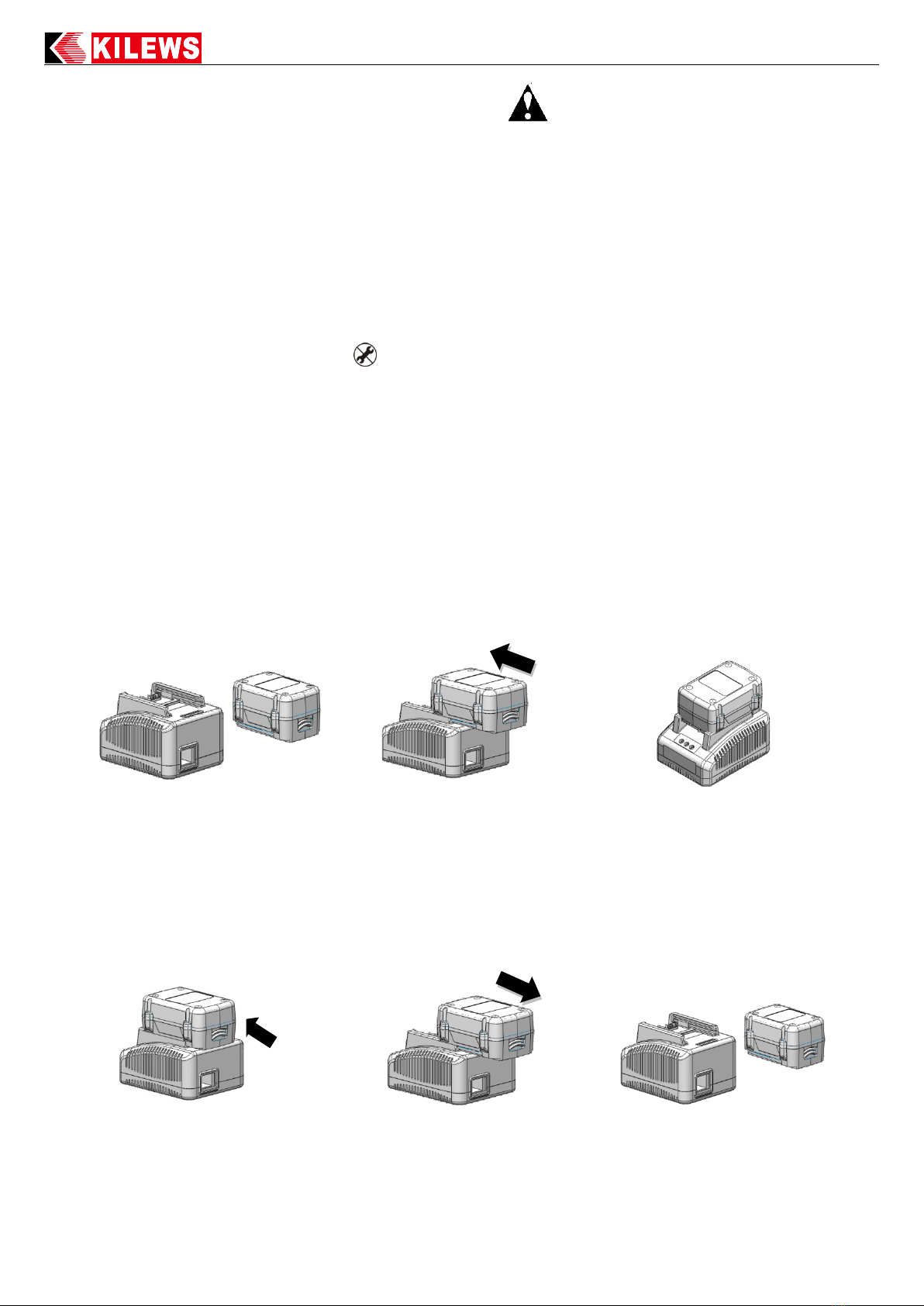

4. Charger and battery assemble
Assemble
Decomposition
(1) Push up and hold the latch
switch.
(2) The direction of battery when
removing.
(3) Removing steps finished.
(1) Match the battery to the charger’s
slide track.
(2) The direction of the battery when
insert, push all the way.
(3) inserting steps finished, the
charger will identify the battery
ID, when ID are matched, there
will be a short beep sound.

3
Caution: Protection Functions
1.Over charged protection
2. Current protection
3. Shortage protection (fuse implement)
4. Battery reverse current protection
5. SKC-P80WN/SKC-P80WN-D Built-in ID recognition feature protection
6. Temperature protection
Temperature protection detail explanation
(1) When the battery temperature is between 0-10℃, the charger will use low current to pre-charge the
battery until the battery temperature higher than 10℃ , then the charger switch back to normal charging
mode. When the battery temperature is below 0℃, the charger will stop charging the battery until the
battery temperature is higher than 0℃.
(2) When the battery temperature is above 45℃, the charger will automatically change to low current to charge
the battery. When the battery temperature is exceed 50℃, the charger will stop charging the battery and
make warring beep sound until the battery temperature drop down back to 40℃ , then the charger switches
back to normal charging mode.
(3) When the charger temperature rises to 75℃, the charger will trigger protection mechanism to stop charging
the battery and until the charger temperature drop down back to 65℃ , then the charger switches back to
normal charging mode.
(4) When the charger voltage is lower than 15V, the charger will automatically change to low current to
pre-charge the battery and until voltage is reach to 15V, then the charger switches back to fast charging
mode.
(5) When the charger detects the battery temperature is lower 0℃ or above 50℃, then the charging process
will be stopped.
ontents
Charge station
1 pcs
Power cord
1 pcs
Operation manual
1 pcs
Warranty certification
1 pcs

4
SKC-P80WN/SKC-P80WN-D Display Description
SKC-80WN Display Description
Light Display and
Warning Beep
Description Beeps
Red
light
Yellow
light
Green
light
Cell balance
N/A
OFF
Flash
OFF
Charging under 80%
N/A
Flash
OFF
OFF
Charging over 80%~99%
N/A
Flash
ON
OFF
Charging Complete100%
Three long beeps
ON
OFF
ON
Charging Error
Continuous short beeps
Flash
OFF
Flash
ID matched OK
One second short B sound
----
----
----
ID matched NG
N/A
Flash
OFF
Flash
Idle mode
N/A
ON
OFF
OFF
Light Display and
Warning Beep
Description
Red
light
Yellow
light
Green
light
Cell balance
OFF
Flash
OFF
Charging under 80%
Flash
OFF
OFF
Charging over 80%~99%
Flash
ON
OFF
Charging Complete100%
ON
OFF
ON
Charging Error
Flash
OFF
Flash
Idle mode
ON
OFF
OFF
Light Display
Light Display

5
Specification
Caution
SAVE THESE INSTRUCTIONS
DO NOT DESTROY
Model Charger Station
SKC-P80WN SKC-80WN SKC-P80WN-D
Battery Identification Yes No Yes
Input Voltage 100V – 240V AC / 0.5A~1.2A
Output Voltage 21V DC
Output Current 3A
Dimension W ＊L ＊H 145mm＊115mm＊80mm
Weight 530g
Battery Type Li-ion
Applicable Battery Models Charging Time Battery Capacity Charger Model
SKC-LB1820 Prox. 40min 1950 mAh
SKC-P80WN/
SKC-80WN
SKC-LB1840 Prox. 80min 3900 mAh
SKC-P80WN/
SKC-80WN
SKC-LB1820B Prox. 40min 1950 mAh SKC-P80WN-D
SKC-LB1820C Prox. 40min 1950 mAh SKC-P80WN-D

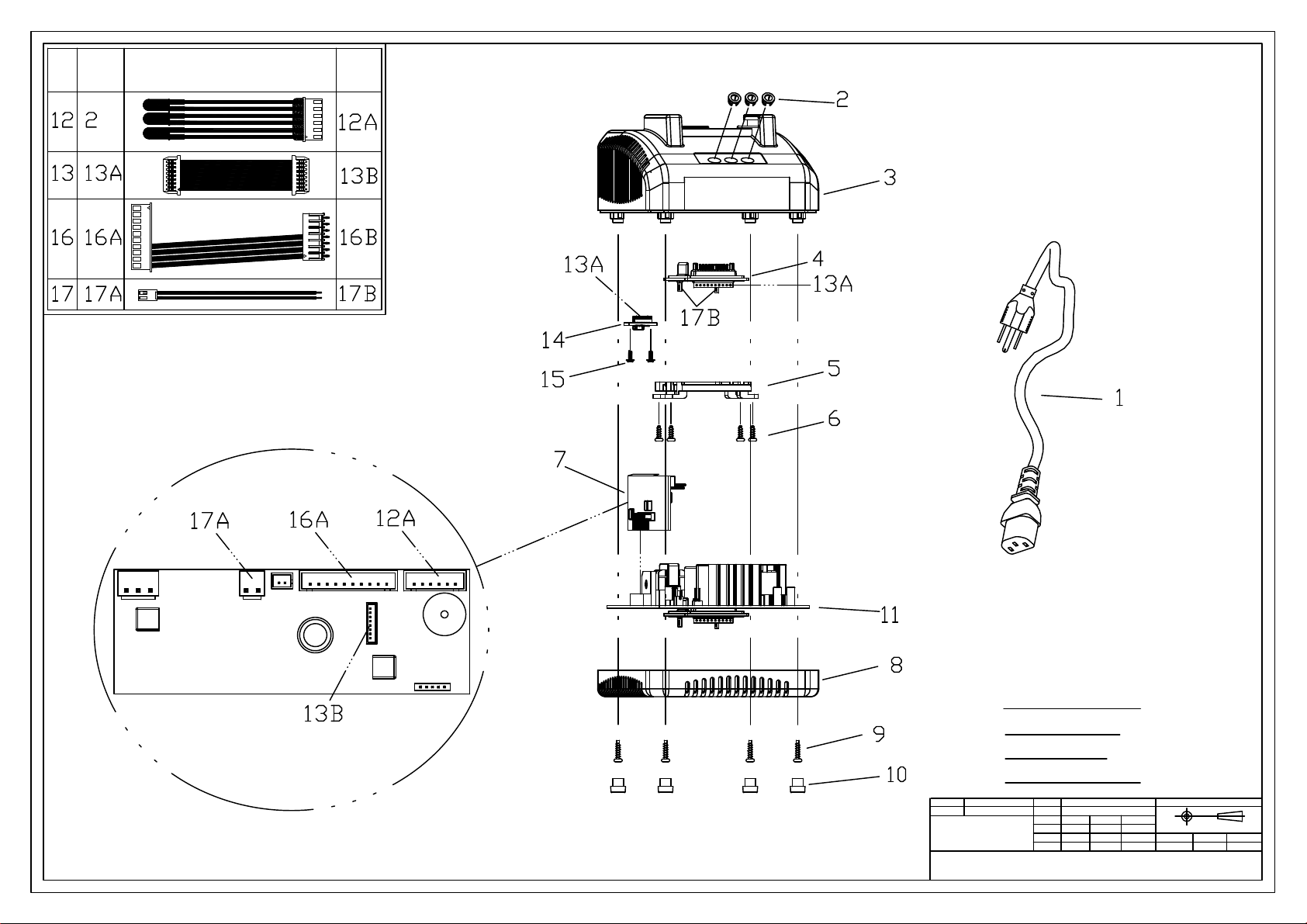

KILEWSINDUSTRIALCO..LTD.
CUSTOMER
ITEM NO:
TITLE:
DWG NAME
DWG NO:
MATERIAL
DES. BY
CHKD.BY
APPD.BY
SHRINK
DATE
DATE
DATE
PRODUCTION NO.
THIRD ANGLE PROJECTION.
UNITSCALESHT NO.
OF SHTS.
MODELNO:
SKC-P80WN
SKC-80WN
SKC-P80WN-D
接點
位置
接點
位置
編
號排插圖示

NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty
1 AA50002 America Plug 美式電源線 1 1 AA50002 America Plug 美式電源線 1 1 AA50002 America Plug 美式電源線 1
AA50002-1 Australia Plug 澳式電源線 1 AA50002-1 Australia Plug 澳式電源線 1 AA50002-1 Australia Plug 澳式電源線 1
AA50002-2 Europe Plug 歐式電源線 1 AA50002-2 Europe Plug 歐式電源線 1 AA50002-2 Europe Plug 歐式電源線 1
AA50002-3 British Plug 英式電源線 1 AA50002-3 British Plug 英式電源線 1 AA50002-3 British Plug 英式電源線 1
AA50002-6 India Plug 印式電源線 1 AA50002-6 India Plug 印式電源線 1 AA50002-6 India Plug 印式電源線 1
2 N15019 Lampholder 燈座 3 2 N15019 Lampholder 燈座 3 2 N15019 Lampholder 燈座 3
3 CAA10002 Housing-Upside 上蓋 1 3 CAA10002 Housing-Upside 上蓋 1 3 CAA10002-1 Housing-Upside 上蓋 1
4 EG31504 Power Module 電源聯結模組 1 4 EG31504 Power Module 電源聯結模組 1 4 EG31504 Power Module 電源聯結模組 1
5 C15000 Power Module holder 電源模組固定架 1 5 C15000 Power Module holder 電源模組固定架 1 5 C15000 Power Module holder 電源模組固定架 1
6 CH20161-3 Screw 3*8 螺絲 3*8 4 6 CH20161-3 Screw 3*8 螺絲 3*8 4 6 CH20161-3 Screw 3*8 螺絲 3*8 4
7 EG31549-6 P.C.B-18V 控制機板-18V 1 7 EG31549-7 P.C.B-18V 控制機板-18V 1 7 EG31549-6 P.C.B-18V 控制機板-18V 1
8 CBA10002 Housing-Underside 下蓋 1 8 CBA10002 Housing-Underside 下蓋 1 8 CBA10002 Housing-Underside 下蓋 1
9 CH20102 Screw 3*12 螺絲 3*12 4 9 CH20102 Screw 3*12 螺絲 3*12 4 9 CH20102 Screw 3*12 螺絲 3*12 4
10 CH20103 Rubber Shim 腳墊 4 10 CH20103 Rubber Shim 腳墊 4 10 CH20103 Rubber Shim 腳墊 4
11 EG50101-46 P.C.B-22V 機板成品-22V 111
EG50101-46 P.C.B-22V 機板成品-22V 111 EG50101-46 P.C.B-22V 機板成品-22V 1
12 E31717-9 6Pin Plug-LED 6P 排插頭含線-LED燈 112
E31717-9 6Pin Plug-LED 6P 排插頭含線-LED燈 112 E31717-9 6Pin Plug-LED 6P 排插頭含線-LED燈 1
13 P12102-35 8Pin Plug 8PIN插頭含線 113
P12102-35 8Pin Plug 8PIN插頭含線 113 P12102-35 8Pin Plug 8PIN插頭含線 1
14 EG31552 P.C.B-DOWNLOAD 機板成品-DOWNLOAD板 114
EG31552 P.C.B-DOWNLOAD 機板成品-DOWNLOAD板 114 EG31552 P.C.B-DOWNLOAD 機板成品-DOWNLOAD板 1
15 CH30200 Screw 2*6 螺絲 2*6 215
CH30200 Screw 2*6 螺絲 2*6 215 CH30200 Screw 2*6 螺絲 2*6 2
16 P11402-17 10pin plug transfer 7pin 雙接頭 10P轉7P 116
P11402-17 10pin plug transfer 7pin 雙接頭 10P轉7P 116 P11402-17 10pin plug transfer 7pin 雙接頭 10P轉7P 1
17 E31716-5 2Pin Plug 2P 排插頭含 117
E31716-5 2Pin Plug 2P 排插頭含 117 E31716-5 2Pin Plug 2P 排插頭含 1
SKC-P80WN(B版) SKC-80WN(C版) SKC-P80WN-D(D版)
