kincrome K15310 Use and care manual

BENCH DRILL PRESS
Operation and Safety Instructions
PART No. K15310

SECTION PAGE
I. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
II. General safety rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
III. Specific safety rules for bench drill presses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
IV. Electrical information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
V. Know your bench drill press . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
VI. Assembly and adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
VII. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
VIII. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
IX. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
X. Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Bench Drill Press with Laser Line
MOTOR: 220-240 V 50 Hz
POWER:550W
SPEED:450–2500 RPM
CHUCKCAPACITY:1/8–5/8" (3–16 mm)
QUILL DIAMETER: 2 3/16" (55 mm)
STROKE: 3 1/8" (80 mm)
CAPACITY: 6" (152 mm) (chuck to column)
19 1/2" (495 mm) (chuck to base)
TABLE TILT: 0 to 45° left and right
LASER: Class III, transformer powered
WEIGHT:43 kg
I. Technical data
Table of contents
2

Safety is a combination of common sense, staying alert, and knowing how your bench drill
press works.
1. READ and become familiar with this entire instruction manual. LEARN the tool’s
applications, limitations, and possible hazards.
2. AVOID DANGEROUS CONDITIONS. DO NOT use power tools in wet or damp areas or
expose them to rain. Keep work area well-lit.
3. DO NOT use power tools in the presence of flammable liquids or gases.
4. ALWAYS keep your work area clean, uncluttered, and well-lit. DO NOT work on floor
surfaces that are slippery with sawdust or wax.
5. KEEP BYSTANDERS AT A SAFE DISTANCE FROM the work area, especially when the
tool is in operation. NEVER allow children near the tool.
6. DO NOT FORCE THE TOOL to do a job for which it was not designed.
7. DRESS FOR SAFETY. DO NOT wear loose clothing, gloves, neckties, or jewellery (rings,
watches, etc.) when operating the tool. Inappropriate items can get caught and draw you into
moving parts. ALWAYS wear non-slip footwear, and tie back long hair.
8. WEAR A FACE MASK OR DUST MASK. Drilling into materials produces dust.
9. ALWAYS remove the power cord plug from the power supply outlet when making
adjustments, changing parts, cleaning, or working on the tool.
10. AVOID ACCIDENTAL START-UPS. Make sure that the power switch is in the OFF
position before plugging in the power cord.
11. REMOVE ADJUSTING TOOLS. ALWAYS MAKE SURE all tools are removed from the
bench drill press before turning it ON.
12. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to OFF. DO
NOT leave the tool unattended until it has come to a complete stop.
13. NEVER STAND ON A TOOL. Serious injury could result if the tool tips or is accidentally hit.
DO NOT store anything above or near the tool.
14. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant
rubber-soled footwear. Keep the floor clear of oil, scrap, and other debris.
15. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order.
Follow instructions for lubricating and changing accessories. See Maintenance section.
SAVE THESE SAFETY RULES
WARNING: TO AVOID MISTAKES THAT COULD CAUSE SERIOUS INJURY, DO NOT
PLUG IN THE BENCH DRILL PRESS UNTIL THE FOLLOWING STEPS HAVE BEEN
READ AND UNDERSTOOD.
II. General safety rules
3

16. DO NOT operate the tool if you are under the influence of drugs, alcohol or medication
that could affect your ability to use the tool properly.
17. CHECK FOR DAMAGED PARTS. Check for alignment of moving parts, jamming,
breakage, improper mounting, or any other conditions that may affect the tool’s operation.
Any part that is damaged should be properly repaired or replaced before use.
18. MAKE THE WORKSHOP CHILDPROOF. Use padlocks, master switches, and ALWAYS
remove starter keys.
LASER SAFETY
•The laser light beam used in this system is Class III. These lasers do not normally present
an optical hazard, although staring at the beam may cause flash blindness.
SAVE THESE SAFETY RULES
WARNING: DO NOT STARE DIRECTLY AT THE LASER BEAM! A HAZARD MAY EXIST
IF YOU DELIBERATELY STARE INTO THE BEAM, PLEASE OBSERVE ALL SAFETY
RULES AS FOLLOWS:
• THE LASER SHALL BE USED AND MAINTAINED IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS.
• NEVER AIM THE BEAM AT ANY PERSON OR AN OBJECT OTHER THAN THE
WORKPIECE.
• DO NOT PROJECT THE LASER BEAM INTO THE EYES OF OTHERS.
• ALWAYS ENSURE THE LASER BEAM IS AIMED AT A WORKPIECE THAT DOES NOT
POSSESS REFLECTIVE SURFACES, AS THE LASER BEAM COULD BE PROJECTED
INTO YOUR EYES OR THE EYES OF OTHERS.
WARNING: DUST GENERATED FROM CERTAIN MATERIALS CAN BE HAZARDOUS
TO YOUR HEALTH. ALWAYS OPERATE THE DRILL PRESS IN A WELL-VENTILATED
AREA. USE DUST COLLECTION SYSTEMS WHENEVER POSSIBLE.
II. General safety rules ... continued
4
ALWAYS WEAR EYE PROTECTION.
A bench drill press can throw foreign objects into the eyes which
could cause permanent eye damage.
ALWAYS wear safety goggles (not glasses). Ordinary eyeglasses
have only impact-resistant lenses...they are NOT safety glasses.

1. NEVER TURN THE BENCH DRILL PRESS ON until the table is clear of all foreign
objects (tools, scraps, etc.).
2. ALWAYS KEEP hands and fingers away from the drill bit.
3. DO NOT drill materials that do not have a flat surface—unless a suitable support is used
(clamp or vise).
4. NEVER start the drill press with the drill bit pressed against the workpiece.
5. MAKE SURE the table lock is tightened before starting the bench drill press.
6. NEVER layout, assemble, or set-up any work on the table while the drill is ON.
7. MAKE SURE drill bit is securely locked in the chuck.
8. MAKE SURE chuck key is removed from the chuck before turning power ON.
9. ADJUST the table or depth stop to avoid drilling into the table.
10. ALWAYS stop the drill before removing scrap pieces from the table.
11. USE CLAMPS or a vise to secure a workpiece to the table. This will prevent the
workpiece from rotating with the drill bit.
12. DO NOT wear gloves when operating a drill press.
13. BEFORE LEAVING THE MACHINE, SHUT THE POWER OFF, remove the drill bit and
clean the table.
14. SET THE DRILL PRESS to the speed that is appropriate for the material being drilled.
15. SHOULD any part of your bench drill press be missing, damaged, or any electrical
component fail to perform properly, shut the power OFF and unplug the drill press.
Replace missing, damaged, or failed parts before resuming operation.
SAVE THESE SAFETY RULES
WARNING: DO NOT OPERATE YOUR BENCH DRILL PRESS UNTIL IT IS
COMPLETELY ASSEMBLED AND INSTALLED ACCORDING TO THE INSTRUCTIONS.
III. Specific safety rules for bench drill presses
5

GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for electric current and reduces the risk of electric shock. This tool is equipped
with an electric cord that has an equipment grounding conductor and a grounding plug. The
plug MUST be plugged into a matching outlet that is properly installed and grounded in
accordance with ALL local codes and ordinances.
DO NOT MODIFY THE PLUG. If the plug will not fit the power supply outlet, have the proper
power supply outlet installed by a licenced electrician.
IMPROPER CONNECTION of the equipment grounding conductor can result in electric
shock. The conductor with the green insulation (with or without yellow stripes) is the equipment
grounding conductor. If repair or replacement of the electric cord or plug is necessary,
DO NOT connect the equipment grounding conductor to a live terminal.
CHECK with a licenced electrician or service personnel if you do not completely understand
the grounding instructions, or if you are not sure if the tool is properly grounded.

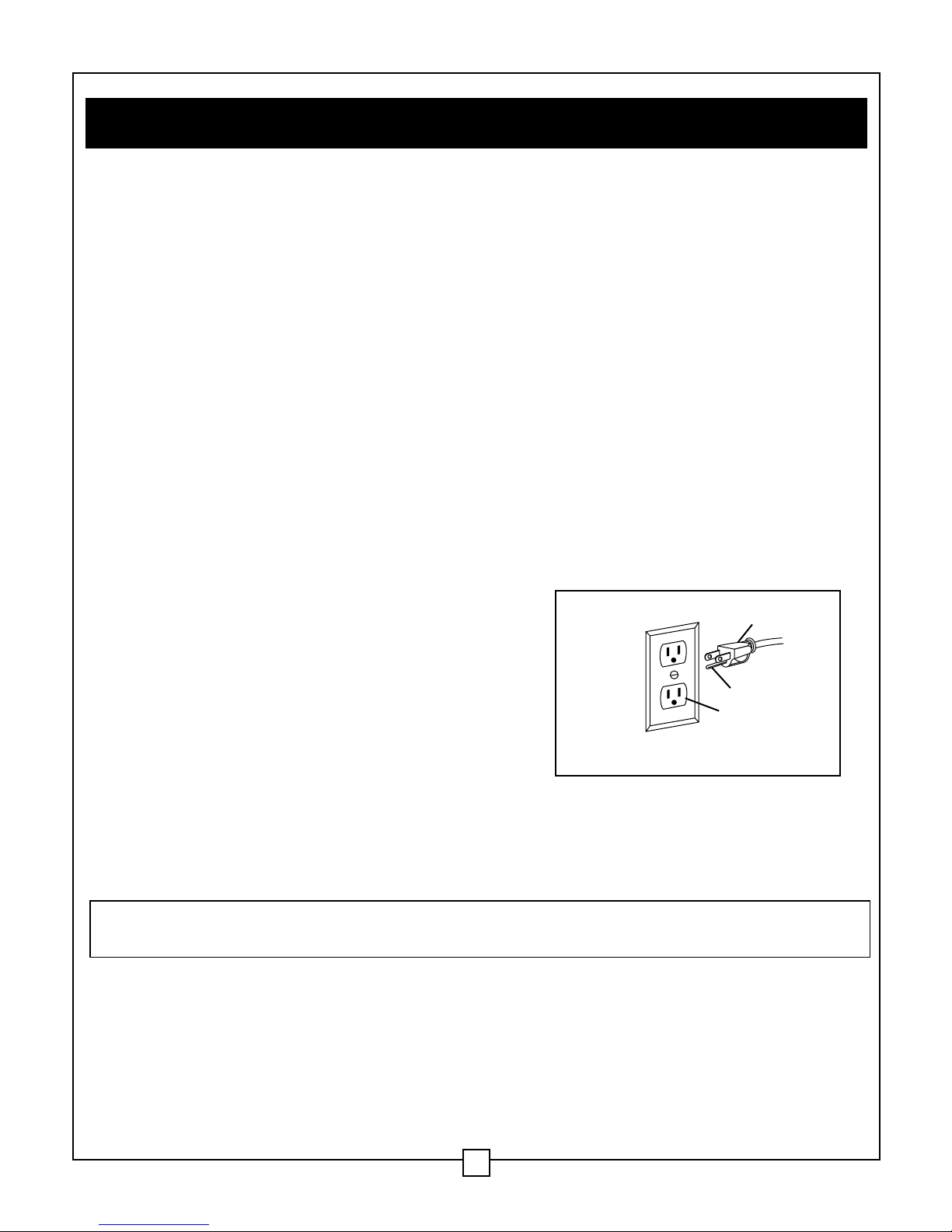

USE ONLY THREE-WIRE EXTENSION CORDS that
have 3-prong plugs and 3-prong outlets that accept the
tool's plug as shown in Fig. A. Repair or replace a
damaged or worn cord immediately.
CAUTION: In all cases, make certain the power supply outlet in question is properly
grounded. If you are not sure, have a licenced electrician check the power supply
outlet.
SAVE THESE SAFETY RULES
WARNING: THIS BENCH DRILL PRESS IS FOR INDOOR USE ONLY. DO NOT
EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
IV. Electrical information
6
1
3
2
1 - 3-prong plug 2 - Properly grounded outlet
3 - Grounding prong
Fig. A

GUIDELINES FOR USING EXTENSION CORDS
Make sure your extension cord is in good condition. When using an extension cord, be sure
to use one heavy enough to carry the current your product will draw. An undersized cord will
cause a drop in line voltage, and result in loss of power and overheating. The table below
shows the correct size to use according to cord length and nameplate ampere rating. If in
doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
Minimum Gauge for Extension Cords (AWG)
Make sure your extension cord is properly wired and in good condition. Always replace a
damaged extension cord or have it repaired by a qualified person before using it. Protect
your extension cords from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than #12 wire
and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and the electric current is rated the
same as the current stamped on the motor nameplate. Running at a low voltage will damage
the motor.
SAVE THESE SAFETY RULES
WARNING: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE
OPERATOR FROM ELECTRICAL SHOCK.
IV. Electrical information ... continued
7
Ampere Rating Total Length of Cord in feet (metres)
More Than Not More Than 25' (7.6 m) 50' (15 m) 100' (30.4 m) 150' (45.7 m)
0 6 18 16 16 14
6 10 18161412
10 12 16 16 14 12
12 16 14 12 Not Recommended

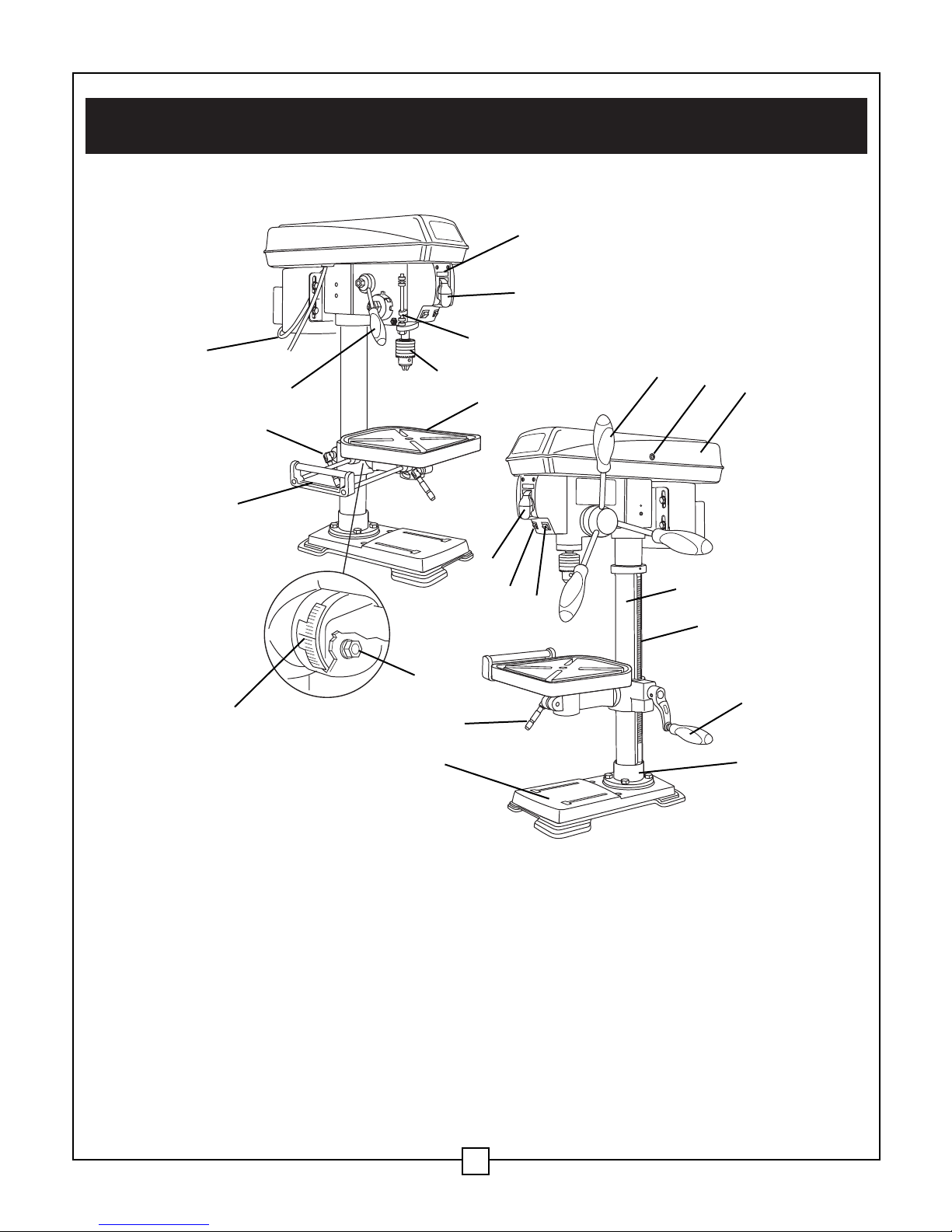

V. Know your drill press
8
A Digital speed readout
B Large ON/OFF switch
C Depth scale
D Chuck
E Table
F Large, heavy-duty feed
handles
G Housing cover screw
H Housing cover
I Column
J Rack
K Crank handle
L Column support
M Base
N Table lock handle
O Table lock bolt
P Bevel scale
Q Laser line ON/OFF switch
R LED work light switch
S Extension wing with integrated
rollers
T Support lock handle
U Speed control handle
V Power cord
A
B
DE
FGH
I
L
K
J
M
N
O
P
Q
R
T
S
U
V
B
C
Fig. 1

UNPACKING AND CLEANING
Unpack the bench drill press and all its parts, and compare against the list below. Do not discard
the carton or any packaging until the bench drill press is completely assembled.
To protect the bench drill press from moisture, a protective coating has been applied to the
machined surfaces. Remove this coating with a soft cloth moistened with kerosene. Do not use
acetone, gasoline, or lacquer thinner to clean. Apply a coat of paste wax to the table and column.
Wipe all parts with a clean, dry cloth.
VI. Assembly and adjustments
9
Fig. 2
A Head/motor assembly
B Column assembly and table bracket
C Table
D Base
E Chuck
F Extension wing with integrated rollers
G Chuck key
H Wing knobs (2)
I Table lock handles (2)
J Hex head bolts (4)
K Table crank handle
L Hex keys (2)
M Feed and speed handles (4)
P Table adjustment wrench
Q Wedge
A
J
I
H
BC
K
Q
P
L
G
E
F
D
M

ASSEMBLY
The column assembly (column, column support, rack, rack collar, and table support bracket)
must be attached to the base. The table and table support handles must be attached to the
table support bracket. The motor housing must be attached to the column.
Tools needed for assembly
• Adjustable wrench
• ⊕screwdriver
• Hammer and block of wood

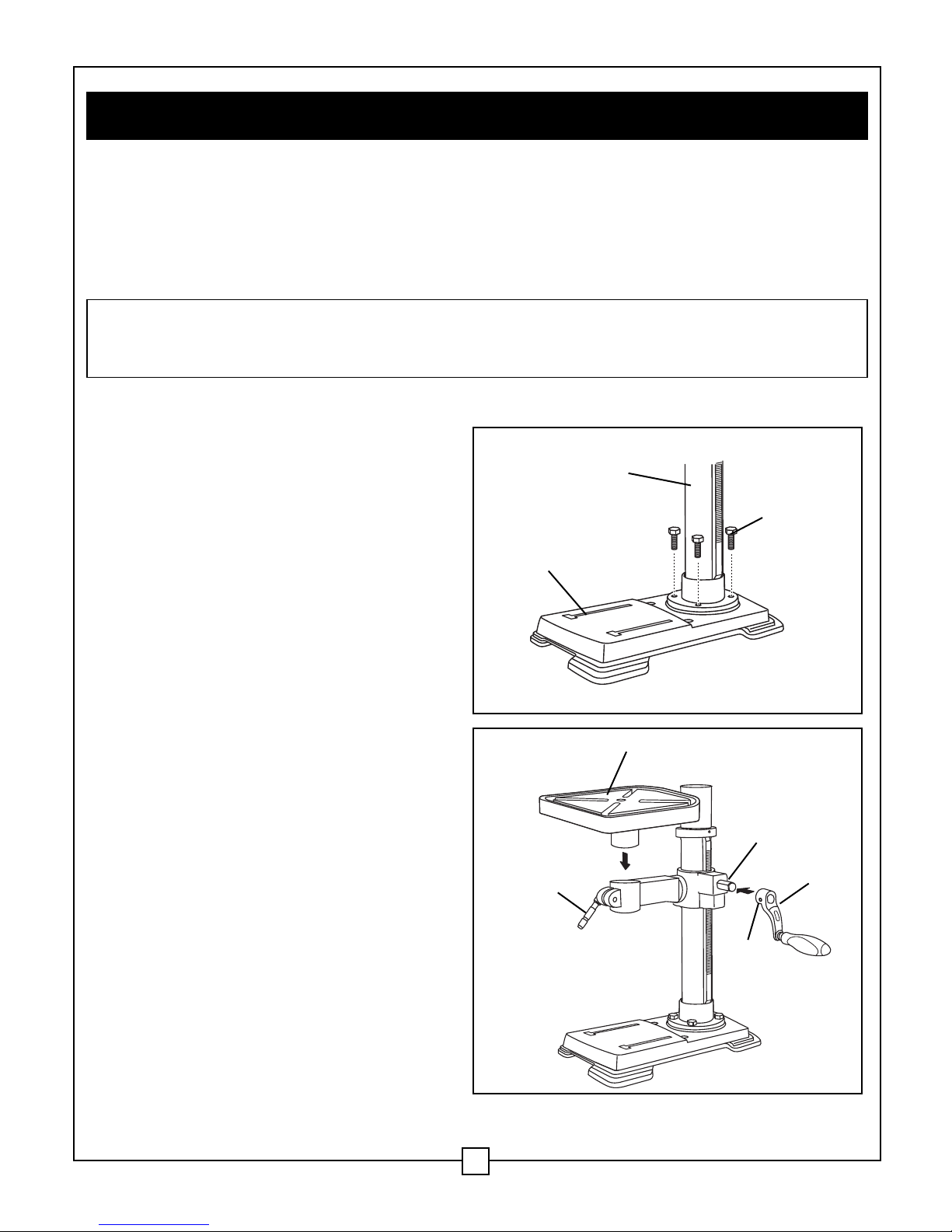

Column assembly to base (Fig. 3)
1. Place the column tube (1) on the
base (2), aligning the column support
holes to the base holes.
2. Install a hex head bolt (3) in each
column support hole and tighten bolts
using the adjustable wrench.
Table to table support bracket (Fig. 4)
1. Place the crank handle (1) onto the
shaft (2) of the table bracket so the flat
of the shaft is under the set screw (3).
Tighten the set screw.
2. Thread the table lock handle (4) into the
front of the table support bracket.
3. Thread the table support lock handle
into the rear of the table support bracket
(not shown).
4. Position the table (5) in the same
direction as the base, install the table,
and tighten the table lock handle (4).
WARNING: IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG THE BENCH
DRILL PRESS IN UNTIL THE MISSING OR DAMAGED PART IS REPAIRED OR
REPLACED, AND ASSEMBLY IS COMPLETE.
VI. Assembly and adjustments ... continued
Fig. 4
10
Fig. 3
2
1
3
2
1
3
5
4

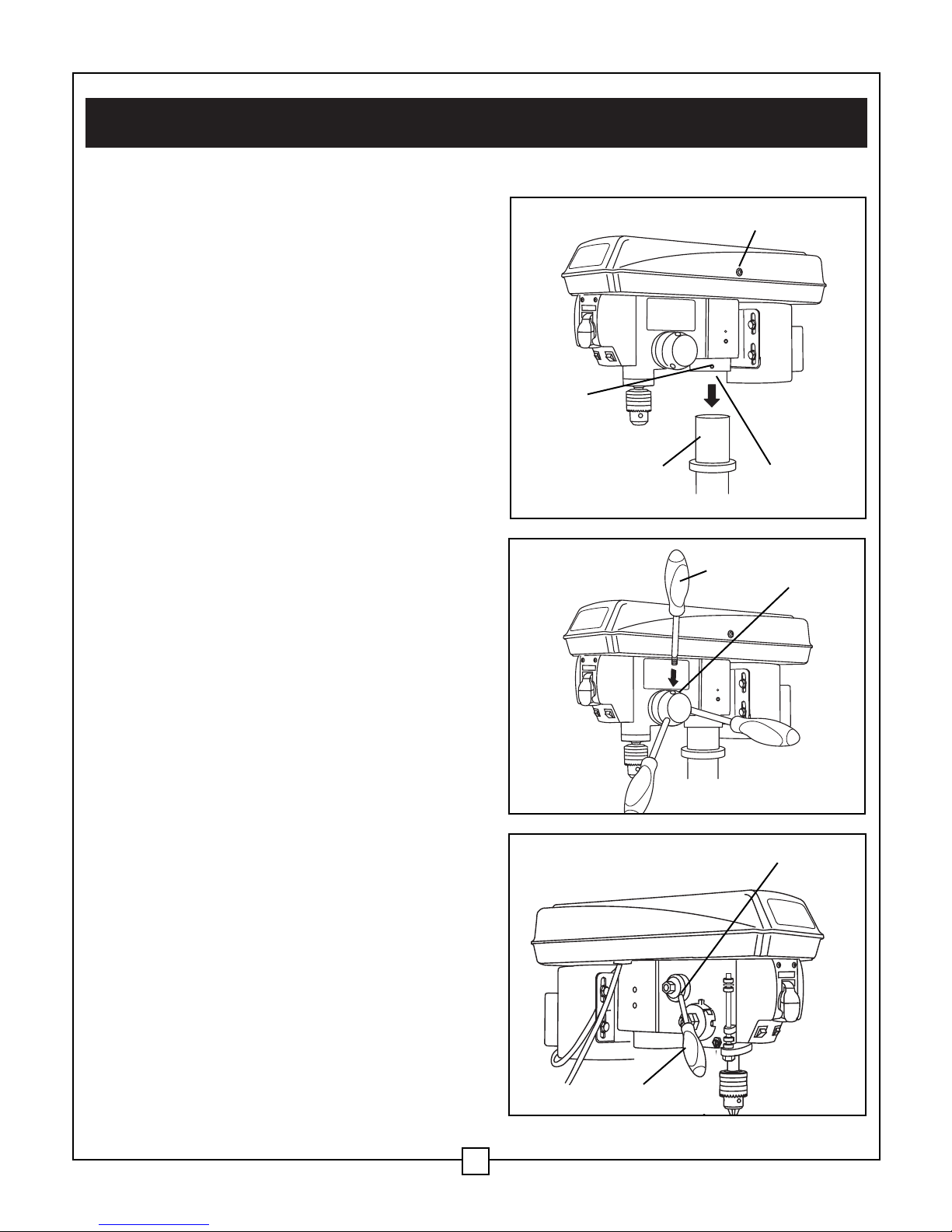

Drill press head to column (Fig. 5)
CAUTION: The drill press head is heavy. To
avoid injury, two people should lift it into
position.
1. Carefully lift the drill press head assembly (1)
and position it over the column (2).
2. Place the mounting opening (3) on the drill
press head over the top of the column.
Ensure the drill press head is seated properly
on the column.
3. Align the direction of the drill press head with
the direction of the base and the table.
4. Tighten the set screw (4) using a hex key.
Feed handles (Fig. 6)
1. Insert the three feed handles (1) into the
threaded openings on the feed hub (2).
2. Manually tighten handles into openings.
Note: When using the bench drill press, one or
two of the feed handles may be removed if an
unusually-shaped workpiece interferes with
handle rotation.
Speed handle (Fig. 7)
1. Insert the feed handle (1) into the threaded
opening on the speed hub (2).
2. Manually tighten handle into opening.
VI. Assembly and adjustments ... continued
11
Fig. 6
Fig. 5
12
Fig. 7
1
2
1
4
23

Mount the bench drill press (Fig. 8)
The bench drill press must be securely fastened
through the mounting holes (1) to a stand or
workbench with heavy-duty fasteners. This will
prevent the bench drill press from tipping over,
sliding, or walking during operation.
IMPORTANT: If the stand or workbench has a
tendency to move during operation, fasten the
workbench securely to the floor.
LED bulb (Fig. 9)
Insert the LED bulb into the socket (2)in
themotor head assembly.
VI. Assembly and adjustments ... continued
12
1
Fig. 8
Fig. 9
22

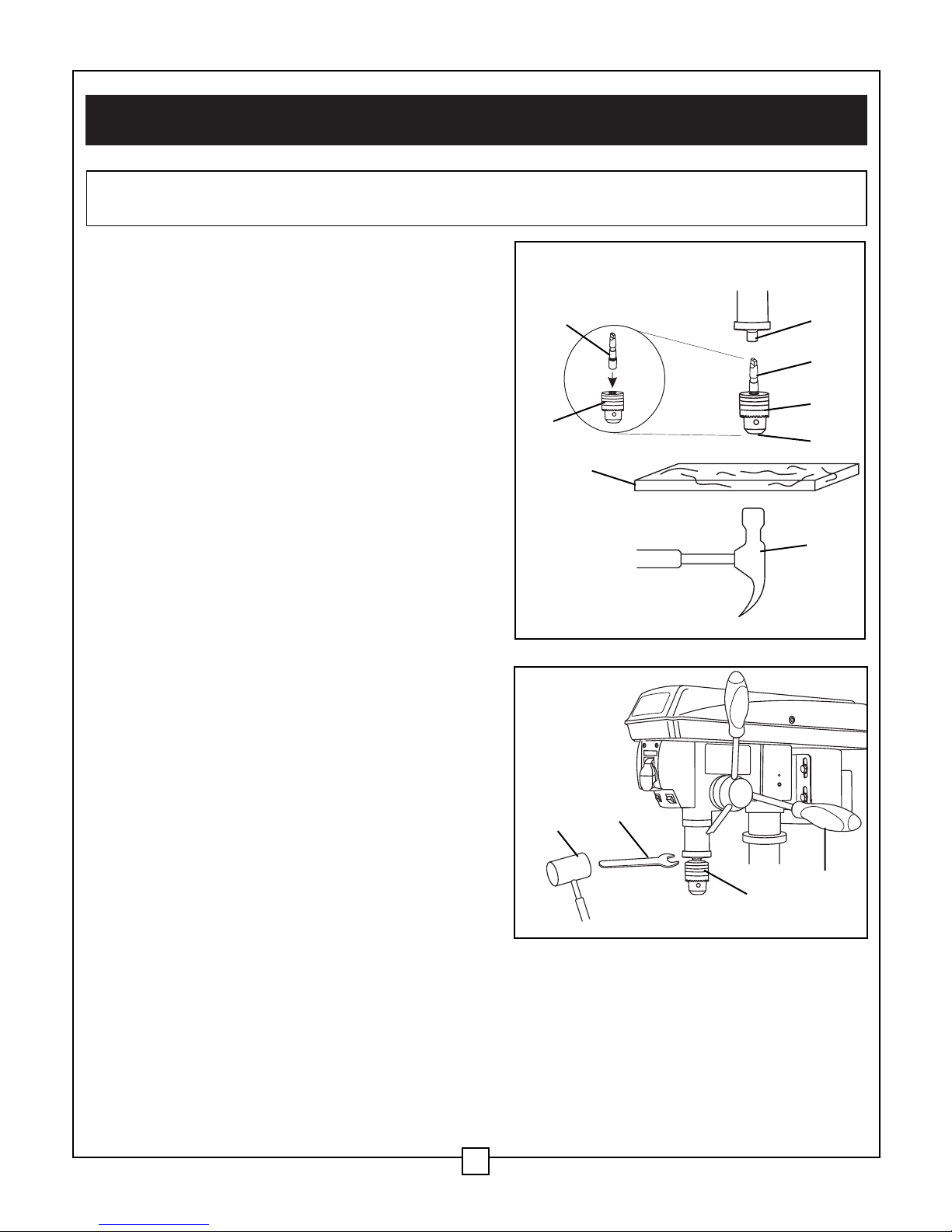

To install the chuck (Fig. 10)
1. Inspect and clean the taper hole in the
chuck (1) and the spindle (2). Remove all
grease, coatings, and particles from the chuck
and spindle surfaces with a clean cloth.
2. Open the chuck jaws (3) by manually turning
the chuck barrel clockwise. Make sure the
jaws are completely recessed inside the
chuck.
3. Insert the chuck arbor (4) into the opening at
the top of the chuck (1).
4. Seat the chuck and chuck arbor on the
spindle by placing a block of wood (5; not
included)under the chuck (1) and tapping the
wood with a hammer (6; not included) or tap
the chuck with a rubber mallet (not included).
CAUTION: To avoid damaging the chuck,
make sure the jaws are completely recessed
into the chuck. Do not use a metal hammer to
drive the chuck into the spindle.
To remove the chuck (Fig. 11)
1. Turn the feed handles (1) to lower the
chuck (2) to the lowest position.
2. Place a ball joint separator (3; not included)
above the chuck and tap the separator lightly
with a hammer (4; not included) to cause the
chuck to drop from the spindle.
Note: To avoid possible damage to the drill or
chuck, be prepared to catch the chuck as it
falls.
VI. Assembly and adjustments ... continued
13
Fig. 10
WARNING: DISCONNECT THE BENCH DRILL PRESS FROM THE POWER SOURCE
BEFORE INSTALLING, ADJUSTING, OR REMOVING THE CHUCK.
Fig. 11
4
21
3
5
2
1
3
1
4
4
6

ADJUSTMENTS
Table adjustments
To raise or lower the table (Fig. 12)
1. Loosen the support lock handle (1) and turn
the crank handle (2) until the table is at the
desired height.
2. Tighten the table lock before drilling.
To rotate the table (Fig. 12)
1. Loosen the support lock handle (1) and turn
the table around the column to the desired
position.
Note: The rack should rotate around the
column with the table support bracket. If the
rack binds and will not rotate, slightly loosen
the set screw in the rack collar.
2. Tighten the support lock before drilling.
To tilt the table (Fig. 13)
1. Loosen the bevel lock bolt (1) with the table
adjustment wrench provided, or with a
suitable socket wrench.
2. Tilt the table to the desired angle, using the
bevel scale (2) as a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal
position, loosen the bevel lock bolt (1).
5. Realign the table to the 0° setting on the
bevel scale (2).
6. Tighten the bevel lock bolt with the wrench.
To install the table extension (Fig. 14)
1. Insert the two rods (1) of the table extension
into the two channels (2) at the side of
the table.
2. Place a wing knob (3) in the opening on the
bottom of each channel and tighten to secure
the extension to the table.
VI. Assembly and adjustments ... continued
14
Fig. 12 1
2
Fig. 13
Fig. 14
1
2
3
2
1

To install drill bits (Fig. 15)
1. Place the chuck key (1) into the side keyhole
of the chuck (2), meshing the key with the
gear teeth.
2. Turn the chuck key counter-clockwise to
open the chuck jaws (3).
3. Insert a drill bit (4) into the chuck far enough
to obtain maximum gripping of the chuck
jaws.
4. Centre the drill bit in the chuck jaws before
final tightening of the chuck.
5. Tighten the chuck jaws using the chuck key
to ensure that the drill bit will not slip while
drilling.
6. Remove the chuck key.
To square the table to the drill bit (Fig. 16)
1. Insert a 3" (7.6 cm) long drill bit (1) into the
chuck (2) and tighten the jaws with the
chuck key.
2. Raise the table with the crank handle (3), and
lock the table (4) approximately 1" (2.5 cm)
below the drill bit.
3. Place a combination square (5) on the table
as shown, placing the long straight edge of
the combination square against the drill bit.
Make sure the drill bit is parallel or aligned
exactly to the straight edge of the square.
4. If an adjustment is needed, loosen the bevel lock bolt (6) with a wrench.
5. Tilt the table slightly, until the combination straight edge is aligned perfectly with the
drill bit.
6. Tighten the bevel lock when square.
Note: Adjustments for the correct function of your bench drill press return spring have been
done at the factory. Please do not modify them. However, prolonged use of the drill press
may make some readjustments necessary.
VI. Assembly and adjustments ... continued
15
WARNING: TO AVOID INJURY, MAKE SURE THAT THE CHUCK KEY IS REMOVED
FROM THE CHUCK BEFORE STARTING ANY DRILLING OPERATION.
Fig. 15
6
Fig. 16
1
4
3
2

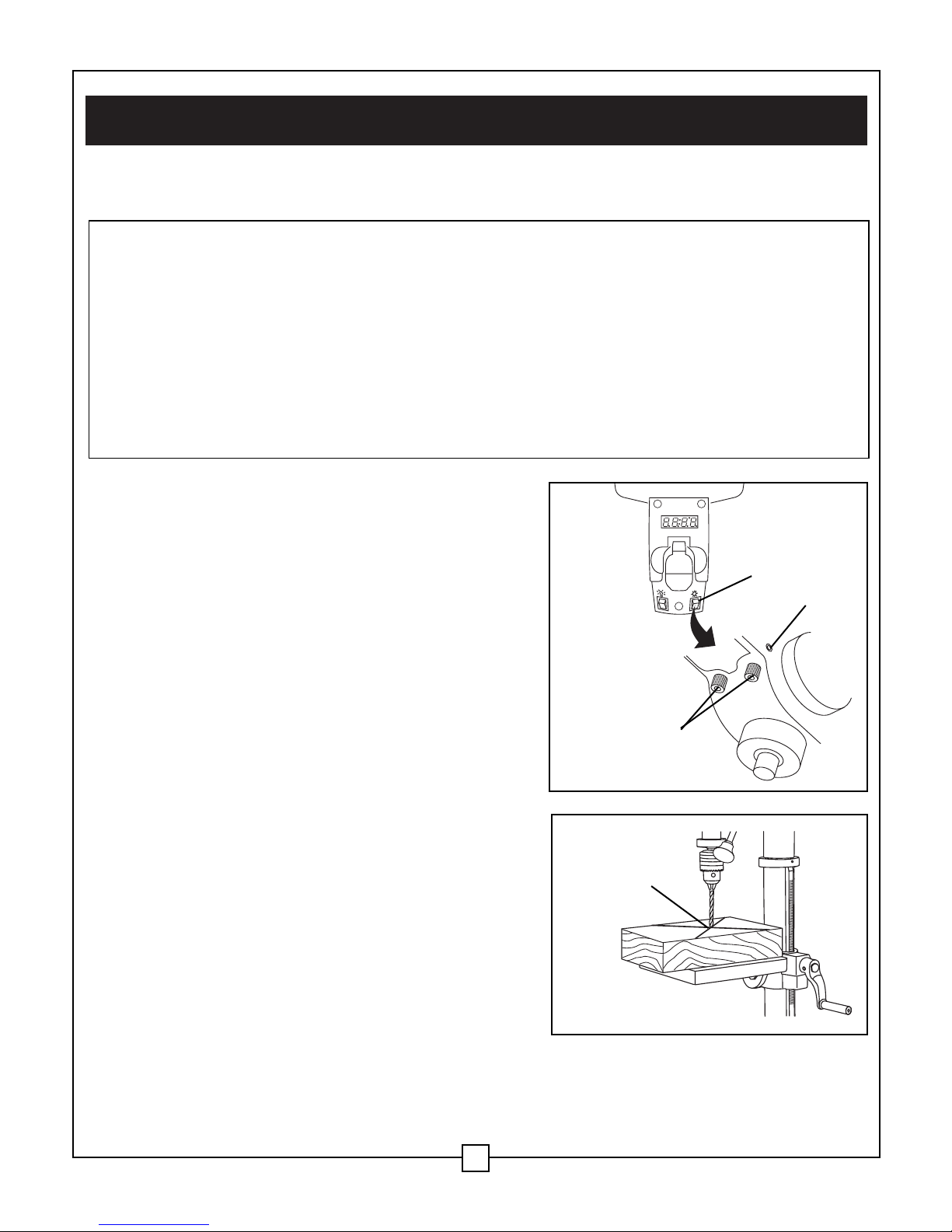

Laser line (Fig. 17 and 18)
1. Place a workpiece on the table.
2. Turn the laser switch (1) to the ON position.
3. Lower the drill bit to meet the workpiece (2).
The two laser lines should cross where the drill
meets the workpiece.
4. If the laser needs to be adjusted:
a. Using a 3 mm hex key, turn the laser
adjustment set screws (3) counter-clockwise.
b. Rotate the laser light housing (4) until the two
laser lines intersect where the drill meets the
workpiece. DO NOT stare directly at the laser
lines.
5. Re-tighten the adjustment set screws (3).
VI. Assembly and adjustments ... continued
16
WARNING: DO NOT STARE DIRECTLY AT THE LASER BEAM! A HAZARD MAY EXIST
IF YOU DELIBERATELY STARE INTO THE BEAM, PLEASE OBSERVE ALL SAFETY
RULES: THE LASER SHALL BE USED AND MAINTAINED IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS:
• NEVER AIM THE BEAM AT ANY PERSON OR AN OBJECT OTHER THAN THE
WORKPIECE.
• DO NOT PROJECT THE LASER BEAM INTO THE EYES OF OTHERS.
• ALWAYS ENSURE THE LASER BEAM IS AIMED AT A WORKPIECE THAT DOES NOT
POSSESS REFLECTIVE SURFACES AS THE LASER BEAM COULD BE PROJECTED
INTO YOUR EYES OR THE EYES OF OTHERS.
Fig. 17
3
1
4
2
Fig. 18

Spindle return spring (Fig. 19)
The spindle is equipped with an auto-return
mechanism. The main components are a spring
and a notched housing. The spring was properly
adjusted at the factory and should not be readjusted
unless absolutely necessary.
1. Unplug the drill press.
2. Place a screwdriver into the loop (1) to hold
the spring in place.
3. Loosen the two housing nuts (2) approximately
1/4" (6 mm). Do not remove the nuts from
the threaded shaft. Do not allow the spring
or spring housing to slip out of control.
4. While firmly holding the spring housing (3), carefully pull the spring housing out until it
clears the raised notch (4).
5. Turn the housing so that the next notch (5) is engaged with the raised notch (4).
• To increase the spindle return tension, turn the spring housing counter-clockwise.
•To decrease the tension, turn the spring housing clockwise.
6. Tighten the two housing nuts. Do not overtighten the two nuts. If the nuts are tightened
too much, the movement of the spindle and feed handles will become sluggish.
Angular "play" of the spindle (Fig. 20)
Move the spindle to the lowest downward position
and hold in place. Try to make the spindle revolve
around its axis while also moving it with a side
motion. If there is too much "play", proceed as
follows:
1. Loosen the lock nut (1).
2. Without obstructing the upward and downward
motion of the spindle, turn the screw (2) clock-
wise to eliminate the "play".
Note: A little bit of "play" is normal.
3. Tighten the lock nut (1).
VI. Assembly and adjustments ... continued
17
2
3
1
5
4
WDP021
Fig. 20
Fig. 19
12

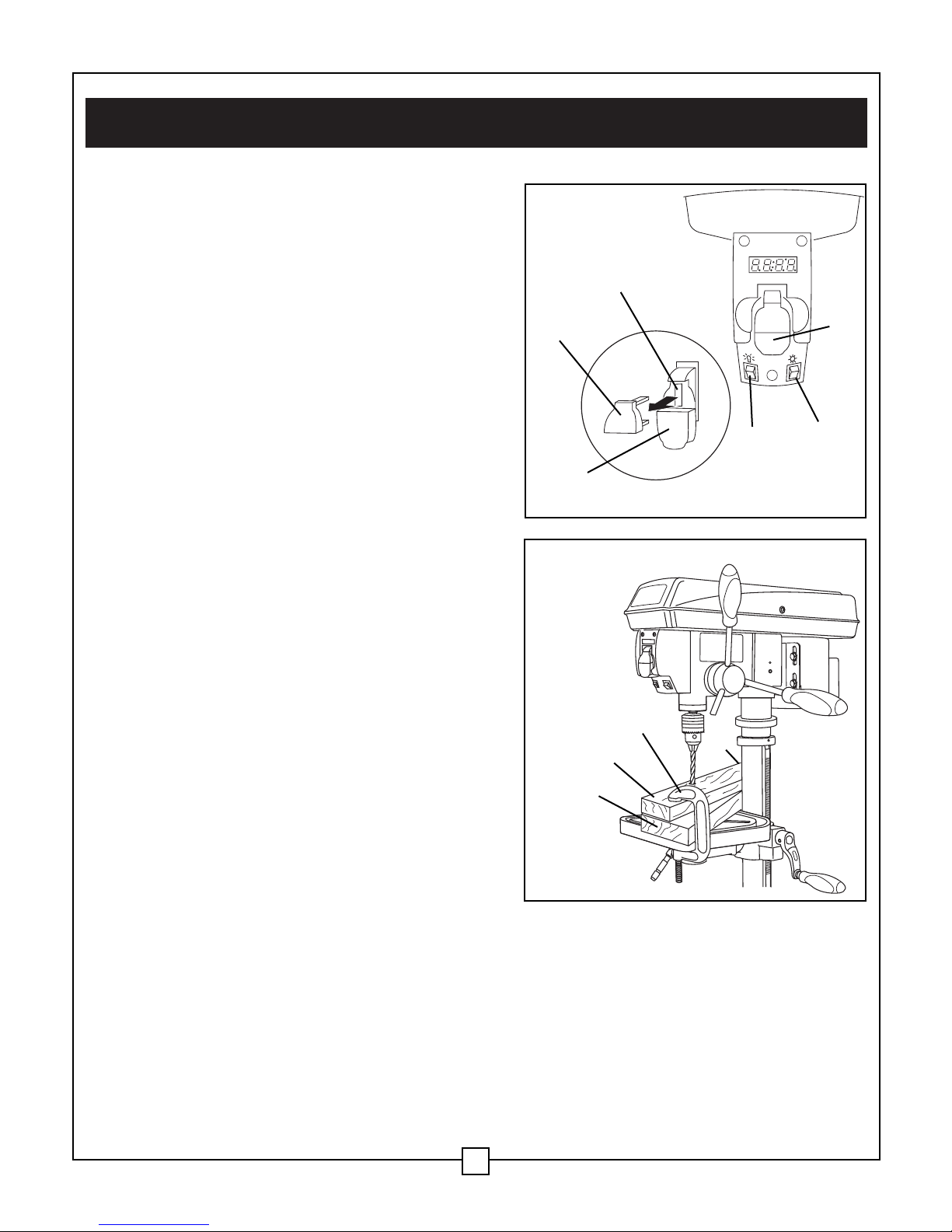

To replace the belt (Fig. 21)
Belt tension and bench drill press speed is
controlled by automatic adjustments made to the
diameter of the front spindle when the drive
handle is moved.
Note: See page 23 for information on the variable
speed function of this bench drill press.
1. Remove the screw that secures the housing
cover (1). Open the housing cover.
2. Remove the belt (2) from the housing cover if
it is broken. If it is not broken, but is too
stretched to operate correctly, work the belt off
the drive (motor) spindle (3). Then remove the
belt from the front spindle (4).
3. Replace the belt by putting a new belt over the front spindle (4) and carefully sliding the belt
over the drive (motor) spindle (3).
To install the clamp assembly (Fig. 22)
1. Place the two metal squares (1) of the clamp
assembly into two corners of the table and align
the tapered edge of the squares with the
groves.
2. Align the long slots on the base of the clamp
over the openings in the metal squares.
3. Place a washer (2) over the threaded end of
each lock handle (3). Insert the lock handles
into the metal squares. Tighten handles loosely.
4. Position the clamp as needed on the table and
fully tighten the lock handles to secure the
clamp.
5. Loosen the wing nut (4) to move the small
support on the front of the clamp into position.
Tighten the wing nut to secure.
VI. Assembly and adjustments ... continued
18
Fig. 21 1
42
3
WARNING: DISCONNECT THE BENCH DRILL PRESS FROM THE POWER SOURCE
BEFORE REPLACING THE BELT.
WARNING: DO NOT CHANGE THE DRIVE SPEED WHEN THE BENCH DRILL PRESS
IS TURNED OFF.
Fig. 22
1
4
3
2
1

Bench Drill Press ON/OFF switch (Fig. 23)
1. To turn the drill press ON, insert the yellow
safety key (1) into the switch housing (2). As a
safety feature, the switch cannot be turned ON
without the safety key.
2. Flip the switch (3) upwards to the ON position.
3. To turn the drill press OFF, press the switch
downwards.
4. To lock the switch in the OFF position, remove
the safety key (1) from the switch. Store the
safety key in a safe place.
Light and laser Line ON/OFF switches (Fig. 23)
The light switch (4) is located below the ON/OFF
switch on the left.
The laser switch (5) is located below the ON/OFF
switch on the right.
Position the table and workpiece (Fig. 24)
Always place a piece of backup material (1)
(wood, plywood, etc.) on the table underneath the
workpiece (2). This will prevent splintering on the
underside of the workpiece as the drill bit breaks
through. To keep the material from spinning out of
control, it must contact the left side (3) of the
column as illustrated, or be clamped (4; not
included)to the table.
Note: For small workpieces that cannot be
clamped to the table, use a drill press vise (not
included). The vise must be clamped or bolted to
the table to avoid injury.
VII. Operation
19
Fig. 23
Fig. 24
1
2
3
3
4
2
1
3
45

GENERAL DRILLING GUIDELINES
To drill a hole:
1. Mark where you want to drill in workpiece by using a centre punch or a sharp nail or turn
ON Laser Line to mark drilling point.
2. Before turning ON the bench drill press, turn the feed handles to bring the drill bit down.
Line the drill bit tip up with the mark. Clamp the workpiece in place.
3. Turn ON the bench drill press and pull down on the feed handles with appropriate force
needed to allow the drill bit to drill material.
Note: FEEDING TOO SLOWLY might cause the drill bit to turn in the chuck. FEEDING
TOO RAPIDLY might stop the motor, cause the belt to slip, force the workpiece loose, or
break the drill bit. Practice with scrap material to get the feel of the machine before
attempting to do any drilling operation.
To adjust drilling depth (Fig. 25)
The depth gauge controls the maximum distance the
drill bit will move up or down.
To stop the drill bit at a pre-measured depth:
1. Rotate the upper depth knob (2) until the bottom of
the knob is aligned with the desired depth mark (5)
on the gauge scale.
2. Rotate the depth scale lock knob (1) until it meets
the lower depth scale knob (2). The chuck will stop
after travelling downward to the selected distance.
To adjust quill (return) height (Fig. 25)
To adjust the upward distance the quill (shaft that moves up and down) can travel:
1. Turn the feed handles until the quill is at the desired height and hold it there.
2. Rotate the lower depth knob (3) until it rests against the bottom of the metal
gauge support (4).
WARNING: TO PREVENT THE WORKPIECEAND THE BACKUP MATERIAL FROM
SLIPPING FROM YOUR HAND WHILE DRILLING, POSITION WORKPIECE AND BACKUP
MATERIAL TO THE LEFT SIDE OF THE COLUMN. IF THE WORKPIECE AND THE BACKUP
MATERIALARE NOT LONG ENOUGH TO REACH THE COLUMN, CLAMP WORKPIECE
AND BACKUP MATERIAL TO THE TABLE. FAILURE TO DO THIS COULD RESULT IN
PERSONAL INJURY.
VII. Operation ... continued
20
Fig. 25
2
3
1
5
4
