MOTORCYCLE DASH CAM
B6E USER MANUAL
- 2 -
This product records videos while the motorcycle is operating. Use this product only for
reference when investigating incidents or road accidents. This product is not guaranteed to
record ALL events. The device may not properly record accidents with small impacts that are
too minor to activate the impact sensor or accidents with massive impacts that cause the
motorcycle’s battery voltage to deviate. Video recording does not begin until the product is
completely turned on (booted up). To ensure that all motorcycle events are recorded, wait until
the product is completely booted up after turning it on, and then begin operating the motorcycle.
VSYS is not responsible for any loss caused by an accident, nor is it responsible for providing
any support regarding the outcome of an accident.
Before using the product
During use of the product
Read the following safety information to properly use the product.
• Do not operate the product while driving a motorcycle. Distraction while driving may
cause accidents and result in injury or death.
• Do not install the product in a place exposed to flammable gas. Doing so may result in
fire or an explosion.
• Do not use the product in a place with high humidity or temperature. It may cause
malfunction of the product, explosion, or fire.
• Do not disassemble the product or subject the product to impact. Doing so may
damage the product. Unauthorized disassembly of the product voids the product
warranty.
• Do not fully submerge the product in water. Doing so may damage the product.
• Do not use the product outside for a prolonged period of time when it is raining. Doing
so may cause water damage to the product.
• Do not clean the product with chemicals or detergent. Doing so may damage the
product. Clean the product using a clean, soft, dry fabric.
• Ensure that the memory card is in the correct direction before inserting it into the
product. The memory card slot or the memory card may be damaged if it is inserted
incorrectly.
• Please format cards before use and anytime a significant amount of data has been
collected to ensure that the device and SD cards are working properly together. It is
recommended to format the TF card at least once a week.
• Use the product at a temperature between -20°C to 65°C. The product may not
function as designed and some permanent physical damages may result if it is
operated out of the specified temperature ranges. Such damages are not covered by
the warranty.
•The product emits electromagnetic radiation that might interfere with medical
devices. Consult with your physician and your device manufacturer if you are uncertain
whether you can use this device.
• Please use this product to the extent permitted by law.
- 3 -
Packing List
Connection Diagram
The connection may change without prior notice.
The items may vary for different buying options.
Main unit structure
The product design may change without prior notice.
Cable ties
mount
Front cam & extension cable
Rear cam & extension cable
USB test cable
Power cord
Main unit
Wired Controller
Card slot
Menu/Back
Move Up
Move Down / Display Mode Switch
OK / REC / Play / Pause
Camera 1
Camera 2
Wired Remote
Split Cable(Power Cable / GPS Tracker)
Screen
GPS tracker
Mount hole
- 4 -
Short press to select the video to playback
R/REC-211019-120514R.MOV
1
1
RearCam
F/REC-211019-175340R.MOV
1
1
2021/10/19 17:53:25 [00:00:26]
“F/” indicates front cam video playback “R/” indicates rear cam video playback
Video recording time
WiFi
Date & time information
2021/10/19 17:53:25 [00:00:26]
Select the setting options and
press the button to enter
Video Mode.
Select the setting options
and press the button to
enter Playback Mode.
button to enter Setting Mode.
Select the setting options and press the Select the setting options and press the
button to enter Language Settings.
Menu Setting Description
* Press button of remote controller to pause recording before setup the system, then
long press button to enter menu system.
“REC” means normal video file
“GSR” means file recorded by triggering G-sensor
“163256” means time 16 o’clock 32 minutes 56seconds
“MOV” means video file format
“KEY” means file recorded by pressing remote
“170809” means date 9th August, 2017
“F” means front camera video file
Video file name information: REC_170809-163256F.MOV
Short press in video mode to switch
different display mode;
•
•
NOTE: The recorder will lock the latest 10 emergency recording videos(GSR-XXXX.MOV)triggered by G-sensor
and 10 emergency recording videos(KEY-XXXX.MOV) manually triggered by the remote from being overwritten,
and after more than 10, the recorder will automatically start to overwrite the earliest locked emergency video.
Long press for 3 seconds in the playback mode to switch
the video files list between front camera and rear camera.
•
MODE
OK
MODE
OK
MODE
OK
MODE
OK
MODE
OK
MODE
OK
MODE
OK
Memory card
Video modeIn recording
- 5 -
Click to stop recording manually. Click to start recording manually.
Click to take photo.
Click to switch front and rear camera. Click to enter/exit full screen view.
Click to go back to the previous menu.
When successfully connected with your smartphone via built-in Wi-Fi, you can save
and playback the driving recording videos on your smartphone. You can also change
settings of dash cam via Wi-Fi app.
1) Scan the QR code below to download the latest App from Google Play and App
Store. Or you can search ‘Wifi Camera’ on Google Play or App Store to download it.
2) Select 'MotoDV_B6' from available Wi-Fi network to connect. The default password
is '1234567890'.
Wi-Fi Connection
3) Wi-Fi app operation
The camera will pause the recording when you open Wi-Fi App (connected
successfully) and Enter recorder during recording, and start recording automatically
after 30 seconds without any operation or 30 seconds after you quit the App. Also,
you can start/stop recording manually via the Wi-Fi App.
Button sound On/Off
Video clip time 1/2/3/5min can be selected
Sound record
On/Off
MIC sensitivity Set the sound level of mic
Auto screen off Set LCD backlight off, or off after 1min/3min
Rear camera mirror Set the mirror image display for rear camera
GPS Status Display the current number of satellites,
longitude, latitude and other information
System reset Reset your device to factory settings
Format SD card Delete all videos from the memory card
Clock setting Set date & time
Voice guide
YYYY MM DD/MM DD YYYY/DD MM YYYY
Speed watermark Turn on/off the speed watermark
when playback videos on the PC/APP
Date format
Menu Setting Description
On/Off
Protection sensitivity G-sensor adjustment
Time zone select Time zone selection around the world
FW version Check the firmware version
- 6 -
Quick Installation Guide
ATTENTION
• Please do NOT flush the main unit, lenses, power module, and remote with the high-pressure water gun.
• Do not bend the cable nor twist the connector during installation.
• The position of the main unit and lens cable should be away from the high-voltage circuit like xenon lamp,
ignition plug etc.
• If your motorcycle is a traditional carburetor system please try to change a suitable R-value ignition plug
when you meet the interference phenomenon.
If you failed to connect to the camera, please check if you have any pop-up tips to notify you there is
no internet for the connected wifi network and if you will stay connected. Just say YES and everything
will work great. Some may have no this kind of notification, so we recommend you Turn Off Cellular
Data when using the WiFi app.
Contact seller if it encounters an error when setting the SSID.
Wired remote
GPS module
Main unit
Cam 1
Cam 2
Power module
- 7 -
OF F
ON
+
-
Positive
Negative
A 12V wire that is
controlled by the key
Double-sided foam tape
double-sided foam tape
+
-
Power Module Installation
Camera Installation
1) Connect cam 1 & cam 2 to the dash cam main unit.
2) Find the USB test cable and connecting to the power bank or USB adaptor to do a quick
test before nstallation.
3) Prepare installation if everything looks good.
The connection should follow
the same color and the correct
arrow direction.
The input voltage never exceeds 5V and
the current needs to be 2A or above for
the USB power source to make sure the
dash cam works properly.
Quick Test
The concave and convex bayonet of the joint shall be matched correctly
Screw Nut: Just screw the nut when when the cable connected
but not twist the cable or the connector
Rubber damping ring
Screw
Double-sided
foam tape
Double-sided
foam tape
Connect red wire to the battery positive terminal, black wire to the negative terminal, and
yellow wire to the 12V port controlled by key ignition (ACC wires). The dash cam will
automatically turn on and off with your ignition switch.
- 8 -
support-us@vsysto.com
https://www.facebook.com/szvsys
https://www.youtube.com/c/szvsys
Contact Us
Shenzhen V-SYS Technology Co.,Ltd.
302, BUILDING A9, TIANRUI INDUSTRIAL PARK, NO. 35, FUYUAN FIRST ROAD,
ZHANCHENG COMMUNITY, FUHAI STREET, BAO AN DISTRICK, SHENZHEN, CHINA

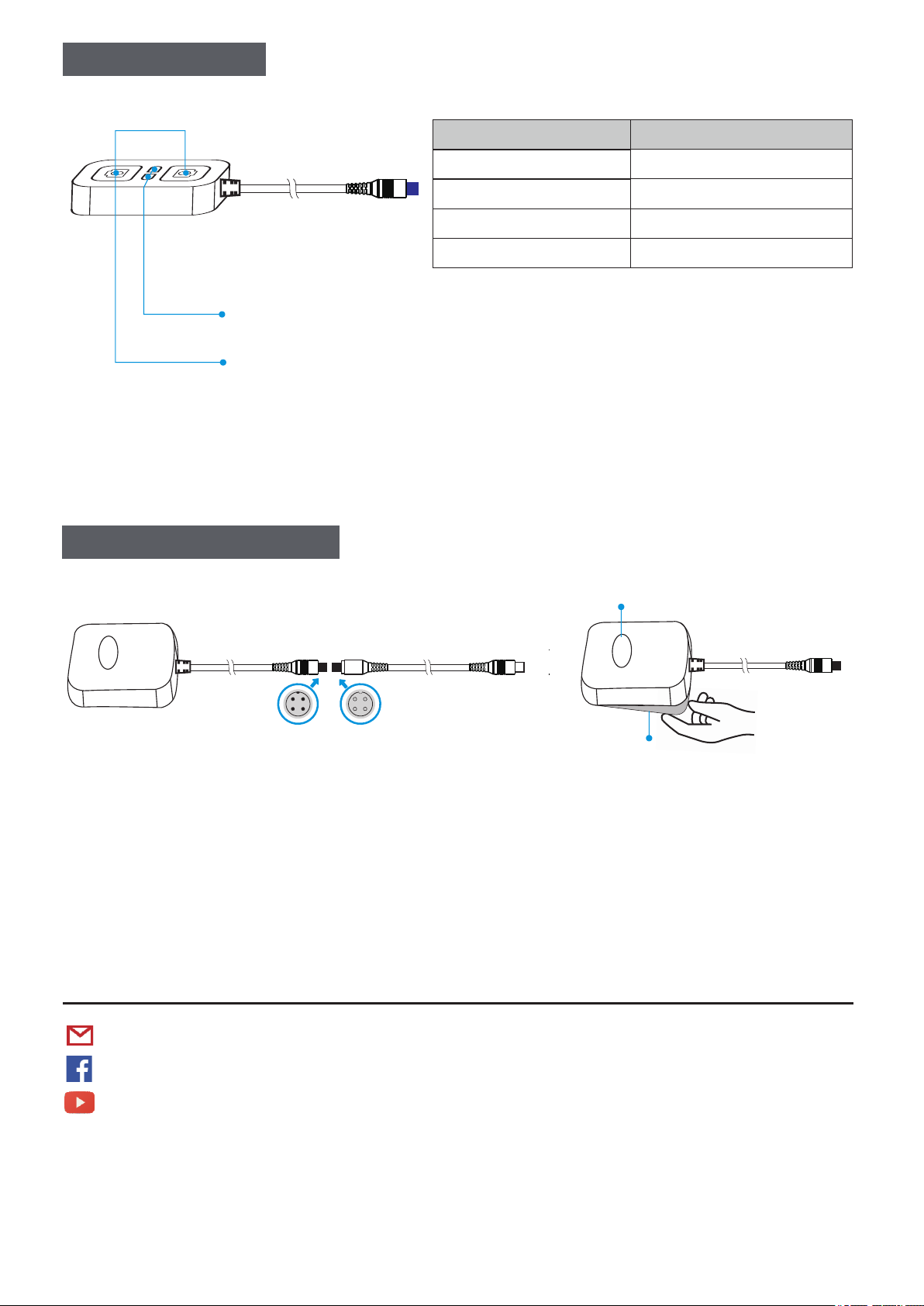

Wired Controller
LED Light: Display the camera working status.
1) Press any button once of the wired controller in video mode
to activate emergency recording mode. It will lock and save emergency
video files (named as "KEY 001 002 003….") and take the snapshot.
LED Light Frequency Camera Status
Slow blinking Recording properly
Fast blinking Emergency recrod mode
Steady (light on) Stop recording
Off (light off) Power off
2) Double press any button to switch the display to the rear camera in
full screen.
2) Fix the GPS module to a proper place on your motorcycle with the double-sided foam
tape. Please note the “GPS” icon must face the sky directly without any barrier, in case
of the signal is shielded.
GPS
GPS
Double-sided tape
“GPS” icon needs to face to the sky
The concave and convex bayonet of the joint shall be matched correctly
1) You can go to our official website to download the GV player.www.szv-sys.com
GPS Module Installation
