Kinze 851 User manual

MODEL 851/1051
GRAIN CARTS
OPERATOR MANUAL
M0276-01 Rev. 4/19
This manual is applicable to: 2017 Production and on
Record model number and serial number of your grain cart along with date purchased:
Model Number __________________________________
Serial Number ___________________________________
Date Purchased__________________________________
Kinze®and the Kinze®logo are registered trademarks of Kinze Manufacturing, Inc.
Shur-Co®, LLC is a registered trademark of Shur-Co.
Digi-Star®, LLC is a registered trademark of Digi-Star.
Camoplast®is a registered trademark of Camoplast Solideal Inc.
All other trademarks are the property of their respective owners.
SERIAL NUMBER
Record your serial number and purchase date above for quick reference.
The serial number provides important information about your grain cart and is required to obtain correct replacement
parts. Always provide model and serial number to your Kinze Dealer when ordering parts or anytime correspondence
is made with Kinze Manufacturing, Inc.

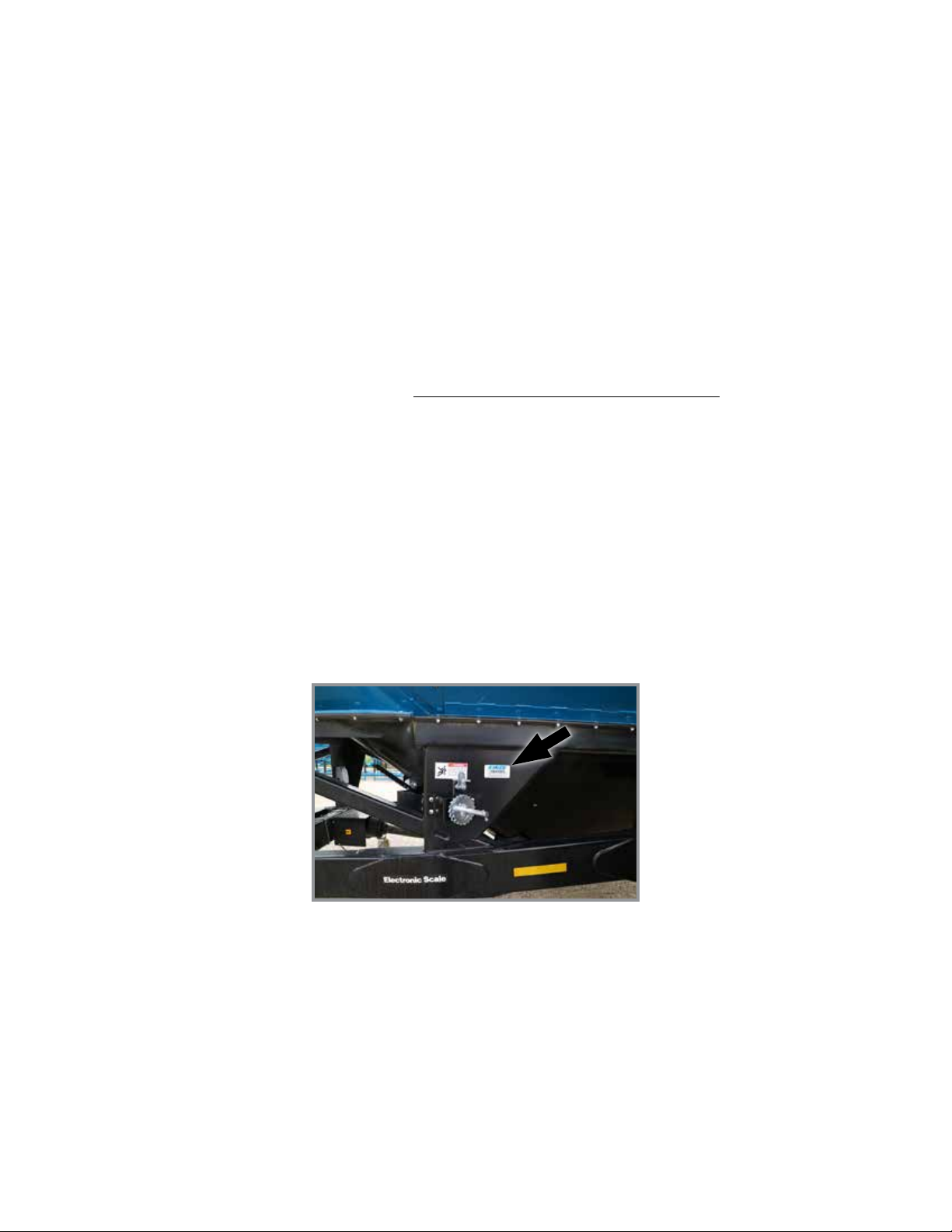

Serial Number Plate Location

Page intentionally blank.

®
Grain CartM0276-01
Rev. 2/18 1
Predelivery/Delivery Checklist
851-1051 Grain Cart
TO THE DEALER
Predelivery service includes assembly, lubrication, adjustment and test. This service ensures cart is delivered to retail
customer/end user ready for field use.
PREDELIVERY CHECKLIST
Use this checklist to inspect cart after it is completely assembled. Check off each item as it is found satisfactory or after
proper adjustment is made.
Wheel nuts tightened to correct torque. Refer to "Mounting Bolts and Hardware" on page 3-15.
Tires inflated to specified air pressure. Refer to "Tire Servicing" on page 3-18. (If Applicable)
All grease fittings lubricated and gearbox oil level checked. Refer to "Grease Fittings" on page 3-3.
All safety decals and SMV sign are correctly located and legible. Replace if damaged.
SMV decal is in place and shipping cover removed.
Safety/warning lights working properly.
Test run augers. Do not operate tractor PTO above 750 PTO RPM with augers empty.
Check driveline. See “Driveline Inspection” in Operation section.
Check track alignment. See “Track Alignment” in Maintenance section. (If Applicable)
Safety screens over auger are in place and properly secured.
Auxiliary safety chains are properly installed and hardware torqued to specification.
Paint all parts scratched in shipment.
This wagon has been thoroughly checked and to the best of my knowledge is ready for delivery to the customer.
(Signature Of Set-Up Person/Dealer Name/Date)
OWNER REGISTER
Name Delivery Date
Street Address Model No. Serial No.
City, State/Province Dealer Name
ZIP/Postal Code Dealer No.

M0276-01Grain Cart
2 Rev. 2/18
®
Predelivery/Delivery Checklist
DELIVERY CHECKLIST
Check off each item as it is fully explained to retail customer/end user when grain cart is delivered.
Durability and longevity is dependent on regular maintenance as directed in Operator Manual.
Tell retail customer/end user about all safety precautions that must be observed while using this cart.
Advise retail customer/end user of specified tractor requirement for use with this cart.
Along with retail customer/end user check reflective decals and SMV sign are clearly visible with cart attached to
tractor. Check safety/warning lights are in working condition. Tell retail customer/end user to check and follow federal,
state/provincial, and local regulations before towing on a road or highway.
Along retail customer/end user check hitch height when attached to tractor is sufficient to prevent severe bends in PTO
U-joint angles. Check PTO is correct length for making turns and operating on uneven terrain.
Give Operator and Parts Manuals to retail customer/end user and explain all operating adjustments.
Complete Warranty And Delivery Report form.
To the best of my knowledge this machine has been delivered ready for field use and customer has been fully
informed as to proper care and operation.
(Signature Of Delivery Person/Dealer Name/Date)
AFTER DELIVERY CHECKLIST
Suggested items to check during first season of use:
Check cart performance with retail customer/end user.
Review with retail customer/end user importance of proper maintenance and adherence with all safety precautions.
Check for parts that may need to be adjusted or replaced.
Retighten all wheel nuts to specified torque.
Safety shields and screens are in place.
Safety and reflective decals, and SMV sign are correctly located and decals are legible. Replace if damaged or missing.
Check safety/warning lights are properly installed and working properly.
Check recommended lubrication procedures are being followed.
(Signature Of Follow-Up Person/Dealer Name/Date)
Tear Along Perforation
All registrations must be submitted online at “business.kinze.com” within 5 business days of delivery.
Retain a copy of this form for auditing purposes.

TM
Grain CartM0276-01
Rev. 4/19 i
Table of Contents
OVERVIEW
To the Owner ....................................1-1
Warranty ........................................1-3
General Information ...............................1-3
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Specifications ....................................1-4
General Safety Rules ..............................1-5
Safety Instructions, Signs, and Decals . . . . . . . . . . . . . . . . .1-6
OPERATION
Shipping Tie Downs ...............................2-1
Shipping Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Machine Preparation ..............................2-2
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2
Tractor Preparation and Hookup. . . . . . . . . . . . . . . . . . . . . .2-2
Cart Operation ...................................2-5
Auger Fold Enable/Disable . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
Unload Grain Cart ................................2-8
PTO Torque Limiting/Overrunning Clutch Protection ......2-9
Auger Cleanout Door .............................2-10
Vertical Auger Work Light . . . . . . . . . . . . . . . . . . . . . . . . . .2-12
Cameras .......................................2-12
Manual and Electric Roll Tarp.......................2-13
Roll Tarp Remote Control Troubleshooting . . . . . . . . . . . . .2-15
Track System Components. . . . . . . . . . . . . . . . . . . . . . . . .2-16
Track Transport Speeds ...........................2-17
Track System Minimum Turning Radius Limitations . . . . . .2-18
Track System Break-In Procedures ..................2-18
Track System Operational Guidelines. . . . . . . . . . . . . . . . .2-19
Electronic Scale - GT 400. . . . . . . . . . . . . . . . . . . . . . . . . .2-20
Grain Moisture Sensor ............................2-22
Grain Moisture Sensor Testing . . . . . . . . . . . . . . . . . . . . . .2-23
Grain Moisture Sensor Calibration ...................2-24
Electronic Scale Printing Options . . . . . . . . . . . . . . . . . . . .2-25
Electronic Scale - GT 560 AutoLog ..................2-26
Electronic Scale Troubleshooting ....................2-29
Electronic Scale Troubleshooting ....................2-30
Data Downloader Troubleshooting ...................2-31
Track System Troubleshooting ......................2-32
LUBRICATION AND MAINTENANCE
Wheel Bearings ..................................3-1
Gearbox Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
PTO Shaft Coupling ...............................3-2
Grease Fittings ..................................3-3
Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Track System Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Check Track Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Track Alignment Procedure. . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Track System Inspection...........................3-10
Track Removal ..................................3-11
Track Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-14
Mounting Bolts and Hardware ......................3-15
Torque Values Chart - Plated Hardware ...............3-15
Special Torque Values ............................3-15
Vertical Auger Counter Balance Valves ...............3-17
Wheel Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-17
Tire Servicing ...................................3-18
Driveline Inspection ..............................3-19
Upper Vertical Auger Replacement ..................3-20
Lower Vertical Auger Replacement ..................3-21
Wheel Bearing Replacement .......................3-22
Preparation for Storage ...........................3-23
Hydraulic Control Schematic - Manual . . . . . . . . . . . . . . . .3-26
Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-27
Electronic Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-28
Moisture Sensor Harness Routing ...................3-29
Autolog Sensor Harness Routing . . . . . . . . . . . . . . . . . . . .3-30
Electronic Scale .................................3-31

This page intentionally blank.

TM
Grain CartM0276-01
Rev. 5/18 1-1
To the Owner
Indicates an imminently hazardous
situation that, if not avoided, will
result in death or serious injury. This
signal word is to be limited to the most
extreme situations, typically for machine
components which, for functional
purposes, cannot be guarded.
DANGER
Indicates a potentially hazardous
situation that, if not avoided, could result
in death or serious injury, and includes
hazards that are exposed when guards
are removed. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous
situation that, if not avoided, may result
in minor or moderate injury. It may also
be used to alert against unsafe practices.
CAUTION
Used to address safety practices not
related to personal injury.
NOTICE
Kinze Manufacturing, Inc. thanks you for your patronage. We appreciate your confidence in Kinze farm machinery.
Your Kinze grain cart has been carefully designed to provide dependable operation in return for your investment.
This manual has been prepared to aid you in the operation and maintenance of the grain cart. It should be
considered a permanent part of the machine and remain with the machine when you sell it.
It is the responsibility of the user to read and understand the Operator Manual in regards to safety, operation,
lubrication and maintenance before operation of this equipment. It is the user’s responsibility to inspect and service
the machine routinely as directed in the Operator Manual. We have attempted to cover all areas of safety, operation,
lubrication and maintenance; however, there may be times when special care must be taken to fit your conditions.
Throughout this manual the symbol and the words DANGER, WARNING, and CAUTION are used to call
attention to safety information that if not followed, will or could result in death or injury. NOTICE and NOTE are used to
call your attention to important information. The definition of each of these terms follows:
NOTE: Special point of information or machine adjustment instructions.

M0276-01Grain Cart
1-2 Rev. 5/18
TM
To the Owner
Improperly operating or working on
this equipment could result in death
or serious injury. Read and follow all
instructions in Operator Manual before
operating or working on this equipment.
WARNING
Some photos in this manual may show
safety covers, shields, or lockup devices
removed for visual clarity. NEVER
OPERATE OR WORK ON machine
without all safety covers, shields, and
lockup device in place as required.
WARNING
NOTE: Photos in this manual may be of prototype machines. Production machines may vary in appearance.
NOTE: Some photos and illustrations in this manual show optional attachments installed. Contact your Kinze
Dealer for purchase of optional attachments.

TM
Grain CartM0276-01
Rev. 5/18 1-3
Introduction
Warranty
Information used in these instructions was current at time of printing. However, due to Kinze’s ongoing product
improvement, production changes may cause your machine to appear slightly different in detail. Kinze Manufacturing,
Inc. reserves the right to change specifications or design without notice and without incurring obligation to install the
same on machines previously manufactured.
Right hand (R.H.) and left hand (L.H.), as used throughout this manual, are determined by facing direction machine
travels in use unless otherwise stated.

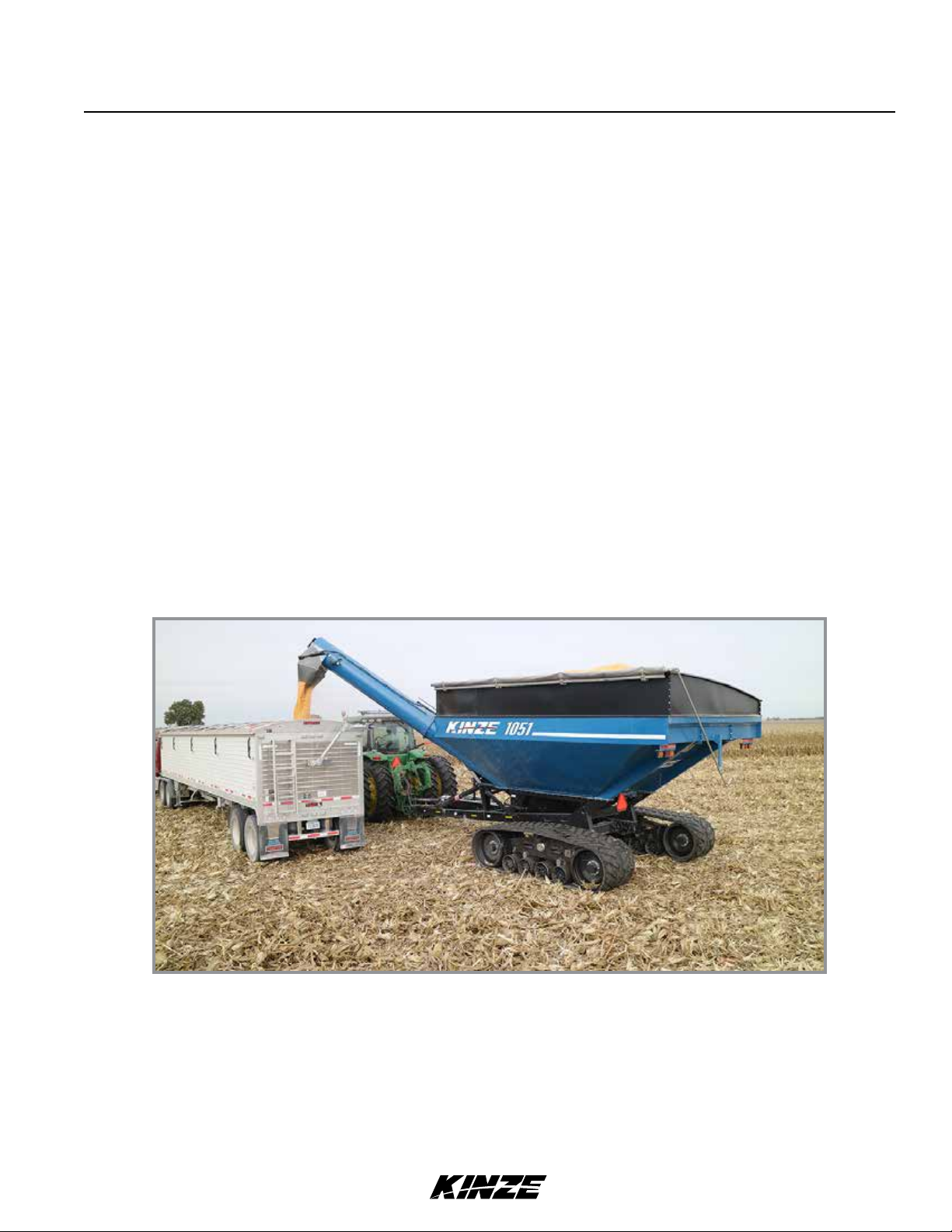

Model 1051 Corner Auger Grain Cart
The Kinze Limited Warranty for your new machine is stated on the retail purchaser’s copy of the Warranty And Delivery
Receipt form. Additional copies of the Limited Warranty can be obtained through your Kinze Dealer.
Warranty, within the warranty period, is provided as part of Kinze’s support program for registered Kinze products
which have been operated and maintained as described in this manual. Evidence of equipment abuse or modification
beyond original factory specifications will void the warranty. Normal maintenance, service and repair is not covered by
Kinze warranty.
To register your Kinze product for warranty, a Warranty And Delivery Receipt form must be completed by the Kinze
Dealer and signed by the retail purchaser, with copies to the Dealer, and to the retail purchaser. Registration must be
completed and submitted to Kinze Manufacturing, Inc. within 5 business days of delivery of the Kinze product to the
retail purchaser. Kinze Manufacturing, Inc. reserves the right to refuse warranty on serial numbered products which
have not been properly registered.
If service or replacement of failed parts which are covered by the Limited Warranty are required, it is the user’s
responsibility to deliver the machine along with the retail purchaser’s copy of the Warranty And Delivery Receipt to
the Kinze Dealer for service. Kinze warranty does not include cost of travel time, mileage, hauling or labor. Any prior
arrangement made between the Dealer and the retail purchaser in which the Dealer agrees to absorb all or part of this
expense should be considered a courtesy to the retail purchaser.
Kinze warranty does not include cost of travel time, mileage, hauling, or labor.
General Information

M0276-01Grain Cart
1-4 Rev. 5/18
TM
Specifications
Feature Specification
851 1051
Total Capacity* 850 Bushels (29.9 m) 1050 Bushels (36.9 m)
Bushels/Minute - Average* 450 Bushels/minute 450 Bushels/minute
Vertical Auger 20" Dia flighting in 21" Dia. tube 20" Dia flighting in 21" Dia. tube
Bearings - Vertical Auger 2" 2"
Gearbox Bevel and spur gear with 2:1 ratio Bevel and spur gear with 2:1 ratio
PTO - 1000 RPM PTO auger drive with overrunning and
torque limiting clutch
PTO auger drive with overrunning and
torque limiting clutch
PTO Yoke 1¾"-20 spline 1¾"-20 spline
Spindle Tw o 4 ½" high alloy Tw o 4 ½" high alloy
Hub 20 bolt 13.189 bolt center (2) cast ductile
iron
20 bolt 13.189 bolt center (2) cast ductile
iron
Safety Chains Two ½" grade 70 transport chains Two ½" grade 70 transport chains
Adjustable Discharge
Spout
Remotely adjustable spout with in/out
motion and fitted with flexible discharge
nozzle
Remotely adjustable spout with in/out
motion and fitted with flexible discharge
nozzle
Tire Size/Pressure IF900/65R 32 CFO/191 B (R3)
IF900/60R 32 CFO/188B (R1)
IF900/65R 32 CFO/191 B (R3)
IF900/60R 32 CFO/188B (R1)
Hydraulic Requirements 3 SCVs with standard 2320 psi
(15996 kPa) system minimum
3 SCVs with standard 2320 psi
(15996 kPa) system minimum
Track Width 36" (91 cm) 36" (91 cm)
Track Length 136" (345 cm) 136" (345 cm)
Track Length Contract 100" (254 cm) 100" (254 cm)
Track End Wheels
(Per Track)
Four, 31½" (80 cm) diameter Four, 31½" (80 cm) diameter
Track Mid Wheels
(Per Track)
Eight, 13.77" (34.9 cm) diameter Eight, 13.77" (34.9 cm) diameter
Weight - Empty 14,640 lb (6640.5 kg) 15,100 lb (6849.2 kg)
Hitch Weight - Empty 2500 lb (1134 kg) 2500 lb (1134 kg)
Hitch Weight - Loaded 5000 lb (2268 kg) 5000 lb (2268 kg)
Transport Width 13'-5" (4.08 M) 13'-5" (4.08 M)
Width - Grain Tank --- 12'-4" (3.75 M)
Length - Grain Tank --- 19'-3" (5.86 M)
Height - Grain Tank --- 12'-10" (3.91 M)
Length - Overall 28'-4" (8.63 M) 30'-4" (9.24 M)
Height - Grain Discharge 13'-4" (4.06 M) 13'-4" (4.06 M)
* Approximate with 15% moisture corn. Capacity and bushels/minute will vary with moisture content of grain and/or
PTO RPM.
