Kinze Mach Till 302 Programming manual

Mach Till 302/362
OPERATOR & PARTS
MANUAL
KINZE MANUFACTURING, INC.
I-80 AT EXIT 216
WILLIAMSBURG, IOWA 52361-0806
KINZE.COM
M0296 Rev. 2/20

3
5
3
4
2222
4
1
1
1
1
* Refer to operators manual for complete safety and operation info.
Maintenance
(Check Machine Daily)
AConnect Hydraulics WHEELS
ROLLERS
TRANSPORT
WINGS
JACK
3
5
4
2
1
5
4
1
3
2
FLOAT
(if available)
143411 v1.0
QUICK-START GUIDE*
for Mach Till 302/362
* Refer to operators manual for complete safety and operation info.
GPS Reference
(Set overlap to 6”per side)
(with 20" discs) 2" Depth
Mach Till 302 352” (8.95m)
Mach Till 362 431” (10.95m)
(with 20” discs) MAX Depth
Mach Till 302 355” (9.0m)
Mach Till 362 434” (11.0m)
(Consider setting the GPS to include
a 6”implement oset to the right)
• Hydraulic Connections/Hoses
• Working points & pins
• Hubs, Spindles, & Tire Pressure:
- Center: 58 PSI (400 kPa)
- End Wheels: 41 PSI (283 kPa)
• Check for missing, worn or
damaged parts.
*Refer to operators manual for
complete safety and operation info.
IMPORTANT: The Wing Cylinder Circuit includes a Down Pressure
Valve. Operator must engage wing circuit hydraulics constantly in
the extended direction to ensure constant down pressure.
CONSTANT
PRESSURE

Typically
Set to 2”
Rear Disc Depth Adjustment
(2 Outer Roller Frame Cylinders)
2
Front Disc Depth Adjustment
(2 End Wheel Cylinders)
1
BPut in Field Position
i)
ii)
iii)
1”
3
4
4
F
MAX Transport Speed: 40 km/h (25 MPH)
ELower Wheels for Headland Turns.
1
Mach Till 302/362

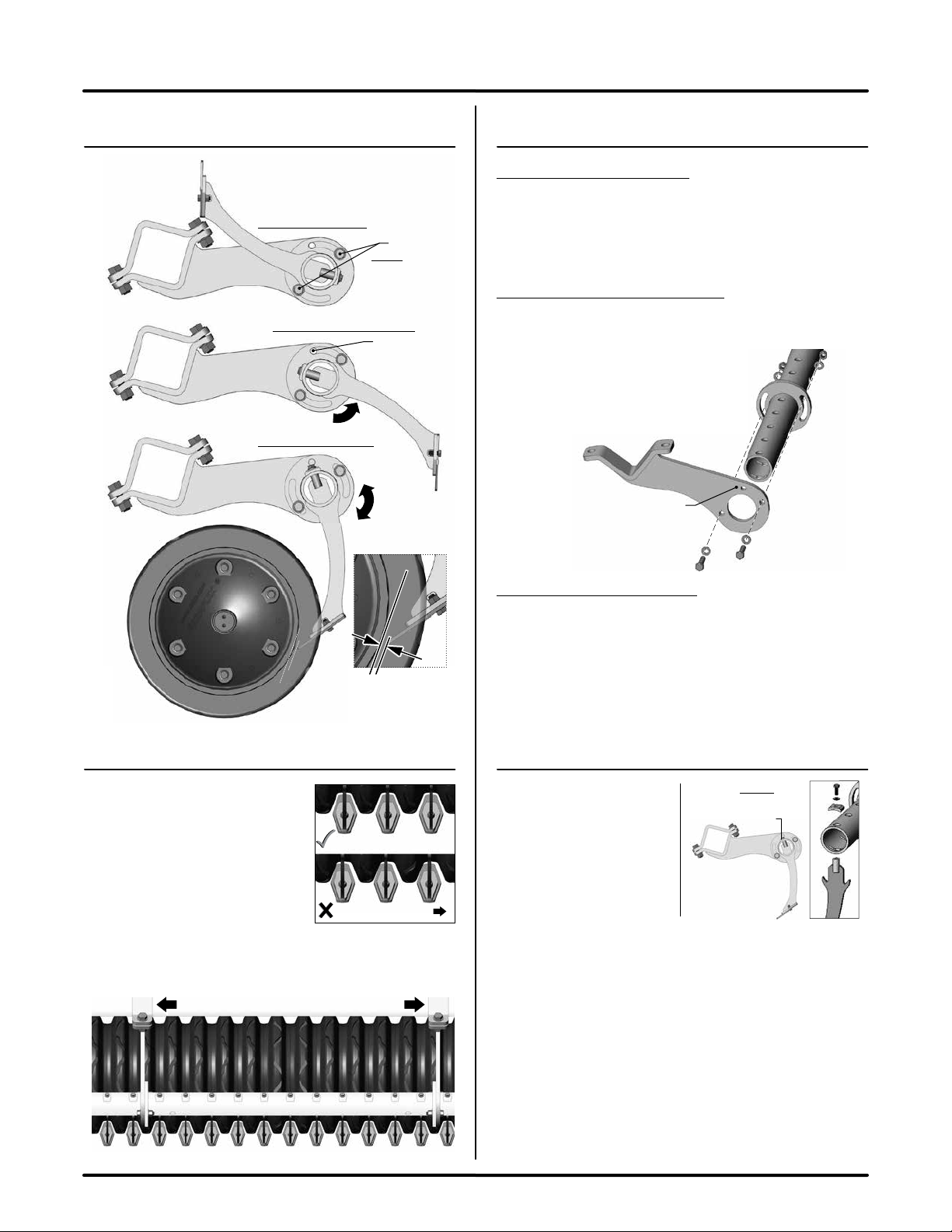

Scraper Position Overview (Rubber Rollers)
Set Gap
distance at
1/4” to 3/8”
from roller surface.
Storage Position
Maintenance
Position
Engaged Position
Remove the 4 bolts to rotate into
or out of “Storage position”,
then re-install.
Loosen the 4 bolts to rotate up into
“Maintenance
Position”
& secure.
Loosen the 4
bolts to rotate
downward.
Set the scraper
clearance
(1/4” to 3/8”).
Properly tighten.
DTest. Check. Adjust. 10-12 MPH
100m100m
(Ideal Operating Speed)
CSet Cutting Depth
(Start with 12 stops
per cylinder, test
depth & adjust)
(IMPORTANT: Add depth
stops starting from rod end)
IMPORTANT: Re-phase and cycle oil in the Depth Control
Cylinders before use. This is especially important
after long periods of storage.
1 2
3
iv)
v)
3
3 3
3
IMPORTANT: Operator must read and understand the
tractor manual in order to place the required hydraulic
circuits into oat position or constant pressure position.
4
IMPORTANT: The Mach Till
model shown may dier,
but the general procedure
remains the same.
(*Mach Till 40 shown)

* Reference Sheet Quick-Start Guide
OPERATORS SECTION - TABLE OF CONTENTS
IMPORTANT Safety Notice
Introduction 1
Safety 2
Hook-Up 4
Transport 5
Transport to Field Position 6
Field to Transport Position 7
Operation 8
Pre-Operation Checklist 8
Operation Guidelines / Suggestions 9
Setting Disc Depth 10
Scraper Settings 12
Troubleshooting 13
Service & Maintenance 15
Maintenance Checklist 15
Repair - Wheel Hub 18
Repair - Hyd Cylinder Repair 19
Repair - Pressed Bushing 20
PARTS SECTION - TABLE OF CONTENTS
Mach Till Section Overview 23
Hitch Pole Frame Components 24
Wheel & Rockshaft Components 26
Center Frame Components 27
End Wheel Components 29
Wing Frame Components 29
Disc Gang Assembly & Components 30
Disc Arm Components & Disc Options 32
Roller Frame Components 33
Roller & Scraper Components 36
Hydraulic Routing & Cylinders 38
Light Routing 44
Warranty 45
IMPORTANT: INSTALL DRY
Do NOT use any oil/grease/lubricant
on pin or bushing surfaces when installing the
maintenance free pins into composite bushings.
Maintenance Free Pins & Bushings
IMPORTANT:
READ MANUAL
KINZE MANUFACTURING, INC.
I-80 AT EXIT 216
WILLIAMSBURG, IOWA 52361-0806
KINZE.COM

DANGER
If the front hitch becomes disconnected in this
position the front hitch will raise suddenly and
the back of the machine will drop!
CHANGING DISCS AND SERVICING
The best position to safely change
or service the discs on the Mach
Till is when it is secured in the
winged forward transport position.
DANGER - NEVER PARK, UNHOOK, or
SERVICE Mach Till with REAR WINGS RAISED
IMPORTANT
SAFETY REMINDER
IMPORTANT: The Mach Till model shown may differ,
but the general procedure remains the same. (*Mach Till 40 shown)

-1-
M0296 - MACH TILL 302|362 (REV. 2/20)
Front Hitch
Hyd.
Jack
CenterCenter
FrameFrame
Hitch Pole
Frame
Center
Roller Assembly
RH Wing
Roller Assembly
LH Wing
Roller Assembly
LH Wing
Frame
LH Wheel
Strut
RH Wheel
Strut
RH Wing
Frame
LH SIDE RH SIDE
OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual,
are as seen from the tractor drivers’ seat and facing in the direction of travel.
CONGRATULATIONS on your choice of a Kinze Mach Till to complement your farming operation. It has been
designed and manufactured to meet the needs of a discerning agricultural market. Kinze Mach Till shreds
heavy fall residue, opens up spring fields, levels ruts, destroys clods and produces an absolutely perfect seed
bed. Kinze Mach Till is the fastest and most versatile piece of tillage equipment you will ever own. Use this
manual as your first source of information about this machine.
TO THE NEW OPERATOR OR OWNER - Safe, efficient and trouble free operation of your Kinze Mach Till
requires that you and anyone else who will be operating or maintaining it, read and understand the Safety,
Operation, Maintenance and Troubleshooting information contained within this manual.
By following the operating instructions in conjunction with a good maintenance program your machine will
provide many years of trouble-free service. Keep this manual handy for frequent reference and to pass on to
new operators or owners. Call your Kinze Dealer if you need assistance, information, or additional copies of
the manual.
Introduction
Mach Till 302
Mach Till 362

-2-
M0296 - MACH TILL 302|362 (REV. 2/20)
The Safety Alert Symbol identifies important safety
messages applied to the Mach Till and in this
manual. When you see this symbol, be alert to the
possibility of injury or death. Follow the
instructions provided on the safety messages.
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
DANGER: Indicates an imminently hazardous situation
that, if not avoided, WILL result in death or serious injury
if proper precautions are not taken.
WARNING: Indicates a potentially hazardous
situation that, if not avoided, COULD result in death or
serious injury if proper precautions are not taken.
CAUTION: Indicates a potentially hazardous situation
that, if not avoided, MAY result in minor or moderate
injury if proper practices are not taken, or, serves as a
reminder to follow appropriate safety practices.
Why is SAFETY important to YOU?
3 BIG Reasons:
•Accidents Can Disable and Kill
•Accidents Are Costly
•Accidents Can Be Avoided
Note the use of the Signal Words: DANGER, WARNING, and CAUTION with the safety messages.
The appropriate Signal Word has been selected using the following guidelines:
SAFETY ALERT SYMBOL
SIGNAL WORDS
Safety
CAUTION
DANGER
WARNING

-3-
M0296 - MACH TILL 302|362 (REV. 2/20)
1. Read and understand the Operator’s
Manual and all safety signs before
operating, maintaining or adjusting.
2. Install and properly secure all shields and
guards before operating. Use hitch pin with a
mechanical locking device.
3. Have a first-aid kit available for use
should the need arise and know
how to use it.
4. Have a fire extinguisher available
for use should the need arise and
know how to use it.
5. Wear appropriate protective gear.
This list includes but is not limited to:
• A hard hat
• Protective shoes with slip resistant soles
• Protective glasses or goggles
• Heavy gloves
• Wet weather gear
• Hearing protection
• Respirator or filter mask
6. Clear the area of people, especially small
children, and remove foreign objects from the
machine before starting and operating.
7. Do not allow riders.
8. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
9. Review safety related items with all operators
annually.
YOU are responsible for the safe operation and
maintenance of your Kinze Mach Till.
YOU must ensure that you and anyone else who
is going to operate, maintain or work around
the Mach Till be familiar with the operating and
maintenance procedures and related SAFETY
information contained in this manual.
This manual will take you step-by-step through
your working day and alerts you to all good safety
practices that should be adhered to while operating
this equipment.
Remember, YOU are the key to safety. Good safety
practices not only protect you but also the people
around you. Make these practices a working
part of your safety program. Be certain that
EVERYONE operating this equipment is familiar
with the recommended operating and maintenance
procedures and follows all the safety precautions.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
• Mach Till owners must give operating
instructions to operators or employees
before allowing them to operate the
Mach Till, and at least annually thereafter
per OSHA regulation 1928.51.
• The most important safety device on this
equipment is a SAFE operator. It is the
operator’s responsibility to read and
understand ALL Safety and Operating
instructions in the manual and to follow
these. All accidents can be avoided.
• A person who has not read and
understood all operating and safety
instructions is not qualified to operate the
machine. An untrained operator exposes
himself and bystanders to possible serious
injury or death.
• Do not modify the equipment in any way.
Unauthorized modification may impair the
function and/or safety and could affect the
life of the equipment.
• Think SAFETY! Work SAFELY!
Safety
SAFETY GENERAL SAFETY

-4-
M0296 - MACH TILL 302|362 (REV. 2/20)

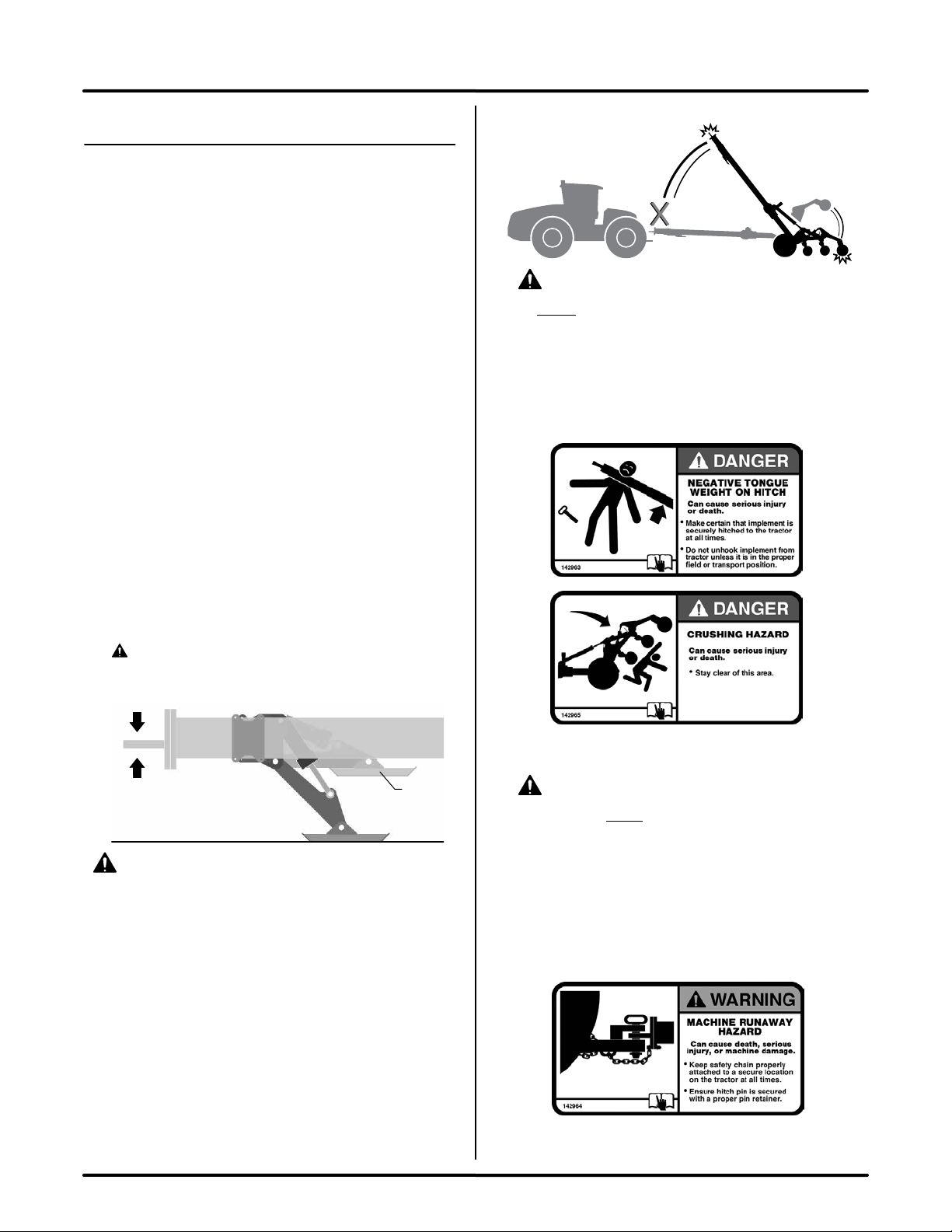

The Mach Till should always be parked on a level, dry
area that is free of debris and foreign objects. Follow this
procedure to hook-up:
1. Clear the area of bystanders and remove foreign
objects from the machine and working area.
2. Make sure there is enough room to back the tractor
up to the trailer hitch.
3. Start the tractor and slowly back it up to the hitch
point.
4. Connect the hydraulics. To connect, proceed as
follows:
• Use a clean cloth or paper towel to clean the cou-
plers on the ends of the hoses. Also clean the area
around the couplers on the tractor. Remove the
plastic plugs from the couplers and insert the male
ends.
• Be sure to match the pressure and return line to one
valve bank.
• Hoses have been labelled in a suggested order of
priority from most used to least: (1) Wheels
(2) Rollers (3) Transport (4) Wings (5) Jack
5. Use the hydraulic jack controls to raise or lower the
hitch to align with the drawbar.
IMPORTANT: Close the ball valve (if equipped) to
prevent accidental operation of this circuit. Ensure ball
valve handle remains in closed position.
WARNING:Tractor MUST be equipped with a clevis
hitch to prevent unit from tipping upward while folding
into and out of transport. A safety chain must also
always be properly installed.
6. Slowly back tractor up to align the hitch.
7. Install a drawbar pin with provisions for a
mechanical retainer such as a KLIK pin.
Install the retainer.
8. Install a safety chain between the tractor and the
hitch.
9. Connect lights (electrical socket plug) to tractor.
10. Raise the hydraulic hitch jack.
11. When unhooking from the tractor, reverse the above
procedure.
HOOK-UP / UNHOOKING
Hook-Up
Raised
Position
WARNING/DANGER:
Never disconnect Mach Till from tractor if
rear sections of machine are partially raised.
Negative Hitch Weight may result, the hitch pole
may suddenly raise, and the rear section would
come crashing down. Only disconnect when unit
is on level ground in the proper transport or field
position.
WARNING/DANGER:
The tractor MUST be properly equipped with a
clevis hitch and safety chain to prevent Negative
Hitch Weight occurring when raising or lowering
the rear sections.
If the unit is not properly attached to the tractor
with a clevis hitch and safety chain, the negative
hitch weight could result in the hitch pole
suddenly raising and the rear section to come
crashing down.

-5-
M0296 - MACH TILL 302|362 (REV. 2/20)

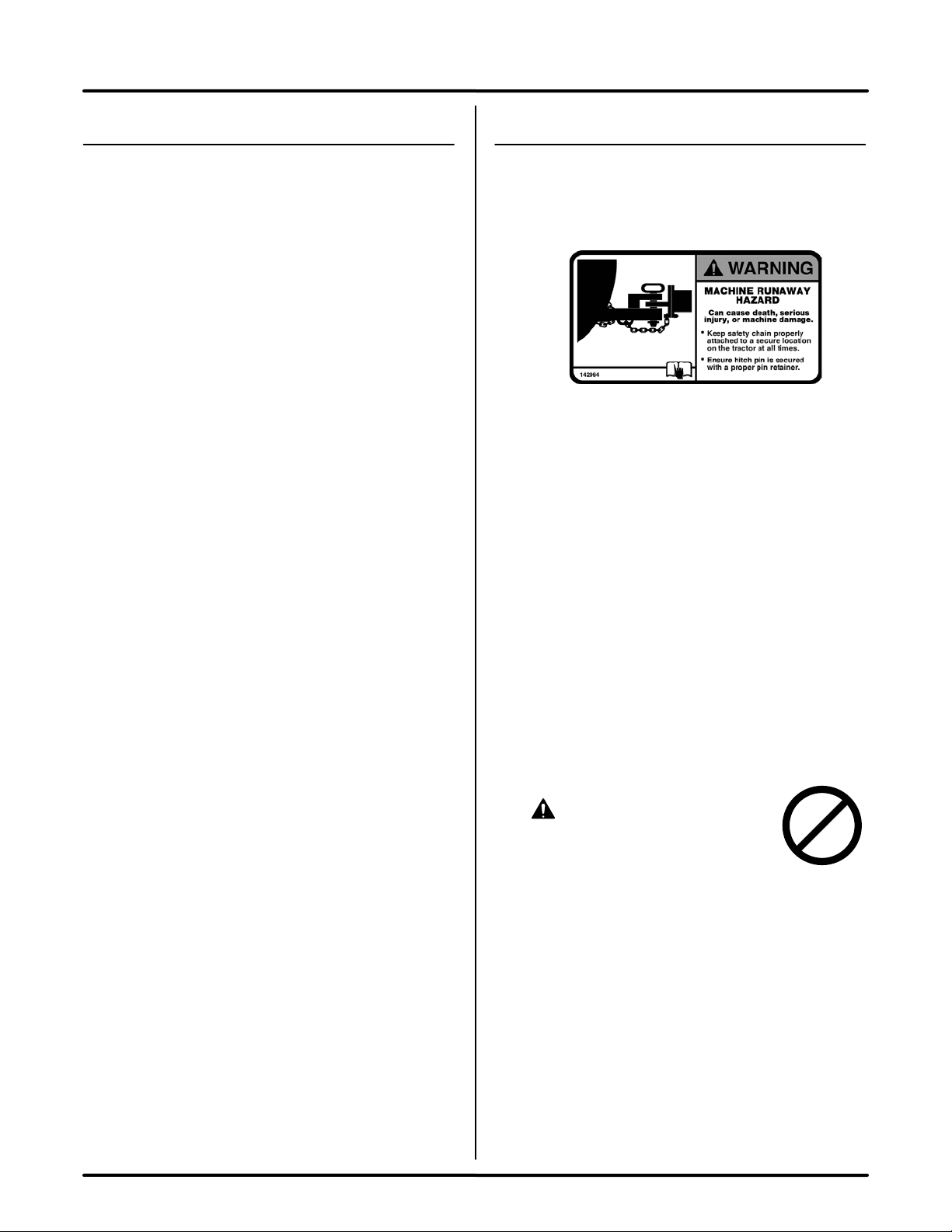

1. Read and understand ALL the information in the
Operator’s Manual regarding procedures and
SAFETY when operating the Mach Till in the
field/yard or on the road.
2. Check with local authorities regarding machine
transport on public roads. Obey all applicable
laws and regulations.
3. Always travel at a safe speed. Use caution when
making corners or meeting traffic.
4. Make sure the SMV (Slow Moving Vehicle) sign,
and all the lights and reflectors that are required
by the local highway and transport authorities
are in place, are clean and can be seen clearly
by all overtaking and oncoming traffic. Be
sure to check with local highway authorities
and comply with their lighting and transport
requirements.
5. Keep to the right and yield the right-of-way to
allow faster traffic to pass. Drive on the road
shoulder, if permitted by law.
6. Always use hazard warning flashers on tractor
when transporting unless prohibited by law.
7. Always use a pin with provisions for a
mechanical retainer and a safety chain when
attaching to a tractor or towing vehicle.
TRANSPORT SAFETY
Use the following guidelines while transporting the
Mach Till:
1. Use a safety chain and a pin with provisions for
a mechanical retainer.
2. Ensure Mach Till is in the full transport position
with the wing rollers secure and properly in
place.
3. Ensure debris that may fall or become dislodged
during transport is removed.
4. Be sure hazard lights are flashing and SMV
decal is visible.
5. MAXIMUM RECOMMENDED TRANSPORT
SPEED: MAX 40 km/h or 25 mph.
(Road Conditions, Field speeds may be lower.)
Due to weight of the machine and tire ratings,
do not exceed the recommended maximum
speeds or severe tire damage / excessive wear
may occur.
6. If the Mach Till is to be towed in Transport for an
extended duration with speeds up to 40km/hr,
the centre frame wheels (transport tires) must be
checked and properly inflated: 80 PSI (552 kPa).
IMPORTANT: Under NO
CIRCUMSTANCES should there
ever be riders while the Mach Till
is in transport.
TRANSPORTING
RIDERS
Transport

-6-
M0296 - MACH TILL 302|362 (REV. 2/20)

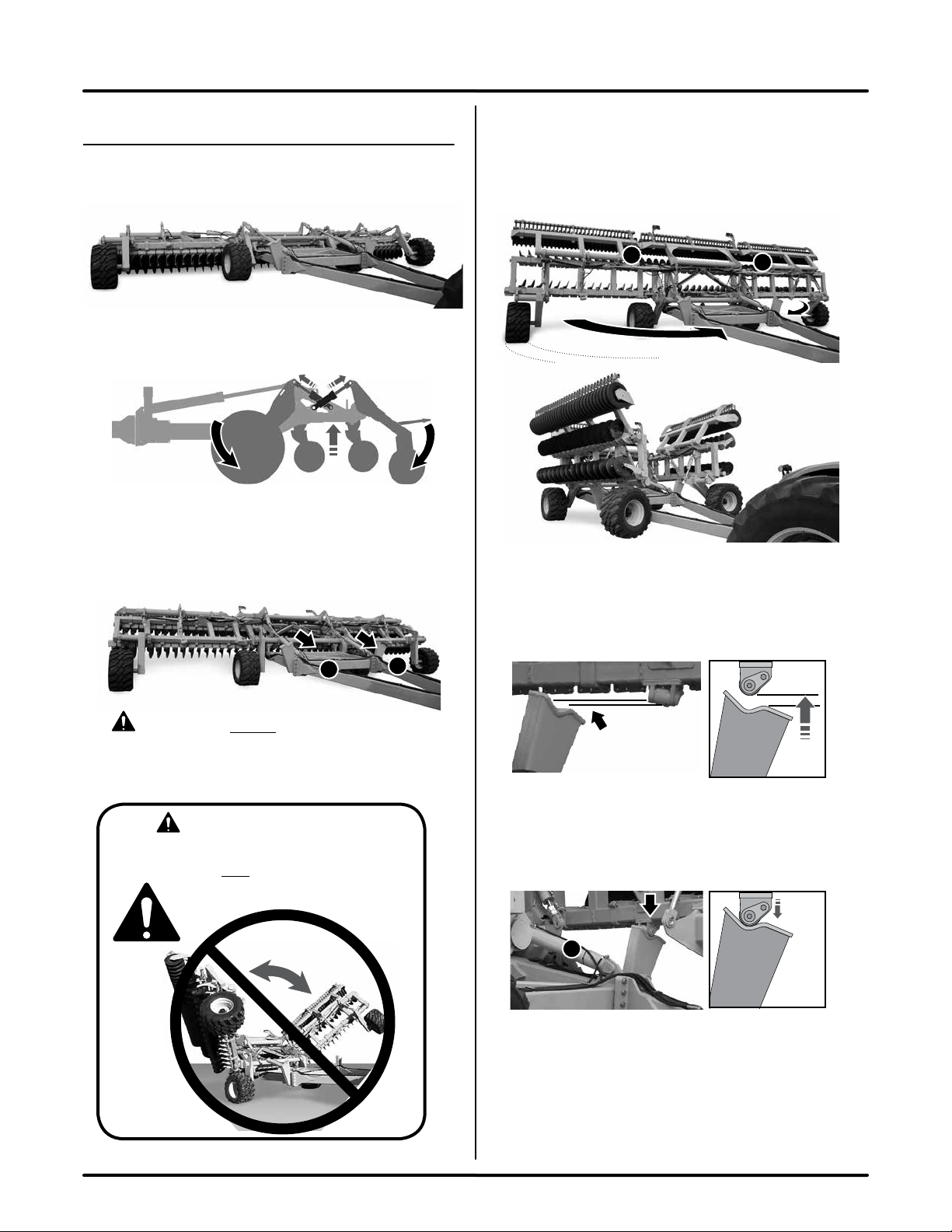

TRANSPORT TO FIELD POSITION
3
3
3
3
33
D. After fully opening the wings, extend the Transport
Cylinders (#3) to completely lower all the Mach Till rear
frame sections to the ground.
FOLLOW PROCEDURE BELOW:
44
3
E. Place the Transport Cylinders (#3) into FLOAT
position before operation.
IMPORTANT: The Transport
Cylinders MUST be in the "FLOAT"
position in order for the Mach Till
to properly contour the ground
and to avoid possible cylinder
or equipment damage.
C. Extend the Wing Cylinders (#4) to fully open the
wings behind the machine.
B. Slightly extend the Transport Cylinders (#3) just
enough to remove the weight of wings off from
the wing transport carriers. Do not lift more than
needed.
IMPORTANT:Do Not fully extend the transport
cylinders at this point. Follow proper procedures to
prevent possible equipment damage or failure.
1”
3WingWing
TransportTransport
CarrierCarrier
NEVER LIFT WINGS!
Unfold using the Wing Cylinders (4),
then lower all rear sections using
the Transport Cylinders (3).
Transport to Field Position Overview
F. Wing Cylinders (#4):
During operation,
the wing circuit
hydraulics need
to be engaged constantly from the tractor, in the
extended direction. This will ensure constant down
pressure is applied to the wings and the machine
can still contour over uneven terrain effectively.
(Refer to your tractor's manual for proper procedures.)
(IMPORTANT: The Mach Till model design may vary, but the
general procedure remains the same. *Mach Till 40 shown.)
A. On level ground,
position the Mach Till
so it is straight in-line
behind the tractor.
IMPORTANT: The Mach Till model shown may differ, but the
general procedure remains the same.
(*Mach Till 40 shown)

-7-
M0296 - MACH TILL 302|362 (REV. 2/20)
FIELD TO TRANSPORT POSITION
33
B. Retract the Transport Cylinders (#3), fully raising the
complete rear section (center & both wing sections).
IMPORTANT:Do Not retract the wing cylinders to
raise the wings at this point. Follow proper procedures
to prevent possible equipment damage or failure.
FOLLOW PROCEDURE BELOW:
E. With the wings in the proper position, retract
the Transport Cylinders (#3) fully lowering the
wings onto the wing transport carriers.
3
A. Fully extend the Wheel & Roller Cylinders (#1 & #2)
to completely raise the disc frames.
NOTE:It is important to fully raise the disc frames
up as high as possible as it puts the rollers and
wheels in the correct position for low transport.
C. After raising all the rear sections together,
retract the Wing Cylinders (#4) to bring both
wings inward towards the frame.
44
D. When the wings get close to the wing transport
carriers, you may need to slightly extend the
Transport Cylinders (#3) so the rollers can reach
the correct position.
May need toMay need to
raise over humpraise over hump
1”
WingWing
TransportTransport
CarrierCarrier
NEVER LIFT WINGS!
Lift rear sections using the Transport
Cylinders (3), then fold the wings forward
using the Wing Cylinders (4).
Field to Transport Position Overview
IMPORTANT: The Mach Till model shown may differ, but the
general procedure remains the same. (*Mach Till 40 shown)

-8-
M0296 - MACH TILL 302|362 (REV. 2/20)

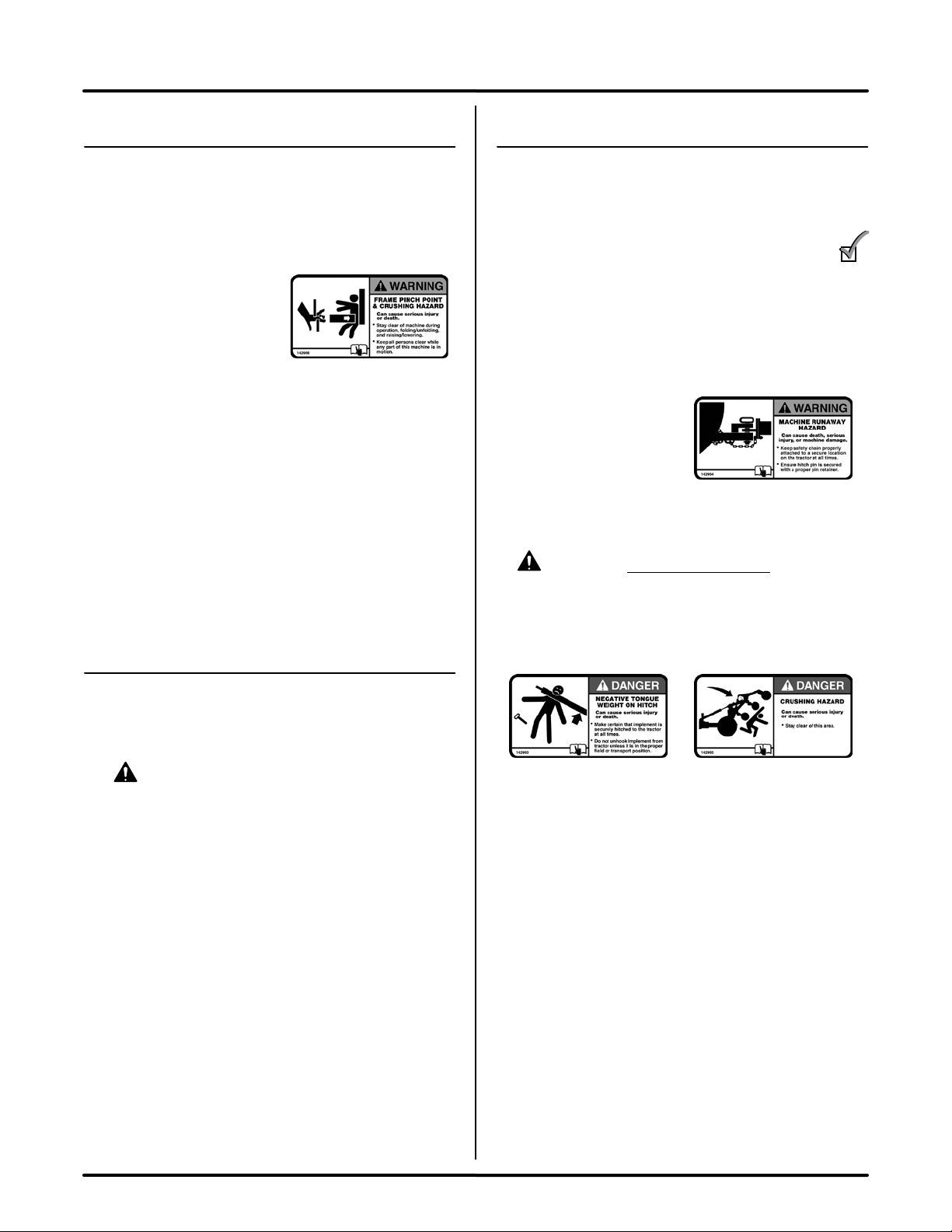

Before operating the machine and each time thereafter,
the following areas should be checked off:
1. Lubricate the machine per the schedule outlined in
the “Maintenance Section”.
2. Use only a tractor with adequate power to pull the
Mach Till under ordinary operating conditions.
NOTE: It is important to pin the drawbar in the
central location only.
3. Ensure that the machine
is properly attached to
the tractor using a clevis
hitch, safety chain and
a drawbar pin with provisions for a mechanical
retainer. Make sure that a retainer such as a Klik
pin is installed.
WARNING:Negative Hitch Weight may occur
when raising or lowering the rear sections. If the unit
is not properly attached to the tractor with a clevis
hitch and safety chain, the negative hitch weight
could result in the hitch pole to suddenly raise and
the rear sections to come crashing down.
4. Before using, inflate tires to:
End Wheel Tires:
550/45 R22.5: 41 PSI (283 kPa)
Center/Transport Tires (382 FLOTRUCK):
600/50 R22.5: 58 PSI (400 kPa)
5. Check oil level in the tractor hydraulic reservoir.
Top up as required.
6. Inspect all hydraulic lines, hoses, fittings and
couplers for tightness. Tighten if there are leaks.
Use a clean cloth to wipe any accumulated
dirt from the couplers before connecting to the
tractor’s hydraulic system.
7. Inspect the condition/wear of the discs. If needed
or desired, adjust the Disc Cutting Depth as
outlined in the adjustments section. If excessive
disc wear is evident, replacement may be
required. Refer to maintenance section.
PRE-OPERATION CHECKLIST
It is important for both personal safety and maintaining
good operational condition of the machine that the pre-
operational checklist be followed.
1. Read and understand the Operator’s Manual
and all safety signs before using.
2. Stop tractor engine, set park brake, remove
ignition key and wait for all moving parts to
stop before servicing, adjusting, repairing or
unplugging.
3. Keep hands, feet, hair
and clothing away
from all moving and/
or rotating parts.
4. Do not allow riders on the Mach Till tractor
during operation or transporting.
5. Keep all shields and guards in place when
operating (if applicable).
6. Clear the area of all bystanders, especially
children, before starting.
7. Do not operate machine on overly steep side hills
or slopes.
8. Be careful when working around or
maintaining a high-pressure hydraulic system.
Ensure all components are tight and in good
repair before starting.
OPERATING SAFETY
Although there are no operational restrictions on the
Mach Till when it is new, there are some checks that
should be done when using the machine for the first
time, follow this procedure:
IMPORTANT:It is important to follow the Break-In
procedures especially those listed in the “Before using”
section below to avoid damage:
A. Before using:
1. Read Safety Info. & Operator’s Manual.
2. Complete steps in “Pre-Operation Checklist”.
3. Lubricate all grease points.
4. Check all bolt tightness.
5. Confirm Ridge Wipers are installed in proper
position after shipping and adjusted.
6. Adjust Disc Cutting Depth as outlined in
the “Setting Disc Depth” section.
B. After operating for 2 hours:
1. Check all hardware. Tighten as required.
2. Check all hydraulic system connections.
Tighten if any are leaking.
BREAK-IN
Operation

-9-
M0296 - MACH TILL 302|362 (REV. 2/20)

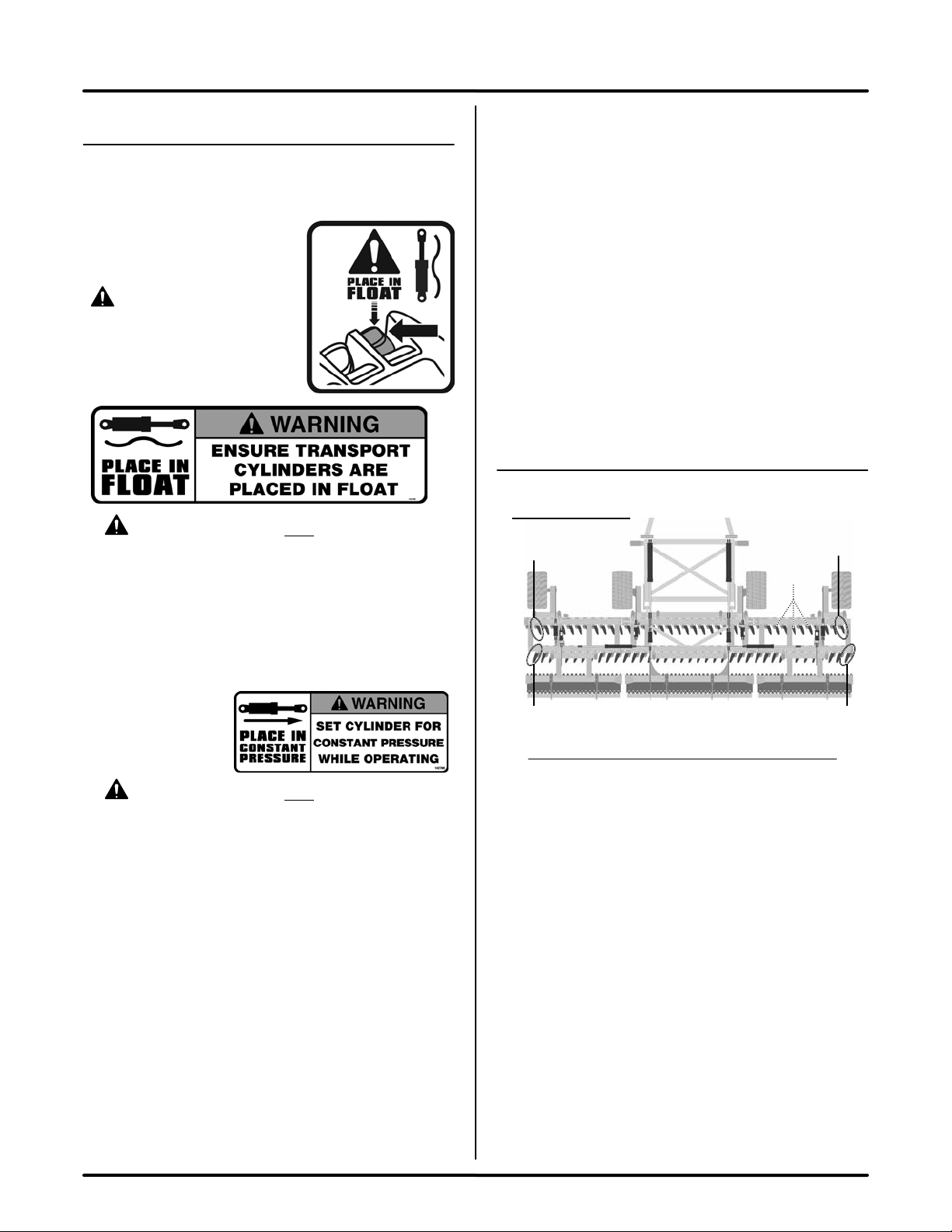

Operation
1. Re-phase and cycle oil in the Depth Control Cylinders
(Wheels #1 and Rollers #2) before use. This is
especially important after long periods of storage.
2. Place the Transport Cylinders
(#3) into the FLOAT position
before operation.
IMPORTANT:The Transport
Cylinders MUST be in the FLOAT
position for the Mach Till to
contour properly and to avoid
possible cylinder or equipment
damage.
IMPORTANT:Operator must read and understand
the tractor manual in order to place the required
hydraulic circuits into float position.
3. Wing Cylinders (#4): During operation, the wing
circuit hydraulics need to be engaged constantly
from the tractor, in the extended direction. This will
ensure constant down pressure is applied to the
wings and the machine can still contour over uneven
terrain effectively.
IMPORTANT:Operator must read and understand
the tractor manual in order to place the required
hydraulic circuits into constant pressure position, in the
correct direction.
4. IDEAL OPERATING SPEED is 10-12 mph.
Minimum operating speed is 8 mph.
Maximum operating speed is 14 mph.
5. When making headland turns, the operator may
wish to slightly raise the disc sections by activating
the Wheel (#1) or Roller (#2) cylinders (or both).
Remember to lower after coming out of the turn.
6. Each time you start a new field you may need to
adjust the cutting depth depending on the type of
crop residue or soil conditions. The operator can
adjust the cutting depth by raising/lowering the front
or rear sets of discs by following the guidelines in the
“Setting Disc Depth” section.
OPERATING GUIDELINES
FACTORY DISK SETUP
7. After making adjustments to the cutting depth it is
recommended to bring the Mach Till up to speed
(10-12mph) to test the depth setting by driving about
100m (cutting performance changes dramatically
from a slow speed to high speed). Stop, check depth
and cut of field, re-adjust the height higher or lower,
if needed, based on your preference. Remember:
Removing a 1/4” stop lowers cutting depth 1/2”
deeper, Adding a 1/4” stop raises discs up 1/2”
higher.
8. Harder, packed soil may require additional passes
for optimum results. It is recommended to do a
second pass at an angle to the original pass.
18" Outer Disc
RH Front
20" Discs
at all other
locations
18" Outer Disc
LH Rear
18" Outer Disc
RH Rear
20" Disc Setup Mach Till 30/36
18"

-10-
M0296 - MACH TILL 302|362 (REV. 2/20)
Operation
DEPTH SETTING OVERVIEW
Adjusting the cutting depth of the front and rear
discs is accomplished by adding or removing a
number of spacers from specified cylinders.
The spacers limit the stroke distance of the cylinders,
changing the amount that the front and rear of the
disc frames are lowered.
Each spacer that is added to the cylinders raises
the frame height by 1/2”. Therefore, to lower discs
deeper into the soil, you would remove one spacer
for each 1/2” of depth change required.
A typical recommended penetration depth of 2” is
suggested for both front and rear discs. This depth,
however, can be adjusted to the operators needs
and preferences or based on different crop varieties
and soil conditions.
Some operators may also prefer to adjust the front
or rear frame disc sections to run slightly higher
than the other. Adjustments to the front or rear disc
sections are done individually:
• Adjust the front disc height by adding/removing
spacers to the two outer wing end wheel cylinders.
• Adjust the rear disc height by adding/removing
spacers to the two outer rear wing roller cylinders.
NOTE: As the discs wear with usage, the disc depth
settings will also need to be adjusted accordingly.
Use the following as a guideline for setting depth:
1. Drive the Mach Till onto level ground. For initial
setup, try "12 Spacers" on each cylinder stop.
2. Fully retract the Wheel (#1) and Roller (#2)
cylinders to lower rear frame to ground.
3. Check the penetration depth of the front and
rear row of discs. Take note of how much you
would like to raise or lower both the front and
rear disc sections - round to the nearest 1/2”.
4. Fully raise the frame back off the ground by
extending the Wheel (#1) and Roller (#2)
cylinders.
5. Adjust Front Disc height at the two outer wing
end wheel cylinder positions.
Lower Front Discs - Remove one spacer for
each 1/2” you want to Lower it.
Raise Front Discs - Add one spacer for
each 1/2” you want to Raise it.
6. Adjust Rear Disc height from the two outer wing
roller cylinders positions.
Lower Rear Discs - Remove one spacer for
each 1/2” you want to Lower it.
Raise Rear Discs - Add one spacer for
each 1/2” you want to Raise it.
7. Repeat above procedure until proper depth is
achieved.

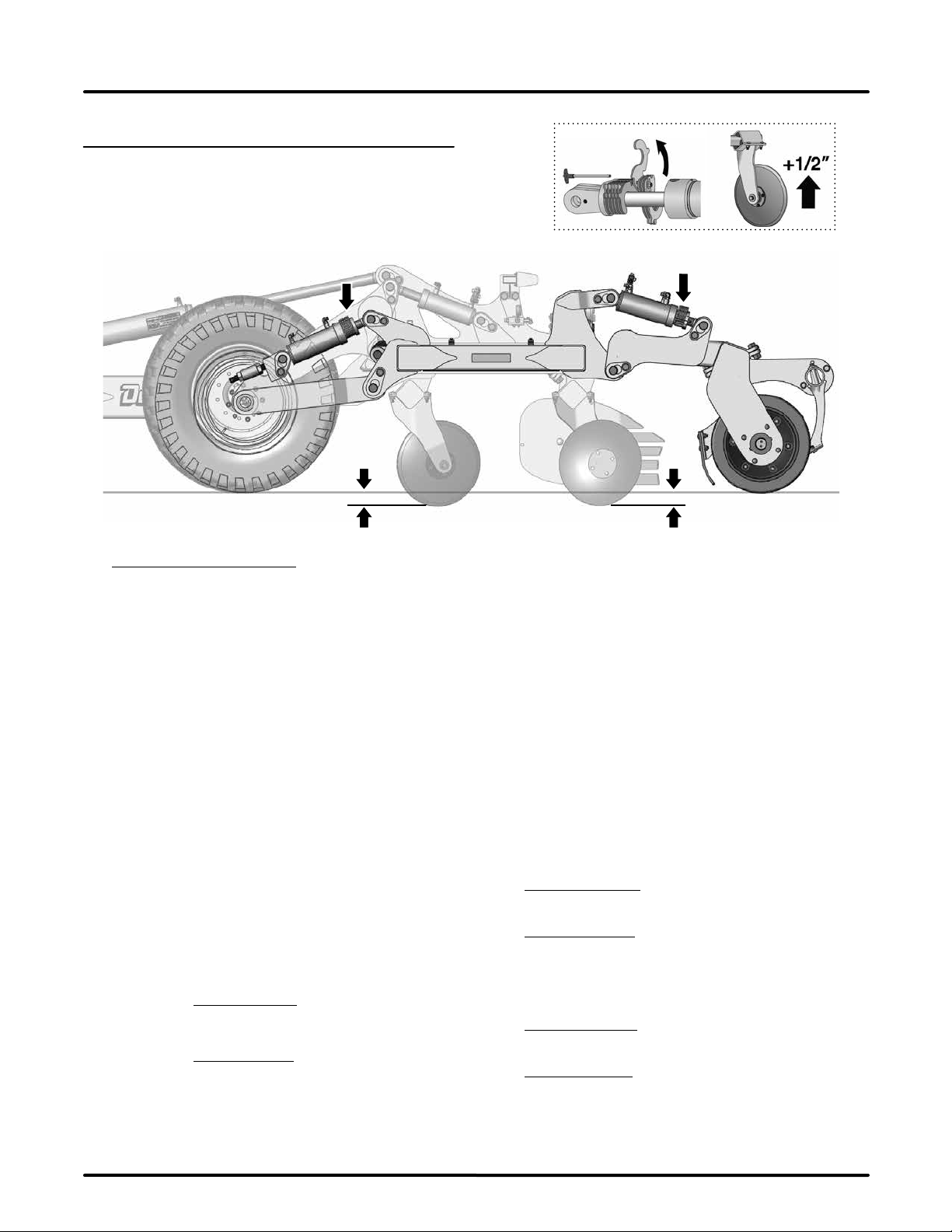

SETTING DISC DEPTH - FRONT AND REAR
Typically Set to 2”Typically Set to 2”
Front Disc DepthFront Disc Depth
AdjustmentAdjustment
Rear Disc DepthRear Disc Depth
AdjustmentAdjustment

-11-
M0296 - MACH TILL 302|362 (REV. 2/20)
Operation

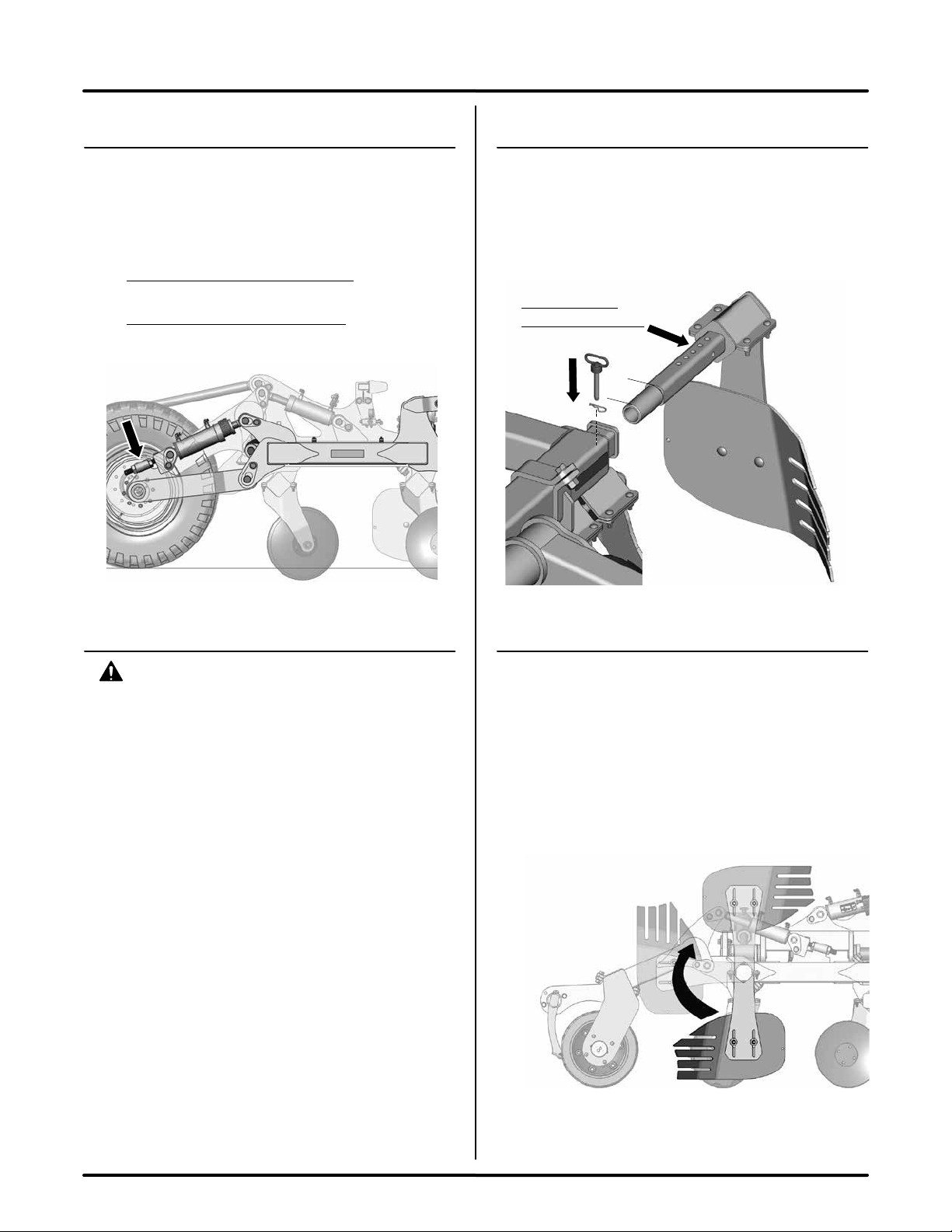

Deflector Arm
Length Adjustment
6"
SETTING DIRT DEFLECTOR ARM DISTANCE
The Dirt Deflector Arm has multiple extension settings.
The position can be adjusted to the operator's
preference depending on the disc/frame pitch settings
and soil conditions. For example, if the deflector is
plugging or restricting the flow of dirt and trash, you
may wish to move the deflector arm outward.
HeightHeight
AdjustmentAdjustment
WING FRAME OUTER END ADJUSTMENT
Some operators may prefer to adjust the outer wing
frame corner depth if they find that it is running deeper
or shallower than the level of the center frame. There
is a threaded rod on the End Wheel Cylinder (both LH
and RH sides) that will allow adjustments to this height:
• Lengthening adjustment rod length:
- Raises the outer wing
• Shortening adjustment rod length:
- Lowers the outer wing
DISENGAGING THE DIRT DEFLECTOR
The Dirt Deflector may be rotated into a disengaged
position by following these simple instructions:
- Remove the pin securing the deflector arm.
- Pull out the deflector arm only far enough to where
the round pipe is connected to the square tube.
(Note: The round pipe section is only 6" long.
If you pull it out too far, it will fall out.)
- Rotate the deflector arm upward to either the 90° or
180° position, as desired. (See Below)
- Re-install the pin to secure
deflector arm in place.
If preferred, the deflector arm could also be completely
removed and stored by pulling the pin and removing.
90°
180°
PROCEDURE TO SET DEFLECTOR HEIGHT:
IMPORTANT:You may need to adjust the deflector
height according to soil penetration. Best setting is when
deflector runs just slightly above the ground.
The following is a recommended procedure to set the
height of the dirt deflector:
1- Run the machine with discs set to the proper depth.
2 - Stop the machine.
3 - Adjust the height so the deflector is running just
slightly above the ground.

-12-
M0296 - MACH TILL 302|362 (REV. 2/20)
Operation
SCRAPER POSITION OVERVIEW
Storage Position
Maintenance Position
Engaged Position
Gap Distance
1/4”-3/8”
Remove the
4 bolts to rotate
into or out of
“Storage position”
then re-install.
Retighten main
bolts or insert a
bolt/pin here to
hold in raised
position.
SCRAPER SIDE-TO-SIDE POSITIONING
Inspect that the scraper plates are
as close to centered as possible
in the roller groove & that no
scrapers are touching the sides
of the rubber roller. (Ideally there
should be a 1/4" gap)
If adjustment is needed, loosen the
scraper arm clamps and adjust position until there is
proper clearance on all edges. You may need to slightly
adjust engagement distance if side-to-side is unsuccessful.
Loosen Clamps to Adjust Side to Side
Needs Adjustment
1/4" Gap Both Sides
Loosen the top bolt to
adjust, then hold in place
while re-tightening.
INDIVIDUAL SCRAPER ARM ADJUSTMENT
The individual scraper arm
position can also be fine
tuned by loosening the top
mounting bolt, adjusting
the position, and then
"holding in place" while
retightening the bolt.
Hole for holding
in maintenance
position.
SETTING SCRAPER POSITION
Change into Storage Position:
• Loosen & remove the 4 bolts (2 per arm).
• Rotate section upward to new position.
• Reinstall bolts and tighten in place.
• Reverse procedure to put into working position.
Change into Maintenance Position (from engaged):
• Loosen the 4 bolts (2 per arm).
• Rotate section upward until top hole is open.
• Tighten bolts to secure and/or
insert bolt or insert pin (user supplied)
into top hole to secure in position.
Change into Engaged Position (from maintenance):
• Loosen the 4 bolts (2 per arm).
• Rotate section down until scraper blades are set
to proper distance from inner roller groove.
(1/4" to 3/8" is the recommended distance)
• Tighten bolts to secure in position.

-13-
M0296 - MACH TILL 302|362 (REV. 2/20)
Troubleshooting - Mach Till 30/36
Not folding up for transport:
- Ensure hydraulic coupler has not disengaged or try a
different tractor hydraulic port.
- Check for hose or fitting leaks.
- Tractor hydraulic system should have 2800 psi.
- Hydraulic fluid bypassing piston seals in one or both
hydraulic cylinders. (Replace cylinder or re-build with
new seals).
- Excessive mud built up on frame & rollers. Clear off
frame raise discs all the way up & drive 12-14 mph
on firm soil to clear rollers.
Restriction or blocking on right side:
- Raise the deflector plate.
- Raise working depth of adjustable disc.
- Raise machine working depth.
- Reduce operating speed slightly.
- Extend right hand wheel adjustment to lift end of wing.
- Check condition & operation of disc hubs (make sure
they turn freely).
- Wait for soil conditions to dry out more.
Rear discs or roller not engaging in very
hard soil:
- Adjust pitch so front discs are higher by adding two
depth stops or more to wheel cylinders only (It may
be necessary to lower overall machine depth also).
- Momentarily take out of float & extend transport
cylinders to simulate a rigid hitch (flat ground only).
Re-engage float as soon as possible to avoid possible
equipment damage.
Tractor oil temperatures are too high:
- Lower the flow on the wing circuit hydraulic remote.
(Please refer to the Tractor's Operators Manual)
Mud not clearing from rubber rollers:
- Check scraper to roller distance & adjust if necessary
(scraper should be 1/4" to 3/8” from roller).
- Check scraper plate wear & adjust or replace as
necessary (replace all scrapers per row at the same time).
- Check scraper row adjustment for slippage &
re-torque or replace hardware if necessary.
Roller plugged in wet conditions:
- Retract transport cylinders to pass over pushed up
mound & smooth out when soil dries.
- Raise discs all the way up & drive 12-14 mph on firm
soil to clear rollers.
- In certain wet soil conditions place scrapers in storage
position to continue operating.
- If plugging persists wait for soil conditions to dry out
even more.
Roller skidding in wet conditions:
- Check scraper operation & settings.
- Raise machine working depth.
- Adjust pitch so rear discs are slightly higher & raise
machine working depth.
- Momentarily take out of float & extend transport
cylinders to simulate a rigid hitch (flat ground only).
Re-engage float as soon as possible to avoid possible
equipment damage.
- Wait for soil conditions to dry out more.
- Check condition & operation of bearings on both ends
of the rollers.
Plugging disc rows in wet conditions:
- Ensure roller is turning & scrapers are set properly.
- Raise machine working depth.
- Increase operating speed slightly.
- Adjust pitch so front discs are slightly higher
(add one more depth stop plate to wheel cylinders).
- Fully extend wheel & roller depth cylinders & hold for
30 seconds to re-phase.
- Check condition & operation of disc hubs (make sure
they turn freely).
- Wait for soil conditions to dry out more.
Leaving a ridge or a groove between rollers:
- Adjust ridge wiper down slightly to remove ridge.
- Adjust ridge wiper up slightly to eliminate groove.

-14-
M0296 - MACH TILL 302|362 (REV. 2/20)
Troubleshooting - Mach Till 30/36
Leaving a ridge or a groove between passes:
- Adjust deflector up to reduce ridge.
- Adjust deflector down to fill groove.
- Set right rear adjustable disc lower if there is a ridge.
- Set right rear adjustable disc higher if there is a groove.
- Check that end disc size configuration matches factory
suggested setup.
- Reduce implement width on guidance for slightly more
overlap.
Subsoil leaving a groove/ridge every 10”:
- Adjust pitch to level machine (disc rows are not set to
the same depth).
- Adjust pitch to lower/raise rear disc row (front is
prone to running deeper with floating hitch & firm soil
conditions).
- Rear discs following in front disc groove (see
troubleshooting for this below).
End of wing discs cutting deeper or
shallower than center:
- Fully extend wheel & roller depth cylinders & hold for
30 seconds to re-phase.
- Adjust the threaded rods on the end wheels:
• Lengthen to lift end of wing if cutting deeper.
• Shorten to lower end of wing if cutting shallower.
- Check for same number of depth control plates used
on each side.
- Adjust the wing down pressure valve using an allen
wrench. IMPORTANT: Do not exceed 1400psi or
mechanical damage will occur.
Hopping or leaving waves:
- Change operating speed (best performance is
achieved over 10 mph).
- Change field working angle (best finishing at 5 to 20
degrees off previously worked).
- Adjust working depth (deeper & run slower or
shallower to run faster).
- Pre-work heavy trash or wet areas at a slower speed
& at a different angle than final pass.
- Wait for soil conditions to dry out more.
- Ensure the wing circuit hydraulic remote is constantly
engaged in the extended direction.
Tracking to the left:
- Add a depth stop to wheel cylinders to
adjust the pitch so the front disc is higher.
- Reduce implement width on guidance
system for slightly more overlap.
- Adjust implement offset on guidance
system to the right.
Tracking to the right:
- Add a depth stop to roller cylinders to
adjust the pitch so the rear disc is higher.
- Reduce implement width on guidance
system for slightly more overlap.
- Adjust implement offset on guidance
system to the left.
Rear discs following in front disc cut or discs
not doing a full cut:
- Adjust tracking by changing implement pitch.
- Adjust entire front row of disc gangs in small
increments either left or right to achieve full cut.
- Check disc wear & adjust gang spacing or replace
discs as necessary (as discs wear move front row
right).
- Check factory settings on disc row locations to verify
gang clamp hardware is tight & clamps have not slipped.
- Adjust GPS to actual cutting width (see chart) minus 6”
overlap per side depending on working depth.
Note: Also consider adjusting the GPS settings
to include a 6" implement offset to the right.
(with 20" discs) 2" Depth MAX Depth
Mach Till 30 352” (8.95m) 355” (9m)
Mach Till 36 431” (10.95m) 434” (11m)
- Adjust working angle to approximately
20 degrees to the right from previously
worked or seeded rows.
(Recommended practice)
