WARRANTY COVERAGE :

Daedong-USA, Inc., DAEDONG Tractor Division, herein referred to as DAEDONG, undertakes to replace

or repair any part of a DAEDONG loader where damage has been proven to be caused by defects in

material or workmanship.

This Warranty is valid for a period of 1 year from the date of the original retail sale. Parts replaced or

repaired under the terms of this Warranty are guaranteed only until the original warranty expires. Warranty

only applies to the original purchaser.

It is further understood and agreed that the defect should be immediately reported to the Selling Dealer. The

Selling Dealer will generally perform Warranty repairs or replacements and the Purchaser shall deliver the

DAEDONG loader to the Dealer’s place of business for repair.

The obligation of DAEDONG to the Purchaser under this Warranty is limited to the repair or replacement of

defective parts by an authorized DAEDONG dealer. Repair or replacement in accordance with this Warranty

shall constitute fulfillment of all liabilities of DAEDONG and the Selling Dealer in respect to DAEDONG

loader.

There are no warranties beyond those which expressly appear herein. Any implied warranty of

merchantability or tness for a particular purpose is specically excluded here from.

WARRANTY CONDITIONS

KL701-AU-00.indd 1 2013-03-29 오전 11:24:43

WARRANTY PROVISIONS :

DAEDONG’s liability under this warranty is subject to the observance by the Purchaser of the following provisions:

1.The purchaser shall at all times in the operation of any DAEDONG Product, use those brands and grades of

lubricating oils, lubricants or fuel and spare parts ofcially approved by DAEDONG.

2. The DAEDONG loader shall have been used in accordance with the procedures specified in the Operator’s

Manual. This Warranty does not extend to damage resulting from misapplication, abuse, misuse, failure to preform

maintenance, negligence, re, accidents or changes or faulty mounting carried out by the Purchaser. When making a

Warranty exchange of parts, the Purchaser shall compensate DAEDONG for the time that the parts have been used

if they have been exposed to extreme wear.

3. Compensation is not paid for physical harm, deadlock, resulting damages or other losses.

4. To obtain warranty service, the Purchaser must (1) report the product defect to an authorized DAEDONG dealer and

request repair within the applicable warranty term and (2) present evidence of purchase.

5. The Warranty shall be void if the DAEDONG loader has been altered or repaired outside of a DAEDONG dealership

or travel of dealer personnel to customer location for Warranty repair. The customer shall also pay any premium for

overtime labor requested by the dealership

6.Temporary repairs or additional costs due to the work being performed after normal working hours will not be

compensated.

7. The above warranty is in lieu of all other warranties on DAEDONG’s behalf and neither party assumes any other

liability in connection with DAEDONG’s Products.

8. Any dispute arising between DAEDONG and the Purchaser concerning the liability of DAEDONG under this warranty

shall be subject to the laws of the State of North Carolina.

RIGHT TO MAKE DESIGN AND PRODUCT CHANGES:

DAEDONG reserves the right to make changes in the design and other changes in its DAEDONG Products

at any time without incurring any obligation with respect to any product previously ordered, sold or shipped.

WARRANTY CONDITIONS

KL701-AU-00.indd 2 2013-03-29 오전 11:24:43

Make sure all potential operators of this equipment review this manual and all safety messages contained

within.

PLEASE NOTE

SIGNS DESCRIPTION

CAUTION

This mark indicates important safety messages in this manual. When you see

this symbol, carefully read the message that follows and be alert to the possi-

bility of personal injury or death.

WARNING

IMPORTANT

NOTE

This mark indicates potentially hazardous situation which, if not observed, may

result in death or moderate injury.

This mark indicates emphasis on notable characteristics in working proce-

dures or information on working procedures and technology for convenient

use.

This mark indicates general comments or notes.

KL701-AU-00.indd 3 2013-03-29 오전 11:24:44

KL701-AU-00.indd 8 2013-03-29 오전 11:24:44

SAFETY PRECAUTIONS ..............................................................

SAFETY DECALS......................................................... ................

LOADER SPECIFICATIONS .........................................................

INTRODUCTION............................................................................

TRACTOR PREPARATION ...........................................................

LOADER OPERATION ..................................................................

LOADER REMOVAL ....................................................................

LOADER MOUNTING....................................................................

LUBRICATION AND MAINTENANCE...........................................

TROUBLE SHOOTING..................................................................

HYDRAULIC SYSTEM .................................................................

TORQUE TIGHTENING CHARTS.................................................

SECTION

CONTENT I

12

11

10

9

8

7

6

5

4

3

2

1

KL701-AU-00.indd 5 2013-03-29 오전 11:24:44

KL701-AU-00.indd 8 2013-03-29 오전 11:24:44

PARTS ILLUSTRATIONS..............................................................

ILLUSTRATIONS...................................................................................13-2

BUCKET, QUICK ATTACHMENT ..........................................................13-4

4IN1 BUCKET ASSEMBLY....................................................................13-6

FRONT GRILL ASSEMBLY (OPTIONAL)..............................................13-10

MOUNTING FRAME ASSEMBLY..........................................................13-12

BOOM ASSEMBLY................................................................................13-14

BOOM HYDRAULIC ASSEMBLY ..........................................................13-18

BOOM HYDRAULIC ASSEMBLY (4IN1 STD).......................................13-22

AUXILIARY HYDRAULIC DEVICE (OPTION).......................................13-28

BOOM CYLINDER ASSEMBLY-LH .......................................................13-30

BOOM CYLINDER ASSEMBLY-RH.......................................................13-32

BUCKET CYLINDER ASSEMBLY .........................................................13-34

DECALS ................................................................................................13-36

SECTION

CONTENT II

13

LOADER INSTALLATION .............................................................

INDEX..........................................................................................

14

15

KL701-AU-00.indd 7 2013-03-29 오전 11:24:44

KL701-AU-00.indd 8 2013-03-29 오전 11:24:44

1

1. SAFETY PRECAUTIONS

SAFETY ...................................................................................................1-2

SAFETY PRECAUTIONS .........................................................................1-2

KL701-AU-01.indd 1 2013-03-29 오전 11:25:03

1-2 KL701

Understand that your safety and the safety of other

persons is measured by how you service and operate this

loader. Know the position and operations of all controls

before you try to operate. Make sure you check all

controls in a safe area before starting.

Read this manual completely and thoroughly and

make sure you understand all controls. All equipment has

a limit. Make sure you are aware of the stability and load

characteristics of this loader before you begin operation.

The safety information given in this manual does not

replace any safety codes, insurance needs, federal, state

and local laws. Make sure your machine has the correct

equipment required by your local laws and regulations.

SAFETY SAFETY PRECAUTIONS

Before starting the engine of your tractor, make sure all

operation controls are in park lock or neutral position.

Operate controls only when seated in the operator’s seat.

Equip your tractor with a ROPS cab or frame for your

protection. See your tractor operator’s manual for correct

seat belt usage.

A frequent cause of personal injury or death is persons

falling off and being run over. Do not permit others to ride

on your tractor. Only one person, the operator, should be

on the machine when it is in operation.

Before leaving the tractor, stop the engine, put all controls

in neutral, engage the parking brake and remove the key

from the ignition.

When using remote hydraulic tractor valves on some

tractors, the loader lift and dump cylinders will continue

moving unless the control levers are manually returned

to neutral, or until relief pressure is reached at the ends

of piston strokes. Observe the bucket movement and

maintain control with the control levers.

Stop the loader arms gradually when lowering or lifting

loads.

Stay off of slopes too steep for safe operation. Shift down

before you start up or down a hill with a heavy load. Avoid

“free wheeling”.

This safety alert symbol indicates important safe-

ty messages in this manual. When you see this

symbol, carefully read the message that follows

and be alert to the possibility of personal injury or

death.

CAUTION

KL701-AU-01.indd 2 2013-03-29 오전 11:25:04

SAFETY PRECAUTIONS 1-3

1

Travel speed should be such that complete control

and machine stability is maintained at all times. Where

possible, avoid operation near ditches, embankments and

holes. Reduce speed when turning, crossing slopes, and

on rough, slick or muddy surfaces.

Never use your hand to check for suspected leaks

under pressure. Use a piece of cardbord or wood for this

purpose. Escaping hydraulic oil or diesel fuel leaking

under pressure can have sufcient force to penetrate the

skin and cause infection or serious injury, seek medical

attention immediately.

To prevent personal injury, relieve all pressure before

disconnecting uid lines.

Before applying hydraulic pressure, make sure all

hydraulic connections are tight and components are in

good condition.

Contact with overhead power lines can cause severe

electrical burn or death from electrocution.

Make sure there is enough clearance between raised

equipment and overhead power lines.

Add recommended rear tire liquid weight or rear wheel

weights for increased stability.

A loader attachment should be transported in a low

position at slow ground speeds. Make turns slowly and

use the tractor brakes cautiously. A loaded attachment in

the raised position alters the center of gravity location of

the machine and increases the possibility of mishaps.

Do not stand, walk or work under a raised loader or

attachment unless it is securely blocked or held in

position. Accidental movement of a control lever or leak

in the hydraulic system could cause the loader to drop, or

attachment to dump, causing severe injury.

Make sure all parked loaders on stands are on a hard

level surface with all safety devices engaged to prevent

loader from falling and being damaged or injuring

someone.

When using a loader, be alert of bucket position at all

times. Loader in raised position with bucket rolled back

can dump material on tractor causing damage or injury to

tractor and / or operator.

Always park loader with bucket attached to loader.

KL701-AU-01.indd 3 2013-03-29 오전 11:25:04

MEMO

............................................................................................................................................................................

KL701-AU-01.indd 4 2013-03-29 오전 11:25:04

2

2. SAFETY DECALS

SAFETY DECALS.....................................................................................2-2

SAFETY DECAL LOCATIONS ......................................................................................2-2

KL701-AU-02.indd 1 2013-03-29 오전 11:25:23

2-2 KL701

SAFETY DECALS

SAFETY DECAL LOCATIONS

Care of Safety Decals.

1. Keep safety decals clean and free of obstructing material.

2. Clean safety decals with soap and water and dry with a soft cloth.

3. Replace damaged or missing safety decals with new decals from your DAEDONG Dealer.

4.Ifacomponentwithasafetydecal(s)afxedisreplacedwithanewpart,makesurenewsafetydecal(s)areattached

in the same location(s) as the replaced components.

5. Mount new safety decals by applying on a clean dry surface and pressing air bubbles to outside edges.

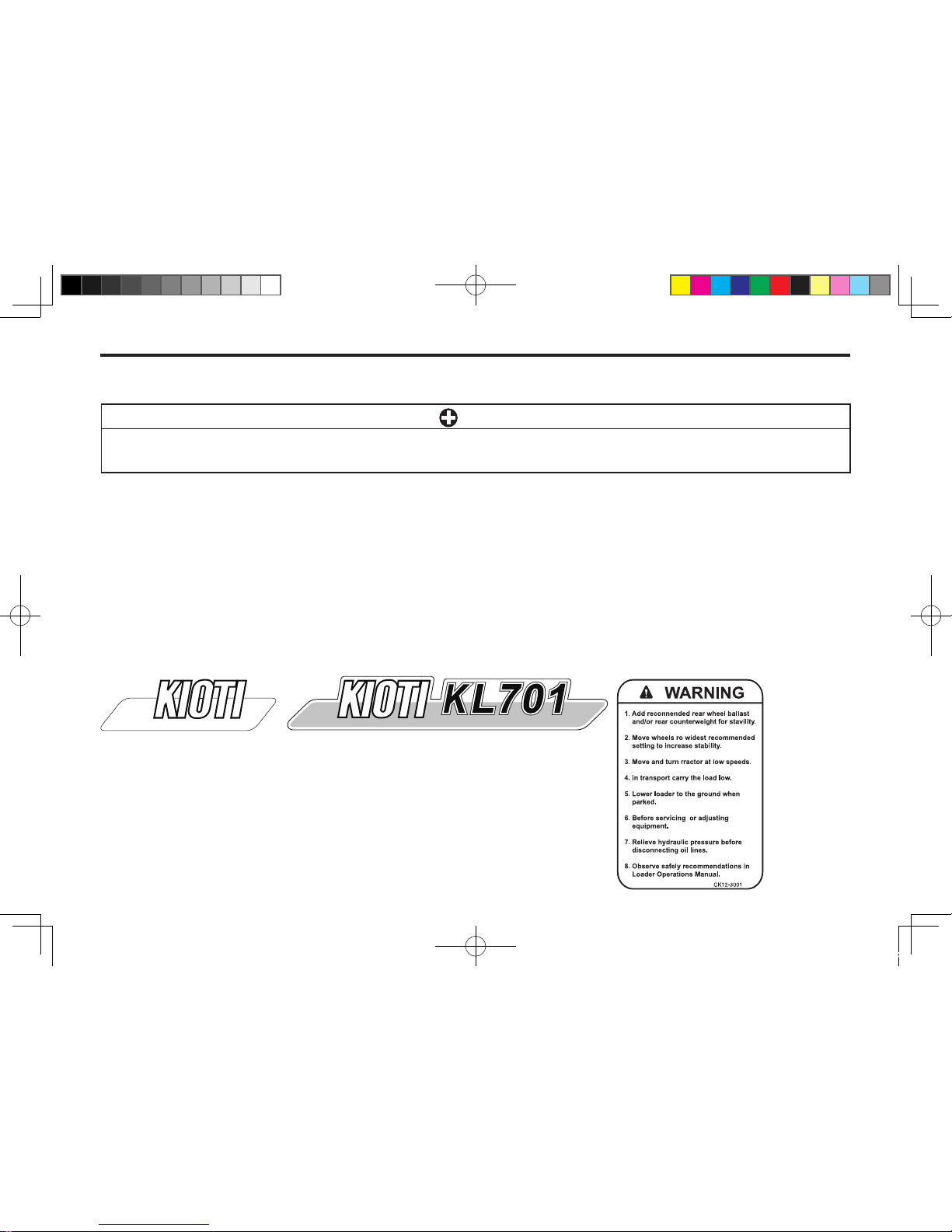

(1) Part No : 3101E-00001 (2) Part No : 3101E-00156 (3) Part No : 3102E-00001

Warning decals 3102E-00001, located on the left hand Mid-Mount and Warning Decal 3102E-00002,

3102E-00003 located on the loader right hand Mid-Mount are visible when getting on tractor.

IMPORTANT

KL701-AU-02.indd 2 2013-03-29 오전 11:25:25

2

SAFETY DECALS 2-3

(4) Part No : 3102E-00003 (5) Part No : 3102E-00002 (6) Part No : 3104E-00030

(7) Part No : 3102E-00014

{Gt

sGt

zGu

jG~ 

yGvGs 

O~p{oGjv|u{lyG~lpno{P

rpv{p

[WWTXSGqTSGjTGjTS

nSG]\ZT_W]GyUGGr

kvGuv{GljllkGyUvUsU

{UGaGR_YT\\T\ZWT^XWYGGGGGmUGaGR_YT\\T\ZWT^XXZ

KL701-AU-02.indd 3 2013-03-29 오전 11:25:28

MEMO

............................................................................................................................................................................

KL701-AU-02.indd 4 2013-03-29 오전 11:25:28

3

3. Loader SpecificationS

Loader SpecificationS ....................................................................3-2

KL701-AU-03.indd 1 2013-03-29 오전 11:25:45

3-2 KL701

Loader SpecificationS

Specications and design are subject to change without prior notice.

601O301A

Loader ModeL KL701

Tractor Model RX7320

KL701-AU-03.indd 2 2013-03-29 오전 11:25:45

3

LOAdeR SpecificAtiOnS 3-3

aMaximum Lift Height 3,400mm 133.9 in

BClearance with Attachment Level 3,123mm 123.0 in

cClearance with Attachment Dumped 2,599mm 102.3 in

dReach at Maximum Height 45° 519mm 20.4 in

eMaximum Dump Angle 47° ←

fReach with Attachment on Ground 2,043mm 80.4 in

GAttachment Rollback Angle 54° ←

HDigging Depth Below Grade 166mm 6.5 in

JOverall Height in Carry Position 1,760mm 69.3 in

LDepth of Attachment (to back of inner shell) 592mm 23.3 in

MHeight of Attachment 581mm 22.9 in

nDepth of Attachment (to pivot pin) 838mm 33.0 in

SLift Capacity to Full Height at Pivot Pins 1,535 kgf 3,384 lbs

tBreakout Force at Pivot Pins 2,431 kgf 5,359 lbs

Lift Cylinder ø70mmX572mm Ø2.8X23.2 in

Bucket Cylinder ø70mmX405mm Ø2.8X15.9 in

Bucket Width 2130mm 82 in

Bucket Weight 194 Kg 428 lbs

Approx. Weight (without Bucket) 666 Kg 1,468 lbs

Bucket Capacity 0.60m³ (0.38m³) 21.2 ft³ (13.2 ft³)

KL701-AU-03.indd 3 2013-03-29 오전 11:25:46

MeMo

............................................................................................................................................................................

KL701-AU-03.indd 4 2013-03-29 오전 11:25:46
