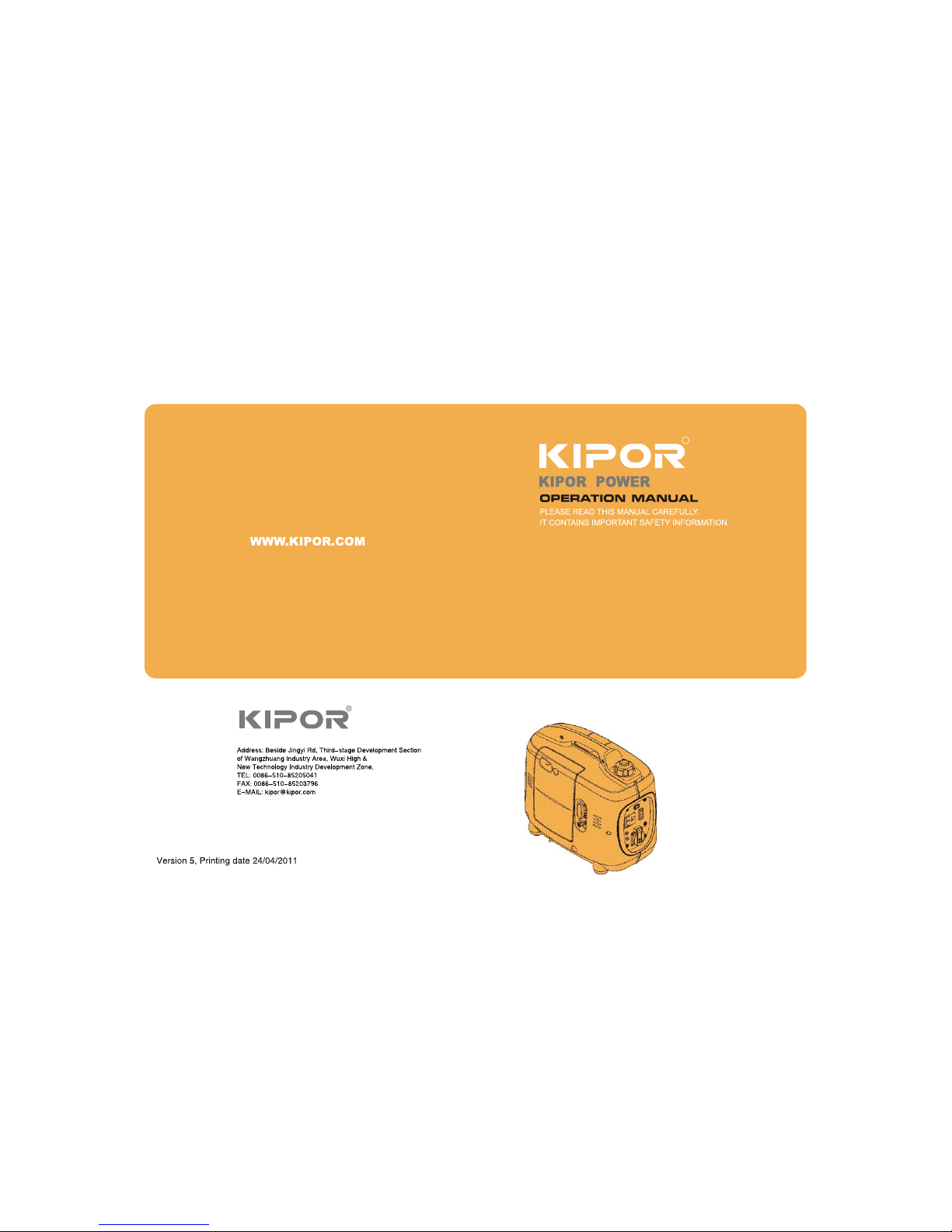

Kipor IG1000 User manual

IG1000
IG1000s
SINEMASTER
DIGITAL INVERTER GENERATOR
WUXI KIPOR POWER CO., LTD.
R

PREFACE
Thank you for purchasing our generators.
This manual covers operation and maintenance of the IG1000, IG1000s
generator.
All information in this publication is based on the latest product information
available at the time of approval for printing.
We reserve the right to make changes at any time without notice and without
incurring any obligation.
No part of this publication may be reproduced without written permission.
This manual should be considered a permanent part of the generator and should
remain with it if it is resold.
Pay special attention to statements preceded by the following words;
Failure to properly follow these precautions can result in
property damage, serious injury or DEATH!
Read all labels and the owner's manual before operating
this generator.
Operate only in well ventilated areas. Exhaust gas
contains poisonous carbon monoxide, and can be
deadly. Always stop engine before refueling. Wait 5
minutes before restarting.
Check for spilled fuel or leaks. Clean and/or repair
before use.
Keep any sources of ignition away from fuel tank, at all
times.
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
Indicates a possibility of personal injury or equipment
damage if instructions are not followed.
NOTE: Gives helpful information.
If a problem should arise, or if you have any questions about the generator,
consult an authorized dealer.
Our generators are designed to give safe and
dependable service if operated according to
instructions. Read and understand the Owner's Manual
before operating the generator. Failure to do so could
result in personal injury or equipment damage.
The illustration may vary according to the type.
WARNING
CAUTION
WARNING
WARNING
38

CONTENTS
1. Safety Instructions
2. Safety Label Locations
3. Component Indentificaction
4. Pre-operation Check
5. Starting the Engine
6. Generator Use
7. Stopping the Engine
8. Maintenance
9. Transporting/Storage
10. Troubleshooting
11. Specifications
12. Electric diagram
13. Light Kit
14. APPENDIX
1
3
4
6
10
13
21
23
30
32
34
35
36
37
37
The conditions of generator rated output:
Altitude: 0 m Ambient temperature: 25 Relative humidity: 30%
Ambient modified coefficient: C (Relative humidity 30%)
Note: When the relative humidity is 60%, the modified coefficient is C-0.01
When the relative humidity is 80%, the modified coefficient is C-0.02
When the relative humidity is 90%, the modified coefficient is C-0.03
When the relative humidity is 100%, the modified coefficient is C-0.04
Counting example:
When the rated power of generator is P =5KW, altitude is 1000m, ambient
N
temperature is 35 , relative humidity is 80%, the rated power of generator is:
P=P (C-0.02) = 5 (0.82-0.02) = 4KW
N
Modified coefficient table
of ambient condition power
Ambient temperature ( )
Altitude
(m)
0
500
1000
2000
3000
4000
25
1
0.93
0.87
0.75
0.64
0.54
30
0.98
0.91
0.85
0.73
0.62
0.52
35
0.96
0.89
0.82
0.71
0.6
0.5
40
0.93
0.87
0.80
0.69
0.58
0.48
45
0.90
0.84
0.78
0.66
0.56
0.46
14. APPENDIX

13. LIGHT KIT
36
Our IG1000S Light kit is designed specifically for use on IG1000 Generator.
Tools required: Phillips Screwdriver
Fittings supplied:
(1) IG1000 Portable Digital Generator
(2) KGE1000Tsi-05100 Light KitAssembly
(3) KGE1000Tsi-05001a Nut
(4) KGE1000Tsi-05002a threaded Screw
(5) KGE1000Tsi-05003 Left Mount Plate of Light Housing
(6) KGE1000Tsi-05004 Right Mount Plate of Light Housing
(7) Screw M5 45 2PCS
(8) Screw M5 16 1PCS
(9) Nut M5 1PC
This is where the Light Kit will be mounted, see IG1000s assembly Drawing of the Portable
Digital Generator Light Kit.
(1) Remove the screw from the IG1000 Portable Digital Generator and the screws from the
side of the control plate;
(2) Disperse the mount plate of the Light, use screw M5 45 and screw M5 16, then locate
the mount plate of Light Housing on generator. DO NOT TIGHTEN SCREWS.
(3) Use the threaded screw through the Light, left and right mount plate in turn, then lock the
nut.
(4) After adjusting the turnover angular of Light, tighten the above mentioned of threaded
screw, screw M5 45 and screw M5 16 in turn.
Before energizing the light, be sure to read the Generator Owner's Manual for best operation
and maintenance information, along with the safety precautions. It is recommended that the
light switch be in the OFF position when starting the generator.
MOUNTING INSTRUCTIONS FOR: IG1000s LIGHT KIT
1
1. SAFETY INSTRUCTIONS
Operate carefully and make sure users and others safety.
WARNING
Our generators are designed to give safe and depend-
able service if operated according to instructions.
Read and understand the Owner's Manual before op-
erating the generator. Failure to do so could result in
personal injury or equipment damage.
WARNING
WARNING
Exhaust gas contains poisonous carbon monoxide.
Never run the generator in an enclosed area.
Be sure to provide adequate ventilation.
When installed in ventilated protection are to be observed.
WARNING
The muffler becomes very hot during operation and
remains hot for a while after stopping the engine.
Be careful not to touch the muffler while it is hot.
Let the engine cool before storing the generator indoors.
The engine exhaust system will be heated during op-
eration and remain hot immediately after stopping the
engine.
To prevent scalding, pay attention to the warning marks
attached to the generator.
M5 45
M5 16
M5 45

35

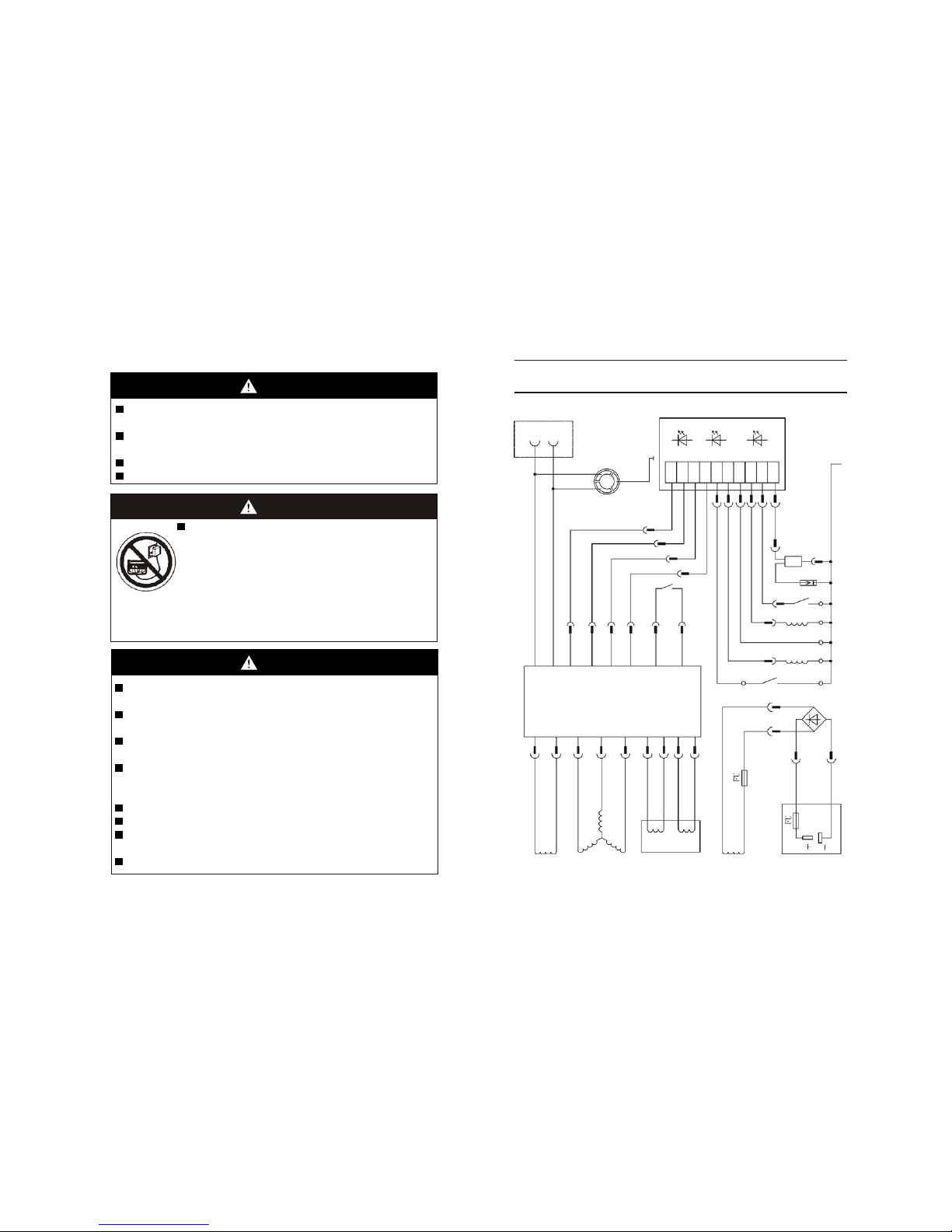

12. ELECTRIC DIAGRAM
2
To ensure safe operation--
WARNING
Gasoline is extremely flammable and explosive under certain conditions.
Refuel in a well ventilated area with the engine stopped.
Keep away from cigarette, smoke and sparks when re-fueling the generator.
Always refuel in a well-ventilated location.
Wipe up spilled gasoline at once.
Restrict application of generator in high-hazard risk to causing fire area.
WARNING
Connections for standby power to a building's electrical
system must be made by a qualified electrician and must
comply with all applicable laws and electrical codes.
Improper connections can allow electrical current from the
generator to back feed into the utility lines. Such back feed
may electrocute utility company workers or others who
contact the lines during a power outage, and when utility
power is restored, the generator may explode, burn, or cause
fires in the building's electrical system.
WARNING
Always make a pre-operation inspection before you start the engine. You
may prevent an accident or equipment damage.
Place the generator at least 1m(3ft) away from buildings or other equipment
during operation.
Operate the generator on a level surface.
If the generator is tiled, fuel spillage may result.
Know how to stop the generator quickly and understand operation of all the
controls. Never permit anyone to operate the generator without proper
instructions.
Keep children and pets away from the generator when it is in operation.
Keep away from rotating parts while the generator is running.
The generator is a potential source of electrical shocks when misused; do
not operate with wet hands.
Do not operate the generator in rain or snow and do not let it get wet.
Charge winding
Rectifier bridge
Inverter unit
Engine switch
Low oil switch
Ignition coil
Spark plug
Overload
indicator
Low oil
indicator
Stepping motor
Single phase
receptacle
Main winding
Sub winding
Ignition winding
DC Receptacle
Operating
indicator
Trigger winding
Smart throttle switch
Parallel output

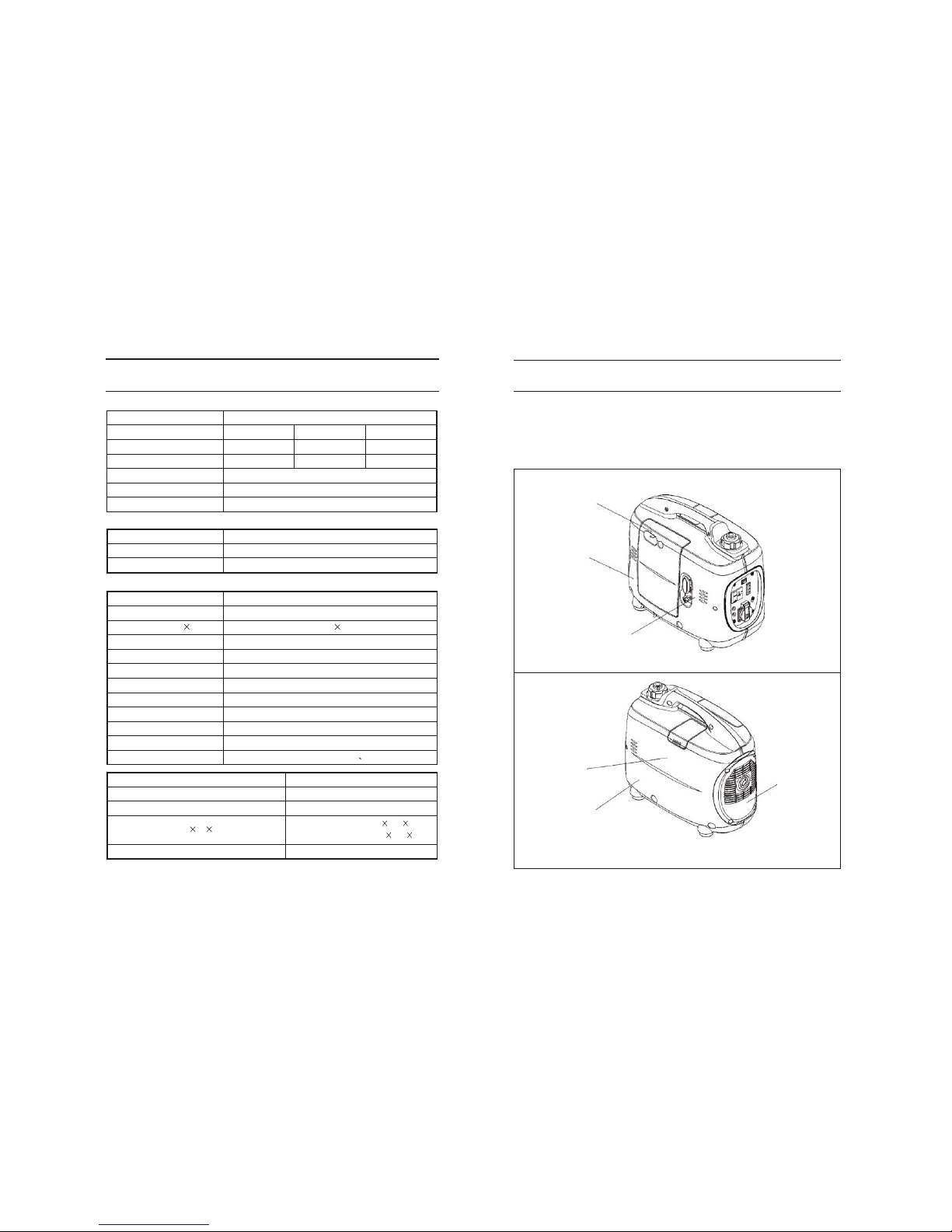

11. SPECIFICATIONS
34
DC output
DC voltage
Fuse
Phase number
12V-5A
With
Single phase
SPECIFICATIONS
Model IG1000/IG1000s
Rated frequency (Hz)
Rated voltage (V)
Rated current (A)
Rated rotation speed [r/min]
Rated output (kVA)
Max. output (kVA)
50
230
3.9
5500
0.90
1.00
60
240
3.8
Engine
KG144
Fuel tank capacity (L)
Continuous running time (hr) (at rated output)
Noise level (zero load-full load) [dB(A)/7m]
2.6
5.0
54-59 *
Dry weight [kg(lbs)]
60
120
7.5
Overall dimension (L W H) [mm(in)]
*The declared values shall consider uncertainties due to production variation and measurement
procedures.
IG1000: 460X248X395(18.11 9.76 15.55)
IG1000s: 605X250X400(23.82 9.84 15.75)
IG1000: 14(30.8) IG1000s: 15.5(34.1)
Model Type
Type
Displacement (Bore Stroke)
Compression ratio
Rated power [kW/(r/min)]
Rated rotation speed [rpm]
Ignition system
Spark plug
Starting system
Fuel
Fuel consumption (g/kW.h)
Lube oil
53.5ml (43.5 36mm)
8.5:1
1.2/5500
5500
T.C.I
UR5/A7RTC
Recoil starter
Automotive unleaded gasoline
420
CD grade or SAE 10W-30 15W-40
Single cylinder,air-cooled, 4 stroke, OHV, gasoline engine
3
2. SAFETY LABEL LOCATIONS
These lables warn you of potential hazards that can cause serious injury. Read
the labels and safety notes and precautions described in this manual carefully.
If a label comes off or becomes hard to read, contact your dealer for a
replacement.
Hot caution
Choke handle
Engine switch
Oil level
Model
Safety caution

33
Appliance does not operate:
Is the output indicator light ON?
YES
NO
NO
YES
Check the electrical appli-
ance or equipment for any
defects.
Take the generator to an
authorized dealer.
NO Take the generator to an
authorized dealer.
YES
Replace the electrical
appliance or equipment
Take the electrical appli-
ance or equipment to an
electrical shop for repair
Replace the fuse.
YES
No electricity at the DC receptacle:
Is the DC circuit fuse burnt out?
Take the generator to an
authorized dealer.
Is the overload
indicator light ON?
NO
4
3.COMPONENT IDENTIFICATION
Control panel
Choke lever
Left side main-
tenance cover
Engine switch
Air intake hole
Fuel cap lever
Starter grip
Spark plug main-
tenance cover
Muffler
Air exhaust hole

32
10.TROUBLESHOOTING
When the engine will not start:
Refill the fuel tank.
Turn the engine switch on.
Add the recommended oil.
Is there fuel in the tank?
Is the engine switch on?
YES
NO
YES
YES
NO
NO
NO Still no
spark
Replace the
spark plug.
WARNING To check:
1)Remove the spark plug cap and clean
any dirt from around the spark plug.
2)Remove the spark plug and install the
spark plug in the plug cap.
3)Set the plug side electrode on the
cylinder head to ground.
4)Pull the recoil starter, sparks should jump
across the gap.
If the engine still does not
start, take the generator to
an authorized dealer.
Is the fuel reaching the
carburetor.
Take the generator to
an authorized dealer.
Is there enough oil in the engine?
Is there a spark from
the spark plug?
Be sure there is no spilled
fuel around the spark pulg.
Spilled fuel may ignite.
5

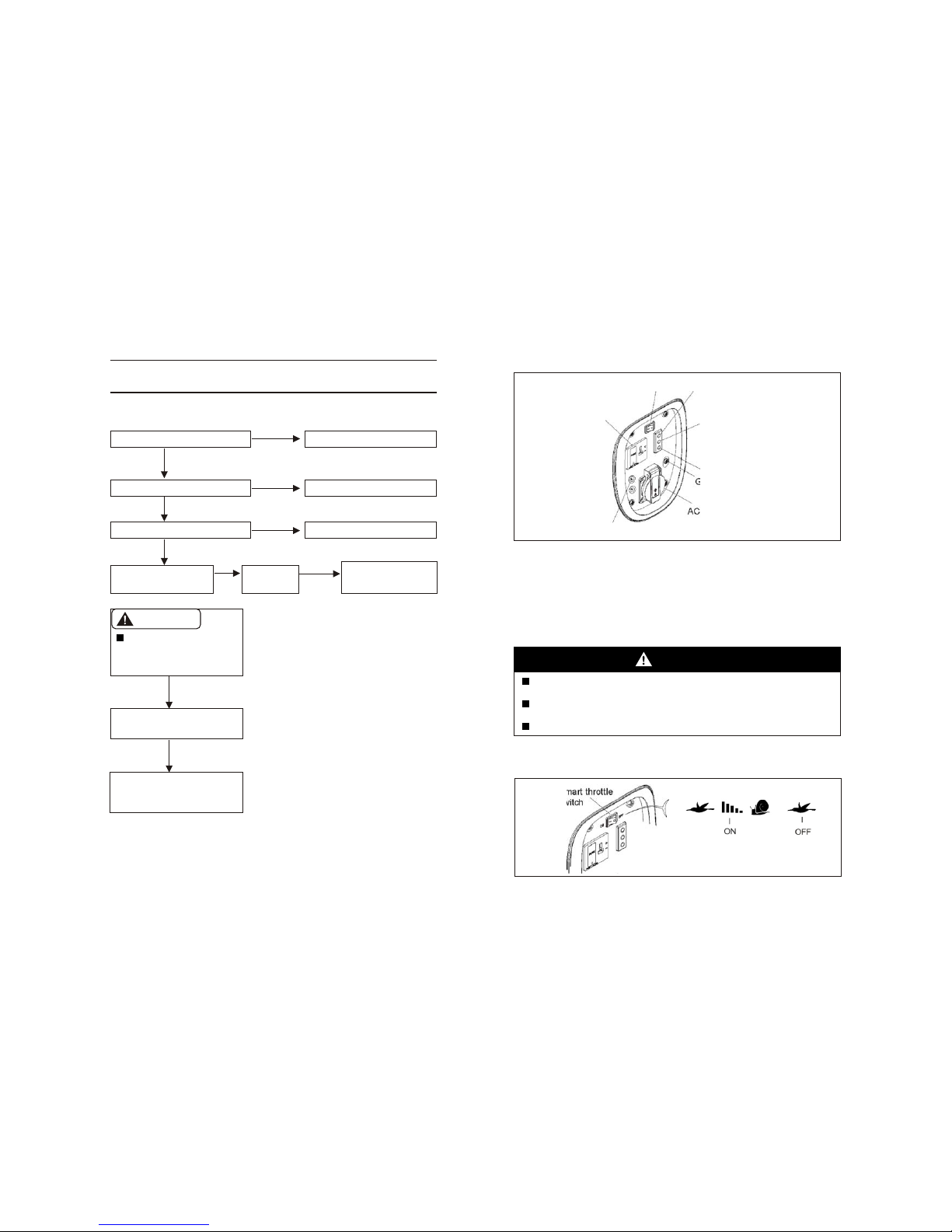

Control panel
Smart Throttle switch
DC receptacle
Ground terminal
Output indicator light
Overload indicator light
Low oil alarm indicator light
AC receptacle
Parallel
Engine speed is kept at idle automatically when the electrical appliance is
disconnected and it returns to the proper speed to power of the electrical load
when elec-trical appliance is connected. This position is recommended to
minimize the fuel consumption while in operation.
receptacle
The parallel cabinet can be connected with the parallel socket when the
generator set needs a increasing of parallel output power.
SMART throttle
Smart throttle
switch
Smart throttle system does not operate effectively if the electrical appliance
requires the big electric power.
When high electrical loads are connected simultaneously turn the smart
throttle switch to the OFF position to re-duce voltage changes.
In DC charging, turn the smart throttle switch to the OFF position.
OFF:
Note: Smart throttle system does not operate. Engine speed is kept at thigh-
speed lever..
NOTE
Parallel receptacle

a. Drain all gasoline from the fuel tank into an approved gasoline container.
b. Turn the engine switch ON, and loosen the carburetor drain screw and drain
the gasoline from the carburetor into a suitable container.
c. With the drain screw loosened remove the spark plug cap, and pull the starter
grip 3 to 4 times to drain the gasoline from the fuel pump.
d. Turn the engine switch to the OFF position, and tighten the drain screw
securely.
3. Change the engine oil.
4. Remove the spark plug and pour about a tablespoon of clean engine oil into
the cylinder.
Crank the engine several revolutions to distribute the oil, then reinstall the spark
plug.
5.Slowly pull the starter grip until resistance is felt. At this point, the piston is
coming up on its compression stroke and both the intake and exhaust valves are
closed. Storing the engine in this position wil help to protect it from internal
corrosion.
e. Reinstall the spark plug cap on the spark plug
31
Starter grip
6
4.PRE-OPERATION CHECK
Ambient temperature
-25 -30
-15 -40
Engine oil type
10W-30
15W-40
Store and use the oil carefully in order to prevent dust or dirty flowing into
the oil. If oil is overfilled, wipe it up at once.
Never mix different kinds of oil.
Running the engine with insufficient oil can cause serious engine damage.
The Low Oil Alarm System will automatically stop the engine before the oil
levelfalls below the safe limit. However, to avoid the inconvenience of an
unexpected shutdown, it is still advisable to visually inspect the oil level
regularly.
NOTE
Be sure to check the generator on a level surface with the engine stopped.
CAUTION
Using nondetergent oil or 2-stroke engine oil could shorten the engine's
service life.
Select the appropriate viscosity for the average temperature in your area.
Use a high-detergent, premium quality 4-stroke engine oil, certified to meet
or exceed U.S. automobile manufacturer's requirements for API Service
Classification SE/SF.
CAUTION
CAUTION
Loosen the cover screw and remove the left side maintenance cover.
Remove the oil filler cap, and wipe the dipstick with a clean rag. Check the oil level
by inserting the dipstick in the filler hole without screwing it in.
If the oil level is below the end of the dipstick, refill the recommended oil up to the
top of the oil filler neck.
SAE Viscosity Grades
1. Check the engine oil level.

30
9.TRANSPORTING/STORAGE
WARNING
When transporting the generator:
Do not overfill the tank (there should be no fuel in the filler neck)
Do not operate the generator while it is on a vehicle.
Take the generator off the vehicle and use it in a well ventilated place.
Avoid a place exposed to direct sunlight when putting the generator on a
vehicle. If the generator is left in an enclosed vehicle for many hours, high
temperature in-side the vehicle could cause fuel to vaporize resulting in a
possible explosion.
Do not drive on a rough road for an extended period with the generator on board,
if you must transport the generator on a rough road, drain the fuel from the gen-
erator beforehand.
To prevent fuel spillage when transporting or during temporary storage, the genera-
tor should be secured upright in its normal operating position, with the engine
switch OFF. Turn the cap lever fully counterclockwise to the "OFF" position.
Before storing the unit for an extended period:
1. Be sure the storage area is free of excessive humidity and dust.
2. Drain out the fuel completely.
WARNING
Gasoline is extremely flammable and explosive under certain conditions.
Do not smoke or allow flames or sparks in the area.
Drain screw
7
2.Check the fuel level.
Use automotive gasoline (Unleaded or lowleaded is preferred to minimize
combustion chamber deposits).
If the fuel level is low, refuel the fuel tank until the level as specified.
Never use an oil/gasoline mixture or dirty gasoline.
Avoid getting dirt, dust or water in the fuel tank.
After refueling, tighten the oil rule seurely.
Oil rule
Upper lever
Oil filler hole Lower limit
Upper limit
Gasoline is extremely flammable and is explosive und-er certain conditions.
Refuel in a well-ventilated area with the engine stopped.
Do not smoke or alow flames or sparks in the area where the engine is
refueled or where gasoline is stored.
Do not overfill the fuel tank (there should be no fuel above the upper limit
mark). After refueling, make sure the tank cap is closed properly and securely.
Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite,
if any fuel is spilled, make sure the area is dry before starting the engine.
Avoid repeated or prolonged contact with skin or breath-ing of vapor, KEEP
OUT OF REACH OF CHILDREN.
WARNING

29
3.Use a brush to remove carbon deposits from the spark arrester screen.
4.Check the muffler gasket; replace if damaged. Reinstall the muffler gasket, the
spark arrester, the muffler and the muffler protector in the reverse order of removal.
8
Fuel tank capacity:2.6L
Gasoline containing alcohol
If you decide to use a generator containing alcohol (gasohol), be sure it's octane
rating is at least as high as that recommended by us. There are two types of
gasohol: one containing ethanol, and the other containing methanol. Do not use
gasohol that contains more than 10% ethanol. Do not use gasoline containing
methanol (methyl or wood alcohol) that does not also contain cosolvents and
corrosion inhibitors for methanol. Never use gasoline containing more than 5%
methanol, even if it has cosolvents and corrosion inhibitors.
NOTE
nFuel system damage or engine performance problems resulting from the use
of fuel that contain alcohol is not covered under the warranty. We cannot
endorse the use of fuels containing methanol since evidence of their
suitability is as yet incomplete.
nBefore buying fuel from an unfamiliar station, try to find out if the fuel
contains alcohol. If it does, confirm the type and percentage of alcohol used.
If you notice any undesirable operating symptoms while using a gasoline that
contains alcohol, or one that you think contains alcohol, replace it by a
gasoline that you know does not contain alcohol.
Fuel filler cap Open
Oil surface
Spark arrester

28
4.SPARK ARRESTER MAINTENANCE(Equipped type only)
The spark arrester must be serviced every 100 hours to maintain its
efficiency.
1.Remove the four M5 screws, and remove the muffler protector.
2.Remove the there M6 bolts, and remove the muffler, the spark arrester and the
muffler gasket
WARNING
If the generator has been running, the muffler will be very hot. Allow it to cool
before proceeding.
CAUTION
9
3.Check the air cleaner.
Check the air cleaner element to be sure it is clean and in good condition.
Loosen the cover screw and remove the left side maintenance cover. Press the
latch tab on the top of the air cleaner body, remove the air cleaner cover, check
the element. Clean or replace the element if necessary.
Maintenance cover
Screw
Air cleaner element
Air cleaner cover
Latch tab
Lower tab
Never run the engine without the air cleaner. Rapid engine wear will result
from contaminants, such as dust and dirt, being drawn through the
carburetor, into the engine.
CAUTION
Muffler protector
M5 screw
M6 Bolts
Spark catcher
Muffler
Muffler gasket

27
5.Visually inspect the spark plug. Discard it if the insulator is cracked or chipped.
Clean the spark plug with a wire brush if it is to be reused.
6.Measure the plug gap with a feeler gauge.
The gap should be 0.6-0.7mm(0.024-0.028in). Correct as necessary by carefully
bending the side electrode.
7.Install the spark plug carefully, by hand, to avoid cross-threading.
8.After a new spark plug has been seated by hand, it should be tightened 1/2 turn
with a wrench to compress its washer.
If a used plug is being reinstalled, it should only require 1/8 to 1/4 turn after being
seated.
9.Reinstall the spark plug cap on the spark plug securely.
10.Close the left maintenance cover.
The spark plug must be securely tightened.An improp-erly tightened plug
can become very hot and possibly damage the generator. Never use a
spark plug with an improper heat range.
CAUTION
10
5.STARTING THE ENGINE
NOTE
Turn the fuel cap vent lever to the OFF position when transporting generator.
2. Turn the engine switch to the On position.
When starting the generator after adding fuel for the first time or after long term
storage, or after running out of fuel, turn the fuel valve lever to the '' ON''
position, then wait for 10 to 20 seconds before starting the engine.
Before starting the engine, disconnect the load from the DC terminals.
NOTE
1.Turn the fuel cap lever fully clockwise to the ON position.
Fuel cap lever
ON
.
Engine switch
ON
ON
OFF

26
3.SPARK PLUG SERVICE
RECOMMENTED SPARK PLUG: UR5/A7RTC
To ensure proper engine operation, the spark plug must be properly gapped and
free of deposits.
1.Remove the spark plug maintenance cover.
2.Remove the spark plug cap.
3.Clean any dirt from around the spark plug base.
4.Use the wrench to remove the spark plug.
11
4.Pull the starter grip until resistance is felt, then pull the starter grip briskly
toward the arrow as shown below.
3.Move the choke lever to the START position.
Starter grip
Run
Choke lever Run
CAUTION
Do not allow the starter grip to snap back, return it slowly by hand.
NOTE
Do not use the choke when the engine is warm or the air temperature is
high.

25
2.AIR CLEANER SERVICE
A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor
malfunction,service the air cleaner regularly. Service more frequently when
operat-ing the generator in extremely dusty areas.
a.Loosen the cover screw and remove the left side maintenance cover.
b.Press the latch tab on the top of the air cleaner body, and remove the air cleaner
cover.
c.Wash the element in a non-flammable or high flash point solvent and dry it
thoroughly.
d.Soak the element in clean engine oil and squeeze out the excess oil.
e.Reinstall the air cleaner element and the cover.
f.Reinstall the left side maintenance cover and tighten the cover screw securely.
Do not use gasoline or low flash point solvents for cleaning. They are
flammable and explosive under certain conditions.
WARNING
Maintenance cover
Screw
Element
Air cleaner cover
Latch tab
Lower tab
Cleaning Wring out and dry Dipping into oil Wring out oil
Do not run generator without air cleaner for causing engine accelerated wear.
CAUTION
12
High altitude operation
At high altitude, the standard carburetor air-fuel mixture will be excessively rich.
Performance will decrease, and fuel consumption will increase.
High altitude performance can be improved by installing a smaller diameter main
fuel jet in the carburetor and readjusting the pilot screws. If you always operate

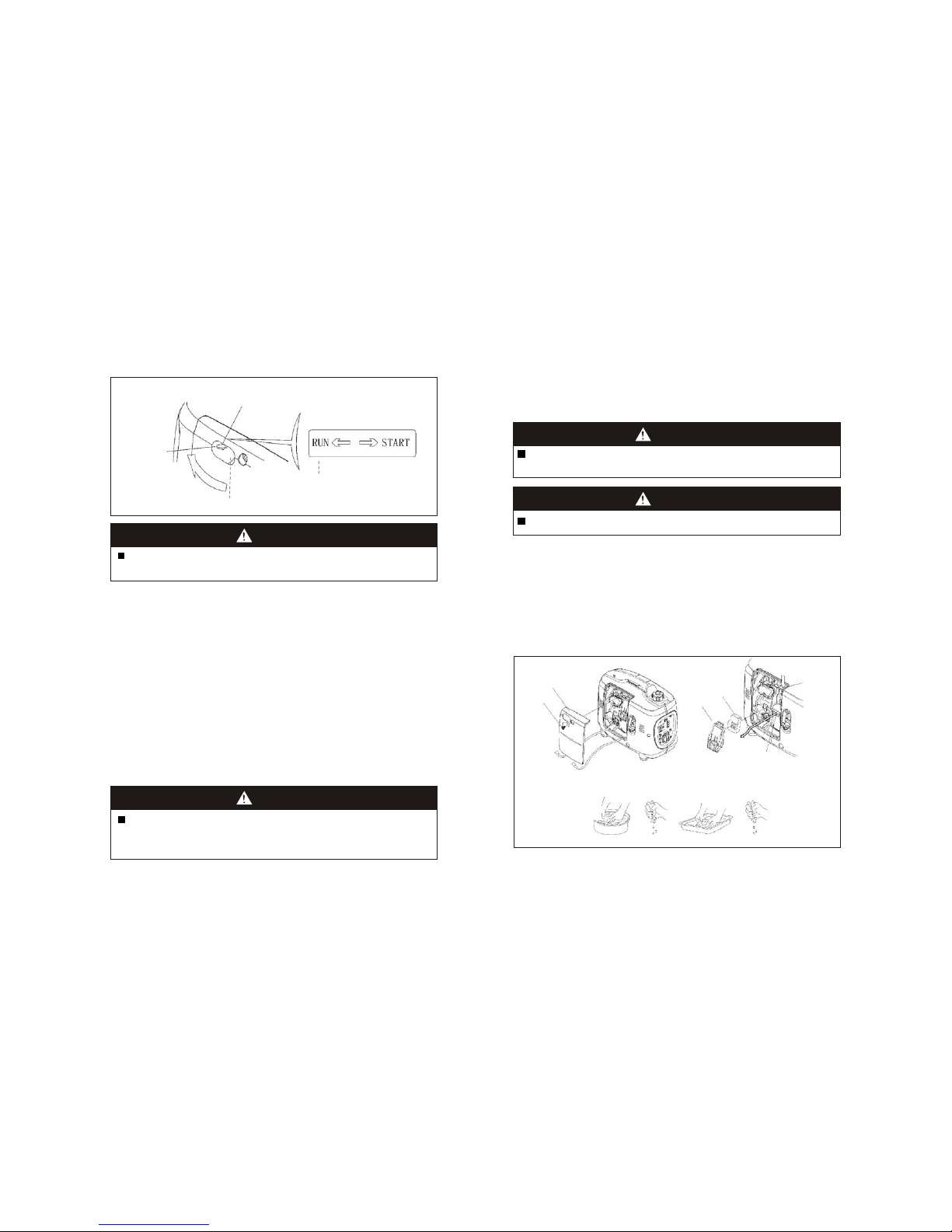

the generator at altitudes higher than 1,500m (5,000 feet) above sea level, have
your authorized dealer perform these carburetor modifications.
Even with suitable carburetor jetting, engine horsepower will decrease
approximately 3.5% for each 305m (1,000 feet) increase in altitude. The affect of
altitude on the horsepower will be greater than this if no carburetor modification is
made.
5. Move the choke lever to the RUN position after the engine warms up.
Run
Choke lever
Run
CAUTION
If the engine stops and will not restart, check the engine oil level before
troubleshooting in other areas.
CAUTION
Operation of the generator at an altitude lower than the carburetor is jetted
for may result in reduced performance, overheating, and serious engine
damage caused by an excessively lean air/fuel mixture.

24

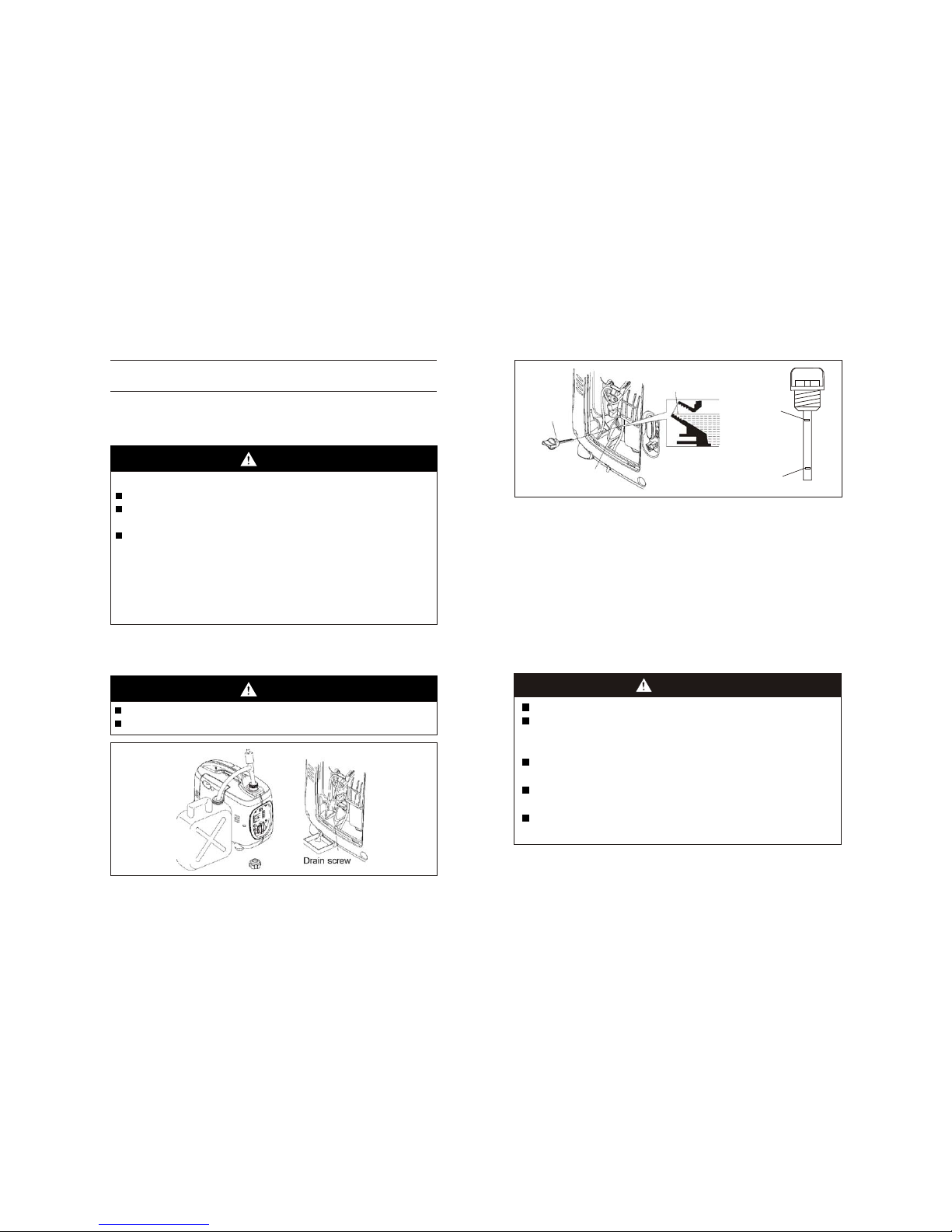

1.CHANGING OIL
Drain the oil while the engine is still warm to assure rapid and complete draining.
1.Loosen the cover screw and remove the left side maintenance cover.
2.Remove the oil filler cap.
3.Drain dirty oil into a container thoroughly.
4.Refill with the recommended oil, and check the oil level.
5.Reinstall the left side maintenance cover and tighten the cover screw securely.
Engine oil capacity:0.25L
Make sure to turn the engine switch and the fuel cap lever OFF before
draining.
CAUTION
Please dispose of used motor oil in a manner that is compatible with the
environment. We suggest you take it in a sealed container to your local
service station for reclamation. Do not throw it in the trash or pour it on the
ground.
NOTE
Wash your hands with soap and water after handing used oil.
13
6.GENERATOR USE
Connections for standby power to a building's electrical system must be
made by a qualified electrician and must comply with all applicable laws
and electrical codes. Improper connections can allow electrical current from
the generator to backfeed into the utility lines. Such backfeed may
electrocute utility company workers or others who contact the lines during a
power outage, and when utility power is restored,the generator may
explode, burn, or cause fires in the building's electrical system.
To prevent electrical shock from faulty appliances, the generator should be
grounded.Connect a length of heavy wire between the generator's ground
terminal and an external ground source.
CAUTION
Maximum power would be available for the first 30 minutes.
For continuous operation,do not exceed the rated power. In either case, the
total wattage of all appliances con-nected must be considered.
Do not exceed the current limit specified for any one receptacle.
Do not connect the generator to a household circuit. This could cause the
damage to the generator or to electrical appliances in the house.
Do not modify or use the generator for other purposes than it is intended
for. Also observe the following when using the generator.
Do not connect an extension to the exhaust pipe.
When an extension cable is required,be sure to use a tough rubber
sheathed flexible cable. (IEC245DV equivalent)
2
Limit length of extension cables; less than60 m for cables if 2.5mm and
2
less than100m for cabes of 4 mm .
Keep the generator away from other electric cables or wires such as
commercial power supply lines.
WARNING
Fuse
Fuse
Maintenance cover
Screw
Oil filler cap
Oil filler cap
Upper level

23
8.MAINTENANCE
The purpose of the maintenance and adjustment schedule is to keep the generator
in the best operating condition.
REGULAR SERVICE PE-
RIOD (1) Perform at every
indicated month or operating
hour interval, whichever oc-
curs first.
ITEM
EACH
USE
FIRST
MONTH
OR
10HRS
EVERY 3
MONTHS
OR
50HRS
EVERY 6
MONTHS
OR
100 HRS
EVERY
YEAR
OR
300 HRS
Check
Change
Check
Clean
Clean-adjust
Clean
Check-adjust
Clean
Check
Engine oil
Air cleaner
Spark plug
Spark arrester
Fuel sediment cup
Valve clearance
Fuel line
Fuel tank and strainer
Every 2 years (Replace if necessary)(3)
(3)
(3)
(2)
WARNING
CAUTION
Shut off the engine before performing any maintenance. If the engine must be
run, make sure the area is well ventilated. The exhaust contains poisonous
carbon monoxide gas.
Use genuine our parts or their equivalent. The use of replacement parts which
are not of equivalent quality may damage the generator.
NOTE: (1) Log hours of operation to determine proper maintenance.
(2) Service more frequently when used in dusty areas.
(3)These items should be serviced by an authorized dealer, unless the owner
has the proper tools and is mechanically proficient. See the shop Manual.
Maintenance Schedule
14
The DC receptacle can be used while the AC power is in use. If you use both
at the same time, be sure not to exceed the total power for AC and DC.
Electrical equipment (including electrical lines and plugs connection) could not
be defective.
Overload indicator
light (red)
Output indicator
light (green)
Plug
CAUTION
Be sure that all appliances are in good working order before connecting them
to the generator. If an appli-ance begins to operate abnormally, becomes
sluggish, or stops suddenly, turn off the generator engine switch immediately.
Then disconnect the appliance, and examine it for signs of malfunction.
AC applications
1.Start the engine and make sure the output indicator light (green) comes on.
2.Confirm that the appliance to be used is switched off, and plug in the appliance.
NOTE
3. In order to acquire both the best effect and the maximum service life of the
generator. Usually, the new generator should run 20 hours under 50% load, the
generator may reach the best performance.

22
3.Turn the cap lever fully counterclockwise to the "OFF"position.
CAUTION
Be sure the fuel cap lever, choke and the engine switch are "OFF" when
stopping, transporting and/or storing the generator.
Overload indicator
light (red)
Output indicator
light (green)
15
Output and Overload Indicators Oil Level Indicator
The output indicator light(green)will remain ON during normal operating
conditions.
If the generator is overloaded(in excess of 1.0kVA), or if there is a short in the
con-nected appliance, the output indicator light(green) will go OFF, the overload
indica-tor light(red) will go ON and current to the connected appliance wil be shut
off.
Stop the engine if the overload indicator light (red) comes ON and investigate the
overload source.
Oil Level Indicator
If the oil level indicator light comes on, please check.
Low oil alarm indicator
light (red)
When an electric motor is started, both the overload indicator light(red) and
the output indicator light (green) may go on simultaneously. This is normal if
the over- load indicator light(red) goes off after about four (4) seconds. If the
overload indicator light (red) stays on, consult your generator dealer.
NOTE
Before connecting an appliance to the generator, check that it is in good order,
and that its electrical rating does not exceed that of the generator. Then
connect the power cord of the appliance, and start the engine.
NOTE

21

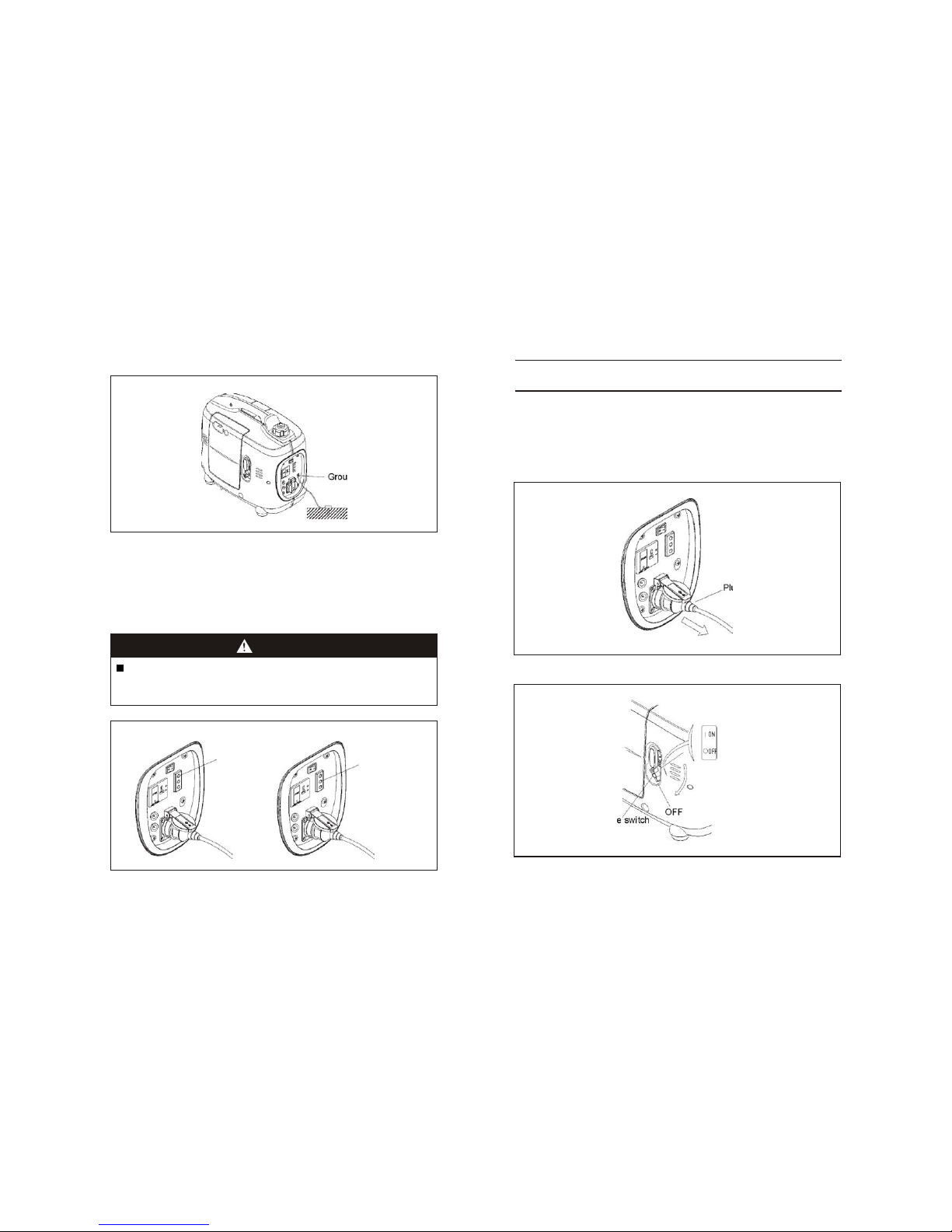

7.STOPPING THE ENGINE
To stop the engine in an emergency, turn the engine switch to the OFF position.
IN NORMAL USE:
1.Switch off the connected equipment and pull the inserted plug.
2.Turn the engine switch to the OFF position.
Plug
16

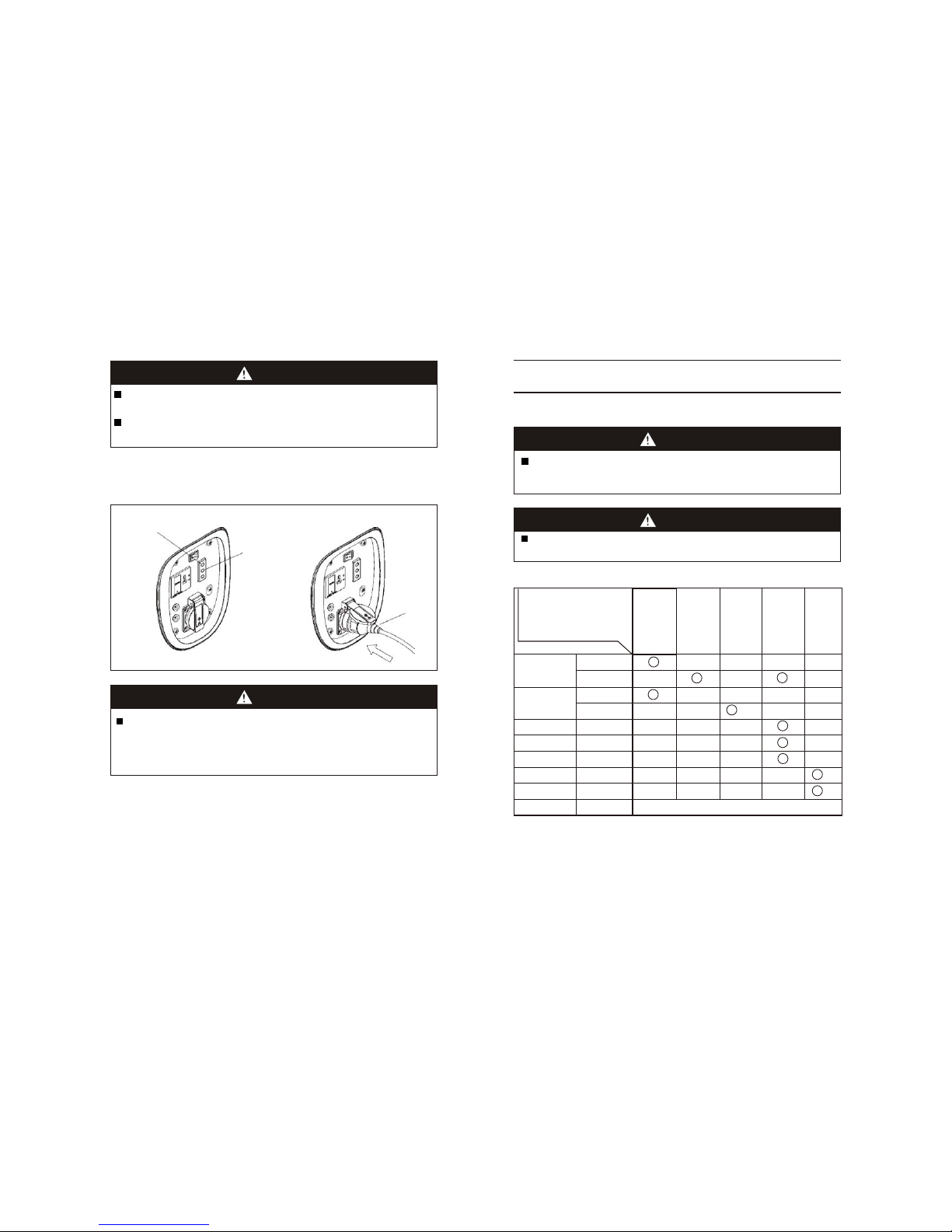

2. Start each engine according to "STARTING THE ENGINE".
When the output indicator light(green)does not light and the overload indicator
light (red) lights instead,set the engine switch to STOP,stop the engine at once
and then start the engine again.
3. Confirm that the equipment to be used is switched off, and insert the plug of
the equipment to be used into the AC receptacle.
Output indicator
light (green) Overload indicator
light (red)
Confirm that the use equipment to be connected is switched off. When the
equipment to be used is switched on, it will operate suddenly, and injuries or
accidents may be caused.
CAUTION
1.Connect the ground terminal.
OFF
Engine switch
ON
OFF
Ground terminal
