Kipor KDE11SS Installation manual

WUXI KIPOR POWER CO., LTD.
Operation Manual
KDE11SS KDE13SS3
KDE16SS KDE20SS3
KDE25SS KDE30SS3
KDE30SS KDE35SS3
KDE35SS KDE45SS3
KDE60SS3
KDE75SS3
KDE40ST3 KDE100SS3

1
Preface
Thank you for purchasing our generator sets.
Please read this instruction and ensure understand all regulations concerning handling, check
and maintenance thoroughly prior to application.
Failure to follow this instruction may cause serious accidents.
Incorrect operation is likely to lead accidents.
Operate and maintain the machine on the basis of thorough understanding of this instruction.
●Place this instruction in the fitting box or near machine after reading because it is regularly
needed.
●If this introduction is lost or damaged, please order one from local dealer.
●Please provide this introduction to another user whom machine will be transferred to.
●Machine may be improved or modified. Therefore actual conditions may be different from this
introduction.
●If you have any doubt, please consult local dealer.
●Safety information contained in this introduction is extremely important. Please read and
understand it.

2
CONTENT
Preface······································································································································· 1
1. Safety instruction ··················································································································· 3
2. Product instruction ················································································································· 8
3. Installation and transportation ···························································································· 11
4. Connection of load ············································································································· 13
5. Fuel, lubricant, cooling water, battery··················································································· 18
6. Running the generator ········································································································· 22
7. Periodical maintenance and service····················································································· 28
8. Troubleshooting ··················································································································· 34
9. Long-term storage················································································································ 36
10. Main technical specifications······························································································ 37

3
1. SAFETY INSTRUCTION
Please read and observe all safety and precaution information. Failure to observe them and
incorrect operation can lead to serious injury even death.
(1) Safety label
The followings are illumination of the safety label.
Indicates a strong possibility of severe personal injury even death if
instructions are not followed.
Indicates a possibility of personal injury or equipment damage if
instructions are not followed.
Attention reminds operator not to ignore potential risks. If no
measures are taken to avoid risk, mild or moderate injury or
mechanical damage is very likely to occur.
[Attended operation]
Indicates that mechanical damage or shorter duration is likely to occur in case of neglect.
Don’t lend this generator to others, or use it together with others until you read this manual and
understand the whole operation manual.
It will impact on the safety performance and reduce the generator’s life if you modify it. We
wouldn’t warrant the generator that is modified or not used with genuine parts.
However, it is impossible for our company to expect all risks concerning conditions of operation,
check and maintenance. Therefore warnings contained in the introduction and identified on the
machine are exclusive and complete. User shall take own responsibility for safety if user does
operation, check and maintenance not mentioned herein.

4
Exhaust gas
Matters need attention
Operator's duties
■Don't operate the generator when the operator is very tired, drunk, or
unconscious.
■Be care to operate the generator set according to the instructions,
otherwise it will cause an accident.
■Wear protective clothing and mask to avoid an unexpected hurt.
■Keep the children or pets away from the generator.
■Only professional technicians with required skills are allowed to operate
this machine. Otherwise, accidental injury or electric shock is possible.
If any abnormality is found
■ Please pay attention to any abnormality concerning sound, vibration, color or exhaust, oil
leakage and abnormal alarm during running, check or maintenance. If any abnormality is
found, stop running machine immediately. Report to the superior and take proper measures.
Forbid working the machine before abnormality is eliminated.
The warning labels should be stick to the main body of the generator.
■Stick the labels firmly
■Don't damage the label or let the labels fall off.
■Strictly follow the labels
Exhaust gas is toxic
■Exhaust gas contains poisonous carbon monoxide.
■Never run the generator in an enclosed area.
■Be sure to provide adequate ventilation.
■The exhaust vent shouldn't open to the passenger and the others.
Danger Rotary parts
Don't touch the inner rotary parts. It's very dangerous.
■Close and lock the side door when running the super quiet generator. If you have to open the
side door, don't stick head and hands to generator inner.
■Maintain and service the generator inner parts only after stopping it.
■The cooling fan of the radiator will go on rotating, don’t maintain or service it until the engine is
thoroughly stopped. .

5
Electric shock
■It will cause electric shock even death if touch the naked cable during the running. Never
touch the machine with wet hands, or electric shock will occur.
■Cut off the circuit to stop the generator before connecting the
terminal.
■Output terminal cover should be closed. Tighten all screws
before running this generator.
■There is enough voltage even at an idle speed, therefore,
make sure the generator is stopped thoroughly.
■Don't touch the inner circuit when generator is running.
■Control box should be closed all along and all of its screws
should be tightened before running the generator.
■Close and lock the side door of the super quiet generator before operating.
■Cut off the breaker circuit to stop the generator, before opening the control box to transfer the
voltage.
Ground protection
If ground mode is not right, the ground protection won't function. And it will cause electric shock
even to death. (Refer to 4-2)
■The outer box grounding terminal and load machine outer box must be grounded.
Fire hazard
Fuel and lubrication is extremely flammable under certain
conditions.
■Refuel in a good ventilated area with the engine stopped.
Keep away from cigarette, smoke and sparks when refueling
the generator.
■Don't place the flammable and explosive materials near the
generator.
■Wipe up spilled fuel at once.
■It is limited to use the generator in high-hazard risk area.
Storage
■It will fall off or collapse to cause an accident if placed in a wrong
position.
■Make sure that engine cover is not broken, and its screws are not
Runnin
g
Wood

6
loosened or missed.
■The generator set should be put on a level ground hard enough to afford its weight.
■If put a generator set on another generator, the weight and size of above one should be less
than that of the other.
■Don't run the generators set when stacks together. Otherwise, the above generator will fall off
to cause an accident.

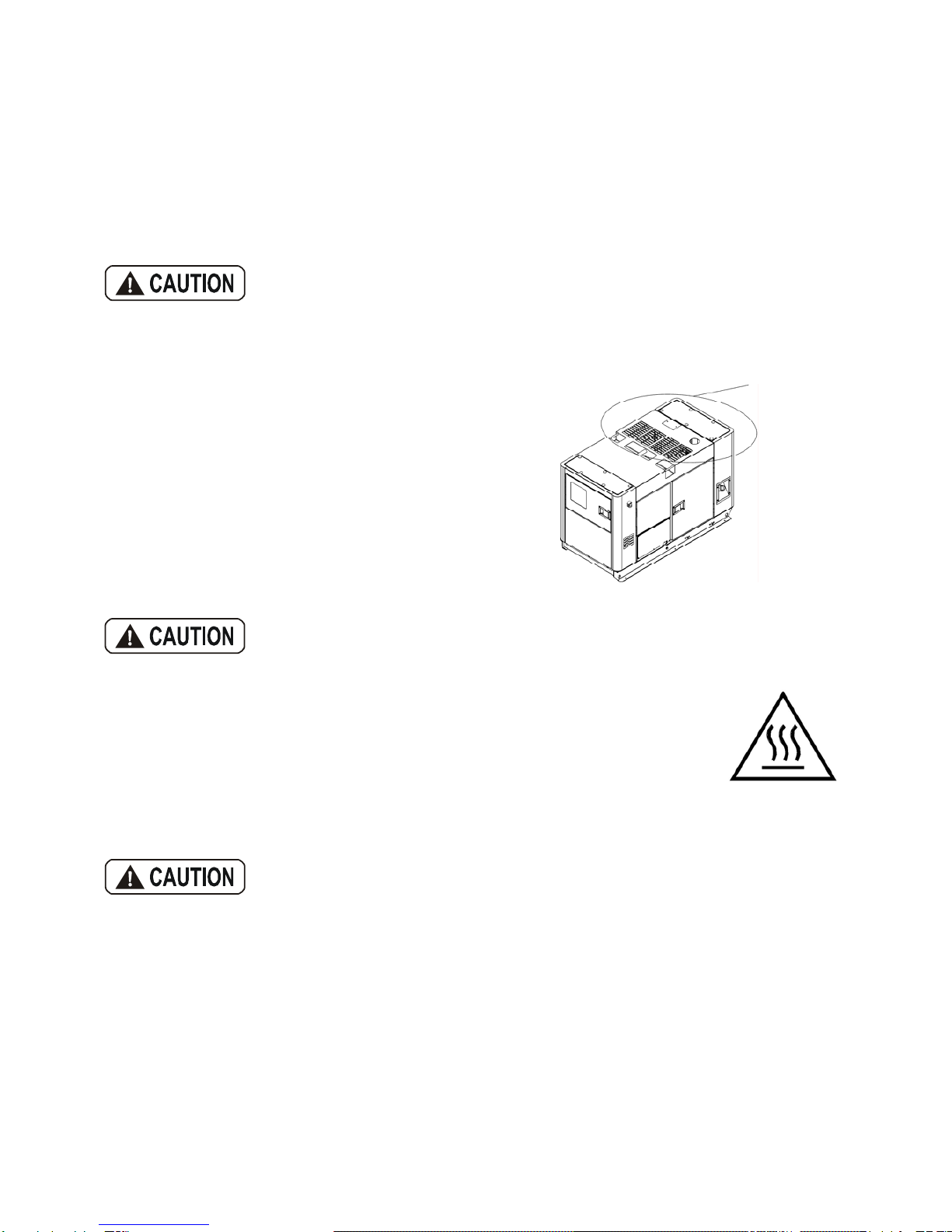

Hot parts
The muffler becomes very hot during operation and remains hot for a while after stopping the
engine. Be careful not to touch the muffler while it is hot.
■Let the engine cool before storing the generator indoors.
The engine exhaust system is heated during operation
and remains hot immediately after stopping the engine.
■To prevent scalding, pay attention to the warning marks
attached to the generator.
■Close and lock the side door when running the super
quiet generator. And don't put hand and head into the
engine to avoid scalding.
Radiator cover
If you open the radiator cover while the temperature of the cooling water is
very high, the splashed water or steam may scald you seriously.
■The temperature of cooling water is very high immediately after stopping the
engine.
■Don't check or refill the cooling water until the engine is cooled or thoroughly
stopped. (The temperature of cooling water is under 50℃).
The usage of the battery
The battery may produce flammable gas. Be careful to avoid any explosive accident.
■Charge the battery in a good ventilated place. Otherwise, the flammable gas will gather
enough to cause fire hazard or explosive accident.
■The positive terminal shouldn't be connected to the negative terminal when connects with an
extension cable. Otherwise, it will cause the fire hazard even explosive accident.
■Disconnect the ground table when servicing and maintaining the generator.
■Avoid touching the electrolyte because it contains sulfuric acid. Otherwise, it may burn you
seriously.
■If electrolyte contacts with skin or clothes, clean it with a large quantities of water.
■Check the battery after stopping the engine.
High
temperature

7
NOT RUN!
DANGER
Noise
■Close the door of the super quiet generator when it is running. Otherwise its noise will reach a
very high level.
■Open-frame generator would cause a hearing damage for its high noise level if stay at this
condition for a long time. Put on the earplug if necessary or take other protective measures.
Cable Connection
■Use a disconnecting switch for cable connection. Cut off the
utility lines before running the generator.
■Connections for standby power to a building's electrical
system must be made by a qualified electrician, which accords
with all applicable laws and electrical codes.
■Usage of standby power must obey relevant rules and
regulations. Please perform and follow the normal and legal procedure.
Maintenance attentions
■ Don’t start the engine when checking or maintaining the generator.
■ Identify the warning label “DANGER NOT RUN” at obvious positions,
such as starting switch, in order to avoid unnecessary persons carry
out unintended operation.
■ Never check or maintain the generator when the engine is still running.
■ If maintenance requires running engine, such maintenance must be done by two persons.
One person is responsible for maintenance, while the other person is ready for stopping
running engine at any time.
■ Maintenance operator shall take precautions against body or clothes getting involved into the
rotating parts of generator.
The handling of wasted fuel or water
■ Waste fuel pollute environment, so don’t pour them into the stream, ocean or lake.
■When handling the waste fuel, please use container.
■Handle of poisonous engine oil, fuel, cooling water and battery, please refer to the related
regulations.

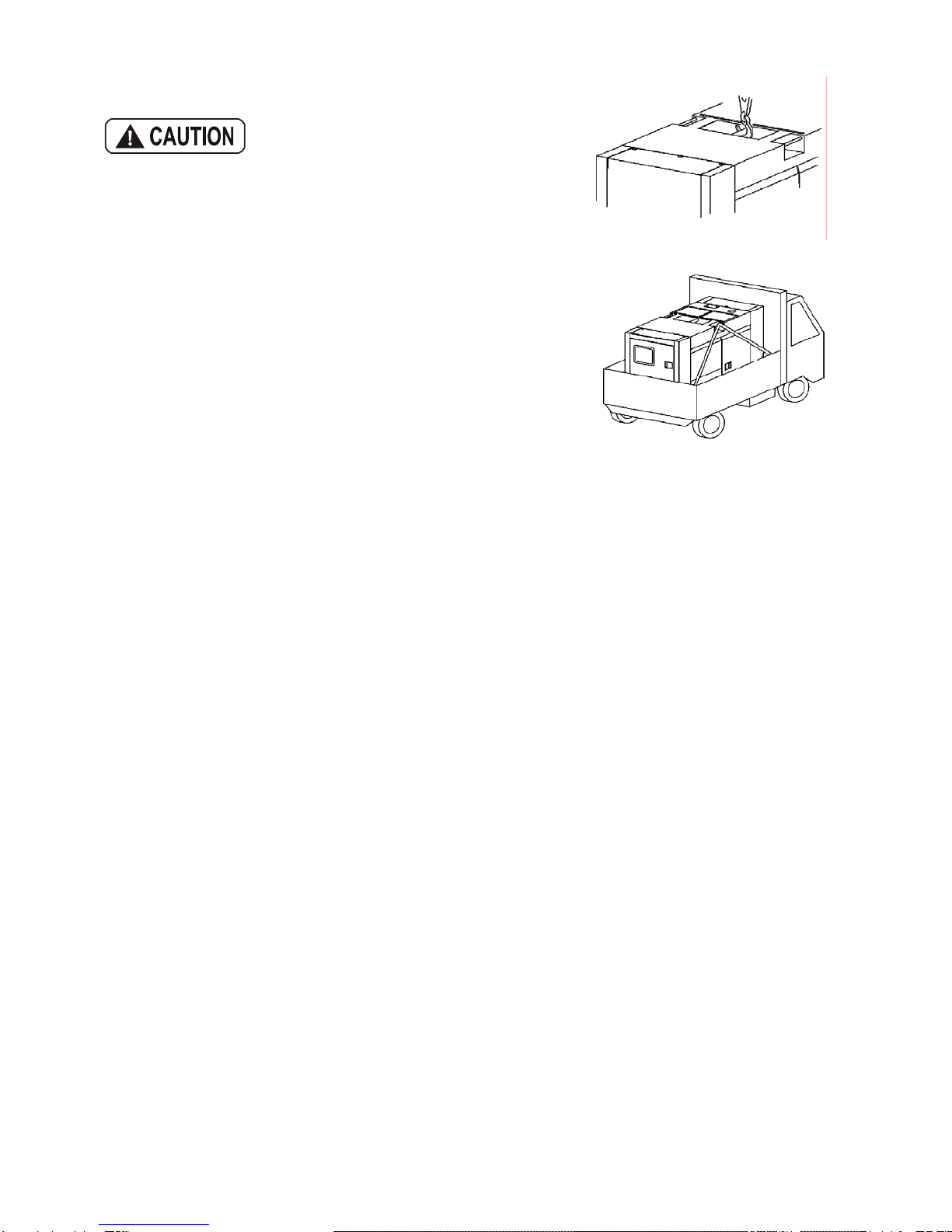

Transportation attentions
Don't use rope or ladder to lift the generator. Otherwise, the generator may fall down and be
broken.
■Lift the generator by using the lifting lever at the center of the engine cover.

8
■Anyone shouldn't stand under the lifted generator.
■Don't lift or move the generator when the engine isn't stop. Otherwise, it may break the cooling
fan, and cause a fatal fault.
■Fix the generator with ropes, after putting a generator into the car.
绳子
绳子
横向装载 纵向装载
rope
rope
widthwise lengthwise

9
2. PRODUCT INSTRUCTION
2.1 Use and laws
■ This machine is portable and used as main or auxiliary power supply for outside work.
Some countries regulate the connection of machine with inside distribution line accepting power
from the power company. Please pay particular attention to and observe relevant laws and
regulations in local countries and areas.
■This product is applicable for moving electrical equipments. Please observe relevant laws
and regulations and make legal declaration.
■Only professional technicians with required skills are allowed to operate this machine for
safety concern.
It is forbidden to connect the generator with distribution line of power company and distribution
line in the building willfully.
Only professional technicians with required skills are allowed to connect the machine with the
current electrical system.
Lock the control panel door and maintenance door securely when the generator is not used.
Keep the door keys in the operator for safe keeping.
Keep children or other people who may not realize the danger of operation away from the
generator.
2.1.1 General instruction
No. Item Description
1 Purpose Outdoor standby power
2 Environment
conditions
Environment temperature: -5℃~25℃
Relative humidity: 30%
Elevation: 0m
3 Installation On the hard level ground
Refer to the technical specifications for the overall dimension of generator.

10
2.2 Outlook and parts’ names
(1) KDE11SS、KDE16SS、KDE13SS3、KDE20SS3
(2) KDE25SS、KDE30SS、KDE35SS、KDE30SS3、KDE35SS3、KDE45SS3、KDE60SS3、
KDE75SS3、KDE100SS3
1. Cabinet sidedoor 8. Lifting level
2. Cooling water inlet 9. Water outlet
3. Control panel door 10. Fuel outlet
4. Emergent stop button 11. Oil outlet
5. Output connection box 12. Slotted hole
6. Muffler exhaust 13. Fuel filling port of outer fuel tank
7. Fixed level
Water inlet Exhaust
Output panel
Fuel inlet
Emergent stop button
Output panel
Fuel outlet
Water outlet
Fixed level
Lifting level
Oil outlet

11
2.3 Inner structure
Rainproof cap Radiator
Muffler
Oil water separator
Overflow pot
Air filte
r
Battery
Alternator Engine
Oil filter
Fuel filling port of inner
fuel tank
Fuel filling pump of outer
fuel tank

12
3. INSTALLATION AND TRANSPORTATION
3.1 Installation
Pay attention to the following items during installation:
(1) Please install the machine on the flat and solid ground. Make sure bottom of the generator
contacts ground evenly. Error may occur due to generator vibration.
(2) If it is necessary to run the machine on the inclined ground, make sure the side with radiator
upwards and inclination angle within 10°. Engine may face overheat due to bad working of water
temperature switch or mixed air in the cooling water.
(3) Keep the machine at least 200-300mm away from walls upon installation. Keep radiator air
vent and engine inlet/ exhaust vent upwards, preventing them from any jam. Otherwise,
temperature may rise or cooling airflow may be reduced, thus causes overheat of engine or
reduction of rotation speed. In addition, temperature of exhaust or increase of load may also lead
to shorter duration.
Don’t put any barrier on the exhaust outlet, vent, or muffler exhaust vent.
(4) Run the machine in the place free of moisture, dust and rubbish and with free air.
Electricity leakage causes electric shock. If air vent of radiator is jammed, overheat of engine
may occur.
(5) Place the generator near to working equipments like motor, lamps and etc.
Long line reduces efficiency because of large resistance and electricity loss. In addition, the
electricity fee turns more.
Radiator side
Fixed bolt
10°
1m
17cm
Exhaust outlet Muffler exhaust vent
Radiator side
Inlet
Fixed bolt
Wall

13
3.2 Storage
Poisonous Exhaust
The poor ventilation will cause shortage of oxygen, which resulted in the poisoning even death.
■Don't operate the set in the building or poor-ventilated places.
■The unit can't be operated at the situations such as: indoor, store, subway, deck.
■The exhaust vent shouldn't open to the passenger and others.
Vibration
There will be delivery vibration when the unit is running because of its rotary parts. Be care for
the following items when install the generator:
■The generator should be put on a hard level surface. If the supporting surface is uneven, it will
cause abnormal vibration.
■Don't disturb the others' for the vibration.
Noise
Loud noise will be caused while working.
■Close and lock the door of the super quiet generator after assembling the generator.
■The noise of the open-frame generator may impact on the people nearby.
■Take measures to prevent the noises, ex, to build room against noises.
Placement
■The generator should be put on a hard level surface.
■In order to refuel the generator easily, keep a 1m distance at the side of the refueling vent .
■In order to check the all parts of the generator, add the lubrication, and connect the cable, keep
a 1.2m distance near the control box.
■Keep the special space for the exhaust and adding cooling water.
■The radiator is easy to be clogged and the insulation of the electric parts is bad when used in
the places that are dusty.
Indoor Installation
■The exhaust gas can be exhausted by the exhaust pipe.
■The intake port should be big enough to avoid generator become over-hot when intakes air.
■The ambient temperature around the generator will become higher and higher if used in a poor
ventilated places. It will shorten the service life of the generator.

14
3.3 Transportation
Transportation attention
Don't use rope or ladder to lift the generator. Otherwise, the
generator may fall down and be broken.
■Lift the generator by using the lifting lever at the center of
the engine cover.
■Anyone shouldn't stand under the lifted generator.
■Don't lift or move the generator when the engine isn't stop.
Otherwise, it may break the cooling fan, and cause a fatal
fault.
■Fix the generator with ropes, after putting a generator into
the car.

15
4. CONNECTION OF LOAD
4.1 Input power
[Attended operations]
If select the motor with improper capacity, it is possible to fail in starting the motor.
Decide the capacity of motor as per followings:
●According to load type, purpose, start mode, quantity, loading factor, features of generator, and
type of auto voltage regulator, the starting power is different.
Upon starting motor, its current is 5-8 times of rated current. The rapid rise of starting current
causes instant overload of generator. Then voltage of generator falls down rapidly. Therefore
sometimes it is difficult to start the motor.
It is recommended to discuss with manufacturer upon decision of capacity.
●User can calculate the capacity simply with below formulas.
○Input power of squirrel-cage asynchronous motor (kVA)
Input power (kVA)= Rated power of motor (kW)
Motor efficiency x Power factor
Power factor of motor: 0.8 Motor efficiency: 0.8
Input power (kVA)=1.56x rated power of motor (kW)
○Direct-starting squirrel-cage asynchronous motor (with knife switch)
Generator capacity = 2x input power of motor
○Direct-starting squirrel-cage motor (with contactor)
Generator capacity = 3x input power of motor
○Star/ triangular-starting squirrel-cage motor
Generator capacity = 1.2~1.5x input power of motor
●It is required to balance the load if more than one AC electric welder is used.
Therefore user shall distribute phases equally as per following:
Attended operation:
Input power of each welder shall be 1/3 below the output power of generator.
Over-load may cause motor damage.
Start the starter with no load, and never start the starter with load.
Start the bigger power starter first and then the smaller power starter.

16
4.2 The grounding of the protection unit
Electric Shock
(1) It will result in electric shock even death if connected with the output terminals.
■Cut off the breaker circuit of the control box and stop the engine before connecting the load.
■Close the output terminal cover and tighten the forcing screw when running the generator.
(2) Don't use the broken cable. Otherwise it will cause a shock accident. If the forcing screw isn't
tightened, the connected part will become hot and may cause fire hazard.
4.3 Grounding method
(1) The grounding of the generator
The grounding terminal of the outer box should be connected in this
way.
The section of the grounding cable should accord with the generator
capacity specified in the technical standard for the electric appliance.
Please use the grounding rod of whose resistance meets the electrical
standard.
If it classes to D grounding (No.3 grounding), ground it when resistance
is below 100Ω.(When the voltage is over 300V, please use C class grounding, and the grounding
resistance is below 10Ω).
(2) The grounding of the load appliance
Don't neglect the grounding of the load appliance, even if generator is equipped with
electrical-leakage protector.
The outer box of the load appliance should be grounded, as well as the generator. The section of
grounding cable depends on the relative electrical standard and the capacity of the load. Please
prepare the grounding rod for following resistance.
The grounding of the load appliance should be D class (No.3 grounding), and its resistance
should be below 500Ω.
Case grounding
Grounding cable
Load grounding terminal

17
(2) Information of common grounding
Implement grounding of outside box and loading equipments independently. However, common
grounding is acceptable if independent grounding is difficult.
①Select the right grounding cable with the maximum diameter.
②Select the right grounding cable with the minimum grounding resistance.
③Reliably screw down the terminals.
(4) Cautions when grounding the generator
●Grounding rod should be placed in the shady and wet place. Upper part of it shall be
completely in the soil.
●Clamp the cable securely to avoid catching the people who walk pass.
●Connect the extended cable as following:
Weld the extended cable or use the proper sleeve. Cover the connection part with insulation
tape. The connection part shall be above the ground. Please check it periodically.
●Keep the grounding rod at least 2m away from the lighting rod.
●Don’t use the same grounding cable with telephone.
●Don’t use the same grounding cable with others.
Screw on the bolts securely with a wrench when connecting the load equipment. Otherwise,
overheat may be resulted, even fire hazard.
4.4 Connection of load equipment
(1) The connection method of the three-phase four-wire terminal
Connect the cable with 3-phase joint of output terminal.
Don’t connect the terminal until you make sure the phase and
voltage of the load. There are terminal posts of three-phase four-wire on the panel.
If 3-phase motor rotates in the reverse direction, please exchange any two lines of three
terminals.
U
V
W
N
M

18
(2) The output power of the single-phase (230/240V)
There are two connection methods for single-phase power: single-phase receptacle and
three-phase joint, as indicated in the below drawing.
Please select the proper connection method.
Receptacle and breaker are two 15A circuits (W phase). Three-phase joint combines N-phase
with U,V,W-phase.
Regulate the voltage with voltage regulator.
1. Use of three-phase joint
Check whether AC current on the control panel is up to or over the rated current.
【Attention operation】
① Tolerable current of generator takes single-phase and three-phase current into account.
When AC voltage meter reading is 400/416, the single-phase output voltage is 230/240V.
②If select the single-phase output, output of single-phase is only 1/3 of three-phase output (unit:
KW). If select single-phase and three-phase at the same time, please limit output of each phase
below 1/3 of rated power (unit: KW).
Maximum power of single-phase is PN/3×0.8.
PNindicates the rated power.
③Prevent overloading. If unbalance load is necessary, difference between three-phase shall be
within 20%.
2. Use of receptacle
● Single-phase receptacle
Turn the breaker to ON to energize the receptacle.
●There are two single-phase receptacles on the panel.
U
V
W
N
L
L
L单相负荷
Single-phase load

19
Picture1 Picture2
● Prevent overload of generator of single-phase power is used via single-phase receptacle.
(3) When connect the load, you should take care of:
① Install a switch between output terminal and load to control the load connect. If supply the
electricity for the appliance by using the breaker directly, there will be fault with the breaker.
② When the generator is connected to the load, the breaker of the control box and junction plate
should be turn to OFF to stop the engine.
③The cable that connected to load can't be connected to the other output terminal.
④ After connecting with load, close the junction box, and tighten the forcing screw securely.
4.4 Selection of 3-phase cable
【Attended operations】
Please select the cable with proper diameter after taking into account tolerable current of cable
and distance from generator to loading equipments.
If load current exceeds tolerable current, lead is burnt to damage due to over-heat. In addition,
following conditions also can cause lead damage such as too long cable, super-small diameter,
excessively large voltage-drop of lead, reduction of input voltage of loading equipments, or
reduction of efficiency of loading equipments.
● Choose the possible cable length and section within the range of 5% of rated voltage, and
you can calculate the value of the potential "e" in the following formula:
Single-phase
rece
p
tacle Breake
r
G
r
ou
n
d
in
g
n
ut
Breake
r
ATS port
Single-phase receptacle
Grounding nut
