KIRLOSKAR KMW Univator Operating manual

Operator and Service Manual
Cum Spare Parts Catalogue
Farm Mechanisation Business Unit

Congratulations!
We congratulate you for becoming a prestigious customer of Kirloskar Oil Engines Ltd.
by purchasing UNIVATOR. This manual contains important information on Safety,
Operation & Maintenance.
Please read it carefully and review it from time to time. Maintaining your UNIVATOR
according to the schedule given in this manual to help you keep your UNIVATOR trouble
free. This manual contains the use and maintenance instructions along with the list of
the parts supplied as spares for the UNIVATOR.
This booklet also contains the warranty policy for UNIVATOR and its warranty
registration card. The purchaser of this UNIVATOR shall read and understand all the
terms and conditions mentioned under warranty and sign the warranty registration
card.
A very warm Welcome!!
“Mark bearing word 'KIRLOSKAR' in any form as a suffix or prefix is owned by
Kirloskar Proprietary Ltd. and Kirloskar Oil Engines Ltd. is the Permitted User”
FOREWORD
01

INDEX
03
Sr. No. Description Page No.
1.0 Univator Manual
051.1 Identification
061.2 Machine Specification and rotor speed chart
071.3 Nomenclature
081.4 Warranty
2.0 Safety Notes
112.1 Safety Regulations
112.2 Safety Instructions
122.3 Warning Signals
3.0 Operating Information
3.1 Before Use 16
3.2 Connecting The Univator To The Tractor 16
3.3 Instructions for Assembling the Cardan Shaft 16
3.4 Cardan Shaft Adaption 17
183.5 Changing Rotor Speed
203.6 Adjustment of Working Depth
203.7 Adjustment of Rear Bonnet
4.0 Maintenance, Servicing & Repair
14.1 Precautions 2
14.2 Lubrication 2
14.3 Daily Maintenance Check Points 2
24.4 Parking 2
24.5 Storage 2
5.0 Troubleshooting 23
6.0 Spare Parts Catalogue
56.1 Univator Assembly: KMW H Series 2
316.2 Gear Box Assembly KMW H Series
46.3 Univator Assembly: KMW L Series 3
396.4 Gear Box Assembly KMW L Series
26.5 Cardan Shaft Assebly 4
46.6 Coulter Wheel Assembly 4
7.0 Warranty Registration Card (WRC) 46
8.0 Pre Delivery Inspection Card 47
9.0 Installation Worksheet 49
10.0 Notes 51

UNIVATOR MANUAL
1.1 IDENTIFICATION

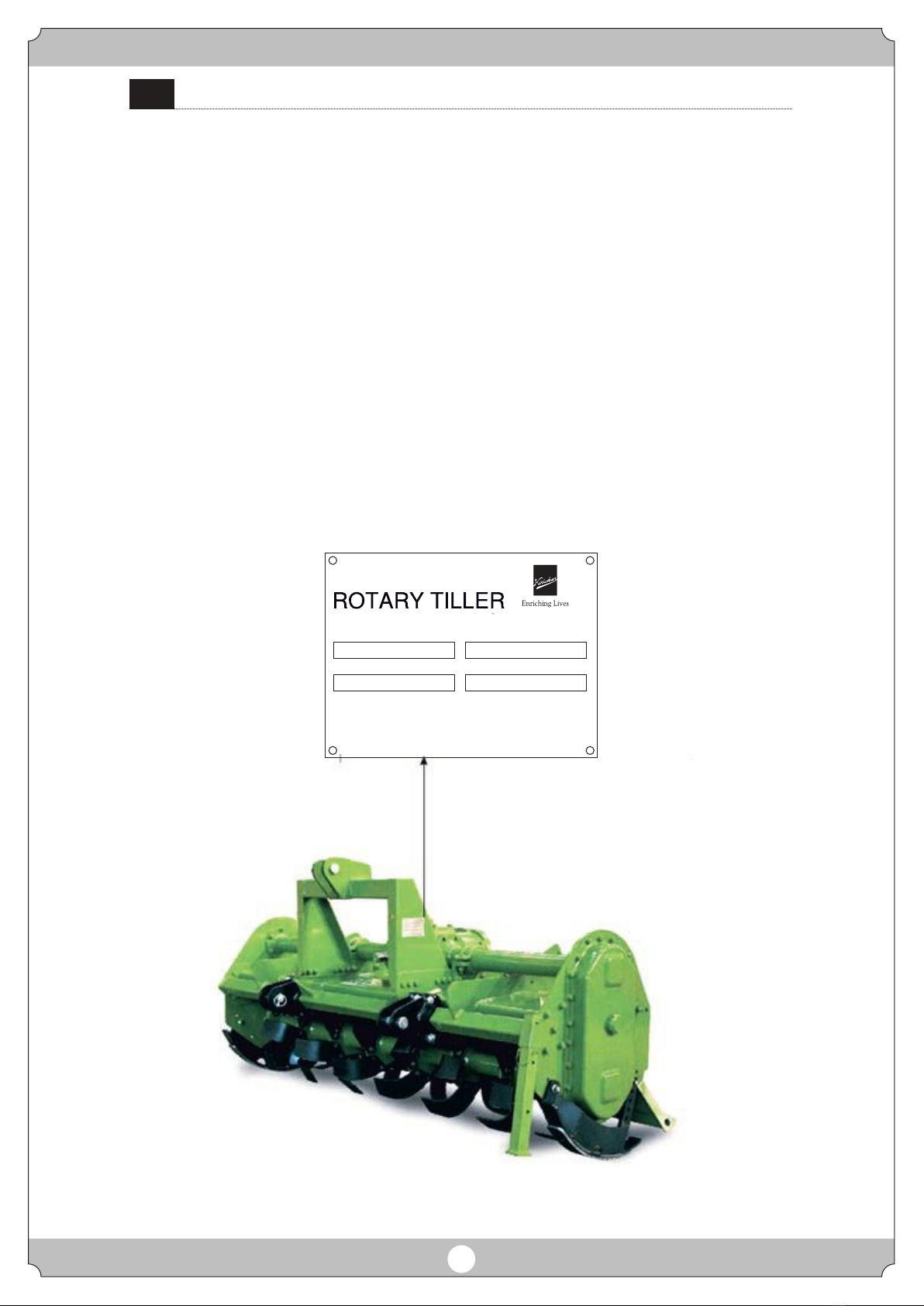

Each individual machine has an identification plate indicating the following details:
1) Generic Name of Product
2) Application Code & Serial number combination
3) Model of Product
4) Gross Weight (Kgs.)
5) Minimum Prime Mover Power (HP)
6) Month/Year of Manufacturing
7) Name of Company
8) Manufactured By
You are advised to note down your data, along with the date of purchase and original Invoice,
warranty coupon, in Safe Place and communicate these in case you need any service related
help or resolution to query.
1.0
05
CHASSIS NUMBER MODEL / SIZE (DIA.OF ROTOR X WIDTH OF CUT)
WEIGHT / PRIME MOVER PTO SPEED / POWER MONTH / YEAR OF MANUFACTURE
“Mark bearing word ‘Kirloskar’ in any form as a suffix or prefix is owned by
Kirloskar Proprietary Ltd. and ‘Kirloskar Oil Engines Ltd.’ is the Permitted User.”
NAME & ADDRESS OF MANUFACTURER :- JLPL (MS.)
MADE IN INDIA
KIRLOSKAR OIL ENGINES LTD.
A Kirlsokar Group Company

UNIVATOR MANUAL
1.2 MACHINE SPECIFICATION
1.0
Note - All models of Univator can be used for tractor PTO RPM of 540/1000. Customer should
indicate the PTO RPM of the Tractor, for Selection of rotor speed through change gears in
Gearbox. Indicated weight of machine may vary by +/- 5 %.
*In view of our policy of continuous improvement, we reserve the right to alter specification
or design without prior notice and without liability. The features shown do not necessarily
show the machine / equipment in its standard form. (E & OE)
Basic Specifications*
Univator Model Cutting Length Width Height Weight Blades Power
Width (mm) (mm) (mm) (Kg) (Nos) (HP)
KMW 1500 L 1516 1650 990 980 355* 36 40+
KMW 1600 L 1616 1769 837 950 364 36 40+
KMW 1800 L 1816 1969 830 950 387 42 45+
KMW 1500 H 1516 1650 990 980 380 36 40+
KMW 1600 H 1616 1777 837 963 385 36 40+
KMW 1800 H 1816 1969 830 950 424 42 45+
KMW 2100 H 2116 2268 836 956 470 48 55+
Image: A
06
Height
LengthWidth

UNIVATOR MANUAL
1.3 NOMENCLATURE
1.0

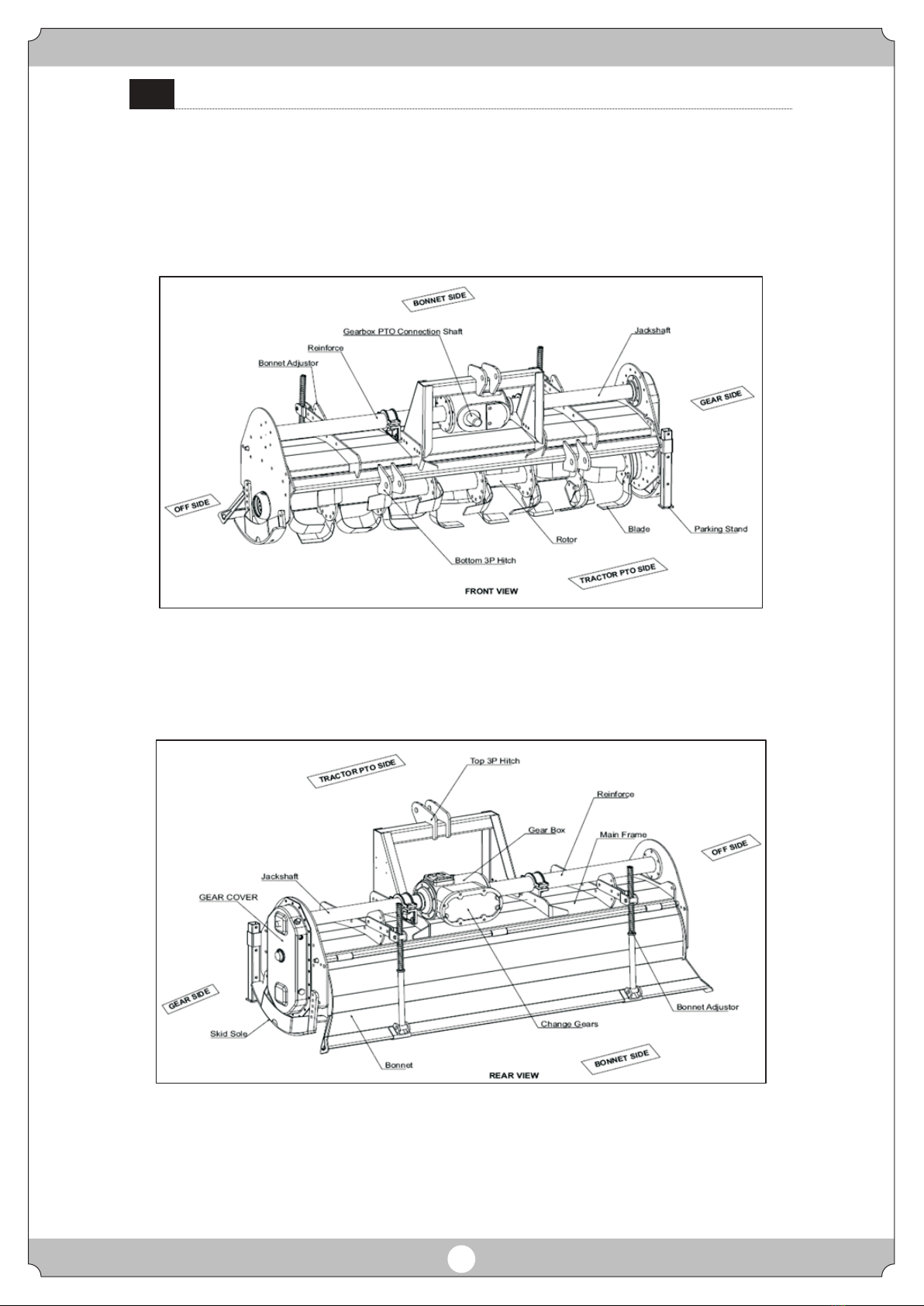

Univator Front Side
Univator Rear Side
07

UNIVATOR MANUAL
1.0
1.4 WARRANTY
1. Kirloskar Oil Engines Ltd., warrants to the retail purchaser of the Univator that subject to
the limitation specified here in below, the Company's Authorized dealer will repair or
replace any part thereof found, in its opinion, to be defective in materials or workmanship.
The warranty shall be for a period 12 months from the date of purchase of New Univator by
the original retail purchaser (“retail purchaser”). Duly filled warranty registration card is
mandatory and must be submitted to KOEL.
2. This warranty is limited to the delivery to the retail purchaser, free at the Authorized
Dealer's workshop or Company's works, of the part or parts whether repaired or replace in
exchange for those acknowledge by the Company to be defective.
3. The purchaser of Univator are advised strictly to follow the instructions given in the
operator manual, provided by the company along with the Univator at the time of delivery.
Changes if any in the machine, resulting in improper usage will not be covered by the
warranty. This warranty will automatically get terminated on the expiry of warranty period
even if the machine may not be in use for any time during the warranty period for any
reason whatsoever including any technical reasons, and, time taken for such repairs /
replacements of parts and in transit, whether under this warranty or otherwise shall not
be excluded from the warranty period.
4. This warranty shall not apply to the following:
ŸWear Items like Blades, Skid etc.
ŸCardan Shaft and Universal cross joints
ŸBearing
ŸRubber parts/ Gaskets
ŸFasteners
ŸLubricants
5. The retail purchaser shall be required to make a thorough examination of the Products
prior to the purchase. The Authorized Dealer are in no way the legal agent of the Company
and have no right or Authority to give any warranty or assume any obligation on behalf of
the Company or bind the Company in any manner whatsoever.
6. For the purpose of this warranty, the term “product” means and includes only new
Univator, manufactured by or for the Company to the Company's design and drawing and
sold and installed by the Authorized Dealer.
7. The Company's responsibility is limited to the terms of this Warranty and it shall not be
liable for personal injuries or consequential or resulting liability, damage or loss arising
from any defect.
8. The Company's Liability under this Warranty is dependent upon the strict observance by
the retail Purchaser, of the following provisions
ŸThe Retail purchase at the time of delivery shall sign, complete and return the
Authorized Warranty and Dealer's Delivery Report form.
Ÿ All the parameters should be thoroughly checked as per the scheduled maintenance as
mentioned in the operator manual. The customers are also bound to use the genuine
spares for machine purchased from authorized dealers.
Ÿ Repair or replacements will be performed by the facility of the Authorized Dealer/its
branch dealer/itsAuthorized Service Center only, following delivery of the Product by
the retail surcharge to the facility of the Authorized Dealer/its branch dealer/its
Authorized Service Center.
Ÿ This Warranty shall not apply if the Product or any part thereof repaired or altered not in
accordance with our standard repair procedure or by any person other than an
Authorized Dealer/its branch dealer/its Authorized Service Centre.
08

ŸThe Retail Purchaser shall at all times use only those brands of lubricating oils,
lubricants or fuel which are approved in writing by the Company, for operating the
products.
Ÿ The decision of the Company or the concerned Authorized Dealer in regard to the
warranty shall be final and conclusive and the retail Purchaser hereby agrees to
unconditionally accept their decision on all.
Ÿ This warranty does not cover any applicable taxes payable on any parts which the
company may supply or repairs free of cost of during the warranty period. This
warranty also does not cover the cost of packaging to and fro freight and
transportation charges etc. on the defective machine or other parts of the machine
sent to Dealers locations
Ÿ Claims arising from this warranty will be considered only if they are notified in writing to
the concerned Authorized Dealer or to the Company promptly after the defect has
been ascertained.
Ÿ The Company reserves the right to make changes in design or introduce any
improvement or add any parts on the Products at any time without incurring any
obligation to install the same on Products previously sold.
9. This contract will be ineffective and incorporative if :
Ÿ The duly filled warranty card is not presented during the repairs.
Ÿ The Univator or any parts thereof is subjected to neglect, fire, floods or other acts of
God or if in the company's opinion any damage has caused to the Univator during
transportation.
Ÿ The original numbers are removed, obliterated or altered from the unit.
Ÿ Any attempt is made to have the repairs executed by a person, other than the
company's or its authorized representatives.
Ÿ Any defect is not informed immediately to the company or its authorized
representative, any alterations in the warranty card is made.
Ÿ The use of replacement parts not manufactured or supplied by the company will
automatically invalidate this warranty.
Ÿ This warranty shall not apply to defect/damages caused by normal wear and tear,
accident, transportation, misuse or neglect, usage in non agric applications, defect in
the products which have been altered outside the Company's work or which have been
let out on hire or the identification marks on which have been altered or removed.
Company's decision in this respect will be final and binding on all.
10. The warranty will become void when:
Ÿ Besides the cases specified in the supply agreement, the warranty shall in any case
become void.
Ÿ Should there have been a manoeuvring error, use of an inadequate safety bolt on the
Cardan shaft or when the Cardan shaft has been damaged through improper
maintenance.
Ÿ When the implement has been used beyond the specific power limit as given in the
technical data chart.
Ÿ When the defects gets arise due to the machine operations in conjunction with
unauthorized attachments.
Ÿ When following repairs made by the customer without authorization from the
manufacturer or owing to installation of spurious spare parts, the machine is subject to
variations and the damage can be ascribed to these variations.
Ÿ Whenever the user or anyone else on his behalf applies equipment to the machine that
has not been expressly approved by the manufacturer.
UNIVATOR MANUAL
1.0
09

Ÿ When the user failed to comply with the instructions in this operator's manual
ŸThe warranty is non-transferable and is valid for first retail purchaser of the product. In
case the product is sold by first retail customer to another person the warranty
becomes void and Null
11. The above Warranty is in lieu of all other Warranties express or implied, and no person,
agent or representative of the Company is authorized to give any other warranties on the
Company's behalf or to assume for it any other liability in connection, with the Product.
12. The court at Pune shall have exclusive jurisdiction to try, entertain and dispose of all
proceeding relating to any dispute arising between the Company and the retail purchaser
on the liability of the Company under this warranty.
UNIVATOR MANUAL
1.0
10

SAFETY NOTES
2.0
2.1 SAFETY REGULATIONS
2.1.1 A licensed driver should operate the machine
2.1.2 If any trouble occurs due to overload or sudden resistance (large stones), stop
the tractor immediately and take out the Cardan shaft. Lift the Univator, detect the
cause and remove the solid bodies. Be sure, there is no damage in working parts and
continue the work.

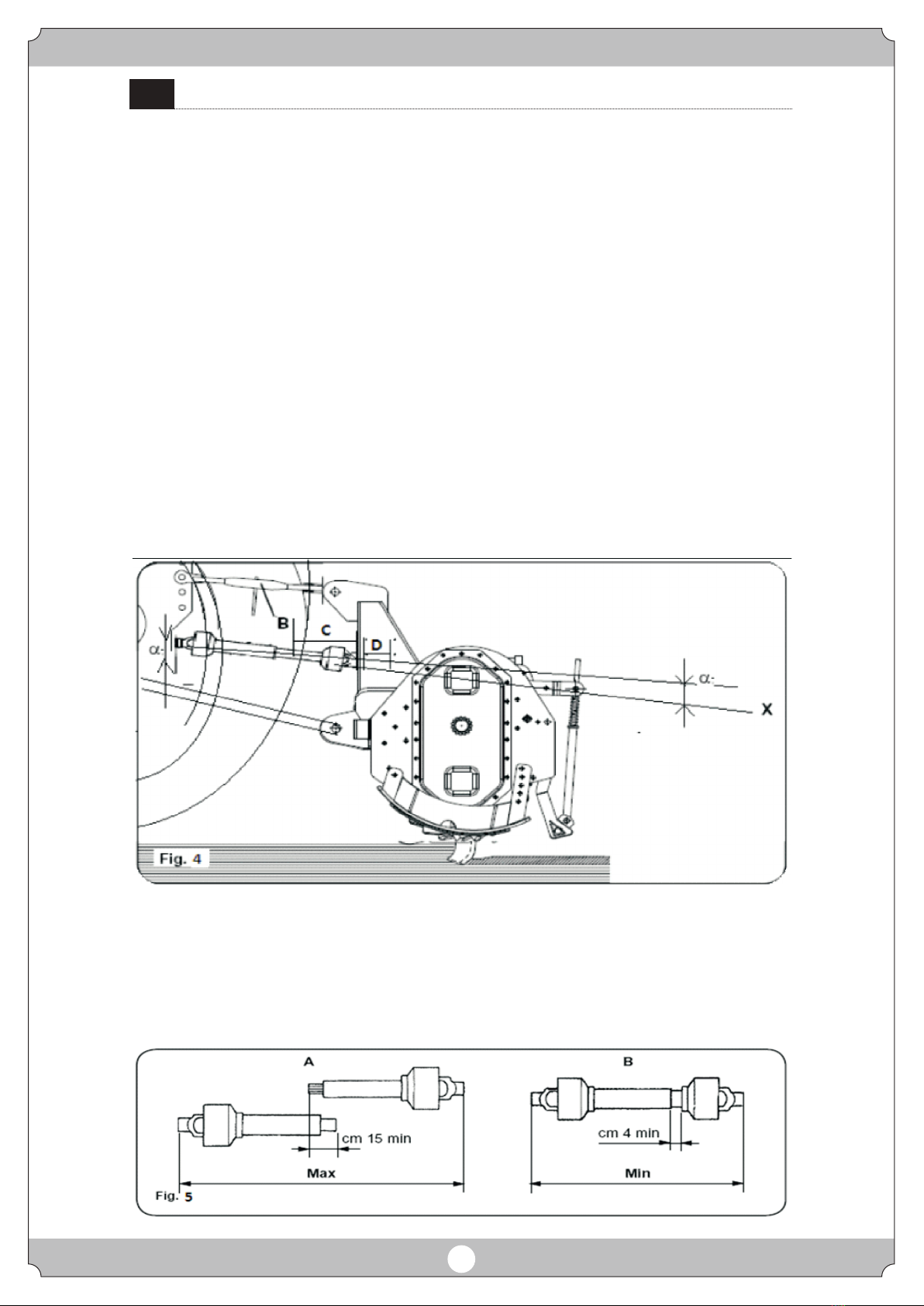

2.1.3 The angle formed by the P.T.O. shaft centreline and the centreline of the Cardan axle
should never exceed 30 Degree.
2.1.4 All servicing and maintenance operations must be performed only at rest, with tractor
switched off.
2.1.5 Do not try to take turns with the blades in contact with the ground. Before turning, lift
the Univator in transport position.
2.1.6 Do not get under the machine when it is in transport position.
2.1.7 Do not operate the machine or allow anyone to come near machine when under
influence of intoxicants like alcohol etc.
2.2 SAFETY INSTRUCTIONS
Read the Operation &
Maintenance manual
Before using the machine
Danger to hand and fingers
due to collision with parts in
rotation.
Keep the safe distance
Danger to feet due to
Collision with parts in
Rotation. Keep the safe
distance
Danger to feet due to
rotating cutters.
Keep the safe distance
Danger due to machine
Component that is Lifted
above the ground. Keep the
safe distance
Danger of cutting due to
moving parts. Wait until all
moving components are
completely motionless before
approaching the machine.
Danger due to
flying objects.
Keep the safe
distance
Danger to hot surface.
Keep the safety
Distance
Danger of hand and
finger cutting.
Keep the safe
distance.
Danger of feet
cutting Maintain
the safety distance
Danger of rotating
movements. Do not open
or remove the safetyguards
of the rotating shafts while
the machine is
Danger due to loads lifted
from the ground. Keep the
safety distance
11

SAFETY NOTES
2.0
2.3 WARNING SIGNALS
2.3.1 There are three types of signals:
DANGER:
This signal warns when serious injuries, death or long-term health risks would be caused
by failure to correctly carry out the described operations.
WARNING:
This signal warns when serious injuries, death or long-term health risks could be caused
by failure to correctly carry out the described operations.
CAUTION:
This signal warns when damage to the machine could be caused by failure to carry out the
described operations.
2.3.2 In order to identify the various levels of danger, the following describe situations and
specific definitions that may directly involve the machine or persons.
DANGER ZONE:
Any area inside and / or near a machine in which the presence of an exposed person
constitutes a risk for the safety and health of that person.
EXPOSED PERSON:
Any individual who happens to be completely or partly in a risk zone.
OPERATOR:
The person/s charged with installing, starting up, adjusting, carrying out maintenance,
cleaning, repairing or transporting a machine.
USER:
The user is the person or the organization or the firm which has purchased or rented the
machine and intends to use it for the purposes it was conceived for.
SPECIALIZED PERSONNEL:
Those persons who have been specially trained and qualified to carry out interventions of
maintenance or repair requiring a particular knowledge of the machine, its functioning,
safety measures, methods of intervention - and who are in a position to recognize the
potential dangers when using the machine and are able to avoid them.
AUTHORIZED SERVICE CENTER:
The authorized Service Center is a structure legally authorized by the manufacturer which
disposes of personnel specialized and qualified to carry out all the operations of
assistance, maintenance and repair - even of a certain complexity - found necessary to
keep the machine in perfect working order
Become thoroughly familiar with all the instructions before using the machine. Contact
the dealer in case of doubt. The Manufacturer declines all and every responsibility for
failure to comply with the safety and accident prevention. Regulations described herein.
1) Comply with the instructions given by the danger symbols in this handbook and
affixed to the machine itself.
2) Never ever touch any moving part.
3) Operations and adjustments to the implement must always be carried out when the
engine is off and the tractor braked.
4) Before proceeding with any work under the machine, make sure that the driveline has
been detached from the PTO and secure the machine itself with supports to make
sure that it is unable to accidentally drop.
5) It is absolutely forbidden for persons without a driving license, in expert persons or
those in precarious health conditions to drive the tractor with the machine mounted.
12

6) Strictly comply with all the recommended accident preventing measures described
in this booklet.
7) Assembly of an implement on the tractor will shift the weights on the axles. It is
therefore advisable to add weights to the front part of the tractor in order to balance
the weights on the axles themselves.
8) The coupled implement may only be controlled through the Cardan shaft complete
with the necessary safety devices for overloads and with the guards fixed with the
relative latch. Keep away from the Cardan shaft while it is turning.
9) Before starting the tractor and implement, always check that all safety devices,
guarding transports and use are in a perfect condition.
10) The instruction labels affixed to the machine give useful advice on how to prevent
accidents.
11) Always comply with the Highway Code in force in your country when traveling on
public roads.
12) Transport on roads takes place under the total responsibility of the user, who is
obliged to verify the adequacy of the machine to the rules of the road traffic code in
force in that country.
13) Comply with the maximum permissible weight on the axle of the tractor, the total
adjustable weight, shipping regulations and the Highway Code.
14) Always become familiar with the controls and their operation before starting work.
15) Always wear suitable clothing. Never ever wear loose garments or those with edges
that could in some way become caught up in rotating components or moving
mechanisms.
16) As indicated, couple the implement to a tractor of equal power and configuration,
applying a device (lift), confirming to the prescriptions.
17) Take the utmost care during the implement coupling and release phases.
18) Any accessories for transport must be equipped with adequate signals and guards.
19) Never ever leave the driving seat while the tractor is moving.
20) It is very important to remember that the road holding, steering and braking capacity
may be even notably influenced by the presence of a towed or mounted implement.
21) Always take care of the centrifugal force exercised by the furthered position of the
center of gravity, when turning corners with the implement mounted.
1) Side guard
2) 3- point coupling
bearing frame.
3) Tilt adjusting road.
4) Cardan shaft.
5) Tractor pto coupling.
6) Lower tractor coupling
links.
Image: B
SAFETY NOTES
2.0
13

22) Before engaging the PTO, check that the RPM rate is that prescribed. Never exchange
the 540 RPM rate for 1000 RPM. It is absolutely forbidden to stand within the
operative range of the machine where there are moving parts.
23) Before leaving the tractor, lower the implement coupled to the lift unit, stop the
engine, engage the hand brake and remove the ignition key from the control panel.
24) It is absolutely forbidden to stand between the tractor and the machine (Image: B)
when the engine is running and the Cardan shaft is engaged without having first
engaged the hand brake. Keep a safe distance from the machine at work to avoid
being hit by possible flying stones, etc.
25) Always set the lift control lever to the locked position before coupling or releasing the
implement from the three-point coupling.
26) The category of the implement coupling pins must correspond to that of the lift
coupling
27) Take care when working near the lift links. Beware, it's a very dangerous zone.
28) It is absolutely forbidden to stand between the tractor and the implement when
maneuvering the lift control from the outside (Fig. 1)
29) Fix the side lift links with the relative chains and idlers during the transport phase.
30) Set the control lever of the hydraulic lift to the locked position during road transport
with the implement raised. When hoisting from the ground, the joints of the Cardan
shaft are bent to more than 40° (power takeoff turned off). Detach the shaft from the
power takeoff of the tractor.
31) Only use the Cardan shaft recommended by the Manufacturer.
32) Frequently and periodically check the Cardan shaft guard. It must constantly be in an
excellent condition and well-welded.
33) Take great care of the Cardan shaft guard, both in the transport and work positions.
34) The Cardan shaft must only be installed or dismantled while the engine is off.
35) Take great care to ensure that the Cardan shaft is correctly assembled and safe, and
carefully check the locking, both on the P.T.O. of the machine and on the P.T.O. of the
tractor.
36) Use the supplied latch to prevent the Cardan shaft guard from turning both on the
machine's and on the tractor's side.
37) Before engaging the P.T.O., ensure that there are no persons or animals in the field of
action of the machine and that the selected running rate corresponds to the
permissible value. Never exceed the recommended maximum rate.
38) Never engage the P.T.O. when the engine is off.
39) Always disengage the P.T.O. when the Cardan shaft is set at an excessively open angle
(never beyond 30 degree – Image: C) and when it is not in use.
Image: C
Fig. 2
SAFETY NOTES
2.0
14

40) Only clean and grease the Cardan shaft when the P.T.O. is disengaged, the engine off,
the hand brake engaged and the ignition key removed.
41) Rest the Cardan shaft on its stand when the machine is disconnected.
42) Refit the protective cap on the P.T.O. shaft after having dismantled the Cardan shaft.
43) Lengthy use of the machine can, as a secondary effect, overheat the overdrive and
parts of the hydraulic circuit. Never touch these parts immediately after use as they
are very hot and can cause burns.
44) Never carry out maintenance or cleaning work unless the P.T.O. has been disengaged,
the engine switched off, the hand brake engaged. Periodically check the state and
condition of the protective bars and the protection flap bar.
45) Periodically check that all nuts and bolts are fully fastened. Re-fasten them if
necessary.
46) Always place adequate supports under the implement when servicing the machine or
replacing the hoe blades with the implement raised.
47) Before working on the cutting tools, disengage the P.T.O., switch off the tractor engine,
engage the hand brake and check that the blades are completely at a standstill.
48) Only use the recommended oil.
49) The spare parts must correspond to the requirements established by the
manufacturer. Always use genuine spare parts.
50) The safety transfers must always be perfectly visible. They must be kept clean and
should be replaced if they become illegible. Replacements are available on request
from your local dealer.
51) The instruction manual delivered together with the machine by the dealer must be
kept for as long as the machine lasts.
52) In the event a tractor is used that has no pressurized, soundproof cabin the operator
must use individual methods of protection
53) Protective headphones for noise in case the standard levels of exposure are
exceeded. Anti-dust mask, if a considerable quantity of dust is raised caused by the
type of product cut, by very dusty earth, or by the usage of an open machine.
Attention
SAFETY NOTES
2.0
15

3.1 BEFORE USE: BEFORE STARTING THE MACHINE, CHECK THAT
3.1.1 The machine is perfectly in order that the lubricants are at the correct
levels (see «Maintenance» chapter) And that all parts subject to wear and
deterioration are fully efficient.
3.1.2 Check the machine, correctly positioned for obtains the right working depth.
3.2 CONNECTING THE UNIVATOR TO THE TRACTOR
3.2.1 Univator can be applied to any type of tractor as long as it is supplied with 3P universal
attachment.
3.2.2 The Univator must be positioned on a flat surface, in a stable position.
3.2.3 The tractor must reverse towards the Univator until its arms correspond to the arms of
the 3P of Univator. During this phase, any pedestrian/onlooker must be at least 5 m from
the machine.
3.2.4 Position the plugs of the lower 3 pins and lock them using the supplied lynch pins.
3.2.5 Connect the upper tractor arm to the upper pin of the 3P, adjusting it in a way that the
machine takes a parallel position to the ground.

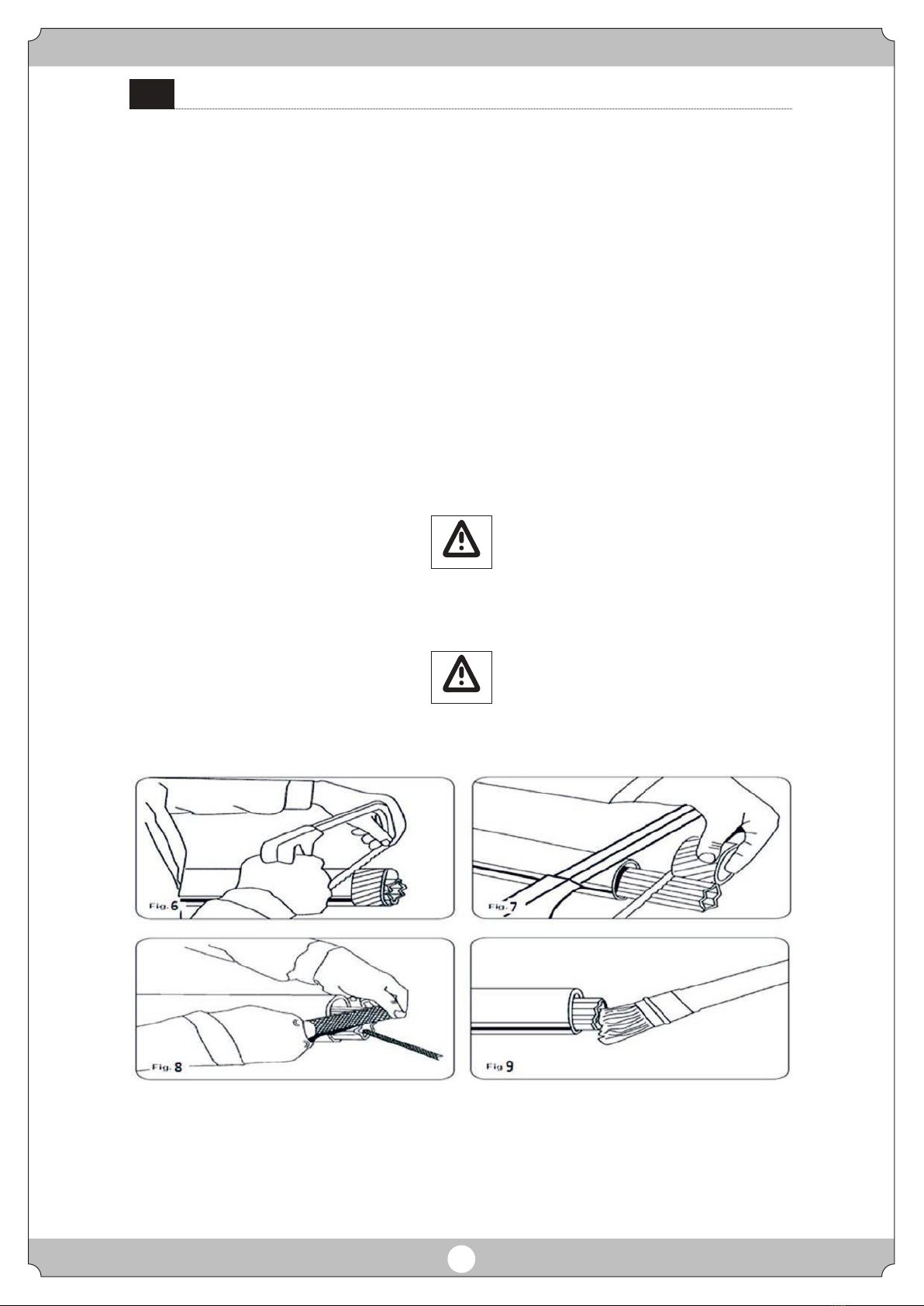

3.3 INSTRUCTIONS FOR ASSEMBLING THE CARDAN SHAFT
3.3.1 Before mounting the Cardan shaft, carefully read the booklet supplied by the
Manufacturer.
3.3.2 Manufacturer declines all responsibility for operations carried out on the Cardan shaft if
the specific Instructions supplied by the Manufacturer are not followed.
3.3.3 Position the Cardan shaft and check that its ends are well coupled with tractor's power
take off (P.T.O.).
3.3.4 Fix the anti-rotation chains present on the drive shaft both on the Tractor side and on the
Univator side. During this phase the tractor engine must be switched off, to prevent an
incorrect manoeuvre from activating the Power take off (P.T.O.).
3.3.5 After having carried out above operations, it is possible to activate the tractor lifting
device to release the support feet (if present), which must be completely raised and
blocked using the supplied pins.
OPERATING INFORMATION
3.0
Image: D
3.3.6 If the land has masses, stones or anything else that may cause blows on the blades, the
use of Cardan shaft With clutch or with other safety system (Shear Bolt Torque Limiter or
Auto Torque Limiter LR) is Indispensable. It is also advised to run the tractor with lower
speed, to soften blows on the machine.
3.3.7 Any problems caused by working on particularly rocky land will not be covered in the
warranty.
16

3.3.8 The calibration of the Cardan joint clutch/Shear Bolt must also be checked to be sure that
it carries out its, function correctly. It is advised to carry out this control at a specialized
centre. The clutches/Shear Bolts on the Cardan shaft normally supplied by KOEL are
calibrated to the maximum available load. It is advised to have the Cardan shaft;
Clutch/Shear Bolt checked by a specialist every 300 working hours or, if the work is
seasonal, on re-starting activity after the break.
3.4 CARDAN SHAFT ADAPTION
3.4.1 The Cardan shaft, supplied with the machine is of standard length. Therefore, it might be
necessary to adapt the Cardan shaft. In that case, before doing anything, consult the
Manufacturer for the eventual adaptation. Hitch the machine to the tractor and stabilize
the tractor's third point with the device set up for that purpose (bar, range, and so on).
3.4.2 Disengage the tractor's P.T.O. and turn off the engine. Connect the Driveline shaft to the
tractor's P.T.O. The connection is correct when the machine is horizontal in the operating
position. To achieve this, increase or decrease the length of the top bar of the hitch (B
Image E) so as to set the axis (X Image: E) of the housing's grooved ring nut parallel to the
ground.
Image: E
3.4.3 Inspections at work :
ŸThe two angles ( Fig. 4) formed by the fork axes and the axis of the sliding tubes will be
equal and must not, exceed 10°
ŸThe sliding tubes (C Fig. 4) must overlap by at least 15 cm (Fig. 5).
OPERATING INFORMATION
3.0
17

3.4.4 Inspections in the raised position:
Ÿ Proceed with a lifting action (tractor P.T.O. disengaged).
Ÿ The two tubes of the drive line shaft must not fully overlap. There must always be a
safety travel (D Fig.4) of at least 4 cm.
Ÿ The angles ( Fig.4) of the drivelines must not exceed 40° (Fig. 4). If these two results are
not obtained:
Ÿ Shorten the sliding tubes by the same extent (Fig. 6 and 7), deburr and trim (Fig. 8),
then grease the inside of the outer tube (Fig. 9).
Ÿ Make sure that the upper hitch bar is as parallel as possible to the lower bars of the
hitch.
Ÿ If this is not sufficient, correct the way the top link of the hitch couples to the tractor or
machine, as necessary, or at least considerably attenuate the jolts to which the drive
line shaft is subjected during the lifting phase.
Ÿ If errors have been committed, disengage the tractor's P.T.O. before lifting the machine.
Repeat these inspections when the machine is hitched behind another tractor.
Ÿ When the Cardan shaft is fully extended, the two tubes must overlap by at least 15 cm.
When fully inserted, the minimum play must be 4 cm. (Fig. 5).
If the implement is used on another tractor, always check that the guards completely cover the
rotating parts of the Cardan shaft.
Caution
Caution
OPERATING INFORMATION
3.0
3.5 Changing Rotor Speed
The operations for gear replacement and changing the rotor speed are as follows:
3.5.1 Stop the tractor & rest the attached Univator on the flat surface, apply the tractor hand-
brake
18
