KISANKRAFT KK-MCH-01D User manual

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 1 of 20
Product
Maize Harvester
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-MCH-01D
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE
OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s Invoice
Date
Dealer’s Invoice
No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from defects
in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such
parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft orits manufacturers make nowarranty with respectto items notmanufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor any
of its manufacturers, nor its authorized dealers assume any responsibility, if the failure was caused by
the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or
altered products (8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the
customer. (2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and
consumables such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil
seals and gaskets etc. are not covered under the warranty. (4) Electrical Motor, ElectricalParts, Battery
Etc. are not covered under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for general
damages, including bodily injuries, or for incidental or consequential damages including, but not limited
to, loss of use, loss of profits, loss of production, expense of substitute equipment or other commercial
loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations, or
liabilities. Any implied warranties, obligations, or liabilities, including, but not limited to, any implied

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 2 of 20
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for
breach of any warranties hereunder, including, but not limited to, any implied warranty of
merchantability must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or
any of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the
product is resold by the first buyer. The above warranties are extended to the first end user (original
purchaser), and no warranty is made, nor authorized to be made assignable on resale by the first end
user.
What you must do to obtain limited warranty service: To obtain performance of any obligation under
this warranty for failure during the applicable warranty period, you must deliver the defective product,
to the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt). KisanKraft Limited, its
manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if
the malfunction is the result of a defect covered by this warranty. Please note that the decision of
KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to consumers. All
sales or supplies are made through Authorized Dealers. It is the responsibility of the Authorized Dealer
to provide all after-sales service to consumers. Any warranty claim should be raised by dealer to
KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes: ➢This purchase is not contingent upon a product demonstration. The purchaser shall satisfy
himself withthe product, includingany product demonstration orverification of anyfunction,
before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall
not be liable to give any on-site demonstration after purchase of any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation, Demonstration,
Repair, Routine Maintenance etc.), should be done through the Authorized Dealer selling
this product.
➢Dealers should have their own technician to provide After Sales Services to their
Customers. KisanKraft Limited provides free training to Authorized Dealer’s technicians at
KisanKraft Limited’s head office, on request from Authorized Dealer.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 3 of 20
User Manual
KisanKraft Limited
Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout, Dasarahalli,
HAF Post, Hebbal, Bangalore 560024, Karnataka, INDIA
♦Bangalore (HO) ♦Ahmedabad ♦Bhopal ♦Bhubaneswar ♦
♦Coimbatore ♦Jammu ♦Guwahati ♦Hubli ♦Hyderabad ♦
♦Jaipur ♦Karnal ♦Kolkata ♦Lucknow ♦Pune ♦Raipur ♦

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 4 of 20
CONTENTS
Before Getting Started.................................................................................... 7
Safety Precautions .......................................................................................... 7
Working principle & Application..................................................................... 7
Features .......................................................................................................... 8
Product Structure............................................................................................ 8
Inspection & Adjustment ................................................................................ 9
Operation...................................................................................................... 10
Maintenance & Service................................................................................. 12
Troubleshooting............................................................................................ 14
Technical Specification.................................................................................. 15

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 5 of 20
Product
Maize Harvester
KisanKraft
Invoice Date
Brand
KisanKraft
KisanKraft
Invoice No.
Model
KK-MCH-01D
WARRANTY
PERIOD
6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER.
Dealer’s Invoice
Date
Dealer’s Invoice No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign
Dealer’s Sign
Warranty Policy
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from defects
in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts
as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited’s office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor any
of its manufacturers, nor its authorized dealers assumes any responsibility, if the failure was caused by
the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or
altered products (8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility ofthe customer.
(2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and consumables
such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets
etc. are not covered under the warranty. (4)Electrical Motor, Electrical Parts, Battery Etc. are notcovered
under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for general
damages, including bodily injuries, or for incidental or consequential damages including, but not limited
to, loss of use, loss of profits, loss of production, expense of substitute equipment or other commercial
loss or damage.

KisanKraft®
Warranty Certificate
(CUSTOMER COPY)
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 6 of 20
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations, or
liabilities. Any implied warranties, obligations or liabilities, including, but not limited to, any implied
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for
breach of any warranties hereunder, including, but not limited to, any implied warranty of merchantability
must be brought within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any
of its manufacturers has the authority to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not transfer if the
product is resold by the first buyer. The above warranties are extended to the first end user (original
purchaser), and no warranty is made, nor authorized to be made assignable on resale by the first end
user.
What you must do to obtain limited warranty service: To obtain performance of any obligation under
this warranty for failure during the applicable warranty period, you must deliver the defective product, to
the nearest Authorized Dealer, along with proof-of-purchase (invoice/receipt). KisanKraft Limited, its
manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if
the malfunction is the result of a defect covered by this warranty. Please note that the decision of
KisanKraft Limited with respect to any warranty claim is final.
After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to consumers. All
sales or supplies are made through Authorized Dealers. It is the responsibility of the Authorized Dealer
to provide all after-sales service to consumers. Any warranty claim should be raised by dealer to
KisanKraft Limited as per warranty policy.
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Notes:
➢This purchase is not contingent upon a product demonstration. The purchaser shall satisfy
himself with the product, including any product demonstration or verification of any function,
before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall not
be liable to give any on-site demonstration after purchase of any of the product.
➢Any product once used will not be taken back by KisanKraft Limited.
➢Warranty and After Sale Services (including but not limited to installation, Demonstration,
Repair, Routine Maintenance etc.), should be done through the Authorized Dealer selling this
product.
➢Dealers should have their own technician to provide After Sales Services to their Customers.
KisanKraft Limited provides free training to Authorized Dealer’s technicians at KisanKraft
Limited’s head office, on request from Authorized Dealer.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 7 of 20
Before Getting Started
Thank you for your purchase and use of our product In order to avoid accidents or injury, please read
this manual carefully before using the machine. Also this manual provides information on installation,
operation and maintenance. After reading, preserve it for further reference.
This manual has contents related to construction, operation, repair, maintenance, safety, optimum
performance of this maize harvester. Please be sure to read the manual carefully before operating,
confirm you have gained enough knowledge of safe operation and maintenance. Please note that as
a part of continuous improvement, the product may undergo slight modifications
Safety Precautions
Warning:
•Please be sure to read the manual carefully before operating, understand the safety
operating methods, especially the handling methods during emergency. It is more important
than the regular operation.
•Do not operate the machine without enough training. Children/ minors are forbidden to
operate.
•Do not operate while after consuming alcohol, while having fatigue or in bad mood.
•Do not operate the machine in insufficient light.
•Before starting the engine, ensure it is in neutral gear and the clutch at the separating
position.
•Separate the clutch before changing the gear position. Lower the speed of engine.
•Pay more attention while working on the slope field to avoid risk of falling down.
•Bystanders should keep safety distance during operation
•If you want to clear the mud or grass on machine or on the blades or any assistance is
required, ensure to separate clutch and turn off engine first.
•Fuel is highly flammable, so keep them away from fire. Turn off the engine, allow it to cool
before adding fuel to oil tank.
•Do not run the machine in less ventilated place occasion, in order to avoid CO poisoning.
•Keep away from rotating and hot parts.
Working principle & Application
The maize harvester has an engine with the power that drives walking tyres to walk through gearbox,
the power is also transmitted to another gearbox, which in turn drives two iron harvesting wheels and
blades below. While the machine is moving forward, the stem of the corn plant is pulled inside by two
rotating iron wheels, but the corn cob cannot pass because of thickness, so it is cut down and made
to fall into case. Thus the stem is cut into pieces by blades.
Suitable for the corn planted in the hilly land.
The machine can be divided into two parts, when the part with another gearbox is removed, the
remaining part can be used as a tiller.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 8 of 20
Features
1. Light and flexible: Occupies less space, is light in weight, do not require much professional
knowledge and training，So can be easily operated.
2. Multifunction: corncob is collected separately and stem is cut into pieces and returned to the field.
3. Well-suited for hilly land where the road is not good enough, or the land is small.
4. Price, fuel consumption and operating cost is very low
5. Can be used as an independent tiller, like for rotary tillage, deep tillage, ridging, etc.
6. High-efficiency.
Product Structure
Note:The above picture is only for reference
1. Switch off button,
2. Accelerator
3. Walking clutch
4. Grip for height adjustment
5. Fuel tank
6. Oil level gauge of engine
7. Shift level for Fwd I,II and Rwd
8. Tire
9. Walking gearbox
10. Joystick for hopper
11. Hopper
12. Oil filler of harvesting gearbox
13. Harvesting gearbox
14. Shift level for high and low
speed
15. Silencer
16. Air filter
17. Grip for L&R adjustment
18. Armrest shelf
19. Oil filler of walking gearbox
20. Clutch for harvesting
21. Oil cup of air filter
22. Hand starter

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 9 of 20
Inspection & Adjustment
The machine has been adjusted and calibrated strictly before leaving the factory. However, it is
necessary to check and adjust various parts before the first operation or anytime if necessary.
1. Daily inspection
Warning
Before operating, you must fill machine oil into engine oil cup of air filter, gear box of walking case,
gearbox of the harvester. Please note that oil is not filled while leaving factory. Following this, the
operator should check machine oil often. While working if machine oil is found insufficient or if it is not
clean, then refill/ change it immediately, else the machine will be seriously damaged.

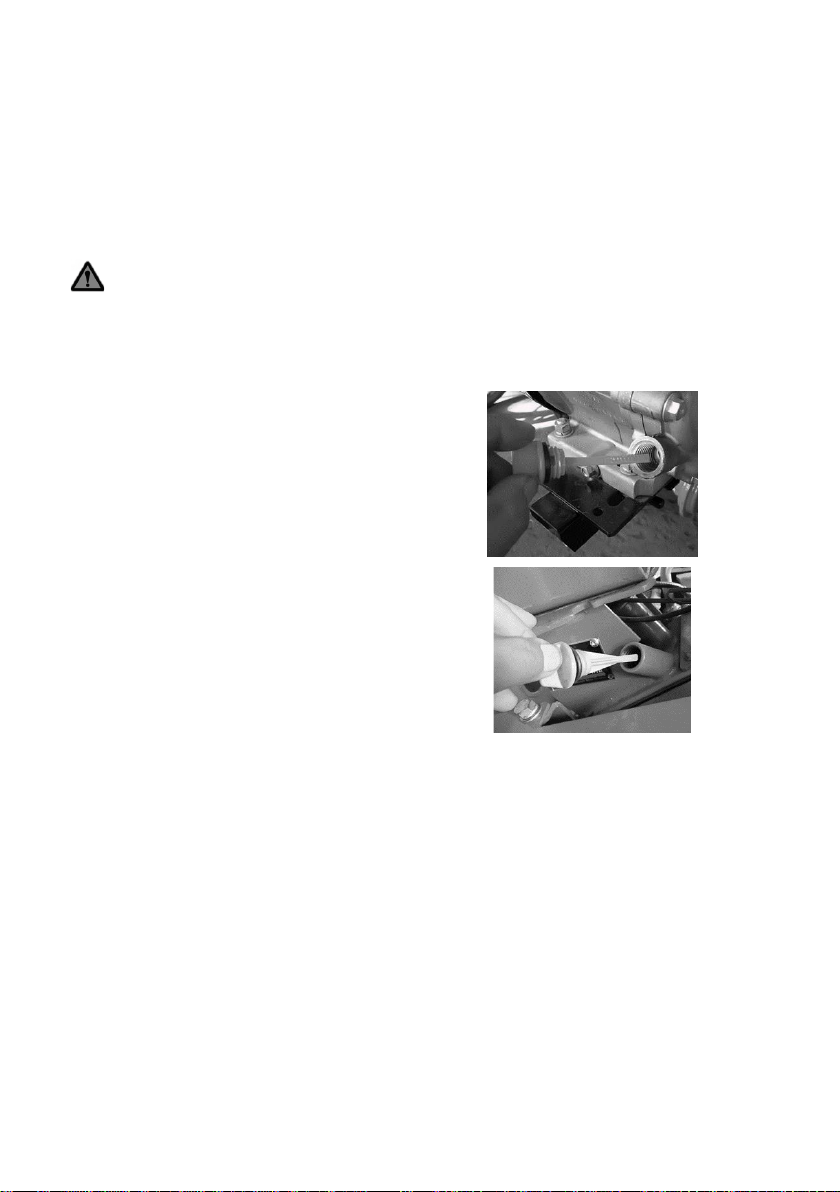

1.1 Inspect engine oil in engine, the regular volume is
0.7L.
•Keep the machine on a flat surface.
•Move the oil level gauge, clean it.
•Put back it into hole again, do not turn.
•Move it out again, check the oil level, the
normal position is at the middle of mark. As
shown in the right picture.
1.2 Inspect the engine oil in air filter, if there is no
suitable volume of engine oil in the oil type air
filter, it will damage the engine.
The regular level is near the mark of “oil
level”.
1.3 Inspect the engine oil in gearbox of walking case, the regular volume is 1.8L. Procedure is same
as mentioned above in 1.1: fill engine oil in engine.
1.4 Inspect the engine oil in gearbox of harvesting, the regular volume is 2.2L.
•You can remove the cover, turn tightly after filled.
Note: there is no gauge here, just fill the volume as required.
•Inspect the control part such as control knobs, clutches, shift level, etc. Ensure they all are
working reliably
•Inspect screw bolts, parts of joint, ensure they all are fastened tightly.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 10 of 20
Operation

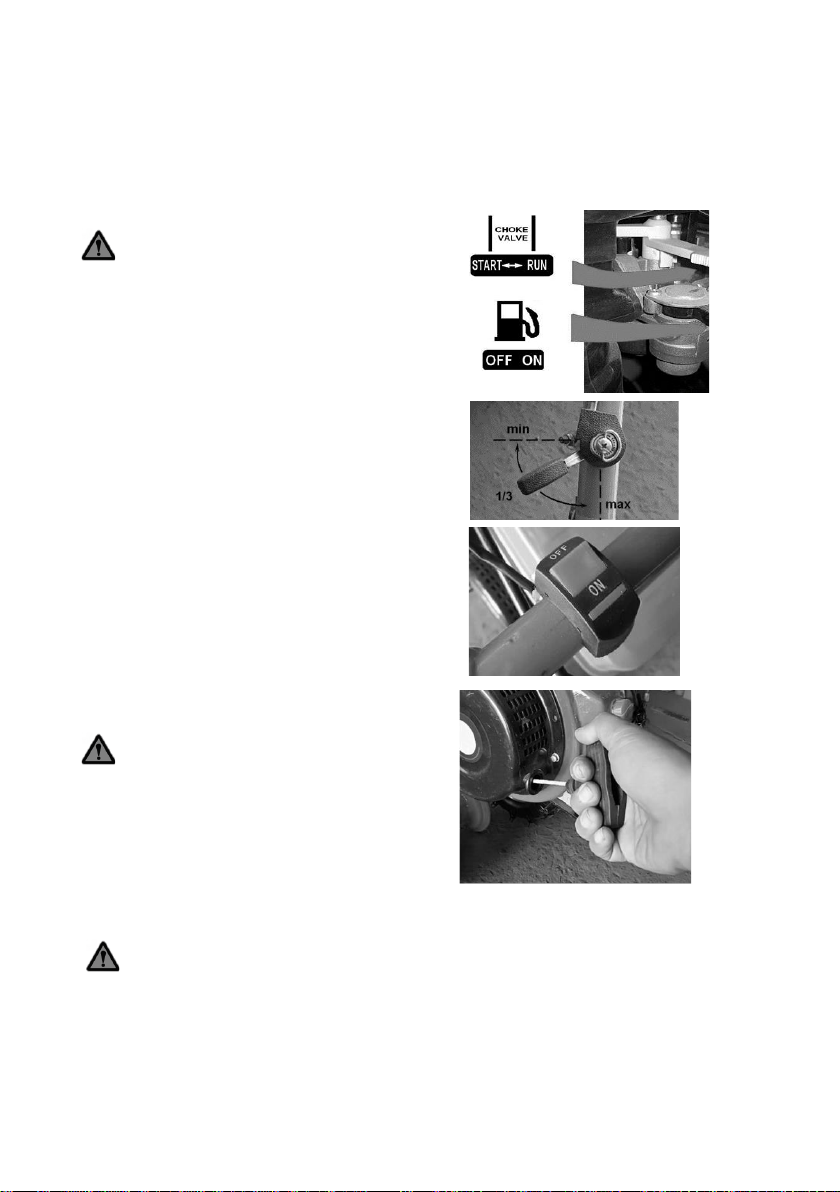

1 Starting the Engine
Before starting the engine, ensure to put
gear box to neutral gear and the clutch at the
separating position.
1.1 Refuel diesel into oil tank,
1.2 Right turn the fuel switch to “open”
1.3 Left turn the choke valve to “start”
1.4 Turn the handle of accelerator to about 1/3
1.5 Press the switch off button to “ON”
1.6 By pulling out the recoil starter about 10cm,
until it become tight, then pull quickly by
force, then can you start the engine.
Warning: If pull out the recoil directly by
force without pulling out 10cm lightly, the starter
will be damaged.
If you loosen the handle suddenly after pulling
out, the handle will go back to starter quickly, the
starter will be damaged. So you should grip the
handle until it is completely back slowly.
1.7 After the engine is started, wait for few secondstill the engine runs smoothly, then
turn the choke valve to “RUN”slowly.
Warning: If the choke valve is not turned to “RUN” completely, the engine will be
damaged in few minutes.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 11 of 20

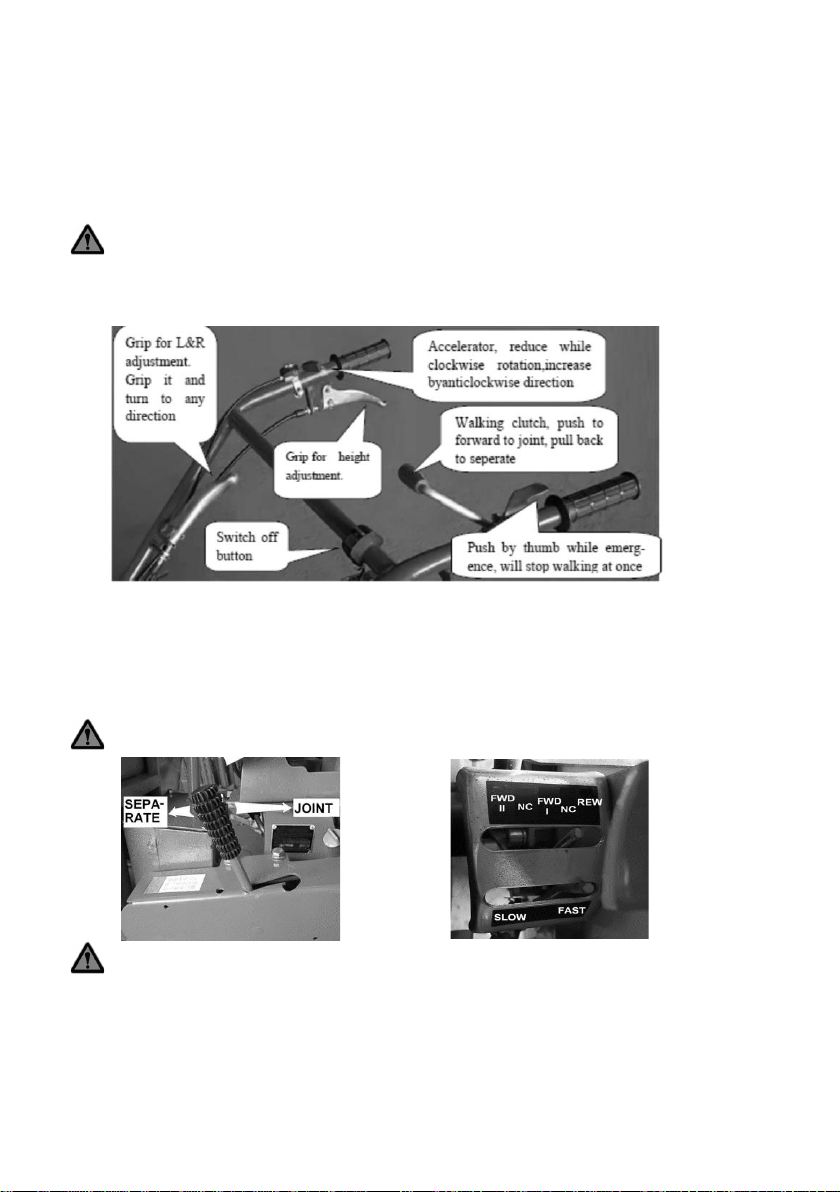

3 Walking and Working
2.1 After the engine is started, the machine can walk or work. Before this, adjust the angle and height
of the handle as per your convenience. The following picture shows the controlling position.
Adjust the engine in low speed before joint the walking clutch, to avoid any injury caused by
sudden and fast moving of the machine.
Note: There is a button near walking clutch handle, you can press to stop walking at once while
emergency statement.
3.2 There are 2 shift levels, the above used for control reward, forward I, forward II, the below one is
used to control high and low speeds.
Note: What calls for special attention is that, the shift level used for forward and backward, is
under the statement of tiller. But for the corn harvester, it is opposite. That means, only by putting
the shift level to backward, we can harvest maize.
The walking clutch should be separate before change shift level.
Warning: Do not overexert while changing the shift level to avoid contact of your hand with hot
silencer.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 12 of 20
3.3 Maize harvesting
There is a special clutch for maize harvesting, called harvesting clutch, as shown in fig. Separate the
clutch, to stop harvesting, but the machine can move forward or backward.
Only when the clutch is pushed to joint, the harvesting will take place.
Warning: To join or separate the harvesting clutch, you have to separate walking clutch first.

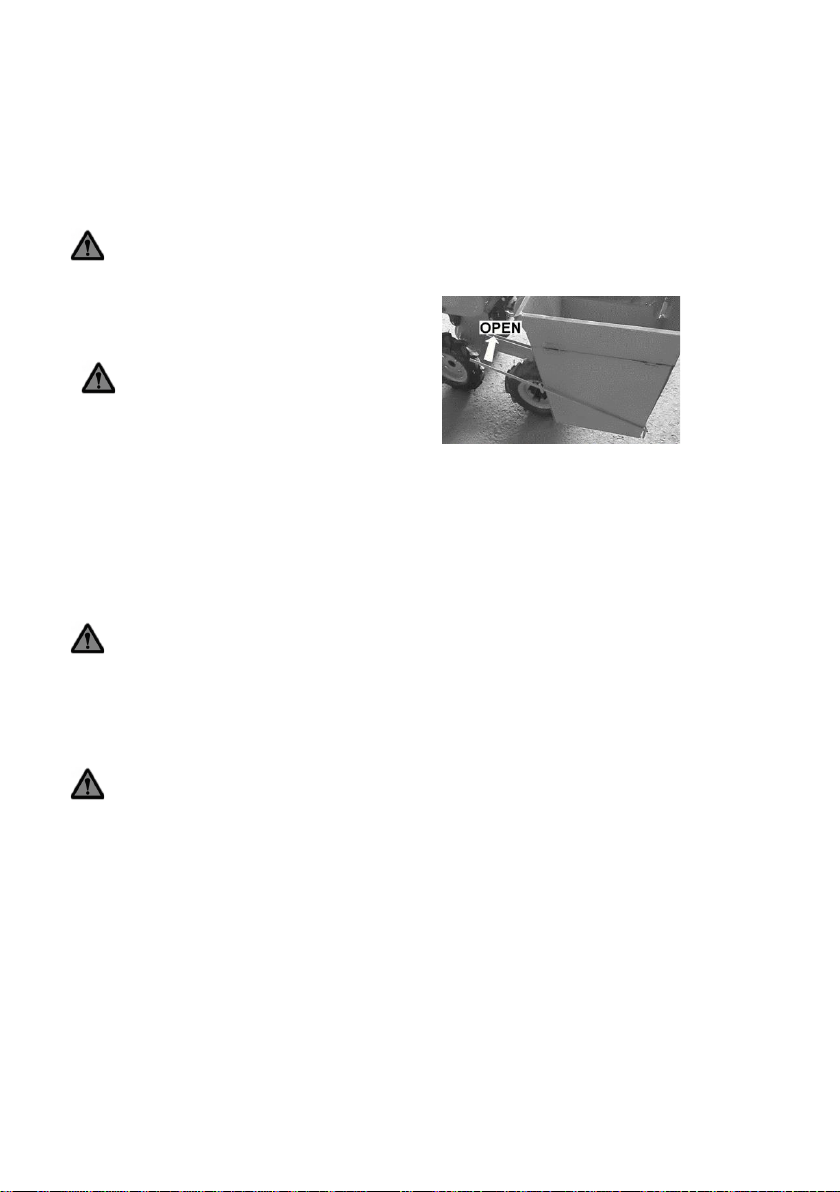

3.4 Discharge the corn cob.
If the hopper is full of corn cobs, you should
discharge them, pull the handle to open as
shown in the picture (right)
Warning: Before discharging, the
walking clutch should be separated to stop
walking of the machine.
3.5 Change direction
If you have finished a row, need to turn around or need to change direction because of other reasons,
but if it is very difficult when all the 4 wheels are on surface, then you should lift the two wheels near
to driver, above the ground, to change the direction easily.
4 Shut down
3.1 Separate the walking clutch
3.2 Turn the accelerator clockwise to the end, minimize the speed of engine
3.3 Press switch off button to “OFF”.
Warning: Press switch off button to “OFF “directly under the state of emergency. Otherwise you
should follow the above mentioned procedure, i.e., not to shut down suddenly while working in high
speeds in order to avoid any hurt or damage.
Maintenance & Service
Shut down the engine before any maintenance. In order to prevent the engine from being started
accidentally, the engine accelerator should be put in the minimum position and for the electric start
models，you should remove the start key.
•The machine should be serviced by authorized dealer unless the user has the proper tools,
maintenance information and maintenance ability.
•Use original parts or their equivalent products, as poor quality substitutes can damage the
machine.
•Inspect the screw bolts, parts of joint, ensure they are fastened tightly
•In order to maintain excellent performance, the machine must be inspected and adjusted
regularly. The routine maintenance also guarantees the long service life.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 13 of 20
•Due to the running and friction and the instability of load, some problems are inevitable
such as screw bolts loose, the parts wear and tear which may lead to machine abnormal
function, reduction in engine power, increase in fuel consumption, etc.
•To reduce the above problems and prolong machine service life, it is strictly necessary to,
to do a good maintenance on a regular basis and keep it in good technical condition.
1 Technical Maintenance
1.1 Shift maintenance. (Before working and after working.
a) Inspect for oil leakage of the engine, gear boxes, etc.
b) Inspect if the volume of machine oil is sufficient.
c) Clean the mud, grass, oil contamination etc.
d) Listen and observe all over the machine for irregular sound, over heat, screw bolts loose.
e) Record the work.
1.2 Class I maintenance (every 150 hours)
a) Carry on all the works mentioned in 1.1
b) Clean crankcase of engine, gearboxes and change the engine oil.
c) Inspect and adjust clutches, shift level system, transmission system.
1.3 Class II maintenance (every 800 hours)
a) Carry on all the works mentioned in 1.2
b) Inspect all the gears and bearings, replace the worn out parts by new one.
c) Check all other items such as blades and screw bolts, replace the damaged by new ones.
1.4 Technical Inspection (every 1500-2000 hours)
a) Separate the complete machine, clean and inspect, replace the worn out parts by
authorized person
b) Inspect and adjust friction plate and clutch by authorized person.
2. Long Term Storage.
If the machine has to be stored for a long time, in order to keep it in good condition, the following
measures should be taken.
a) Clean the surface of the machine neatly
b) Drain the engine oil from gear box then refill with new oil.
c) Coat anti-rust oil on the surface of the easy rust places.
d) Store the machine at a dry, well-ventilated, safe place.
3. Running-in
a) If you have just bought a new machine or the machine after a repair, then the machine
should be running in.
b) The machine should work for half an hour without load, then work for 5 hours with light load.
c) Then drain the engine oil while it still warm, then refill new machine oil, running in for 4
hours, so you can operate the machine regularly.
4. Engine. Maintenance
a) The main contents of daily inspection and maintenance: screw bolts, oil leakage, and clean
dirt, solve the troubleshooting.

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 14 of 20
b) Clean fuel filter every half a year or every 500 hours, take out and clean the fuel filter.
Remove the leakage screw under the oil tank, release all the fuel and impurities.
c) Clean the machine oil filter element, take out and clean the machine oil filter every 250
hours, replace after it is dry.
d) Replace engine oil: Replace with new engine oil after 20 hours for the first time, thereafter
replace once in every 100 hours
e) Replace or clean air filter element.
f) If the filter element was blocked or damaged, the air going to engine will be reduced. The
combustion of the engine will be bad. It will cause lack of power and the exhaust gas in
black, and engine is difficult to start. So the filter element should be cleaned often.
g) The filter element of dry type air filter should be blown or brushed to remove the dirt, you
should replace with new one if invalid.
h) Oil filter has sponge inside, you can remove the sponge, and wash it with detergent, then
replace it back.
5. Maintenance of the Harvester Assembly.
a) Inspect the belts and clutch frequently, solve in time if loose or other problems.
b) Inspect screw bolts, ensure they are joined tightly.
c) Inspect welding area, to find if there are somewhere broken, if found so, solve without
delay.
d) Clean the dust, grass, to keep the belt running smoothly.
Troubleshooting
Problem
Reason
Solution
Remark
The engine
does not start
Lack of fuel in fuel tank
Refill fuel
If there is less
fuel in tank, the
engine cannot
start
sometimes. Or
even if started,
it will stop
automatically
soon
Fuel switch off
Open switch
Insufficient Accelerator
Turn the accelerator to about
1/3
Insufficient strength while
handle start
Pull the handle quickly and
strongly.
Machine oil too thick
because of cold weather
Heat the oil
Fuel difficult to burn
because of cold weather
Heat the cylinder head
Exhaust gas
in black
Overload
Lower the gear to low speed
Air filter blocked
Clean or change filter element
Insufficient fuel
Inspect the supply system of
fuel

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 15 of 20
Problem
Reason
Solution
Remark
Exhaust gas
in blue
There is excess engine oil
in cylinder
Inspect the level of oil, and
release the excess oil
Gap between piston and
cylinder is big
Repair to replace the piston
ring
Incorrect gap of piston ring
Repair to correct the piston
ring gap
Over wearing of valve or
valve shaft guide
Repair to replace the valve or
valve shaft guide.
Oil leakage
from gearbox
or crankshaft
box
Seal failure
Replace the seal
There are
many models
of seal, you
should point
out model or
location used
whenever
necessary.
Over wear of seal
Replace the seal
Screw loose
Tighten the screw
Mini holes in engine body
Repair by welding or sealing
by anti-oil glue
Technical Specification
No.
Description
Unit
Parameter
1
Model
--
KK-MCH-01D
2
Structure
--
4 wheels, Self-walking
3
Dimension
mm
1820*800*1190
4
Net weight
kg
162
5
Engine
model
--
KK-DEV-386
Fuel
Diesel
Power
kW
5.2kW
Speed
r/min
3600

KisanKraft®
Maize Harvester
KK-MCH-01D
: www.kisankraft.com
: [e-mail]
: +91.80. 6835 7800
Page 16 of 20
No.
Description
Unit
Parameter
6
Quantity of tyres
pcs
4
7
Size of tyres
--
350-6
8
Transmission
mode of walking
--
chain
9
Clutch mode
--
Tensioner
10
Rows
--
1
11
Width
cm
42
12
Line width
cm
≥10
13
Work efficiency
Hm2/h
0.1
14
Recovery ratio
%
≥97
15
Loss ratio
%
≤1
16
Quantity of
blades
pcs
2*5
17
MTBF
h
50
18
Environmental
noise
dB
≤83
19
Location noise
of driver
dB
≤97
