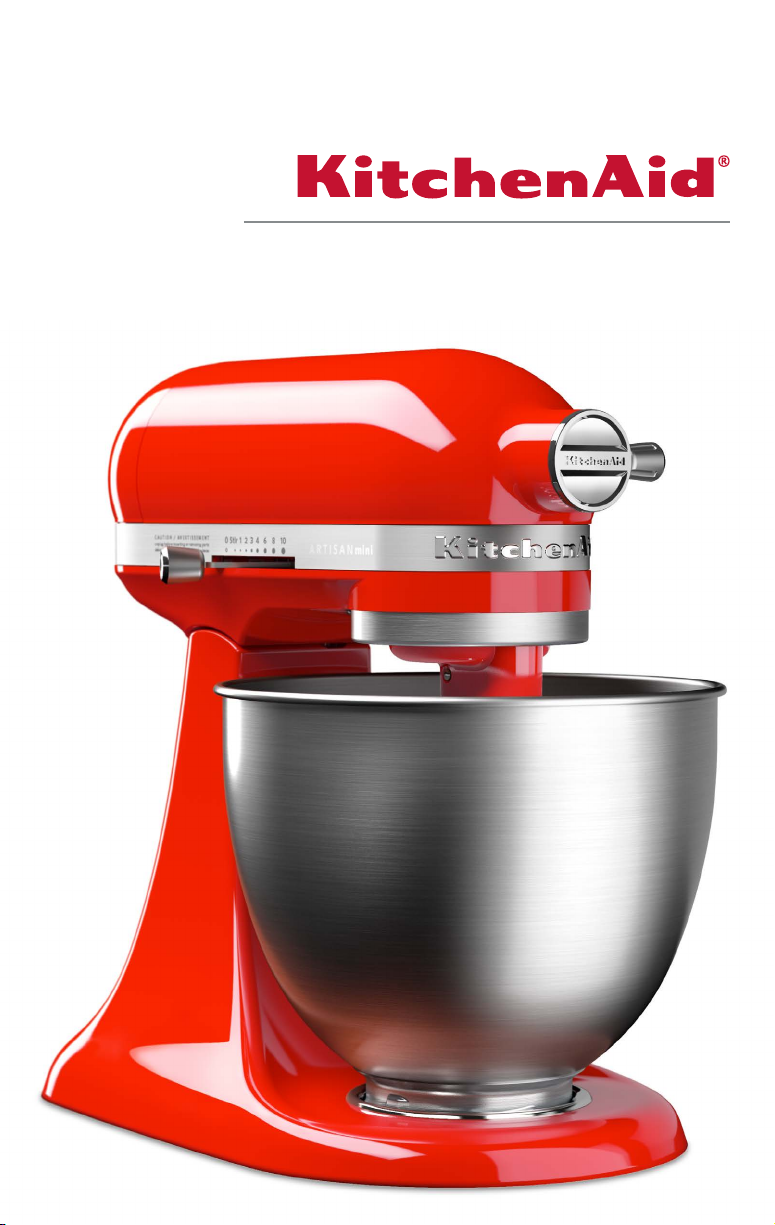

KitchenAid KSM3300 Series User manual

KSM3300 Series

PARTS AND FEATURES
PARTS AND ACCESSORIES
Pouring shield*
Flex Edge
beater*
Wire whip
Dough hook
Speed control
*Available with select models only and available as an accessory purchase.
**Bowl type may vary. Bowls are also available for purchase as separate accessories.
Motor head
Attachment hub
Beater shaft
Flat
beater
Bowl**

ENGLISH
STAND MIXER SAFETY | 3

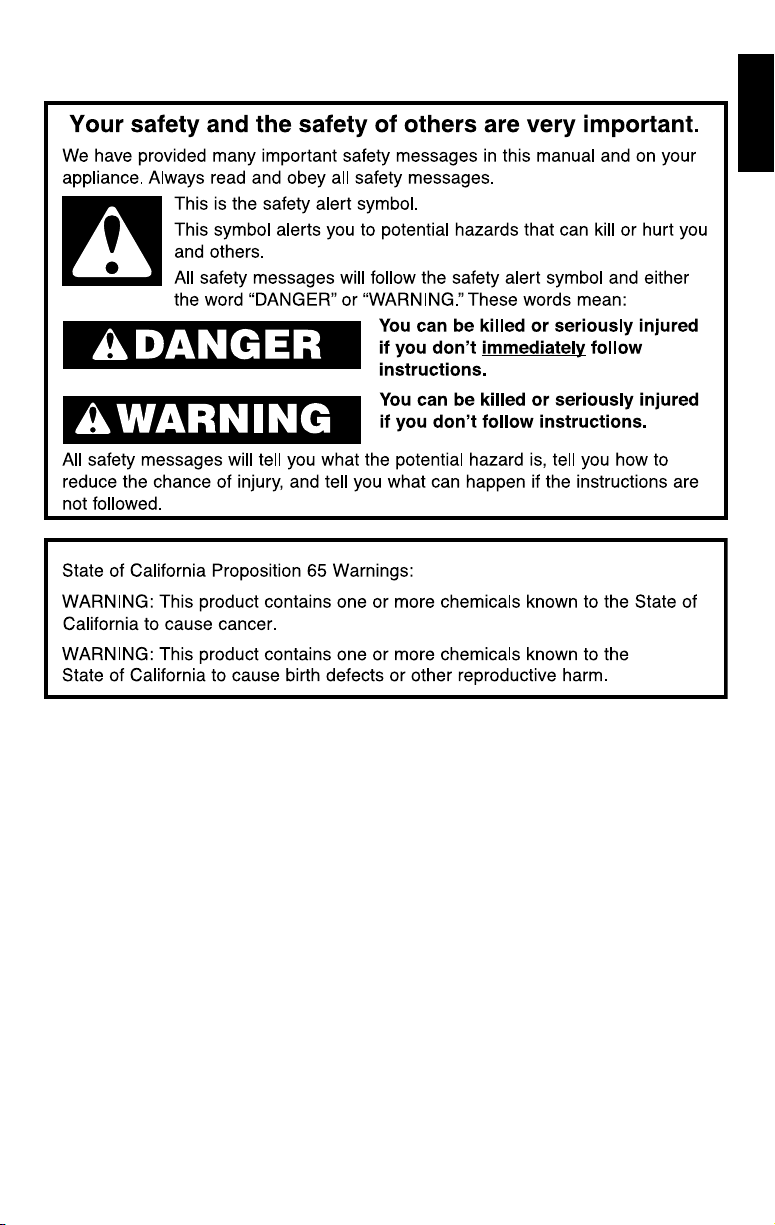

STAND MIXER SAFETY
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. To protect against risk of electrical shock, do not put Stand Mixer in water or
other liquid.
3. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they are closely supervised and instructed concerning use
of the appliance by a person responsible for their safety. Close supervision is
necessary when any appliance is used by or near children. Children should be
supervised to ensure that they do not play with the appliance.
4. Turn the appliance OFF, then unplug from the outlet when not in use, before
assembling or disassembling parts, and before cleaning. To unplug, grasp the
plug and pull from the outlet. Never pull from the power cord.
5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well
as spatulas and other utensils, away from beater during operation to reduce
the risk of injury to persons and/or damage to the Stand Mixer.

4 | STAND MIXER SAFETY
STAND MIXER SAFETY
6. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or is dropped or damaged in any manner. Return appliance to the
nearest Authorized Service Center for examination, repair, or adjustment.
7. The use of accessories not recommended or sold by KitchenAid may cause
re, electric shock, or injury.
8. Do not use the Stand Mixer outdoors.
9. Do not let the cord hang over the edge of table or counter.
10. Remove the beaters, wire whip, or dough hook from the Stand Mixer before
washing.
SAVE THESE INSTRUCTIONS
This product is designed for household use only.

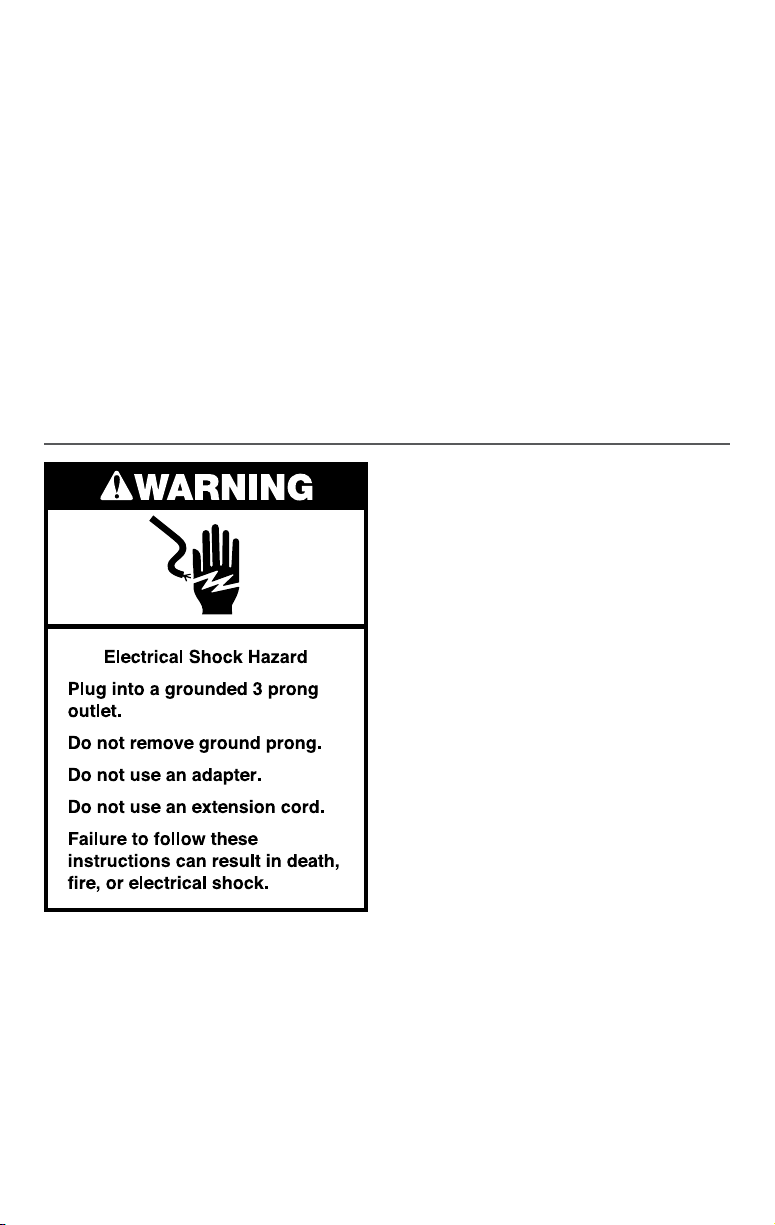

ELECTRICAL REQUIREMENTS
Voltage: 120 V
Frequency: 60 Hz
Wattage: 250 Watts max
NOTE: The power rating for your Stand
Mixer is printed on the serial plate.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician or service technician
install an outlet near the appliance.
The maximum rating is based on the
attachment that draws the greatest
load (power). Other recommended
attachments may draw significantly
less power.

ENGLISH
USING THE STAND MIXER | 5
USING THE STAND MIXER
ACCESSORY CHART BY MODEL
CHOOSING THE RIGHT ACCESSORY
MODEL ACCESSORIES INCLUDED
KSM3306 Glass bowl, Flex Edge beater, wire whip, dough hook
KSM3311 Brushed stainless steel bowl (no handle), flat beater, wire
whip, dough hook
KSM3316 Polished stainless steel bowl with handle, flat beater, wire
whip, dough hook
KSM3317 Polished stainless steel bowl with handle, Flex Edge beater,
wire whip, dough hook
ACCESSORY USE TO MIX DESCRIPTION
FLAT BEATER
FLEX EDGE BEATER*
Normal
to heavy
mixtures
Cakes, creamed frostings, candies,
cookies, biscuits, pie pastry, meat loaf,
mashed potatoes
WIRE WHIP Mixtures
that need air
incorporated
Eggs, egg whites, heavy cream,
boiled frostings, sponge cakes,
mayonnaise, some candies
DOUGH HOOK Mixing and
kneading yeast
doughs
Breads, rolls, pizza dough, buns
*Available with select models only and available as an accessory purchase.

6 | USING THE STAND MIXER
FOR DETAILED INFORMATION ON USING THE STAND MIXER:
Visit kitchenaid.com/quickstart for additional instructions with videos, inspiring recipes,
and tips on how to use your Stand Mixer.
USING THE STAND MIXER
SPEED CONTROL GUIDE
All speeds have the Soft Start®feature which automatically starts the Stand Mixer
at a lower speed to help avoid ingredient splash-out and “flour puff” at start-up,
then quickly increases to the selected speed for optimal performance.
NOTE: The speed control can be set between the speeds listed in the chart to obtain
speeds 1, 3, 5, 7, and 9 if a finer adjustment is required. Do not exceed Speed 2 when
preparing yeast doughs as this may cause damage to the Stand Mixer.
SPEED ACCESSORY ACTION DESCRIPTION
STIR
STIR
For starting all mixing procedures, slow
stirring, combining, and mashing. Use to
add flour and dry ingredients to batter,
and to add liquids to dry ingredients.
Do not use Speed 1 to mix or knead
yeast doughs.
1
2
SLOW MIXING
For slow mixing, mashing, and faster
stirring; start mashing potatoes or other
vegetables; cut shortening into flour.
Use to mix and knead yeast doughs,
heavy batters, and candies; mix thin or
splashy batters.
4
MIXING,
BEATING
For mixing semi-heavy batters, such
as cookies, or to combine sugar and
shortening. Medium speed for cake
mixes.
Use to add sugar to egg whites for
meringues.
6
BEATING,
CREAMING
For medium-fast beating (creaming),
or whipping. Use to finish mixing cake,
doughnut, and other batters. High
speed for cake mixes.
For medium-fast whipping of
ingredients requiring incorporation of
air, such as egg whites.
8FAST BEATING,
WHIPPING
For whipping cream, egg whites,
and boiled frostings.
10
FAST WHIPPING
For whipping small amounts of cream
or egg whites; for final whipping of
mashed potatoes.
NOTE: To move the speed control lever with ease, lift slightly up as you move it across
the settings in either direction.

ENGLISH
USING THE STAND MIXER | 7
USING THE STAND MIXER
ASSEMBLING THE STAND MIXER
1Check to be sure that the Stand
Mixer is unplugged, and the speed
control is turned to “0”. 2
Raise the motor head: Slide the
locking lever to the unlock position
and lift the motor head. Once lifted,
slide the locking lever to the lock
position to keep the motor head up.
3
Attach the bowl: Place the bowl on
the bowl clamping plate and gently
turn it in a clockwise direction to
lock it into place.
4
Attach any accessory: Slip the
accessory onto the beater shaft and
press upward as far as possible. Turn
the accessory counterclockwise to
hook the accessory over the pin on
the shaft.
NOTE: To move the speed control lever
with ease, lift slightly up as you move it
across the settings in either direction.

8 | USING THE STAND MIXER
USING THE STAND MIXER
IMPORTANT: Your Stand Mixer is
adjusted at the factory so that the flat
beater just clears the bottom of the bowl.
If, for any reason, the flat beater hits the
bottom of the bowl or is too far away
from the bowl, you can easily correct the
clearance.
NOTE: When properly adjusted, the flat
beater will not strike on the bottom or
sides of the bowl. If the flat beater or the
wire whip is so close that it strikes the
bottom of the bowl, coating may wear off
the beater or wires on the whip may wear.
ASSEMBLING THE STAND MIXER
(OPTIONAL) To adjust beater to
bowl clearance: Tilt the motor head
back; then turn the screw slightly
counterclockwise (left) to raise the
beater, or clockwise (right) to lower the
beater. Adjust the beater so that it just
clears the surface of the bowl. If you
over-adjust the screw, the bowl lock
lever may not lock into place.
(OPTIONAL) Place the pouring shield*:
Slide the pouring shield* from the
front of the Stand Mixer over the bowl
until the pouring shield* is centered.
The bottom rim of the pouring shield*
fits inside of the bowl. The pouring
chute will be just to the right of the
attachment hub as you face the
Stand Mixer.
5
Lower the motor head: Slide the
locking lever to the unlock position
and guide the motor head down.
Make sure motor head is completely
down, then slide the locking lever
to the lock position. Before mixing,
test lock by attempting to raise
motor head.
*Available with select models only and available as an accessory purchase.

ENGLISH
USING THE STAND MIXER | 9
USING THE STAND MIXER
OPERATING THE STAND MIXER
NOTE: The Stand Mixer may warm up during use. Under heavy loads with extended
mixing time, the top of the unit may become hot. This is normal.
1
Plug the Stand Mixer into a
grounded 3 prong outlet. Always
set the speed control lever on
lowest speed to start, then gradually
increase speed to avoid splashing
ingredients. See the “Speed control
guide” to select the best speed for
your recipe.
2
Do not scrape the bowl while
the Stand Mixer is operating.
The bowl and beaters are designed
to provide thorough mixing without
frequent scraping. Scraping the
bowl once or twice during mixing
is usually sufficient.
NOTE: To move the speed control lever
with ease, lift slightly up as you move it
across the settings in either direction.

10 | USING THE STAND MIXER
USING THE STAND MIXER
DISASSEMBLING THE STAND MIXER
NOTE: The pouring shield* can be
used to avoid ingredients splashing
out of the bowl when mixing, as well
as to easily pour ingredients in the
bowl while mixing.
1
Raise the motor head: Check to
be sure that the Stand Mixer is
unplugged, and the speed control is
turned to “0”; then slide the locking
lever to the unlock position and lift
the motor head. Once lifted, slide
the locking lever to the lock position
to keep the motor head up.
(OPTIONAL) Remove the pouring
shield*: Lift the front of the pouring
shield* clear of the rim of the bowl,
and pull away from the Stand Mixer.
2
Remove the accessory: Turn the
speed control to “0”, unplug the
Stand Mixer, and tilt the motor head
back. Then, press the accessory
upward as far as possible, turn the
accessory clockwise, and pull it off of
the beater shaft.
3Remove the bowl: Gently turn
the bowl counterclockwise to release
it from the bowl clamping plate.
(OPTIONAL) Pour ingredients into the
bowl through the pouring chute.
*Available with select models only and available as an accessory purchase.
