Kleinn CANX3-KIT User manual

CANX3-KIT
INSTALL GUIDE
© Kleinn Air Horns 2020, All rights reserved.
PO Box 91278 Tucson, AZ 85752
Phone: [phone]
Web: www.Kleinn.com
INCLUDES CALIFORNIA CARB VEHICLES
REV: B (12/2/2022)

CANX3-KIT
Install Guide
Go to Table of Contents PG 2/46 REV: B (12/2/2022)
This digital PDF is interactive.
Please save ink and paper…
Open interactive manual using Adobe Reader ®
on PC, MAC, and all smart devices

CANX3-KIT
Install Guide
Go to Table of Contents PG 3/46 REV: B (12/2/2022)
Table of Contents
1. LIST OF FIGURES .................................................................................................................................................5
2. How to Use this Manual .....................................................................................................................................6
2.1. Interactive Manual using Adobe Reader ....................................................................................................6
2.2. Illustration/Photo Details and Orientation.................................................................................................6
3. Safety First ..........................................................................................................................................................6
4. Application Chart................................................................................................................................................7
4.1. 100% Direct Bolt-On Vehicle List ................................................................................................................7
4.2. Excluded Vehicles .......................................................................................................................................7
4.3. Aftermarket Product Compatibility............................................................................................................7
5. Installation Overview..........................................................................................................................................8
5.1. QUICK INSTALL OUTLINE.............................................................................................................................8
5.2. Kit Layout and Locations.............................................................................................................................9
5.3. Approximate Installation Time ...................................................................................................................9
6. List of Tools and Supplies ................................................................................................................................ 10
6.1. Standard Tool List (Required) .................................................................................................................. 10
6.2. Special Tool List (Recommended) ........................................................................................................... 10
6.3. Shop Consumables List (Recommended) ................................................................................................ 10
7. Parts List .......................................................................................................................................................... 11
7.1. Before Starting, Review Parts List ........................................................................................................... 11
7.2. Pre-Packaged Electro-Mechanical Kit Items............................................................................................ 11
7.3. Air Fittings and Related Items ................................................................................................................. 12
7.4. Electrical Small Components and Related Items..................................................................................... 13
7.5. Bolt-On Mounting Brackets & Special Hardware .................................................................................... 14
7.6. Hardware, Fasteners and Soft Parts........................................................................................................ 15
8. On-Vehicle Mechanical Assembly Steps.......................................................................................................... 17
8.1. Plan Location of Quick Connect Air Coupler (1302) ................................................................................ 17
8.2. Remove Passenger Side Rear Fender ...................................................................................................... 17
8.3. Remove Driver Side Rear Fender............................................................................................................. 19
8.4. Air Tank Brackets - Installation................................................................................................................ 19
8.5. Air Tank Fittings - Bench Assembly.......................................................................................................... 22
8.6. Air Tank - Installation............................................................................................................................... 23
8.7. Bench Assemble Compressor with Bolts and X3-102.............................................................................. 24

CANX3-KIT
Install Guide
Go to Table of Contents PG 4/46 REV: B (12/2/2022)
8.8. Bench Assemble Compressor Bracket and Rubber Bushings .................................................................. 27
8.9. Air Compressor Bracket - Installation...................................................................................................... 28
8.10. Air Compressor - Installation................................................................................................................... 31
8.11. Air Horn ................................................................................................................................................... 33
8.12. Install Remote Quick Connect Kit to Vehicle........................................................................................... 39
9. On-Vehicle Electrical Installation..................................................................................................................... 40
9.1. Relay and Fuse Diagram for System ........................................................................................................ 40
9.2. Illuminated Rocker Switch Electrical Hookup Guide ............................................................................... 41
9.3. Install Horn Button .................................................................................................................................. 42
9.4. Disconnect Vehicle Battery(s).................................................................................................................. 42
9.5. Connect Wiring to Relay(s) and Fuse(s), then Attach to Vehicle............................................................. 42
9.6. Connect Air Horn Solenoid ...................................................................................................................... 43
9.7. Pressure Switch ....................................................................................................................................... 43
10. Initial Testing of Kit.......................................................................................................................................... 44
10.1. Reconnect Vehicle Battery(s) .................................................................................................................. 44
10.2. Test Air Compressor ................................................................................................................................ 44
10.3. Test Train Horns....................................................................................................................................... 44
10.4. Test Quick Connect Coupler .................................................................................................................... 44
10.5. Re-install Rear Fenders............................................................................................................................ 44
11. General Operation of Kit ................................................................................................................................. 45
11.1. Compressor Operation ............................................................................................................................ 45
12. Routine Maintenance ...................................................................................................................................... 45
13. Warranty Information ..................................................................................................................................... 45

CANX3-KIT
Install Guide
Go to Table of Contents PG 5/46 REV: B (12/2/2022)
1. LIST OF FIGURES
Figure 1 – Top View Showing Kit Layout (2018 X3 2 Door Shown) ............................................................................9
Figure 2 – Passenger Rear Fender Removal (fasteners on top of fender) .............................................................. 17
Figure 3 – Passenger Rear Fender Removal (fasteners behind door and fender) .................................................. 17
Figure 4 – Passenger Rear Fender Removal (below taillight).................................................................................. 18
Figure 5 – Passenger Rear Fender Removal (fender resting on tire); Air Tank shown installed............................. 18
Figure 6 – Air Tank Bracket Mounting Locations (side view) .................................................................................. 19
Figure 7 – Air Tank Bracket Mounting Locations (top view) ................................................................................... 19
Figure 8 – Front Air Tank Bracket Stops at Corner Gusset (shown with air tank)................................................... 20
Figure 9 – Installing Front Air Tank Brackets, Exploded View ................................................................................. 20
Figure 10 – Installing Rear Air Tank Bracket, Exploded View .................................................................................. 21
Figure 11 – Installing Rear Air Tank Bracket, Proper Bolt Orientation (partial bracket shown) ............................. 21
Figure 12 – Air Tank Fittings Installed on Air Tank, Exploded View ........................................................................ 22
Figure 13 – Air Tank Fittings Orientation (from above vehicle) .............................................................................. 22
Figure 14 – Installing Air Tank onto Brackets, Exploded View ................................................................................ 23
Figure 15 – Air Compressor Leader Hose Fitting Install .......................................................................................... 24
Figure 16 - Air Compressor with Bolts and X3-102 (Shown with Air Filter and no Leader Hose) ........................... 25
Figure 17- H13 Cut & Installed ................................................................................................................................ 26
Figure 18- Leader Hose Routing .............................................................................................................................. 26
Figure 19 - Air Compressor Bracket with Rubber Grommets Installed ................................................................... 27
Figure 20 – Air Compressor Bracket Mounting Locations (side view w/o fender – CARB Version shown) ............ 28
Figure 21 – Air Compressor Bracket Mounting Locations (top view)...................................................................... 28
Figure 22 – Installing Air Compressor Bracket, Exploded View............................................................................... 29
Figure 23 – Air Compressor Temporary Install (Shown installed on CARB Vehicle) ............................................... 30
Figure 24 – Air Compressor Clearance Adjustment (Shown installed on CARB Vehicle) ........................................ 30
Figure 25 – Air Compressor Bracket Final Install (Shown installed on CARB Vehicle) ............................................ 31
Figure 26 – Installing Air Compressor onto Bracket; Exploded View (shown without Leader Hose) ..................... 32
Figure 27- Final Rounting of Leader Hose ............................................................................................................... 32
Figure 28 – Air Filter with Remote Tubing Shown Attached ................................................................................... 33
Figure 29- Air Horn Separation................................................................................................................................ 33
Figure 30 – Carriage Bolts temporarily taped in place on Horn Bracket................................................................. 34
Figure 31 – X3-302 with Rubber U-Trim installed, exploded view.......................................................................... 34
Figure 32 – Sway Bar Bolts to remove and Brake Line Bolt (looking from above).................................................. 35
Figure 33 – Air Horn Bracket Installed..................................................................................................................... 36
Figure 34- Trumpet Support Bracket Installation.................................................................................................... 36
Figure 35 – Installing Air Horns onto Horn Bracket................................................................................................. 37
Figure 36- Final Tightening of Air Horn Brackets and Air Horn ............................................................................... 38
Figure 37 – Final installation of 102 Air Horn (X3 Turbo R shown) ......................................................................... 38
Figure 38 – Example of Air Coupler Mounted to Bumper....................................................................................... 39
Figure 39 – Suggested Ignition Relay Diagram for Air Horn System ....................................................................... 40
Figure 40 – Wiring Guide for Illuminated Rocker Switch ........................................................................................ 41
Figure 41- Center Console for Rocker Switch Install ............................................................................................... 42
Figure 42 – Relay and Fuse (Example Location) Behind Passenger Seat (2019 X3 Turbo RC Shown)..................... 42

CANX3-KIT
Install Guide
Go to Table of Contents PG 6/46 REV: B (12/2/2022)
2. How to Use this Manual
2.1. Interactive Manual using Adobe Reader
It is recommended to open this digital PDF using Adobe Reader ® to take advantage of following key features:
•Hyperlinks (blue underlined text) allow access to additional content via internet; click/tap to activate
•Includes Installation Figures and “Figure xx”
•Table of Contents page allows easily navigating this manual; click/tap any section line to go to it
•Bookmarks allow quickly navigating to any section; click/tap
•Zoom IN on pictures by pressing “CTRL and +” at same time on PC, or pinch in on smart devices
•Zoom OUT on pictures by pressing “CTRL and -” at same time on PC, or pinch out on smart devices
2.2. Illustration/Photo Details and Orientation
This manual may use digitally created illustrations, and/or actual photos of example vehicle. These graphics may
not include exact items found on your vehicle (i.e., electrical wiring, fuel lines, body panels, etc.). Illustrations
typically will be missing details and are for clarity to show critical mounting locations and orientation on vehicle.
Throughout manual yellow arrows with text reading “FRONT”, may be present over
illustrations and pictures. These arrows specify direction toward front of vehicle and
provide clarity to how illustration is viewed.
End of Section
3. Safety First
Read manual thoroughly before starting installation of this kit. Verify you have all parts listed and that you
clearly understand this installation procedure. Contact Kleinn technical support for any questions.
Installation of this kit requires moderate mechanical aptitude; seek professional help if you’re not competent
using hand tools in tight uncomfortable spaces, and around possibly rusted and sharp vehicle parts.
Before starting, obtain proper tools required to perform installation correctly, adequate lighting, eye protection,
hearing protection for operating train horns, and hand protection to guard against sharp edges and metal burrs,
which may be present on kit parts and vehicle parts.
Throughout this manual the following words may be used; be aware of their meaning and application.
CAUTION: means damage could occur to vehicle, or kit parts during, or after installation
WARNING: means injury could occur to you or others, including damage to vehicle, or kit parts
DANGER: means serious injury or death could occur to you or others during installation
End of Section
FRONT

CANX3-KIT
Install Guide
Go to Table of Contents PG 7/46 REV: B (12/2/2022)
4. Application Chart
4.1. 100% Direct Bolt-On Vehicle List
CANX3-OBA is a 100% direct bolt-on aftermarket product for Can-Am vehicles listed in below chart; every effort
has been made to verify correct fitment on these vehicles in their factory, non-modified conditions.
MODEL YR
MODEL
DRIVE
ENGINE
BODY
TRIM
2017-2021
MAVERICK X3
ALL
ALL
ALL
ALL
NOTE: All vehicles listed may require drilling holes for ground wires and installing switches, based on
preference of installed switch locations and wire grounding points.
4.2. Excluded Vehicles
4.2.1. N/A
4.3. Aftermarket Product Compatibility
4.3.1. This kit has been designed to be compatible with following products from leading manufacturers:
•Aftermarket cages that discard OE rearmost bolt-on chassis tubes (i.e., Rack down tubes)
•Aftermarket front shock tower braces and bulkheads (i.e., S3 PowerSports), which bolt ONLY in front of
shocks, or below frame (i.e., cannot attach above sway bar bolts)
4.3.2. This kit has NOT been designed to be compatible with any of the following products:
•Exhaust systems or high-performance intake systems, including super/turbo chargers
•Suspension systems (i.e., larger shocks/springs, control arms, sway bar upgrades, etc.)
•Winches
•Oversized tires
•Oversize rear fenders
•Many other systems/parts no listed
NOTE: Review this manual in full before unpacking items and verify correct space and mounting locations
exist with your aftermarket product(s). To install this kit alongside your other aftermarket product(s),
modification to included parts, your vehicle, or aftermarket product(s) may be required.
End of Section

CANX3-KIT
Install Guide
Go to Table of Contents PG 8/46 REV: B (12/2/2022)
5. Installation Overview
5.1. QUICK INSTALL OUTLINE
For person(s) with experience installing Kleinn bolt-on kits, CANX3-OBA can be quickly installed following
below:
1. Layout and organize all parts on bench
2. Select location for Quick Connect Air Coupler
3. Remove driver and passenger rear fenders
4. Install air tank brackets
5. Bench Assembly – Air Tank, Fittings & Tubing
6. Install Air Tank
7. Bench Assembly – Air Compressor Bracket
8. Bench Assembly – Air Compressor and Leader Hose Bracket
9. Install Air Compressor Bracket
10. Install Air Compressor
11. Connect air tubing and wirings
12. Horn Disassembly
13. Bench Assembly – Air Horn brackets
14. Install air horn brackets
15. Install Air horns
16. Install Quick Connect Coupler and route air tubing
17. On-Vehicle electrical installation
18. Test system and adjust, as needed
19. Re-install both rear fenders

CANX3-KIT
Install Guide
Go to Table of Contents PG 9/46 REV: B (12/2/2022)
5.2. Kit Layout and Locations
CANX3-OBA consists of following sub-systems, located on vehicle, as follows:
ITEM
DESCRIPTION
MOUNTING LOCATION
APPROX.
INSTALL TIME
1
6350RC Air Compressor
Rear Frame, Driver Side
(behind fender and below Rack)
1-2 Hours
2
1 Gal. Air Tank
Rear Frame, Passenger Side
(behind fender and below Rack)
1-2 Hours
3
102 Series Dual Horn with Air Solenoid
Front Sway bar Mounts,
(directly behind front shocks)
2-4 Hours
Figure 1 – Top View Showing Kit Layout (2018 X3 2 Door Shown)
5.3. Approximate Installation Time
CANX3-OBA is a multi-faceted product consisting of multiple mechanical, electrical, and pneumatic
components.
For a typical home mechanic, auto enthusiast, or technician installing a Kleinn Bolt-On kit for first time, a
professional installation job with setup and testing of final product, is estimated to take:
•4-8 Hours
End of Section
1
FRONT
3

CANX3-KIT
Install Guide
Go to Table of Contents PG 10/46 REV: B (12/2/2022)
6. List of Tools and Supplies
6.1. Standard Tool List (Required)
6.1.1. Basic mechanic’s 3/8” drive socket sets with extensions
•Inch Size Sockets (1/4” – 1” Hex)
•Metric Size Sockets (6mm – 20mm Hex)
6.1.2. Basic mechanic’s combination wrenches (box/open-end)
•Inch Size Wrenches (1/4” – 1” Hex)
•Metric Size Wrenches (6mm – 20mm Hex)
6.1.3. Basic mechanic’s screwdriver set (Philips, Flat Head)
6.1.4. Torx driver, or socket set (T15-T30)
6.1.5. Diagonal Cutter/Wire Cutter Pliers
6.1.6. Wire Strippers
6.1.7. Wire Terminal Crimpers
6.1.8. Slip-Joint Pliers
6.1.9. Utility Knife, or Utility Razor blade
6.1.10. Magnetic retrieval tool
6.2. Special Tool List (Recommended)
6.2.1. 10-100 ft.-lb. torque wrench
6.2.2. 20-150 in.-lb. torque wrench
6.2.3. Multi-Meter for 12V DC electrical systems, or equivalent
6.2.4. 12V DC Test Light, or equivalent
6.2.5. Trim Panel Tool, for removing wiring and body clips, when needed
6.3. Shop Consumables List (Recommended)
6.3.1. Quality Electrical tape
6.3.2. Di-electric grease for electrical connections
6.3.3. Heat Shrink tubing for electrical connections
6.3.4. Blue Loctite (i.e., Loctite PN 242), or equivalent
6.3.5. Sand Paper, or Wire Brushes for installing ground wires
6.3.6. Extra plastic zip ties > 6” long
6.3.7. Extra NPT sealant (i.e., Kleinn Air Horn Juice, Teflon tape, etc.)
6.3.8. Touch-up paint for frame/chassis
6.3.9. Typical cleanup supplies
End of Section

CANX3-KIT
Install Guide
Go to Table of Contents PG 11/46 REV: B (12/2/2022)
7. Parts List
7.1. Before Starting, Review Parts List
Unpackage and organize Kit across a large work area and verify all parts are included, as listed below.
Contact Kleinn support if any questions arise.
7.1.1. Review pre-packaged Kit items (i.e., K1, K2, etc.)
7.1.2. Review Air Fittings and Tubing (i.e., F1, F2, etc.)
7.1.3. Review Wiring and Accessories (i.e., E1, E2, etc.)
7.1.4. Review Bolt-On Mounting Brackets (i.e., M1, M2, etc.)
7.1.5. Review Hardware/Fasteners (i.e., H1, H2, etc.)
7.1.6. Familiarize yourself with how parts assemble
7.2. Pre-Packaged Electro-Mechanical Kit Items
NOTE: Items in this section come in their own packages and may include additional items inside package
ITEM
QTY
PART NUMBER
DESCRIPTION
K1
1
6350RC
6350RC Air Compressor Kit, with
included hardware, and remote
air supply line
K2
1
6230RT
Air Tank, 1 Gal., 6-Port
K3
1
102-1
102 Series Air Horn Kit, with
included solenoid/valve
K4
1
1302
Remote Quick Connect Coupler
Relocation Kit
K5
1
INF-1
Tire Inflation Kit

CANX3-KIT
Install Guide
Go to Table of Contents PG 12/46 REV: B (12/2/2022)
7.3. Air Fittings and Related Items
ITEM
QTY
PART NUMBER
DESCRIPTION
F1
1
2151
(view location on Air
Tank)
1/4" NPT PRESSURE SWITCH
F2
1
51414NPTL
(view location on Air
Tank)
1/4" NPT X 1/4" NPT FEMALE, 90
DEG. ELBOW
F3
1
52835
(view location on Air
Tank)
1/4" NPT DRAIN VALVE
F4
1
52175
(view location on Air
Tank)
1/4" NPT, 175 PSI SAFETY VALVE
F5
2
51414L
(view location on Air
Tank)
1/4" NPT X 1/4" TUBE FITTING, 90
DEG. ELBOW
F6
1
51414F
1/4" NPT X 1/4" TUBING FEMALE,
STRAIGHT
(USED ON COMPRESSOR LEADER
HOSE END)
F7
20 ft
25014
1/4" AIR TUBING
(USE 6 FT FOR COMPRESSOR & 14
FT FOR AIR HORN)
F8
2
JUICE
THREAD SEALENT FOR NPT
FITTINGS

CANX3-KIT
Install Guide
Go to Table of Contents PG 13/46 REV: B (12/2/2022)
7.4. Electrical Small Components and Related Items
ITEM
QTY
PART NUMBER
DESCRIPTION
E1
1
N/A
FULL WIRE KIT, WITH ELECTRICAL
CONNECTORS AND ZIPTIES
E2
20 ft
N/A
1/8" WIRE LOOM, CORRUGATED
AND SPLIT
E3
15 ft
N/A
1/4" WIRE LOOM, CORRUGATED
AND SPLIT
E4
1 ft
N/A
1” WIRE LOOM CORRUGATED
AND SPLIT
E5
1
321-W
HORN ROCKER SWITCH, WITH
BACKLIT HORN LOGO

CANX3-KIT
Install Guide
Go to Table of Contents PG 14/46 REV: B (12/2/2022)
7.5. Bolt-On Mounting Brackets & Special Hardware
ITEM
QTY
PART NUMBER
DESCRIPTION
M1
1
X3-101
COMPRESSOR BRACKET
M2
1
X3-102
LEADER HOSE SUPPORT BRACKET
M3
1
X3-201
TANK BRACKET, REAR MOUNT
M4
1
X3-202
TANK BRACKET, FRONT-INNER
HALF
M5
1
X3-203
TANK BRACKET, FRONT-OUTER
HALF
M6
2
X3-204
SPACER
M7
1
X3-301
HORN BRACKET
M8
1
X3-302
HORN STABILIZER BRACKET

CANX3-KIT
Install Guide
Go to Table of Contents PG 15/46 REV: B (12/2/2022)

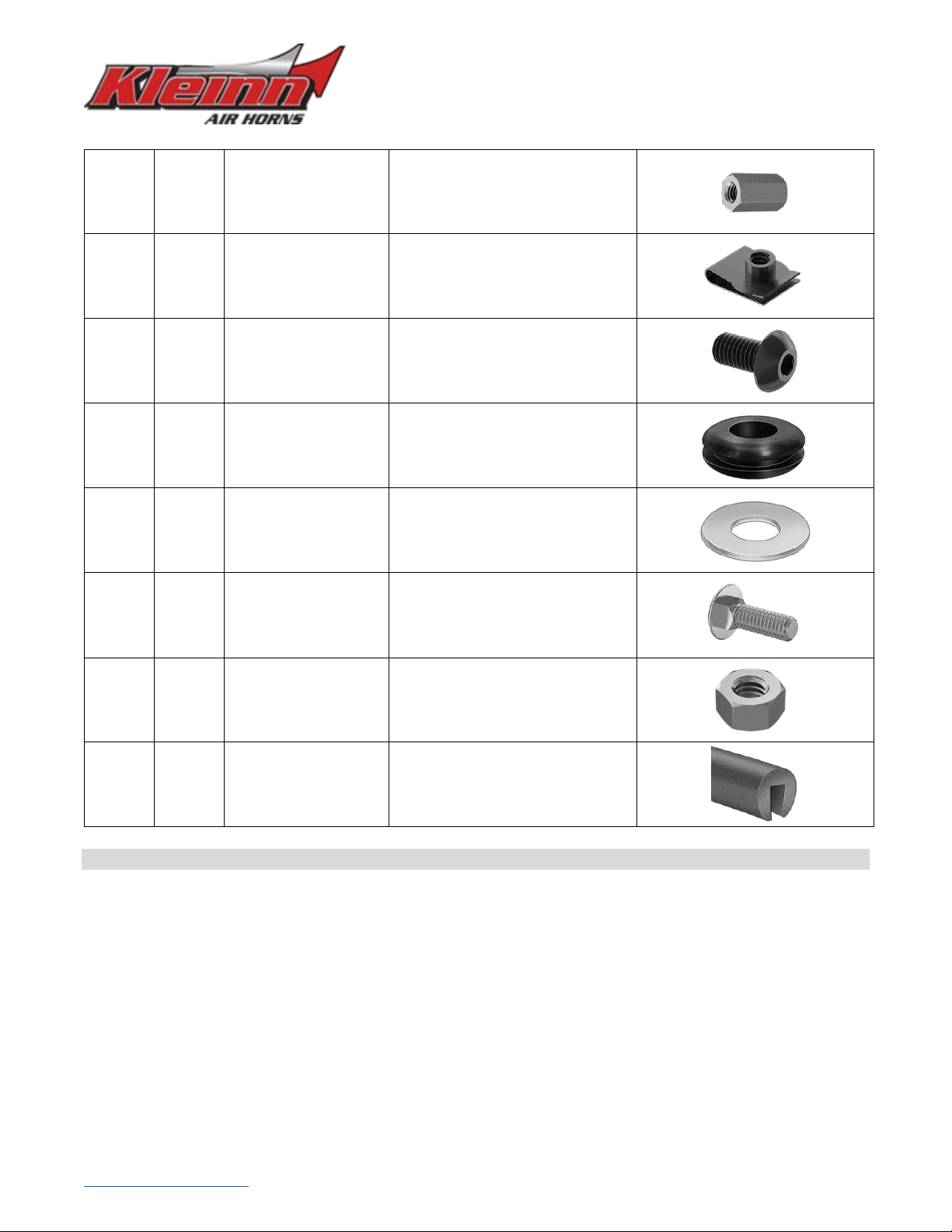

7.6. Hardware, Fasteners and Soft Parts
NOTE: A scale drawing is available at the end of this section & may be printed at 100% size to aid in
identification of hardware.
ITEM
QTY.
SIZE
DESCRIPTION
H1
10
1/4" ID X 0.63" OD
FLAT WASHER, SAE, ZINC-
PLATED
H2
4
1/4"
LOCK WASHER, SPLIT, ZINC-
PLATED
H3
9
5/16"-18 X 1.00"
LONG
SQUARE NECK BOLT, GRADE 2,
ZINC-PLATED
H4
2
5/16"-18 X 2.50"
LONG
SQUARE NECK BOLT, GRADE 2,
ZINC-PLATED
H5
4
5/16" ID X 0.88" OD
FLAT WASHER, USS, ZINC-
PLATED
H6
7
5/16" ID X 0.69" OD
FLAT WASHER, SAE, ZINC-
PLATED
H7
11
5/16"
LOCK WASHER, SPLIT, ZINC-
PLATED
H8
11
5/16"-18
HEX NUT, GRADE 2, ZINC-
PLATED
H9
6
M6 X 1 X 20MM
LONG
BUTTON HEAD TORX SCREW,
BLACK-OXIDE

CANX3-KIT
Install Guide
Go to Table of Contents PG 16/46 REV: B (12/2/2022)
H10
2
M6 X 1 X 18MM
LONG
COUPLING NUT, CLASS 8, ZINC-
PLATED
H11
2
M6 X 1MM
NO-SLIP, CLIP-ON BARREL NUT
H12
2
M5 X 0.8 X 10MM
LONG
BUTTON HEAD CAP SCREW,
BLACK-OXIDE
H13
2
1 1/16" OD X 1/2" ID
X 3/8" WIDTH
RUBBER GROMMET
H14
8
#10 ID X .69" OD
FLAT WASHER, FENDER, ZINC-
PLATED
H15
2
1/4"-20 X 1"
SQUARE NECK BOLT, GRADE 2,
ZINC-PLATED
H16
2
1/4"-20
HEX NUT, GRADE 2, ZINC-
PLATED
H17
1
12”
RUBBER TRIM
End of Section

NOTE:

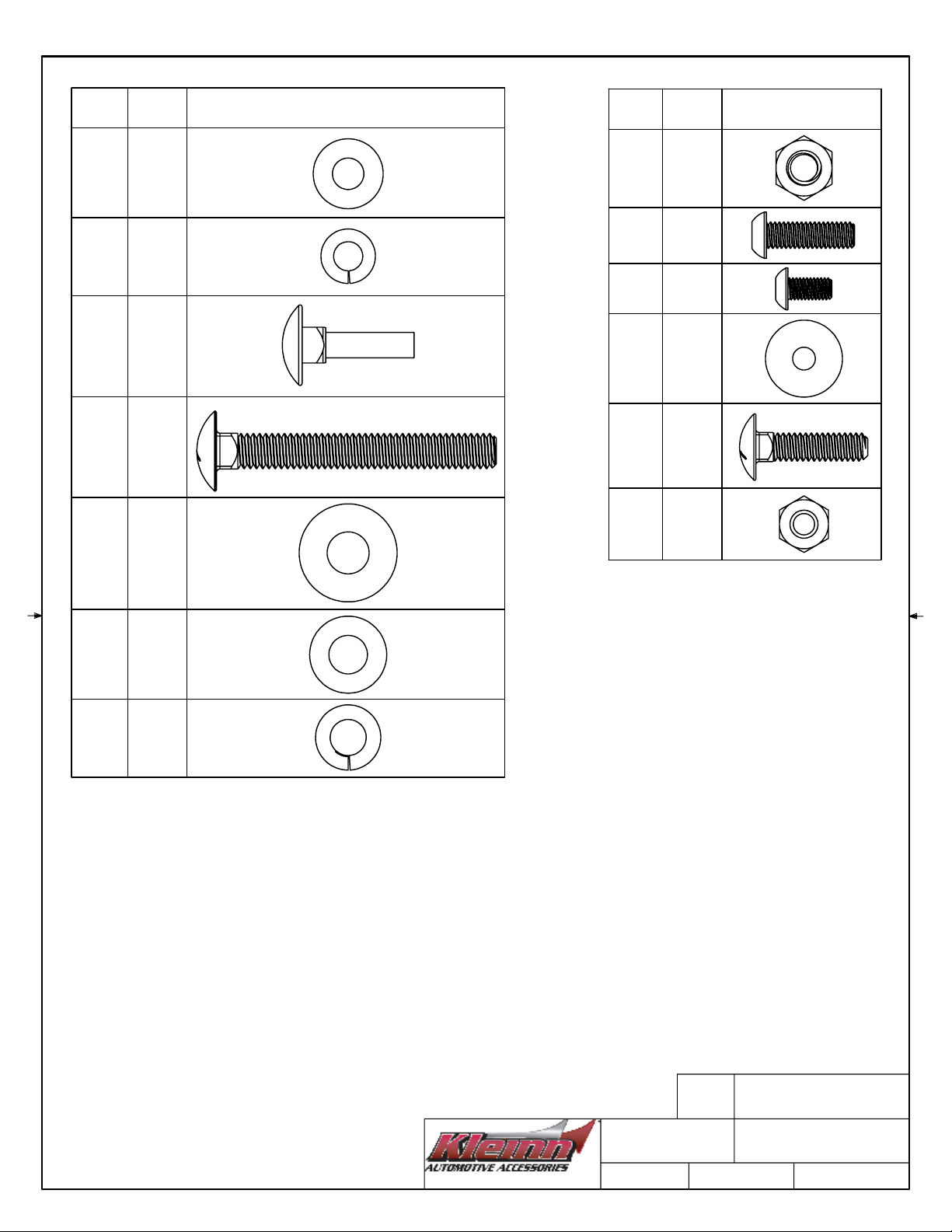

SCALE IMAGES OF PREPACKAGED HARDWARE INCLUDED WITH COMPRESSOR
ARE NOT ILLUSTRATED ON THIS SHEET.
SCALE IMAGES OF UNIQUE & EASILY IDENTIFIABLE HARDWARE ARE NOT
INCLUDED ON THIS SHEET
THIS DOCUMENT IS DESIGNED TO BE VIEWED/PRINTED AND 100% OR 1:1 SCALE.
IF PRINTING THIS PAGE, PRINT USING "ACTUAL SIZE" OR 100% SCALE.
ITEM
#
QTY SCALE IMAGE
H1 8
H2 2
H3 7
H4 2
H5 4
H6 5
H7 9
ITEM
#
QTY SCALE IMAGE
H8 9
H9 6
H12 2
H14 8
H15 2
H16 2








12/1/2022

SCALE_H

CANX3-KIT

A

CANX3-KIT
Install Guide
Go to Table of Contents PG 17/46 REV: B (12/2/2022)
8. On-Vehicle Mechanical Assembly Steps
8.1. Plan Location of Quick Connect Air Coupler (1302)
8.1.1. Review how kit installs and decide on Quick Connect Coupler location. This facilitates later routing of the
air tubing to the components.
NOTE: You may choose to directly fasten Quick Connect Coupler to the compressor or tank brackets. Be
advised, modification of brackets in any way, voids their warranty.
8.2. Remove Passenger Side Rear Fender
8.2.1. Remove seven (7) T30 screws from top of fender and corner trim, as shown circled in below figure.
8.2.2. After removing screws, remove five (5) accompanying body clips on top of rear fender and two (2) on
corner trim.
CAUTION: Use care removing body clips and corner trim; corner trim has a hidden clip on the backside.
All items removed will be re-used later.
Figure 2 – Passenger Rear Fender Removal (fasteners on top of fender)
8.2.3. Remove three (3) additional T30 screws; two (2) located behind passenger door and one behind panel in
wheel-well area as shown below. Un-clip wire loom from body panel for ease of moving fender.
Figure 3 – Passenger Rear Fender Removal (fasteners behind door and fender)
2X Trim Screws
5X Fender Screws
Behind Door
Behind Fender

CANX3-KIT
Install Guide
Go to Table of Contents PG 18/46 REV: B (12/2/2022)
8.2.4. Remove single T15 screw holding rear of fender near inside of brake light, as shown below.
Figure 4 – Passenger Rear Fender Removal (below taillight)
8.2.5. Pull fender outwards from body and rest on tire to reduce stress on brake light wiring, as shown below.
Figure 5 – Passenger Rear Fender Removal (fender resting on tire); Air Tank shown installed
T15 Screw
FRONT
Brake Light
Wiring Still
Connected
Middle Slot
used later
Sec 10.5

CANX3-KIT
Install Guide
Go to Table of Contents PG 19/46 REV: B (12/2/2022)
8.3. Remove Driver Side Rear Fender
8.3.1. Repeat previous steps for Passenger Fender removal.
8.4. Air Tank Brackets - Installation
8.4.1. Gather Brackets X3-201, X3-202, X3-203 and X3-204 (2)
8.4.2. On passenger side of vehicle, remove two (2) bolts holding Rack; as shown below. Do not discard large
bolt, as it will be re-used. Smaller bolt (i.e., front bolt) will be replaced.

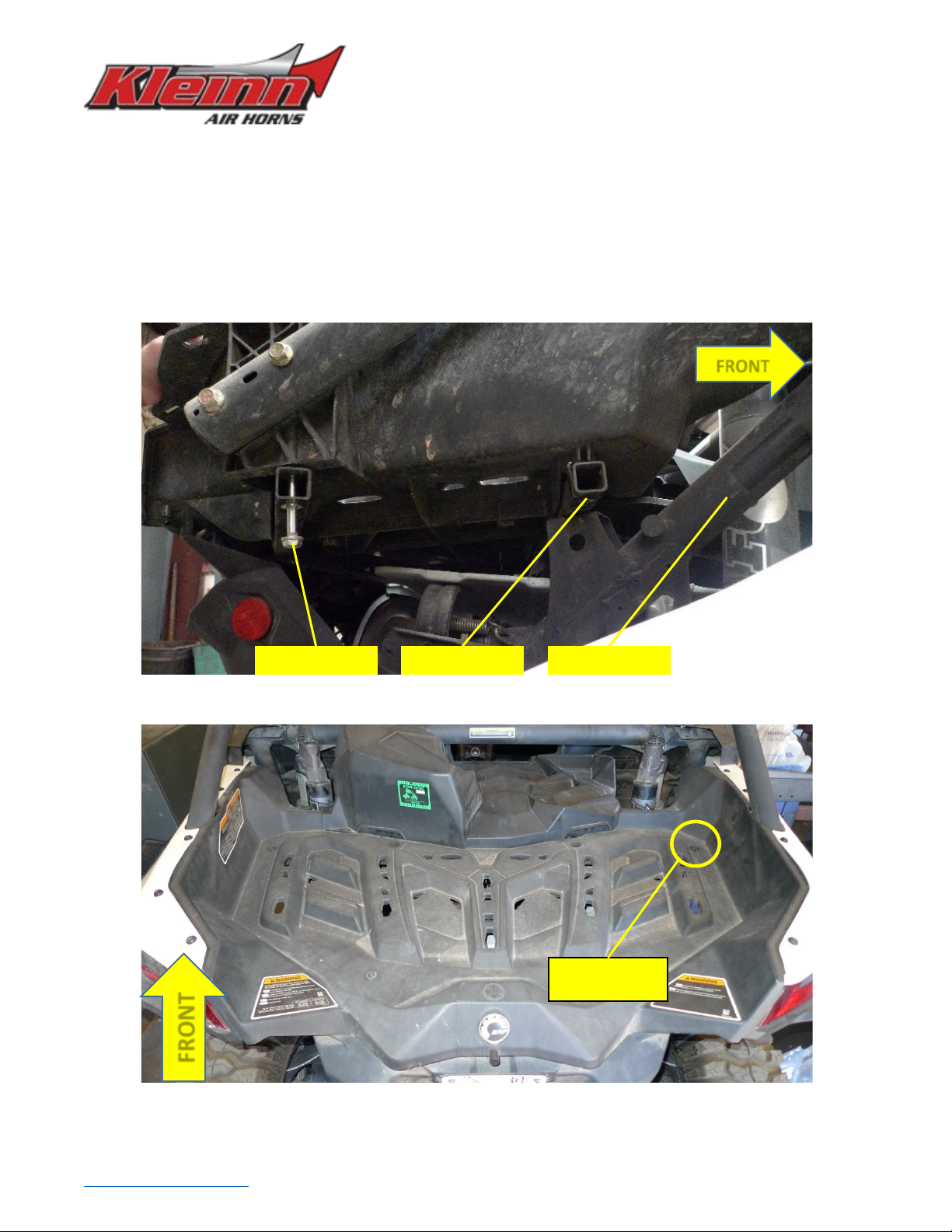

Figure 6 – Air Tank Bracket Mounting Locations (side view)
Figure 7 – Air Tank Bracket Mounting Locations (top view)
FRONT
Front Bolt
FRONT
Rack Rear Bolt
Rack Front Bolt
Chassis Tube
