Kleinn RS-GM6 User manual

Installation Guide
RS-GM6
*For automatic transmission vehicles only
•This remote start will monitor the vehicle lock circuit and use the pulses generated by pressing Lock>Unlock>Lock on
your OEM remote to start the vehicle.
•This is a pre-wired "plug & play" kit. No wiring is required for basic installation.
•We have already loaded the correct firmware into the remote start module. You will need to pair the module to your
vehicle when the wiring is complete. Instructions are on page 4.
There are 6 basic steps to this remote start installation. We’re going
to address each of these:
1. Download and install Flash Link Manager software
2. Locate the BCM connectors under the dash (no disassembly required)
3. Plug the connectors in to the vehicle.
4. Pair the remote start to the vehicle.
5. Test the system and record your Service Number
6. Button it up!
Step 1: Download and install Flash Link Manager software
**The Flash Link Manager (FLM) software only works on a Windows computer and requires a USB port and an
internet connection. Enter the following link into your web browser, then download and install the software:
https://fortin.ca/en/support/flashlinkmanager.html
Next, open the software and log in with the following credentials:
email: [email protected]
password: Flash2020
Once the (FLM) software installed and open, then connect the Flash Link Lite (FLL) to the USB port of your Windows
computer. The (FLM) software will detect (FLL) and display a message that the module is not connected, this is normal. Do
not plug the remote starter into the (FLL) tool until you have completed the wiring and vehicle programming procedure at
step 3. Leave the computer and software in this state ready to plug the module in when the time comes, and proceed with
the wiring connections.
REV 01132021
You may view a high-resolution
color version of this guide online
at http://install.kleinn.com/RSGM6
or by scanning this QR code.
1| P a g e
Overview
Silverado 1500 2019
Suburban 2015-2019
Tahoe 2015-2019
CHEVROLET
Sierra 1500 2019
2018-2020Terrain
Yukon 2015-2019
GMC

Step 2: Locate BCM Connectors
Step 3: Wiring
3.1 PLUG-IN VEHICLE CONNECTIONS:
a. Unplug the Blue, Green and White connectors from the vehicle BCM, then insert each one in to the corresponding
female connector on the t-harness.
b. Insert the male Blue, Green and White connectors from the t-harness in to the BCM.
2| P a g e
The vehicle BCM is under the dash on the driver's side, to the
left of the brake and just above the foot rest. You will not
need to remove any panels to access it. It can be identified by
the 7 colored plugs, as shown here.
a. Valet/Kill Switch - There is a mini toggle switch supplied with your kit. Connecting one side of the switch to the
Blue wire from the 20-pin plug and the other side of the switch to ground will allow the toggle switch to serve as a
'kill' switch for the system. Putting the switch in the "ON" position (continuity between both side of the switch) will
disable the system.
3.2 OPTIONAL WIRE CONNECTIONS - from the loose wires attached to the 20-pin connector

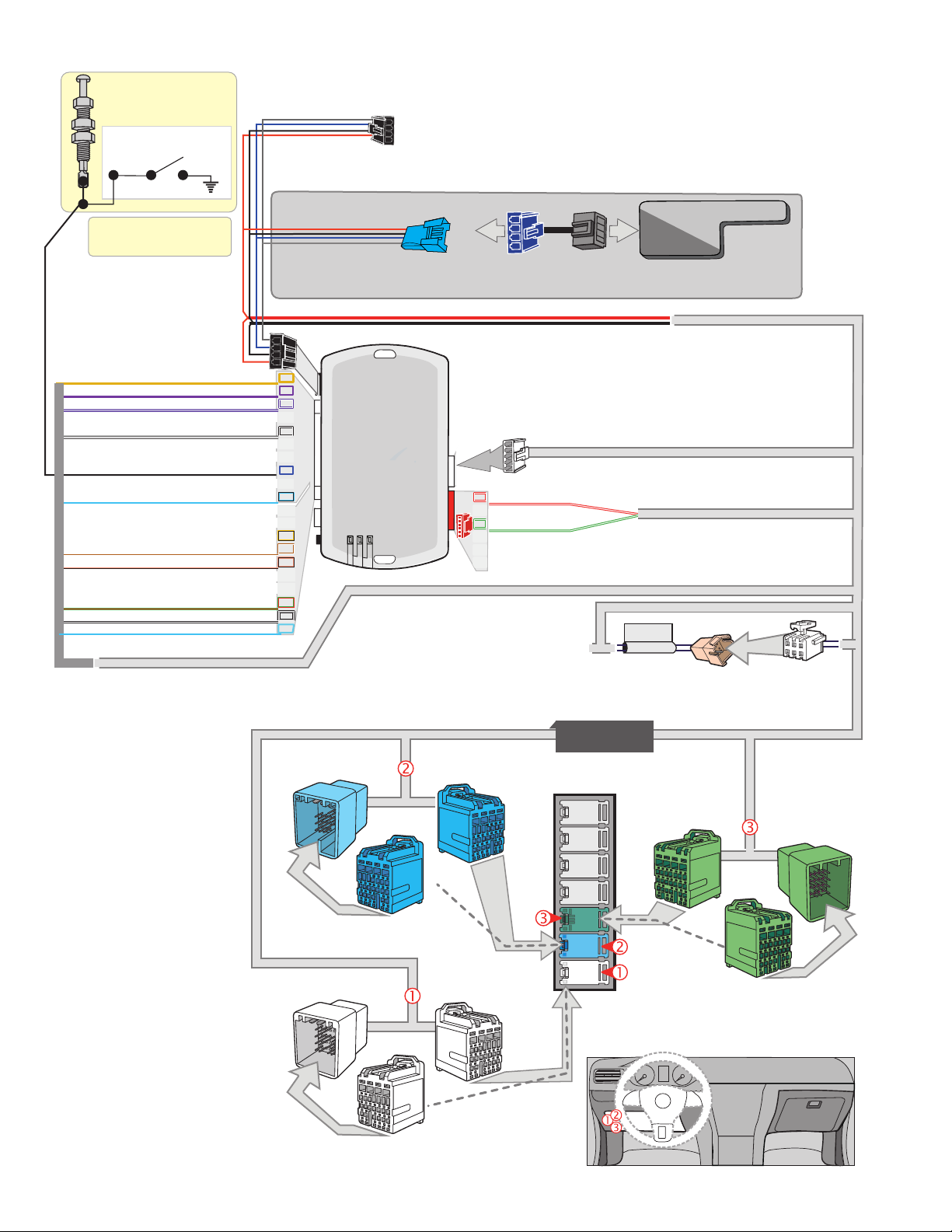

System Wiring Overview
3| P a g e
Yellow
Purple
Purple/White
Green
White
Orange
Orange/Black
Dk.Blue
Red/Blue
Lt.Blue/Black
A10
A10
Out A11A11
A11
Out A12A12
A12
In A13
A13
Brown/White Out A14
A14
Pink/Black Out A15
A15
A16A16
A16
A17
A17
A17
Green/Red A18
A18
White/Black A19
A19
Lt.Blue A20
A20
C3
C3 Gray
C2C2
C2 Orange/Brown
D6
D6 White/Red
D4
D4 White/Green
AC
D
In A2
A2
In A3
A3
Out A5
A5
In A8
A8
In A1
A1
In A9
A9A9
In A7
A7A7
In A6
A6
A6
Out A4
A4A4
(+)Ignion
NOT USED
Start / Stop external control
Contrôle de démarrage/arrêt
externe
Hood pin
OVERRIDE SWITCH
Hood pin only required on vehicles not
equipped with a factory hood pin.
27 PIN MALE
T-HARNESS PLUG
FEMALE T-HARNESS PLUG
26 PIN MALE
T-HARNESS PLUG
FEMALE T-HARNESS PLUG
MALE VEHICLE WHITE PLUG
25 PIN MALE
T-HARNESS PLUG
FEMALE T-HARNESS PLUG
MALE VEHICLE GREEN PLUG
26 PIN WHITE CONN.
THAR-GM6
27 PIN BLUE 25 PIN GREEN
MALE VEHICLE BLUE PLUG
BCM Above Driver Kick Panel.
5 PIN CONN.
B
OPTIONAL RFKIT
RF KIT
CABLE INCLUDED WITH RF KIT
BLUE FEMALE
CONNNECTOR
EVO-ALL
6 PIN RED CONN.

4| Pag e
RELEASE
xx55
Release the programming
button when the LED is
YELLOW.
If the LED is not solid YELLOW
disconnect the 4-Pin connector
(Data-Link) and go back to step
1.
ON
Insert the white 20-pin, red 6-pin and white 5-pin connectors.
FLASH FLASH FLASH
ON
2
3
4
CONTINUED NEXT PAGE
OFF
Press and release the programming
button five times (5x).

The YELLOW LED will alternate
between 5x flashes and a pause.
Wait until the YELLOW LED turns ON.
FLASH FLASH
5
1Press and hold the
programming button:
Connect the 4-PIN Data-link
harness (Black connector).
The Blue, Red, Yellow and
Blue & Red LEDs will
alternatively illuminate.
xx11
HOLD
LED may differ depending on the module casing.
L’apparence des DELS peuvent différer selon le
boîtier du module.

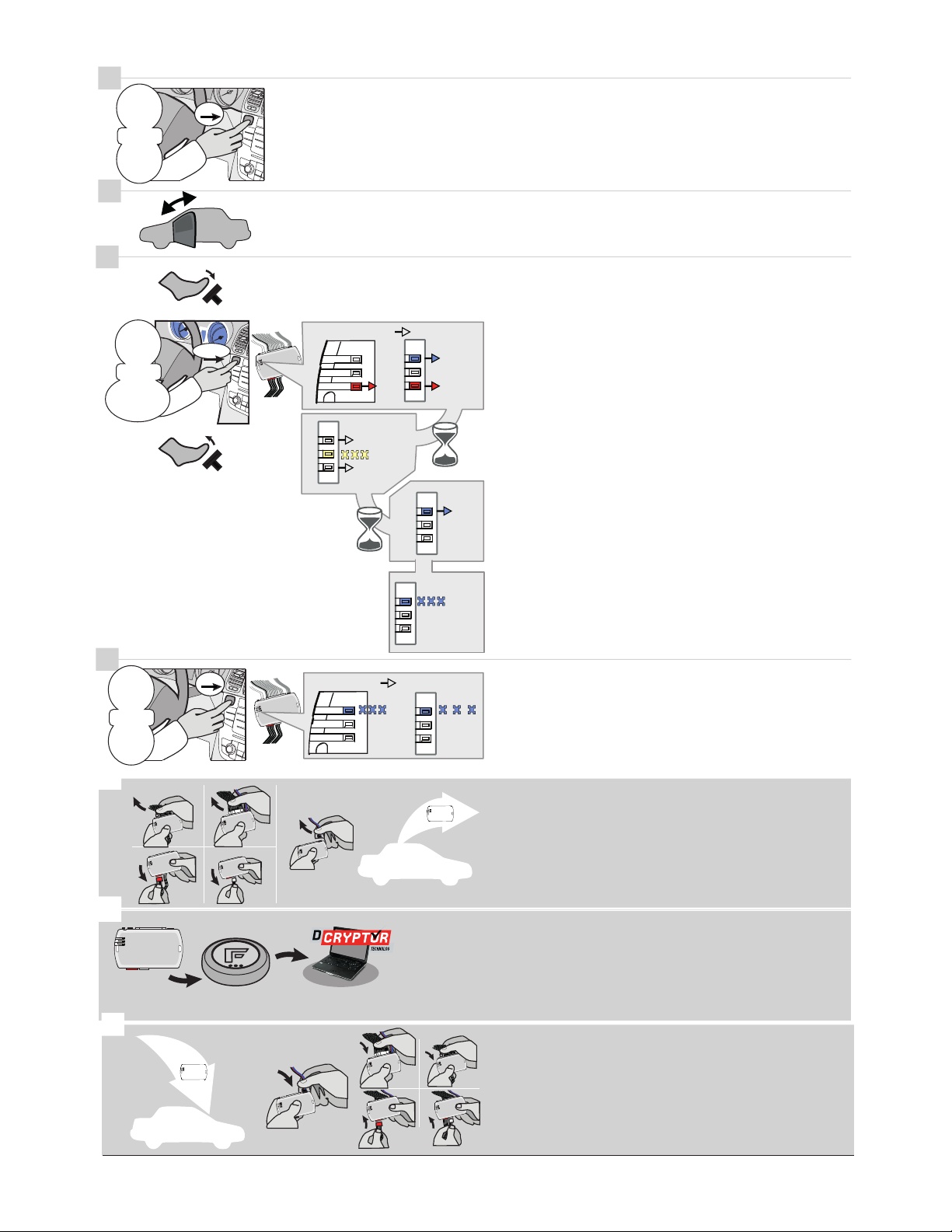

Step 4: Programming/Pairing
Unplug all the connectors from the EVO module, then follow the steps below.
First generation
Place
OEM remotes
the OEM remotes in the
1 génération de clé:
Placez la télécommandes
icule dans
nt de la clé.
Remove the battery from the
OEM remote.
Second generation
remotes:
de la
télécommande d'origine.
Remove the battery from the
OEM remotes.
Place the OEM remotes in to the
center console.
Open the driver door.
START
x1
PRESS
HOLD
RELEASE
START
IGNITIONOFF START
OFF
ON
ON
The RED LED will turn ON.
The YELLOW LED will turn
OFF.
Press the foot-brake pedal.
Press the Push-to-Start
button until the engine
start.
Release the foot-brake pedal.
6

NʼEST
5| P a g e
OFF
7
8
Press the Push-to-Start
button until the engine
turn OFF.
Press the Push-to-Start
button until the engine
turn OFF.
Close and open the
driver door.
The BLUE LED will turn ON.
The BLUE LED will turn OFF.
The RED LED will turn OFF.
The YELLOW LED will flash
rapidly
The BLUE LED will turn ON.
OFF
9
The BLUE LED will flash
rapidly
10
The BLUE LED will flash
slowly
OFF
x1
PRESS
HOLD
RELEASE
OFF
x1
PRESS
HOLD
RELEASE
START
x1
PRESS
HOLD
RELEASE
START
Press the foot-brake pedal.
Press the Push-to-Start
button until the engine
start.
Release the foot-brake pedal.
IGNITION ON IGNITION OFF
OFF
OFF
FLASH
START
ON
ACCESSORY OFF
ON
ON
ON
FLASH
RAPIDLY
FLASH
RAPIDLY FLASH SLOWLY
EVO-ALL
Disconnect all the connectors - do the
Data-Link (4-pin) connector last.
Use the tool:
FLASH LINK UPDATER
FLASH LINK UPDATER* FLASH LINK MANAGER*
SOFTWARE
Microsoft Windows
Computer with
Internet connection*
11
12
AFTER DCRYPTOR PROGRAMMING IS COMPLETED
Go back to the vehicle and reconnect the 4-Pin (Data-Link)
connector. The re-connect the white 20-pin, red 6-pin and
white 5-pin connectors.
EVO-ALL
13

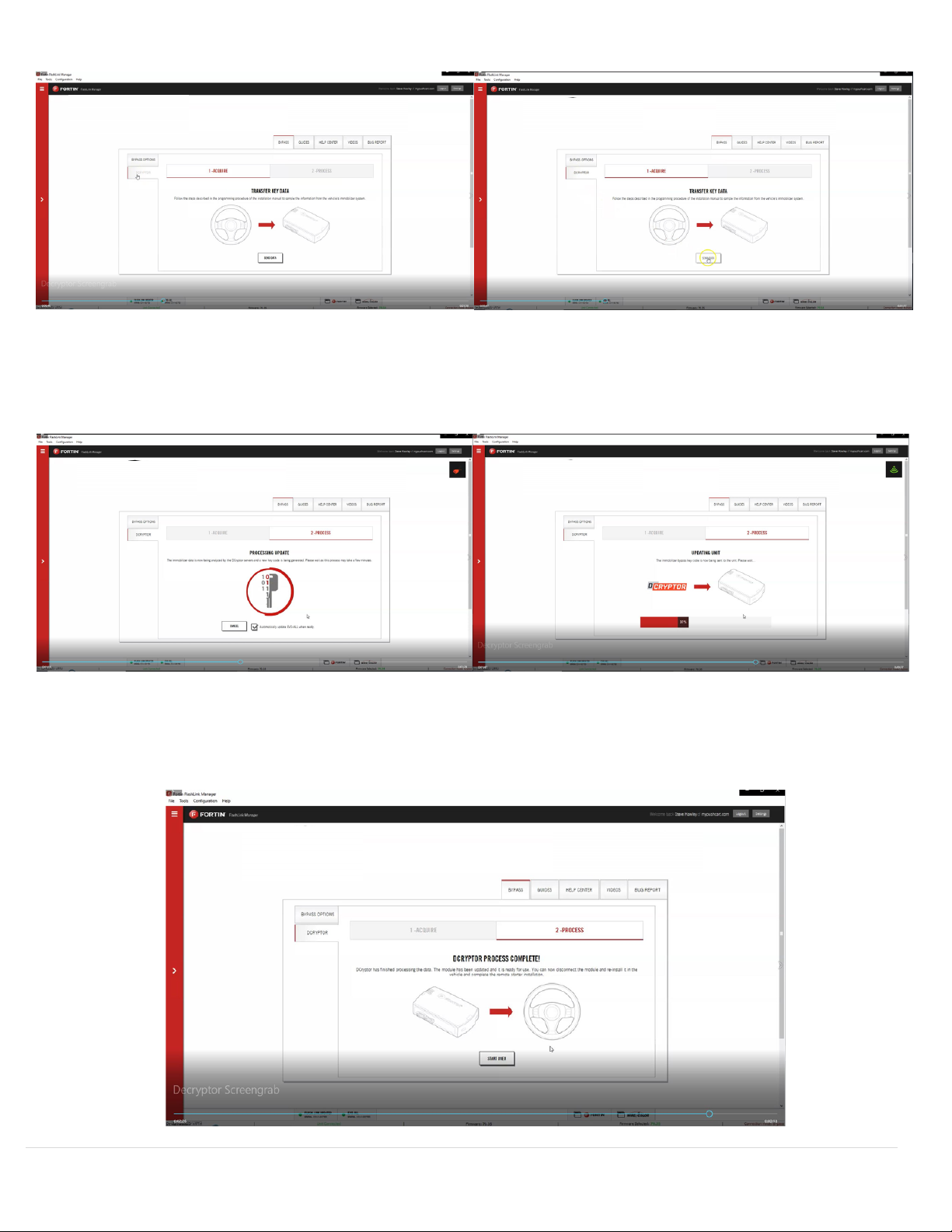

DCRYPTOR PROGRAMMING EXPLAINED
DCRYPTOR writes the digital code from your key in to the EVO
module. It cannot be done in advance - it must be done after
wiring is completed.

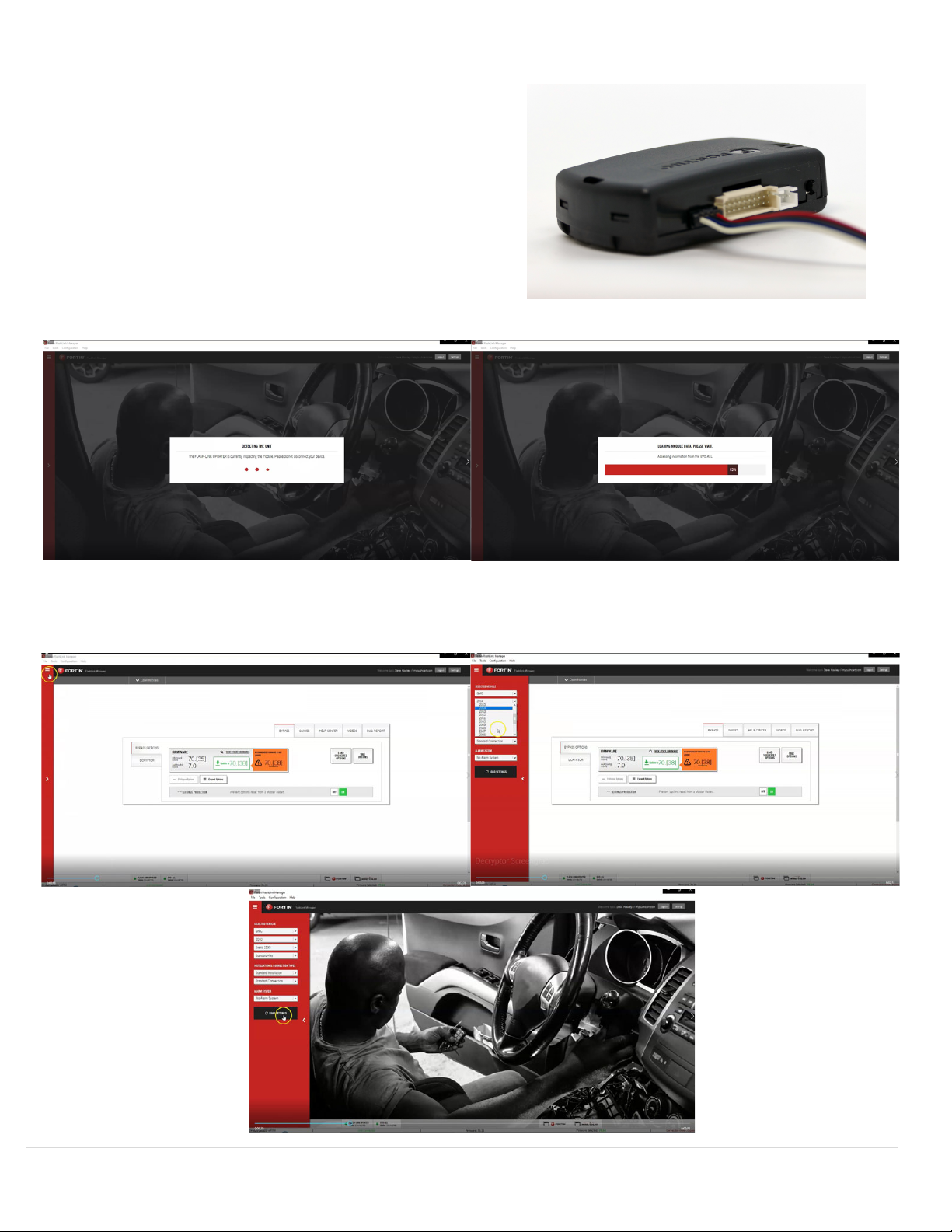

Bring the remote starter module to your computer and plug it
into the supplied four-pin cable from the Flashlink Updater). For
a video on how to do these steps visit: www.kleinn.com/
flashlink
1. The software will detect you plugging it in and will automatically load the current settings.
2. Select your vehicle. Click the three bars at the top of the Red bar on the upper left corner of the screen. Select
your make, year, model, key type and then click load settings. Do not change any other dropdowns or any options -
we have already done these settings for you.
6| P a g e

4. Wait while the updater reads data from the remote starter. Once it is done it will update the remote starter
and you will need to wait again. You will see a status bar at the bottom of the screen. When it gets to 100%,
the Dcryptor process is complete.
5. You can now unplug the remote starter module and plug it back into the connectors in your vehicle. Make sure
to plug in the power connector first and then the rest of the plugs afterward. Do not hold the program button
down when you plug the connectors back in.
7| P a g e
3. Click the Dcryptor tab. Then click on the Send Data button.

8 | P a g e
Step 5: Test the System
If you have any installation questions or problems, call for tech support
520.579.1531
Copyright 2021 Kleinn Automotive Accessories
1. Press "Lock>UNLOCK>Lock" on your OEM remote control. You will see the Blue light on the remote start module
every time you press the Lock or Unlock buttons. Each press should be about 1 second apart. The vehicles ignition/
accessory circuits will turn on after a few seconds. Another few seconds later the starter motor will engage.
2. Step on the brake pedal to stop the engine.
•EVO-ALL Remote Start Data Module
•THAR-GM6 T-Harness
•Toggle Switch
•Pin Switch (not needed for most vehicles)
Step 7: Close it Up
Now gather up all of your wiring and neatly bundle it together using zip ties or electrical tape. Find a secure place to put
the remote start module and use zip ties to secure it. Make sure that the remote start wires are not near any
moving parts on the steering wheel, pedals or emergency brake! Re-Install any panels that were removed to
gain access to key switch in reverse order they were removed. Be careful not to pinch any wires. ENJOY!
Parts List
Step 6: Record your service number
Your EVO-ALL module has a unique service number. Before closing up
the installation, record that. In the event Kleinn tech support needs to
troubleshoot your system, they may need your service number to look up
the current status of your module.
001A07 ___________________
Remote start
the vehicle.
START
All doors must
be closed. Press the Unlock button of the
remote car starter.
UNLOCK
Enter the vehicle with the
Intelligent Access Key.
The vehicle can now be
put in to gear and
driven.
.
OFF
NOTE:
If the vehicle is not unlocked the module will shut down the remote-
starter and the vehicle as soon as any door is opened.
