KOBE KBE-279-2300K User manual

KOBE
INDUSTRIAL
POWER TOOLS
THE ENVIRONMENT
W,, Always dispose of unwanted tools, accessories and packaging materials in an environmentally
V
friendly manner.
In observance of European Directive 2012/19/EU on Waste Electrical and Electronic Equipment
(WEEE) and its implementation in accordance with national law, electrical goods that have re_ached
the end of their life must be collected separately and returned to an environmentally compatible
recycling facility.
Do not dispose of electrical goods with domestic waste materials as inappropriate disposal may
cause potential hazards to the environment and human health.
For further information, please contact your local authority or the retailer from whom you purchased
the product.
This product does not contain any restricted substances in concentrations and applications which
are banned by the European RoHS2 Directive.
DECLARATION OF CONFORMITY
We hereby certify that KOBE 18V COMBI DRILL & IMPACT DRIVER CORDLESS PACKS
(ORDER CODES: KBE-279-2300K, KBE-279-2330K, KBE-279-2340K, KBE-279-2360K) (EXCLUDING CHARGER)
complies with all the relevant provisions of the
EMC Directive 2014/30/EU
Standards Applied: EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2
EC Machinery Directive 2006/42/EC
Standards Applied: EN 60745-1:2009+A11, EN 60745-2-1:2010, EN 60745-2-2:2010, ZEK 01.4-08/11.11
We hereby certify that KOBE 18V BATTERY CHARGER
(ORDER CODE: KBE-280-59UA)
complies with all the relevant provisions of the
EMC Directive 2014/30/EU
Standards Applied: EN 55014-1:2006+A1+A2, EN 55014-2:1997+A1+A2, EN 61000-3-2:2014, EN 61000-3-3:2013
Low Voltage Directive 2014/35/EU
Standards Applied: EN 60335-1:2012+A11, EN 60335-2-29:2004+A2, EN 62233:2008
Restriction of the use of certain hazardous substances (RoHS2) 2011/65/EU
\',
Signed:�
Date: 3rd May 2016
Name: Keith Read
Position: HSQE Manager
Standards Applied:
EN 50581-1:2012
(Applicable to all)
KOBE TOOLS
THE KENNEDY GROUP LTD,
WIGSTON, ENGLAND, LE18 2FS.
QUALITY GUARANTEE & WARRANTY
KOBE INDUSTRIAL POWER TOOLS carry a one year manufacturer's warranty.
KOBE INDUSTRIAL POWER TOOLS are designed & manufactured
to the highest standards & specifications
Assuring the quality and performance required by all sectors of industry.
KOBE INDUSTRIAL POWER TOOLS are fully guaranteed against
faulty materials & workmanship
CE
Should they be found to be defective, they will either be repaired or replaced free of charge (fair wear and
tear and/or misuse excepted).
Please retain supplier invoice as proof of purchase.
KOBE TOOLS, THE KENNEDY GROUP, WIGSTON, LEICESTER, ENGLAND, LE18 2FS.
© The Kennedy Group Ltd. 05/16
INDUSTRIAL POWER TOOLS
18V COMBI DRILL & IMPACT
DRIVER CORDLESS PACKS
ORDER CODES:
KBE-279-2300K 18V COMBI DRILL & IMPACT DRIVER TWIN PACK WITH
2 X 2.0AH LI-ION BATTERIES
KBE-279-2330K 18V COMBI DRILL PACK WITH 2 X 2.0AH LI-ION BATTERIES
KBE-279-2340K 18V COMBI DRILL PACK WITH 1 X 2.0AH LI-ION BATTERIES
KBE-279-236OK 18V IMPACT DRIVER PACK WITH 2 X 2.OAH LI-ION BATTERIES

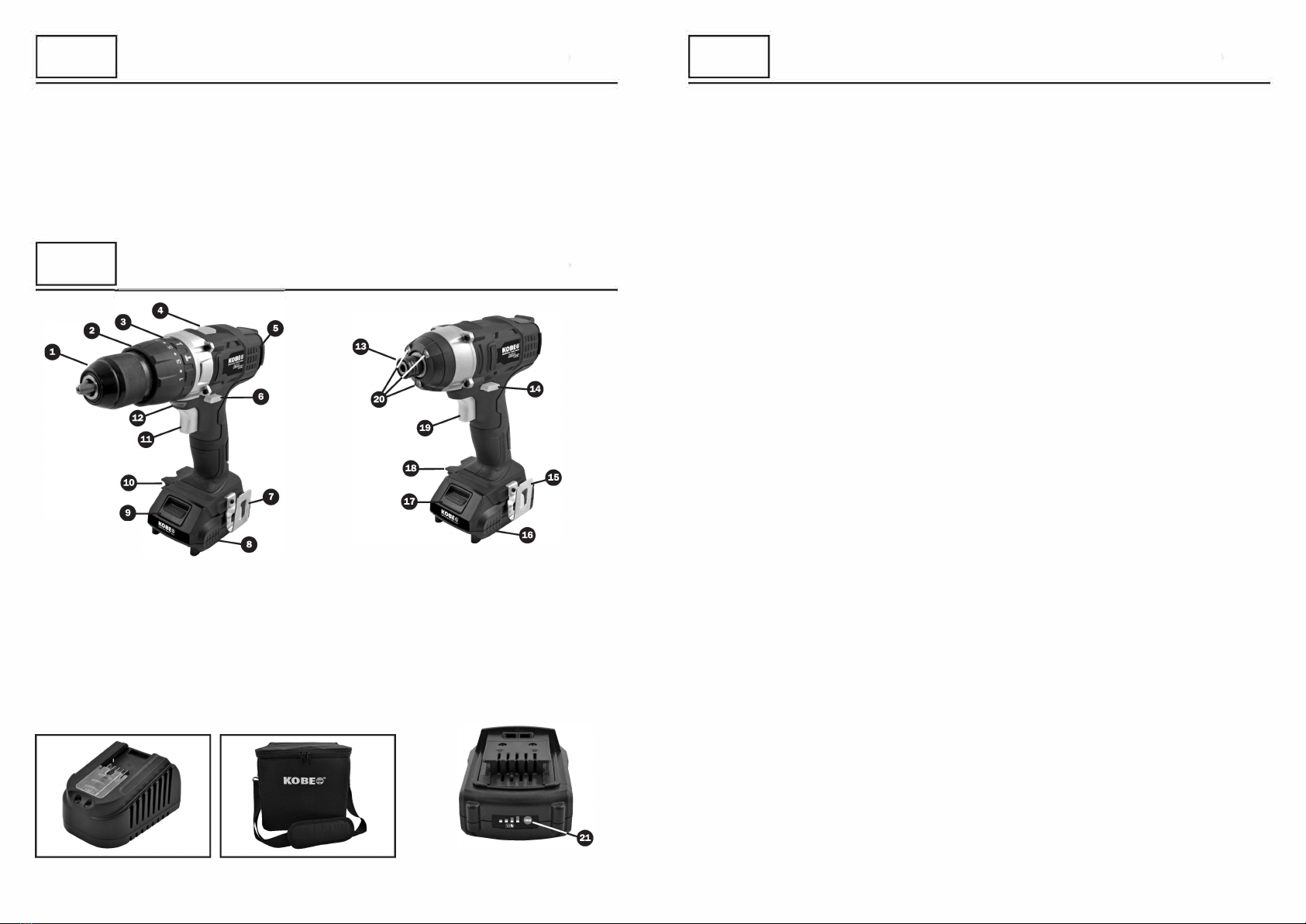

Both Combi Drill and
Impact Driver feature:
•Ergonomic soft grip handle
•Built-in LED light
•Built-in bit holder
•Forward and reverse switch
•Belt clip holder
•60 minute charging time
•Trigger with speed adjustment feature
Combi Drill features:
•13mm single sleeve keyless chuck
•Automatic spindle lock function
•Impact function
•2-speed gear selection
•Torque adjustment ring
•Function ring to switch between driving,
drilling and drilling with impact
Impact Driver features:
•:1/4" collet size
•Quick release chuck
•Max. torque 150Nm
Accessories:

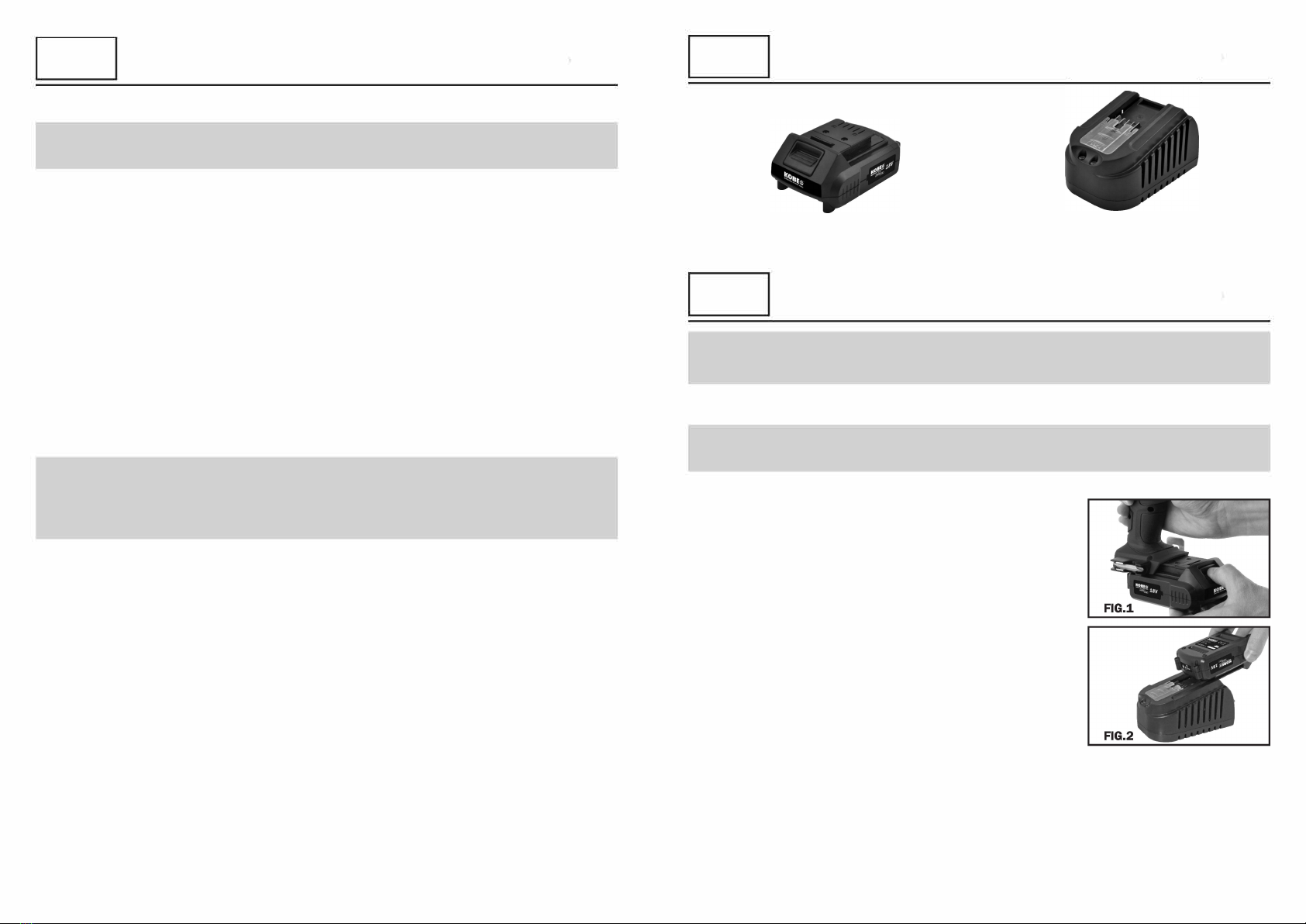

•2.0Ah Li-ion battery charger with
battery power indicator lights
•Carry case with shoulder strap
WARNING: THE SAFETY INFORMATION GIVEN INSIDE MUST BE
READ AND UNDERSTOOD BY ANY PERSON USING, INSTALLING,
REPAIRING OR MAINTAINING THESE PRODUCTS.
OPERATOR'S MANUAL
Please retain this information for future reference.

KOBE
INDUSTRIAL
POWER TOOLS
SAFETY INSTRUCTIONS
..oiiiiiiii,,.
-
•
You have purchased a quality professional product that is
designed for high performance and long service life.
If correct use, safety and maintenance procedures
are observed this machine will last for many years.
KOBE INDUSTRIAL POWER TOOLS have been specifically designed to help you work
SAFELY and EFFICIENTLY. Your care and good judgement are the best protection against injury, but
always ensure that the appropriate safety equipment is worn. All possible hazards cannot be covered here,
but the most important ones have been highlighted.
•Always adhere to the processes and safety
warnings, which are stated in the instruction
manual.
GENERAL OPERATING HAZARDS
•Always ensure the mains power supply
corresponds to the power rating on the
specification label on the machine.
•Always plug the battery charger into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. Check with a qualified electrician if
you are in doubt as to whether the outlet is
properly grounded.
•Always ensure the maintenance of electrical
components is carried out by a suitably qualified
person.
•Never allow routine to lead to mistakes.
•Never operate if any parts are missing or
damaged.
•Never allow untrained persons to operate the
power tool.
WORKPLACE HAZARDS
•Always ensure your working area is clean and
well lit.
•When working at height make sure that the tool is
safely secured and be aware of objects falling
below. Make sure that no persons are working
directly below the working area.
•Do not operate in explosive atmosphere, for
instance extreme dust, gases and liquids.
•Keep children and bystanders away while
operating the power tool. Distractions can cause
you to lose control.
•Always ensure all users are physically able and
competent to handle the size and weight of
items/components being drilled and have
received appropriate training to perform the task.
•Never run the power tool in areas exposed to
water or in damp conditions.
PERSONAL PROTECTION
•Always wear approved eye protection during
operation. Use safety glasses or goggles which
conform to BSEN136 or CE equivalent that
2
provide protection from the front and side. The
operator of the power tool is responsible for
following accepted eye, face, respiratory, hearing
and body protection.
•Always ensure that all long hair and loose clothing,
ties, scarves, jewellery, etc., are secured or
removed.
•Always consult a doctor if numbness, tingling,
pain or whitening of the skin occurs. Repetitive
work motions, awkward positions and exposure
to vibration can cause "Repetitive Strain
Injuries".
•When operating a power tool stay alert and use
common sense, especially when it comes to
working at height. Be aware of what's below you.
•Do not overreach. Keep a proper balance and
footing at all times.
•Remove any adjusting key or wrench before
turning the power tool on.
•If devices are provided for the collection of dust,
ensure these are connected and properly used.
•Do not use a power tool if under the influence of
alcohol, drugs or medication.
POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate
for which it was designed.
•Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must
be repaired.
•Store idle power tools out of the reach of
children and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
•Maintain power tools. Check for misalignment or
binding of moving parts,breakage of parts and
any other condition that may affect the power
tools operation. If damaged,have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
KOBE
INDUSTRIAL
POWER TOOLS
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
PARTS BREAKDOWN
Order Code Description
KBE2980095A RETAINER RING FOR KBE2790560K
KBE2980095B GASKET FOR KBE2790560K
KBE2980095C SPRING FOR KBE2790560K
KBE2980095D QUICK CLAMP HEAD FOR KBE2790560K
KBE2980095E STEEL BALL FOR KBE2790560K
KBE2980095F LAMP SHADE FOR KBE2790560K
KBE2980095G HEAD SHELL COVER FOR KBE2790560K
KBE2980095H THREE LAMP CIRCUIT BOARD FOR KBE2790560K
KBE2980095J THE BOTTOM OF THE HEAD FOR KBE2790560K
KBE2980095K THE GEARBOX ASSEMBLY FOR KBE2790560K
KBE2980095L R/L ROTATION FOR KBE2790560K
KBE2980095M SWITCH FOR KBE2790560K
KBE2980095N RACK FOR KBE2790560K
KBE2980095P THE FUSELAGE INSERT FOR KBE2790560K
KBE2980095R BATTERY PACK FOR KBE2790560K
KBE2980095S RUBBER BLANKET FOR KBE2790560K
KBE2980095T LEFT HOUSING FOR KBE2790560K
KBE2980095V NUT FOR KBE2790560K
KBE2980095W STAND FOR KBE2790560K
KBE2980095X SCREW FOR KBE2790560K
KBE2980095Y RIGHT HOUSING FOR KBE2790560K
..oiiiiiiii,,.
-
•
Qty
1
1
1
1
1
3
1
1
1
1
1
1
1
2
1
4
1
2
1
2
1
15

1234567
89
10
21
11
12
13
16
17
18
19
20
15
14

KOBE
INDUSTRIAL
POWER TOOLS
SAFETY INSTRUCTIONS continued
..oiiiiiiiiii,.
-
•Contact your local government for information
regarding the collection systems available.
•If electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into
the groundwater and get into the food chain,
damaging your health and well-being.
• When replacing old appliances with new ones,
the retailer is legally obligated to take back your
old appliance for disposal at least for free of
charge.
•Do not recharge non-rechargeable batteries.
DISPOSAL OF EXHAUSTED
BATTERIES
•For safety and to preserve natural resources,
please recycle or dispose of properly. This
Product Contains Lithium Ion Battery. Must Be
Disposed Of Properly. Local, state, or federal
laws may prohibit disposal of Lithium Ion
batteries in ordinary trash. Consult your local
waste authority for information regarding
available recycling and/or disposal options.
KOBE
INDUSTRIAL
POWER TOOLS
ELECTRICAL INFORMATION
..oiiiiiiiiii,.
-
In the United Kingdom, the ELECTRICITY AT WORK ACT 1989 requires all portable electrical appliances, if
used on business premises, to be tested by a qualified electrician, using a Portable Appliance Tester (PAT), at
least once a year. The HEALTH & SAFETY AT WORK ACT 1974 makes owners of electrical appliances
responsible for the safe condition of the appliance and the safety of its operator. If in any doubt about
electrical safety, contact a qualified electrician.
ELECTRICAL SAFETY
•An RCCB (Residual Current Circuit Breaker) should be fitted in the mains electricity distribution board. If the
power supply is not protected by an RCCB, it is highly recommended that an RCD (Residual Current Device)
is used with all portable electrical products.
•Do not use any adaptor plugs.
•Do not carry or yank the tool by the cord/hose.
•Never expose power tools to rain or wet conditions as this will increase the risk of electric shock.
•Use an outdoor extension cord when operating a power tool outside.
EXTENSION REELS
When a cable extension reel is used it should be fully unwound before being connected. Use at least 1.5mm
2
section cable or to be absolutely sure use 2.5mm
2
section cable.
4
KOBE
INDUSTRIAL
POWER TOOLS
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
PARTS BREAKDOWN
Order Code Description
Qty
KBE2980059A SCREW FOR KBE2790540K 1
KBE2980059B DRILL CHUCK FOR KBE2790540K 1
KBE2980059C SELF-TAPPING SCREW FOR KBE2790540K 4
KBE2980059D CLAMP FOR KBE2790540K 1
KBE2980059E SOUND CLIP FOR KBE2790540K 1
KBE2980059F SOUND PLATE FOR KBE2790540K 1
KBE2980059G STEEL BALL FOR KBE2790540K 2
KBE2980059H SPRING FOR KBE2790540K 2
KBE2980059J TORQUE SETTING FOR KBE2790540K 1
KBE2980059K IMPACT COIL PARTS FOR KBE2790540K 1
KBE2980059L IMPACT SHAFT ASSEMBLY FOR KBE2790540K 1
KBE2980059M BIG SPRING FOR KBE2790540K 1
KBE2980059N BIG RING FOR KBE2790540K 1
KBE2980059P LONG PIN FOR KBE2790540K 6
KBE2980059Q STEEL BALL 5 FOR KBE2790540K 6
KBE2980059R SELF-TAPPING SCREW FOR KBE2790540K 4
KBE2980059S HEAD CAPSULE FOR KBE2790540K 1
KBE2980059T GEAR BOX ASSEMBLY FOR KBE2790540K 1
KBE2980059V D HOLE GEAR FOR KBE2790540K 1
KBE2980059W HALF-ROUND SCREW FOR KBE2790540K 2
KBE2980059X 755 MOTOR FOR KBE2790540K 1
KBE2980059Y CONTROL SPEED SWITCH FOR KBE2790540K 1
KBE2980060K LIGHT COVER FOR KBE2790540K 1
KBE2980061A LED LIGHT FOR KBE2790540K 1
KBE2980061B RESISTANCE FOR KBE2790540K 1
KBE2980061C COVER FOR KBE2790540K 1
KBE2980061D SELF-TAPPING SCREW FOR KBE2790540K 10
KBE2980061E BITS HOLDER FOR KBE2790540K 1
KBE2980061F HALF-ROUND SCREW FOR KBE2790540K 1
KBE2980061G SCREW PINCH FOR KBE2790540K 1
KBE2980061H DOUBLE BITS FOR KBE2790540K 1
KBE2980061J BATTERY PACK PART FOR KBE2790540K 1
KBE2980061K RACK FOR KBE2790540K 1
KBE2980061L SPEED CONTROL SWITCH FOR KBE2790540K 1
KBE2980061M L/F ROTATION FOR KBE2790540K 1
KBE2980061N MAGNET RING FOR KBE2790540K 2
KBE2980061P METAL INSERT FOR KBE2790540K 1
KBE2980061Q HALF-ROUND HEAD SCREW FOR KBE2790540K 2
KBE2980061R BOTTOM SHELL FOR KBE2790540K 1
13

8
15
39
38
37
36
35
34
33
32
22 21 20 19 18 17 16
23
24
25
26
27
28
29
30
31
14 13 12 11 10 9
76 5 4 3 2 1

..oiiiiiiiiiii,
KOBE
INDUSTRIAL
POWER TOOLS
BOX CONTENTS -
•
Before disposing of the packaging or attempting to assemble this product please
check that all of the below components are present and are not damaged.
KBE-279-2300K
18V Combi Drill x 1
18V Impact Driver x 1
2.0AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
KBE-279-2330K
18V Combi Drill x 1
2.0AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
KBE-279-2340K
18V Combi Drill x 1
2.0AH LI-ION Battery x 1
Battery Charger x 1
Carry Case x 1
KBE-279-2360K
18V Impact Driver x 1
2.0AH LI-ION Battery x 2
Battery Charger x 1
Carry Case x 1
..oiiiiiiiiiii,
KOBE
INDUSTRIAL
POWER TOOLS
IDENTIFICATION -
•
1. Keyless Chuck
2. Torque Adjustment Ring
3. Driving, Drilling and Impact Function Ring
4. Gear Selector Switch
5. Cooling Vents
6. Forward/Reverse Switch
7. Belt Clip Holder
8. Battery Pack
9. Battery Release Button
10. Bit Storage
11. Trigger with Speed Adjustment Feature
12. LED light
13. Quick Release Chuck
14. Forward/Reverse Switch
15. Belt Clip Holder
16. Battery Pack
17. Battery Release Button
18. Bit Storage
19. Trigger with Speed Adjustment Feature
20. LED Lights
CHARGER CARRY CASE 21. Battery Charge Indicator Button
6
KOBE ..oiiiiiiiiiii,
MAINTENANCE -
INDUSTRIAL
POWER TOOLS
•
• Keep the Combi Drill, Impact Driver, Batteries and Battery Charger in the carry case provided and store
in a dry place where they will not be exposed to frost or direct sunlight. Also keep away from fire sources
and sources of extreme temperatures (such as solar heating, heaters or in any place above 50
°
C).
•Never use the drivers, batteries or battery charger if there are any signs of wear and tear or cracks.
Remove from use until replaced or repaired using only genuine parts by a qualified person.
•To assure the safety and reliability, all repairs should be performed by an authorised service centre.
•Only use the recommended battery and chargers. If they need replacing please see 'SPARES' section
on page 7.
•The batteries and battery charger should never be placed near any coins or metal wares such as screws
•
•
•
•
and drivers to avoid short circuit of battery or battery charger.
Disconnect the power tool from the mains and allow it to cool before undertaking any cleaning task .
Clean the power tool and the mains connection with a dry or damp cloth and allow to dry. DO NOT
immerse in water or any other liquid or place under running water.
DO NOT use any solvents or products with an acid or base pH such as bleach or abrasive products .
DO NOT let water or any other liquid into the air vents as this can cause damage to the inner parts of
the power tool.
•Always keep air ventilation holes free of dust to prevent overheating.
11

..,,;;;;;;;;,,.
KOBE OPERATION -
INDUSTRIAL
POWER TOOLS
LED LIGHT (12 OR 20):
•
A_ WARNING! DO NOT STARE AT THE LED LIGHT NOR SHINE IT IN OTHER
l,il PEOPLE'S EYES.
Both the Combi Drill and the Impact Driver have LED Lights (12 or 20) to illuminate the workpiece.
The lights illuminate when the trigger is depressed and cuts off when the trigger is released.
DRILLING {COMBI DRILL ONLY):
1. Ensure that the material to be drilled is secured in a vice or with clamps to keep it from turning as the
drill bit rotates.
2. Hold the drill firmly and place the drill bit at the point to be drilled.
3. Depress the trigger (11) to start the rotation of the drill.
4. Move the drill bit into the workpiece, applying only enough pressure to feed the cutting. Do not force or
apply side pressure to elongate a hole.
5. Once hole is drilled switch the drill into reverse and guide out.
If drilling into metal use a light oil on the drill bit piece. This will help prevent the drill bit overheating and
prolong the life of the drill bit.
Please note: When drilling hard smooth surfaces use a centre punch to mark the desired hole location.
This will prevent the drill from slipping off centre as the hole is drilled. However, the lower speed
setting: 1 allows the starting of holes without punching if desired.
If the drill bit jams in the workpiece or if the drill stalls, stop the drill immediately, remove the drill bit
from the workpiece and determine the reason for jamming before continuing.
A WARNING! Be prepared for binding or breakthrough. When these situations
L.il occur, the drill has a tendency to grab and kick in the opposite direction
10
and could cause loss of control which could results in serious personal
injury.
KOBE
INDUSTRIAL
POWER TOOLS
SPARES ..,,;;;;;;;;,,.
-
•
2.0AH LI-ION BATTERY
ORDER CODE: KBE-280-5910A
2.0AH LI-ION BATTERY CHARGER
ORDER CODE: KBE-280-5911A
KOBE
INDUSTRIAL
POWER TOOLS
OPERATION ..,,;;;;;;;;,,.
-
•
A_ WARNING! BEFORE ATTEMPTING TO USE THE POWER TOOLS, MAKE SURE
l,il YOU ARE FAMILIAR WITH ALL OPERATING AND SAFETY INSTRUCTIONS.
CHARGING THE BATTERY:
A
DANGER! Do not insert the battery into the charge if the battery case is
L.il cracked or damaged in anyway.
PLEASE NOTE: The batteries are supplied with a low charge. To prolong the life of the batteries, charge
the batteries fully before first use.
1. Remove the battery from the power tool by pressing the battery
release button (9 or 17) and pulling the battery out of the drill
(See Fig.1).
2. Insert the battery into the charger provided only. Align raised part on
the battery with the groove in the charger. Using any other charger
than the one provided can cause severe damage and may even
cause the battery to explode. (See Fig.2).
3. Connect the charger to the power supply and charge for the time
stated below.
CHARGING TIME: 60mins approx.
4. The red pilot light on the charger will remain on and the green pilot
light will flash, indicating that the battery is charging. Once the battery
is charged the red pilot light will turn off and the green pilot light will
turn on.
5. When the battery is fully charged, unplug the charger from the power
source and remove the battery from the charger by pressing the
battery release button (9 or 17).
6. To check the charge of the battery, press the battery charge indicator
button (21) on the battery and the battery pilot lights will indicate the level of charge.
PLEASE NOTE: The battery may feel slightly warm while charging. This is normal and does not indicate a
problem. Do not place charger in an area of extreme heat/cold. Charge the battery at an atmospheric
temperature of between O and 45"C. Not for outdoor use. The battery will not reach its full charge after
the first time of charging. Allow several cycles of drilling followed by re-charging for them to become
fully charged.
7

KOBE
INDUSTRIAL
POWER TOOLS
OPERATION
INSTALLING AND REMOVING BITS:
...,,;;;;;;,,.
-
A WARNING! Before installing or removing bits, place the Forward/Reverse
L.il Switch in its central position, this will turn the power off to the driver.
COMB/ DRILL:
1. The Combi Drill is fitted with a keyless chuck. To open the chuck (1)
make sure the tool is switched off, take a firm hold of the back of the
chuck and turn the front part of the chuck counter clockwise.
Place the drill bit into the chuck as far as it will go, take a firm hold of
the back part of the chuck and turn the front part of the chuck
clockwise until it is firmly closed
(See Fig.2).
IMPACT DRIVER:
1. Pull the sleeve on the chuck (13)
in the direction shown in Fig.3.
2. Insert the screw bit into the hole
of the chuck (See Fig.3).
3. Release the chuck sleeve (13)
for it to return to its original position.
4. Pull on the screw bit until it
automatically locks into place
(See Fig.4). FIG.3
FORWARD/REVERSE SWITCH (6 or 14):
A WARNING! Do not change the direction of rotation until the driver comes to
L.il a complete stop.
To place the Cambi Drill or Impact Driver into the FORWARD position:
1. Ensure that the Cambi Drill or the Impact Driver has come to a
complete stop.
2.
Push the Forward/Reverse Switch
(6 or 14) to the RIGHT (See Fig.5).
This will rotate the driver in a clockwise direction.
To place the Cambi Drill or Impact Driver into the REVERSE position:
1. Ensure that the Cambi Drill or the Impact Driver has come to a
complete stop.
2. Push the Forward/Reverse Switch (6 or 14) to the LEFT (See Fig.5).
This will rotate the driver in an anti-clockwise direction.
To place the Cambi Drill or Impact Driver into the NEUTRAL position:
1. Ensure that the Cambi Drill or the Impact Driver has come to a complete stop.
2. Centre the Forward/Reverse Switch (6 or 14) (See Fig.5). This will stop the driver rotating.
8
KOBE
INDUSTRIAL
POWER TOOLS
OPERATION
OPERATING THE TRIGGER (11 OR 19):
...,,;;;;;;,,.
-
A WARNING! Do not change the direction of rotation until the driver comes to
L.il a complete stop.
1. Depress the Trigger (11 or 19) to rotate the driver (See Fig.6).
2. The speed of the Cambi Drill and the Impact Driver can be adjusted by
the amount of pressure applied to the trigger. The more pressure
applied to the trigger, the faster the rotation speed.
3. To avoid accidentally starting the driver, position the Forward/Reverse
Switch (6 or 14) into the central position to stop the driver rotating.
2-SPEED LEVEL (COMBI DRILL ONLY):
The Cambi Drill has a 2-speed level designed for drilling or driving at low
or high speeds.
Selecting Speed 1 (LOW):
1. The 2-speed switch (4) is located at the top of the Cambi Drill.
Slide this backwards to select speed 1 (LOW)
(See Fig.7).
This will
decrease the speed in the drill but increase the power and torque.
Selecting Speed 2 (HIGH):
1. The 2-speed switch (4) is located at the top of the Combi Drill.
Slide this forwards to select speed 2 (HIGH) (See Fig.8). This will
increase the speed in the drill but decrease the power and torque.
It is recommended that you use Speed 1 (LOW) for high power and
torque applications and Speed 2 (HIGH) for fast drilling or driving
applications
TORQUE CONTROL (COMBI DRILL ONLY):
The Cambi Drill has Torque control. This prevents the heads of smaller
diameter screws being twisted off when correctly set.
Setting the Torque:
1. Turn the Torque Adjustment Ring (2) clockwise or anti-clockwise to
adjust the amount of torque (See Fig.9).
2. Fastening torque is greater as the numerals are larger. The drill
position has full torque.
Please note: Overloading and stalling the drill at any time can lead to
motor burnout and also dramatically reduces battery life.
FUNCTION SETTINGS (COMBI DRILL ONLY):
The Combi Drill has a function ring. This is used to switch between
driving
•11t drilling4l\'I and drilling with impactl-
Setting the driving, drilling and drilling with impact functions:
1. Turn the Function Ring (3) clockwise or anti-clockwise to switch
between the different settings (See Fig.10).
9
