KOBLE Gino DOGINOW User manual

Gino Height Adjustable Desk
Gino Height Adjustable Desk. In order to make the best use
Issue 1 - 08/09/23
White - DOGINOW
Black - DOGINOB
Ash - DOGINOA

1
Important Safety Instrucons
When using an electrical furnishing, basic precauons should always be followed, including the following:
Read all instrucons before using (this furnishing).
DANGER – To reduce the risk of electric shock:
1. Unplug the power plug before cleaning, wipe the dust on surface with damp cloth when cleaning. Be careful
not to let water drops into the internal parts, or loose the connector.
2. Check carefully to ensure correct and complete assembly before using.
3. Be familiar with all funcons and program sengs of the product before first use.
4. Don’t allow children to play near the desk as their behavior is unpredictable. The manufacturer is not responsible
for loss, injury, or damage due to those improper acon.
5. The slight noise caused by the internal mechanism or brake system of the structure, will not have any effect on the
use of the equipment.
6. Do not use corrosive or abrasive materials are near the equipment. Please ensure that the cleaner used will not
pollute the environment.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilies or lack of experience and knowledge, only aer they have been given supervision or instrucon
concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the
appliance.
8. Cleaning and user maintenance should not be aempted by children without supervision.
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified
person in order to avoid a hazard.
10. Please make sure there is no hazard sources in your operang environment. e.g., do not lier the tools around.
Always be careful to treat the packaging materials in order to avoid any possible danger, e.g. plasc bag may lead to
choking hazard to children.
11. We recommend you keep the original package of the equipment if necessary in case of the future use in
transportaon.
12. Do not use outdoors.
13. Unplug from outlet before pung on or taking off parts.
14. Use this furnishing only for its intended use as described in these instrucons. Do not use aachments not
recommended by the manufacturer.
15. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the furnishing to a service center for examinaon and repair.
16. Keep the cord away from heated surfaces.
17. To disconnect, turn all controls to the off posion, then remove plug from outlet.
18. For grounded products the following statement:
″WARNING: Risk of Electric Shock – Connect this furnishing to a properly grounded outlet only. See Grounding
Instrucons.″

2
19. For loading always put heavier items at the boom and not near the top in order to help prevent the
possibility of the furnishing pping over.
In a double-insulated product, two systems of insulaon are provided instead of grounding. No grounding means is
provided on a double-insulated product, nor is a means for grounding to be added to the product. Servicing a
double-insulated product requires extreme care and knowledge of the system, and is to be done only by qualified
service personnel. Replacement parts for a double-insulated product must be idencal to the parts they replace.
A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED.” The symbol
(square within a square) is also able to be marked on the product.
SAVE THESE INSTRUCTIONS
For Household use only
SERVICING OF DOUBLE-INSULATED PRODUCTS
1.5A Max.
24V DC
2.1A
50.4W

For Household use only
3
1. The maximum functional load of weight that can be placed on this product is 50kg.
2. This product must not be used as a seat.
3. Always use the original AC power adapter and power cable supplied, otherwise it may cause
slow wireless charging. In extreme cases, an incompatible AC power adapter may overheat.

1Leg Frame
Qty 1
2
Leg Bracket
Qty 2
3Foot
Qty 2
4
1
2
3
3
4
4
Desk Top
Leg Frame
Leg Bracket
Feet
1
2
1
1
3
4
2
2
4
Desk top
Qty 1

Please check you have all the parts listed below
For missing or damaged parts, call our Customer Helpline: 01799 513466 or email
[email protected]
The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
M8x38mmAllen Screw Qty 8
M6x12mm Allen Screw
Qty 16
M6x52mm Allen Screw
Qty 2
ABC
Tools needed (Not supplied)
Screwdriver
D
M4x25mm Flat Head Screw
Qty 3
Allen Key Qty 1
EF
Fixings, Fittings And Tools
M6x12mm Screw Qty 2
M3x16mm Medium
Wood Screw Qty 4
GH
Accessory hook Qty 2
Self-adhesive Cable Strap
Qty 3
M3x12mm Flat Head Screw
Qty 3 Cup Holder Qty 1
JKLM
Spare Parts Qty 1
Control Box Qty 1
NO
Power Adapter Qty 1
5

Assemble cup holder , control box and power adaptor to the underside of desk top
using the fixings shown.
Shown upside down
1
1
1
1
1
E
E
F
M
F
M
M
G
6
Step 1
M4x25mm Flat Head
Screw Qty 3
F
M3x16mm Medium
Wood Screw Qty 4
G
M6x12mm Screw Qty 2
E
Cup Holder Qty 1
L
Control Box Qty 1
M
Power Adapter Qty 1
N
Front
Back
L
L
L
N
G
N
N

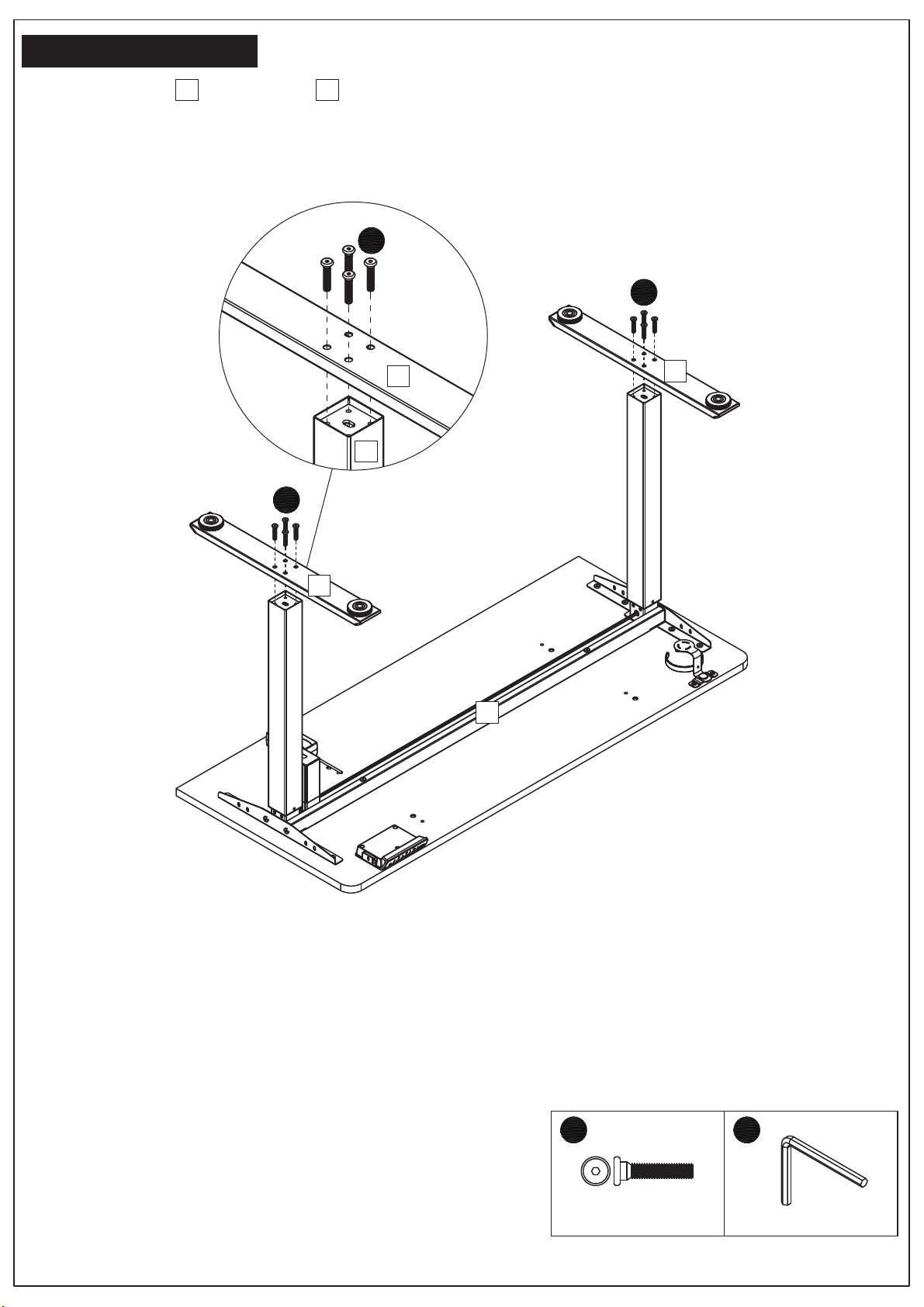

With help, assemble leg brackets to the top of leg frame .
Ensuring the leg motor
is on the same side as
control panel ,
secure the leg frame
to desk top .
B
3
3
3
2
2
7
Step 2
Step 3
M6x12mm Allen Screw
Qty 8
B
Allen Key Qty 1
D
M6x12mm Allen Screw
Qty 8
B
Allen Key Qty 1
D
B
2
3
M6x52mm Allen Screw
Qty 2
C
B
C
Shown upside down
1
2
B
B
C
C
1
1
3
2
2
Ensure fixings
and are used
in the correct
positions as shown.
IMPORTANT!




M
M
C

Assemble feet to leg frame .
4
4
4
4
2
2
2
8
Front
Back
Step 4
Allen Key Qty 1
D
Shown upside down
M8x38mm Allen Screw
Qty 8
A
A
A
A

Peel Off Sticker
1 3
Insert Cable Through The Strap
Tighten The Strap
2
Tighten Up Screws (Optional)
Wireless
Charging Port
Power Cord
Interface For
Motor Cable
Front
Back
9
Step 5
M3x12mm Flat Head
Screw Qty 3
K
Shown upside down
Self-adhesive
Cable Strap Qty 3
J
K
J
J
J
J
M
M
M
WARNING!
Do Not Connect to power
source at this stage.
1








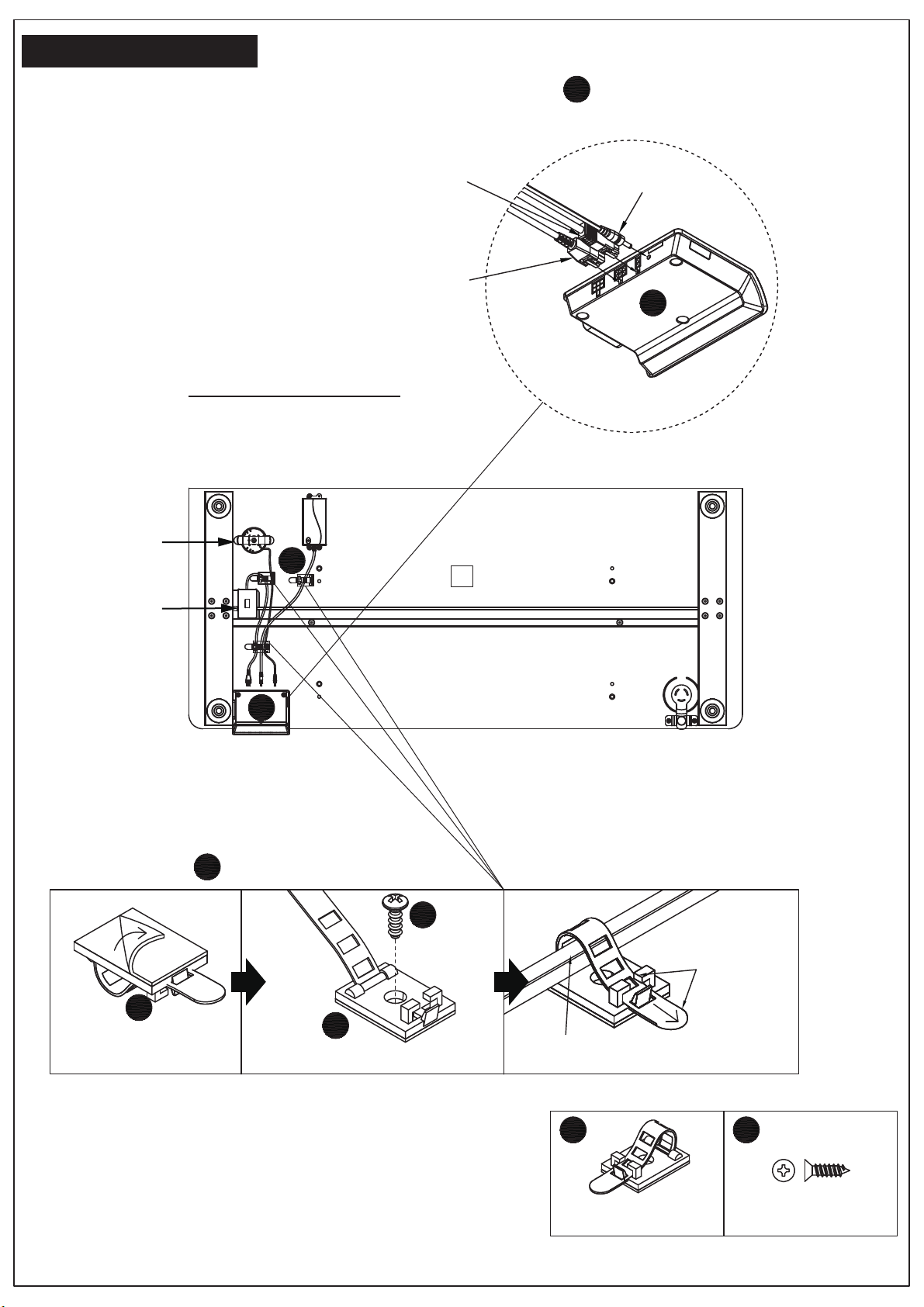

Use cable strap to secure loose cables.
Complete cable connections into the back of control panel as shown.
Wireless Charger
Power
Motor

Locate accessory hooks into leg brackets . These can be located on either side.
Turn foot adjusters to achieve a level stable position.
3
3
3
Front
Back
Foot Adjustment Leveler
Two People Required.
10
Step 6
Accessory hook Qty 2
H
WARNING!
The desk is heavy!
To avoid injury, lift with care.
With help, turn the desk upright
Warning - The desk is heavy. Lift with care.
H
H
H

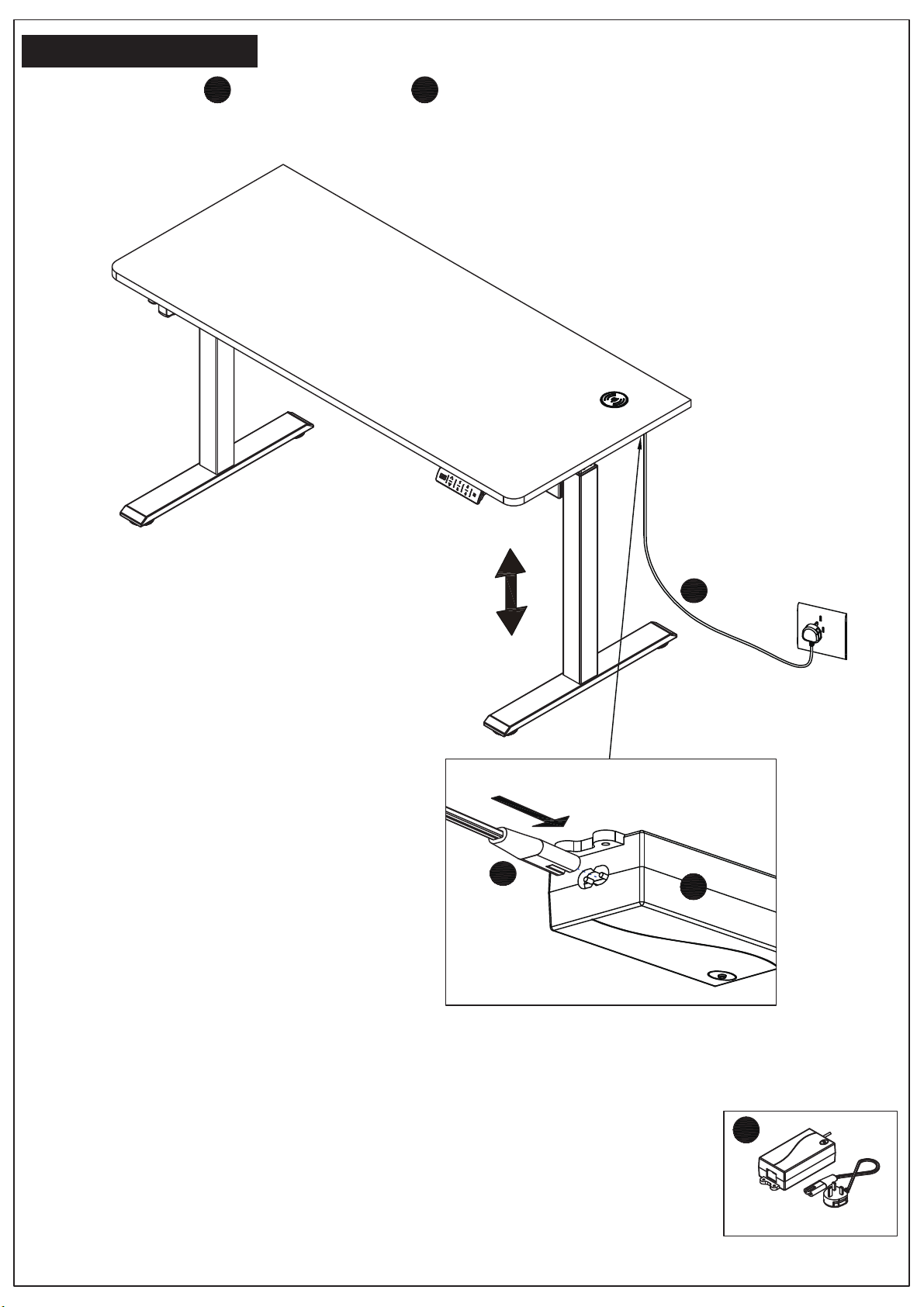

Plug power cable into power adapter .
Connect to mains power and switch on.
Connect Power Cable to Power Adapter
Front
Back
11
Step 7
Power Adapter Qty 1
N
N
N
N
N N

2 USB Ports
(1 Type A 5V2.4A,1 Type C 20V1A)
While adjusting the height of your desk, the USB ports
will pause charging until the height adjustment
process completes.
Wireless Charger
5W /7.5W /10W
12
Operation
Desk Top Up / Down
1. The LED digital display shows the height of the base. The digital display deems out
automatically if there is no input after 5 seconds.
2 Press and hold the "˄" button to move the base and release when the base reaches the
desired height. When the display shows "top", the base has reached its highest position.
2 Press and hold the "˅" button to lower the base and release it when it reaches the desired
height. The base is at the lowest position when the display shows "bot".
Lock / Unlock
1. Lock Function: To lock the current height position to prevent interruption of the height setting.
Press and hold the "M" button for 3 seconds until it activates the "beep" sound and automatically
sets to Lock Mode. Then, Press and hold the "M" button again until it activates the "beep" sound
and returns to Unlock Mode.
Units of measure
To switch the unit of height measurement between inches and centimetres (Factory default set
as inches), Press and hold the "M" and "˅" at the same time for 3 seconds (Note: It does not
work when Lock Mode is on).
Stand Reminder
1. To activate the Sedentary Mode, Press and hold the "M" and "˄" buttons at the same time for
3 seconds until the digit value (default 00) displays and flashes.
2. Press "˄" OR "˅" to select 00, 10, 15, 30, 45, 60, 75, 90, 105, 120 for the countdown time
setting. Repress the "M" button to confirm and start the countdown program.
3. After the countdown starts, press the "M" button to display the remaining time of the
countdown, and it disappears after it flashes five times.
4. After the Sedentary setting is completed, the current height value will display on the screen for
3 seconds by pressing any buttons. Then the remaining countdown time will display and flashes
3 times.
Height Memory Settings
1. When the base reaches the desired height, Press and hold any one of the digit number
buttons (Between "1" to "4") for 3 seconds, and the display of height value will flash 5 times,
and the preset for the height is set. (The default preset setting height 30in/35in/40in/45in)
2. The desk will automatically return to the preset height when touching corresponding
memory button.

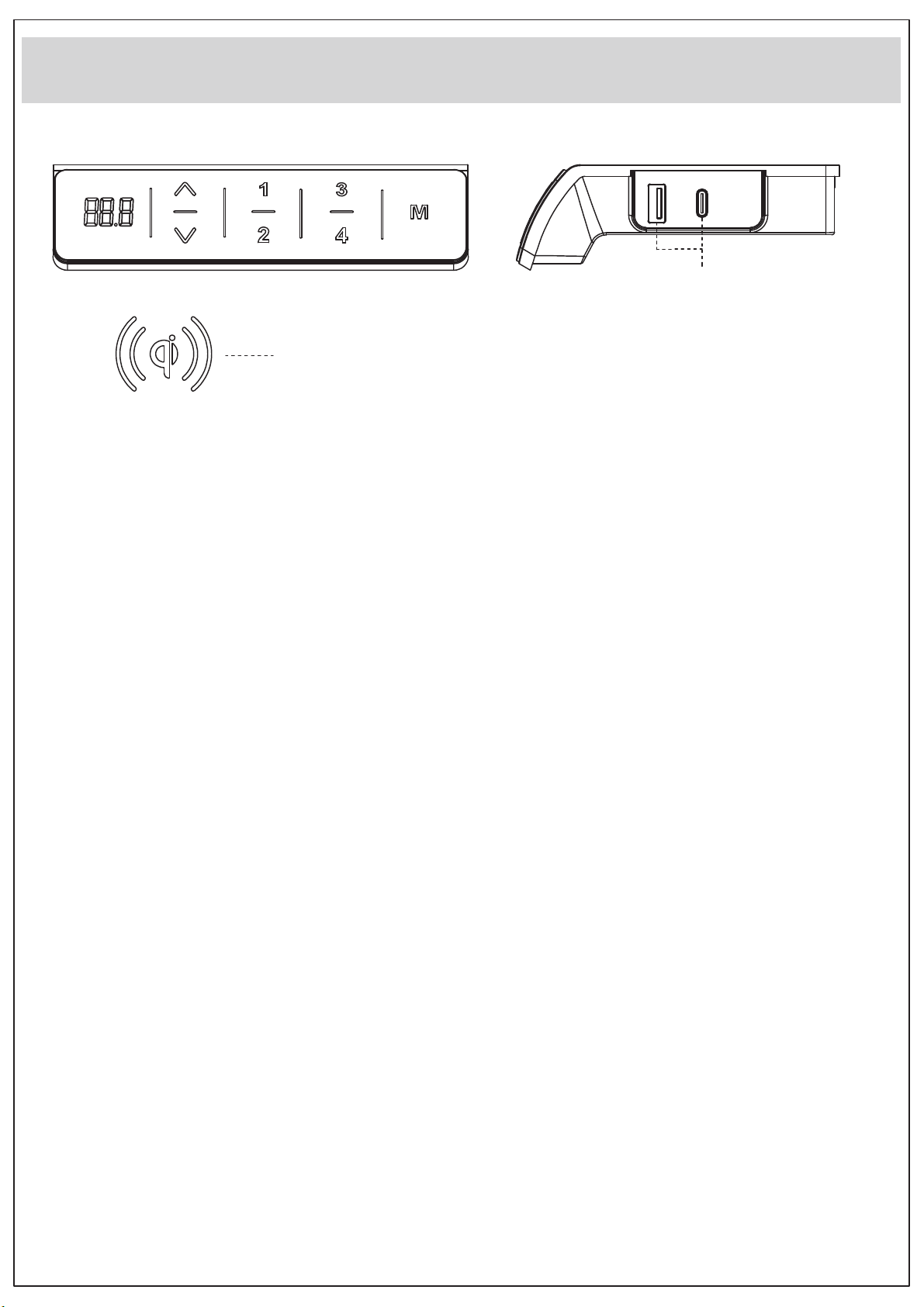

Control Panel USB and USB-C
R/H side of control panel
Wireless Charger

Display indicates E1 The motor has overheated.Unplug the power cord and re-plug after
18 minutes.Factory reset is required.
Display indicates E2
The top load is too heavy.
The motor is stuck.
Reduce the top load to a maximum of
45.4 kg (100 lbs).
Visually inspect whether there are anyforeign
materials or objects obstructing the motor and/or
its shaft.
Unplug the power cord for 5 minutes and then plug
in again.Factory reset is required.
Display indicates E3 The motor is not powered.
Unplug the unit and visually inspect whetherthere
are any loose electrical connections between the
power cord and the adaptor, or from the adaptor to
the motor.
Unplug the power cord for 5 minutes and then plug
in again.Factory reset is required.
Display indicates E4 Motor voltage is too low.
Make sure the power adapter is connected
properly and check the power supply within the
power supply range AC100V-240V
Unplug the power cord for 5 minutes and then plug
in again.Factory reset is required.
Display indicates RES Desk needs to be reset to
accurately display height.
A factory reset is required for the first initialization
or when power is cut off due to electrical
problems. Factory reset is required.
Display indicates E12 Motor failure. Contact customer service.
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Factory reset
Make sure that the cables are all connected before powering up. Press and hold the " ˄"
and "3" for 5 seconds after connecting to power until the RES shows on screen. The
table automatically goes down until it reaches the bottom and bounce back slightly with
a "beeping" sound. The"bot" message will then display on the screen. The reset process
is complete.
13
If you have a wireless charging compatible device, please put the phone on the wireless charging indicator
and check if the phone is successfully connected to the charging function. If not , move the mobile phone near
the logo until the connection is successfully.
Some phone cases may inhibit the wireless charging function or it’s efficiency It may be necessary to remove
the phone case if difficulties are experienced.
Wireless charging will only work with wireless charging compatible mobile devices.

14

15

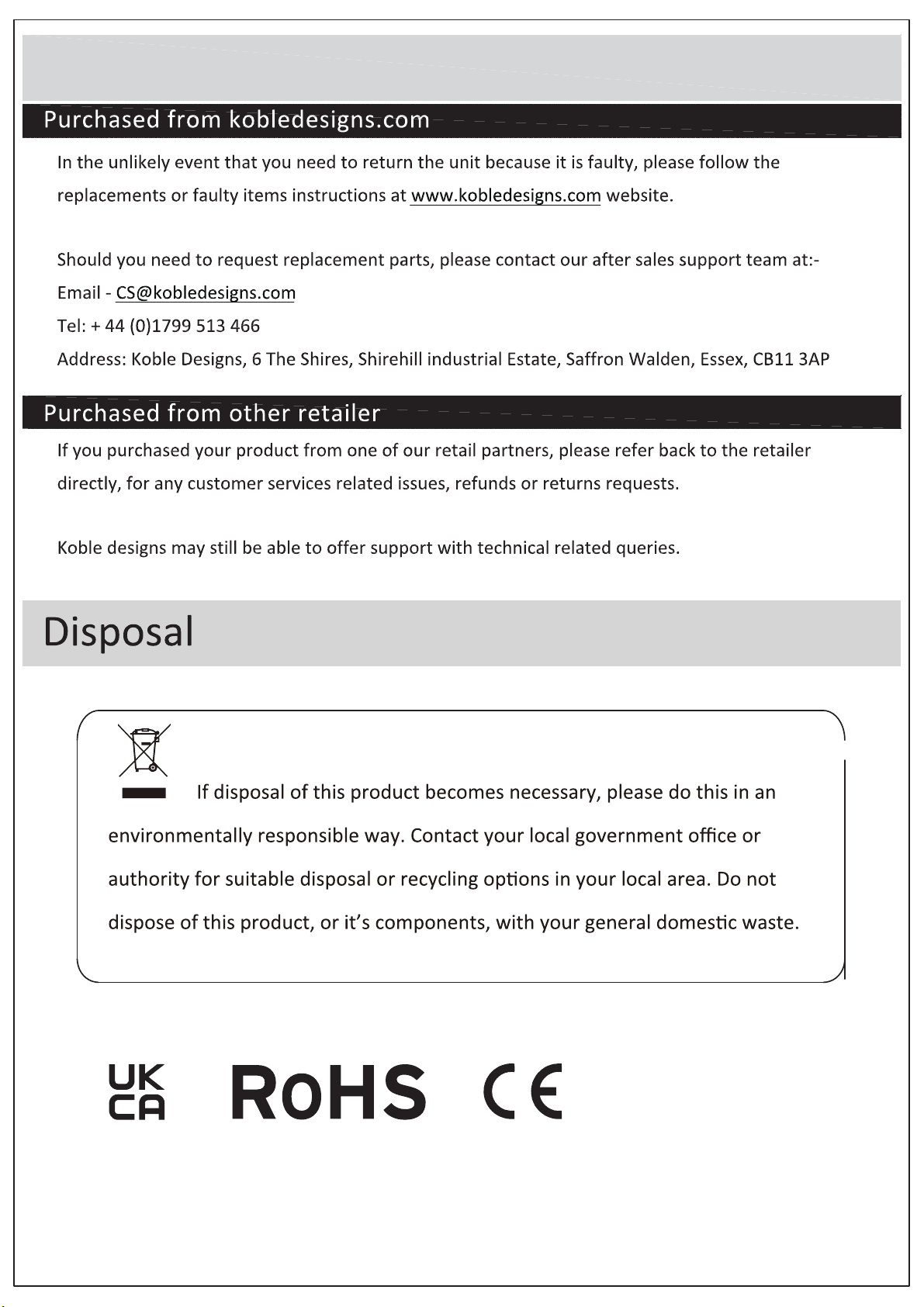

After Sales Support / Product Returns
