KOBLE HM-BD003-012 Manual

Care & Instruction Manual
Please read and retain these instructions for future
reference
Issue 1 - 22/07/25
Reclina Full/Queen/King Size
End Opening Ottoman Bed
lmported By: Forward lndustries, 33401. U.S.A
Product Ref-HM-BD003-012
HM-BD003-022
HM-BD003-032
This assembly will/may require 2 people
www.kobledesignsusa.com

INSIDE
INSIDE
Please check you have all the parts listed below
Main Components
Side rail (Left) Qty 1
13
Headboard base Qty 1
4
5
Footboard Qty 1
6
8
Bent wood slats Qty 30 Double slat caps Qty 15
Single slat caps Qty 30
7
10
9
2
11
INSIDE
Side rail (Right) Qty 1
2
lf you have questions regarding the operation of your purchase, or in the unlikely event you need
to return the unit because it is faulty or is no longer wanted, please contact our product returns
department at [email protected], or 561-465-0030, Option 0.
Address: Forward Industries,105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401
12
13
Headboard side frame (right) Qty 1Headboard panel (upholstered) Qty 1
Headboard side frame (left) Qty 1
Hinge mechanism (x 1 pair)
NOTE: PISTON ATTACHED
Fabric base x Qty 1
Mattress support bracket x Qty 2
INSIDE
14 Ottoman frame support Qty 1

Ottoman end frame (Footboard) Qty 1
Please check you have all the parts listed below
Main Components
3
15 16 Stretcher Qty 1Support leg Qty 2
17 18
Ottoman end frame (Headboard) Qty 1
NOTE:EXTRA HOLES
Ottoman frame centre support Qty 1
19 20
Ottoman frame (Sides) Qty 2
21 Headboard support Qty 2 22 Hinge mounting plate Qty 2
lf you have questions regarding the operation of your purchase, or in the unlikely event you need
to return the unit because it is faulty or is no longer wanted, please contact our product returns
department at [email protected], or 561-465-0030, Option 0.
Address: Forward Industries,105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases more
fittings may be supplied than are required.
Nut Qty 10
BC
D E F
0.66in Flat washer Qty 70
A
F
G
0.31 x 1.77in Bolt Qty 30
0.31 x 0.98in Bolt Qty 30
0.47in Spring washer Qty 32 Allen key Qty 1
Spanner Qty 1
Fixings, Fittings And Tools
N
Power cable 39 in. Qty 1
Wireless charging unit Qty 2
4
HJ
Box spanner x 1
lf you have questions regarding the operation of your purchase, or in the unlikely event you need
to return the unit because it is faulty or is no longer wanted, please contact our product returns
department at [email protected], or 561-465-0030, Option 0.
Address: Forward Industries,105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401
0.31 x 1.968in Threaded stud
Qty 4
K L M
0.31 x 0.787in Bolt Qty 6

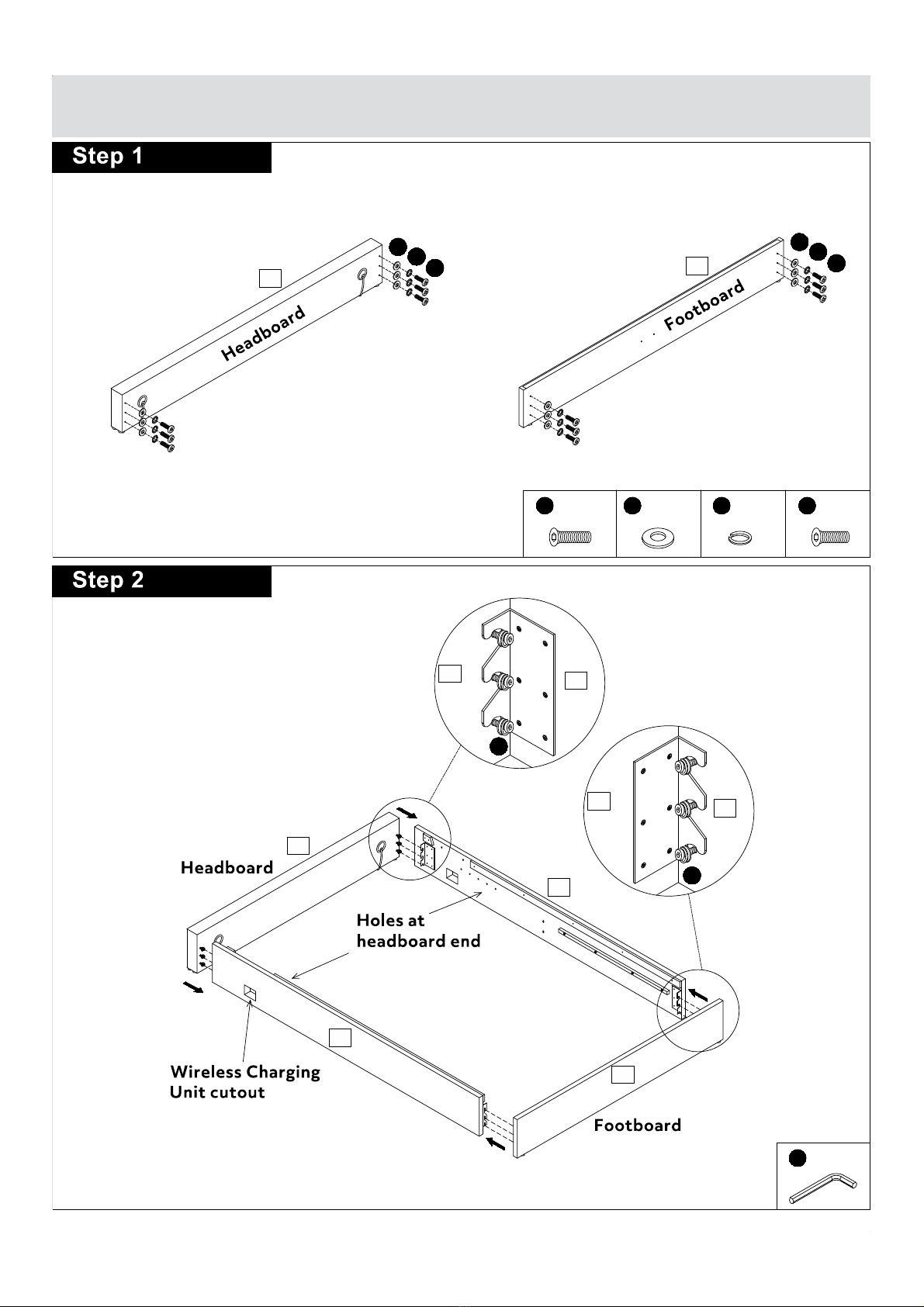

Step 1
5
Assembly Steps
Two people required
42
A
4
3
1
2
43
Step 2
Holes at
headboard end
CDA
CDA x6 x12 x12
Fx1
Wireless Charging
Unit cutout
Headboard
Footboard
CDH
Hx6
23
M
Headboard
Footboard
Pre - Assemble fixings

Step 3
6
Assembly Steps

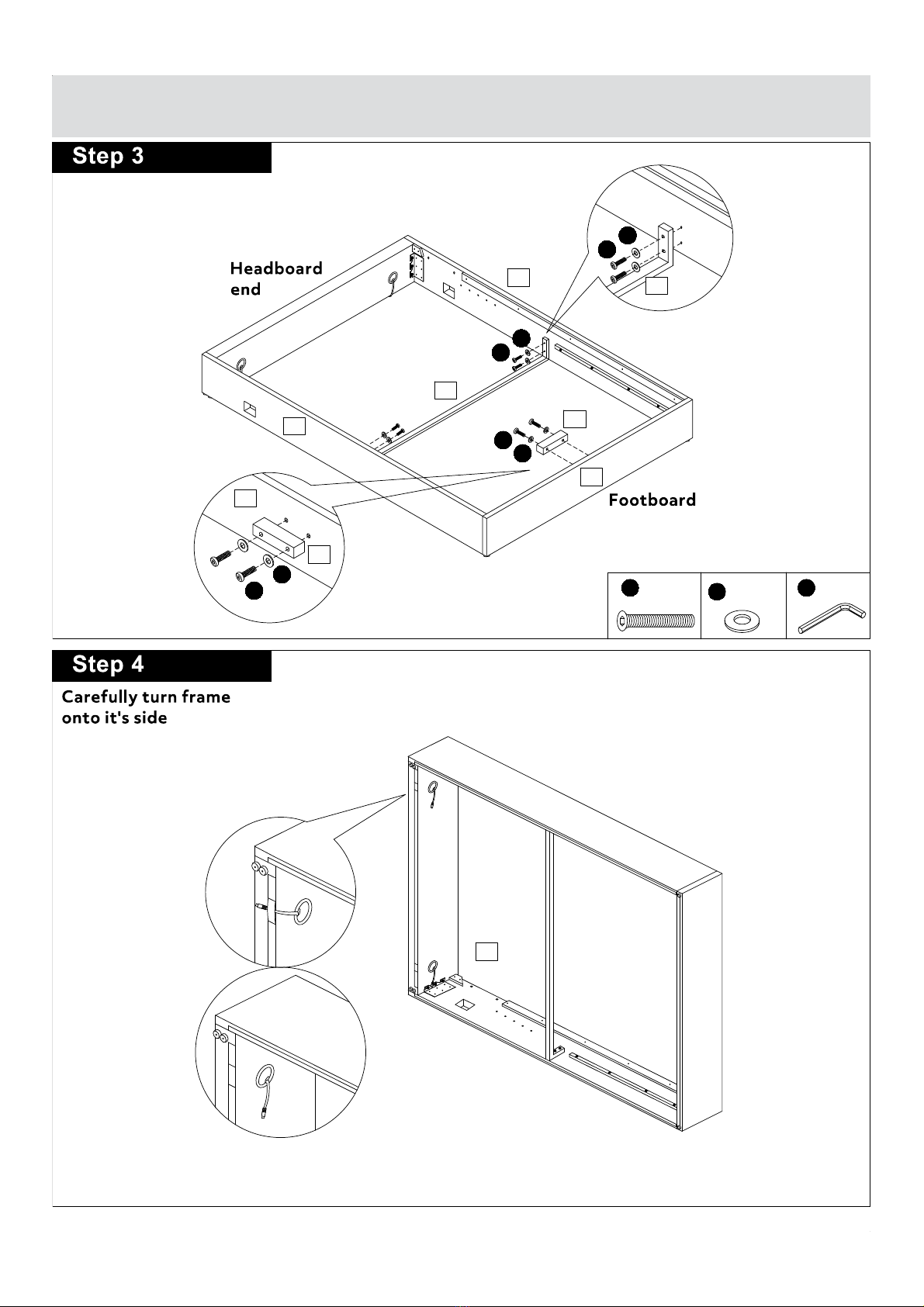

Step 4
C
B
3
16
14
3
1
2
6
16
14
B
C
C
B
C
B
x6
C
Bx6 Fx1
Two people required
Headboard
end
Footboard
Carefully turn frame
onto it's side

Fascia Wireless charging
unit
Screws
Housing
(Fitted inside
main unit)
Step 6
Step 5
7
Assembly Steps
6
Secure fabric base using velcro strips
x2
Unpack and check wireless
charger components

1 2 3
45
M
M1 2 1 2
8
Assembly Steps
M
1
2
Step 7
Fit wireless charging units in the
sequence shown (Steps 1 to 5)

Assembly Steps
9
4
L
Step 9
Step 8
4
Headboard
M
M
x2 Wireless charging units

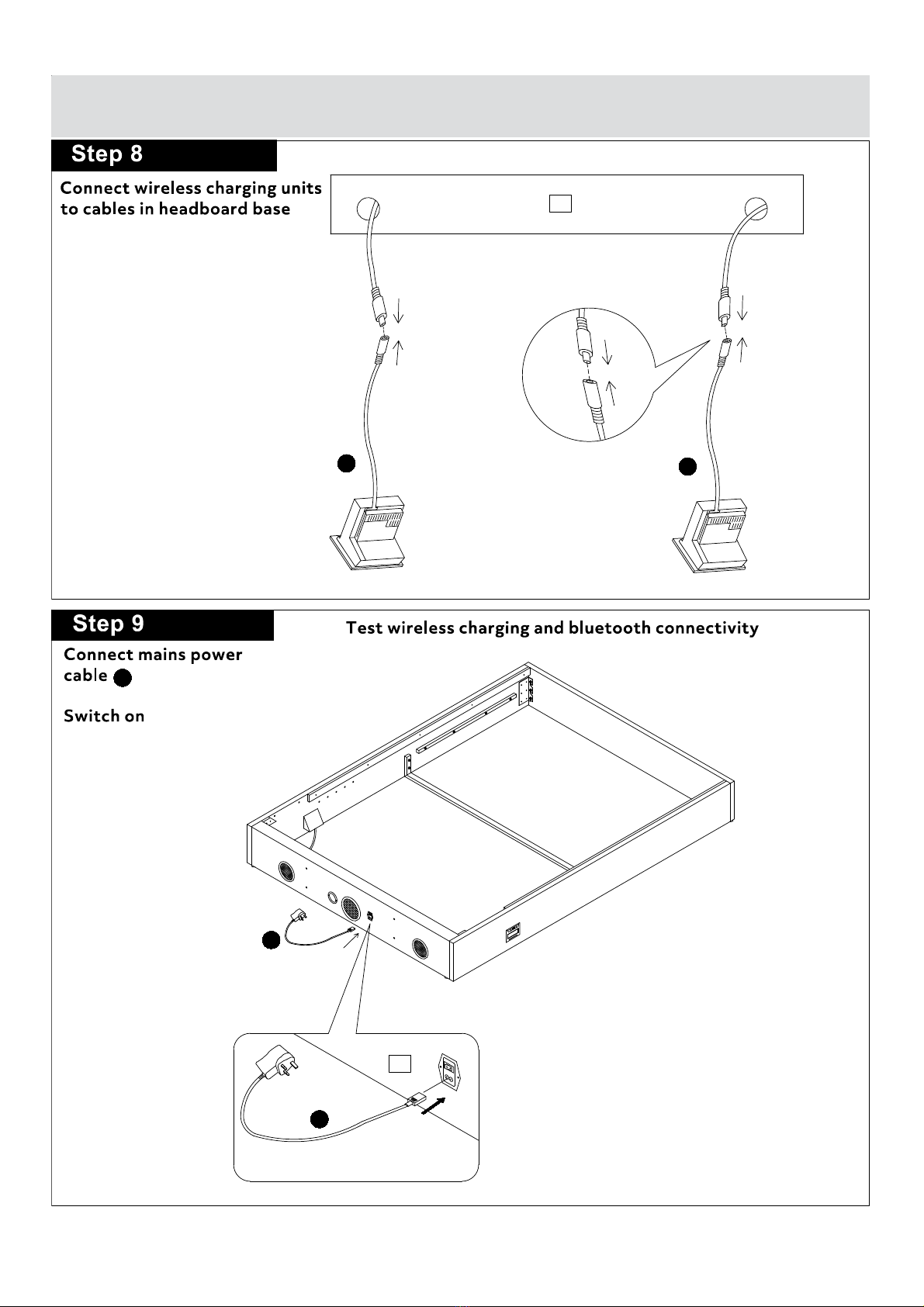

Electrical Connections
Connect wireless charging units
to cables in headboard base
Connect mains power
cable
Switch on
Test wireless charging and bluetooth connectivity
L
L

LED
1 2 3
Step 10
10
Assembly Steps
Step 11
Mobile device charging
device face up
NOTE: It may be necessary to remove phone case to improve charging efficiency
LED illuminates during
charging
Pocket can be removed
for cleaning
USB cable charging
LED will illuminate
Safety Warning - Switch off and disconnect power cable before proceeding!!
Bluetooth Connectivity
The Bluetooth audio will automatically start searching for a paired device.
Enable pairing on your device and ensure it pairs successfully. Device name "EMOMO".
The Bluetooth audio can only pair with one device at a time. If you wish to pair with a different device,
you will need to disconnect the first device and re-start pairing for the new device.
Use your device to control the audio playback.

11
Assembly Steps
Step 12
Step 13
11
C
D
B11
C
CD
x4 x4
Bx4 Fx1
B
Fit headboard panel
21
C
D
B
4
4
C
D
B
21
CD
x4 x4
Bx4 Fx1
D
Ensure power cable is
disconnected
L
L

Step 15
12
Beware of risk of entrapment from folding hinges!
Open the zipper
to access holes
11
11
12
13
13
13
5
5
A
C
22
22
C
B
14
Inside
Two people required
1
2
Cx8 Fx1 Ax4 Kx4
1
2
Cx10 Fx1 Bx10

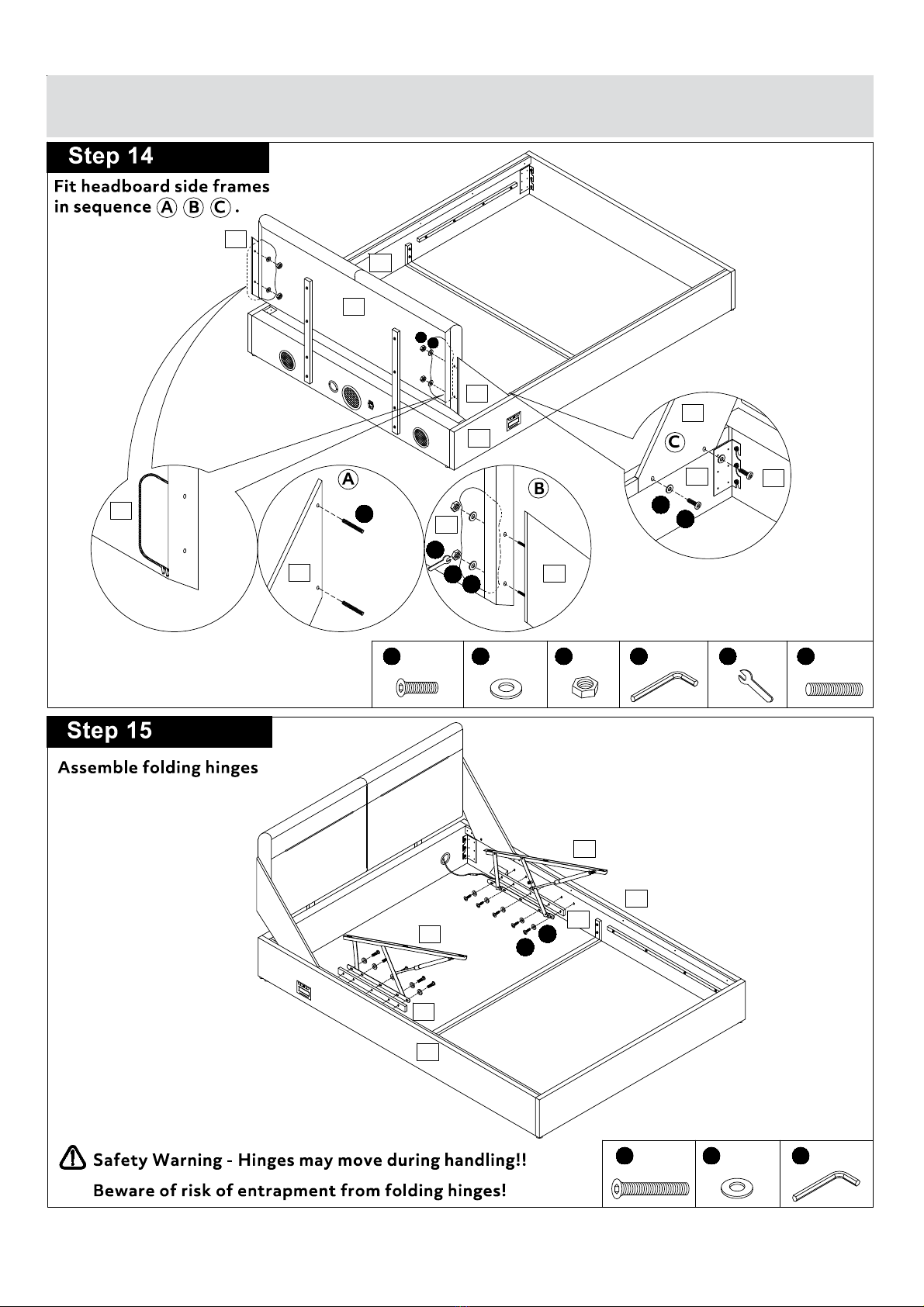

Assemble folding hinges
Fit headboard side frames
in sequence .
Assembly Steps
Step 14
Ex4
Safety Warning - Hinges may move during handling!!
11
K
Gx1
13
G
E
C
E
C
AB
C
A B C

Assembly Steps
Headboard end
Extra holes
Footboard end
Shown upside down
Legs this
end
Shown upside down
Step 17
13
Step 16
20
15
15
C
A
C
A
D
20
17
18
19
19
Cx4 Fx1 Ax4
Cx12 Fx1 Ax12 Dx12
C
A
D
Assemble ottoman frame
Assemble ottoman frame

Step 18
Assembly Steps
Headboard end
Step 19
14
CA
10
10
G
C
B
E
Cx4 Fx1 Ax4
Two people required
Cx6 Fx1 Bx6 Ex6 Gx1
Ensure frame
is square C
B
Two people required
Locate ottoman frame onto folding hinges
Safety Warning : Hinges may move
during handling, Take care to avoid
entrapment.
Footboard end
With help, turn ottoman frame over
Holes
Legs
this end

15
UP
Nut pre-assembled
Step 20
Assembly Steps
J
Two people required
Jx1
5
Lift ottoman frame and connect pistons
Repeat on both sides

2
3
19
7
8
20
1
2
7
9
7
Step 21
Assembly Steps
9
78
9720
12
15
Important - Slats to arch upwards
77
99
8
lf you have questions regarding the operation of your purchase, or in the unlikely event you need
to return the unit because it is faulty or is no longer wanted, please contact our product returns
department at [email protected], or 561-465-0030, Option 0.
Address: Forward Industries,105 South Narcissus Avenue Suite 412, West Palm Beach, FL 33401
Fit bentwood slats
Only once assembly is complete,
re-connect power cable
and switch on
L
16
L
Plugin

Safety and Care Advice
Important – Please read these instructions fully before starting assembly
Check you have all the
components and tools listed on
pages 2, 3 and 4.
Remove all fittings from the
plastic bags and separate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough space
to layout the parts before starting.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Assembly requires 2 people.
Do not fully tighten bolts until the
whole bed is assembled. Do not
overtihgten the nuts to avoid
causing damage to the threads.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers and
Allen keys.
Dispose of all packaging
carefully and responsibly.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household waste.
Take to your local authority
waste disposal centre.
Care and maintenance
Cleaning Guidance
Minor stains and spillages
should be removed immediately
from cushion fabric, by wiping
over lightly with a damp cloth
and mild soapy water.
Light marking can also be
removed using this method.
To remove more stubborn stains
or marking, a good quality
proprietary domestic fabric cleaner
can be used, although it should
first be tested on and
inconspicuous area of the fabric.
Technical specifications and warnings . Please read in full
Safety warning (wireless charging)
· Before using the unit please read the manual.
· Keep this product away from any water, liquid or wet areas.
· Keep this product away from open flames such as candles.
· The unit should be powered off before unplugging the product.
· Do not place the product in direct sunlight or heat.
· Keep away from temperatures over 35°C.
· Never try to repair this product yourself, take it to anauthorized technician. Trying to remove panels or
repairing the unit yourself could result in an electric shock.
· Do not insert foreign objects into the product.
· Adult Supervision is recommended if children are using this product.
· There is a separate housing inside the wireless charging pocket. You can take out and wash it.
· Don’t put it back until it becomes dry. A wet housing may damage your electronic products.
· Once your mobile device is adequately charged, remove from the unit.
· Do not leave your mobile device in the unit once charging is finished, as overheating may occur.
Specification (wireless charging)
Output
Input
5V === 2A
12V
Power supply:
INPUT: 100-240V~50/60Hz 0.6A
OUTPUT: 12V
17
APPROXIMATE 1 HOUR
ASSEMBLY TIME

Safety Warning (Bluetooth speaker)
· Thank you for using our Remo4 Bluetooth sound system!
· This audio system was for indoor use only.
· Do not place the apparatus in direct sunlight or heat.
· Trying to remove panels or repairing the unit by yourself could result in an electric shock.
· Do not use chemicals on this product.
· Do not attempt to repair this product as the warranty will be void, please contact with the retailer.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Specification (Bluetooth speaker)
Output
Rated power
Speaker
Blutooth Edition
7*2+10W
30W
3"*2+4", 10*2+10W
4.0
Power supply:
INPUT: 100-240V~50/60Hz 0.6A
OUTPUT: 12V
Safety and Care Advice
Technical specifications and warnings . Please read in full
18

Appearance Passable Reason How to Solve?
No function/
Nothing works
No power Check the connecting
of the power plug.
Wireless
charging
function not
work or stable
The phone jacket
is too thick or
made by metal
Take o the jacket
and try again
USB unable
to charge
Your phone does
not have wireless
charging function
Purchase the wireless
charging accessories
for your phone or
using the USB
charging function.
Not at the correct
charging position
Your is not
charging by 5V
input
Adjust the position
Please using the
speci ed power supply.
Safety and Care Advice
Trouble shooting / frequently asked questions
wireless charging
19
Problem Possible cause and correction or maintenance
No sound at all
The volume switch is on minimum;
the unit is not set to the correct function;
please contact with the store or customer service.
Bluetooth can
not pair
Please close all other pairing machines and retry;
Please wait a few seconds or restart the machine;
Do not pair the devices behind a wall or in corner, please
keep the working space within 315 inch;
Pair the device named eMoMo.
Bluetooth speaker
If you have questions regarding the operation of you purchase, or in the unlikely event you need to return
the unit because it is faulty or is no longer wanted, please contact our product returns department at
[email protected], or 561-465-0030, Option 0.
Address: Forward Industries, 105 Sourth Narcissus Avenue Suite 412, West Palm Beach, FL 33401
After Sales Support / Product Returns
This marking indicates that this product should not be disposed with other household
wastes.To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
To return your used device, please use the return and collection systems or contact the
retailer where the product was purchased.They can take this product for environmental
safe recycling.
Disposal
