KODAK CR 7400 Digital
Radiography System
Installation Guide

INSTALLATION INSTRUCTIONS
2September 2007 – 6H4130
Carestream Health, Inc.
Dental Business
150 Verona St.
Rochester, NY 14608
Exclusive manufacturer of Kodak dental systems.
© Carestream Health, Inc., 2007
The Kodak trademark and trade dress are used under license from Kodak
6H4130_en

6H4130 – September 2007 3
KODAK CR 7400 Digital Radiography System Installation Manual
Document Part Number: 6H4130-00
Copyright Carestream Health, Inc., 2007
All rights reserved. No part of this manual may be reproduced or copied in any form by any means — graphic,
electronic or mechanical, including photocopying, typing, or information retrieval systems — without written
permission of Carestream Health, Inc.
Use of Manual
The Kodak CR 7400 digital radiography system is designed to meet international safety and performance standards.
Personnel operatingthe unit musthave a thorough understanding of the proper operation of the system. This manual
has been prepared to aid medical and technical personnel to understand and operatethe system. Do not operate the
system before reading this manual and gaining a clear understanding of the operation of the system. If any part of
this manual is not clear, please contact a representative for clarification.
US and Canada: Toll-free: 1-800-944-6365
www.kodakdental.com

INSTALLATION INSTRUCTIONS
4September 2007 – 6H4130
Description Page
Table of Contents
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Laser Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CR7400 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the User Interface Software of the KODAK CR 7400 system. . . . . . . . . . . . . . . 9
Installing Microsoft.NET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the Kodak CR 7400 driver for the WINDOWS Vista Operating System . . . 12
Installing the Kodak CR 7400 driver for WINDOWS 2000 and WINDOW XP Operating
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
KODAK CR 7400 System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Initial setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Selecting and Naming Rooms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting Intraoral and Extraoral Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fine Tuning the CR7400 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Items Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Unit Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Intraoral Gain Verification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Extraoral Gain Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Gain Tuning Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Appendix A: Tuning Process Results Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6H4130 – September 2007 5
Section 1: Safety
Caution
LIFTING HAZARD
• The Kodak CR 7400 unit weighs 18Kg (39.6lbs).
• Lifting heavy equipment may result in serious injury to personnel and/or damage to equipment. Do not try to lift
the unit by yourself.
CautionCaution
The Kodak CR 7400 digital radiography unit is a CLASS 1 Laser product.
• Do not remove the unit cover.
• Cover removal should be done only by authorized service personnel.
Laser Safety Instructions
During normal operation, the unit should always be enclosed in its protective cover to prevent the surrounding area
from being exposed to the laser.
Cover removal should be performed for service purposes only and by an authorized technician.

INSTALLATION INSTRUCTIONS
6September 2007 – 6H4130

6H4130 – September 2007 7
Section 2: CR7400 System Requirements
The system requirements for the CR7400 System is as follows:
• Intel pentium IV 3.2 GHZ or faster
•IGBRAM
• 80 GB hard drive
• CD-ROM drive
• Ethernet 10/100/1000 Network Card
• Standard CRT/LCD monitor with a minimum 1024 x 768 screen resolution
• 64MB graphic adapter (no graphics on board)
You can install the CR700 system on the following operating systems:
• Windows 2000 Professional SP4
• Windows XP Professional SP2
• Windows Vista Business 32-bit
Before installing the software, please review the system requirements at http://www.kodakdental.com/
documentation/sysReqs/KDSIS.pdf.
Important
Plug the CR7400 unit into a USB connector on the back of the PC. If you experience a data-transfer problem, install
an additional PCI-USB2 card. We recommend the D-Link DUB-2 card. When installing the card, leave at least 2 PCI-
slots empty between the PCI card and any graphic card you have installed. If using a laptop and experience
problems, install a PCMCIA-USB2 card. We recommend the Belkin USB 2.0 Notebook card.

INSTALLATION INSTRUCTIONS
8September 2007 – 6H4130

6H4130 – September 2007 9
Section 3: Installing the User Interface Software of the KODAK CR
7400 system
Important
Before installing the software, please review the system requirements at http://www.kodakdental.com/
documentation/sysReqs/KDSIS.pdf.
CautionCaution
Do not connect the CR7400 USB cable to your computer while installing the software.
After installing the Kodak dental imaging software (version 6.6.3 and up), proceed to the steps below.
• Microsoft.NET installation. This may already be installed on the computer, in which case it is automatically
skipped.
• User interface installation
• WIBU-Key installation (Microsoft Windows 2000 and XP operating system users skip this step)
• Continuation of installation
[1] Insert the user interface software CD for the Kodak CR 7400 system into the computer disk drive.
The installation begins automatically.
Note
If the installation does not begin automatically:
• Click My Computer.
• Click CD RW drive.
• Double-click the autorun.exe file.
When the installation begins, the Kodak CR7400 System Installation screen appears:
Starting Installation

INSTALLATION INSTRUCTIONS
10 September 2007 – 6H4130
Installing Microsoft.NET
[1] Click Install.
Allow the setup screens to start the procedure automatically.
• If Microsoft.NET has already been installed on the computer, the setup automatically skips ahead.
• If Microsoft.NET has not yet been installed, a Setup window is displayed, then the Microsoft.NET license
agreement appears.
[2] Click I agree, then click Install.The Installing Components screen appears. When the installation is complete,
a Setup message is displayed.
[3] Click OK.
The installation continues and the following screens appear:
User interface installation continuing
[4] The InstallShield Wizard opens. Do one of the following:
• If you are installing the software on the Windows Vista operating system, the WIBU-KEY installation begins
and the WIBU-KEY Setup welcome screen appears. Complete steps 5through 10.
• Ifyouare installingthe software onthe Windows 2000 through Windows XP operatingsystems,skip to step
12.
[5] Click Next to continue. The WIBU-KEY tools are installed. A setup message appears.
[6] Click Yes to create a folder.
[7] Click Next to continue. A list of components to be installed appears.
[8] Click Next to install the components. A list of component to be installed appears.
[9] Click Next to install the components. The WIBU-KEY Setup Complete screen appears.
[10] Uncheck Yes, I want to view the Readme text now, then click Finish. A successful installation message
appears.
[11] Click OK to complete the WIBU-KEY installation.
[12] Click Next. The Kodak CR7400 Install Shield Wizard appears.
[13] Click Continue. The Destination Folder screen appears.

6H4130 – September 2007 11
[14] To install the software and images in the C:\Program files\Kodak\KodakQC folder, click Next; to change the
location of the program file or image folder click Change and enter the new destination.
Note
It is recommended that you install the software and images in the C:\Program files\Kodak\KodakQC folder.

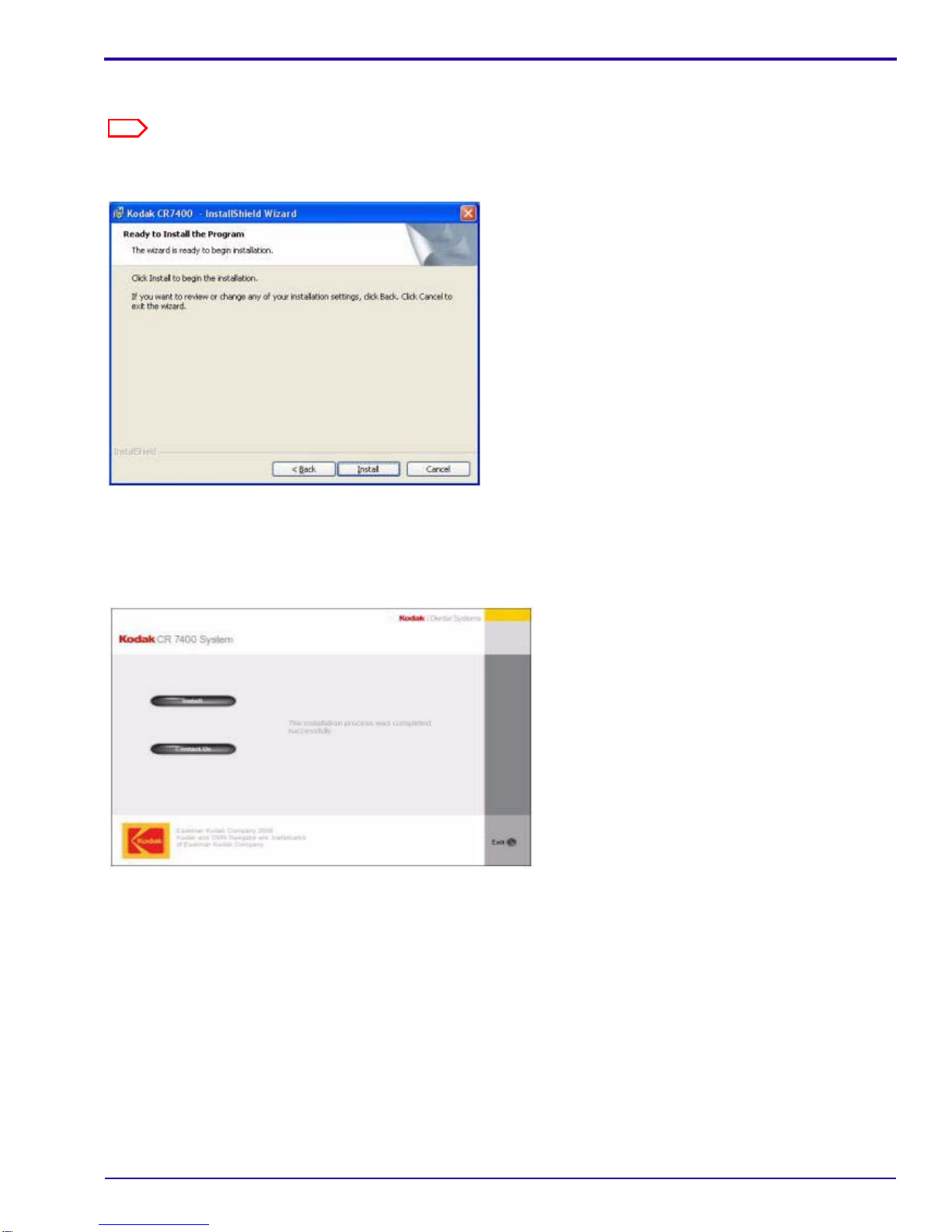

The Ready to Install the Program screen appears:
Ready to Install the Program screen
[15] Click Install to begin installation. The software is installed.
[16] When the process is complete, click Finish to complete the installation.
The following screen confirms the installation of the user interface for Windows 2000 and Window XP users:
KODAK QC screen showing successful installation
The first part of the installation is completed.
[17] Continue to the next section, “Installing the Kodak CR 7400 Driver.”

INSTALLATION INSTRUCTIONS
12 September 2007 – 6H4130
Installing the Kodak CR 7400 driver for the WINDOWS Vista Operating
System
After you install the software, keep the user interface software CD-ROM in the computer disk drive and install the
Kodak CR 7400 driver as described below:
[1] Connect the power cable to the back of the Kodak CR 7400 unit.

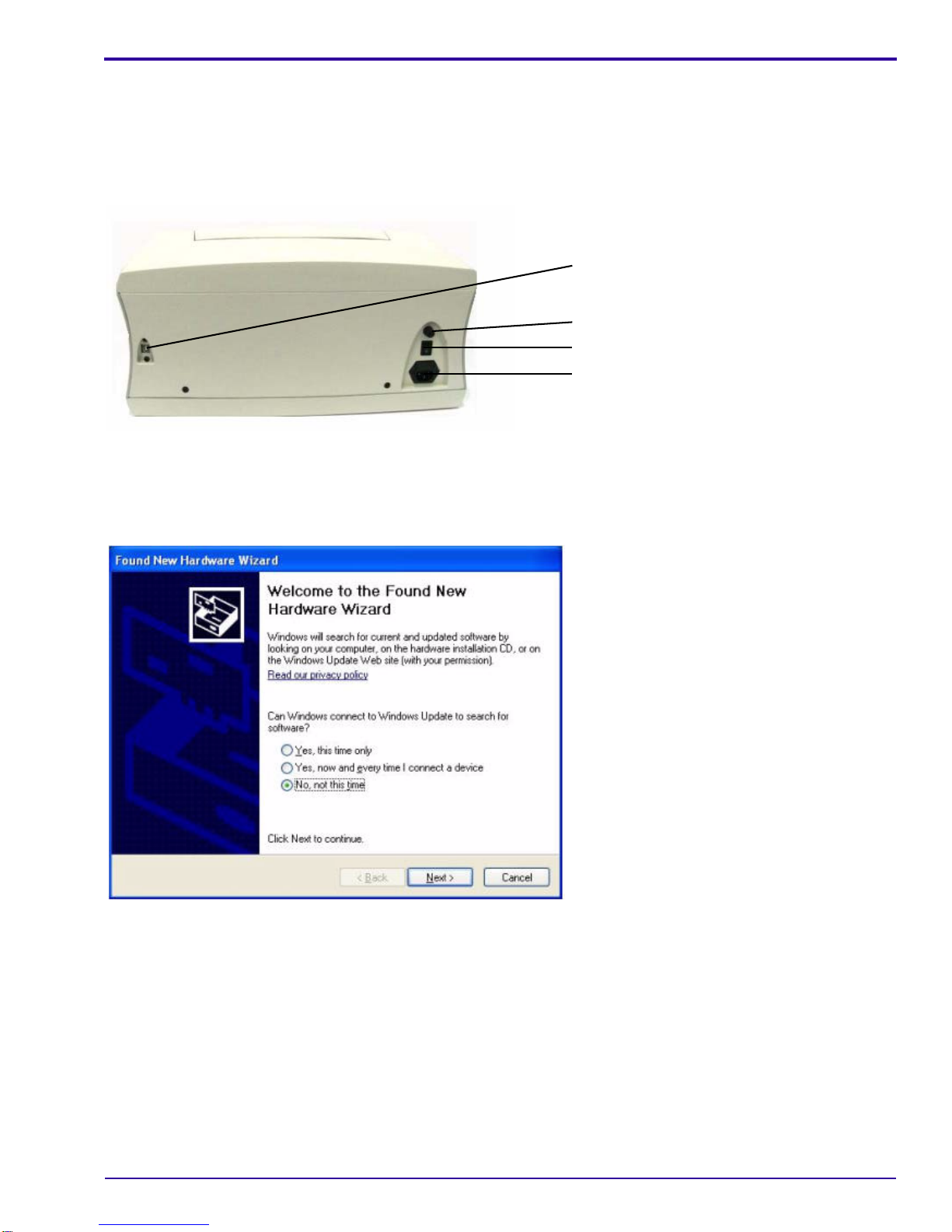

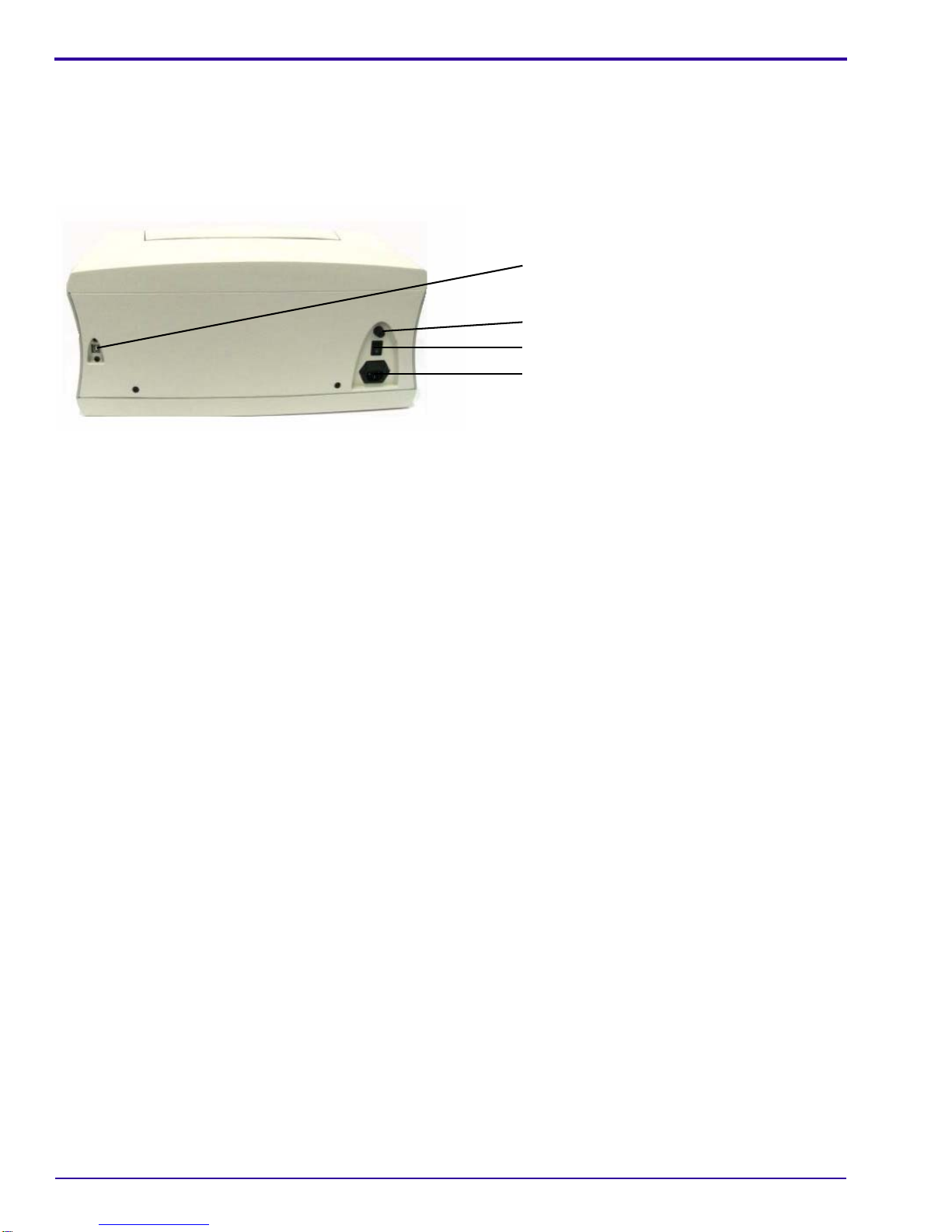

Back view of unit
[2] Connect the power cable to the main outlet.
[3] Power on the unit by turning the on/off switch to “on.”
[4] Connect the USB2 cable from the unit to the computer. The Update Drive Software - Unknown Device screen
appears.
[5] Select Browse my computer for drive software. The Found New Hardware - Unknown Device screen
appears.
[6] Select Browse my computer for driver software (advanced). Indicate where to search for the software,
usually E:\Driver (where E: is the CD drive), and click Next. The driver software is installed.
[7] When the installation is complete, click Close. This completes the software installation for the Kodak CR 7400
unit. Proceed to the KODAK CR 7400 System Setup.
Fuse for erase lamps
On/off switch
Power cable connection and main fuse
USB connection

6H4130 – September 2007 13
Installing the Kodak CR 7400 driver for WINDOWS 2000 and WINDOW XP
Operating Systems
After you install the software, keep the user interface software CD-ROM in the computer disk drive and install the
Kodak CR 7400 driver as described below:
[1] Connect the power cable to the back of the Kodak CR 7400 unit.
Back view of unit
[2] Connect the power cable to the main outlet.
[3] Power on the unit by turning the on/off switch to “on.”
[4] Connect the USB2 cable from the unit to the computer. The Found New Hardware Wizard appears.
Found New Hardware Wizard
[5] Select No, not this time and click Next. The following screen appears:
Fuse for erase lamps
On/off switch
Power cable connection and main fuse
USB connection

INSTALLATION INSTRUCTIONS
14 September 2007 – 6H4130

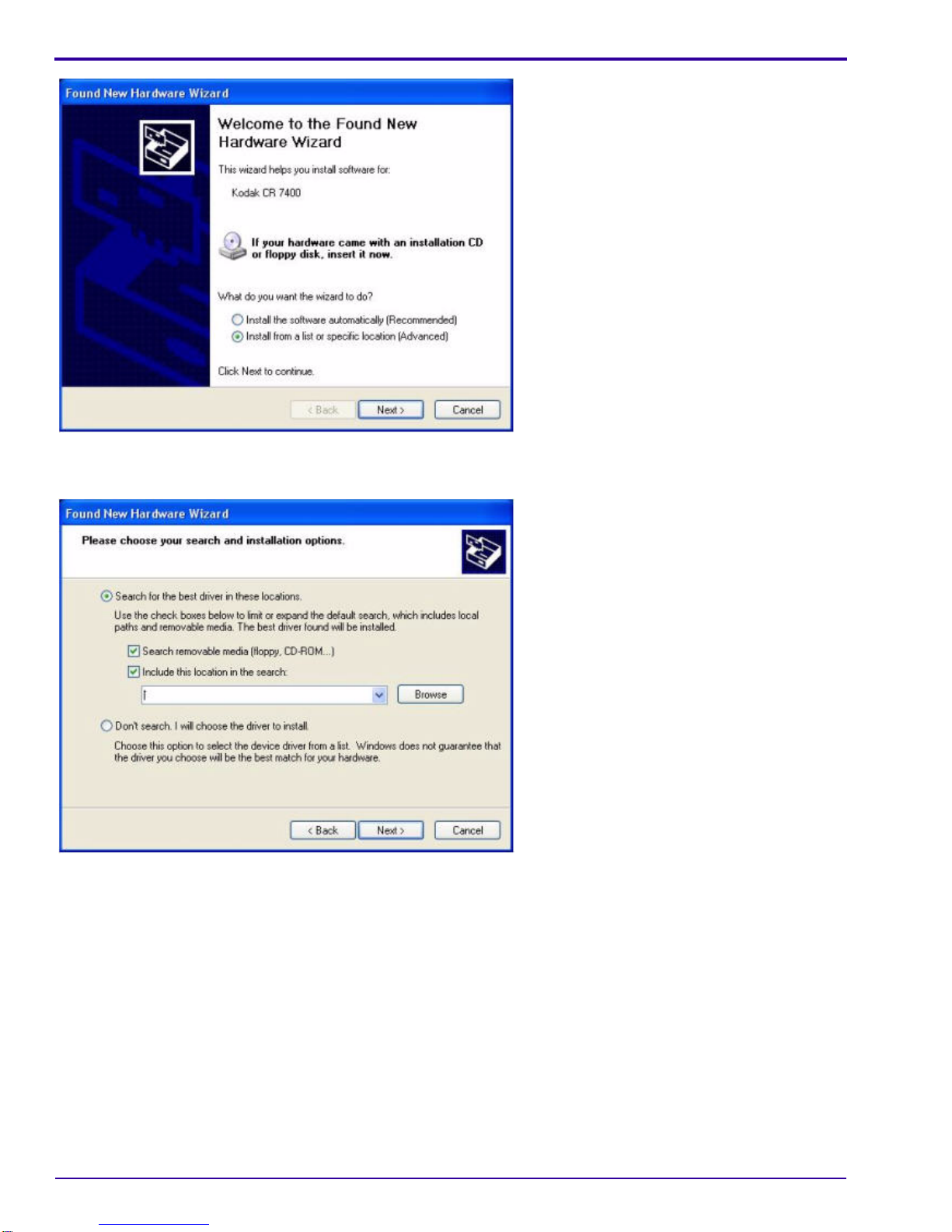

New Hardware Wizard software search screen
[6] Select Install from a list or specific location and click Next. The following screen appears:
Software search location screen
[7] Indicate where to search for the software, usually E:\Driver\ (where E: is the CD drive), and click Next. When
the hardware is found, the following screen appears:

6H4130 – September 2007 15

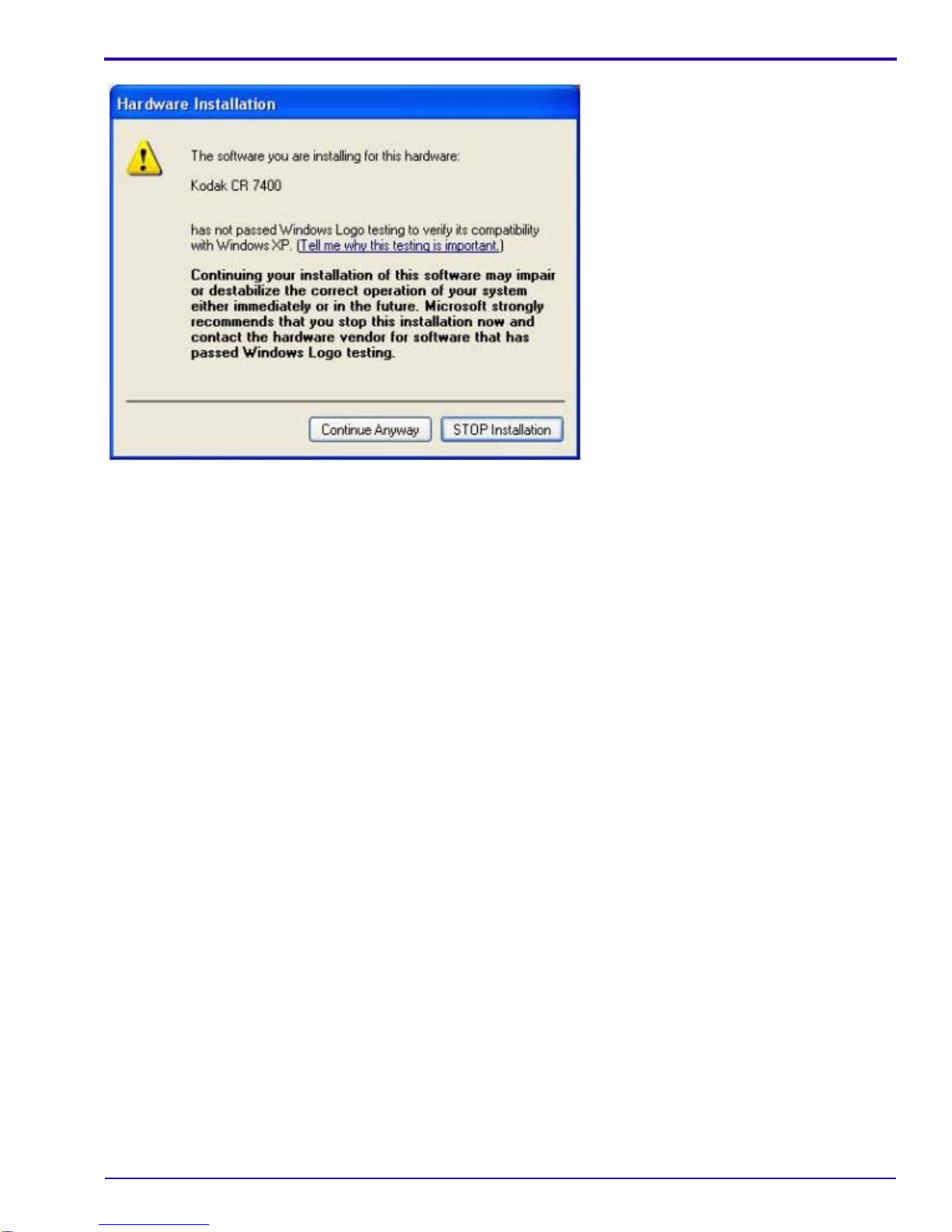

Windows Logo warning
[8] Click Continue Anyway. An installation complete screen appears.
[9] Click Finish. This completes the software installation for the Kodak CR 7400 unit. Proceed to the KODAK CR
7400 System Setup.

INSTALLATION INSTRUCTIONS
16 September 2007 – 6H4130

6H4130 – September 2007 17
Section 4: KODAK CR 7400 System Setup
During all phases of Kodak CR7400 system setup, the unit mustbeturned onand the USBcable connectedbetween
the unit and the computer.
Initial setup
[1] Click on the Kodak Dental Software icon on the computer desktop.
[2] Select a patient and click “imaging” to access the imaging window.
[3] Click the CR icon.
The user interface screen appears:
User interface screen
To start scanning, choose and set your preferences as follows:
[4] Click the Info/Setup button.
[5] Select Technician Settings. The login screen appears:
[6] Enter the password “1331” in the password field, and click Login.
Info/setup
button

INSTALLATION INSTRUCTIONS
18 September 2007 – 6H4130

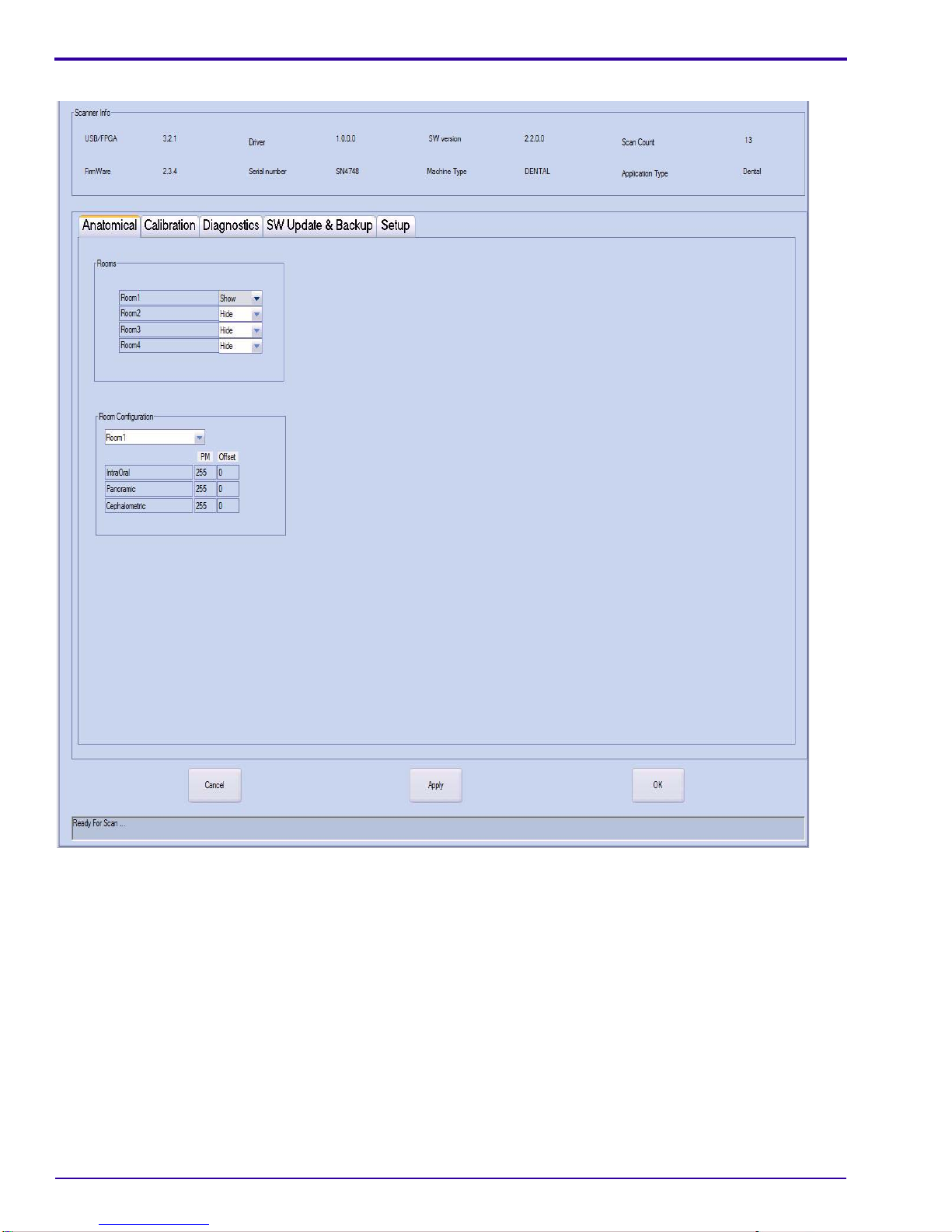

The Technician (level 1) screen appears with the Anatomical tab open:
Anatomical tab

6H4130 – September 2007 19
Selecting and Naming Rooms
In the Room Configuration area, select which rooms (up to four rooms) you want to make available on the Main
Screen. You may also change the names of the rooms.
Room Configuration area of Anatomical tab
[1] Select a room, then type over the existing name to change to the room name that you want.
[2] Choose whether to show or hide the room on the Main Screen.
[3] Click Apply to save your settings and continue to another tab.
[4] When you are finished making changes, click OK to save the settings and return to the Main Screen.
The Main Screen appears with your selections applied. The names and their show/hide preferences may be
changed at any time.
Main Screen with selections applied
[1]
[2]
Room name you assigned
Active room
Room 4 hidden because
“hide” was selected

INSTALLATION INSTRUCTIONS
20 September 2007 – 6H4130

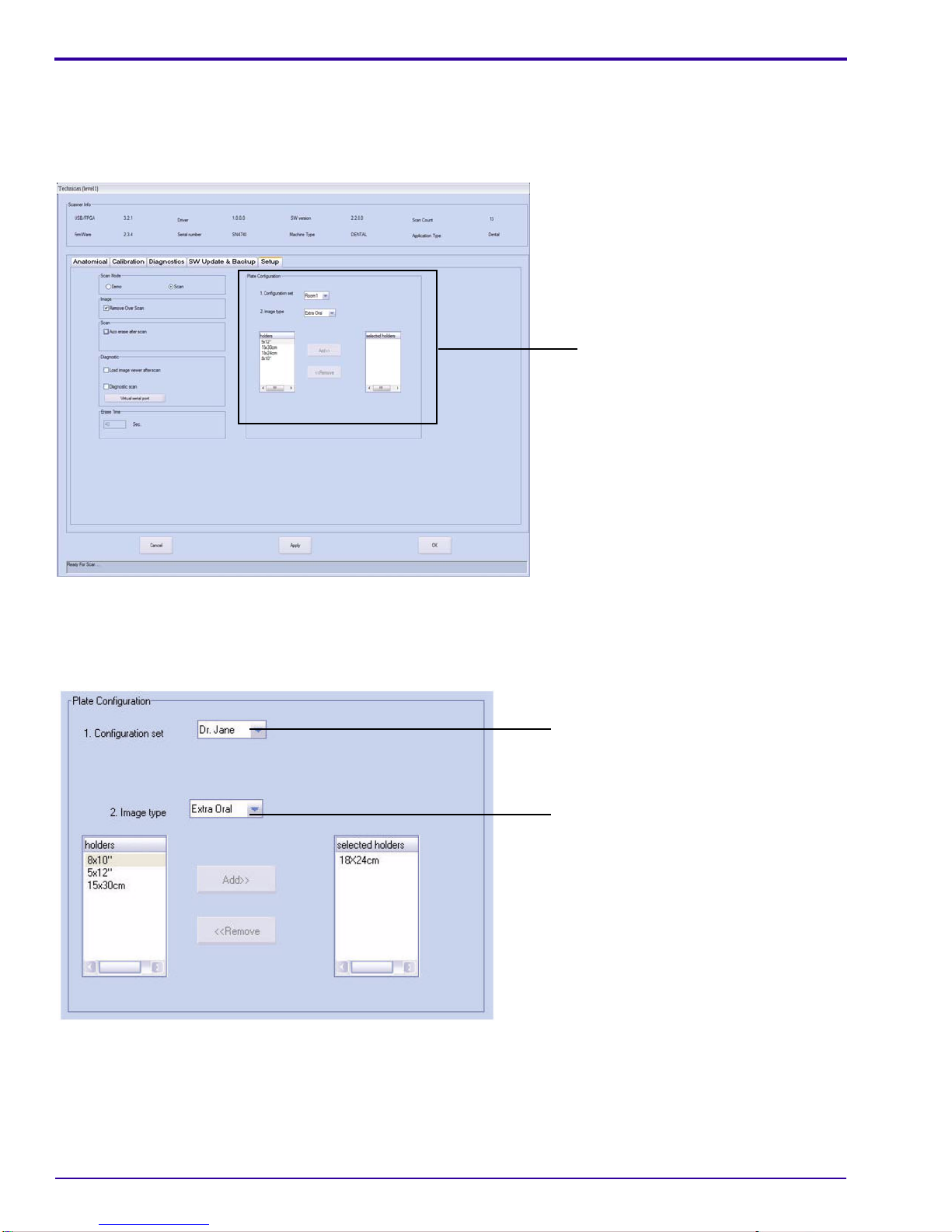

Selecting Intraoral and Extraoral Preferences
[1] On the Main screen, click the Info/Setup button and log in as before.
[2] Select the Setup tab.
The Setup tab appears:
Setup tab
[3] In the Plate Configuration area of the Setup tab, select the plates you want to make available to each room.
Only the plates you select will appear on the Main Screen. Each room may have either intraoral or extraoral
plates, or both. You may change the settings at any time.
Selecting plate configuration
[4] Select a room from the Configuration Set drop-down menu.
[5] Select Intraoral or Extraoral from the Image type drop-down menu.
A list of available holders appears in the holders field on the left side:
Plate configuration area
Select a room
Select an examination procedure
