Kogan SMARTERHOME KA2KVDBELA User manual

KOGAN SMARTERHOME™
2K SMART DOORBELL
WITH CHIME
KA2KVDBELA

2
Components 3
Overview 4
Before First Use 6
Connect to SmarterHome™ App 8
App functions 11
Installation 13
Replacing a wired doorbell 16
Google Home Control 18
Amazon Alexa Control 21

3

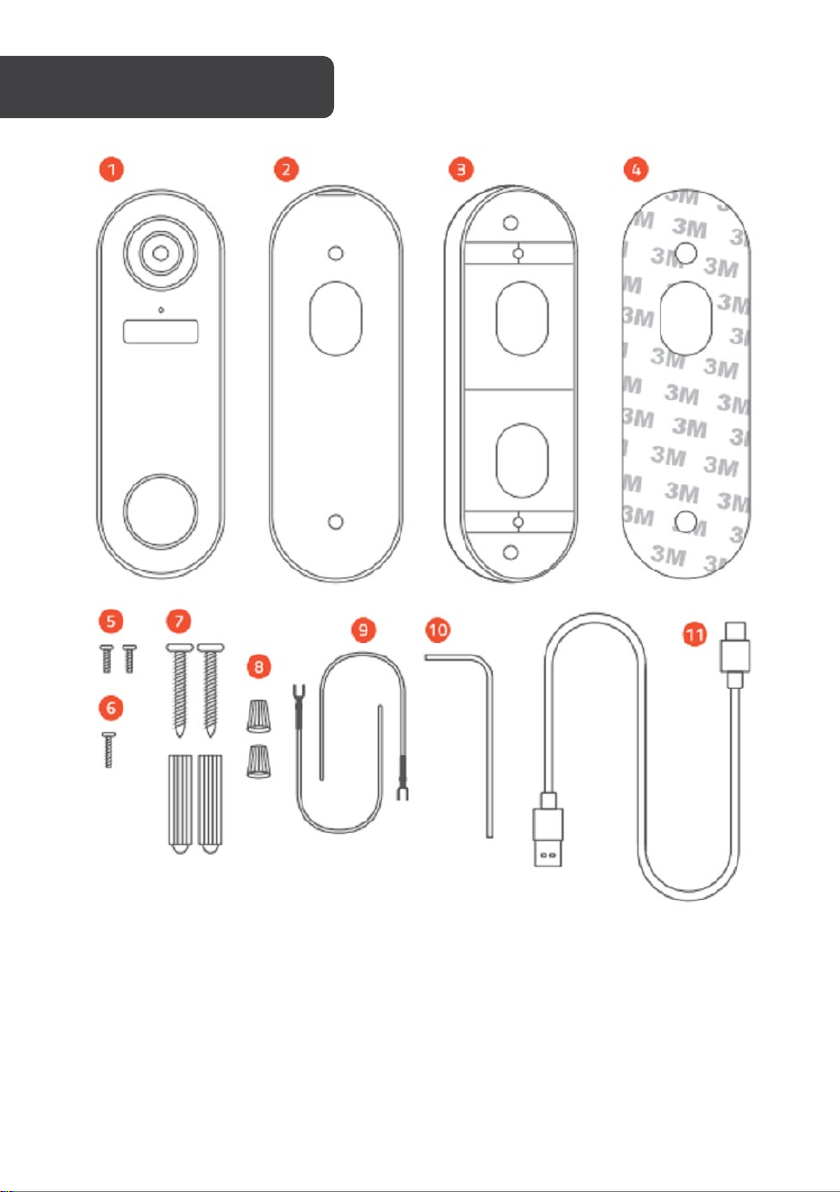

1 Kogan 2K smart doorbell 5 Screws (x2) 9 Wire extensions (x2)
2 Bracket 6 Security screw 10 Allen key
3 Corner mount 7 Screws and plugs (x2) 11 USB charging cable
4 3M double sided tape 8 Wire nuts (x2)
COMPONENTS

4
Doorbell and mount:
OVERVIEW
Magnetic metal
Microphone
Lens
Light Sensor
Motion sensor
(PIR)
Ring button
microSD
card slot
USB port
Wiring
Terminal
RCM label

5

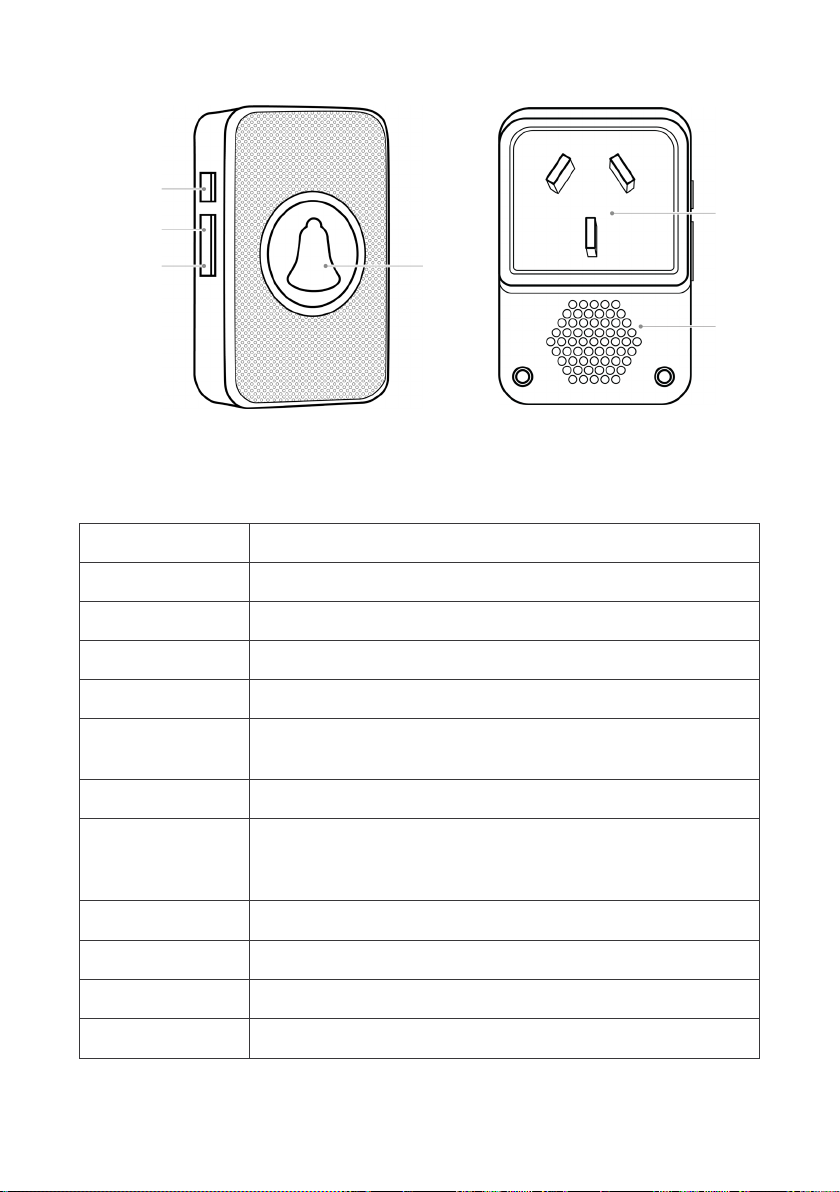

Chime:
Overview of details and functions:
Component
Description
Lens Video capture
Infrared LED Additional light in low-light conditions
Light Sensor Sensor for the light
Indicator light Indicator light shows the doorbell’s status
Ring button Button to activate doorbell. A notification will be sent to the
mobile app when ring button is pressed.
Microphone Detects sound for the SmarterHome app
Wi-Fi Reset
By pressing the reset button on the back of the device for more
than 3 seconds, you will reset the device. You will hear a sound
and see the indicator light blinking red, confirming the reset.
ON/OFF Turn on or off the unit
USB Port Connect to charge the doorbell, using a micro USB cable.
microSD card slot For inserting microSD card
Wiring terminal For connecting to your existing doorbell/chime
Volume
Backward
Forward Light
Speaker
Power

6

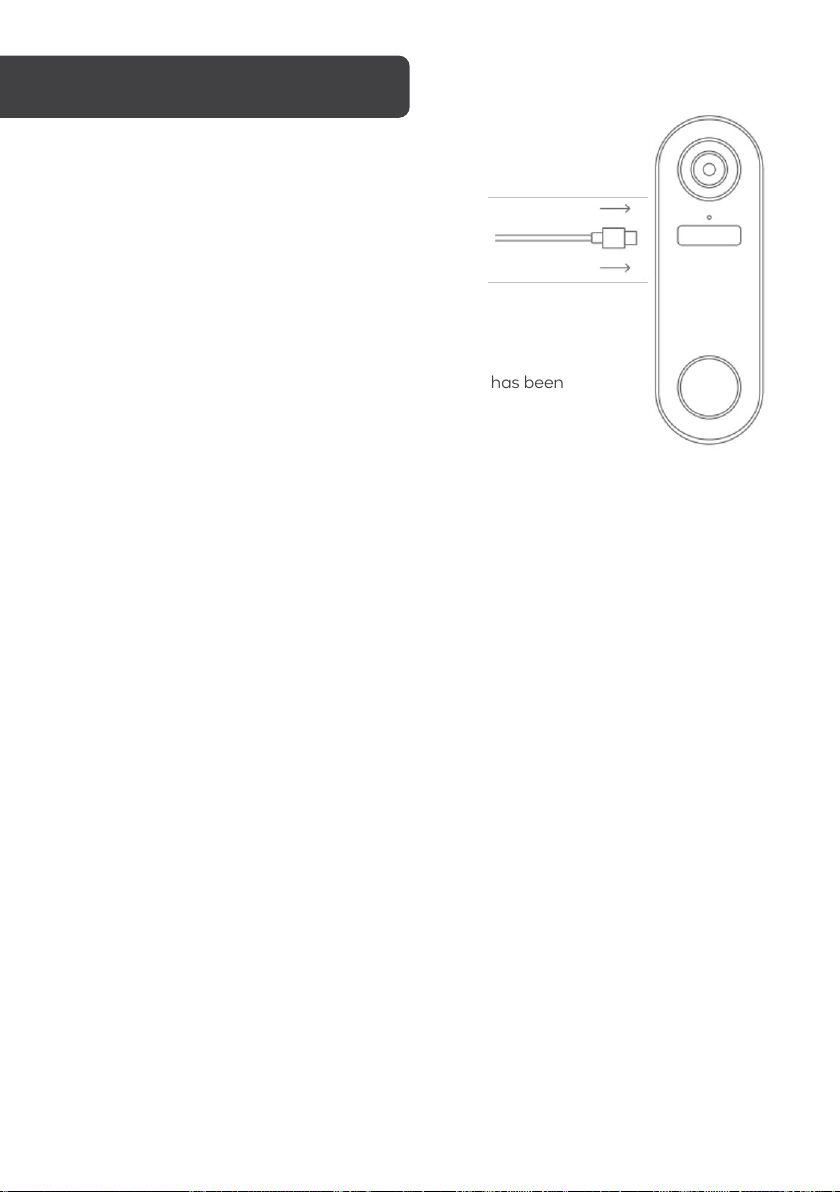

Fully charge the battery
To charge the Smart Doorbell, lift the side cover and
insert the Micro USB cable. Connect the other end
of the cable to a 5V power adapter or a USB port to
begin charging.
Pair the Chime
Before mounting the smart doorbell, ensure the device has been
successfully paired to the chime.
Plug the chime into a wall outlet or power socket.
Hold the volume button on the chime for 5 seconds, until you hear a “Ding” sound, which
means it has entered the pairing mode.
With the doorbell held close to the chime, press the doorbell button on the quickly within 8
seconds of the Chime’s “Ding” sound. If successful, you will hear the sound “Ding-Dong”,
confirming the doorbell and chime are successfully paired.
Setting the tone and volume
The doorbell tone will be set to the default when first paired. To change the tone, press the
back or forward key on the chime to cycle through the available options. There are 38 to
choose from.
After settling on your desired tone, hold the volume button for 5 seconds until you hear the
sound “Ding”, then press your doorbell quickly again. It will be paired with your selected
ringtone.
By pressing the volume button, you can cycle through the 5 volume levels.
Reset to default settings
To reset the chime back to default settings, hold the Forward button for 5 seconds until you
hear a “Ding” sound. This confirms that the chime will reset to default settings.
BEFORE FIRST USE

7
Local storage (optional)
To use local storage (recording videos or screenshots), lift the
cover on the side of the Smart Doorbell and insert a microSD
card (maximum 128GB). When connected to the
SmarterHome™ app while a compatible microSD card is
installed, an additional menu will be present in the app
settings.
Removing an existing doorbell (optional)
Before mounting the smart doorbell on a wall, door or frame, please follow the steps below.
1. Turn off the power of the existing doorbell
2. Test if the power is cut off by ringing your existing doorbell. If you do not hear a
chime, continue to step 3.
3. Remove the existing doorbell from the wall of frame.
Refer to the “Replacing A Wired Doorbell” section of this user guide for more information.
Note: If your existing doorbell is not using a wired chime, it is not possible to connect the
Smart Doorbell directly to the two wires. The Smart Doorbell can handle an alternative
voltage of 12-24V. If you need help with this process or live in a region where it is illegal to
work in the fuse box, hire a qualified electrician.

8
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.

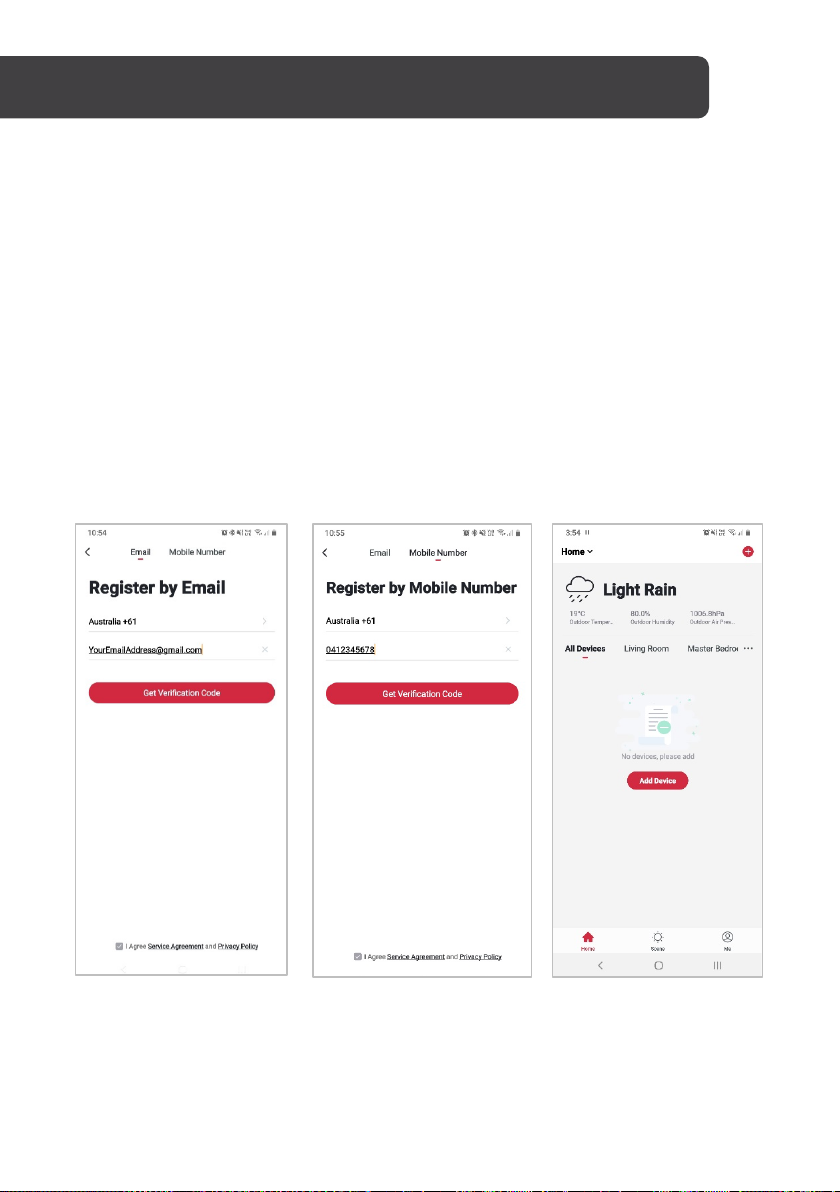

To register:
1. Tap to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

9
Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (the indicator
light will be flashing red).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by press and hold the reset button the back for 3 seconds, until indicator light
begins to flash red.
Add device through network
5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the product type from the list of options in the app (Home Security > Door
Bells).
7. Ensure that the device is in pairing mode, with the light blinking red, and tap
“Confirm light is rapidly flashing”.
8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.

10
9. Calibrate the smart doorbell’s camera by holding your smartphone 15-20cm away
from its camera lens until it successfully scans the QR code shown on the following
screen of the setup. The device will make a Prompt sound to confirm, click “I heard
a prompt” to proceed to the next screen.
10. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
11. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•
The device is only compatible with 2.4Ghz networks.

11

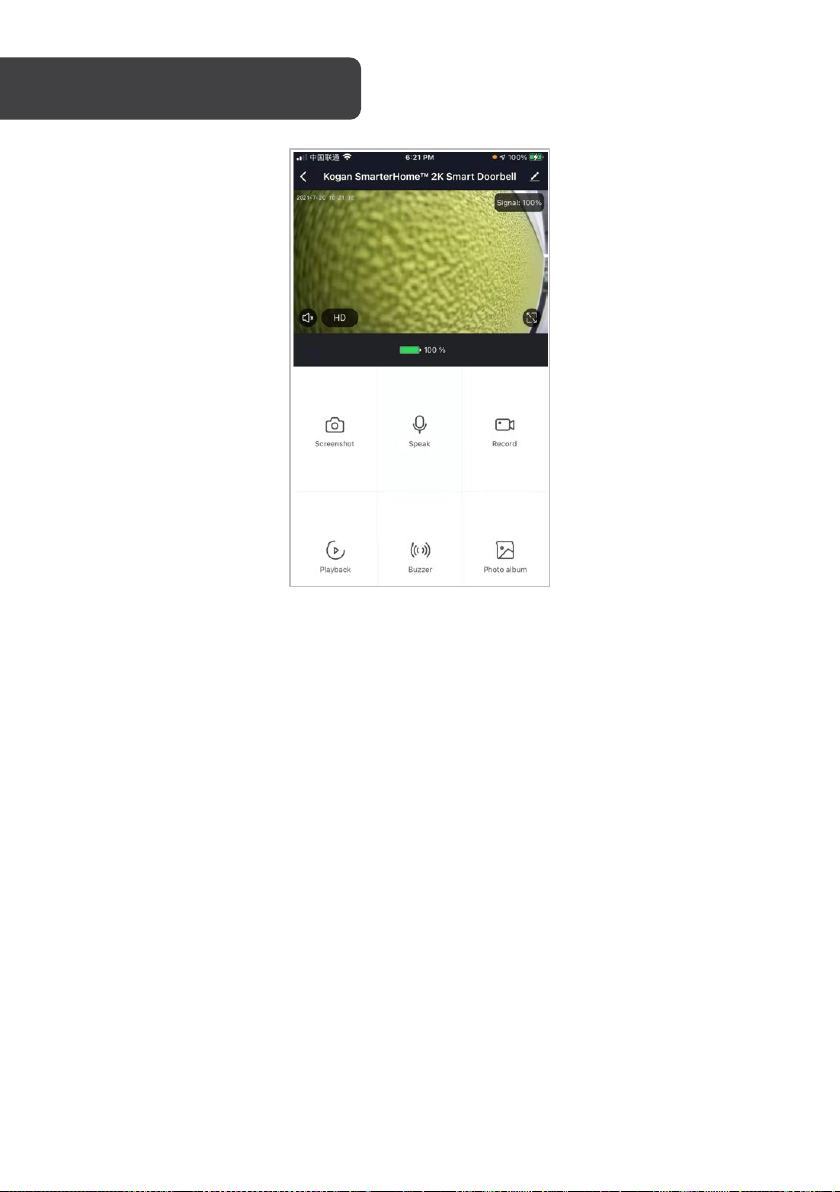

Microphone Mute or unmute the audio in the app
Speaker Tap to talk to visitors
Screenshot Tap to take screenshots. These will be saved on the microSD
card memory.
Record Tap to record videos. These will be saved on the microSD card
memory.
Playback Watch saved recordings stored in microSD card
Buzzer Scare off unwanted visitors
Photo album View saved pictures or videos stored in microSD card
Pencil Go to settings to configure your smart doorbell
HD Tap to change between HD (high definition) or SD (standard
definition)
APP FUNCTIONS

12
LED Indicator
LED status Device status
Fast blinking blue LED
(5 times per second) Trying to connect to Wi-Fi
Slow blinking red LED
(2 times per 3 seconds) Ready or reset to successfully configure
Slow blinking blue LED
(1 time per 3 seconds) Connecting to service
Blue and Red LED are off Sleep mode or offline
Fast blinking blue and red Firmware upgrade required
Bright blue LED Networking is successful and working properly, or
watching live video feed

13
Installing the Bracket or Corner Mount
Follow the steps to place the Bracket or optional Corner Mount on your door, walls or frame.
The optional Corner Mount offers a 25° angle for a better view of the smart doorbell,
depending on the location. For the corner mount, we recommend a height between 140 and
150cm for an ideal viewing angle. If using with the wiring of an existing doorbell, consider the
placement of the wiring when measuring.
1. Choose between two mounting options:
Recommended installation option:Screw and plug set.
Alternative option: Double-sided 3M tape, ideal for installing the Smart Doorbell
on a smooth surface or if you do not want to drill permanent holes.
INSTALLATION
Bracket Corner Mount
Screw and
plug set
3M tape

14
Installing with screw and plug set:

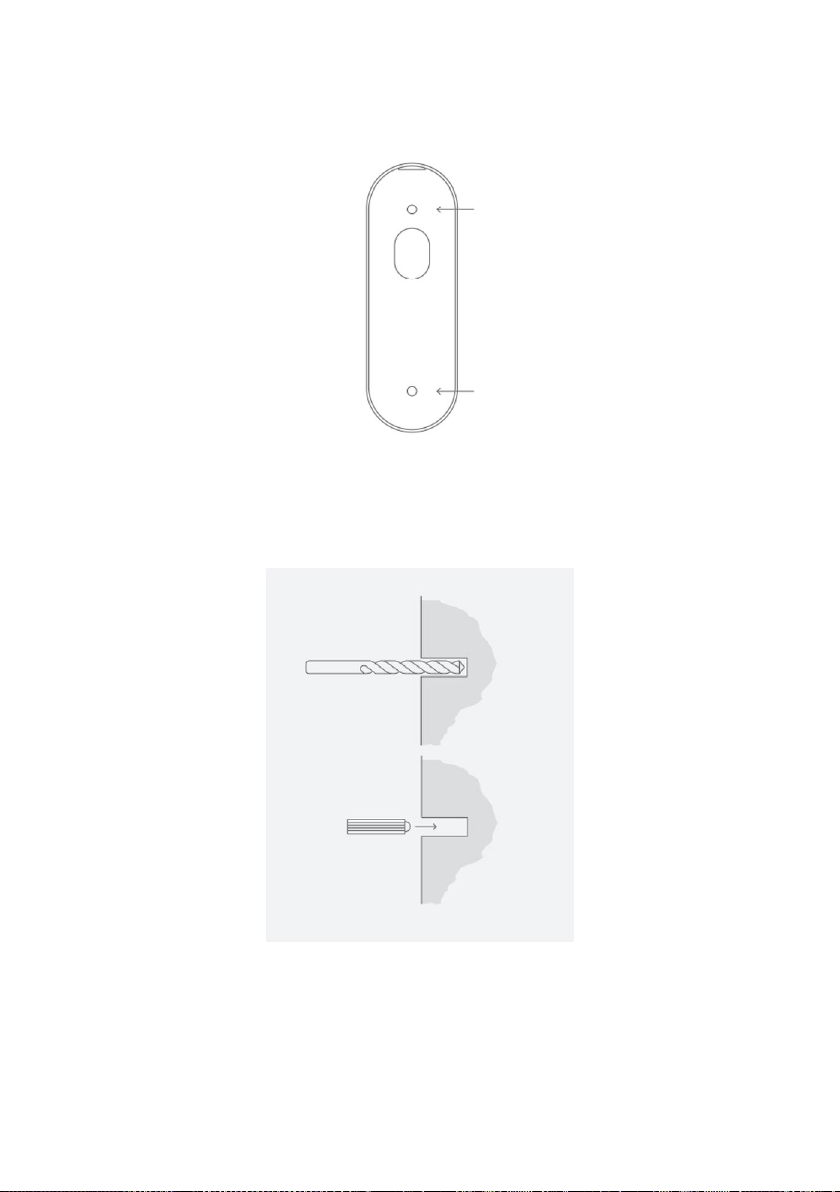

Use the Bracket or Corner Mount as a template to mark the hole placement.
If drilling into drywall or masonry, drill two holes for the plugs and insert them. Skip this step
if installing on a wooden surface.

15
Mount the Bracket or Corner Mount with the screws set. If you choose to install with the
Corner Mount, install it first, then place the bracket on the Corner Mount.
Installing with double-sided 3M tape:
Simply peel one side of the tape and place to the Bracket or Corner Mount. If you choose to
install with the Corner Mount, install it first, then place the bracket on the Corner Mount.
Then peel the other side of the tape and stick to the desired location. Hold firmly and allow
to sit without the doorbell installed for 24 hours.
Bracket +
Corner Mount
Bracket Only

16
Note: If your existing doorbell is not using a wired chime, it is not possible to connect the
Smart Doorbell directly to the two wires. The Smart Doorbell can handle an alternative
voltage of 12-24V. If you need help with this process or live in a region where it is illegal to
work in the fuse box, hire a qualified electrician.
Connect wiring
Follow the steps below to connect your existing doorbell wires to the
Smart Doorbell.

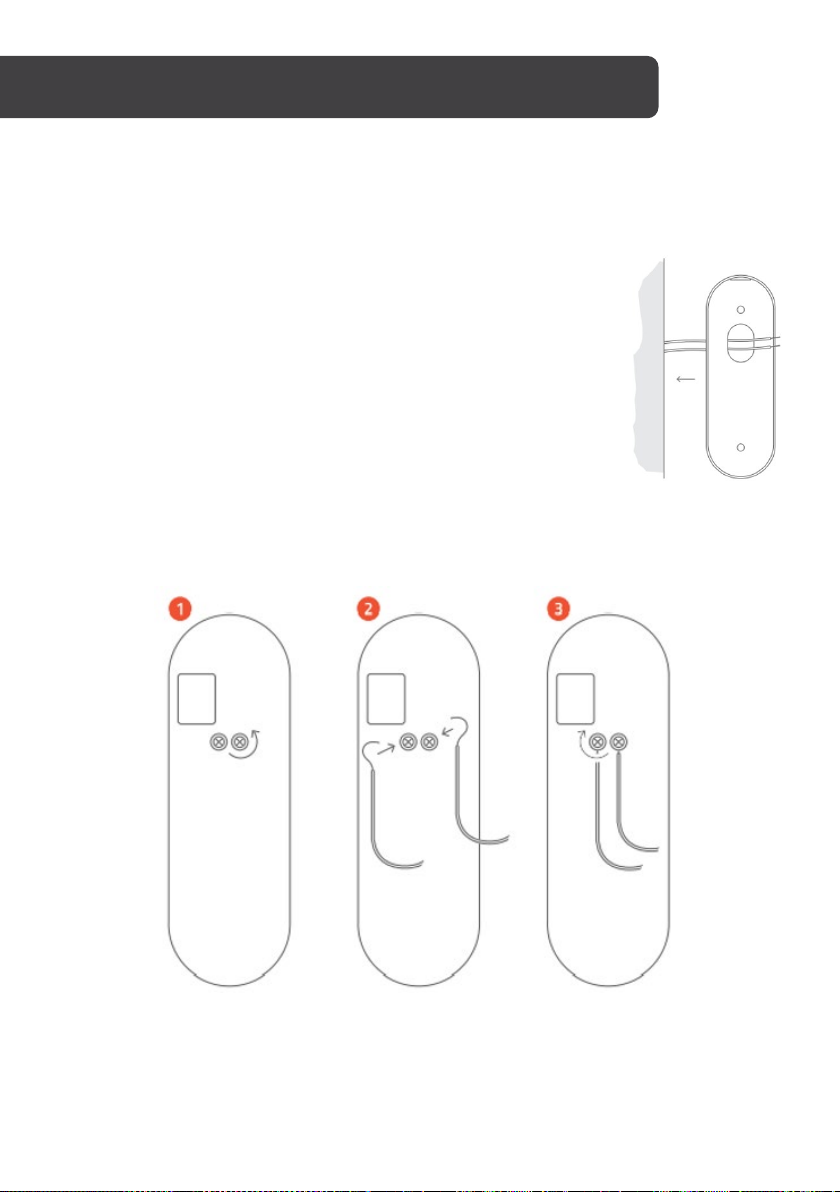

1. For a wired installation, insert the two wires through the
upper large opening and hold the bracket or Corner Mount in
the desired position.
2. Loosen the screws on the back of the Smart Doorbell with approximately 3
rotations. Attach the wires of the old doorbell. Then tighten the screws firmly
again.
Note: The colour of the wires does not matter. Also, it does not matter with wire you attach
left and right. Make sure that the metal parts of the wires do not touch each other.
REPLACING A WIRED DOORBELL

17
3. If the existing wires are too short to connect to
the back of your Smart Doorbell, please use the
provided wire extenders and wire nuts. Strip the
wire extender. insert together with the existing
wire in the wire but and twist them together.
Place the Kogan Smart Doorbell into the bracket
Attach the Smart Doorbell to the bracket by inserting the top of the Smart Doorbell into the
bracket and then pressing the button side into the bracket. Tighten the safety screw at the
bottom with supplied an Allen key.
Turn on power with a wired installation (Optional)
Switch the power back on in the junction box back so that there is voltage on your Smart
Doorbell. Test whether your existing chime response to the Smart Doorbell by pressing the
button on the doorbell.

18
Adding “SmarterHome” to the Google Home app
1. From the home page of the Google Home app, select the “+” icon to access the
‘Add and manage’ page.
2. Select ‘Set up device’, then under the Works with Google banner, select ‘Have
something already set up?’
3. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ service.
Note:
You will need to have set up a Google Home account prior to linking your
Kogan SmarterHome™ device.
GOOGLE HOME CONTROL

19
4. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and
your devices.
5. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.

20

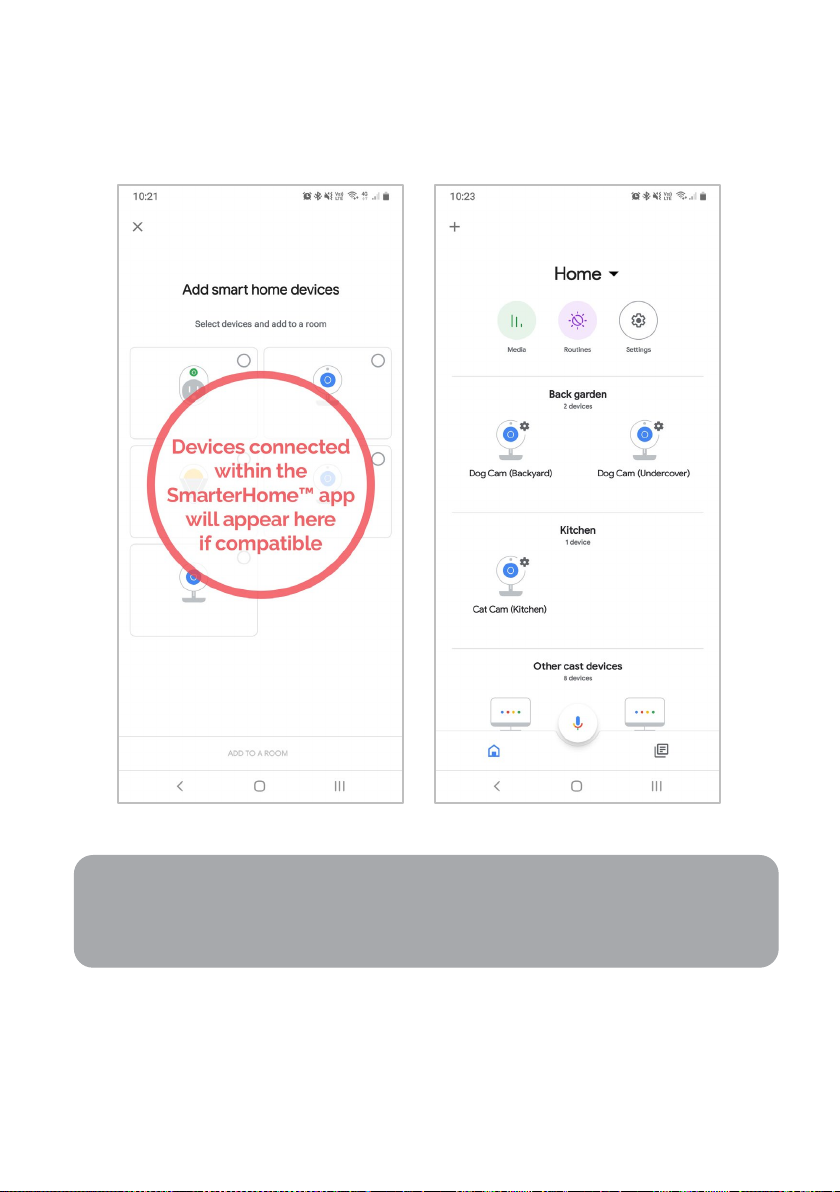

6. Once connected, the app will display any compatible devices linked to your
SmarterHome™ account. From here you can assign them to rooms and set up any
routines.
7. Tap on any of the devices to view a list of available commands.
Note:
Please note that Google Home can only control the base/core functions of any
compatible SmarterHome™ devices. To make full use of this product’s smart
functionality, please use the Kogan SmarterHome™ app.
